第十八节：网络游戏的架构基础

Online Gaming Architecture: Fundamentals

网络游戏架构

PLAY ANYWHERE WITH ANYONE

与任何人随时随地玩游戏

Game developers have never stopped exploring multiplayer online gaming

游戏开发商从未停止探索多人在线游戏

Challenges in Multiplayer Online Gaming

多人联机游戏的挑战

Consistency

一致性

  • Network Synchronization

    网络同步

Reliability

可靠性

  • Network Latency

    网络延迟

  • Drop and Reconnect

    断线重连

Security

安全性

  • Cheats

    作弊

  • Accounts Hacked

    账户被黑客攻击

Diversities

多样性

  • Cross-Play

    交叉游戏

  • Rapid iteration

    快速迭代

  • Multiple Game Systems

    多游戏系统

Complexities

复杂性

  • High Concurrency

    高并发性

  • High Availability

    高可用性

  • High Performance

    高性能

Network Protocols

网络协议

The Founding Fathers of the Internet

互联网的创始人（一开始用于军事用途）

Designed the TCP/lP protocols andthe internet architecture.

设计了 TCP/IP 协议和互联网架构。

In 1977 Cerf and Kahn will link three networks (packet radio, satellite, and the ARPANET) and prove the efficacy of their TCP/lP protocol in a dramatic round-the-world transmission from a moving vehicle, the SRl Packet RadioResearch van.

1977 年，Cerf 和 Kahn 将连接三个网络（分组无线电、卫星和 ARPANET），并证明他们的 TCP/lP 协议在移动车辆 SRl 分组无线电研究车的戏剧性环球传输中的有效性。

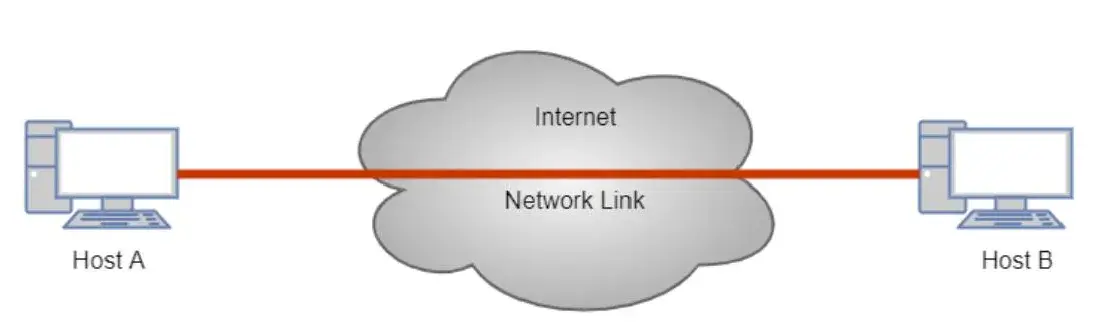

How to communication between two PCs

  • A and B must agree on the meaning of the bits being sent and received at many different levels, including

    A 和 B 必须就在许多不同级别发送和接收的比特的含义达成一致，包括

    • How many volts represents a 0 bit, and for a 1 bit?

      多少伏特代表 0 位，多少伏特代表 1 位？

    • How does receiver know which is the last bit?

      接收器如何知道哪个是最后一位？

    • How many bits long is a number?

      一个数字有多少位长？

webp

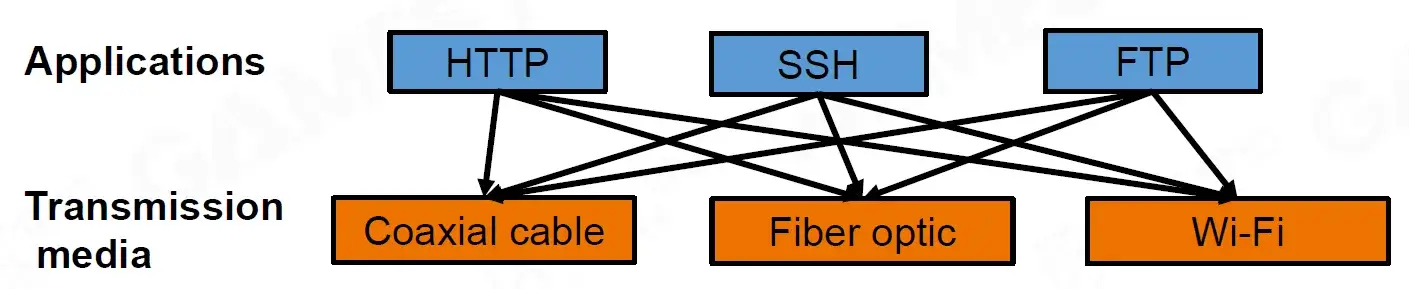

The Problem of Communication

沟通问题

webp

  • Re-implement every application for every new underlying transmission medium?

    为每个新的底层传输介质重新实施每个应用程序？

  • Change every application on any change to an underlying transmission medium?

    在更改基础传输介质时更改每个应用程序？

  • No! But how does the Internet design avoid this?

    不！但是，互联网设计是如何避免这种情况的呢？

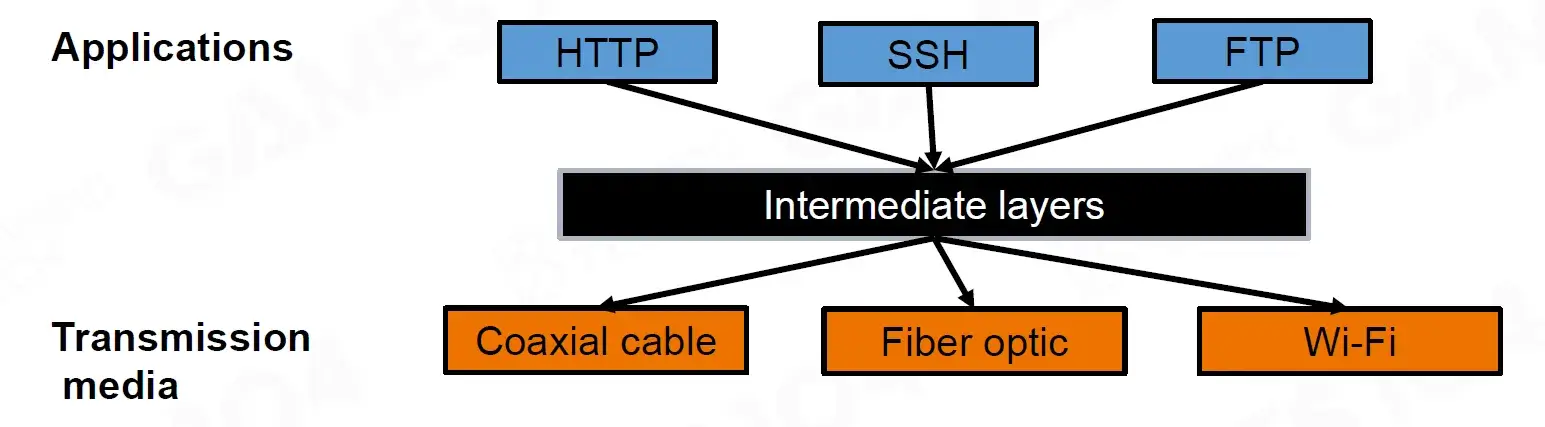

Solution: Layering

解决方法：分层

webp

  • Intermediate layers provide a set of abstractions for applications and media

    中间层为应用程序和媒体提供了一组抽象

  • New applications or media only need implementation for intermediate layer's interface

    新的应用程序或媒体只需要实现中间层的接口

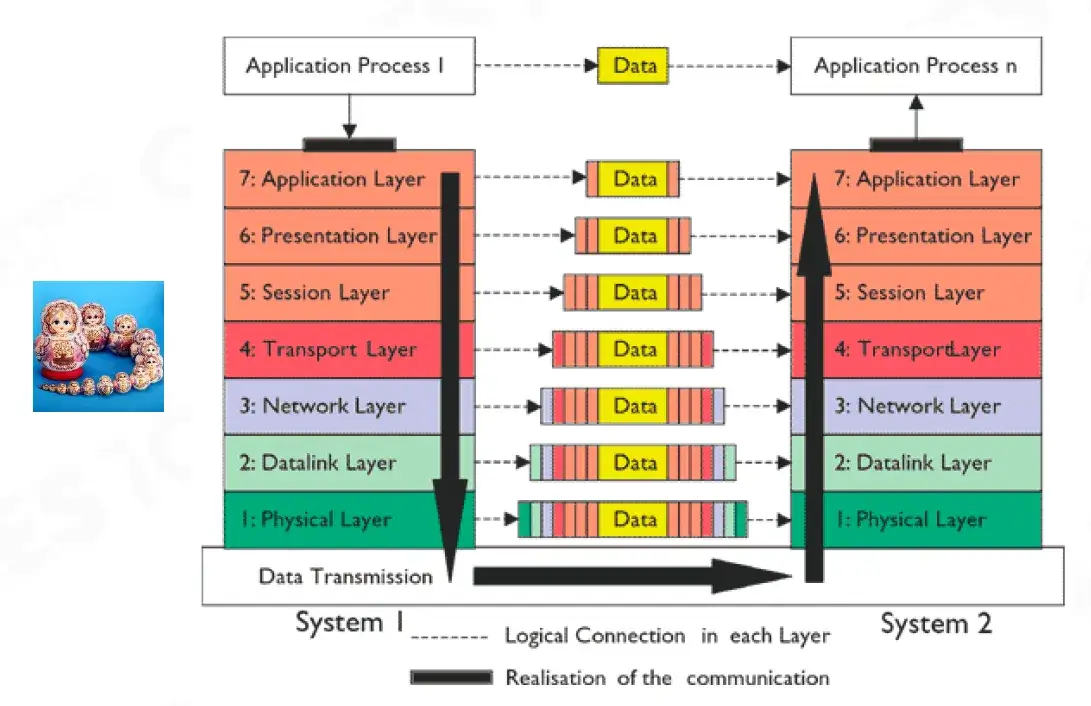

Layering in the internet - OSI Model

互联网分层——OSI 模型

Application 应用层

  • Provides functions to users 为用户提供功能

Presentation 表示层

  • Converts different representations 转换不同的表示形式

Session 会话层

  • Manages task dialogs 管理任务对话框

Transport 传输层

  • Provides end-to-end delivery 提供端到端交付

Network 网络层

  • Sends packets over multiple links 通过多个链路发送数据包

Data Link 数据链路层

  • Sends frames of information 发送信息帧

Physical 物理层

  • Sends bits as signals 以信号形式发送比特
webp

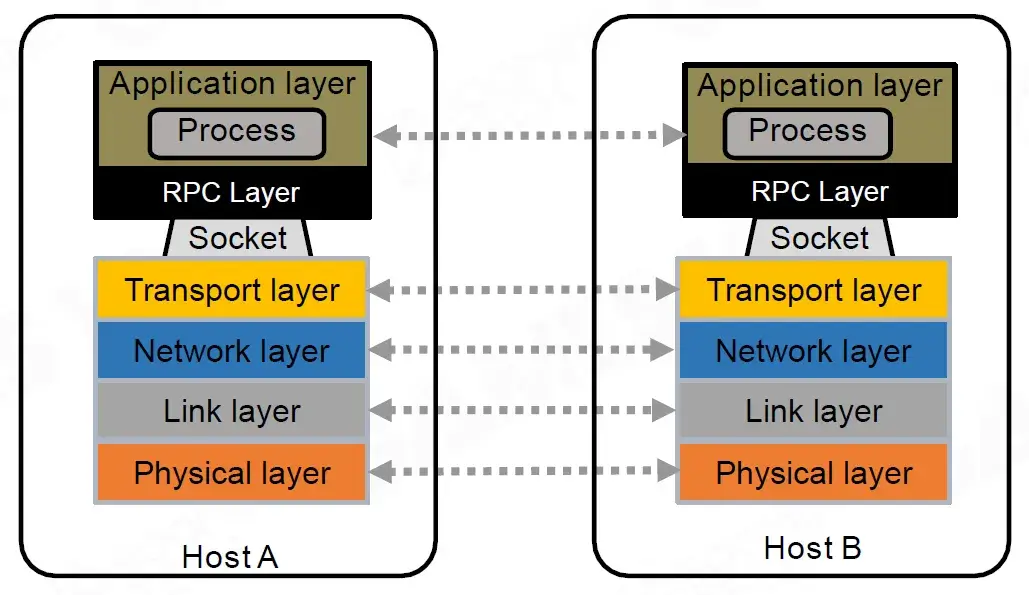

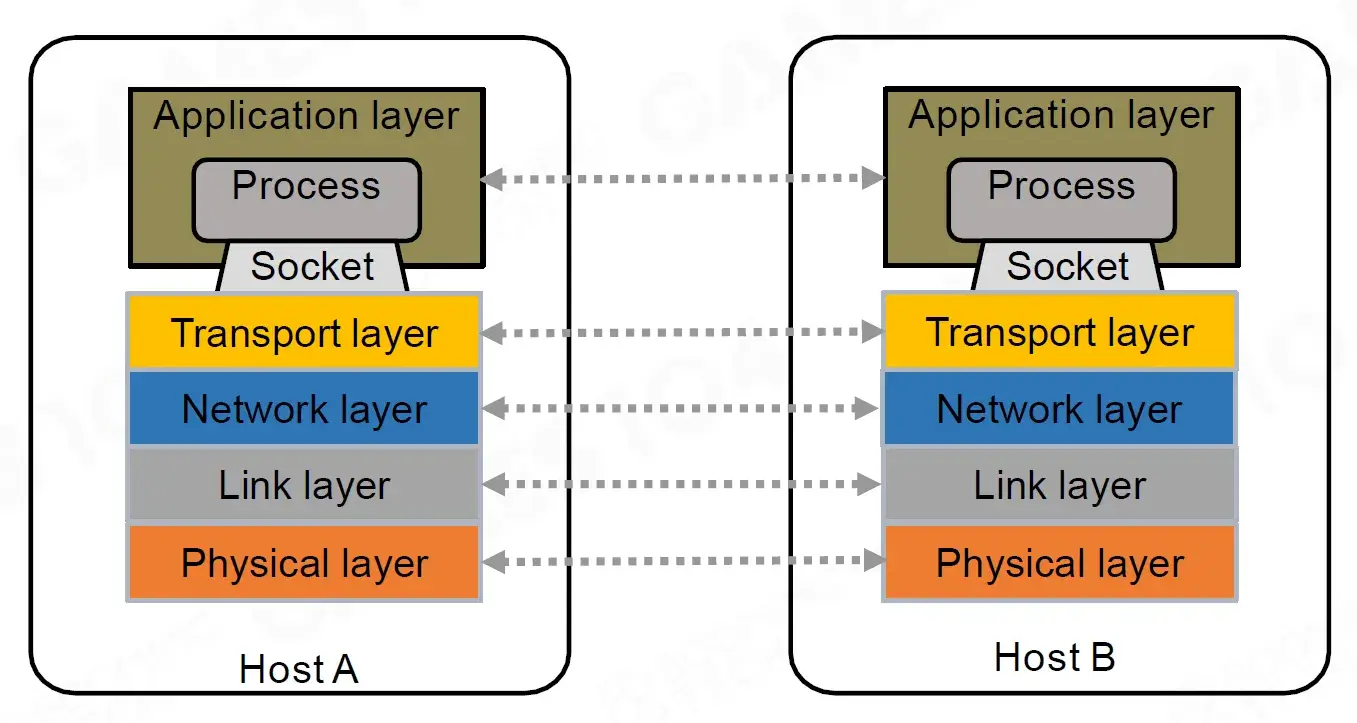

Network Socket-based Communication

基于网络套接字的通信

webp

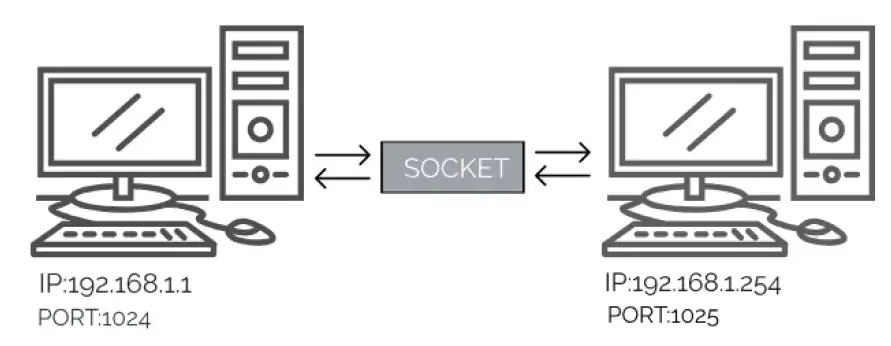

Socket

套接字

A software structure within a network node of a computer network that serves as an endpoint for sending and receiving data across the network.

计算机网络的网络节点内的软件结构，用作通过网络发送和接收数据的端点。

A Socket is combination of an lP Address and a Port Number.

Socket 是 IP 地址和端口号的组合。

webp
C++
// server side
struct sockaddr_in saddr, caddr;
int sockfd, clen, isock;
unsigned short port = 80;

if ((sockfd=Socket(AF INET,SOCK STREAM,0) < 0) {
    printf("Error creating socket\n");
    ...
}

memset(&saddr, '\0', sizeof(saddr));  // zero structure out
saddr.sin family = AF INET;  // match the socket() call
saddr.sin addr.s addr = htonl(INADDR ANY); // bind to any local addresss
addr.sin port = htons(port);  // specify port to listen on

if((bind(sockfd, (struct sockaddr *)&saddr, sizeof(saddr)) < 8) { // bind
    printf("Error binding\n");
    ...
}

if(listen(sockfd, 5) < 0) {  // listen for incoming connections
    printf("Error listening\n");
    ...
}

clen=sizeof(caddr)
if((isock=accept(sockfd, (struct sockaddr *)&caddr, &clen)) < 8) { // accept one
    printf("Error accepting\n");
    ...
}

Setup Socket

安装套接字

Both client and server need to setup the socket

客户端和服务器都需要设置套接字

  • Function int socket(int domain, int type, int protocol)

    • domain

      • AF_INET -- IPV4

      • AF_INET6 -- IPV6

        ...

      • type

        • SOCK_STREAM -- TCP

        • SOCK_DGRAM -- UDP

          ...

      • protocol

        • 0

    • E0 int sockfd = socket(AF_INET, SOCK_STREAM, 0)

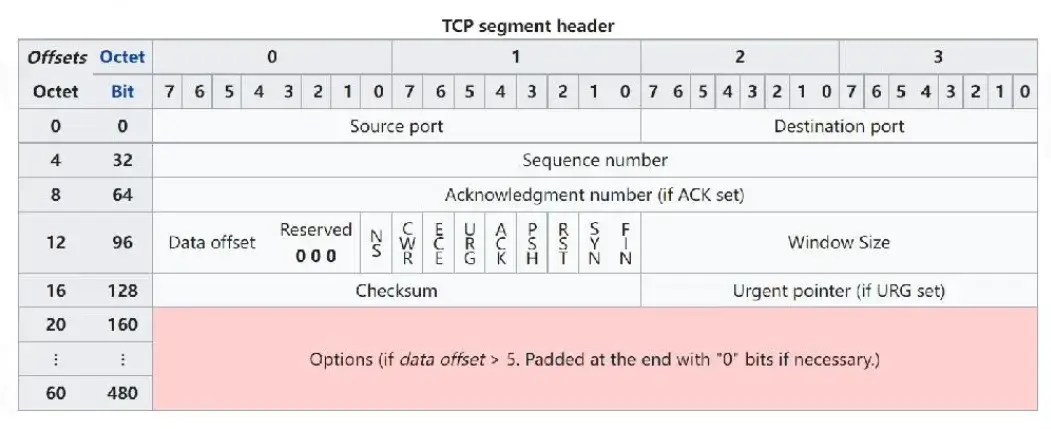

Transmission Control Protocol (TCP)

传输控制协议（TCP）

  • Connection-Oriented

    面向连接

  • Reliable and Ordered

    可靠且有序

  • Flow Control

    流量控制

  • Congestion Control

    拥堵控制

webp

TCP Retransmission Mechanisms

TCP 重传机制

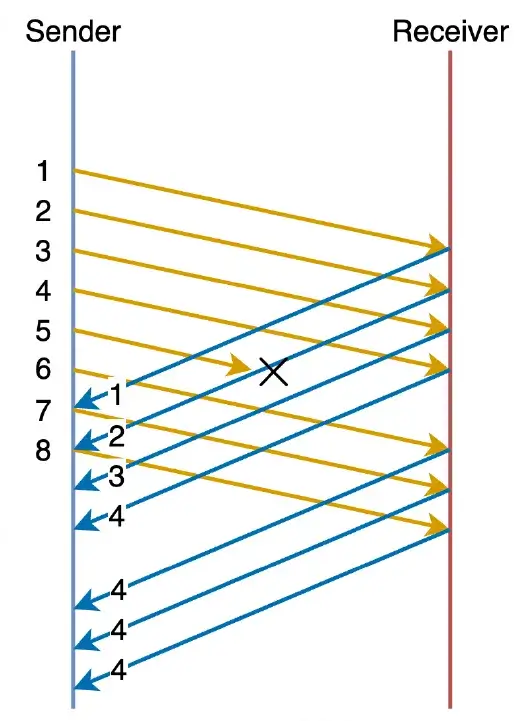

Duplicate ACKs

重复 ACK

  • Senders sends packets and seqnos

    发送方发送数据包和序列号

    • 1,2, 3, 4, 5, 6, 7, 8

  • Assume 5th packet (seqno 5) is lost, Streamof ACKs will be

    假设第 5 个数据包（序列号 5）丢失，则 ACK 流将

    • 1, 2, 3, 4, 4, 4, 4
webp

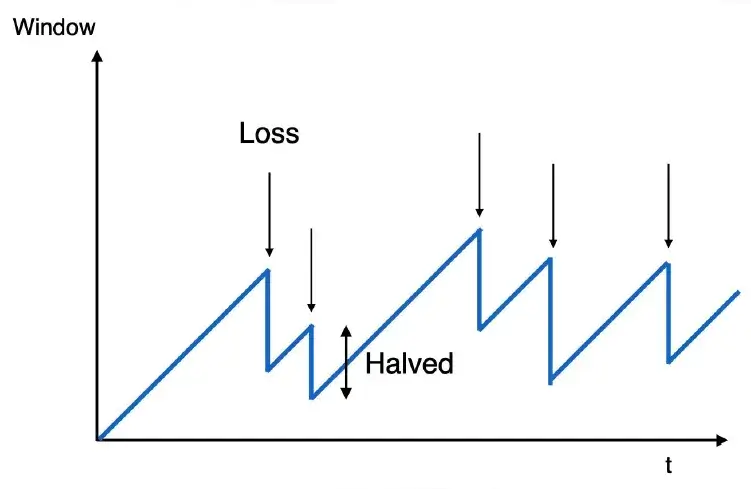

TCP congestion control

TCP 拥塞控制

  • The congestion window (CWND) of TCP starts to grow from a small value

    TCP 的拥塞窗口（CWND）从一个小值开始增长

  • When congestion occurs, packet loss or timeout, CWND will be reduced according to a certain algorithm

    当发生拥塞、丢包或超时时，CWND 将根据特定算法减少

  • This leads to high delay and cause delay jitter

    这会导致高延迟并导致延迟抖动

webp

As the main transmission protocol on the lnternet, TCP congestion control is necessary, otherwise it will cause congestion collapse. TCP congestion control is the main congestion control measure on the Internet, and it is also the main cause of TCP performance problems.

作为互联网上的主要传输协议，TCP 拥塞控制是必要的，否则会导致拥塞崩溃。TCP 拥塞控制是互联网上主要的拥塞控制措施，也是 TCP 性能问题的主要原因。

User Datagram Protocol (UDP)

用户数据报协议（UDP）

David P. Reed

He was involved in the early developmentof TCP/lP, and was the designer of the User Datagram Protocol (UDP), thoughhe finds this title "a little embarrassing".

他参与了 TCP/lP 的早期开发，是**用户数据报协议（UDP）**的设计者，尽管他觉得这个头衔“有点尴尬”。

He was also one of the authors of theoriginal paper about the end-to-end principle, End-to-end arguments insystem design, published in 1984.

他也是 1984 年发表的关于端到端原理系统设计中的端到端论证的原始论文的作者之一。

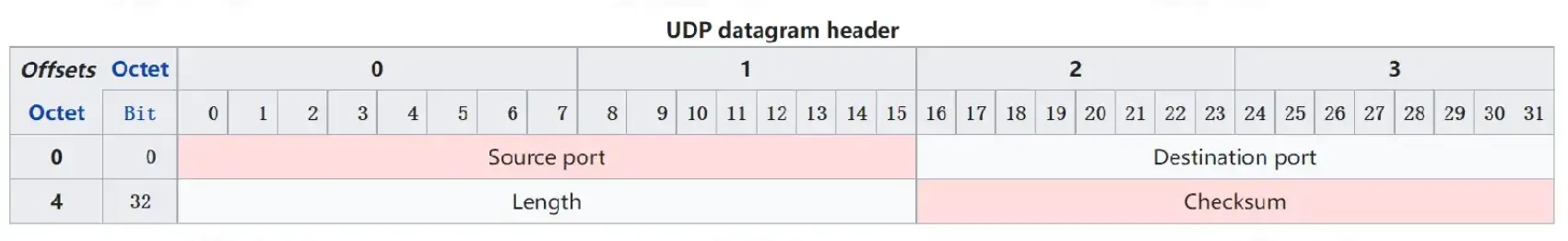

UDP Features

UDP 功能

UDP (User Datagram Protocol)

UDP（用户数据报协议）

  • Connectionless

    无连接

  • UnReliable and Unordered

    不可靠和无序

  • NO Flow Control

    无流量控制

  • NO Congerstion Control

    无堵塞控制

webp

Network Protocols Usage in Game

Game suitable for use

  • TCP

    炉石

  • UDP

    守望先锋、CSGO

TCPUDP
Structure
结构		Segments
部分		Datagrams
数据报
Connection Model
连接模型		Connection-Oriented
面向连接的		Connectionless
无连接的
Speed
速度		Slow
慢		Fast
快
Reliability
可靠性		Reliable
可靠		Unreliable
不可靠
Header
标头		20 Bytes
8 Bytes
Data Transfer
数据传输		Ordered
有序的		Unordered
无序的
Control
控制		Flow Control
流量控制		NO Flow Control
无流量控制

Reliable UDP

可靠 UDP，在 UDP 的基础上加以改进。

TCP is Not Time Critical

TCP 不重视及时性

  • TCP is the complex and heavyweight protocol. lt provides reliable delivery and advanced features, but it has more overhead.

    TCP 是复杂而重量级的协议。它提供可靠的交付和高级功能，但开销更大。

  • TCP is a fair, traffic oriented protocol designed to improve bandwidth utilization. But it's not designed for speed.

    TCP 是一种公平的、面向流量的协议，旨在提高带宽利用率。但它不是为速度而设计的。

  • So Why TCP is slow?

    为什么 TCP 很慢？

UDP is Fast but Unreliable

UDP 速度快但不可靠

  • UDP is lightweight and fast but unreliable, packet loss and disorder will occur.

    UDP 是轻量级和快速的，但不可靠，会发生数据包丢失和混乱。

  • How to achieve reliable and real-time communication?

    如何实现可靠和实时的通信？

Why We Need to Customize Protocol

为什么我们需要定制协议

  • Game Server

    游戏服务器

    • Keep-alived connection (TCP)

      保持有效连接（TCP）

    • Need keep logic consistency in "order" (TCP)

      需要保持“顺序”（TCP）中的逻辑一致性

    • High responsive & low latency (UDP)

      高响应和低延迟（UDP）

    • Broadcast commonly used (UDP)

      常用广播（UDP）

  • Web Server

    Web 服务器

    • Handles the HTTP protocol

      处理 HTTP 协议

    • Delivers static web content e.g., HTML pages, files, images, video.

      提供静态网络内容，例如 HTML 页面、文件、图像、视频。

Acknowledgement & Sequence Number

确认和序列号

  • Positive acknowledgment (ACK) is a signal that is passed between communicating processes, computers, or devices to signify acknowledgment, or receipt of message

    **肯定应答（ACK）**是在通信进程、计算机或设备之间传递的信号，表示确认或收到消息

  • Negative ACK (NACK or NAK) is a signal that is sent to reject a previously receivedmessage or to indicate some kind of error

    **否定 ACK（NACK 或 NAK）**是一种信号，用于拒绝之前接收到的消息或指示某种错误

  • Sequence number (SEQ) is a counter used to keep track of every byte sent outward bya host

    **序列号（SEQ）**是一个计数器，用于跟踪主机向外发送的每个字节

  • Timeouts specified periods of time allowed to elapse before an acknowledgment is tobe received

    超时在收到确认之前允许经过的特定时间段

Automatic Repeat Request (ARQ)

自动重复请求（ARQ）

An error-control method for data transmission that uses ACK and timeouts to achieve reliable data transmission over an unreliable communication channel.

一种用于数据传输的错误控制方法，该方法使用 ACK 和超时来在不可靠的通信信道上实现可靠的数据传输。

If the sender does not receive an acknowledgment before the timeout, it re-transmits thepacket until it receives an acknowledgment or exceeds a predefined number of retransmissions.

如果发送方在超时之前没有收到确认，它会重新发送数据包，直到收到确认或超过预定义的重新传输次数。

  • Sliding window protocol

    滑动窗口协议

    • Stop-and-Wait ARQ

      停止并等待 ARQ

    • Go-Back-N ARQ

    • Selective Repeat ARQ

      选择性重复 ARQ

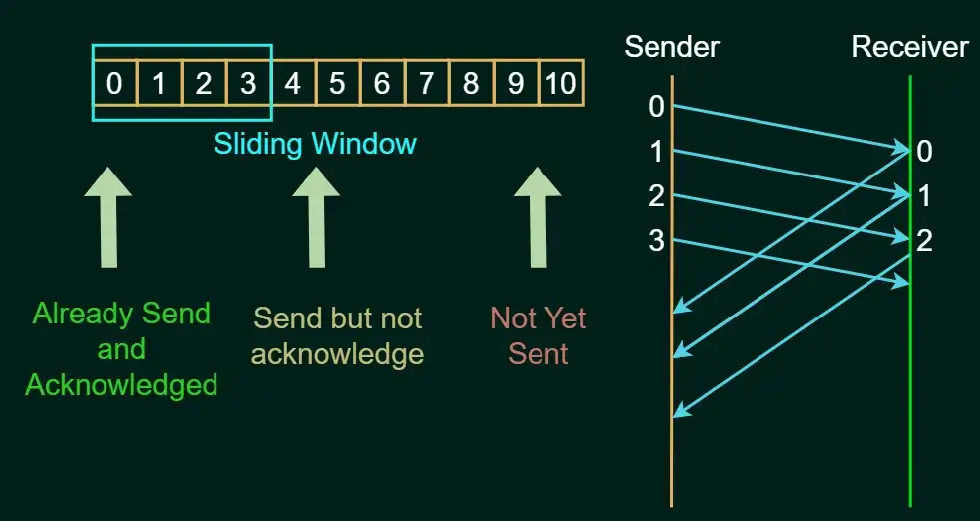

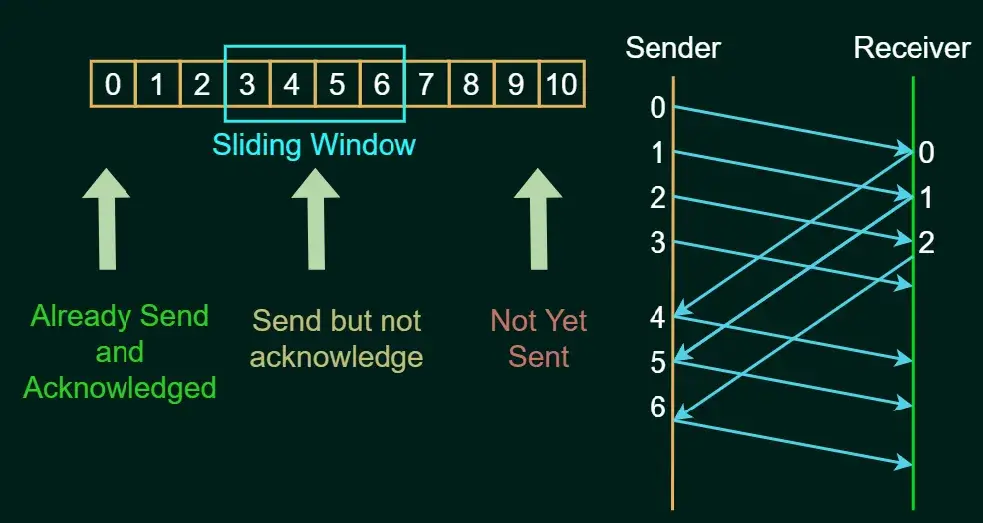

Sliding Window Protocol

滑动窗口协议

  • Send mutilple frames at a time, number of frames to be sent is based on Window size

    一次发送多个帧，要发送的帧数基于窗口大小

  • Each frame is numbered by Sequence number

    每帧按序列号编号

  • When the frame at the front of the window is received, the window slides

    当收到窗户前部的框架时，窗户会滑动

webp webp

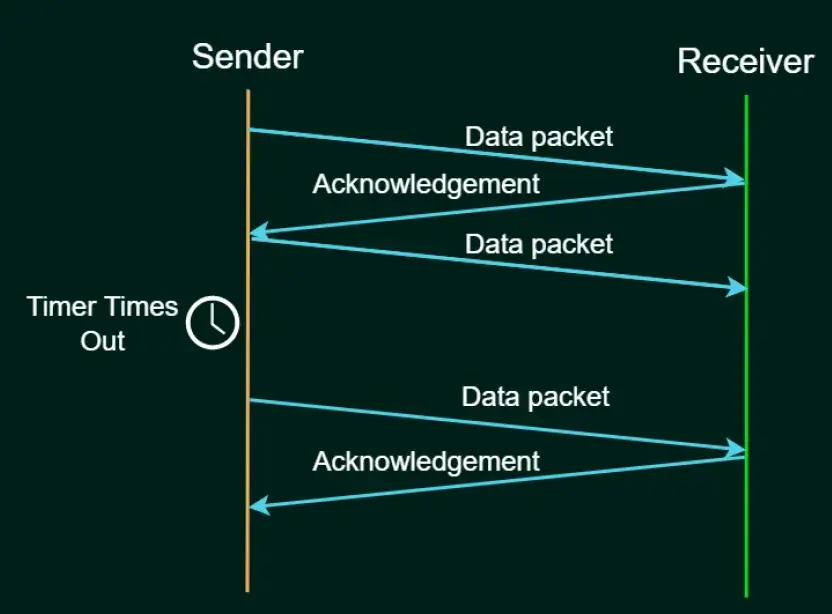

Stop-and-Wait ARQ

停止并等待 ARQ

  • Windows size = 1

    窗口大小 = 1

  • After transmitting one frame, the sender waits for an ACK before transmitting the next frame

    发送一帧后，发送方在发送下一帧之前等待 ACK

  • If the ACK does not arrive after a certain time, the sender times out and retransmits the original frame

    如果 ACK 在特定时间后未到达，则发送方超时并重新传输原始帧

  • Poor utilization of bandwidth, poor performance

    带宽利用率低，性能差

webp

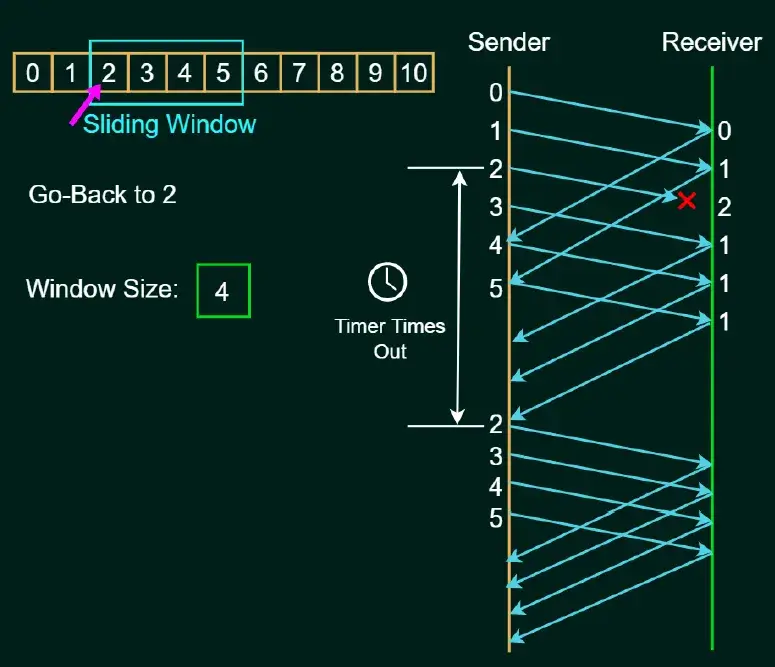

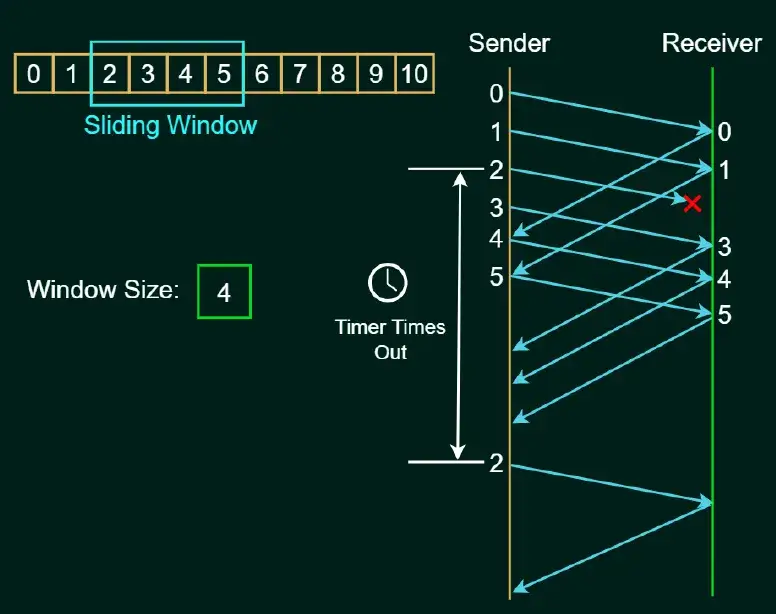

Go-Back-N ARQ

  • N is Sender's Windows Size

    N 是发件人的窗口大小

  • The Receiver only sends cumulative ACK

    接收器仅发送累积 ACK

  • If an ACK is not received within an agreed-upon time period, all frames in the current window are transmitted

    如果在商定的时间段内未收到 ACK，则传输当前窗口中的所有帧

webp

Selective Repeat ARQ

选择性重复 ARQ

  • In Selective Repeat ARQ, only the damaged or lost frames are retransmitted

    在选择性重复 ARQ 中，只有损坏或丢失的帧会被重新传输

  • The receiver sends the ack of each frame, and the sender maintains the timeout time of each frame

    接收方发送每帧的 ack，发送方保持每帧的超时时间

  • When receiver receive damaged packet, it willsend a NACK, The sender will send/retransmitframe for which NACK is received

    当接收方收到损坏的数据包时，它将发送一个 NACK。发送方将发送/重新发送收到 NACK 的帧

webp

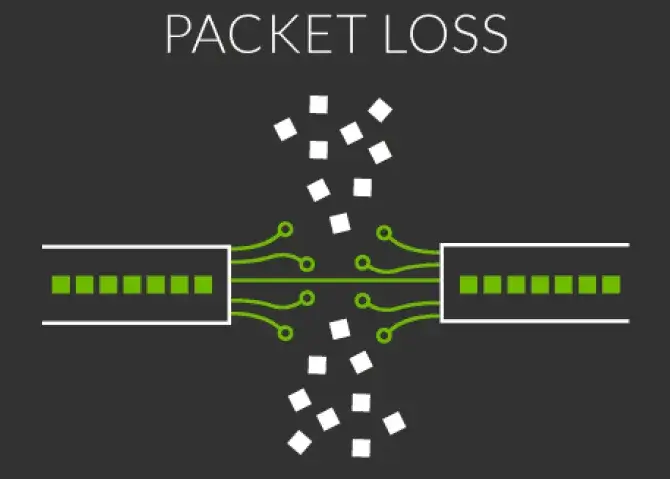

Make UDP Reliable in Packet Loss Scenario

在丢包情况下使 UDP 可靠

With the increase of packet loss rate and delay, the reliable UDP can not meet the transmission requirements gradually.eg. lf packet loss rate increase to 20%, use reliable UDP is still with high delay.

随着丢包率和延迟的增加，可靠的 UDP 逐渐无法满足传输要求。例如，如果丢包率增加到 20%，使用可靠的 UDP 仍然具有高延迟。

webp

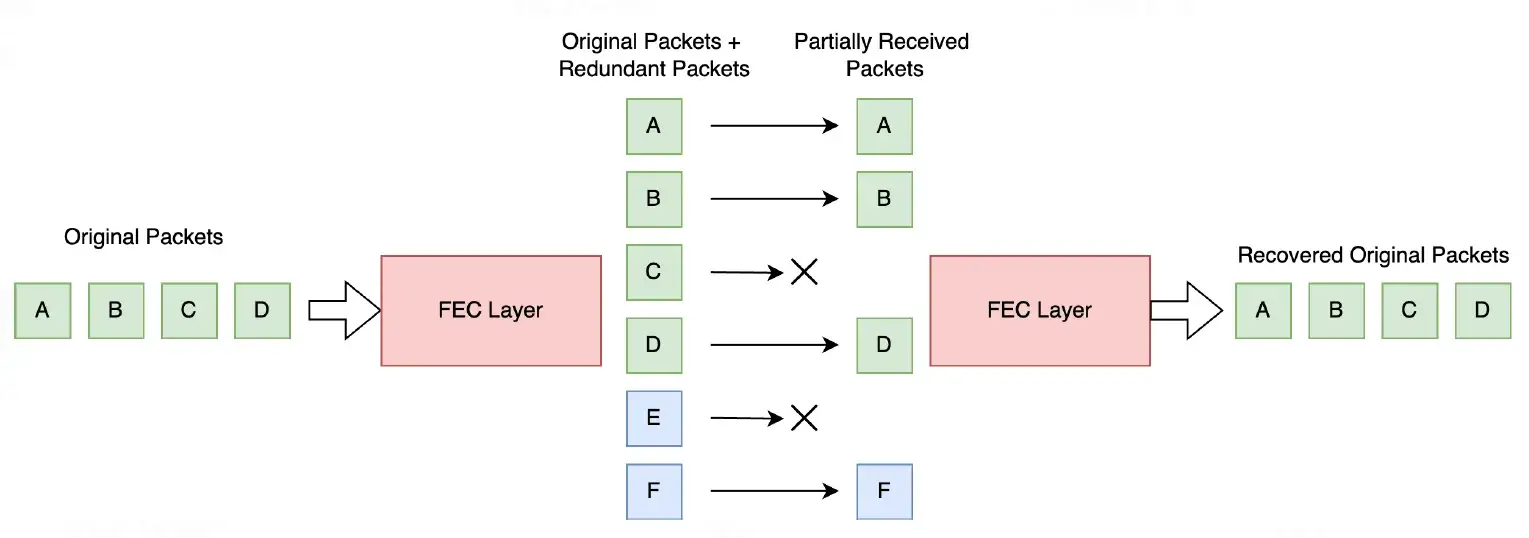

Forward Error Correction (FEC)

前向纠错（FEC）

  • The transmission of enough additiona, redundant information with the primary data stream to reconstruct lost lP packets up to a certain extent

    与主数据流一起传输足够的附加、冗余信息，以在一定程度上重建丢失的 IP 数据包

webp

XOR-FEC

ABA XOR B
000
011
101
110
Law 律Desc 描述
Law of identity 同一律A xor 0 = A
Zeroing law 零律A xor A = 0
Commutative law 交换律A xor B = B xor A
Associative law 结合律A xor (B xor C) = (A xor B) xor C

C = A xor B

A = A xor (B xor B) = (A xor B) xor B = C xor B

B = (A xor A) xor B = A xor C

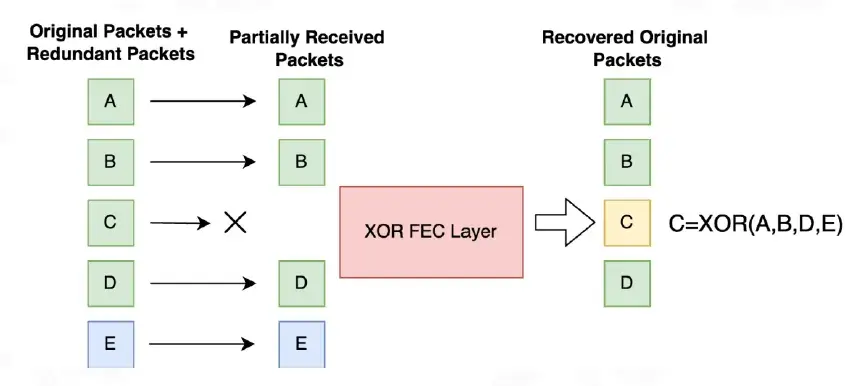

  • There are four packets A, B, C, D
    • Let E = XOR (A, B, C, D)
    • A = XOR (B, C, D, E)
    • B = XOR (A, C, D, E)
    • C = XOR (A, B, D, E)
    • D = XOR (A, B, C, E)
webp

If any packet is lost, it can be recovered with the other four packets.

如果任何一个数据包丢失，可以用其他四个数据包恢复。

Only one packet can be lost in continuous data. lf AA and BB are lost at the same time, the algorithm cannot recover.

连续数据中只能丢失一个数据包。如果 AA 和 BB 同时丢失，则算法无法恢复。

Reed-Solomon Codes

里德-所罗门码

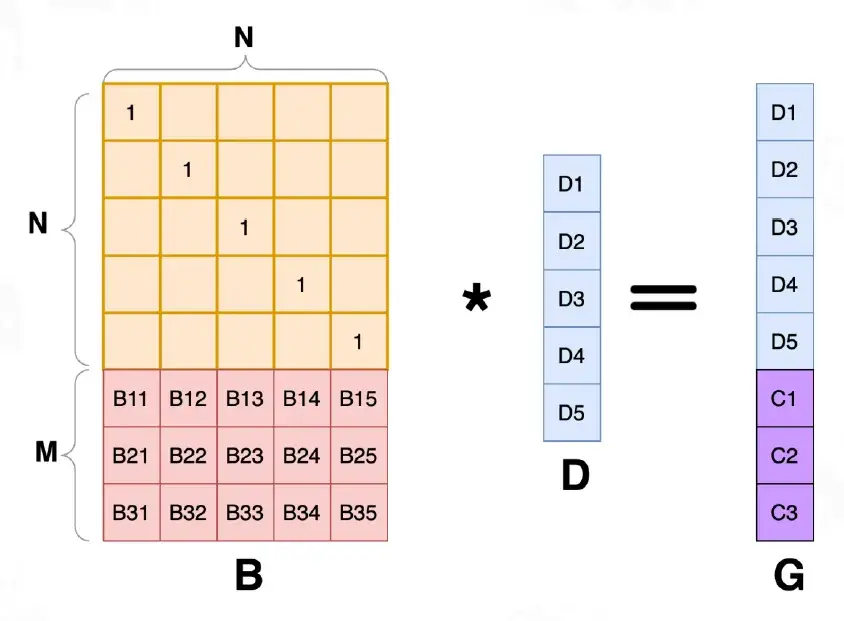

There are NN valid data, and MM FEC data are expected to be generated

有 NN 个有效数据，预计将生成 MM 个 FEC 数据

  • Form NN valid data into a unit vector DD

    将 NN 个有效数据转换为单位向量 DD

  • Generate a transformation matrix BB: it is composed of a NN-order identity matrix and a N∗MN * M Vandemode matrix (The matrix composed of any n rows of matrix BB is reversible)

    生成一个变换矩阵 BB：它由一个 NN 阶恒等式矩阵和一个 N∗MN * M Vandemode 矩阵组成（该矩阵由以下任意 NN 行组成矩阵 BB 是可逆的）

  • The matrix GG obtained by multiplying the matrix BB and Vector DD contains MM redundant FEC data

    通过将矩阵带向量 DD 相乘获得的矩阵 GG 包含 MM 个冗余 FEC 数据

webp

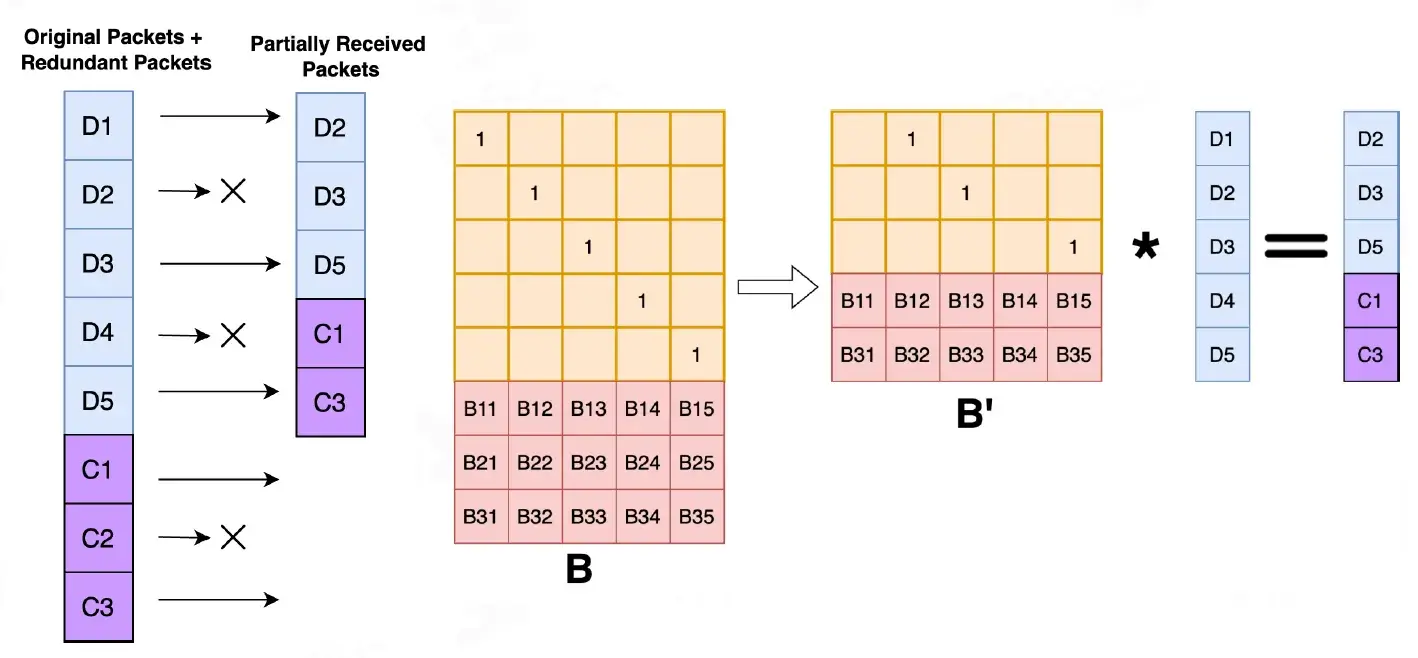

Assume D1D1, D4D4, C2C2 are lost

假设 D1D1、D4D4、C2C2 丢失

  • The BB matrix also needs to delete the corresponding MM rows to obtain a deformation matrix of B′B'

    BB 矩阵还需要删除相应的 MM 行，以获得 B′B' 的变形矩阵

webp

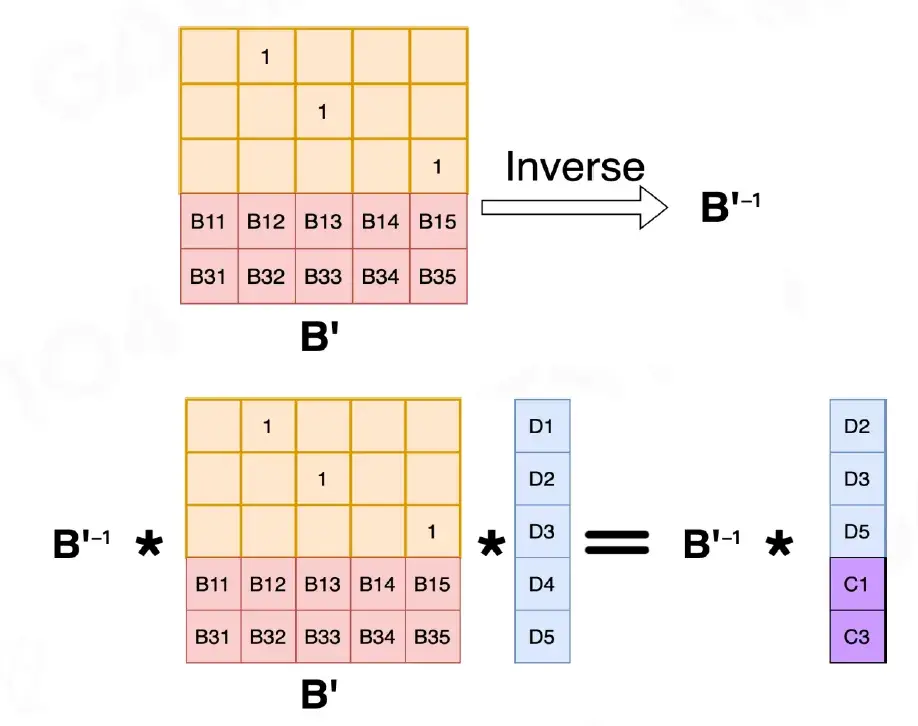

  • Inverse matrix B′B' get B−1B^{-1}

    逆矩阵 B′B' 得到 B−1B^{-1}

  • Multiply B′−1B'^{-1} on both sides to recover the original data

    将两侧的 B′−1B'^{-1} 相乘以恢复原始数据

webp

Customize Your UDP based on ARQ and FEC

基于 ARQ 和 FEC 自定义 UDP

Reliability

可靠性

  • Use Selective Repeat ARQ

    使用选择性重复 ARQ

Hybrid ARQ and FEC

混合 ARQ 和 FEC

  • Before ARQ, FEC is used for error correction

    在 ARQ 之前，FEC 用于纠错

Real-time

实时

  • Smaller RTO growth

    RTO 增长较小

  • No congestion control

    无拥堵控制

  • Fast retransmission mechanism

    快速重传机制

  • No delay ACK

    无延迟确认

Flexibility

灵活性

  • Design protocol for speed

    速度设计协议

  • Support both reliable and unreliable transmission

    支持可靠和不可靠的传输

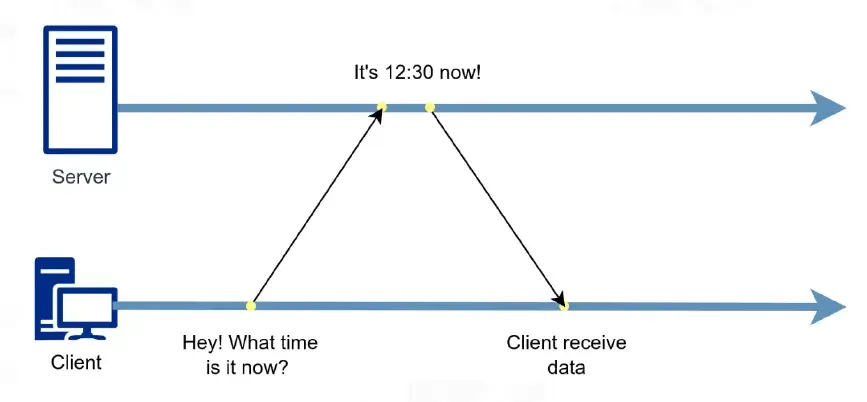

Clock Synchronization

时钟同步

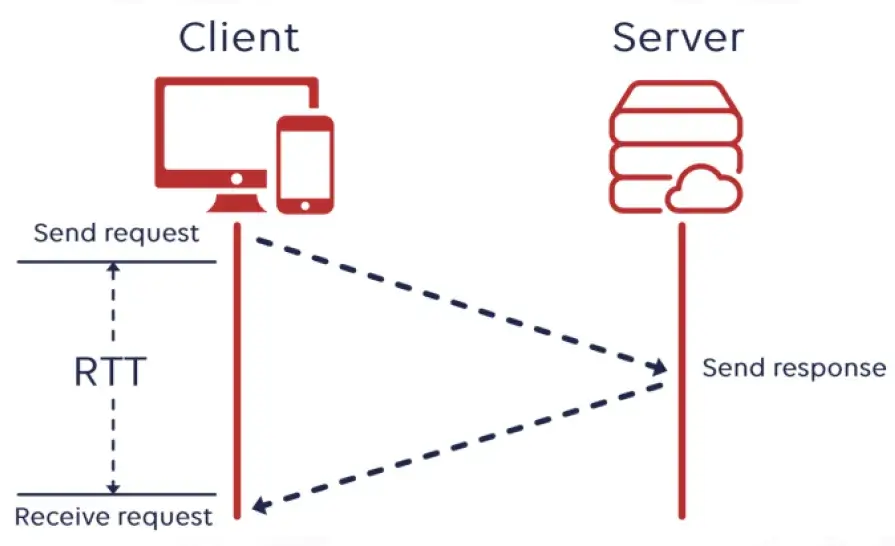

RTT

Round-Trip Time

往返时间

  • Send/Recv delay

    发送/接收延迟

  • Propagation delay

    传播延迟

  • Response time of the origin server

    源服务器的响应时间

RTT vs. Ping

  • Ping tests are usually performed within a transport protocol that uses lCMP packets

    Ping 测试通常在使用 lCMP 数据包的传输协议中执行

  • RTT is measured at the application layer

    RTT 在应用层进行测量

RTT vs. Latency

  • Latency is the time required for a data packet to travel from the sending endpoint to the receivingend point (only one trip)

    延迟是数据包从发送端点传输到接收点所需的时间（仅一次行程）

webp

Network Time Protocol (NTP)

网络时间协议（NTP）

Network lime Protocol is an internet protocol used tosynchronize with computer clock time sources in a network.

网络时间协议是一种用于与网络中的计算机时钟时间源同步的互联网协议。

  • Reference clock

    参考时钟

    • GPS clock or radio ransmiiting station

      GPS 时钟或无线电传输站

    • Amazinglly precise timekeeping devices such as atomic clocks

      令人惊叹的精确计时设备，如原子钟

    • Not connected to the internet

      未连接到互联网

    • Send their time through radio or optical fiber

      通过无线电或光纤发送他们的时间

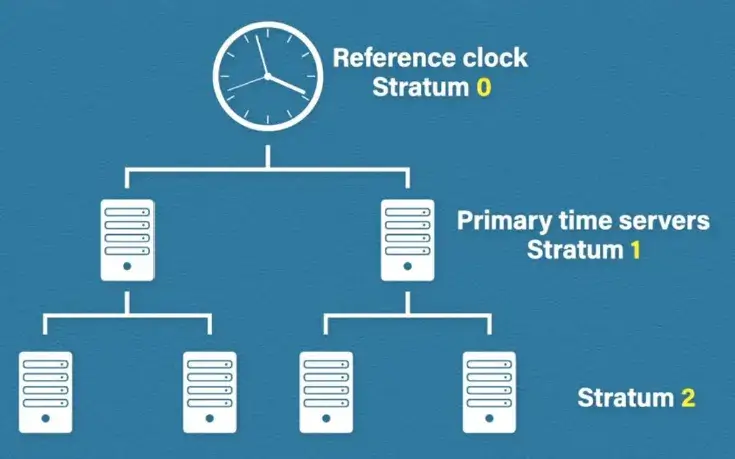

Time Server Stratums

时间服务器层

Stratum Values

  • Degrees of separation from the reference clock

    与参考时钟的分离程度

  • Reference clock has stratum value of 0

    参考时钟的层值为 0

  • Servers with stratum value 1 is called primary time servers

    层值为 1 的服务器称为主时间服务器

  • If a device's stratum value is over 15, its time is not trustworthy

    如果设备的层值超过 15，则其时间不可信

  • Device will choose server with less stratum value automatically when correcting time

    设备在校正时间时会自动选择层值较小的服务器

webp

NTP Algorithm

NTP 算法

Use NTP is quite simple, just like this

使用 NTP 非常简单，就像这样

  • Client ask time server for time

    客户端向时间服务器请求时间

  • Server receives the request and reply

    服务器接收请求和回复

  • Client receives the reply

    客户端收到回复

But we have to do something with the Delay!

但我们必须对延迟做点什么！

webp

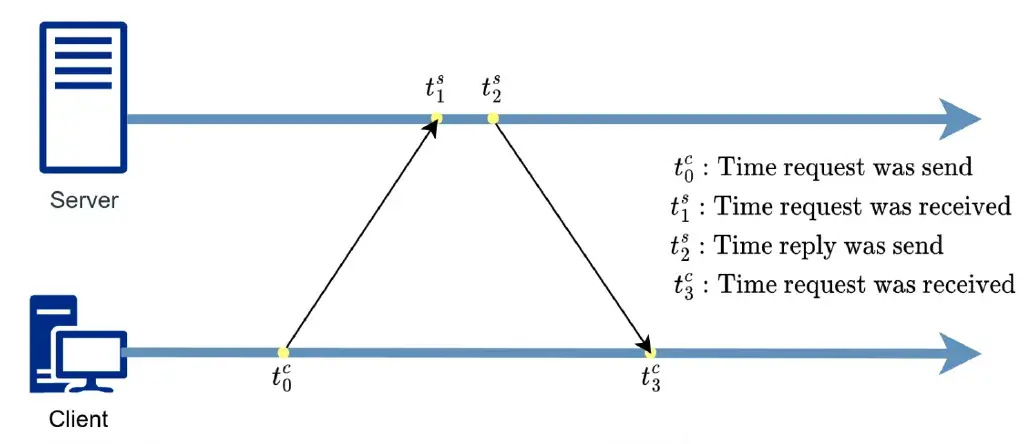

We recordes 4 timestamps as t0c,t1s,t2s,t3ct^c_0, t^s_1, t^s_2, t^c_3

webp

Round Trip Delay=(t3c−t0c)−(t2s−t1s)\mathrm{Round\ Trip\ Delay}=(t^c_3-t^c_0)-(t^s_2-t^s_1)

Offset=(t1s−t0c+t2s−t3c)2\mathrm{Offset}=\frac{(t^s_1-t^c_0+t^s_2-t^c_3)}{2}

The implicit assumption that the one way delay is statistically half the roundtrip delay

单向延迟在统计上是往返延迟的一半的隐含假设

Local-clock correction is computed from the offset data by.

根据偏移数据计算本地时钟校正。

  • t3c+Offsett^c_3 + \mathrm{Offset}

*The delay and clock-offset samples obtained can be filtered using maximum-likelihood technigues

*获得的延迟和时钟偏移样本可以使用最大似然技术进行滤波

Let's take an example:

让我们举一个例子：

It's 17:01:00 on the client

  • t0ct^c_0 is 17:01:00
  • t1st^s_1 is 17:01:32
  • t2st^s_2 is 17:01:33
  • t3ct^c_3 is 17:01:05

It's 17:01:30 on the server

(17:01:30)

(17:01:32)

(17:01:33)

(17:01:35)

Round Trip Delay=(t3c−t0c)−(t2s−t1s)\mathrm{Round\ Trip\ Delay}=(t^c_3-t^c_0)-(t^s_2-t^s_1)

Offset=(t1s−t0c+t2s−t3c)2\mathrm{Offset}=\frac{(t^s_1-t^c_0+t^s_2-t^c_3)}{2}

Round Trip Delay = (05 - 00) - (33 - 32) = 4s

Offset = (32 - 00 + 33 - 05) / 2 = 30s

So at t3ct^c_3 client's time is corrected to:

  • t3c+Offset=17:01:35t^c_3 + \mathrm{Offset}= 17:01:35

Stream-Based Time Synchronization with Elimination of Higher Order Modes

基于流的时间同步，消除高阶模式

1. Client stamps current local time on a "time request" packet and sends to server

客户端在“时间请求”数据包上标记当前本地时间并发送到服务器

2. Upon receipt by server, server stamps server-time and returns

服务器收到后，服务器标记服务器时间并返回

3. Upon receipt by client, a time delta is calculated by delta = (current Time-sent Time) / 2

客户端收到后，通过 delta=（当前发送时间）/2 计算时间增量

So far this algorithm is very like to NTP

到目前为止，该算法与 NTP 非常相似

4. The first result should immediately be used toupdate the clock

第一个结果应立即用于更新时钟

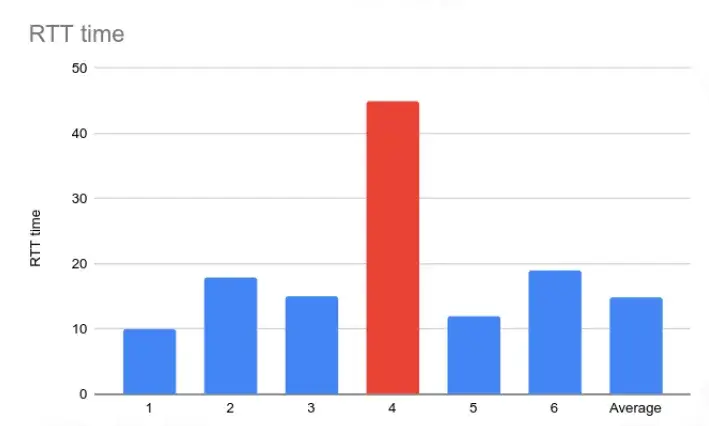

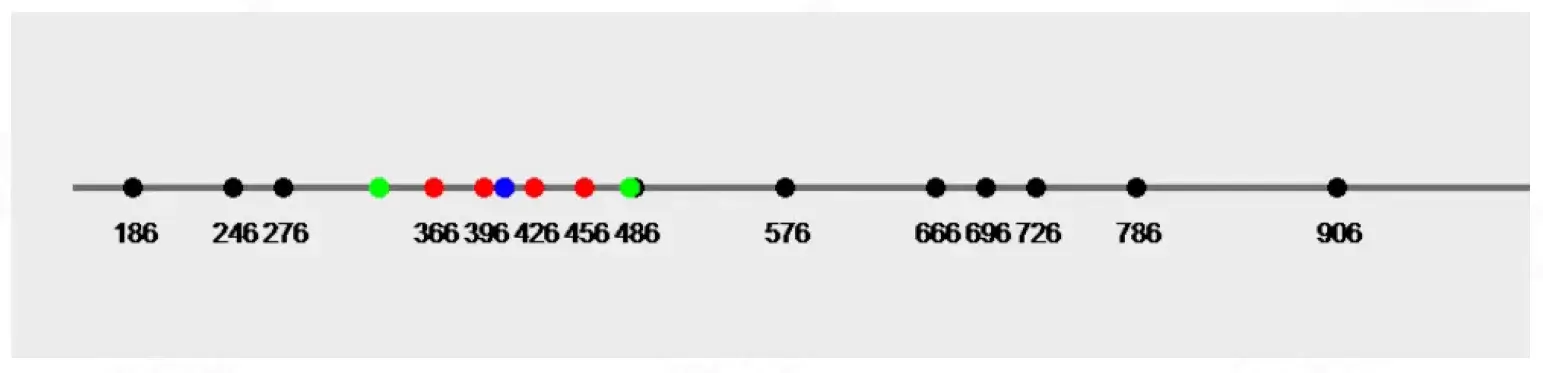

5. The client repeats Steps 1-3 (NTP-like process), five or more times

客户端重复步骤1-3（类似 NTP 的过程）五次或更多次

6. The results of the packet receipts are accumulatedand sorted in ascending order by latency

数据包接收的结果按延迟升序累积和排序

7. All samples above that are approximately 1.5 times the median are discarded, and the remaining samples are averaged using an arithmetic mean

丢弃上述约为中位数 1.5 倍的所有样本，并使用算术平均值对剩余样本进行平均

webp

Remote Procedure Call (RPc)

远程过程调用（RPC）

Socket Programming: Still not Great

Socket 编程：仍然不太好

  • Lots for the programmer to deal with every time

    程序员每次都要处理很多事情

    • How to separate different requests on the same connection?

      如何在同一连接上分离不同的请求？

    • How to write bytes to the network/read bytes from the network?

      如何向网络写入字节/从网络读取字节？

    • What if Host A's process is written in Go and Host B's process is in C++?

      如果主机 A 的进程是用 Go 编写的，而主机 B 的进程是 C++ 编写的呢？

    • What to do with those bytes?

      如何处理这些字节？

  • Still pretty painful... have to worry a lot about the network

    仍然很痛苦…不得不非常担心网络

    • Have you received the message?

      你收到消息了吗？

Communication with Messages

消息通信

webp

Communication Way

沟通方式

Initially, people "hand-coded" messages to send requests and responses

最初，人们“手工编码”消息以发送请求和响应

  • Message is a stream of bytes-"op codes" and operands

    消息是字节流-“操作码”和操作数

Lots of drawbacks

很多缺点

  • Need to worry about message format

    需要担心消息格式

  • Have to pack and unpack data from messages

    必须从消息中打包和解包数据

  • Servers have to decode messages and dispatch them to handlers

    服务器必须解码消息并将其分派给处理程序

  • Messages are often asynchronous

    消息通常是异步的

    • After sending one, what do you do until the response comes back?

      发送一个后，在收到回复之前，你会做什么？

  • Messages aren't a natural programming mode

    消息不是一种自然的编程模式

C++
struct foomsg {
    uint32 _t len;
};

void send_foo(char *contents) {
    int msglen = sizeof(struct foomsg) + strlen(contents);
    char buf = malloc(msglen);
    struct foomsg *fm = (struct foomsg *)buf;
    fm->len = htonl(strlen(contents));
    memcpy(buf + sizeof(struct foomsg), contents, strlen(contents));
    write(outsock,buf, msglen);
}

More Challenges on Logic Communication

逻辑通信面临更多挑战

  • For a remote procedure call, a remote machine may:

    对于远程过程调用，远程机器可以：

    • Run process written in a different language

      运行用其他语言编写的进程

    • Represent data types using different sizes

      使用不同大小表示数据类型

    • Use a different byte ordering (endianness)

      使用不同的字节顺序（字节序）

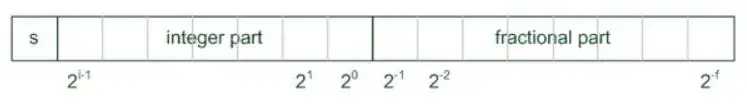

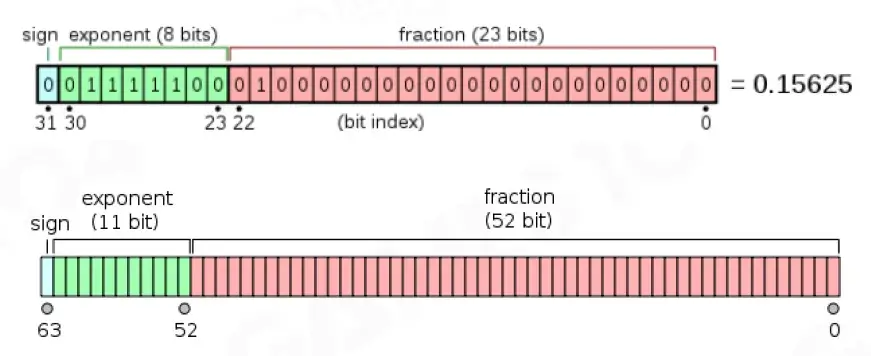

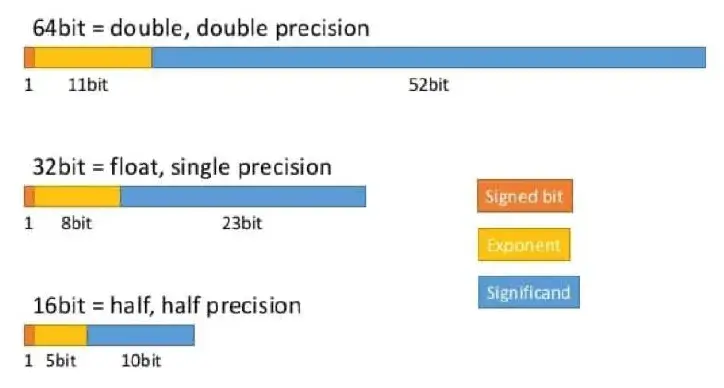

    • Represent floating point numbers differently

      以不同的方式表示浮点数

    • Have different data alignment requirements

      有不同的数据对齐要求

      e.g., 4-byte type begins only on 4-byte memory boundary

      例如，4 字节类型仅在 4 字节内存边界上开始

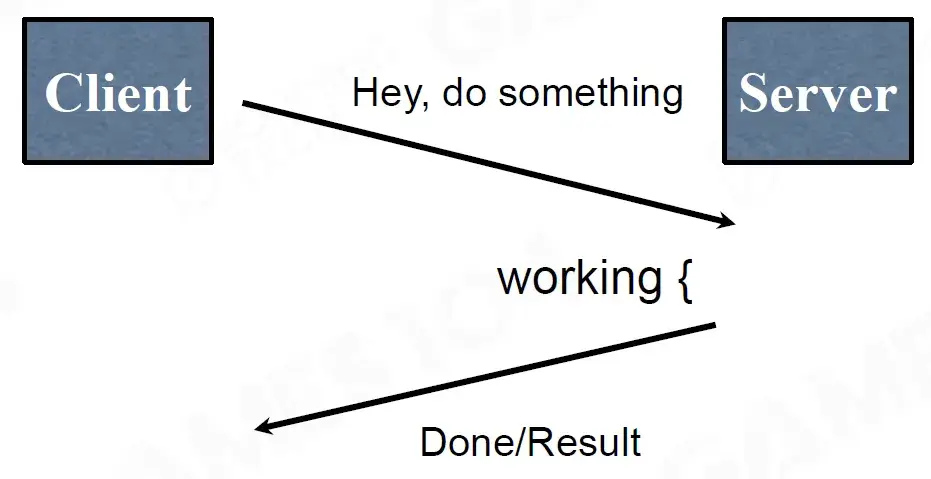

Remote Procedure Call (RPC)

远程过程调用（RPC）

  • RPC is a reguest-response protocol. An RPC is initiated by the cient, which sends a reguest message to a known remote server to execute a specified procedure with supplied parameters

    RPC 是一种规范的响应协议。RPC 由 cient 发起，它向已知的远程服务器发送一条规则消息，以使用提供的参数执行指定的过程

  • Goals

    目标

    • Ease of programming

      易于编程

    • Hide complexity

      隐藏复杂性

    • Familiar model for programmers (just make a function call)

      程序员熟悉的模型（只需进行函数调用）

webp

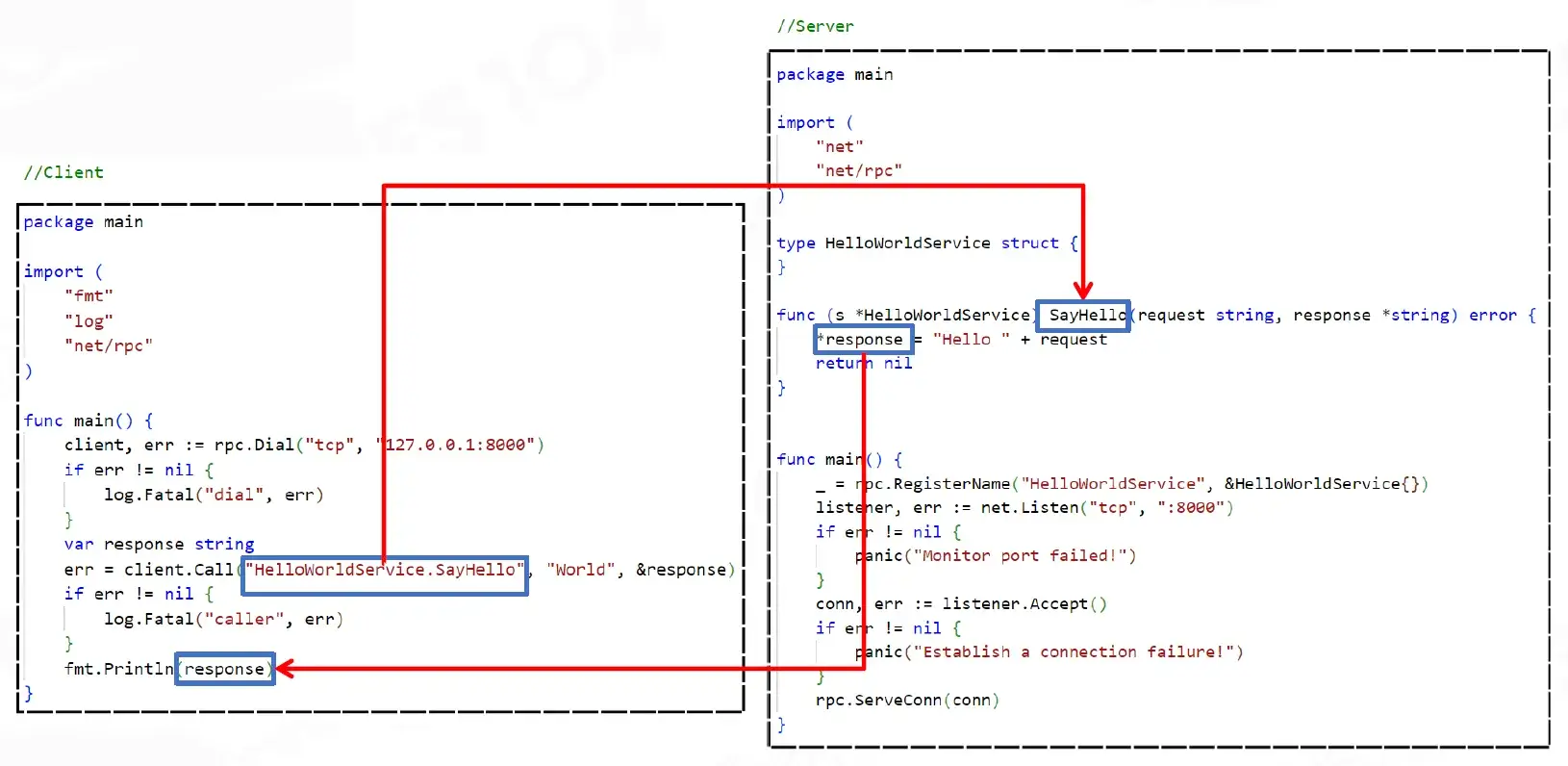

RPC example

  • Go language
webp

  • Output

    Hello World

Why RPC?

为什么选择 RPC？

  • Goal: Easy-to-program network communication that makes client-server communication transparent

    目标：易于编程的网络通信，使客户端-服务器通信透明

    • Retains the "feel" of writing centralized code

      保留编写集中式代码的“感觉”

    • Programmers needn't think about the network

      程序员不必考虑网络

    • Make communication appear like a local procedure call

      使通信看起来像本地过程调用

  • Don't need to worry about serialization/deserialization for network

    无需担心网络的序列化/反序列化

  • Don't need to worry about complexities of network

    无需担心网络的复杂性

Interface Definition Language

接口定义语言

  • A server defines the service interface using an interface definition language (lDL)

    服务器使用接口定义语言（lDL）定义服务接口

    The lDL specifies the names, parameters, and types for allclient-callable server procedures

    lDL 指定了所有客户端可调用服务器过程的名称、参数和类型

    • example: ASN.1 in the OSI reference model

      示例：OSI 参考模型中的 ASN.1

    • example: Protobuf (Google's data interchange format)

      示例：Protobuf（谷歌的数据交换格式）

    • ...

protobuf
//polyline.proto
syntax ="proto2";

message Point {
    required int32 x = 1;
	required int32 y = 2;
    optional string label = 3;
}

message Line {
    required Point start = 1;
    required Point end = 2;
    optional string label = 3;
}

message Polyline {
    repeated Point point = 1;
    optional string label = 2;
}

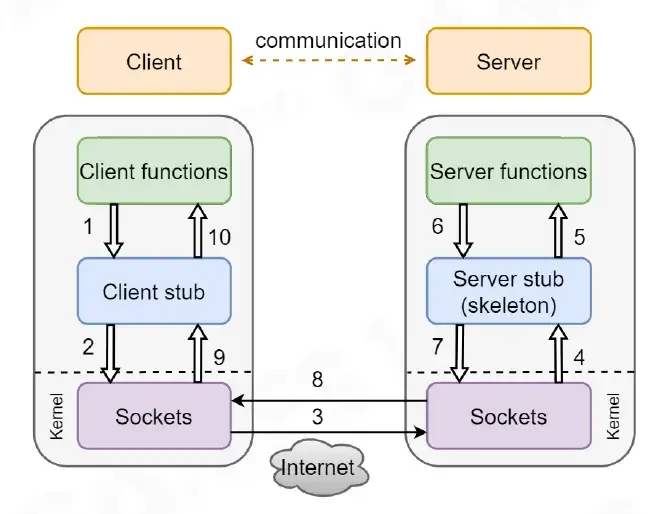

RPC Stubs

  • A client-side stub is a procedure that looks to the client as if it were a callable server procedure

    客户端存根是一个过程，它在客户端看起来就像是一个可调用的服务器过程

    • The client program thinks it's invoking the server butit's calling into the client-side stub

      客户端程序认为它正在调用服务器，但它正在调用客户端存根

  • Aserver-side stub looks like a caller to the server

    服务器端存根看起来像是服务器的调用者

    • The server program thinks it's called by the client but it's really called by the server-side stub

      服务器程序认为它是由客户端调用的，但实际上是由服务器端存根调用的

  • The stubs send messages to each other to make the RPC happen transparently

    存根相互发送消息，使 RPC 透明地发生

webp

Stub compiler

  • A "stub compiler" reads the IDL declarations and produces two stub procedures for each server procedure

    “存根编译器”读取 IDL 声明，并为每个服务器过程生成两个存根过程

    • The server programmer implements the service's procedures and links them with the server-side stubs

      服务器程序员实现服务的过程，并将其与服务器端存根链接起来

    • The client programmer implements the client program and links it with the client-side stubs

      客户端程序员实现客户端程序并将其与客户端存根链接

    • The stubs manage all of the details of remote communication between client and server

      存根管理客户端和服务器之间远程通信的所有细节

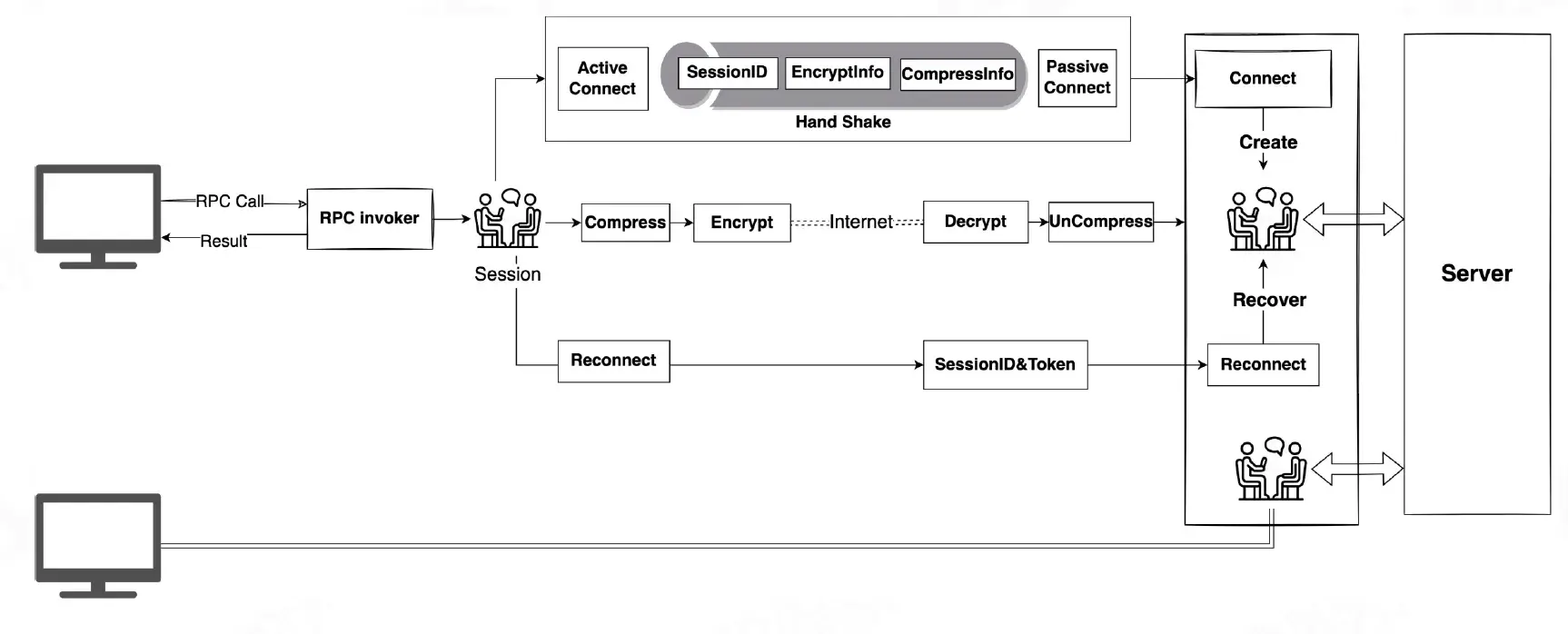

Real RPC Package vourney

真实 RPC 包凭证

webp

Network Topology

网络拓扑

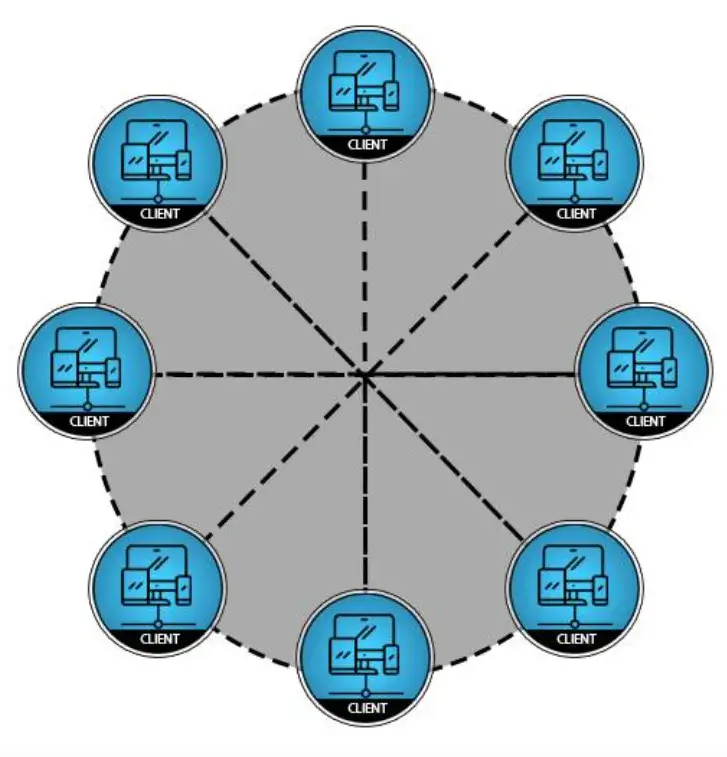

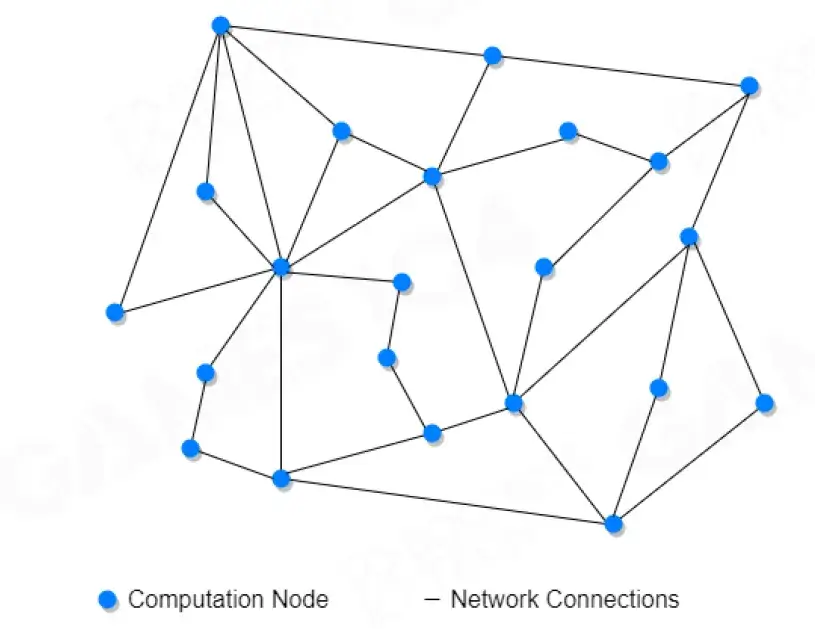

Original Peer-to-Peer (P2P)

原始点对点（P2P）

  • Each client broadcasts game event to the al others

    每个客户端向其他客户端广播游戏事件

  • Robustness

    稳健性

  • Cheating is much easier

    作弊要容易得多

  • Synchronization is required among all nodesto maintain the consistency of the distributed game state

    所有节点之间需要同步，以保持分布式游戏状态的一致性

webp

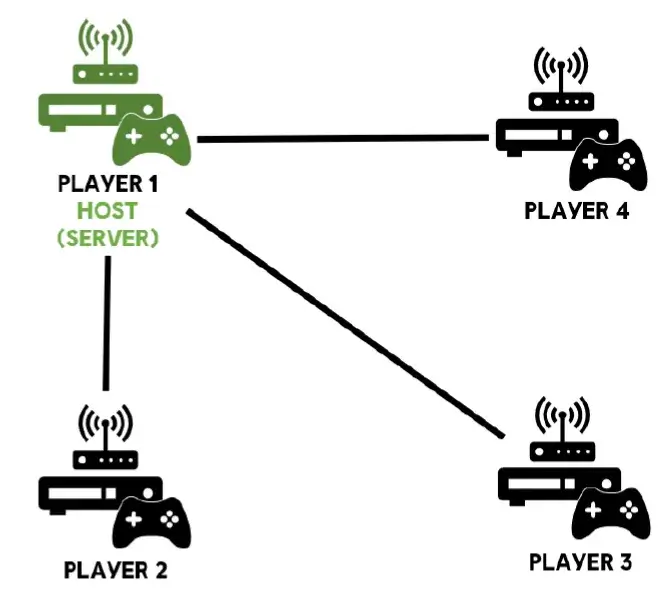

P2P with Host Server

P2P 与主机服务器（如 CS）

  • A player can act as "server", known as host

    玩家可以充当“服务器”，即主机

  • If host disconnected, the game may end

    如果主机断开连接，游戏可能会结束

  • The host need to handle game actor that cannot be controled by players, such as bot

    主机需要处理玩家无法控制的游戏角色，如机器人

webp

P2P Games

P2P 游戏

  • No rely on server

    不依赖服务器

  • Used in Lan commonly

    常用于局域网

  • The “Host”is basically in control of the sessions

    “主持人”基本上控制着会话

  • A limited number of players at once

    一次玩家数量有限

webp

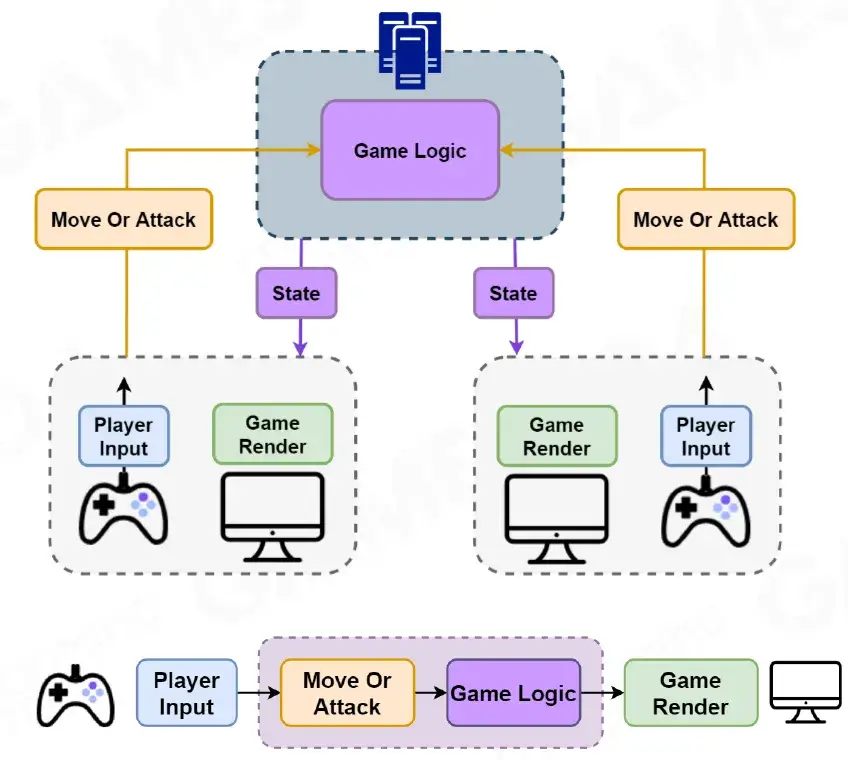

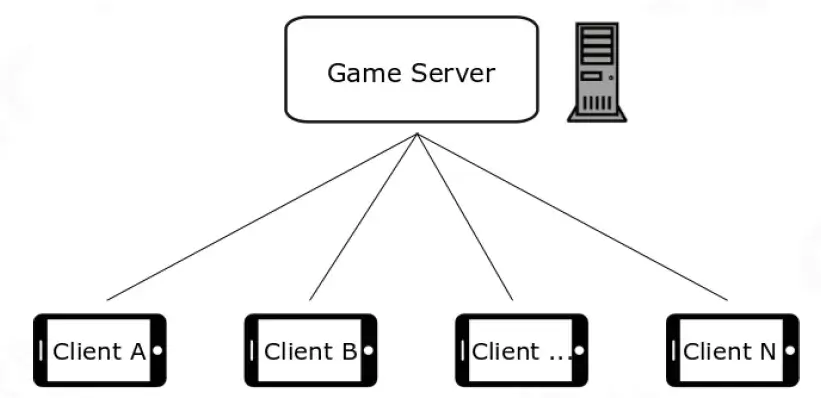

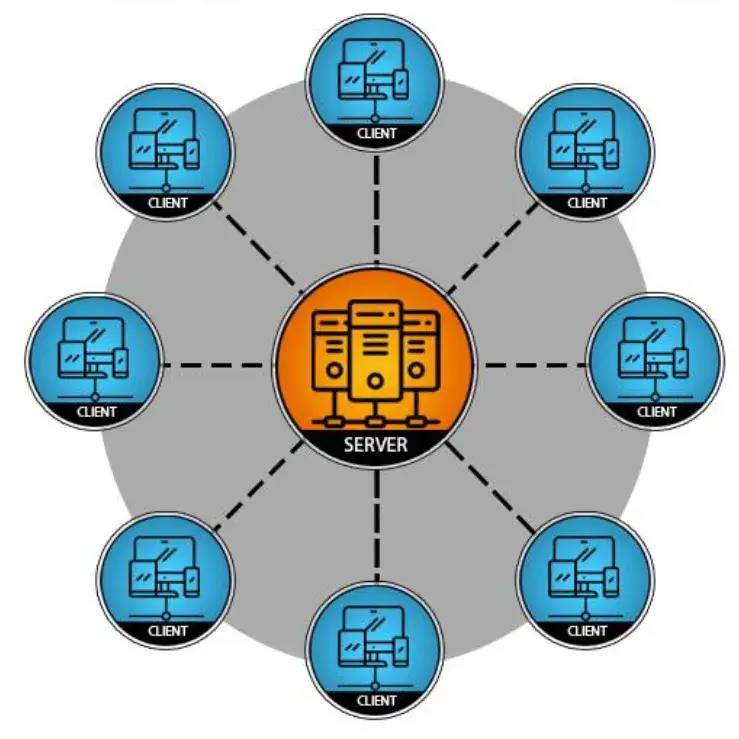

Dedicated Server

专用服务器

  • Authority

    权威机构

  • Simulate game world

    模拟游戏世界

  • Dispatch data to players

    向玩家发送数据

  • High performance requirements

    高性能要求

webp

P2P vs Dedicated Server

P2P 与专用服务器

P2PDedicated Server
Pros1. Robustness
稳健性
2. Removes the "server issues" problem in multiplayer sessions.
消除多人游戏会话中的“服务器问题”问题
3. No extra cost on server
服务器无需额外付费		1. Easy to maintain as well as cheating avoidance
易于维护，避免作弊
2. Can handle massive game world
可以处理大型游戏世界
3. Responsiveness of the game is not relay on the network conditions of each individual client
游戏的响应性并不取决于每个客户端的网络状况
Cons1. Cheating is much easier
作弊要容易得多
2. Every player needs a decent network connection for game to function properly
每个玩家都需要一个像样的网络连接，游戏才能正常运行
3. Can only handle a limited number of players
只能处理有限数量的玩家		1. High cost on server
服务器成本高
2. Much more work on server side program
在服务器端程序上还有更多的工作要做
3. Single point of failure
单点故障

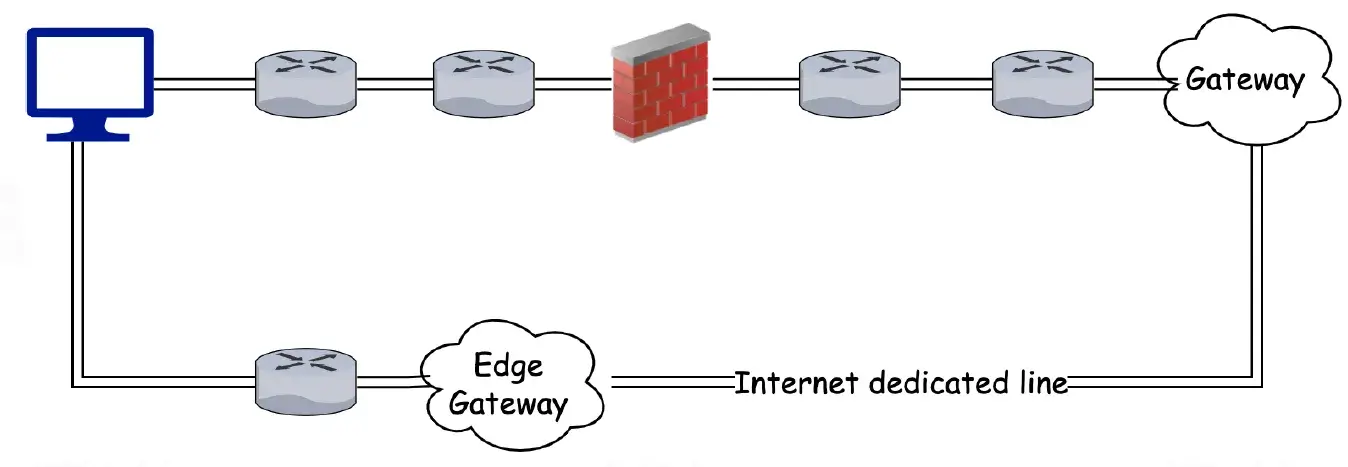

When RTT is too high

RTT 过高时

  • When players are in different countries, far away, or when the network environment is complex

    当玩家身处不同的国家、遥远的地方，或者网络环境复杂时

  • Use dedicated line and edge gateway to reduce latency

    使用专用线路和边缘网关来减少延迟

webp

Game Synchronization

游戏同步

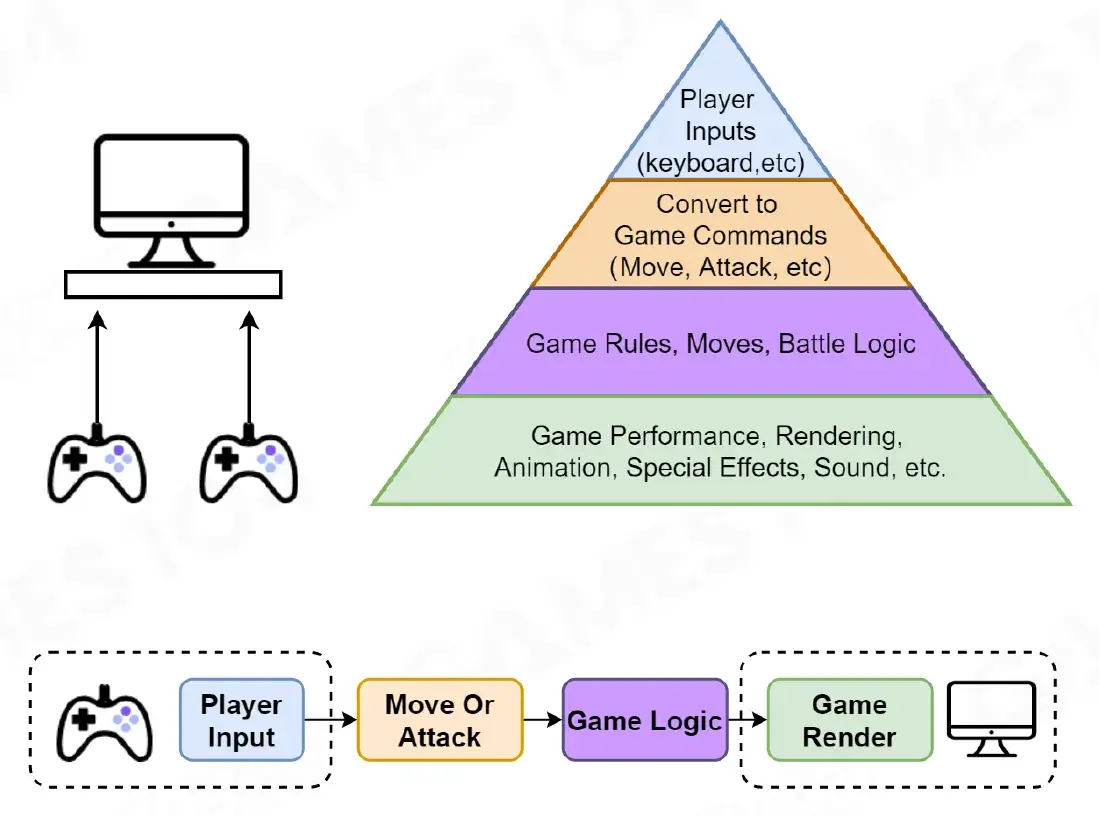

Single-Player Gaming

Game Tick

  • Player inputs

    玩家输入

  • Convert to game commands

    转换为游戏命令

  • Game logic

    游戏逻辑

  • Game render

    游戏渲染

For Player

对于玩家

  • Player inputs

    玩家输入

  • Consistency in each other

    彼此的一致性

webp

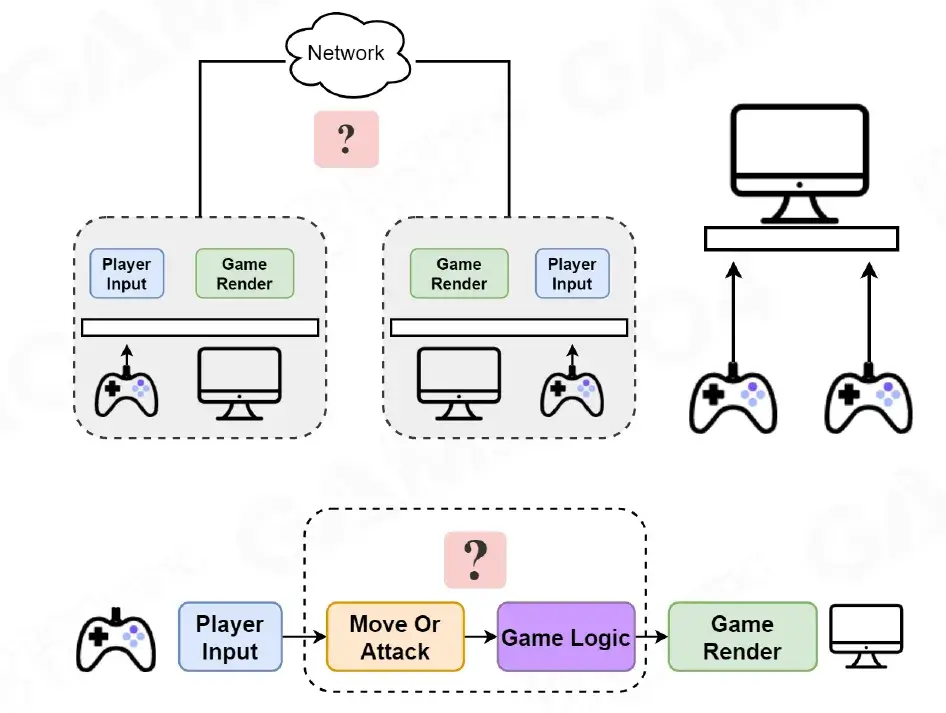

Online Gaming

在线游戏

For Player

对于玩家

  • Player inputs

    玩家输入

  • Consistency in each other

    彼此的一致性

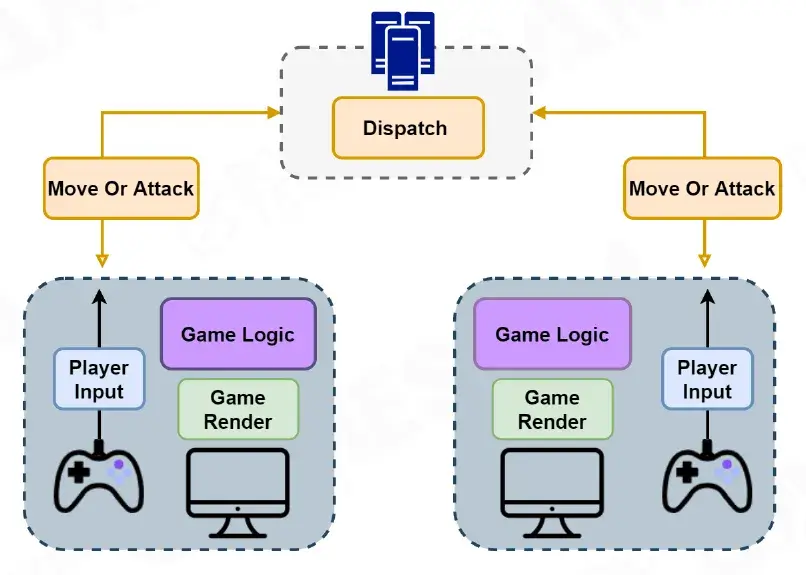

How to play together at different terminals?

如何在不同的终端上一起玩？

  • Game commands

    游戏命令

  • Game Logic

    游戏逻辑

webp

Game Synchronization

游戏同步

To answer the demand for responsive strategies, the synchronization rule is designed to solve the delay and consistency of all destination.

为了满足对响应策略的需求，设计了同步规则来解决所有目的地的延迟和一致性问题。

Synchronization Methods

同步方法

webp
Snapshot 快照Lockstep 锁步State Synchornization 状态同步

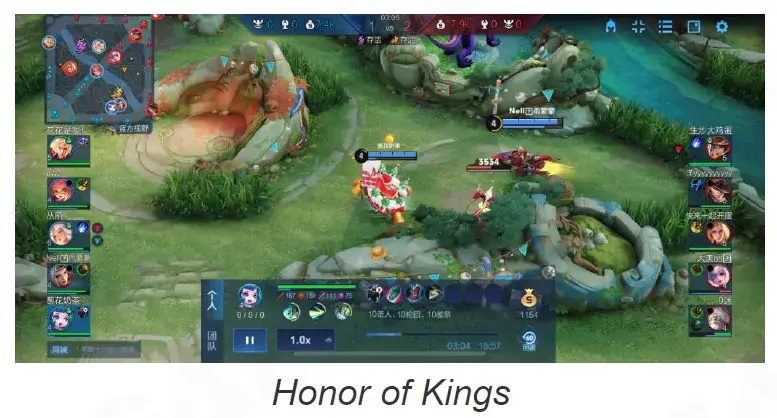

QuakeHonor of Kings 王者荣耀Counter Strike 反恐精英

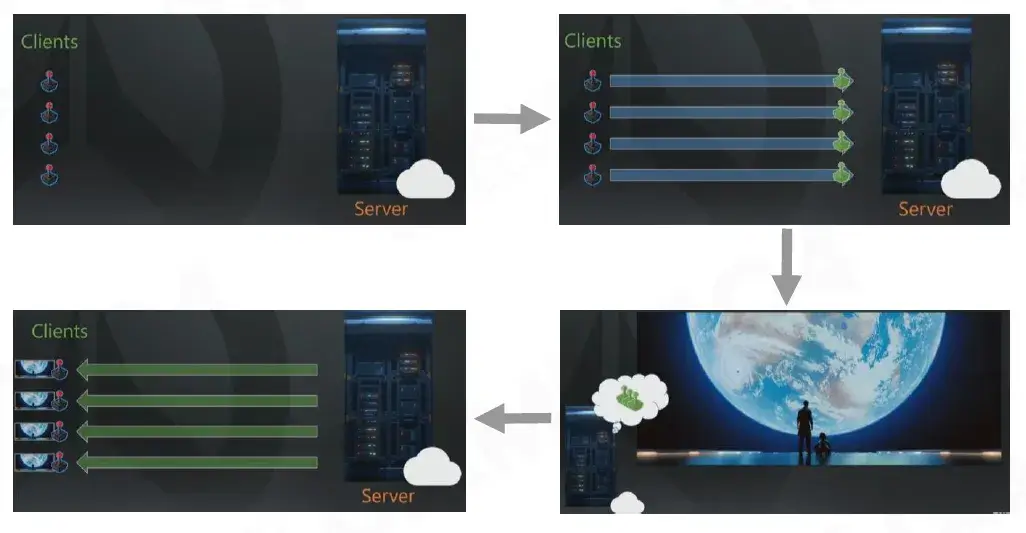

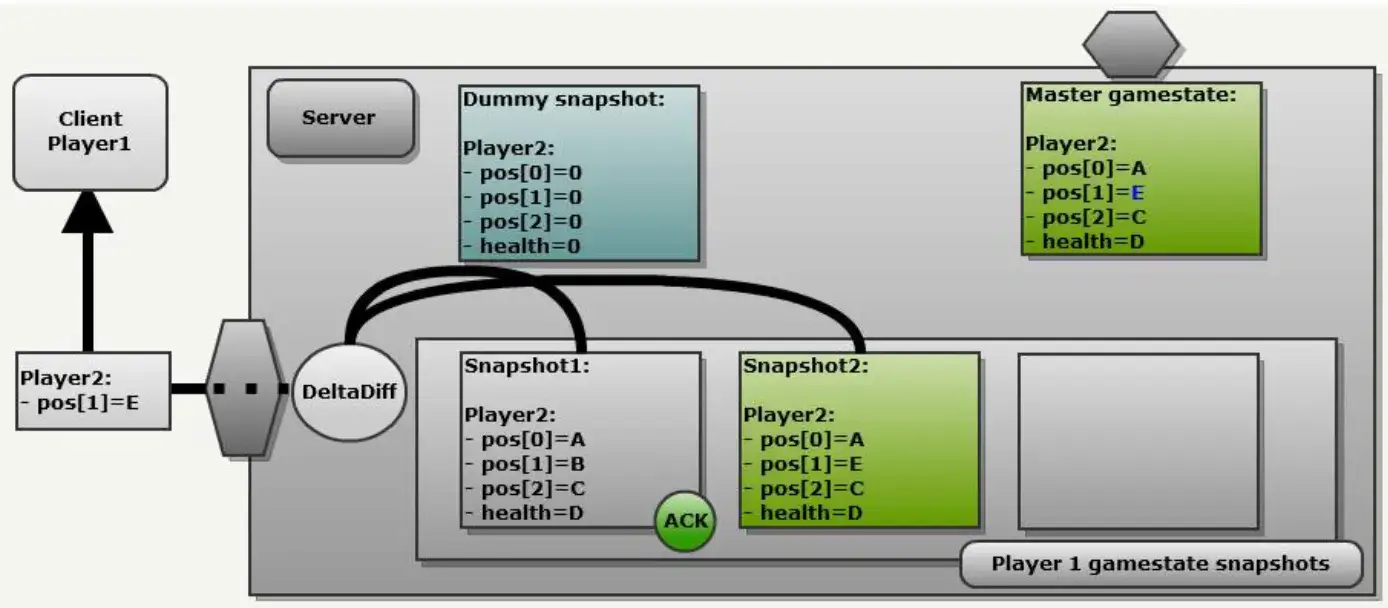

Snapshot Synchronization

快照同步

webp

  • Client sends inputs to server

    客户端向服务器发送输入

  • Server simulates the game world

    服务器模拟游戏世界

  • Generates whole game statesnapshots

    生成整个游戏状态快照

  • Sends them down to clients

    将它们发送给客户

  • Client updates the display according to the snapshot

    客户端根据快照更新显示

Snapshot Synchronization - Jitter and Hitches

快照同步-抖动和挂接

  • Server tick rate is limited

    服务器时间速率有限

  • Performance

    性能

  • Bandwidth

    带宽

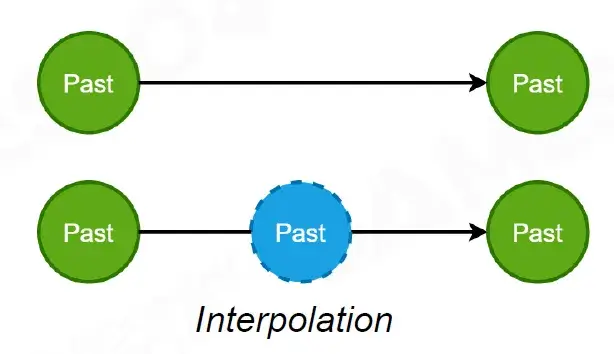

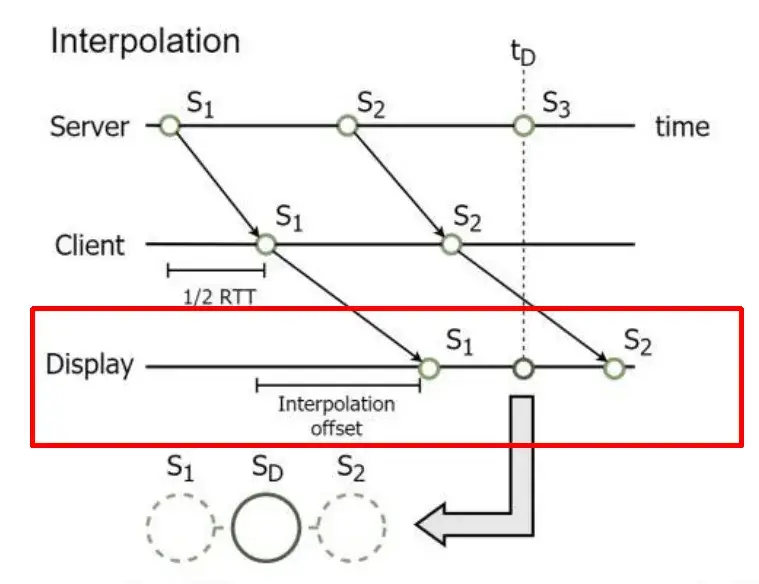

Snapshot Interpolation

快照插值

  • Not rendering immediately after snapshot recevied

    收到快照后不立即渲染

  • Keep an interpolation buffer

    保留插值缓冲区

  • Interpolation between the two delayed snapshots

    两个延迟快照之间的插值

Delta Compression

德尔塔压缩

  • Only sync snapshot delta to client

    仅将快照增量同步到客户端

  • Example Quake3

webp

Snapshot Synchorization

快照同步

  • 60HZ

  • Max Bandwidth 4.5 mbps

    最大带宽 4.5mbps

Delta Compression

德尔塔压缩

  • 60HZ

  • Max Bandwidth 676 kbps

    最大带宽 676 kbps

Synchronizing Snapshot

正在同步快照

  • Client performance is wasted

    客户端性能被浪费

  • High server pressure

    服务器压力高

  • High data volume and high bandwidth requirements

    高数据量和高带宽要求

  • As games get more complex, snapshots get bigger

    随着游戏变得越来越复杂，快照也越来越大

Lockstep Synchronization

锁步同步

Lockstep Origin

锁步原点

Lockstep synchronization, used in military simulation, is by far the simplest techique to ensure consistency

用于军事模拟的锁步同步是迄今为止确保一致性的最简单技术。

  • Same Result

    相同的结果

  • Same time

    同一时间

  • Same action

    同样的行动

No member is allowed to advance its simulation clock until all others members have acknowledged that they are done.

在所有其他成员确认完成之前，任何成员都不允许提前其模拟时钟。

webp

In particular, it is clear that a totally ordered delivery is a sufficient condition to ensure game state consistency across different nodes, as it guarantees that all generated events are reliably delivered according to the same unique order.

特别是，很明显，完全有序的交付是确保不同节点之间游戏状态一致性的充分条件，因为它保证了所有生成的事件都按照相同的唯一顺序可靠地交付。

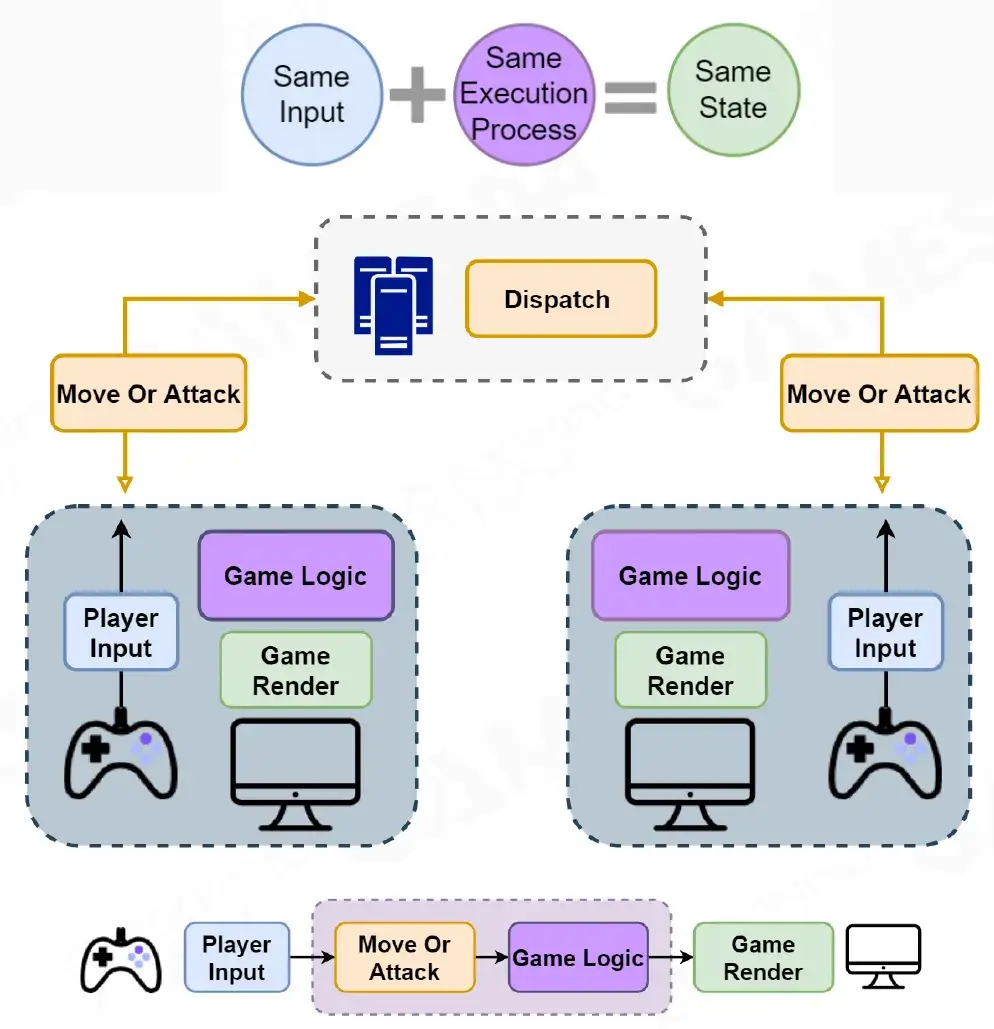

Lockstep in Online Game

网络游戏中的锁步

Lockstep Principle.

锁步原理。

webp

First Game Used Lockstep

第一个游戏使用锁步

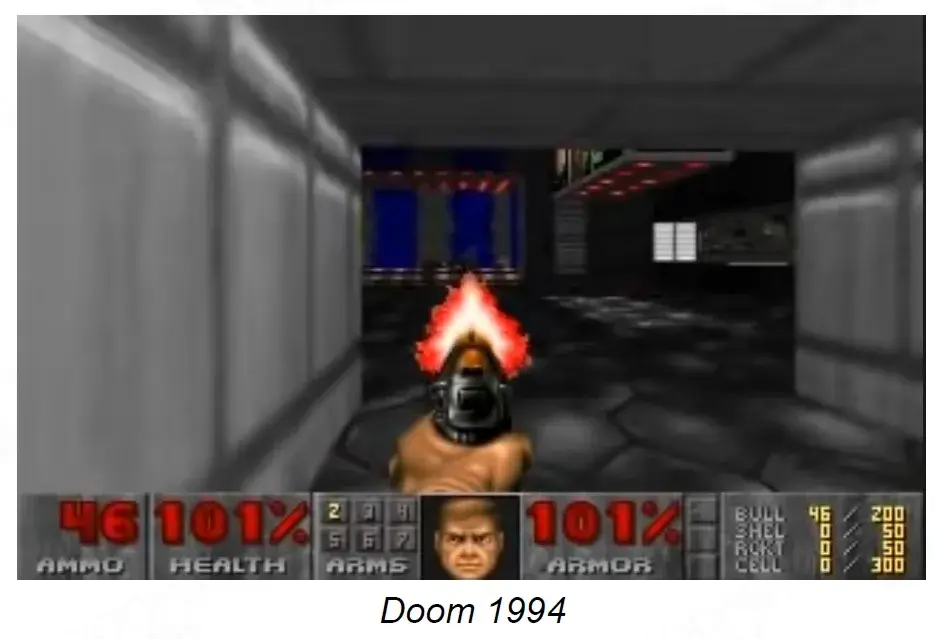

  • The network synchronization methodof DOOM (1994) was pointed out in a 2006 paper

    2006 年的一篇论文指出了 DOOM（1994）的网络同步方法

  • Lockstep is not mentioned in the paper, but it is now generally accepted that Doom (1994) was the first multiplayer FPS online game to use this type of synchronization

    论文中没有提到锁步，但现在人们普遍认为《毁灭战士》（1994）是第一款使用这种同步的多人 FPS 在线游戏

  • It uses P2P architecture

    它使用 P2P 架构

webp

Lockstep initialization

锁步初始化

Loading...

加载…

  • Ensure that the initial data of each client is deterministic

    确保每个客户端的初始数据是确定的

    • Game model

      游戏模型

    • Static data

      静态数据

    • ...

  • Synchronize clock

    同步时钟

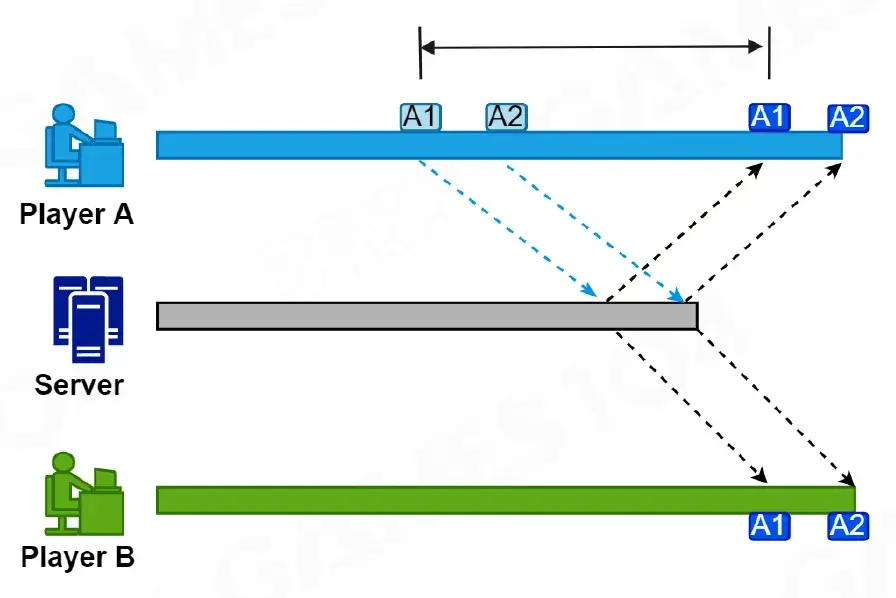

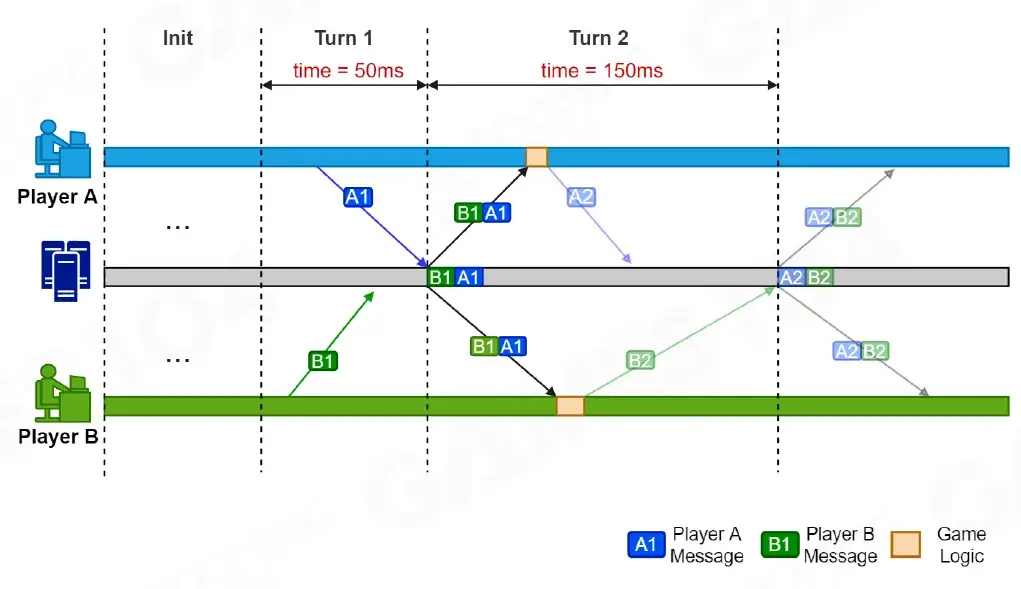

Deterministic Lockstep

确定性锁步

  • Client sends inputs to Server

    客户端向服务器发送输入

  • Server receives and sorts

    服务器接收和排序

  • Wait for input from all clients before forwarding

    转发前等待所有客户端的输入

  • After receiving data from the server, the client executes the game logic

    在从服务器接收到数据后，客户端执行游戏逻辑

webp

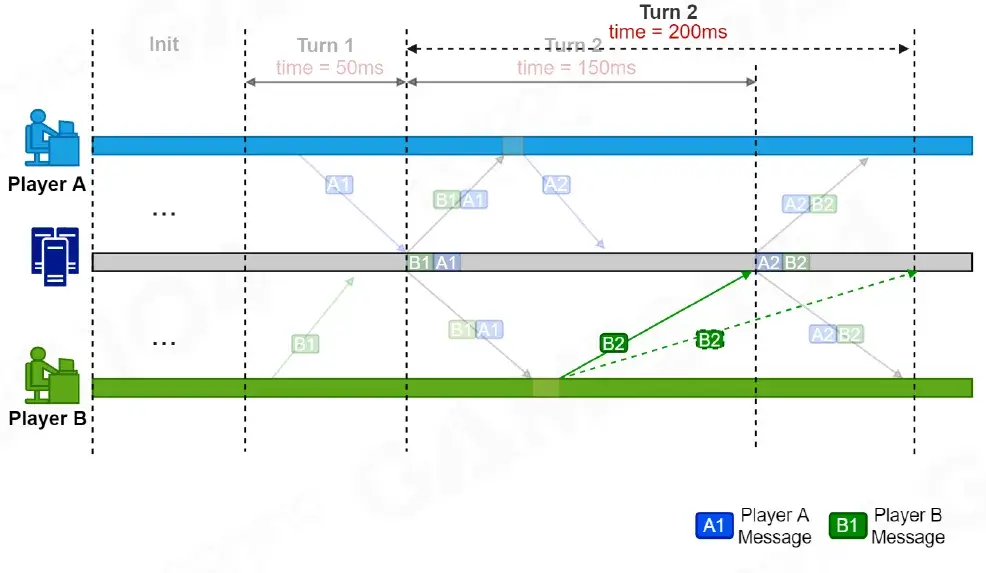

If Player B's message B2 arrives later? (The dotted line B2 in the figure)

如果玩家 B 的消息 B2 稍后到达？（图中虚线 B2）

  • Disadvantages

    缺点

    • Game progress depends on slowest player

      游戏进度取决于最慢的玩家

    • The delay of the game is notfixed, the experience is not good

      游戏的延迟不是固定的，体验不好

    • All the players will wait if a player offline

      如果有玩家离线，所有玩家都会等待

webp

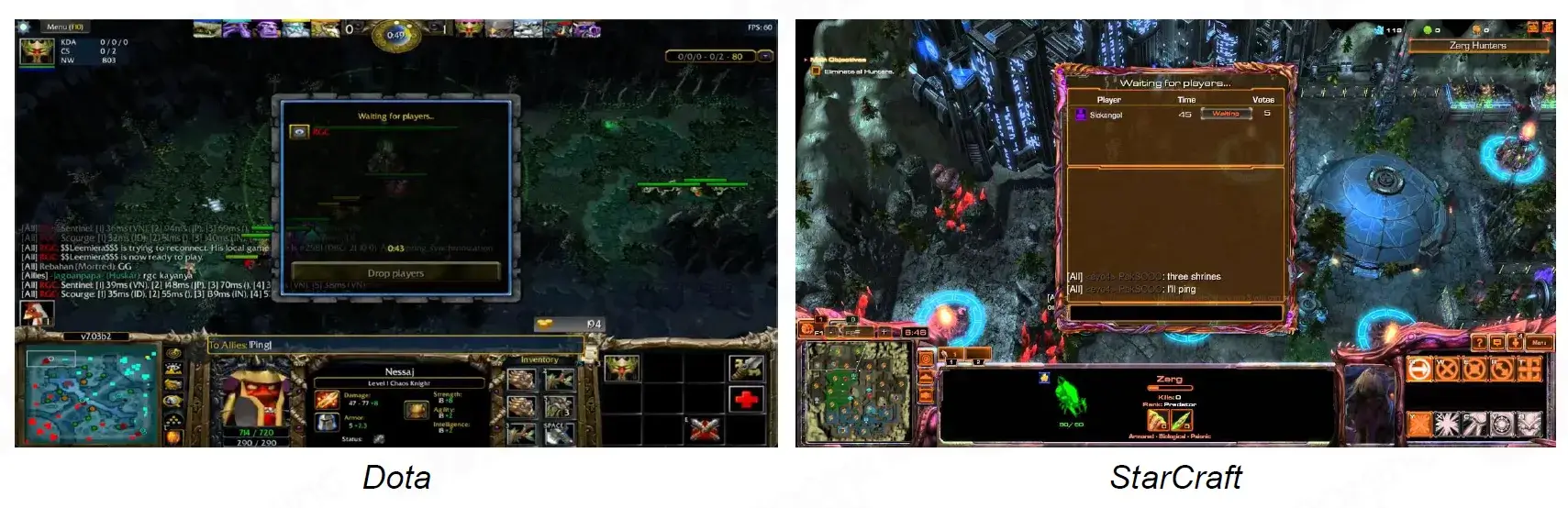

Player Offline in Deterministic Lockstep

确定性锁步中的玩家离线

Waiting for players...

正在等待玩家...

webp

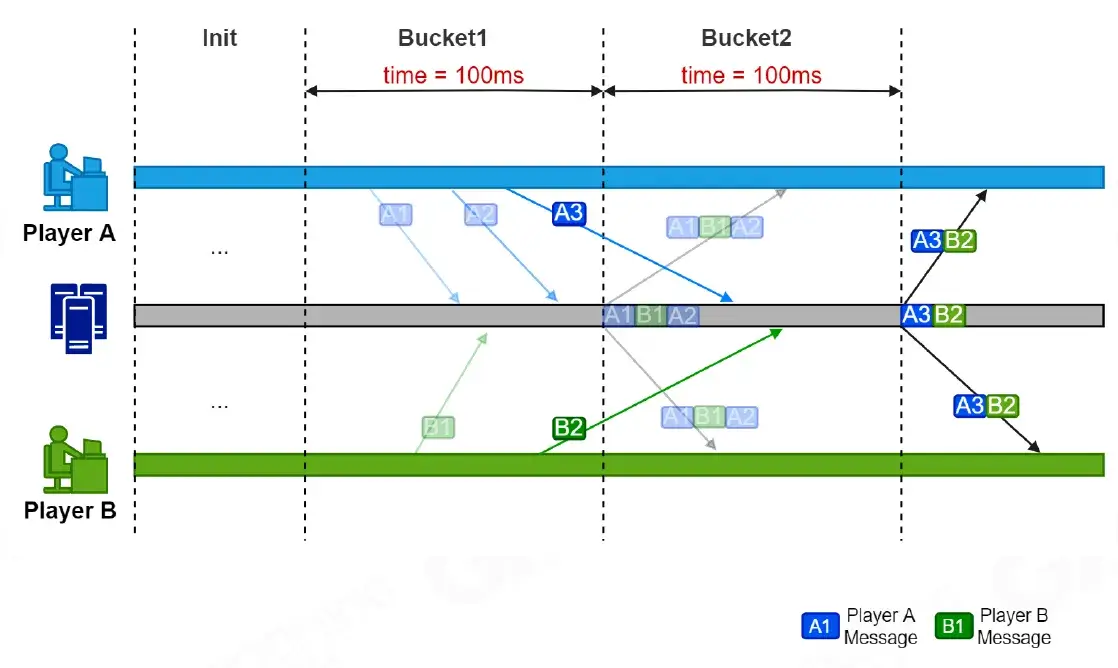

Bucket Synchronization

Bucket 同步

  • Bucket: a fixed time period

    Bucket：固定时间段

  • Each bucket

    每个水桶

    • Colect all instructions

      整理所有说明

    • Broadcast to all players

      向所有玩家广播

  • There is no need to wait for all players' commands to be received before forwarding

    转发前无需等待收到所有玩家的命令

webp

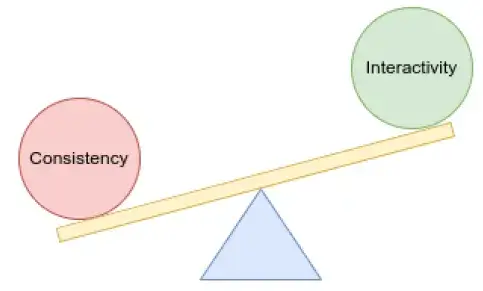

A Good Trade-off between Consistency and Interactivity Maintenance

一致性和交互性维护之间的良好权衡

So we need to find a basis balance between them.

因此，我们需要在它们之间找到一个基本的平衡点。

The threshold:

阈值：

As soon as the measured interactivity degree decreases below a given thresholdtake some procedure skips processing obsolete game events withthe aim of bringing back a satisfactory interactivity level.

一旦测量的交互性降低到给定的阈值以下，一些程序就会跳过处理过时的游戏事件，以恢复令人满意的交互性水平。

webp

Deterministic Difficulties

确定性难题

  • Deterministic

    确定性

    • The same input sequence need to produce the same game state on all machines

      相同的输入序列需要在所有机器上产生相同的游戏状态

  • Deterministic is Hard

    确定性很难

    • Floating point

      浮点型

    • Random number

      随机数

    • Containers and algorithms (sort, add, remove, etc.)

      容器和算法（排序、添加、删除等）

    • Math tools (vectors, quaternions, etc)

      数学工具（向量、四元数等）

    • Physics simulation (very difficult)

      物理模拟（非常困难）

    • Code logic execution order

      代码逻辑执行顺序

webp

Floating Point Numbers

浮点数

  • Because of the computer binary, Thesenumbers can be accurately represented

    由于计算机二进制，这些数字可以被精确地表示出来

    • 0.5 = 1/2
    • 0.25 = 1/4
    • 0.75 = 1/2 + 1/4
    • 0.875 = 1/2 + 1/4 + 1/8

  • Such numbers can only be approximated

    这些数字只能近似表示

    • 2/3 ≈ 0.66..7
webp

  • Floating point numbers must comply with the lEEE 754 standard

    浮点数必须符合 lEEE 754 标准

  • Floating point numbers conform to the lEEE 754standard

    浮点数符合 lEEE 754 标准

  • But different platforms may have different behavior

    但不同的平台可能有不同的行为

Floating Point Hardware & OS Behaviour

浮点硬件和操作系统行为

  • Intel / Amd

  • PS / Xbox

  • Windows / linux

  • Android / IOS

  • ...

Floating Point Compilers Behaviour

浮点编译器行为

  • Math Library(sin、cosin、tan、exp、pow ...)

    数学库（sin、cosin、tan、exp、pow…）

  • Third party components

    第三方组件

  • Different platforms

    不同的平台

  • Different versions

    不同版本

  • Different languages

    不同的语言

  • ...

Idea: Avoid problems on the precision boundary, customize the precision

理念：避免精度边界问题，定制精度

  • Fixed-point math library

    定点数学库

  • Look-up table (trigonometric functions, etc.)

    查找表（三角函数等）

  • Amplification and truncation

    放大和截断

Simple method

简单的方法

  • Multiply by 1000, then divide by 1000, there is an overflow risk

    乘以 1000，然后除以 1000，存在溢出风险

  • The numerator and denominator are represented by fixed-point numbers (2/3)

    分子和分母由定点数（2/3）表示

  • ...

One Solution: Fixed point math

一种解决方案：定点数

A fixed-point number can be split into three parts

一个定点数可以分成三部分

  • An optional sign bit

    可选符号位

  • An integer

    一个整数

  • A fractional part

    分数部分

  • Need to implement addition, subtraction, multiplication and division etd.

    需要实现加、减、乘、除等运算

  • Implement class, class methods

    实现类、类方法

  • Performance needs to be considered

    需要考虑性能

webp

V=(−1)bf+i(∑n=0i2nbn+f+∑m=1f2−mbf−m)V=(-1)^{b_{f+i}}(\sum_{n=0}^{i}2^{n}b_{n+f}+\sum_{m=1}^{f}2^{-m}b_{f-m})

Random Number

随机数

  • Random problems in the game

    游戏中的随机问题

    • Trigger of random events, npc random birthplace

      随机事件触发，NPC 随机出生地

    • A random attribute of the attack, e.g. critical strike chance

      攻击的随机属性，例如暴击机会

    • ...

  • These logics are generally implemented with random numbers

    这些逻辑通常用随机数实现

  • How to implement random logic that is completely consistent for multiple players

    如何为多个玩家实现完全一致的随机逻辑

webp

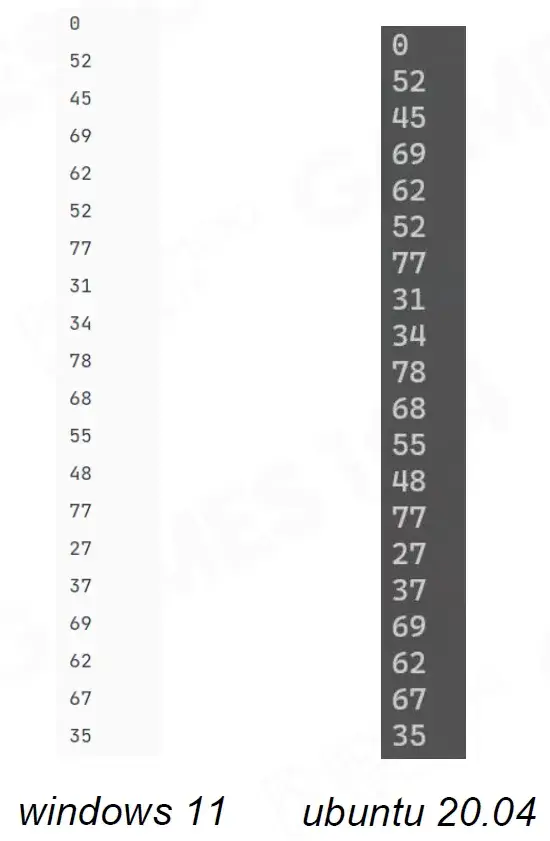

  • Random numbers are pseudorandom

    随机数是伪随机的

  • Before the game starts, initialize the random number seed

    在游戏开始之前，初始化随机数种子

  • For different players' clients, the number of random function calls is fixed, and the generated random numbers are the same

    对于不同玩家的客户端，随机函数调用的数量是固定的，生成的随机数是相同的

webp
C++
int main() {
	std::default random engine e;
    std::uniform int distribution<int> u(0,100);
    e.seed(80);

	for(int i = 0; i < 20; i++) {
        std::cout << u(e) << std::endl;
    }

	return 0;
}

Deterministic Solution

确定性解

  • Fixed-point numbers represent floating-point numbers in critical game logic

    定点数表示关键游戏逻辑中的浮点数

  • Deterministic random algorithm

    确定性随机算法

  • Deterministic containers and algorithms (sort, add, remove, etc.)

    确定性容器和算法（排序、添加、删除等）

  • Deterministic math tools (vectors, quaternions, etc.)

    确定性数学工具（向量、四元数等）

  • Deterministic physics simulation (very difficult)

    确定性物理模拟（非常困难）

  • Deterministic execution order

    确定性执行顺序

webp

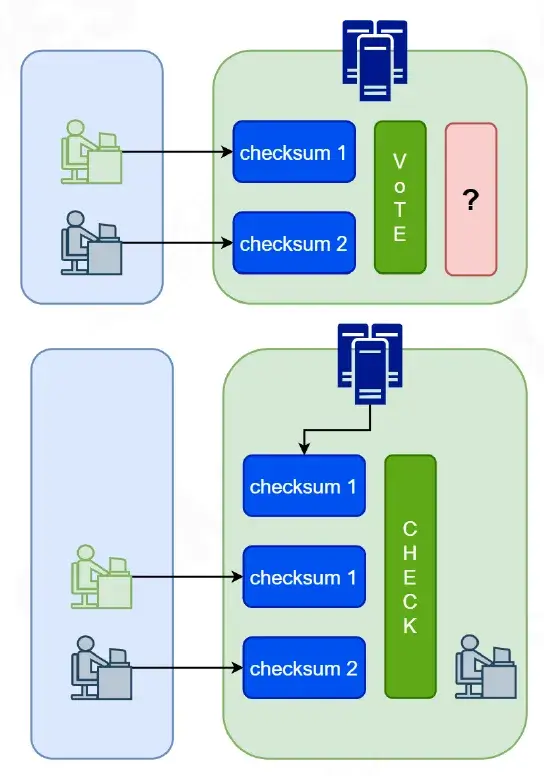

Tracing and Debugging

跟踪和调试

Method of get checksum

获取校验和的方法

  • All data checksum

    所有数据校验和

  • Key data checksum

    关键数据校验和

  • Other methods

    其他方法

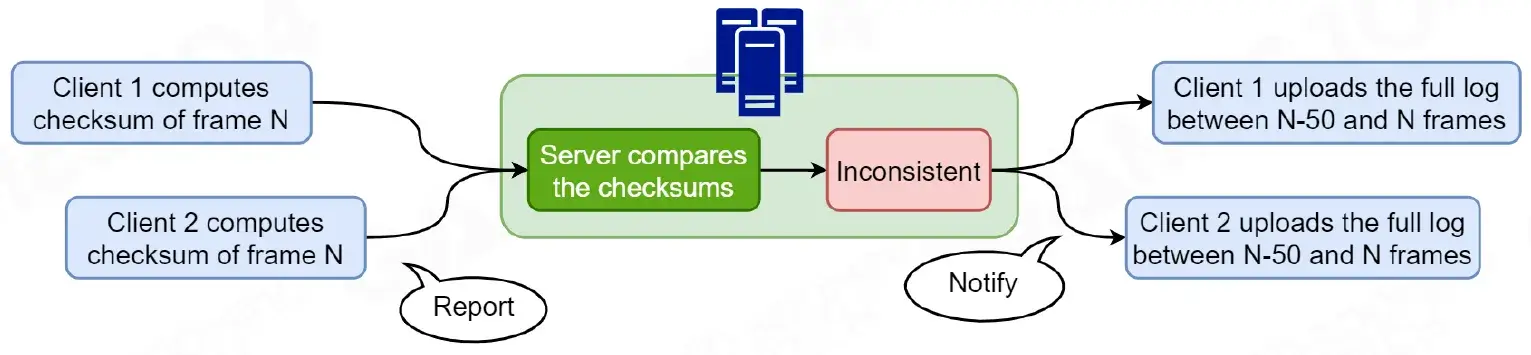

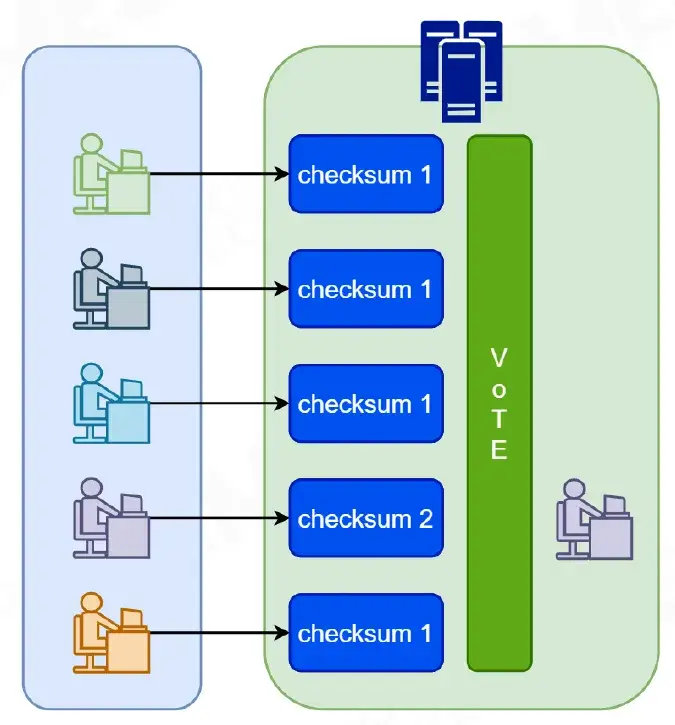

Automatically locate BUG

自动定位 BUG

  • Server compares different client's checksums

    服务器比较不同客户端的校验和

  • Client uploads 50 frames of full logs

    客户端上传 50 帧完整日志

  • Find inconsistencies in the compared logs

    查找比较日志中的不一致之处

webp

Lag and Delay

延迟和延误

  • Client send operation

    客户端发送操作

  • Receive the operation of this frame from the server

    从服务器接收此帧的操作

  • execute

    执行

Lag: Network is unstable. lf you wait until you receivenew frame, there will be a lag

滞后：网络不稳定。如果你等到收到新帧，就会产生延迟

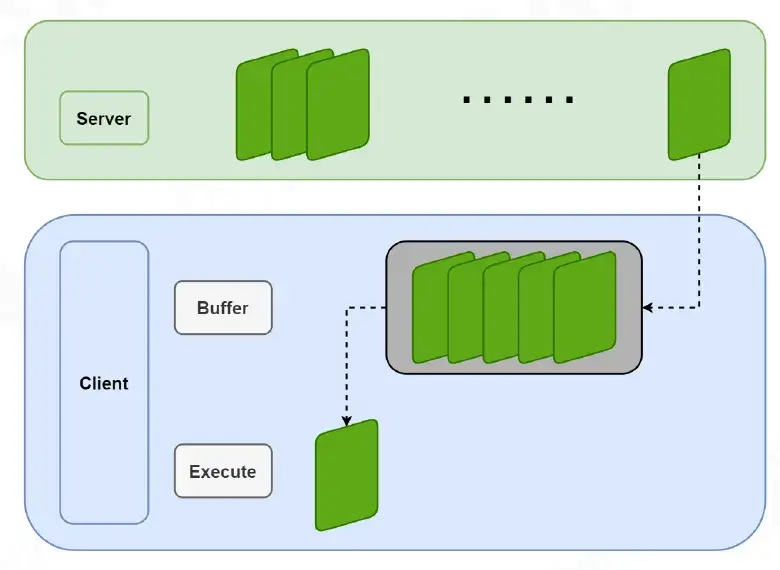

Solution

解决方案

  • use buffer to cache frames

    使用缓冲区缓存帧

    • Large buffer, large delay

      缓冲区大，延迟大

    • Small buffer, sensitive to lag

      小缓冲区，对延迟敏感

webp

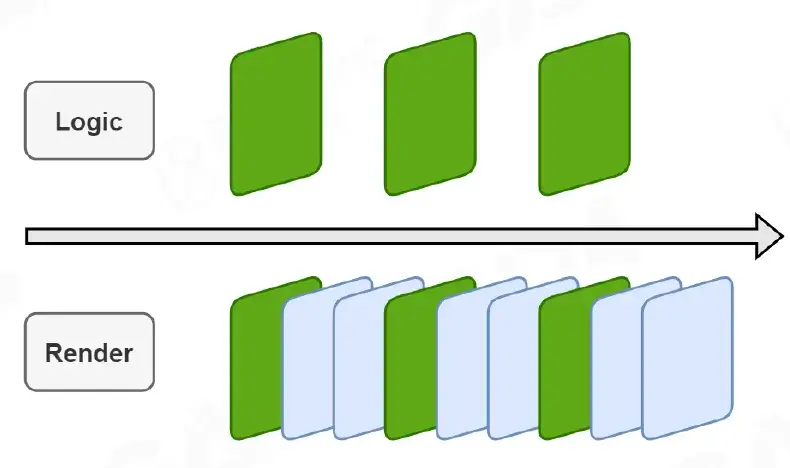

Separating Game Logic from Rendering

将游戏逻辑与渲染分离

Lag problem

滞后问题

  • Separation of logic and rendering

    逻辑与渲染的分离

  • Local client-side interpolation smoothing

    本地客户端插值平滑

Frame rate

帧率

  • The logical frame rate is generally 10~30 frames

    逻辑帧率一般为 10~30 帧

  • The rendering frame rate is generally higher

    渲染帧率通常较高

webp

Advantage

优势

  • Different frequencies, independent operation

    不同频率，独立运行

  • Rendering separation to avoid tearing and freezing

    渲染分离以避免撕裂和冻结

  • Rendering freezes, does not affect the operation of logical frames

    渲染冻结，不影响逻辑帧的操作

  • Servers can run logic frames to solve some cheating problems

    服务器可以运行逻辑框架来解决一些作弊问题

  • If the server runs logical frames, it can save key frame snapshots to speed up reconnection

    如果服务器运行逻辑帧，它可以保存关键帧快照以加快重新连接

Reconnection Problem

重新连接问题

  • Offline

    离线

  • Reconnect

    重新连接

  • Catch up

    赶上

webp

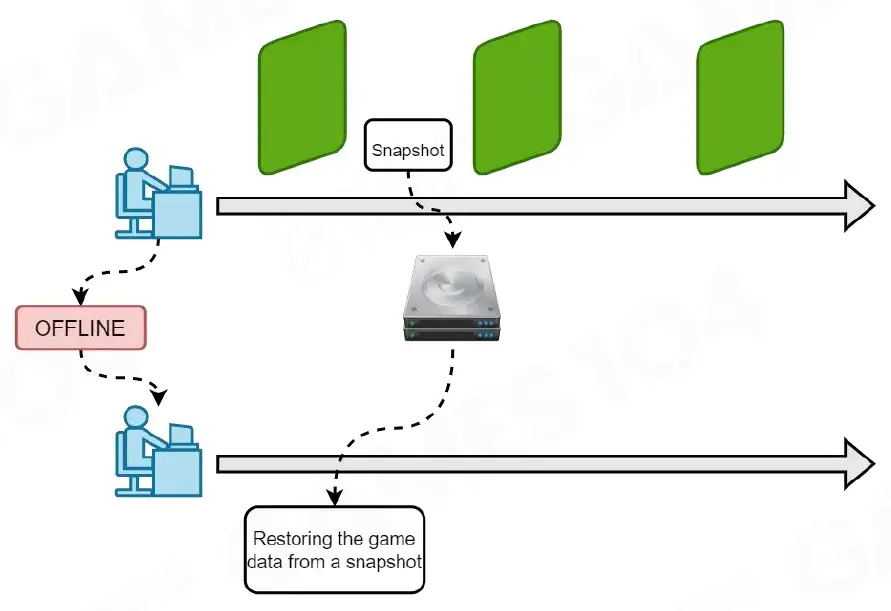

Client Game State Snapshots

客户端游戏状态快照

  • Snapshots can be saved regularly on the local client and serialized to disk

    快照可以定期保存在本地客户端上并序列化到磁盘

  • When reconnection occurs, restore thegame state from the disk serialized data

    重新连接时，从磁盘序列化数据还原游戏状态

  • Server sends player commands after snapshot

    服务器在快照后发送玩家命令

  • Accelerate to catch up with the game progress

    加速以赶上游戏进度

webp

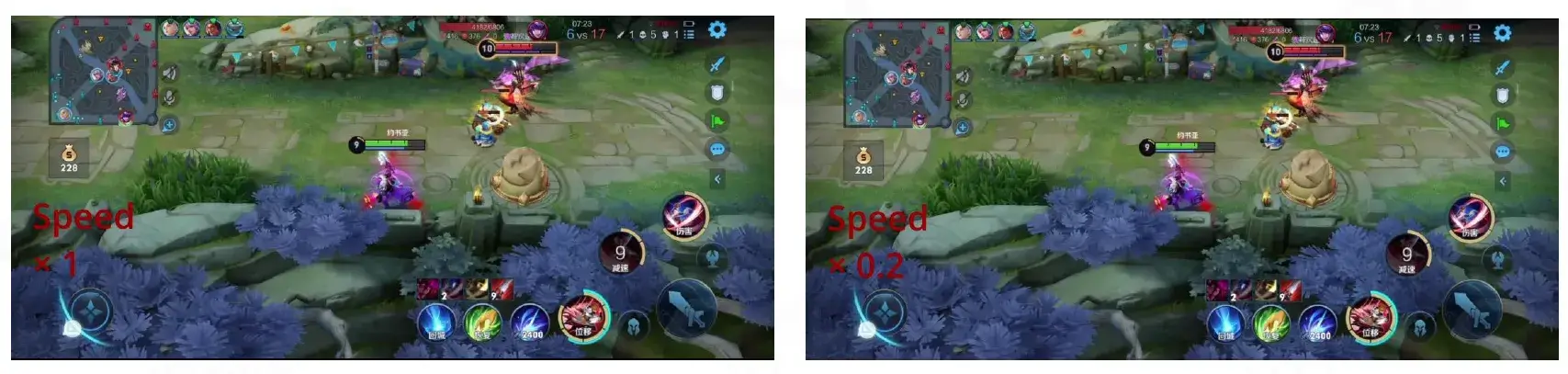

Quick Catch Up

快速赶上

How to catch up?

如何迎头赶上

  • In the sample code, chasing 10 frames each time

    在示例代码中，每次追踪 10 帧

  • If originally 10 frames per second, when chasing frames, it may run 100 frames per second

    如果最初每秒 10 帧，在追逐帧时，它可能每秒运行 100 帧

C++
float m_delta = 0;
float m_tick_delta = 100;
void CBattleLayer::update(float delta) {
    // do something
    m_delta += delta;
    int exec_count = 1;
    while(m_delta >= m_tick_delta) {
        m_delta -= m_tick_delta;
        // logic frame
        if(!logicUpdate(LOGIC_TIME)) {
            return;
        }
        // catch up 10 frames at a time
        if(exec_count++ >= 10){
            break;
        }
    }
	// do something
}

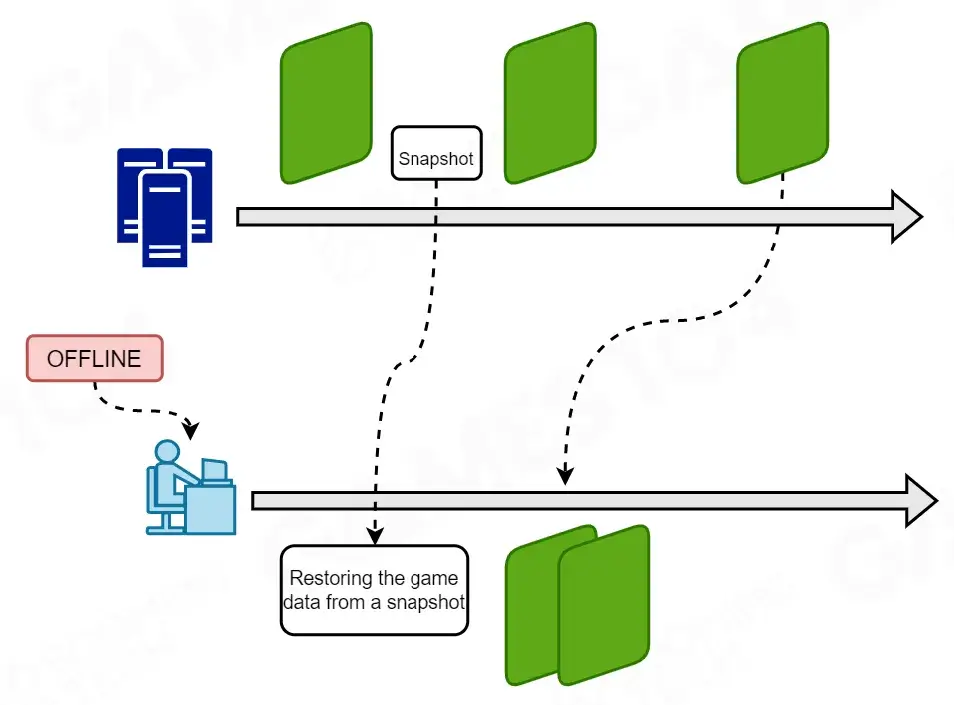

Server State Snapshot Optimization

服务器状态快照优化

  • The server runs logical frames and saves snapshots of keyframes

    服务器运行逻辑帧并保存关键帧的快照

  • The server sends the snapshot, and the player commands after the snapshot

    服务器发送快照，玩家在快照后发出命令

  • Accelerate to catch up with the game progress

    加速以赶上游戏进度

webp

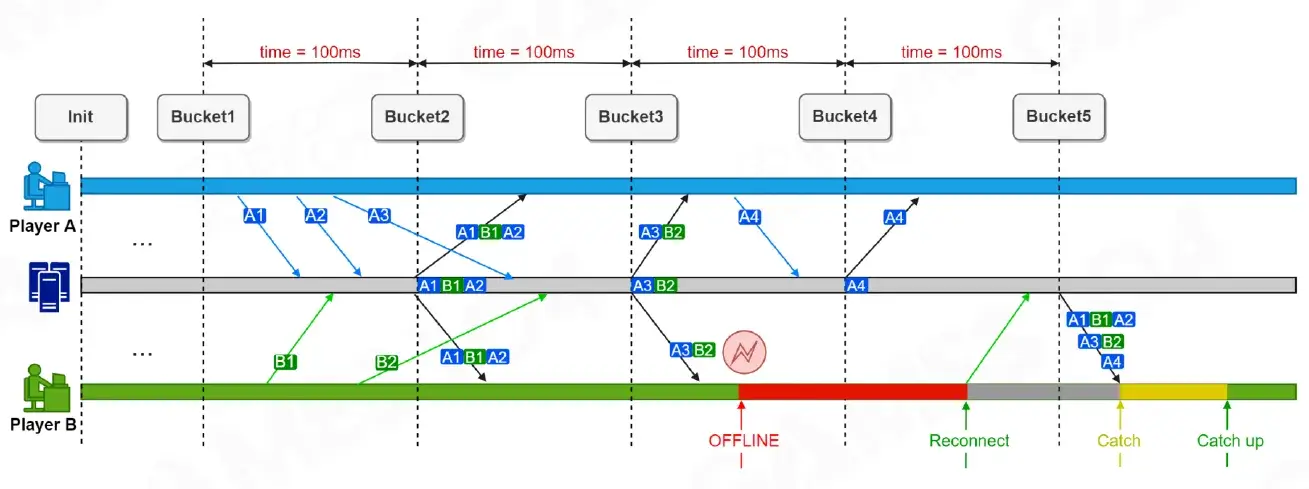

Temporary Offline, No Crash

暂时离线，无崩溃

  • Client also keeps game state, keyframes, deterministic-timed frames

    客户端还保留游戏状态、关键帧、确定性定时帧

  • After reconnecting, the server sends commands to the dropped player

    重新连接后，服务器向被删除的播放器发送命令

  • Accelerate to catch up the game progress

    加速以赶上游戏进度

webp

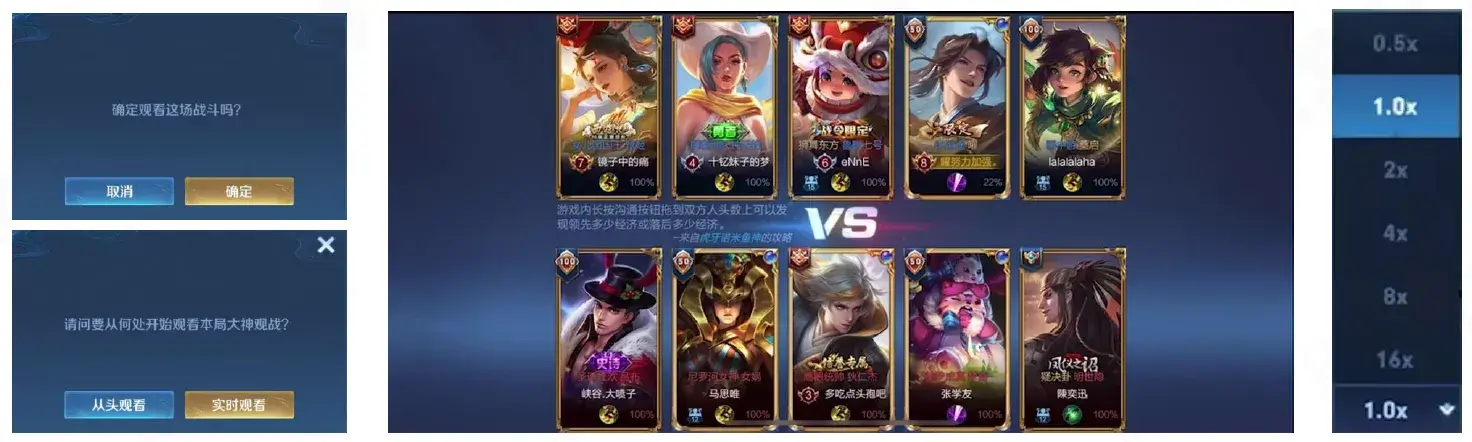

Observing

观察

Watching other players playing the game

观看其他玩家玩游戏

  • Reconnecting and watching are essentially the same

    重新连接和观看基本上是一样的

  • Watching is similar to reconnecting after a client crash

    监视类似于在客户端崩溃后重新连接

  • Player action command, forwarded to the player watching the game

    玩家动作命令，转发给观看游戏的玩家

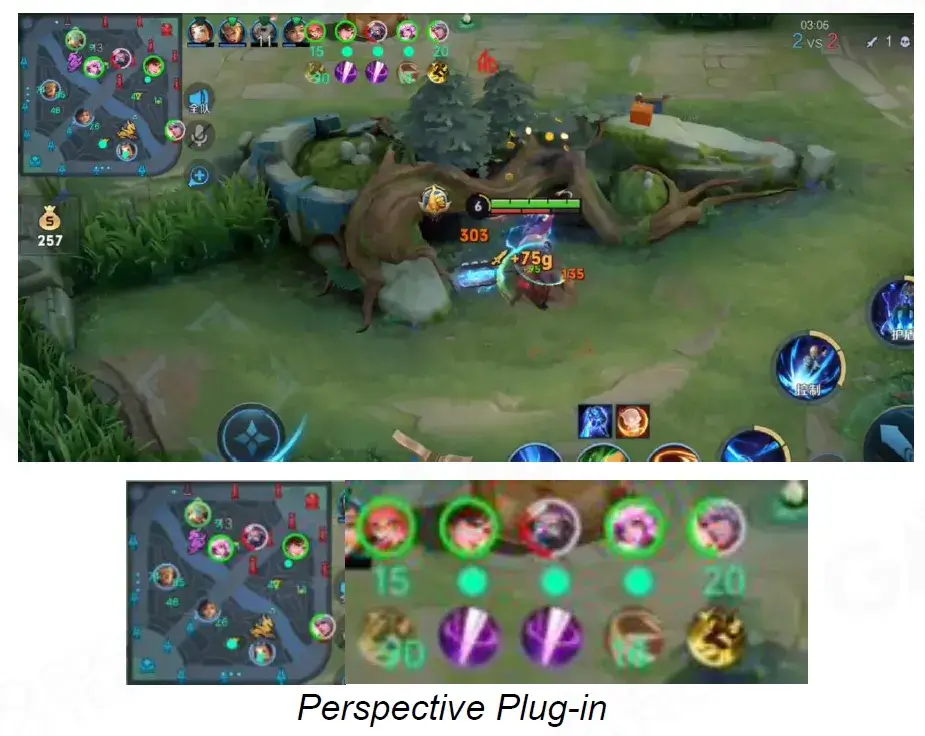

  • Watching is usually delayed for a few minutes to prevent screen peeping

    观看通常会延迟几分钟，以防止偷看屏幕

webp

Replay

重播

Execute player commands in order which can speed up

按照可以加速的顺序执行玩家命令

  • Replay file

    回放文件

    • Save game commands for a game

      保存游戏命令

    • Files take up little space

      文件占用的空间很小

  • How to implement go back?

    如何实施回退？

    • When the client executes the replay file, it adds a key frame snapshot, which can go back to the key frame moment

      当客户端执行回放文件时，它会添加一个关键帧快照，该快照可以返回到关键帧时刻

    • The current version of Honor of Kings go back to the key frame before 60s

      当前版本的《王者荣耀》回退了 60s 的关键帧

webp

Lockstep Cheating lssues

锁步作弊问题

Multiplayer-PVP

多人 PVP

  • Game over

    游戏结束

    • The client uploads the key data checksum, the server verifys the game result

      客户端上传密钥数据校验和，服务器验证游戏结果

  • During the game

    在游戏过程中

    • Report the key data checksum

      报告密钥数据校验和

    • Cheating players are kicked out, etc.

      作弊的玩家被踢出等等。

webp

2 Players

2 名玩家

  • Server can not detect who is cheating using key data checksum

    服务器无法使用密钥数据校验和检测谁在作弊

  • If the server is not verified, the cheating player will only affect one player in this case

    如果服务器未经验证，作弊玩家在这种情况下只会影响一个玩家

webp

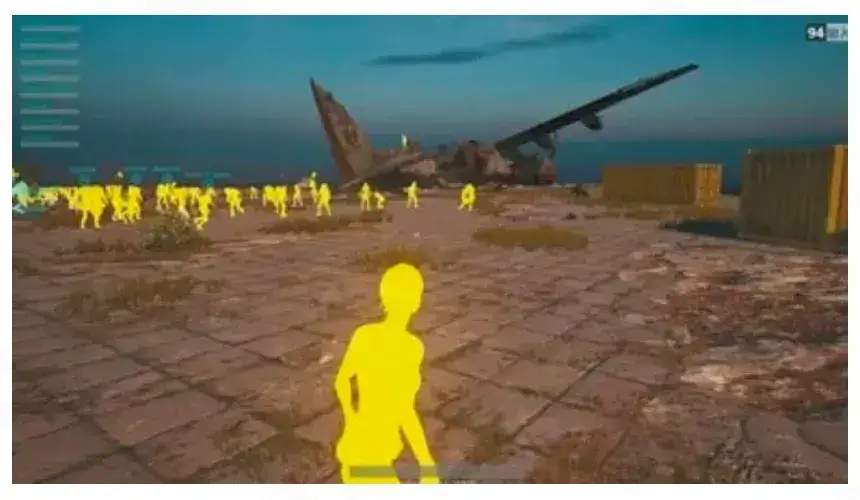

  • Difficult to avoid third-party plug-in to access war-fog or other hidden data

    难以避免第三方插件访问战争迷雾或其他隐藏数据

    • Game logic is performed on the client side

      游戏逻辑在客户端执行

    • Clients have all the game data

      客户端拥有所有游戏数据

webp

Lockstep Summary

锁定步骤摘要

Advantages

优势

  • Low bandwidth, only sends commands

    带宽低，只发送命令

  • High development efficiency, similar to single-player game development

    开发效率高，类似单人游戏开发

  • Precise action/hit detection

    精确的动作/命中检测

  • Easy to record games

    易于录制游戏

Problems

问题

  • Maintain the consistency is difficult to achieve

    保持一致性很难实现

  • Hard to solve the cheat plugin to unveil all game states

    难以解决的作弊插件揭示所有游戏状态

  • Longer disconnection and reconnection time

    更长的断开和重新连接时间

    • Need more complex optimization

      需要更复杂的优化

State Synchronization

状态同步

webp

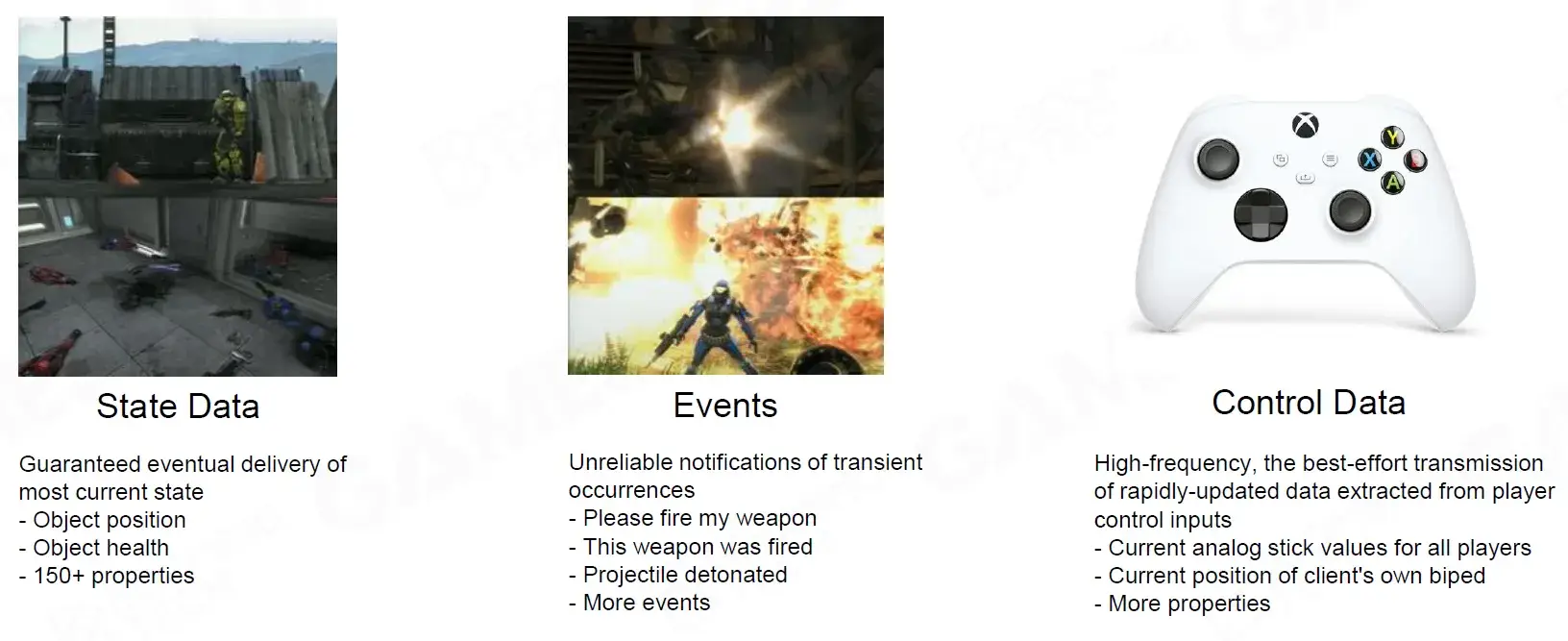

Replication Protocol of Halo

Halo 的同步协议

webp
State DataEventsControl Data
Guaranteed eventual delivery of most current state
保证最终交付最新状态
- Object position
对象位置
- Object health
对象生命
- 150+ properties
150+ 个属性		Unreliable notifications of transient occurrences
不可靠的瞬态事件通知
- Please fire my weapon
请发射我的武器
- This weapon was fired
此武器已被发射
- Projectile detonated
弹丸被引爆
-More events
更多事件		High-frequency, the best-effort transmission of rapidly-updated data extracted from player control inputs
高频、尽最大努力传输从玩家控制输入中提取的快速更新数据
- Current analog stick values for all players
所有玩家的当前模拟棒值
- Current position of client's own biped
客户端自己的角色的当前位置
-More properties
更多属性

State

状态

  • The game state is necessary to represent the game world. e.g: HP, MP

    游戏状态是代表游戏世界所必需的。例如：血量、法力

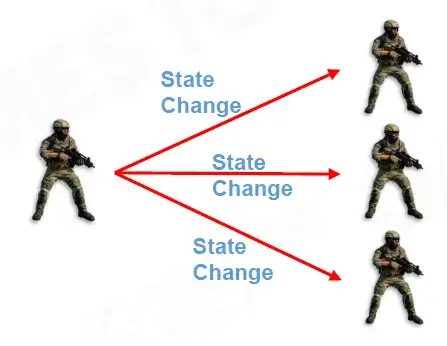

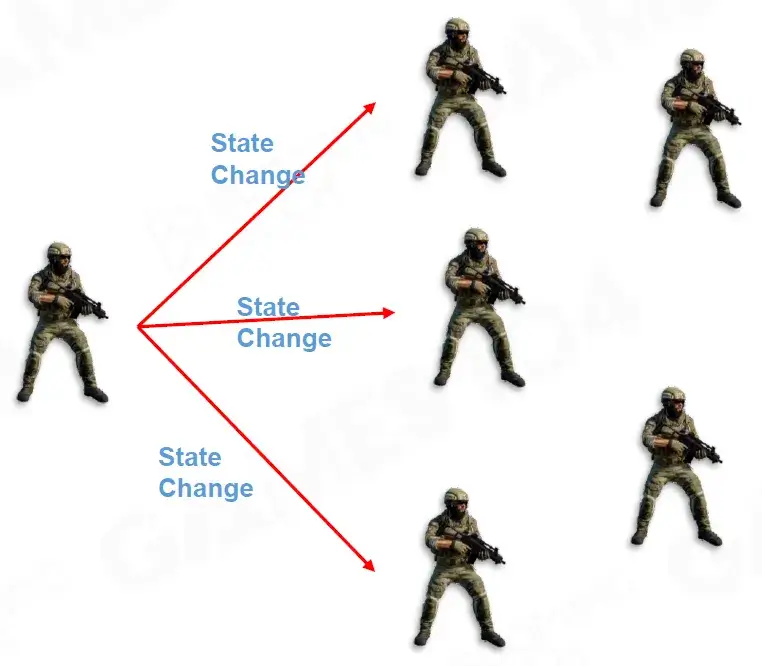

State Synchronization

状态同步

  • Server does not generate a single update for all clients. lt sends client a customized data packet

    服务器不会为所有客户端生成单个更新。它向客户端发送自定义数据包

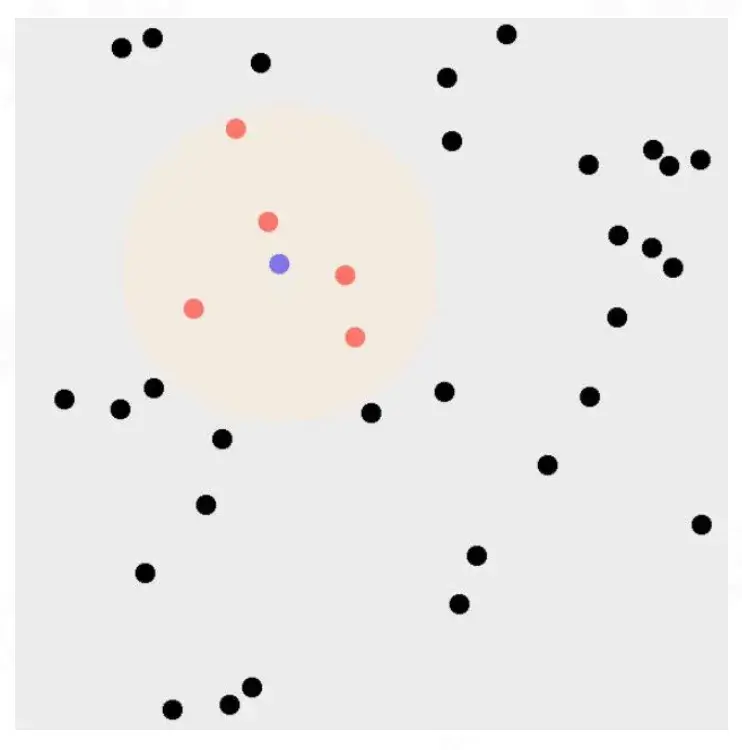

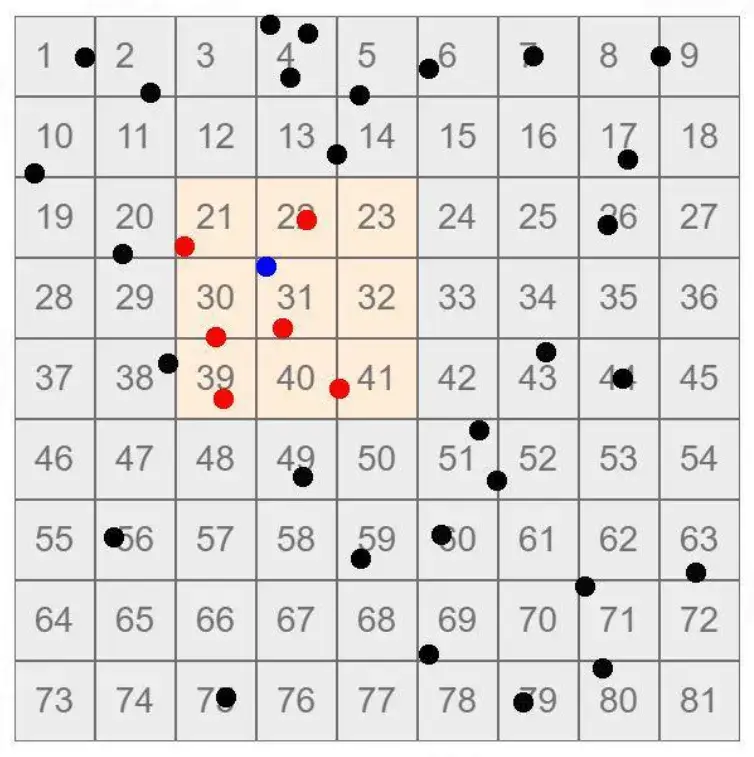

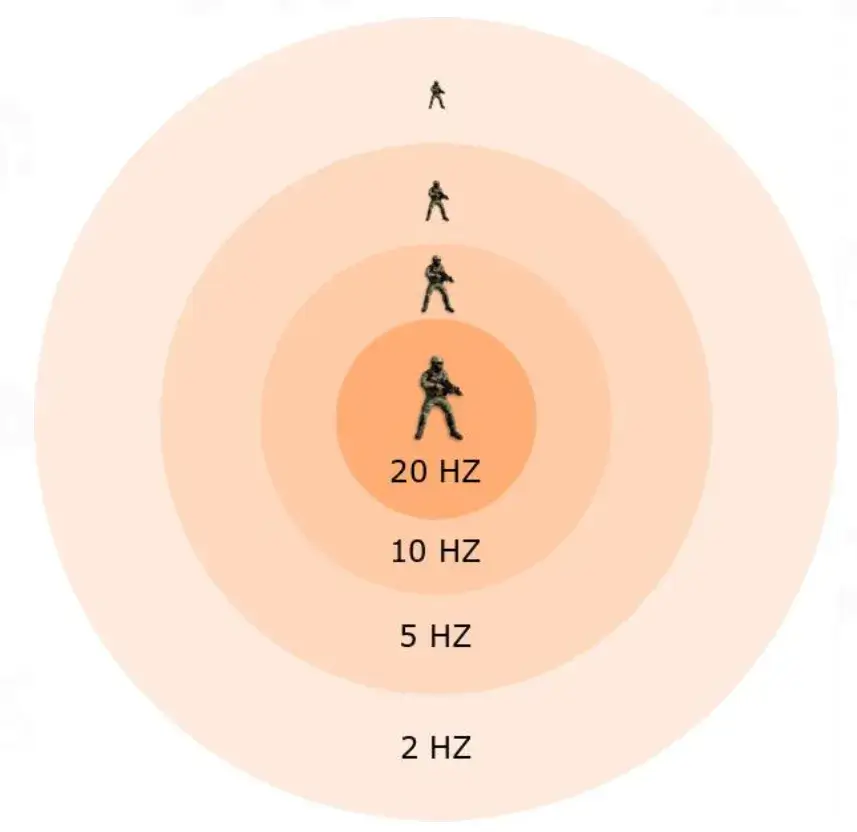

  • lf the game world is too complex, you can set an Area Of Interest (AOl) for reducing server overhead

    如果游戏世界太复杂，您可以设置一个兴趣区域（AOl）来减少服务器开销

Server Authorizes the Game World

服务器授权游戏世界

Server

服务器

  • Game world is authorized

    游戏世界已授权

  • Receive input and state from client

    从客户端接收输入和状态

  • Run game logic

    运行游戏逻辑

  • Send state

    发送状态

Client

客户端

  • Receive data and simulate game world

    接收数据并模拟游戏世界

  • Game play improvement

    游戏玩法改进

webp

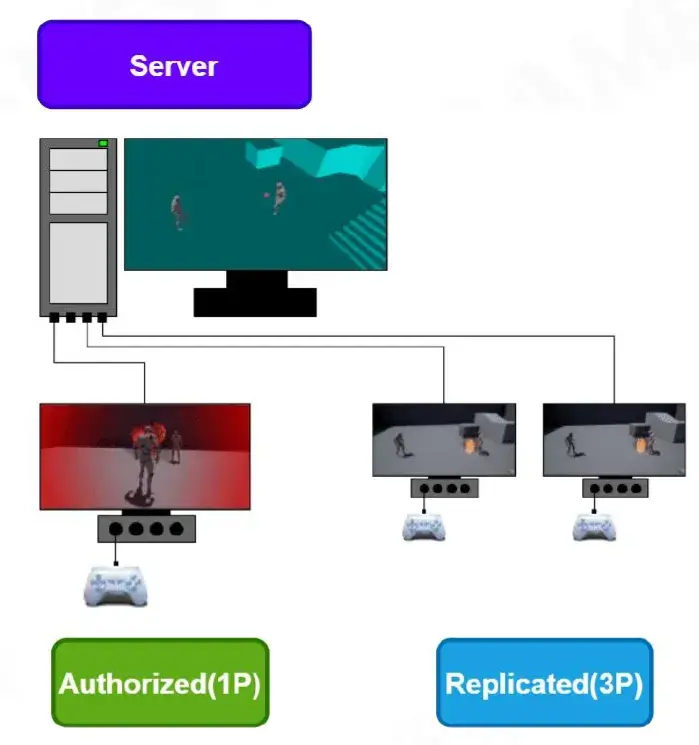

Authorized and Replicated Clients

授权和同步客户端

Authorized (1P)

授权（1P）

  • Player's local game client

    玩家的本地游戏客户端

Server

服务器

  • Authorized server

    授权服务器

Replicated (3P)

已同步（3P）

  • Simulated character in other player's client

    其他玩家客户端中的模拟角色

webp

State Synchronization Example

状态同步示例

Player1 (Authorized)

玩家 1（授权）

  • Fire

    开火

Player2 (Replicated)

Player2（已同步）

  • See player1 open fire

    看到玩家 1 开火

Player 1 presses an input on their local machine to fire

玩家 1 按下本地机器上的输入进行射击

{% div subfields %}

{% div subfield %}

Player1 (Authorized)

玩家 1（授权）

  • Fire

    开火

  • Send to server

    发送到服务器

{% enddiv %}

{% div subfield %}

Server

服务器

  • Player1 fire

    玩家 1 开火

  • Send to each client

    发送给每个客户端

{% enddiv %}

{% div subfield %}

Player2 (Replicated)

玩家 2（已同步）

  • Recieve packet

    接收数据包

  • Player1 fire

    Player 1 开火

{% enddiv %}

{% enddiv %}

Server

服务器

Tell each client to replicate the movement of Player 1's projectile.

告诉每个客户同步玩家 1 投射物的运动。

Server

  • Tell each client to destroy their copies of Player 1's projectile

    告诉每个客户销毁他们的玩家 1 投射物副本

  • Tell all clients to response to damage of the projectile

    告诉所有客户对弹丸的损坏做出反应

Dumb Client Problem

哑巴客户端问题

Clients can not to do anything until receive server state update

在收到服务器状态更新之前，客户端无法执行任何操作

How to see an immediate response?

如何看到即时响应？

  • Client-side prediction

    客户端预测

  • Server reconciliation

    服务器对账

webp

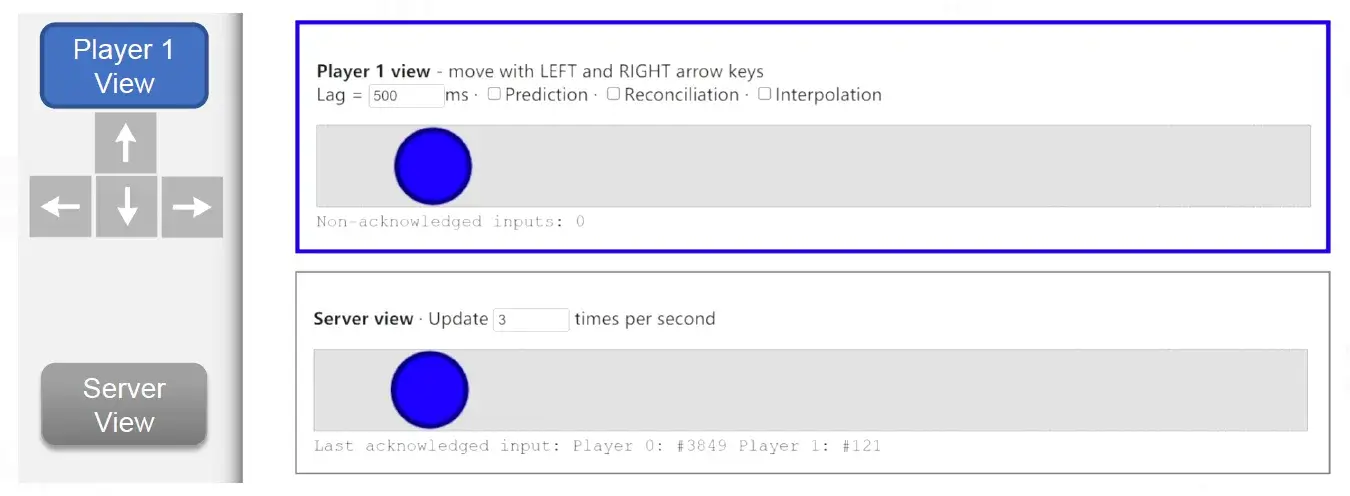

Client-Side Prediction

客户端预测

Authorized client

授权客户

  • Press "→"

    按“→”

  • Received server message

    收到服务器消息

  • Start movement

    开始移动

webp

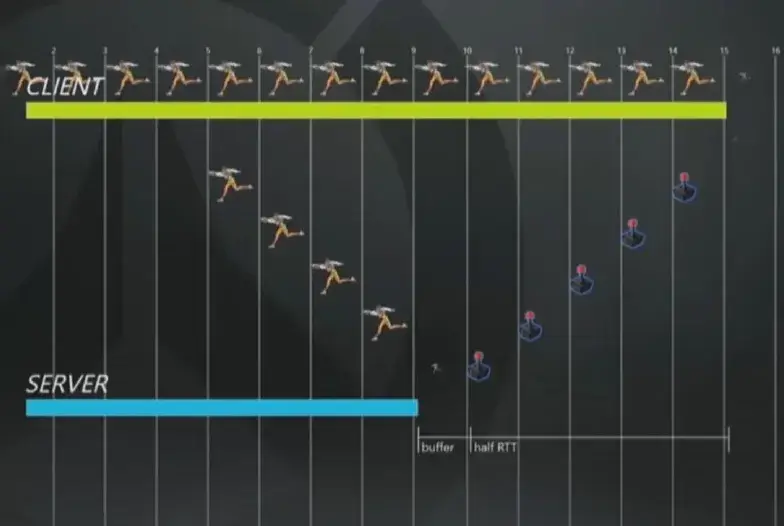

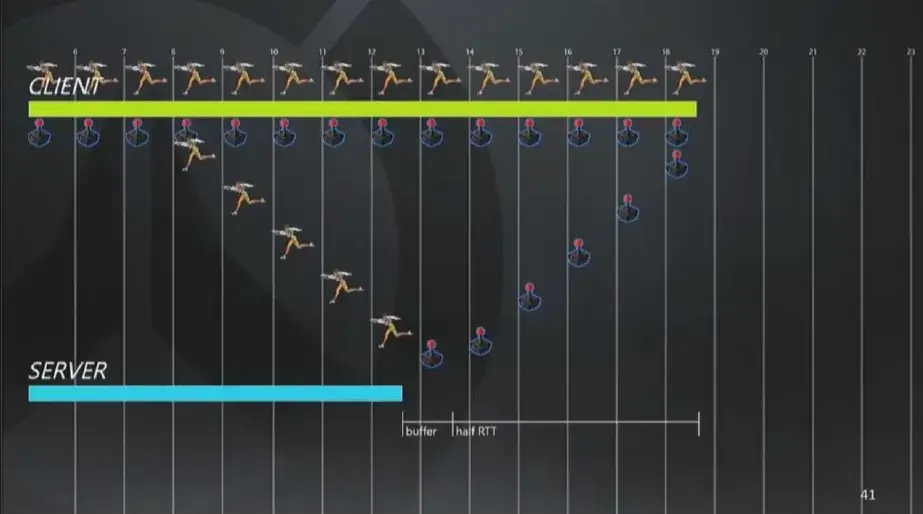

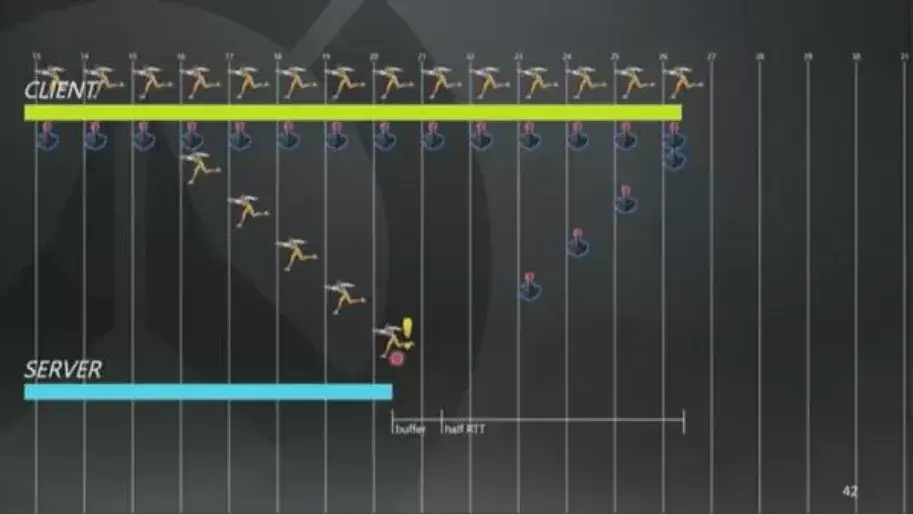

Overwatch - Client-side Prediction

守望先锋-客户端预测

  • RTT = 160ms

    RTT = 160 毫秒

  • Half RTT = 80ms

    半 RTT = 80 毫秒

  • Command frame = 16ms

    命令帧 = 16ms

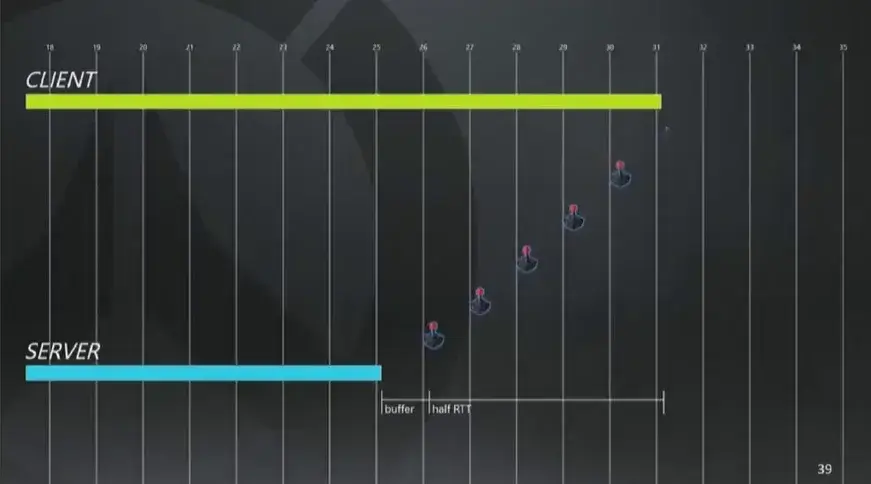

The client is always ahead of the server by half RTT and one buffered command frame

客户端始终领先于服务器一半的 RTT 和一个缓冲命令帧

  • Press key and response immediately

    按键并立即响应

webp

Server Reconciliation

服务器对账

Authorized client: Buffer

授权客户：Buffer

  • Record every state when do the client prediction

    在进行客户端预测时记录每个状态

  • Compare with the past server data when it was received on client side

    与客户端接收到的过去服务器数据进行比较

Ring buffer for states

状态环形缓冲区

  • Stores all of our states in the past several frames on client

    将过去几帧中的所有状态存储在客户端上

Process

流程

  • If the client computed the same result as server, the client will continue on its merry way to simulate the next input

    如果客户端计算出的结果与服务器相同，客户端将继续愉快地模拟下一个输入

Problem

问题

  • lf misprediction?

    如果预测失误？

webp

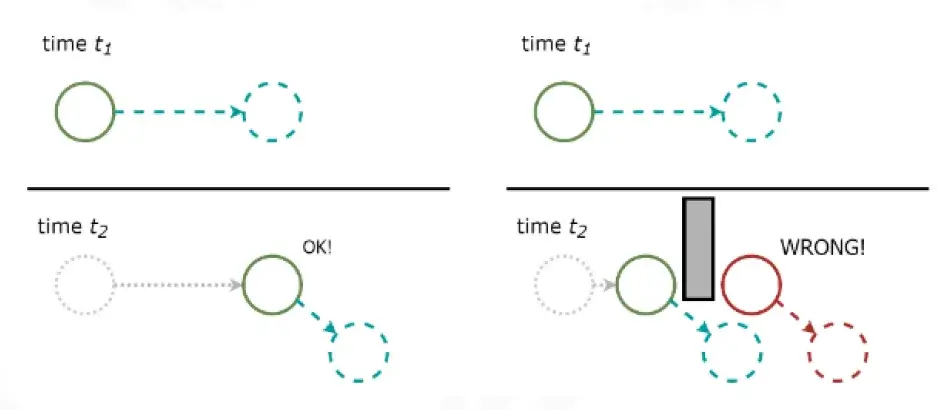

  • If blocked by an obstacle at the server

    如果被服务器上的障碍物阻挡

  • Position is wrong! (in red)

    位置不对！（红色）

  • Client must accept the new server

    客户端必须接受新服务器

  • update

    更新

  • Retrace all predicted movement starting from the new confirmed position

    从新的确认位置开始回溯所有预测的运动

webp

  • If the client and server disagree on the results, we've mispredicted

    如果客户端和服务器对结果不一致，我们就预测错了

  • Have to reconcile

    必须和解

Ring buffer for inputs

用于输入的环形缓冲区

  • Stores all of inputs we did in the past several frames on client.

    在客户端上存储我们在过去几帧中所做的所有输入。

Process

流程

  • Overwrite the clients results withthe server's results

    用服务器的结果覆盖客户端的结果

  • Replay all of your inputs to catchback up to what you believe now

    重播您的所有输入，以回溯您现在所相信的内容

webp

Server Reconciliation Example

服务器对账示例

Overwatch

守望先锋

  • We try to move

    我们试图移动

  • The server said no

    服务器拒绝了

  • We got yanked back down to where we were before and froze

    我们被拉回到原来的位置，然后僵住了

webp

Packet Loss

数据包丢失

  • Client input packages fail to reach the server

    客户端输入包无法到达服务器

  • The server tries to keep tiny input buffer of unprocessed input

    服务器试图保留未处理输入的微小输入缓冲区

  • lf the server run out of input buffer, server will duplicate your last input in a window

    如果服务器的输入缓冲区用完，服务器将同步您在窗口中的最后一个输入

  • Push client sends missed inputs asap

    推送客户端尽快发送丢失的输入

webp

State Synchronization Vs. Lockstep Synchronization

State Synchronization
状态同步		Lockstep Synchronization
锁步同步
Deterministic logic
确定性逻辑		Not necessary
不需要		Necessary
必要的
Response
响应		Better responsiveness
更好的响应能力		Poor responsiveness
响应性差
Network Traffic
网络流量		Usually high
通常高		Usually low
通常低
Development efficiency
开发效率		Much more complicated
要复杂得多		Easy to develop, difficult to Debug
易于开发，难以调试
Number of players
玩家数量		Few players
玩家很少		Support small and large numbers of players
支持小型和大型玩家
Cross-platform
跨平台		Relatively easy
相对容易		Relatively difficult
相对困难
Reconnect
重连		Relatively easy
相对容易		Relatively difficult
相对困难
Replay File size
重播文件大小		Big
大		Small
小
Cheat
欺骗		Relatively hard
相对困难		Relatively easy
相对容易

References

Network Protocols

Network Synchronization

第十九节：网络游戏的进阶架构

Online Gaming Architecture - Advanced Topics

Character Movement Replication

角色动作同步

Character Movement Replication

角色动作同步

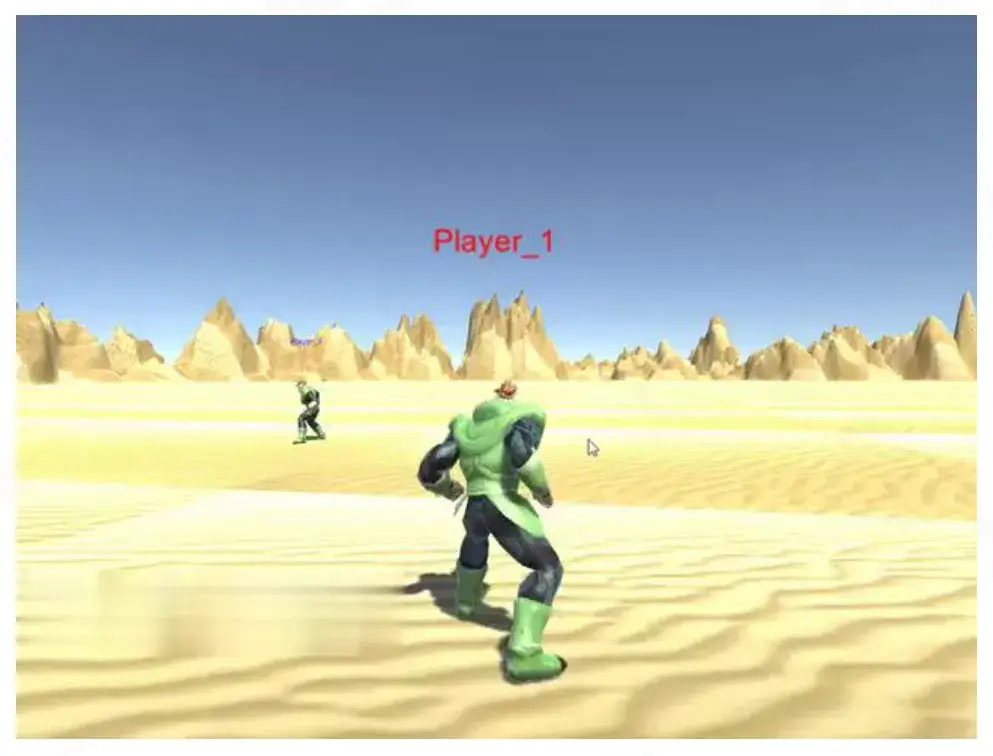

From player 2's point of view, player1's movement is very choppyand lags behind player1's actual position.

从玩家 2 的角度来看，玩家 1 的动作非常不稳定，落后于玩家 1 的实际位置。

Interpolation & Extrapolation

内插值和外插值

Purpose: Smooth movementof player's characters on screen

目的：玩家角色在屏幕上流畅移动

Interpolation

内插值

  • Calculate the state between old butknown states

    计算旧但已知状态之间的状态

webp

Extrapolation

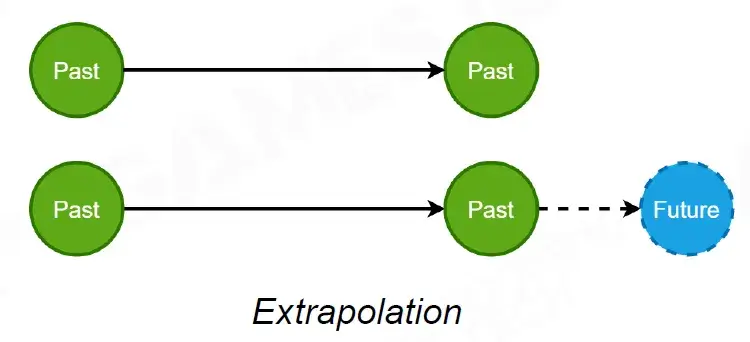

外插值

  • Predict where entity is going from old states

    预测实体从旧状态走向何方

webp

Smooth States by Interpolations

插值平滑状态

  • Position and Orientationcan be interpolated between two recently received data

    位置和方向可以在最近接收到的两个数据之间进行插值

Buffer States and Deferred Render

缓冲区状态和延迟渲染

  • Data packet will not be rendered immediately when received

    数据包在收到后不会立即呈现

  • Put into memory and wait for a new data packet

    放入内存并等待新的数据包

  • After waiting for a time offset, start to render first received data packet

    等待时间偏移后，开始渲染第一个接收到的数据包

  • Create an artificial delay of interpolation offset

    创建插值偏移的人工延迟

webp

Character Movement Replication by Interpolation

通过插值同步角色动作

Result after interpolation was implemented

插值后的结果

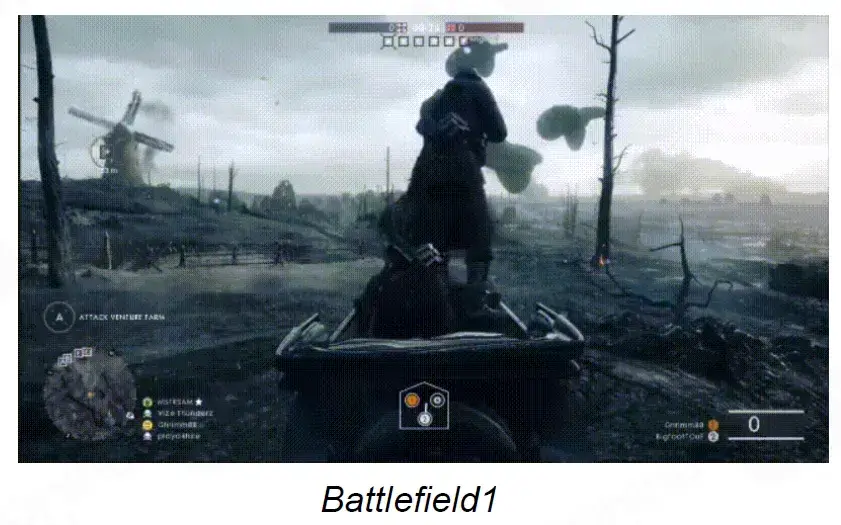

Interpolation Challenges of Vehicle Movement Replication

车辆运动同步的插值挑战

webp

Estimate Current State by Extrapolation

通过外推法估计当前状态

  • Use paststates to estimate currentstate to compensate net lag

    使用过去状态来估计当前状态，以补偿净滞后

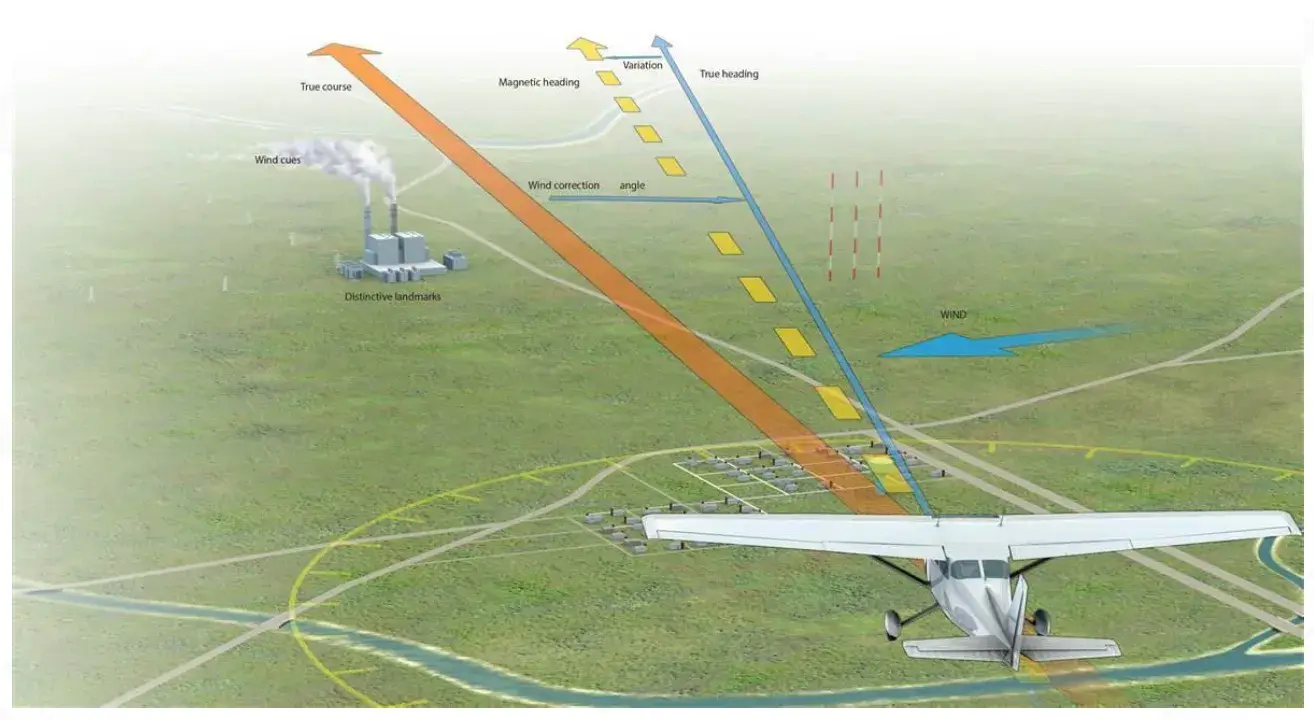

Dead Reckoning

死亡清算

  • Estimate future state based on states that have been received

    根据已收到的状态估计未来状态

webp

Projective Velocity Blending

投影速度混合

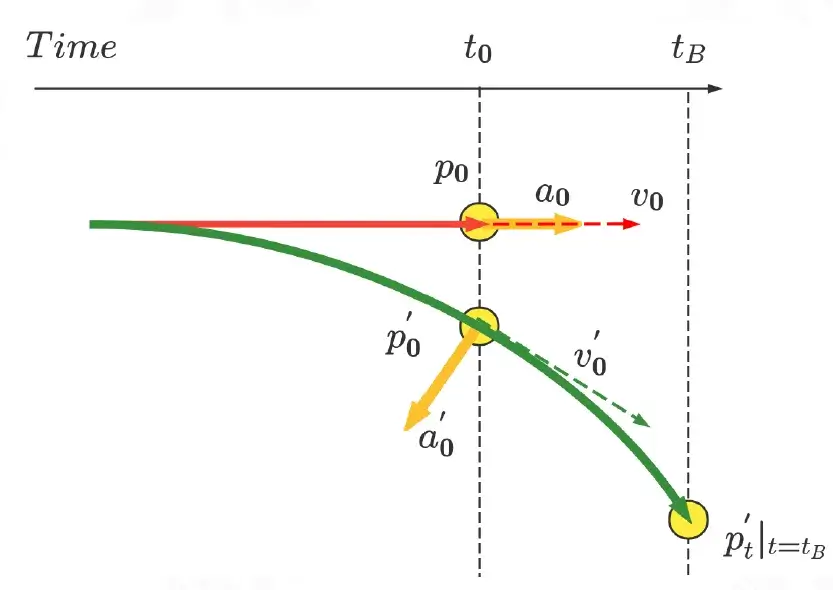

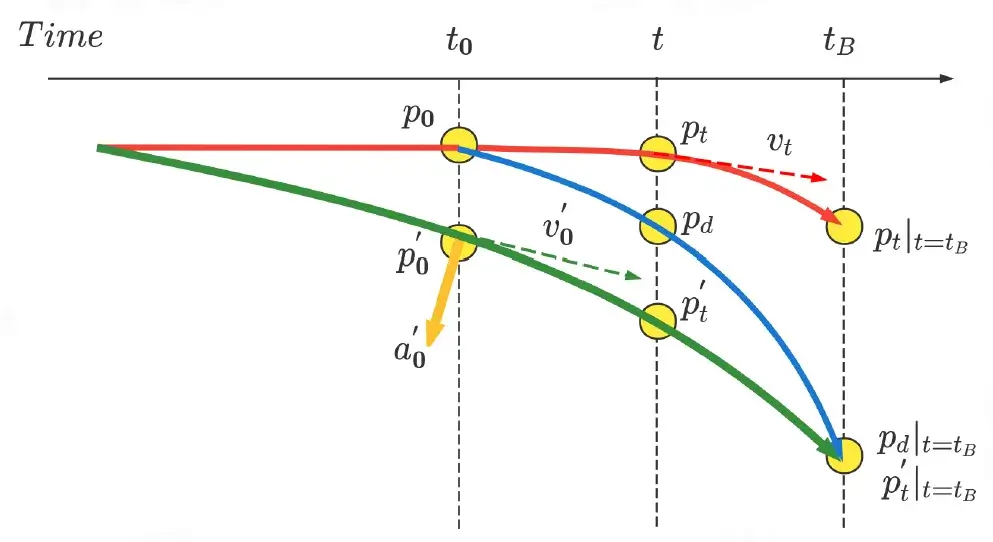

  • At t0t_0, the replicated character is at p0p_0 with velocity v0v_0 and acceleration a0a_0, and receive the synced states with position p0′p'_0, velocity v0′v'_0, acceleration a0′a'_0

    在时间 t0t_0，同步的角色位于 p0p_0，其速度为 v0v_0，加速度为 a0a_0，并接收到同步的状态，其位置为 p0′p'_0，速度为 v0′v'_0，加速度为 a0′a'_0。

  • We can predict position pt′p'_t after a time duration tt based the synced states

    我们可以根据同步的状态预测在时间持续 tt 后的位置 pt′p'_t。

pt′=p0′+v0′t+12a0′t2p'_t=p'_0+v'_0t+\frac{1}{2}a'_0t^2

  • Our goal is to reach pt′∣t=tBp'_t|_{t=t_B} smoothly after aa fixed blending time duration: tB−t0t_B-t_0

    我们的目标是在固定的混合时间持续 tB−t0t_B - t_0 后平滑地到达 pt′∣t=tBp'_t |_{t=t_B}。

webp

At any time tt, we can get the blending velocity vtv_t

在任何时刻 tt，我们可以得到混合速度 vtv_t

λ=t−t0tB−t0\lambda=\frac{t-t_0}{t_B-t_0}

vt=v0+λ(v0′−v0)v_t=v_0+\lambda(v'_0-v_0)

And projecting the position ptp_t from p0p_0

并从 p0p_0 投影位置 ptp_t

pt=p0+vtt+12a0′t2p_t=p_0+v_tt+\frac{1}{2}a'_0t^2

Then get the dead reckoned position pdp_d by combining ptp_t and pt′p'_t

然后通过结合 ptp_t 和 pt′p'_t 得到估算位置 pdp_d

pd=pt+λ(pt′−pt)p_d=p_t+\lambda(p'_t-p_t)

webp

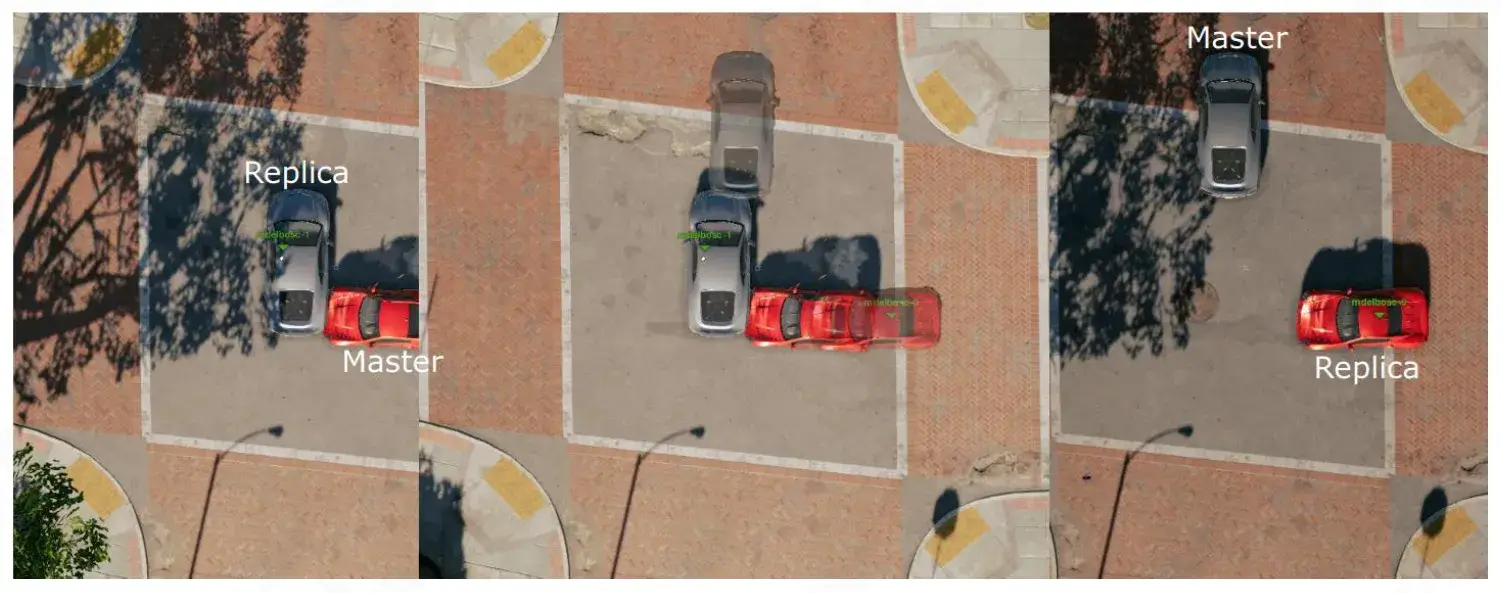

Collision Issues

碰撞问题

Dead reconking Collision trajection looks weird

估算碰撞轨迹看起来很奇怪

Phase 1: Collision starts

**第一阶段：**碰撞开始

Phase 2: The replica keeps going, since the extrapolation is basedon the last snaphsot

**第二阶段：**同步继续进行，因为外推是基于最后一次快照

Phase 3: Finally we receive a snapshot to stop the replica, but replica gives master’s rigidbody a huge velocity to pushing master away

**第三阶段：**最后我们收到一个快照来停止同步，但同步会给主体的刚体以巨大的速度将主体推开

Physics Simualtion Blending During Collision

碰撞过程中的物理模拟混合

Tunable between two states

可在两个状态之间调整

  • State calculated by the client physics simulation

    客户端物理模拟计算的状态

  • State that tries to reach the dead reckoned positions

    试图到达指定位置

webp

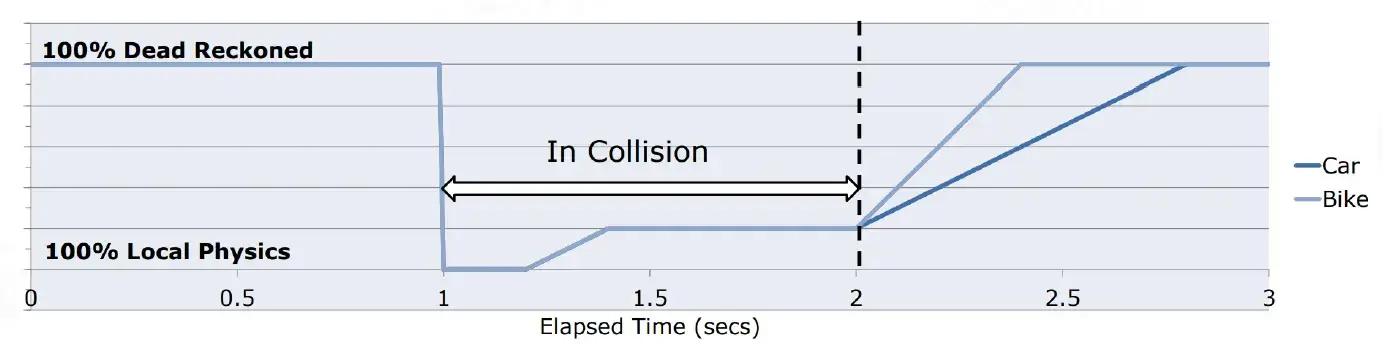

Tuned blending factors from Watch Dogs 2, Ubisoft Toronto. Bikes recover faster than cars

调整了育碧多伦多《看门狗 2》的混合因子。自行车的恢复速度比汽车快。

Usage Scenario of Interpolation

插值使用场景

Scenario for Using Interpolation

使用插值的场景

  • Characters' movement are very non-deterministic with high acceleration

    角色在高加速度下的运动非常不确定

  • Gameplay suffers from the “wrap”when extrapolation errors occur

    当出现外推错误时，游戏玩法会受到“包装”的影响

Typical examples

典型示例

  • FPS
  • MOBA
webp

Usage Scenario of Extrapolation

外推法使用场景

Scenario for Using Extrapolation

使用外推法的场景

  • Player movement uses a realistic physical model

    玩家动作使用逼真的物理模型

  • Gameplay suffers from latency due to network transmission

    游戏因网络传输而延迟

Typical examples

典型示例

  • Racing game. Vehicle systems (Tanks, Ships, etc.)

    赛车游戏。载具系统（坦克、船舶等）

webp

Blend Scenario of Interpolation and Extrapolation

插值和外推的混合场景

Sometimes we need to apply both interpolation and extrapolation for the game to work properly

有时我们需要同时应用插值和外推法才能使游戏正常工作

  • Apply Extrapolation on vehicles

    对车辆应用外推法

  • Apply Interpolation for characters

    对角色应用插值

  • Do extrapolation if not enough data received

    如果没有收到足够的数据，则进行外推

webp

Hit Registration

点击注册

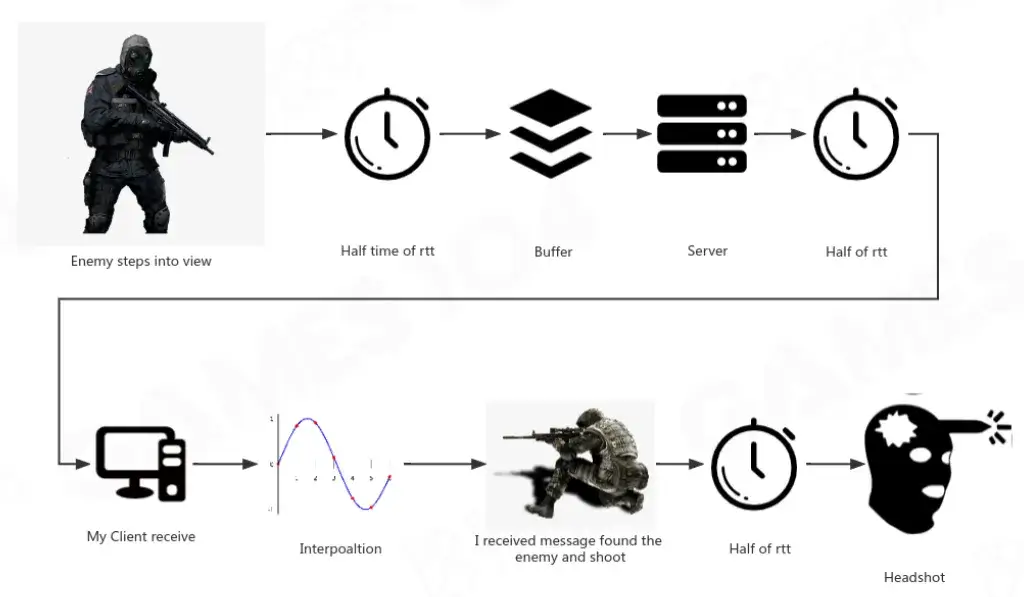

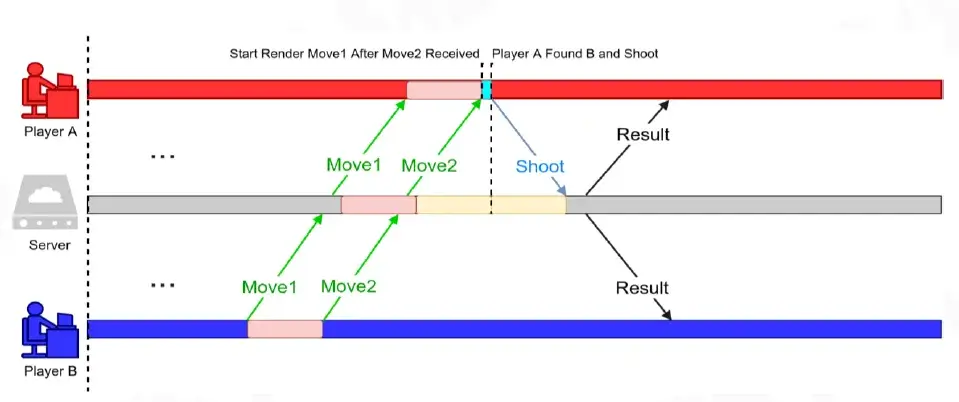

How to Make a Headshot in Online Game

如何在网络游戏中进行头部射击

Net messages to travel from client to server, and interpolation causes you to see the enemy way lag behind

网络消息从客户端传输到服务器，插值会导致你看到敌人的方式落后

webp

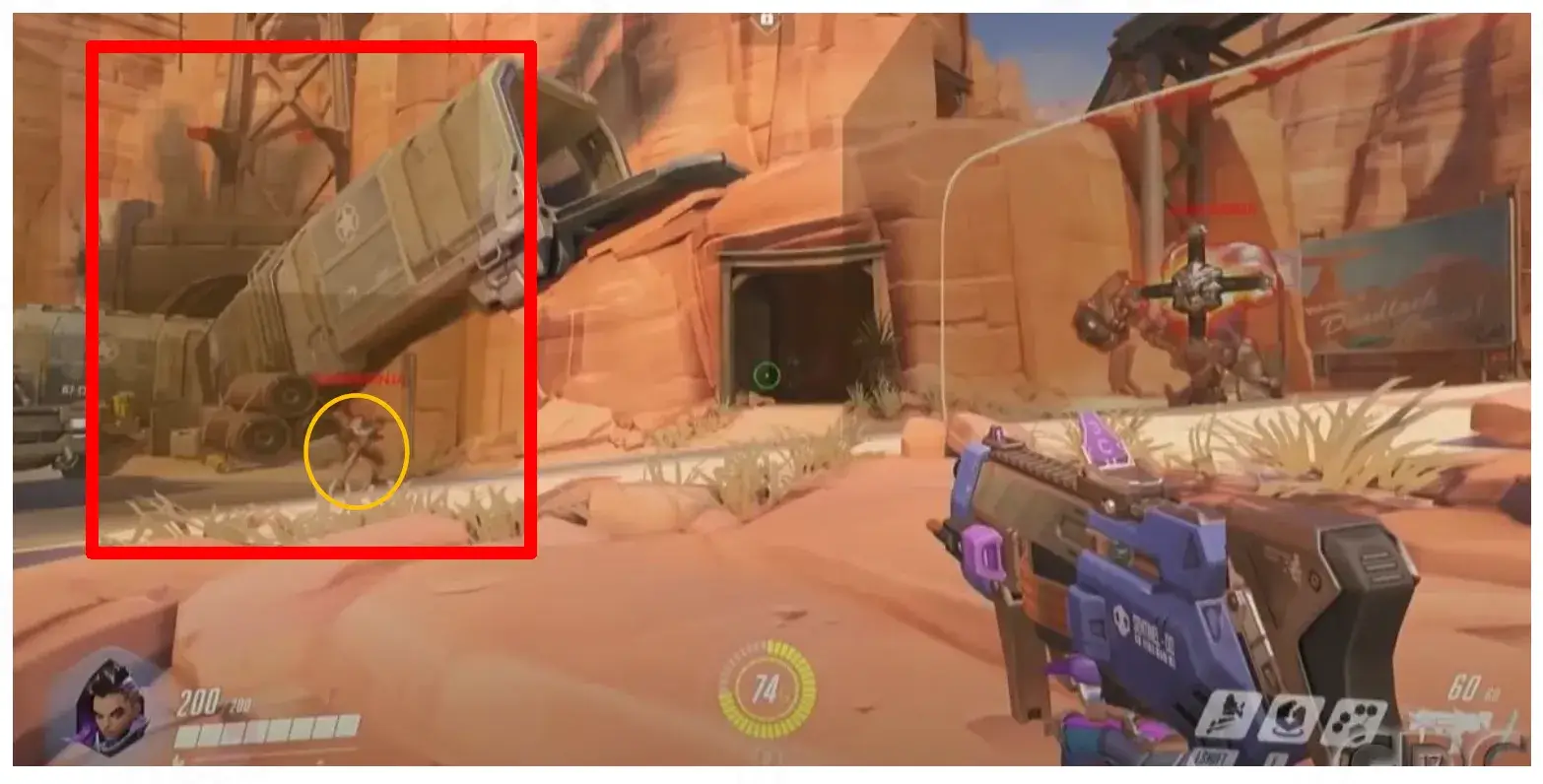

Where is the Enemy?

敌人在哪里？

Due to latency, interpolation offsetand time delay, you'll see other players slightly behind their current server positions. Where should I shot?

由于延迟、插值偏移和时间延迟，你会看到其他玩家稍微落后于他们当前的服务器位置。我应该在哪里开枪？

Where Should I Shot?

我应该在哪里开枪？

webp

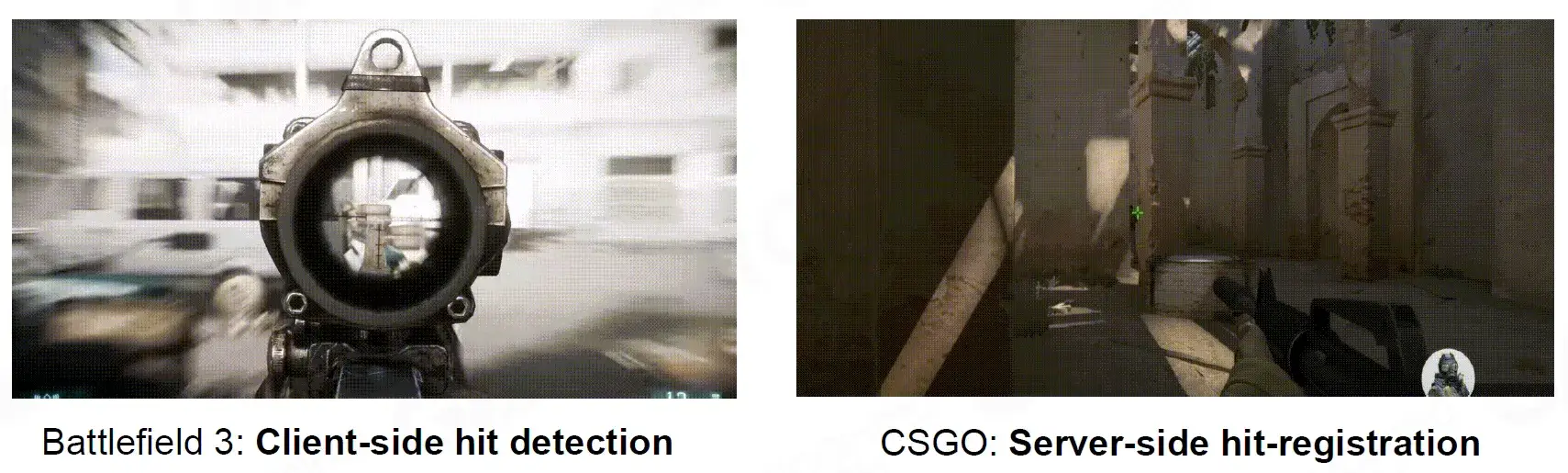

Hit Registration

点击注册

Hit registrationis making a consensusof all players that whether you've actually hit your enemy

命中注册是让所有玩家就你是否真的击中了敌人达成共识。

webp

  • Detecting hit event on client-side with replicated character positions

    通过同步角色位置在客户端检测命中事件

  • Send hit events to the server

    将命中事件发送到服务器

  • Server run simple verification

    服务器运行简单验证

webp

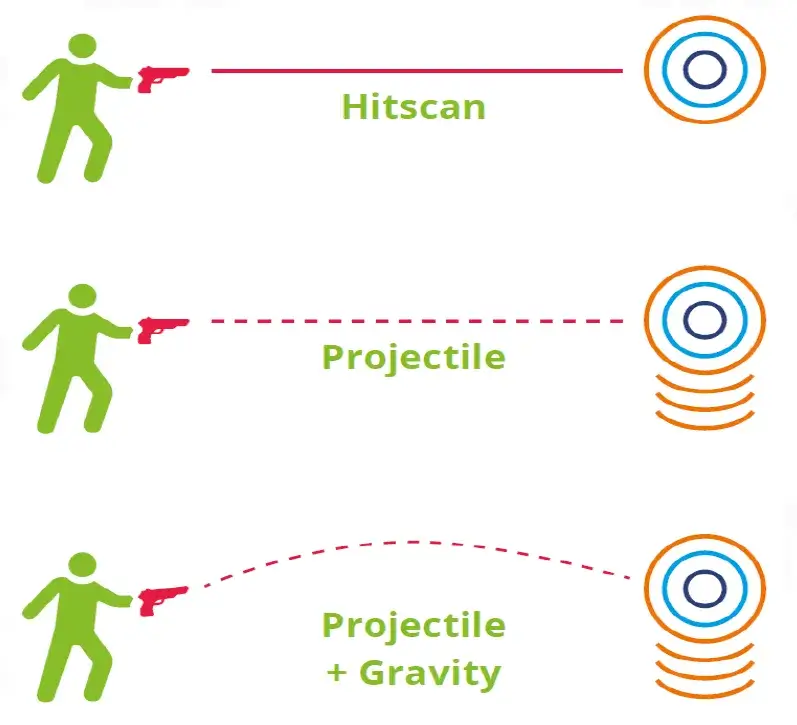

A Comparison of HitscanWeapons versus Projectile Weapons

Hitscan 武器与投射武器的比较

Unlike hitscanweapons, projectile weapons can also simulate the effect of gravity

与 hitscanweapons 不同，投射式武器还可以模拟重力的影响

webp

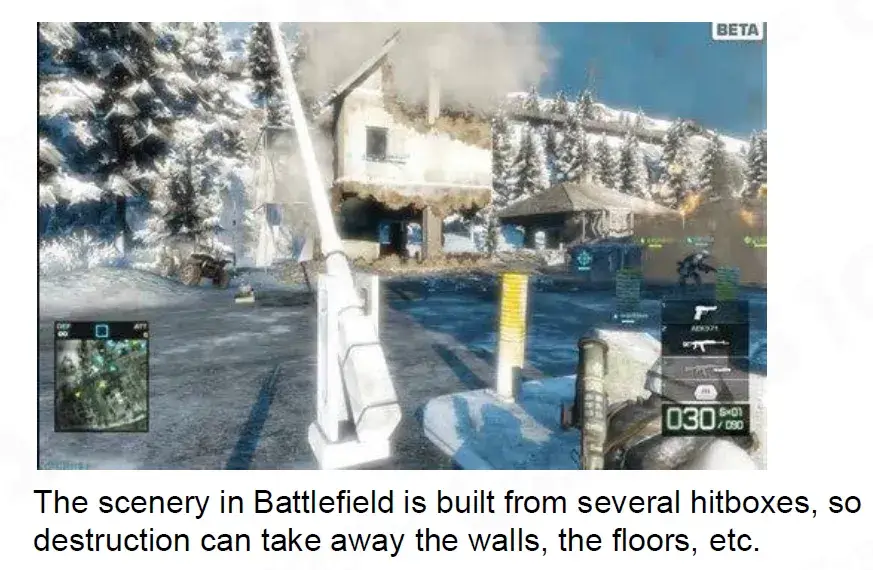

《战地》中的风景是由几个 hitbox 构建的，因此破坏可以带走墙壁、地板等。

webp
  • Hitscan 发射射弹后立即击中目标
  • Projectile 发射射弹后需要一定时间才可击中目标

A Very Simple Server Verification of Hit Event

一种非常简单的服务器命中事件验证

  • Client send hit event with complete ray information to server

    客户端向服务器发送包含完整射线信息的命中事件

    • StartPoint, HitPointand HitObjectof the Raycast

      光线投射的起点、终点和终点

  • Validate StartPointwhether is really close enough to shooter

    验证起点是否真的足够接近射击者

  • Validate the HitPointwhether is really belong to HitObject

    验证 HitPoint 是否真的属于 HitObject

  • Ensure nothing is blocking along the path by casting a ray from the StartPointand HitPoint

    通过从起点和终点投射光线，确保路径上没有任何遮挡

In real game, the server verification is VERY TRICKY AND COMPLICATED

在真实游戏中，服务器验证非常棘手和复杂

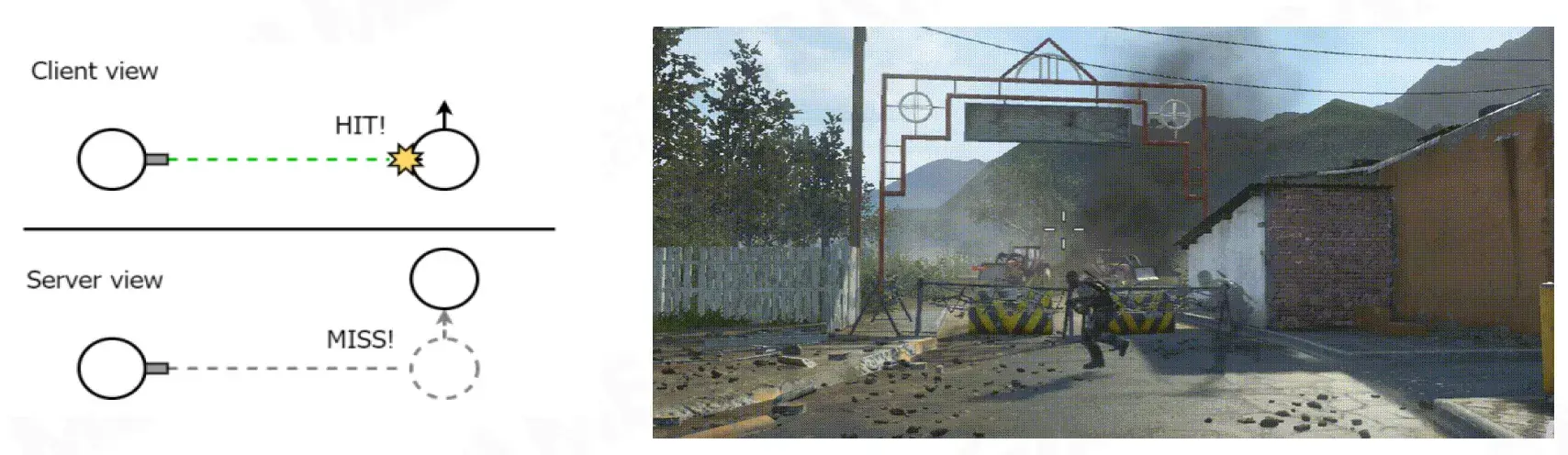

Server Verification Has to Guess

服务器验证必须猜测

webp

Problem of Client-Side Hit Detection

客户端命中检测问题

Efficient and Precise

高效精准

  • Very efficient for hit detection without huge server workload

    非常有效的命中检测，无需巨大的服务器工作负载

  • Best shooting experience with pixel precision

    像素精度最佳的拍摄体验

Unsafe for cheating

易于玩家作弊

  • Fake hit event message

    假热门事件消息

  • Lag switches

    滞后开关

  • Infinite ammo

    无限弹药

  • …

Detecting Hit on Server-Side?

检测服务器端的命中？

Client doesn’t know the target current location on server

客户端不知道服务器上的目标当前位置

webp

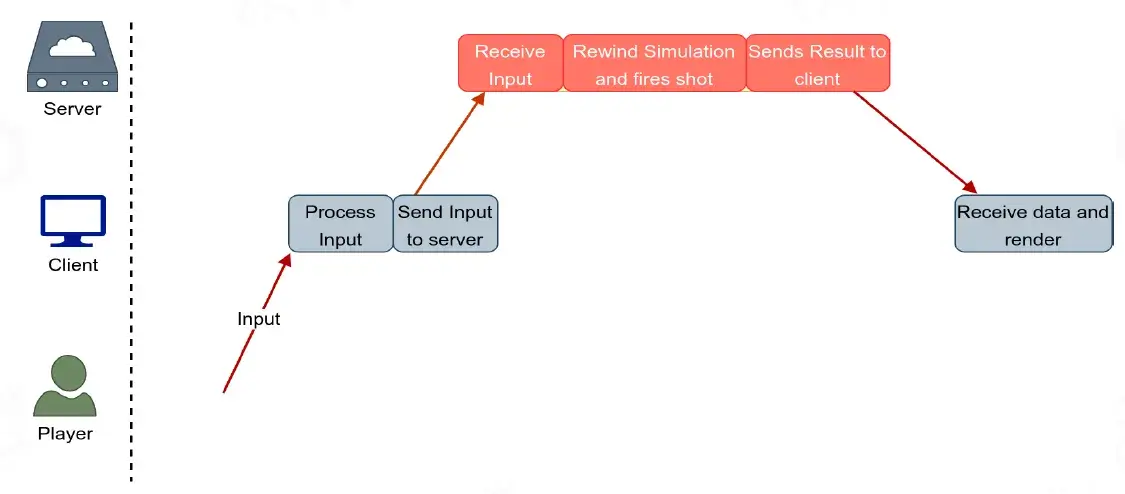

Lag Compensation

滞后补偿

Server-side state rewinding to compensate network lags when player’s commands are executed

服务器端状态倒带，以补偿执行玩家命令时的网络延迟

  • Get information from clients

    从客户那里获取信息

  • Rewind game state in cached state snapshots that matches the client's action time

    在与客户端操作时间匹配的缓存状态快照中回放游戏状态

  • Run client operation in rewind game state

    在倒带游戏状态下运行客户端操作

webp

Compensate all Possible Lags

补偿所有可能的延迟

  • RewindTime = Current Server Time - Packet Latency - Client View Interpolation Offset

    RewindTime = 当前服务器时间 - 数据包延迟 - 客户端视图插值偏移

webp webp

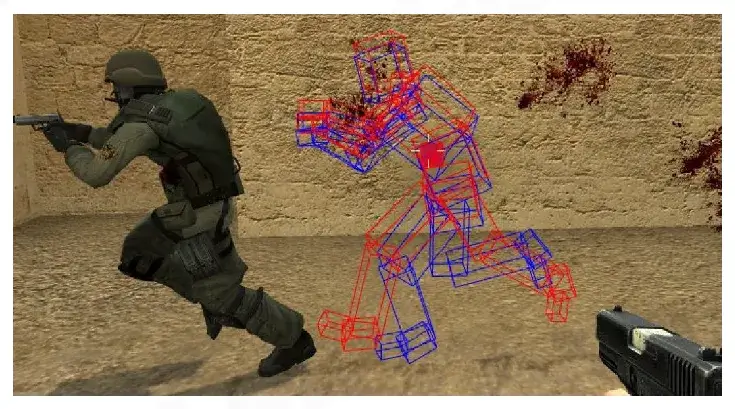

Actor: Enemy's client state

角色：敌人的客户端状态

Red collision box: Enemy in the player's view

红色碰撞框：玩家视野中的敌人

Blue collision box: Rewinded server state

蓝色冲突框：倒带服务器状态

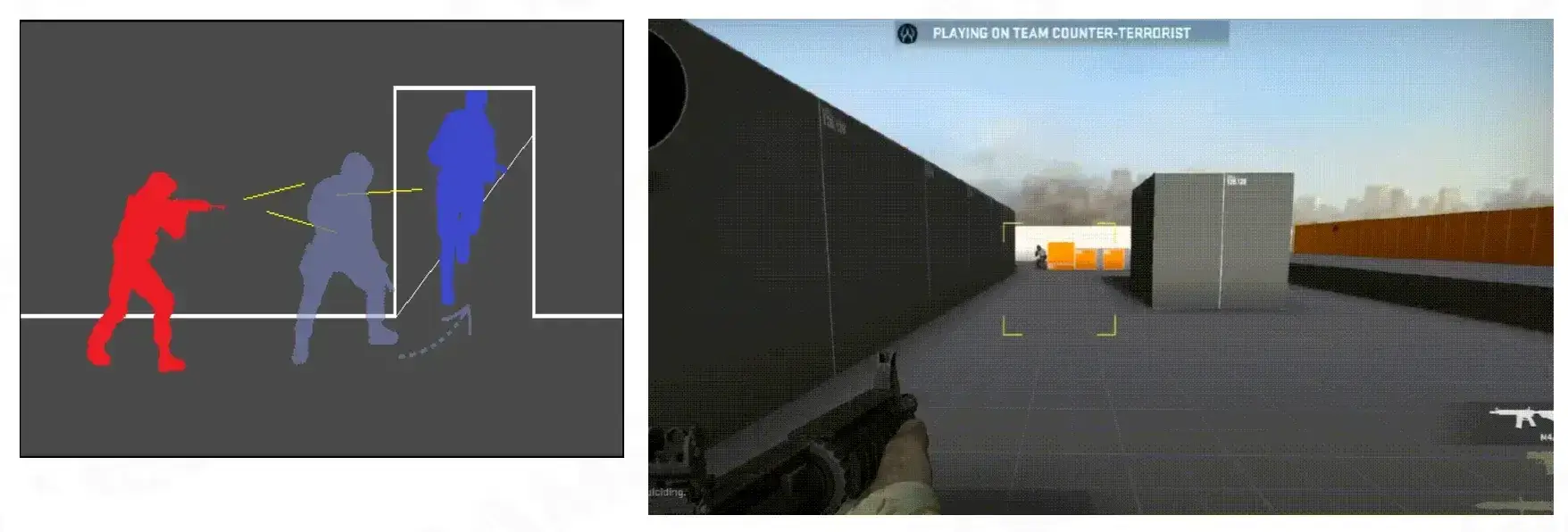

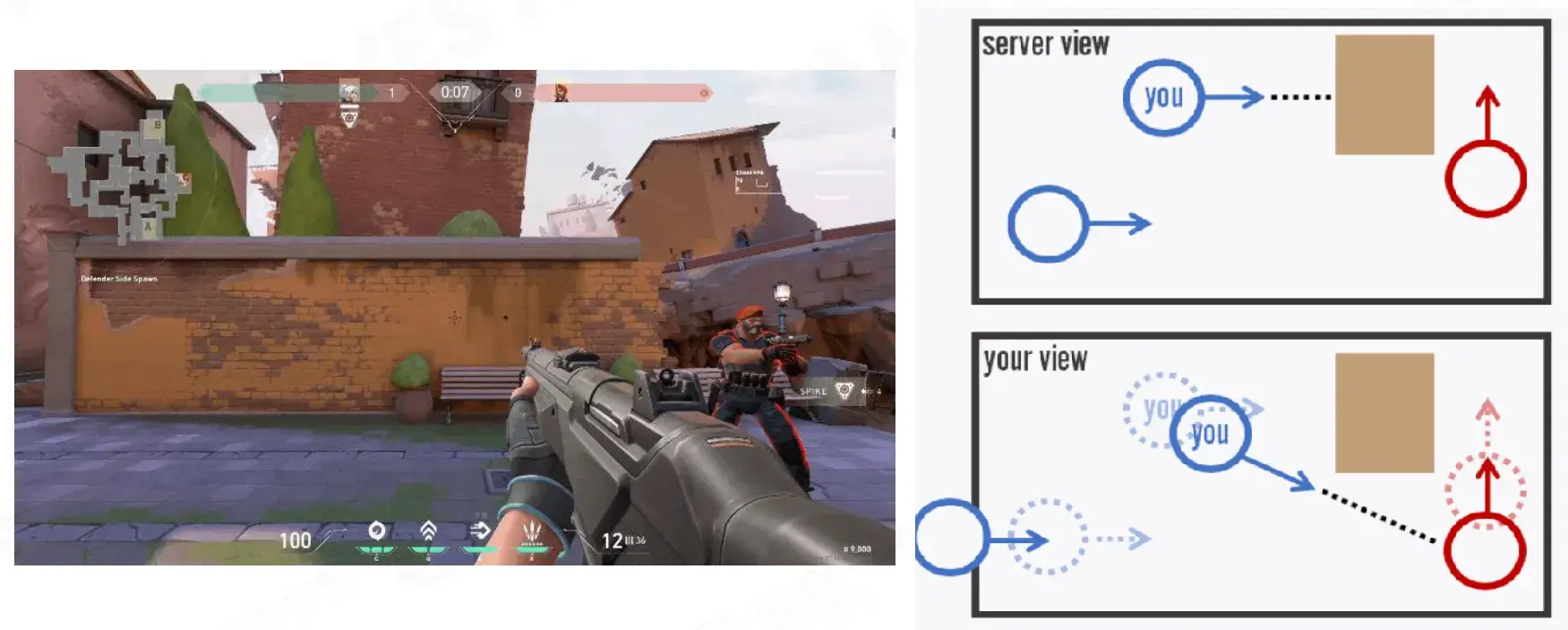

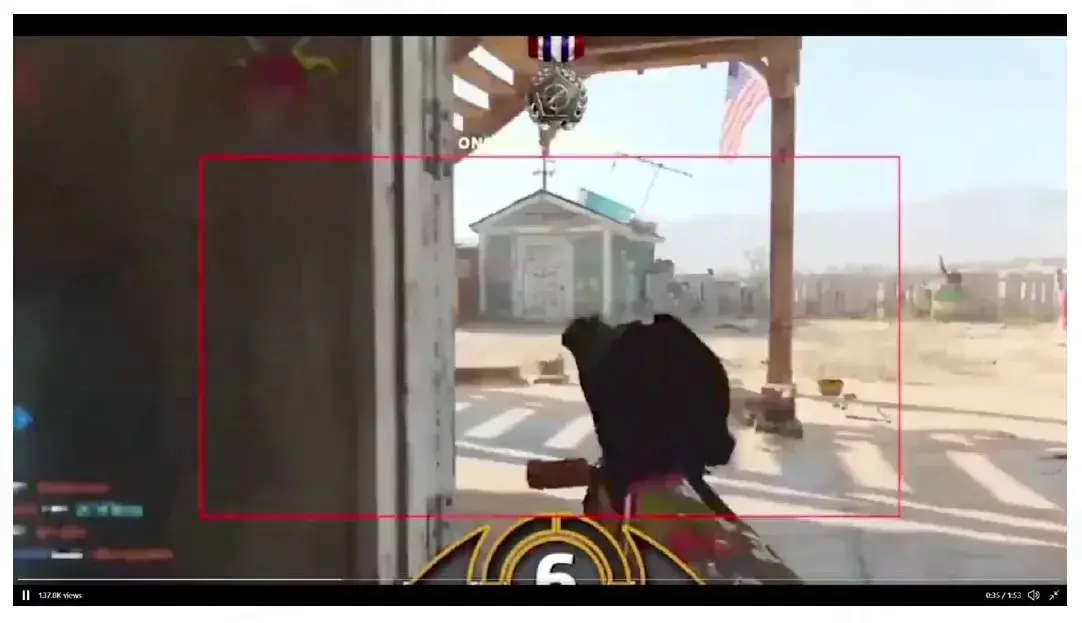

Cover Problems –Running into Cover

掩体问题——遇到掩体

webp

被击中者躲到掩体后因为网络延迟仍被击中，Shooter' s advantage.

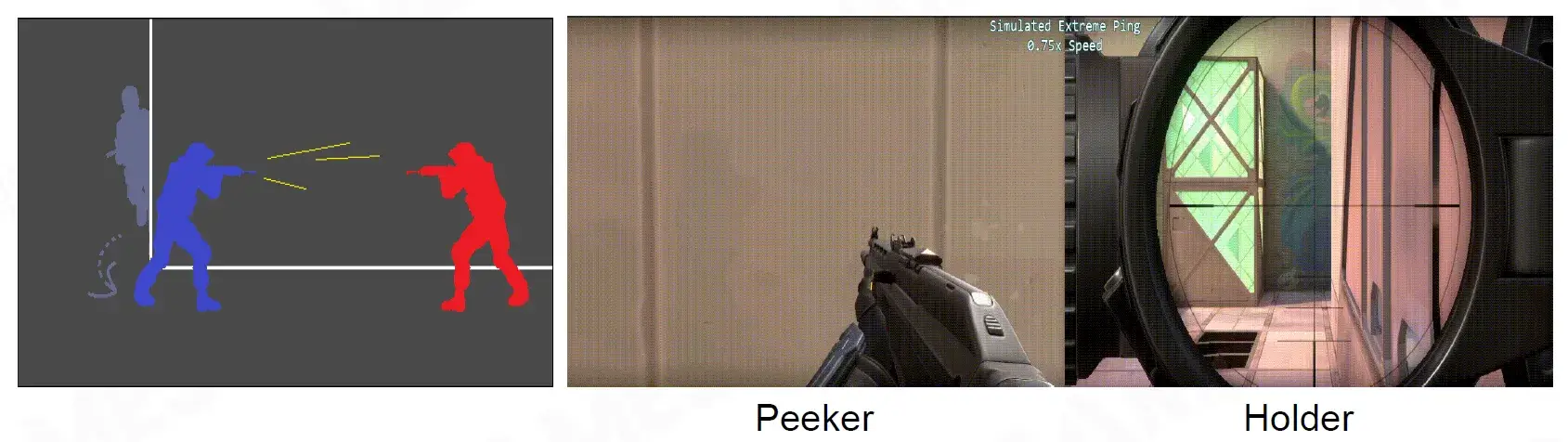

Cover Problems –Coming out from Cover

webp

被攻击者从掩体出来因网络延迟未被击中，Peeker’s advantage.

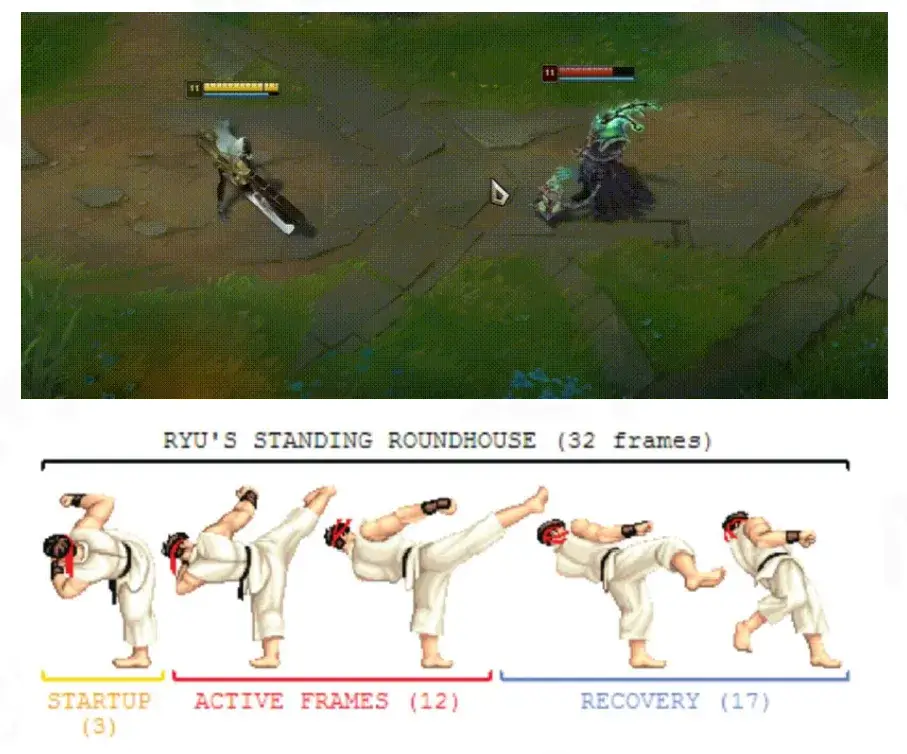

Startup Frames to Ease Latency Feeling

启动框架缓解延迟感

  • A fixed animation before attack or move can also eliminate the effect of lag from network transmission

    攻击或移动前的固定动画（技能前摇）也可以消除网络传输延迟的影响

  • Players will keep their attention on animations and ignore the state delay

    玩家将注意力集中在动画上，忽略状态延迟

webp

Local Forecast VFX Impacts

本地预测 VFX 影响

  • Clients can perform local hit tests in order to give the player some instant feedback, such as displaying a blood splatter visual effect

    客户端可以执行本地命中测试，以便为玩家提供一些即时反馈，例如显示血溅的视觉效果

  • However, any permanent effects of the hits, such as reducing the hit points of a player, are only applied after receiving confirmation from the server

    但是，只有在收到服务器的确认后，才会应用命中的任何永久效果，例如减少玩家的命中点

MMOG Network Architecture

MMOG 网络架构

What is MMOG?

什么是 MMOG？

MMOG: Massively Multiplayer Online Game, or more commonly MMO

MMOG：大型多人在线游戏，或更常见的 MMO

MMOs with a large numbers of players, often hundreds or thousands, on the same server can enable players to cooperate and compete with each other on a large scale, and include a variety of gameplay types (MMORPG, MMORTS, MMOFPS, etc.)

在同一台服务器上拥有大量玩家（通常是数百或数千人）的 MMO 可以使玩家能够大规模地相互合作和竞争，并包括各种游戏类型（MMORPG、MMORTS、MMOFPS 等）

webp webp

Diversities of Modern MMO

现代 MMO 的多样性

webp

Game Sub-Systems

游戏子系统

MMOs have a variety of gameplay and are supported by many sub-systems

MMO 具有多种游戏玩法，并得到许多子系统的支持

  • User management

    用户管理

  • Matchmaking

    配对

  • Trading system

    交易系统

  • Social system

    社会制度

  • Data storage

    数据存储

  • ...

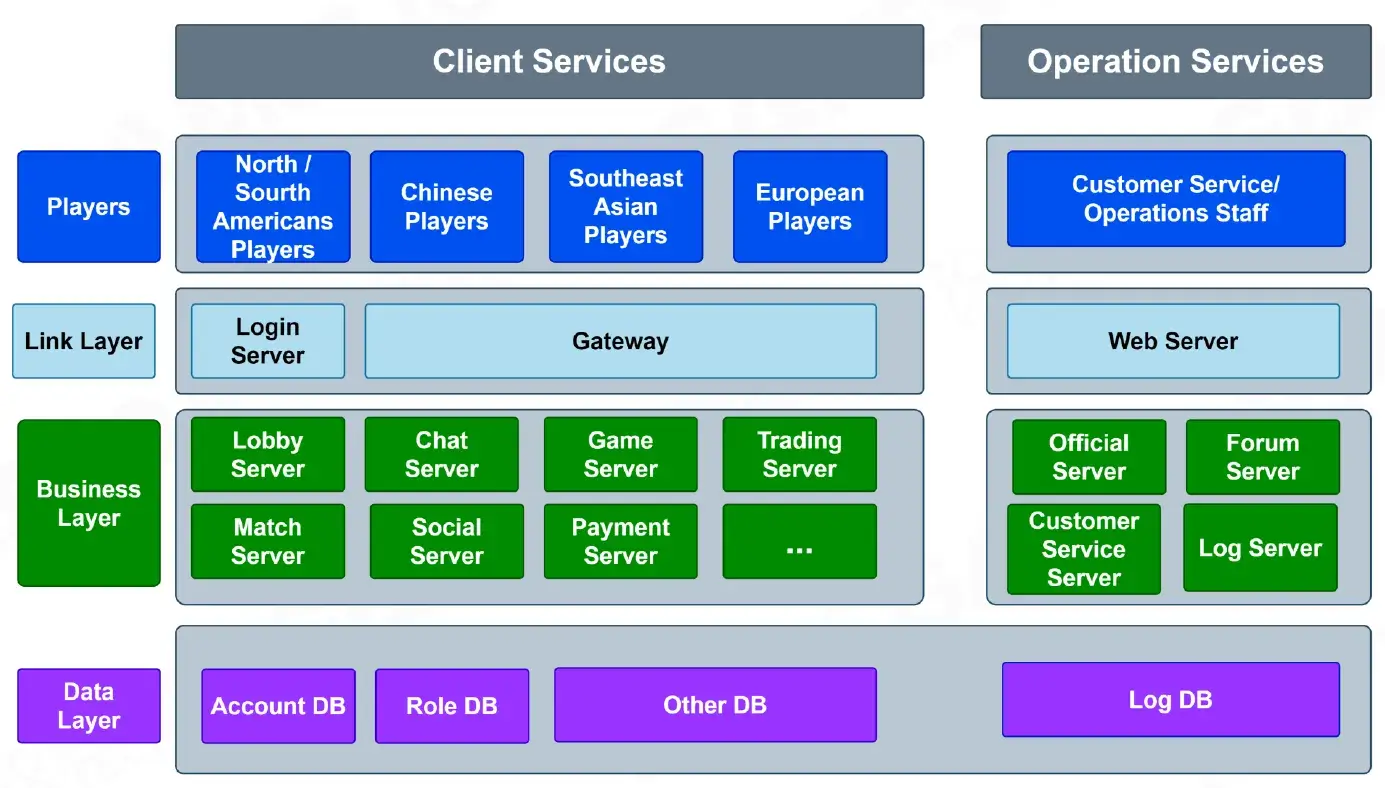

MMO Architecture

MMO 架构

webp

链路层服务

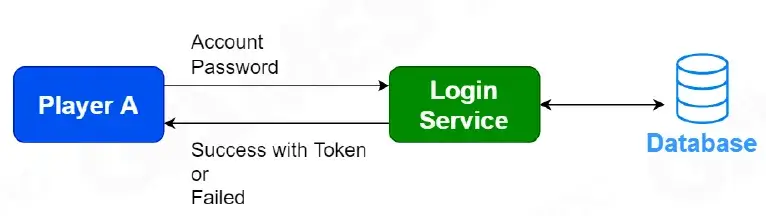

Login Server

登录服务器

  • Verification of client connection

    客户端连接验证

Gateway

网关

  • Very important layer to separate inside/outside networks

    分隔内部/外部网络的非常重要的层

webp

Lobby

大厅

  • Players can gather in the lobby, see and interact with other players

    玩家可以聚集在大厅，观看并与其他玩家互动

  • When the number of players continues to increase, it is a challenge to the performance of the server and the client

    当玩家数量持续增加时，服务器和客户端的性能都会受到挑战

webp

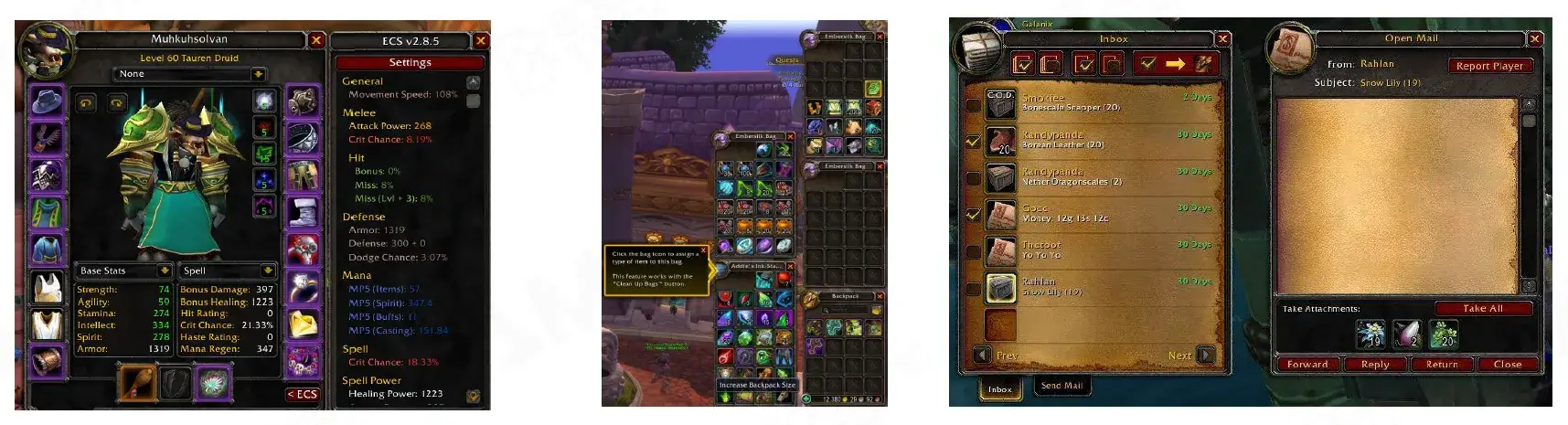

Character Server

角色服务器

All player data is managed in one system. Such as account info, character info, backpack info, mail info, etc.

所有玩家数据都在一个系统中管理。如账户信息、人物信息、背包信息、邮件信息等。

webp

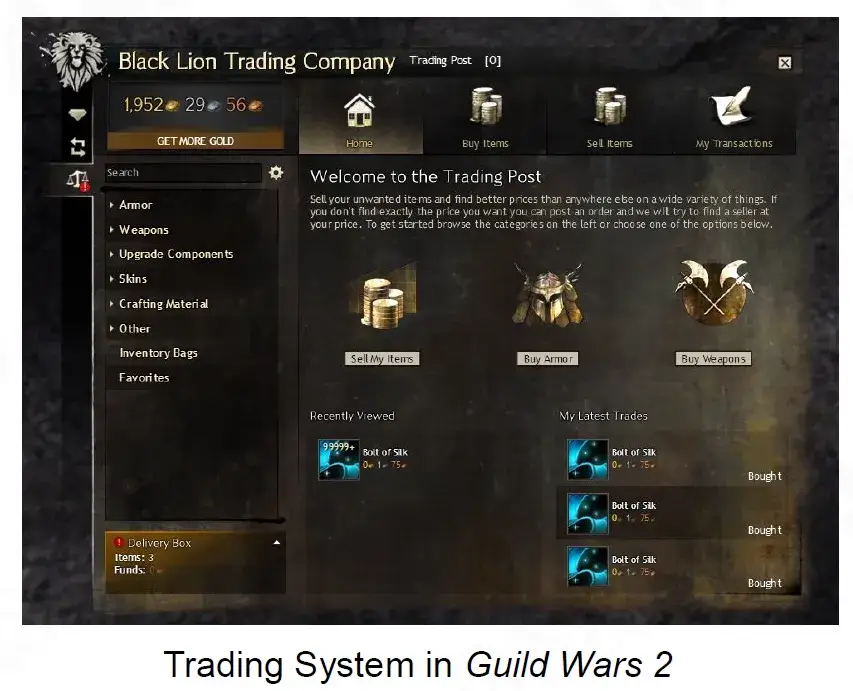

Trading System

交易系统

  • Buying and selling items on the marketplace

    在市场上买卖商品

  • Sending items or coins to other players through the in-game Mail

    通过游戏内邮件向其他玩家发送物品或硬币

  • Game designers need to keep an eye on market prices to prevent imbalances

    游戏设计师需要关注市场价格，以防止不平衡

  • For a persistent world to maintain a stable economy, a balance must be struck between currency sources and sinks

    为了使世界保持稳定的经济，必须在货币来源和汇之间取得平衡

  • Players can use real-world money to buy a specific in-game item

    玩家可以用现实世界的钱购买特定的游戏内物品

webp

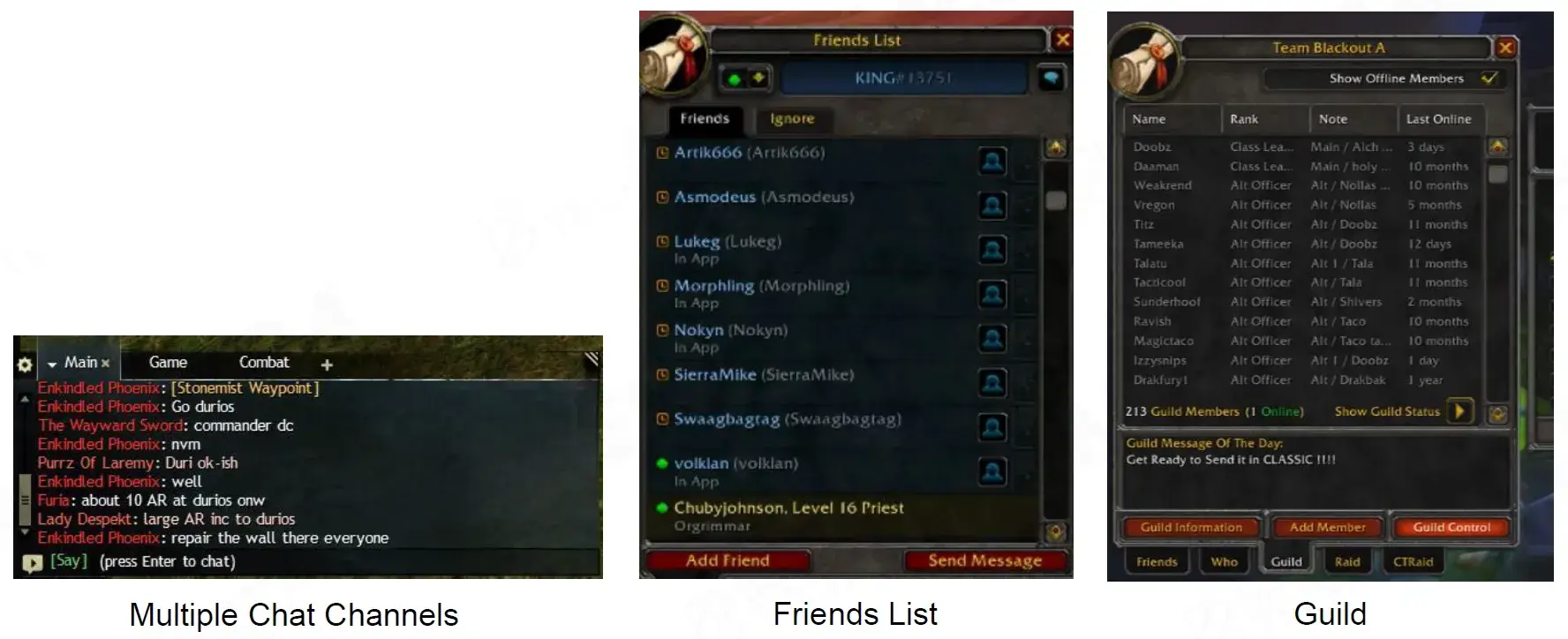

Social System

社会制度

  • Player-to-player interplay and communication

    玩家之间的互动和沟通

  • Foster stronger social cohesion in-game

    在游戏中培养更强的社会凝聚力

webp

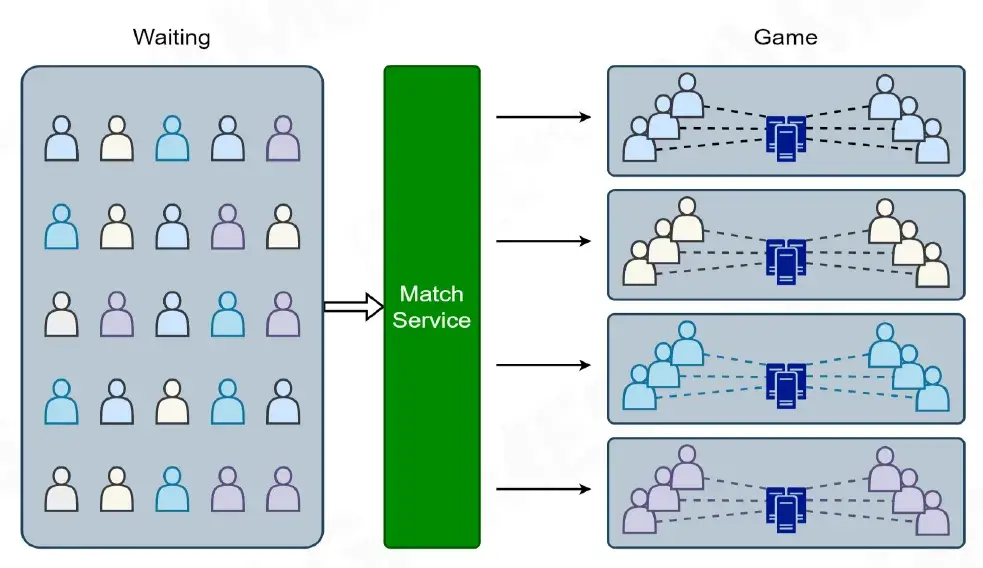

Matchmaking

配对

  • You have to consider attributes like skills, level, latency, wait time...

    你必须考虑技能、级别、延迟、等待时间等属性…

  • Ingeneral, makingagood matchmaking service is core for a game design

    一般来说，提供良好的配对服务是游戏设计的核心

  • Running this on a global scale for your player population presents a whole different set of challenges

    在全球范围内为您的玩家群体运行此功能会带来一系列完全不同的挑战

webp

Data Storage

数据存储

The game data is very complex and diverse

游戏数据非常复杂和多样化

  • Player data (guilds, dungeons, warehouse, etc.)

    玩家数据（公会、地下城、仓库等）

  • Monitoring data

    监测数据

  • Mining data

    最小化数据

  • ...

Data needs to be securely persisted and efficiently organized for retrieved and analysis etc.

数据需要安全地持久化，并有效地组织起来进行检索和分析等。

webp

Relational Data Storage

关系数据存储：MySQL

  • Requires Structure to be Predetermined

    需要预先确定结构

  • Flexible Queries

    灵活的查询

  • Always Consistent

    始终保持一致

Game Development Examples

游戏开发示例

  • Player Data

    玩家数据

  • GameData

    游戏数据

  • Inventory

    库存

  • ItemShops/Trading

    商品商店/贸易

Non-Relational Data Storage

非关系数据存储：MongoDB

  • Structure Can Change For Each Entry

    每个条目的结构都可能发生变化

  • Queries Have Higher Specificity

    查询具有更高的特异性

  • May Not Always Be Consistent

    可能并不总是一致的

Game Development Examples

游戏开发示例

  • Player/Item Stats/Profile Game Data

    玩家/物品统计/个人资料游戏数据

  • Enchantments and Upgrades

    魔法和升级

  • Game States

    游戏状态

  • Quest Data

    任务数据

In-Memory Data Storage

内存数据存储：redis

  • Extremely Fast (Memory versus Hard Disk)

    极快（内存与硬盘）

  • Key-Value

    关键价值

  • Fast Sorted/Ranged Searches

    快速排序/范围搜索

  • Persistence among servers

    服务器间的持久性

Game Development Examples

游戏开发示例

  • Matchmaking

    配对

  • Leaderboards

    排行榜

  • Session Management

    会话管理

  • Boost Performance For Other Databases

    提高其他数据库的性能

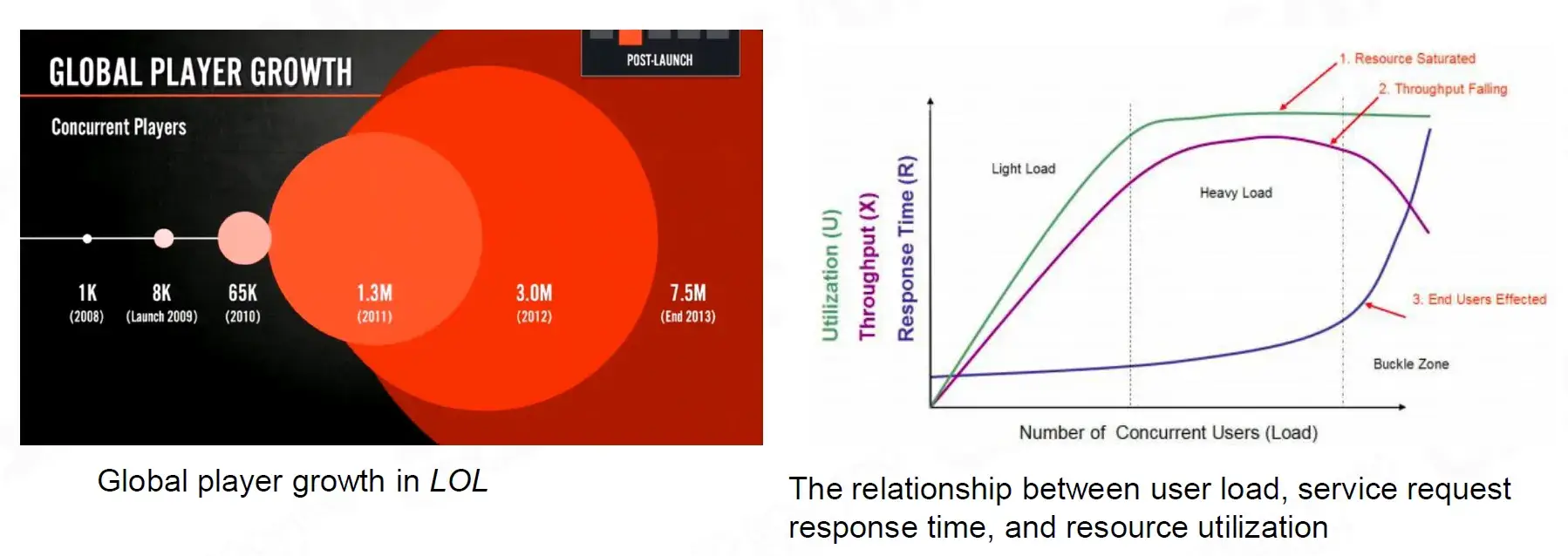

Player Number Growth

玩家数量增长带来的服务器负担

webp

Distributed System

分布式系统

A distributed system is a computing environment in which various components are spread across multiple computers (or other computing devices) on a network

分布式系统是一种计算环境，其中各种组件分布在网络上的多台计算机（或其他计算设备）上

webp

Challenges with Distributed systems

分布式系统的挑战

  • Data access mutual exclusion

    数据访问互斥

  • Idempotence

    意识

  • Failure and partial failure

    故障和部分故障

  • Unreliable network

    不可靠的网络

  • Distributed bugs spread epidemically

    分布式漏洞以流行病的方式传播

  • Consistency and consensus

    一致性和共识

  • Distributed transaction

    分布式事务

Load Balancing

负载平衡

Refers to the process of distributing a set of tasks over a set of resources (computing units), with the aim of making their overall processing more efficient

指将一组任务分配到一组资源（计算单元）上的过程，目的是提高其整体处理效率

  • Optimize the response time

    优化响应时间

  • Avoid unevenly overloading some compute nodes while other compute nodes are left idle

    避免在其他计算节点处于空闲状态时，不均匀地使某些计算节点过载

  • All players are evenly divided on multiple servers

    所有玩家平均分布在多个服务器上

webp

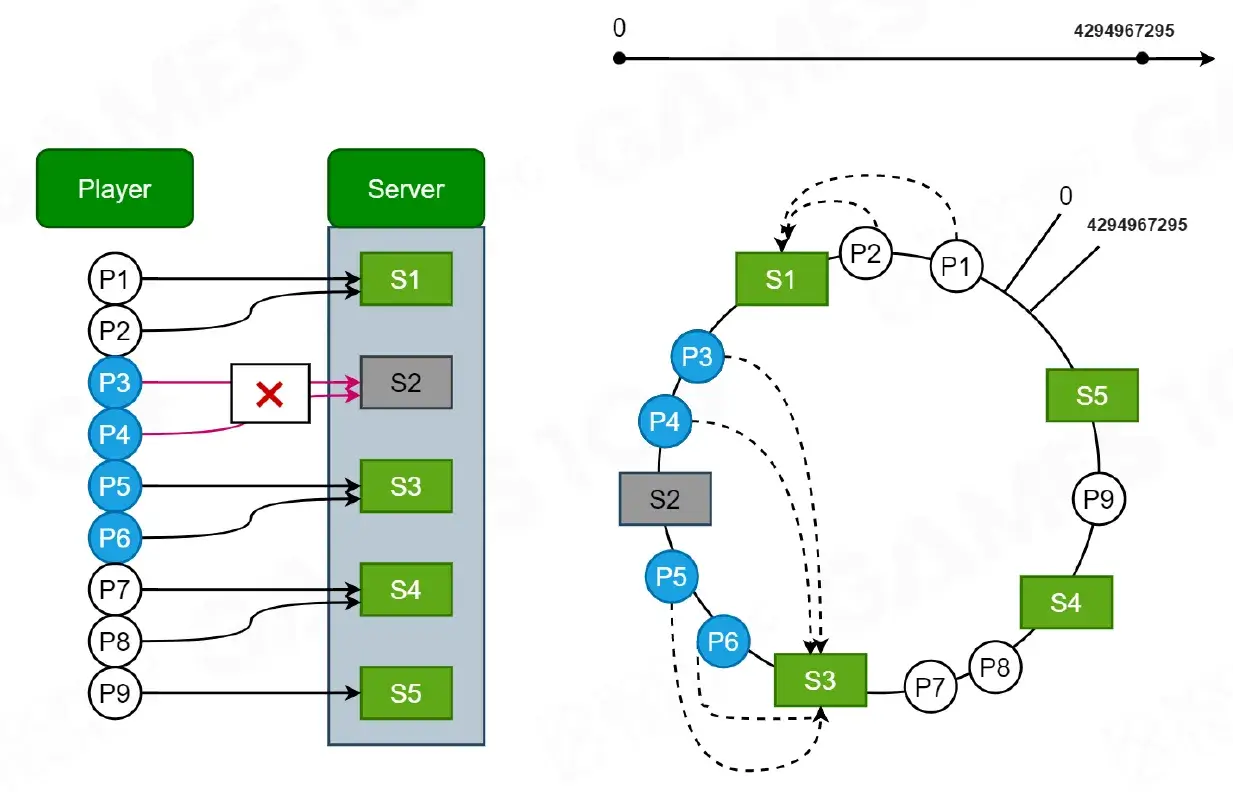

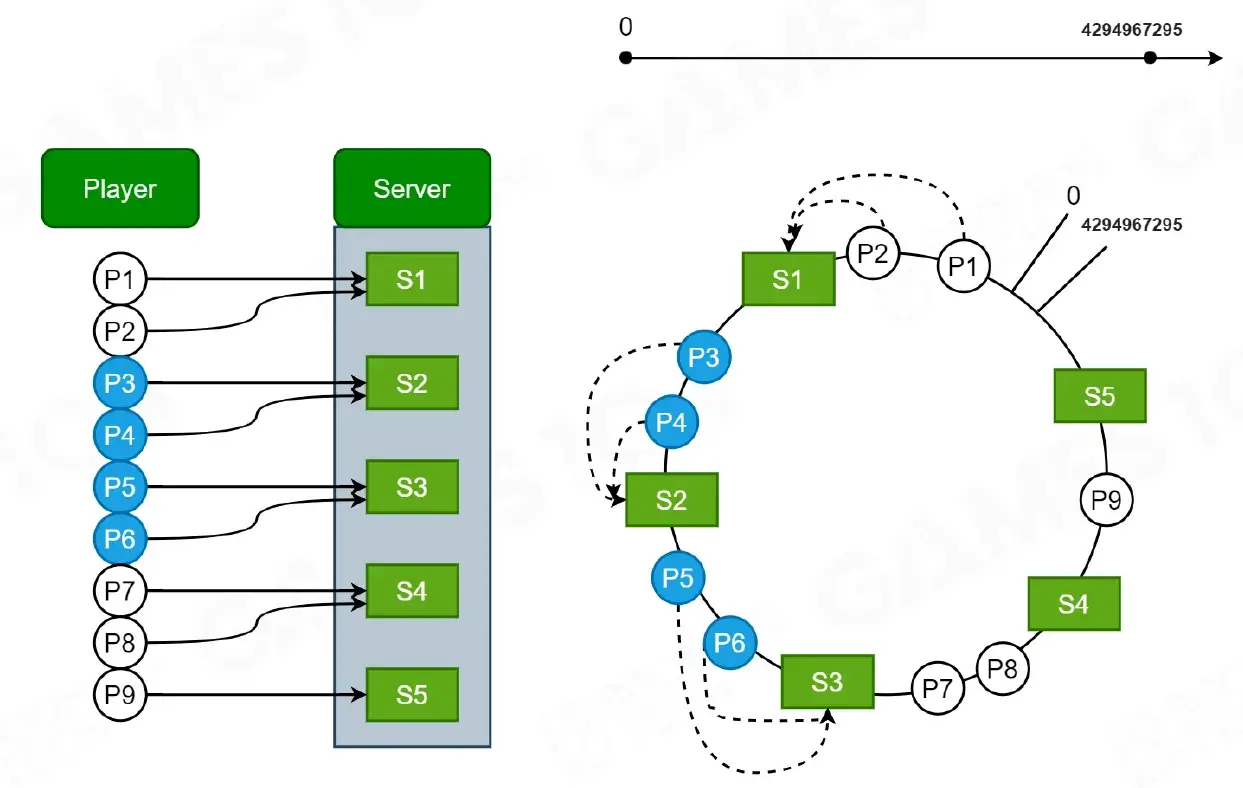

Consistent Hashing

一致散列

It was designed to avoid the problem of having to reassign every player when a server is added or removed throughout the cluster

它旨在避免在整个集群中添加或删除服务器时必须重新分配每个玩家的问题

webp webp webp

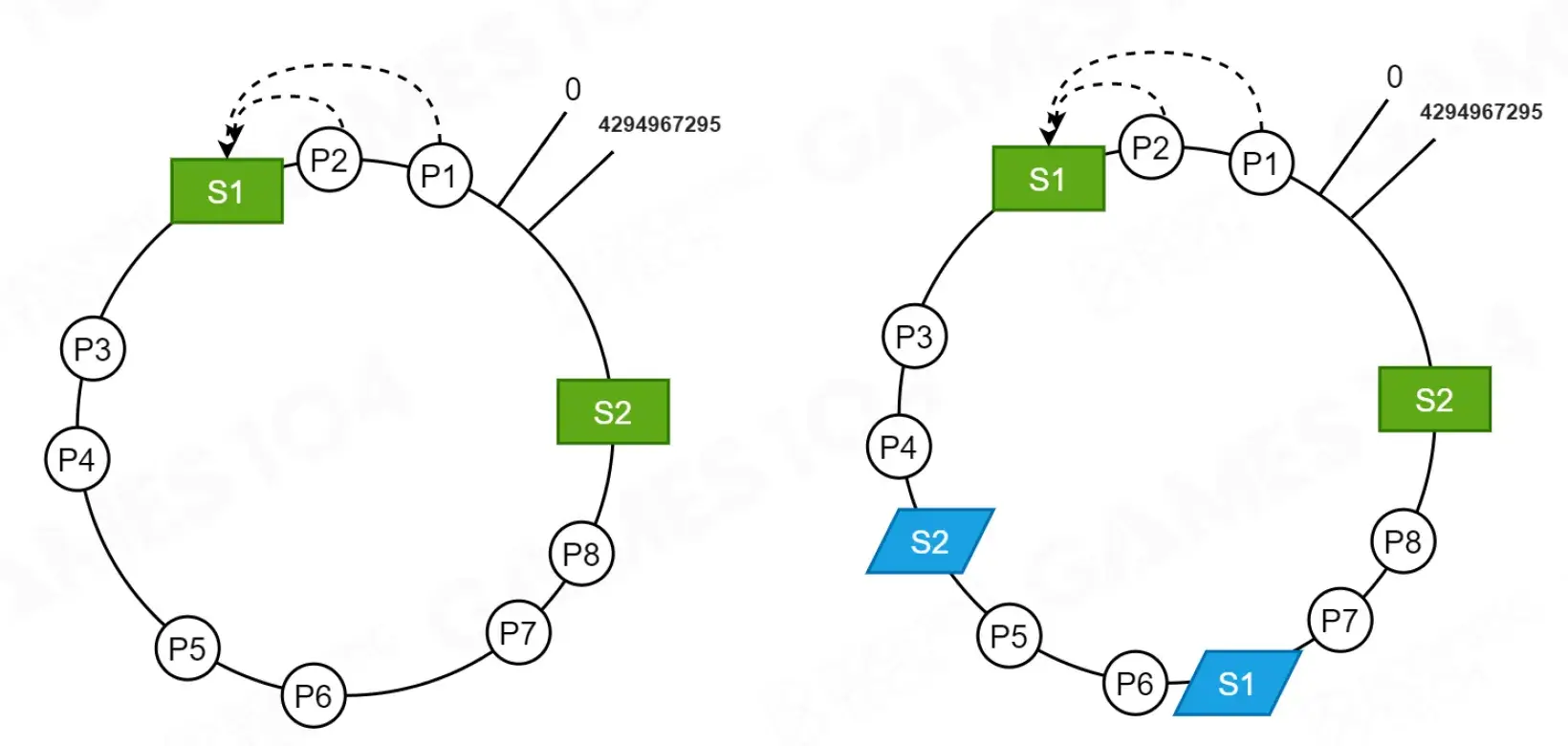

Virtual Server Node in Consistent Hashing

一致散列中的虚拟服务器节点

webp

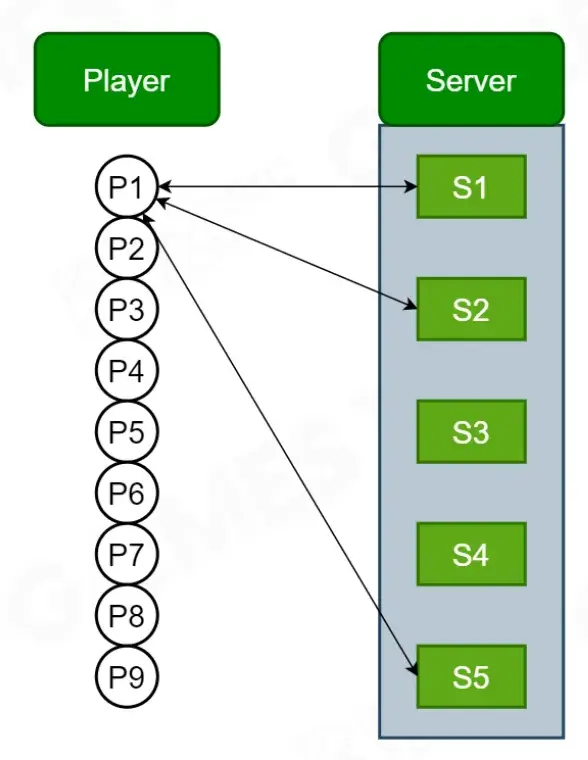

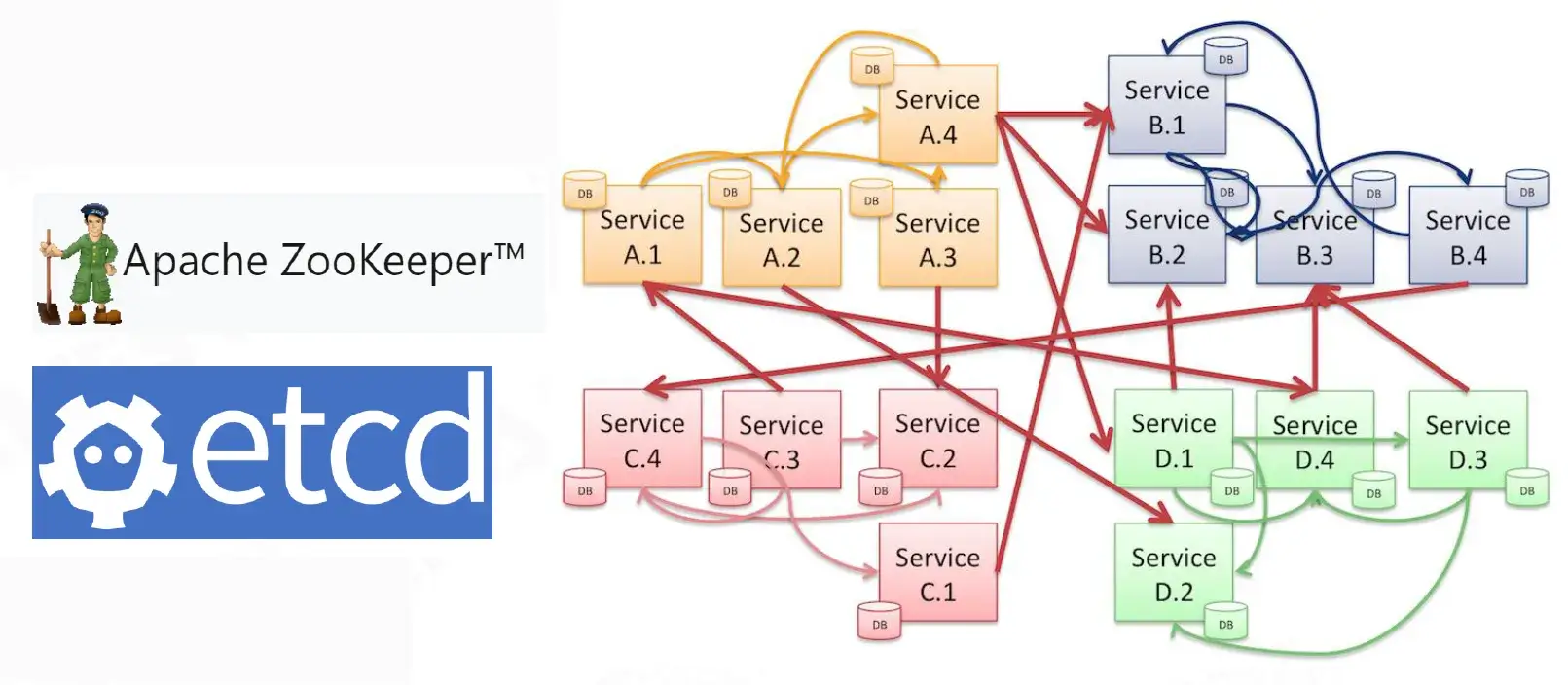

Servers Management

  • The number of services increases

    服务数量增加

  • Difficult to manage

    难以管理

  • Lacks the flexibility to change the IP or port at a later point in time

    缺乏在以后更改 IP 或端口的灵活性

webp

Service Discovery - Registry

服务发现-注册表

  • Registers itself with the service registry when it enters the system

    当服务进入系统时，在服务注册表中注册

  • An example of Register value

    寄存器值示例

    • server type/server_name@server_ip:port
webp

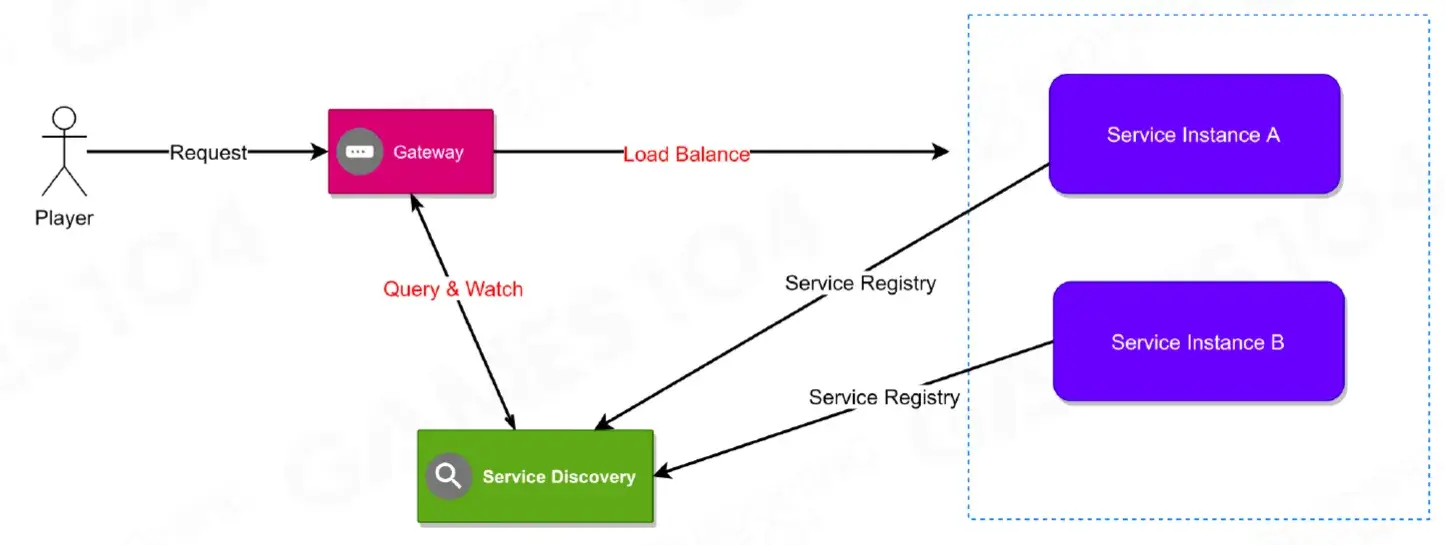

Service Discovery - Query and Watch

服务发现-查询和监视

  • Request service discovery service to query all values through service type and watch it

    请求服务发现服务通过服务类型查询所有值并查看

webp

Service Discovery - Health Check

服务发现-健康检查

  • Notice Gateway Server B Failure when Server Instance B Heartbeat timeout

    服务器实例 B 心跳超时时通知网关服务器 B 故障

webp

Bandwidth Optimization

优化带宽

Why Bandwidth Matters

为什么带宽很重要

  • Usage-based billing: e.g. mobile, cloud service

    基于使用量的计费：例如移动、云服务

  • Latency increased by bandwidth: packet splitting/drop

    延迟随带宽增加：数据包拆分/丢弃

  • Connection drops due to message overflow

    消息溢出导致连接中断

Calculate Bandwidth

计算带宽

Affecting factors

影响因素

  • n = player numbers 玩家数量
  • f = update frequency 更新频率
  • s = size of game state 游戏状态大小
webp

Data transfer per second

每秒数据传输

  • Server 服务器：O(n⋅s⋅f)O(n\cdot s\cdot f)

  • Client (downstream) 客户端（下游）：O(s⋅f)O(s\cdot f)

  • Client (upstream) 客户端（上游）：O(f)O(f)

webp

Data Compression

数据压缩

  • There are a lot of floating point numbers in the game synchronization data, such as position, rotation, speed, etc.

    游戏同步数据中有很多浮点数，如位置、旋转、速度等。

  • Choosing the right floating-point precision can save a lot of bandwidth

    选择正确的浮点精度可以节省大量带宽。

    • e.g When representing human running speed, only half precision is required

      例如，在表示人类跑步速度时，只需要一半的精度

webp

  • When representing player position, the player will only move within a certain range due to player speed limitations

    代表玩家位置时，由于玩家速度限制，玩家只能在一定范围内移动

  • We can divide the map into different small pieces and use the relative position to represent the player's position, which can reduce the precision of the floating point number of the synchronization position

    我们可以将地图分成不同的小块，并使用相对位置来表示玩家的位置，这会降低同步位置浮点数的精度

webp

Object Relevance

对象相关性

  • The player will be informed of state updates

    玩家将收到状态更新的通知

  • Usually, the ones player can see & interact

    通常，玩家可以看到并互动

  • Easiest implementation: all objects relevant to all clients (for small player num).

    最简单的实现：与所有客户端相关的所有对象（对于小玩家 num）。O(n2)O(n^2)

  • Limiting factor for max concurrent players

    最大并发玩家的限制因素

webp

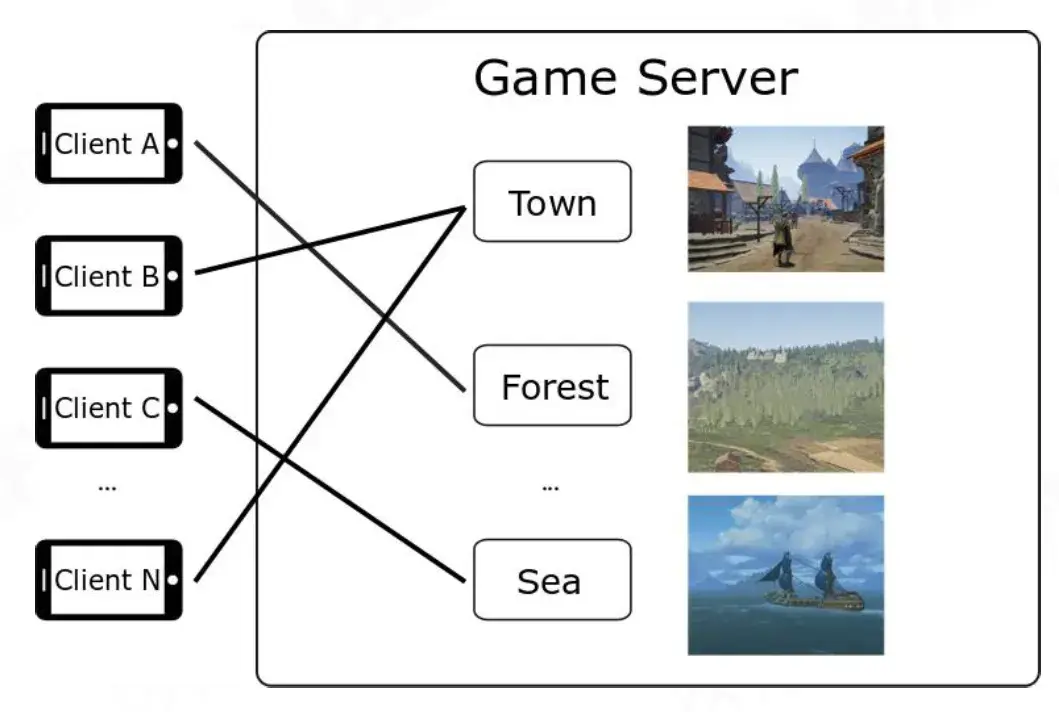

Relevance - Static Zones

相关性-静态区域

  • Distribute players into different zones

    将玩家分配到不同的区域

  • Players are relevant in the same zone

    玩家在同一区域内具有相关性

  • Reduce bandwidth waste

    减少带宽浪费

webp

Relevance - Area of Interest (AOI)

相关性-关注领域（AOI）

  • The area within which objects are relevant to Player/NPC

    对象与玩家 / NPC 相关的区域

  • Only see & interact with objects within range

    仅查看范围内的对象并与之交互

  • Remove unnecessary network data

    删除不必要的网络数据

webp

AOI -Direct Range-Query

AOI - 直接范围查询

  • (xplayer−xi)2−(yplayer−yi)2≤rdoi\sqrt{(x_{player}-x_i)^2-(y_{player}-y_i)^2}\le r_{doi}

  • Simple to implement 易于实施

  • Time complexity 时间复杂度: O(n2)O(n^2)

  • Not suitable for MMOG, e.g. 1000 players in one zone, 20 ticks/s

    不适合 MMOG，例如一个区域有 1000 名玩家，20 滴答/秒

    1000 x 1000 x 20 = 20,000,000 distance computations per second

    1000 x 1000 x 20 = 每秒 20000000 次距离计算

webp

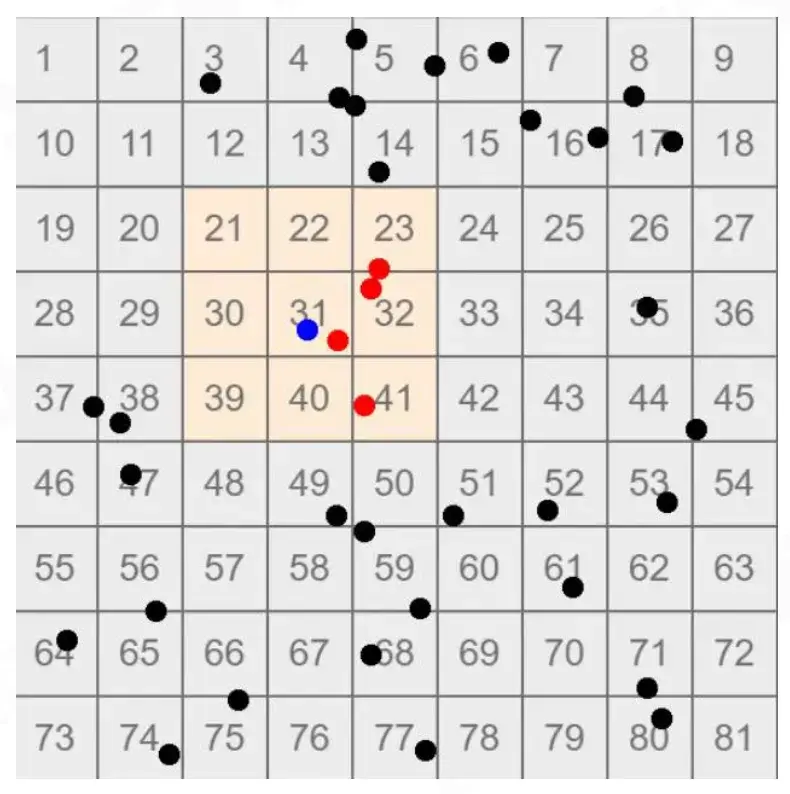

AOI - Spatial-Grid

AOI - 空间网格

Mapping Entities

映射实体

  • Map entity (x,y)(x, y) → grid NN

    映射实体(x,y)(x, y) → 网格 NN

  • Relevant entities in the grids around current player's grid

    当前玩家网格周围网格中的相关实体

  • Player's AOI list can be cached

    玩家的 AOI 列表可以缓存

webp

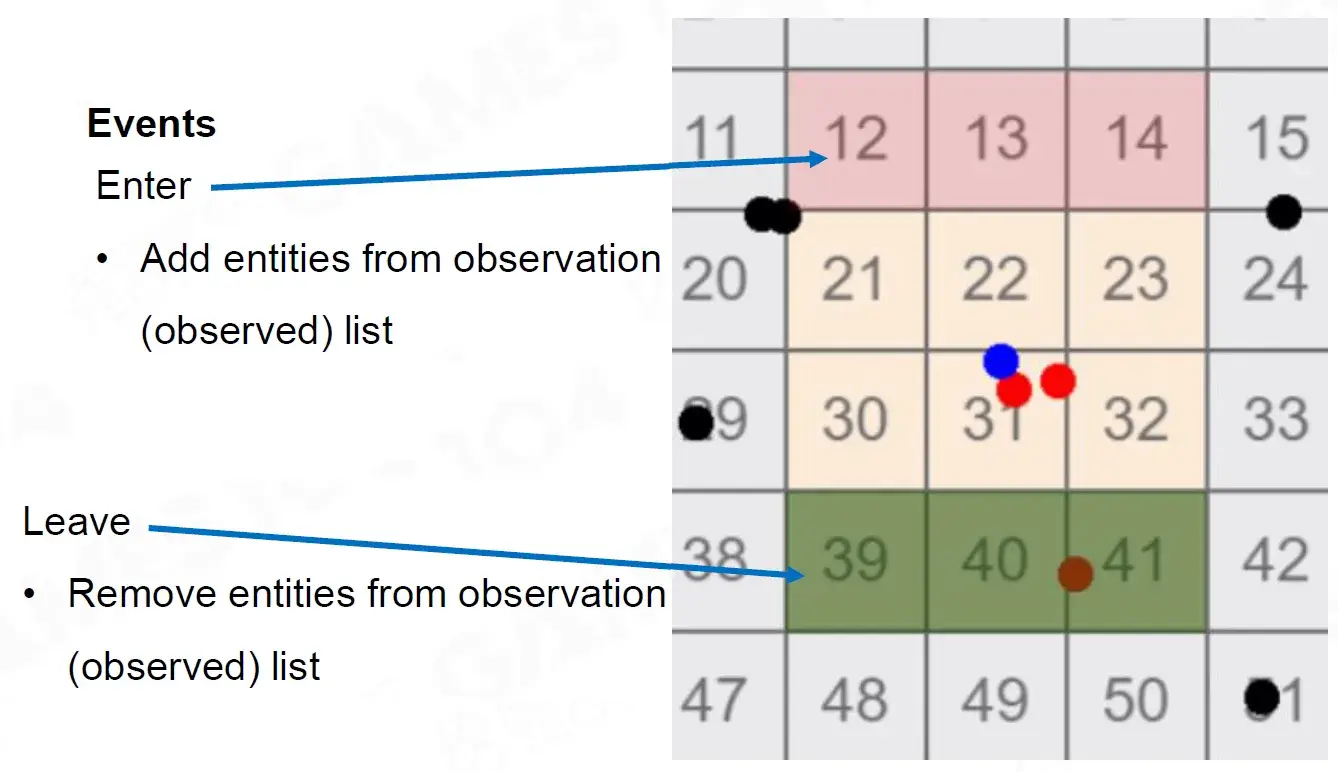

Events

事件

Enter

进入

  • Add entities from observation (observed) list

    从观察（observation）列表中添加实体

Leave

离开

  • Remove entities from observation (observed) list

    从观察（已观察）列表中删除实体

webp

Pros and Cons

优点和缺点

Pros

  • Fast query time O(1)O(1)

    快速查询时间 O(1)O(1)

Cons

  • Small grid: high memory cost

    小网格：内存成本高

  • Large grid: high CPU cost

    大网格：CPU 成本高

  • Object with varying AOI radius?

    具有不同 AOI 半径的物体？

webp

AOI - Orthogonal Linked-list

AOI - 正交链表

  • Game entities in double linked-list

    双链表中的游戏实体

    • xlist, ylist

    • ascending order

      升序

  • Less Objects to traverse

    需要遍历的对象更少

webp

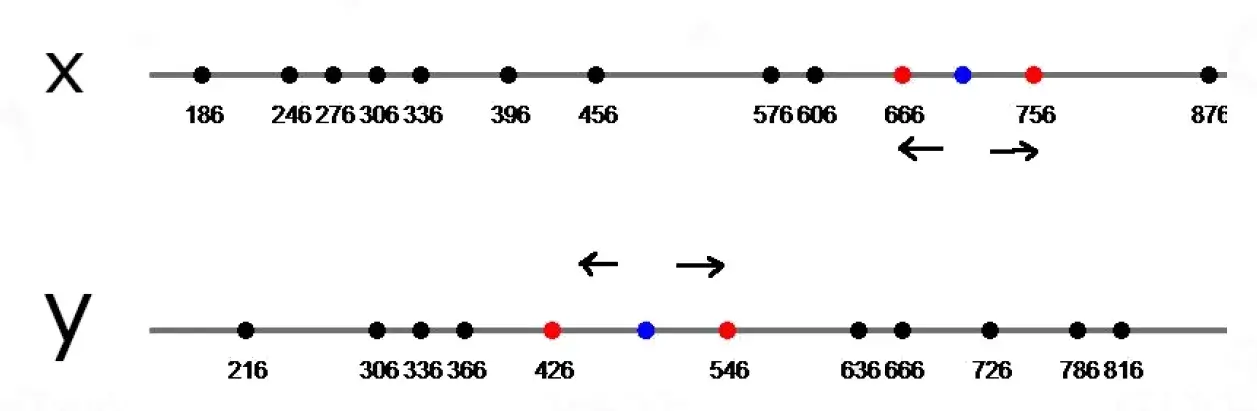

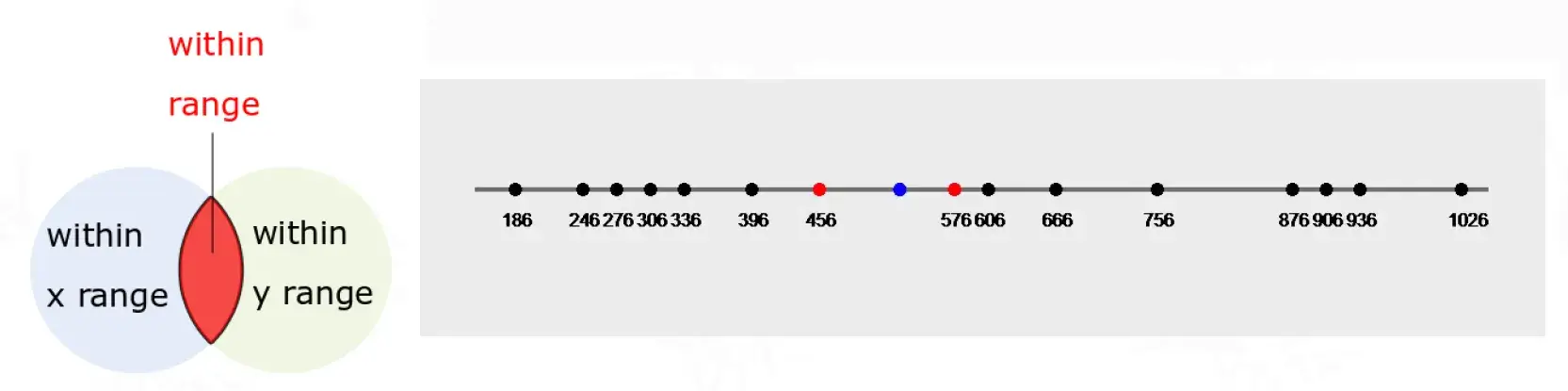

Traverse entities

遍历实体

  • Within aoi radius

    aoi 半径内

  • Left/right direction

    左 / 右方向

  • For both x/y lists

    对于 x/y 两个列表

webp

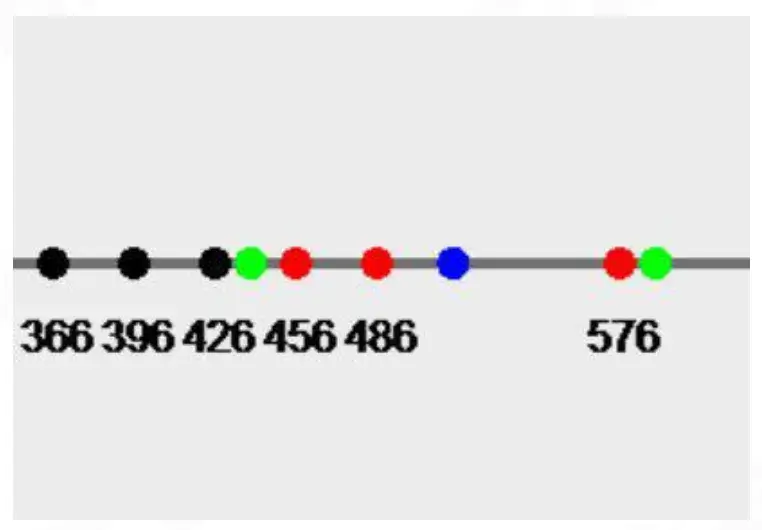

Better Approach - Range Trigger

更好的方法-范围触发

  • Entity move → trigger move

    实体移动 → 触发移动

  • Compare with trigger

    与触发器比较

  • Event driven

    事件驱动

webp

Pros

  • Memory efficient

    内存效率高

  • Varying AOI radius

    可变 AOI 半径

Cons

  • New object insertion cost O(n)O(n)

    新对象插入成本 O(n)O(n)

  • Not Suitable when entities move large distance frequently

    当实体频繁移动远距离时不适用

webp

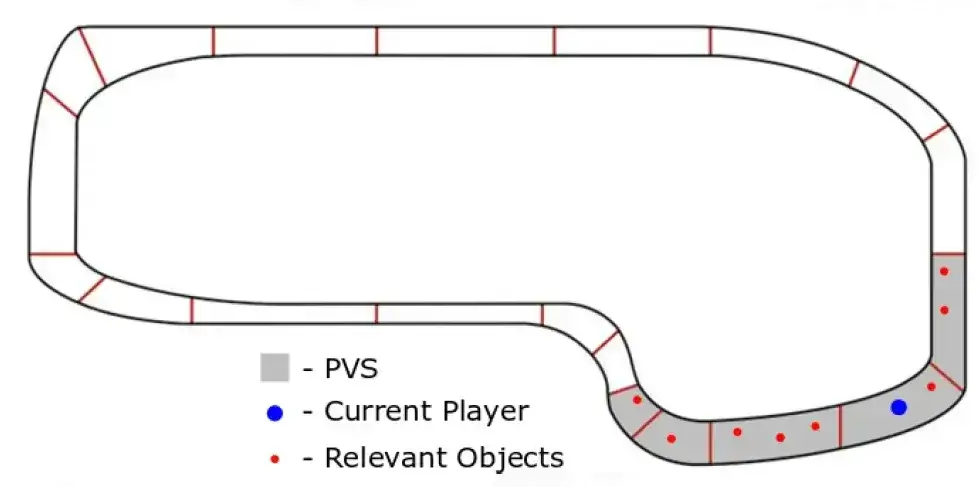

AOI - Potentially Visible Set (PVS)

AOI - 潜在可见集（PVS）

  • Set of potentially visible areas

    一组潜在可见区域

  • Can be calculated offline

    可以离线计算

  • Determine relevant objects from PVS

    从 PVS 中确定相关对象

  • e.g. Racing game: fast-moving car

    例如赛车游戏：快速行驶的汽车

webp

Varying Update Frequency by Player Position

根据玩家位置改变更新频率

  • Distance-based update frequency

    基于距离的更新频率

  • Only closer objects are interactable

    只有较近的对象是可交互的

  • Distance ↑ → f → bandwidth ↓

    距离 ↑ → f → 带宽 ↓

webp

Cheating Kill Online Games

作弊杀死在线游戏

How likely, if at all, would you be to stop playing a multiplayer game online if you thought other players were cheating to gain an unfair advantage?

如果你认为其他玩家作弊以获得不公平的优势，你有多大可能停止玩在线多人游戏？

Very likelyFairly likelyNot very likelyNor linkly at allDon't konw
Global29%48%15%4%5%
China25%56%16%2%1%
Germany30%36%17%8%8%
Japan26%49%16%2%7%
South Korea27%59%11%1%1%
UK33%39%12%6%10%
US37%32%15%7%8%

77% of players will likely stop playing online games when other players are cheating, according to the survey of Irdeto.

爱迪德的调查显示，当其他玩家作弊时，77% 的玩家可能会停止玩网络游戏。

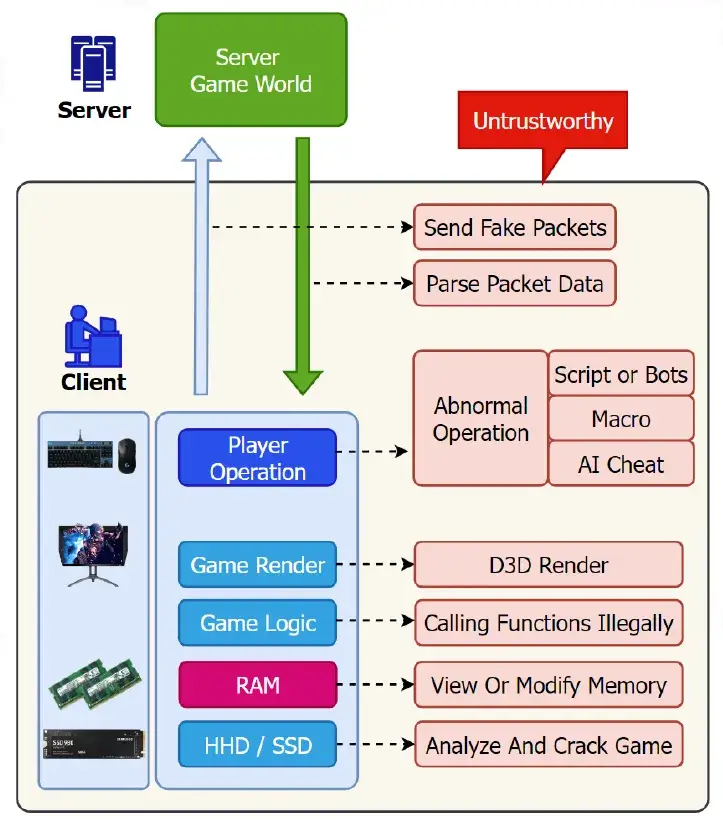

Millions Ways of Cheating

数百万种作弊方式

Game code modifications

游戏代码修改

  • Modify or read memory data

    修改或读取内存数据

  • Crack client

    破解客户端

System software invoke

系统软件调用

  • D3D Render Hook

    D3D 渲染挂钩

  • Simulate mouse and keyboard operations

    模拟鼠标和键盘操作

  • ...

Net Packet interception

网络数据包拦截

  • Send fake packets

    发送虚假数据包

  • Modify packet data

    修改数据包

webp

Obfuscating Memory

混淆记忆

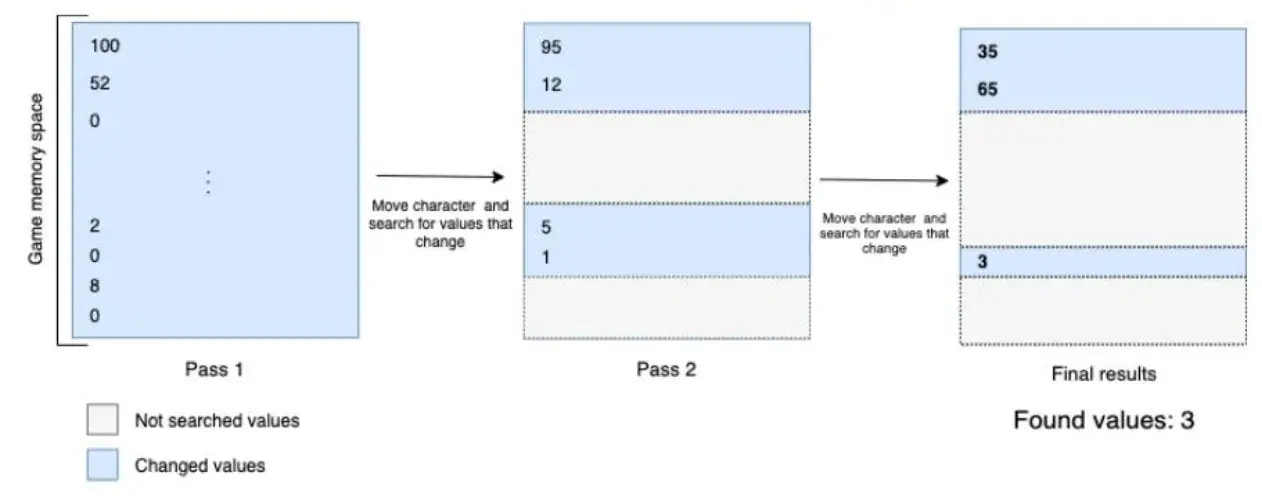

  • A cheater might be able to get the location of the player coordinates in the memory and move the character ignoring the game rules, such as passing the wall

    作弊者可能能够获得玩家在内存中的坐标位置，并忽略游戏规则移动角色，例如通过墙壁

  • Furthermore, the cheater can utilize the location of these values to map out even larger data structures in the memory, such as the player object itself

    此外，作弊者可以利用这些值的位置在内存中绘制出更大的数据结构，例如玩家对象本身

webp

Executable Packers

可执行打包器

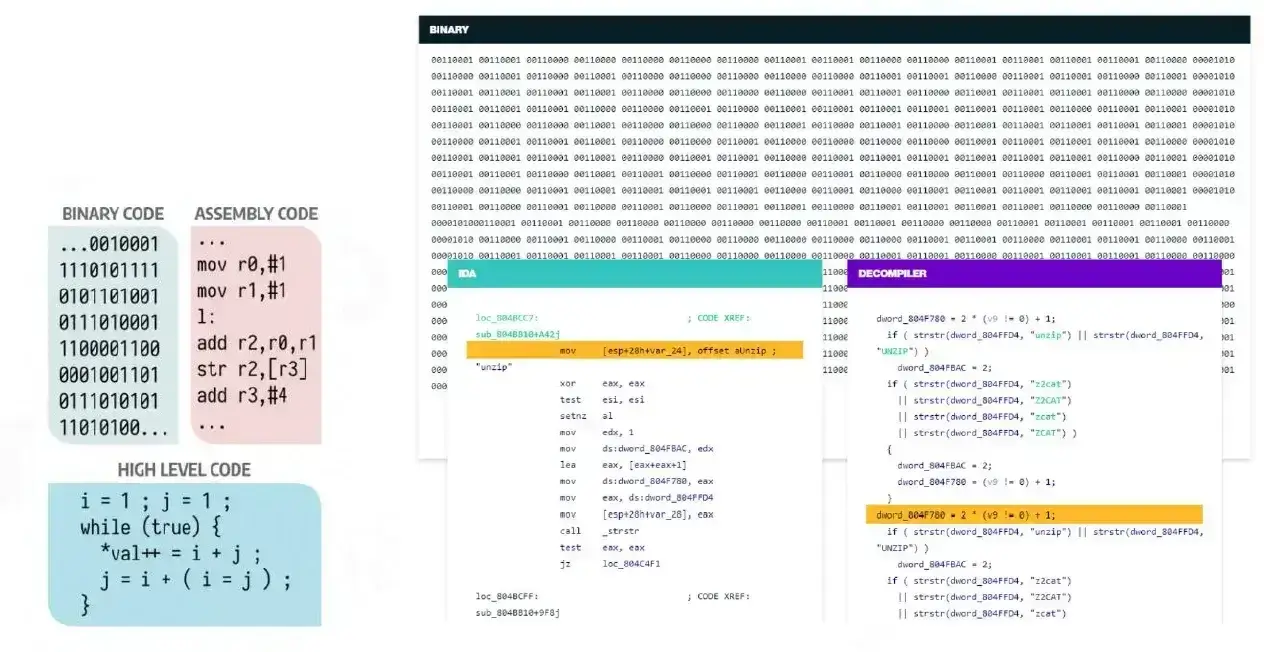

  • Game core logic can be restored by reverse engineering

    游戏核心逻辑可以通过逆向工程恢复

  • Players can crack the game by analyzing the code, finding game loopholes, making plug-ins, etc..

    玩家可以通过分析代码、发现游戏漏洞、制作插件等来破解游戏…

webp

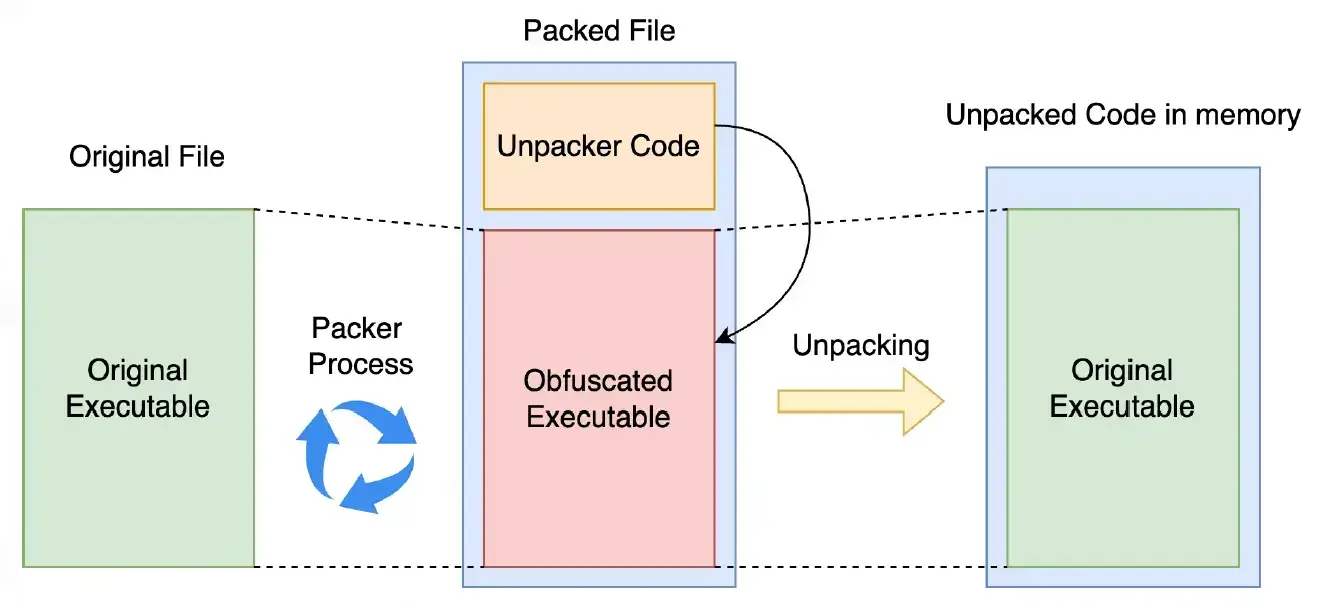

  • The packager obfuscates the source program and adds decompression code

    打包器混淆源程序并添加解压缩代码

  • The decompression code will execute first, and the source program is decrypted in memory

    解压缩代码将首先执行，源程序在内存中解密

webp

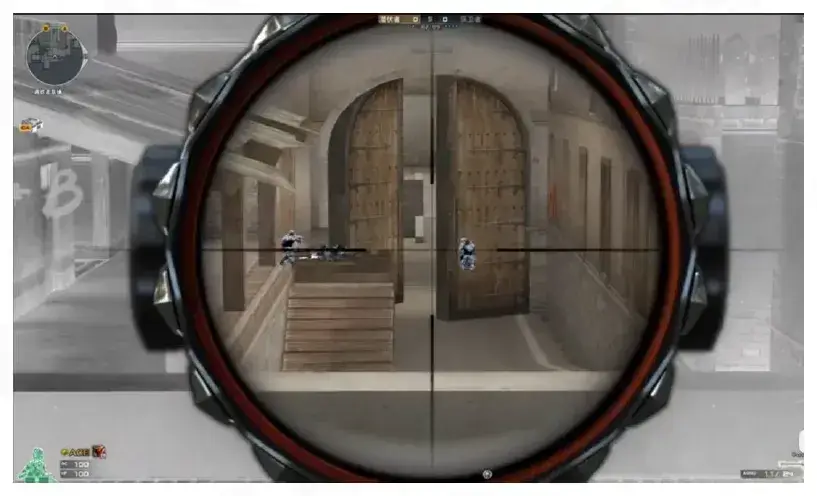

Verifying Local Files by Hashing

通过哈希验证本地文件

  • Ensure that the game files have not been modified

    确保游戏文件未被修改

  • For example, the cheater could modify the wall textures to be transparent so all enemies could be seen through the walls

    例如，作弊者可以将墙壁纹理修改为透明，这样所有敌人都可以透过墙壁看到

  • The cheater could also adjust the lightning to make it easier to see enemies

    作弊者还可以调整闪电，使其更容易看到敌人

webp

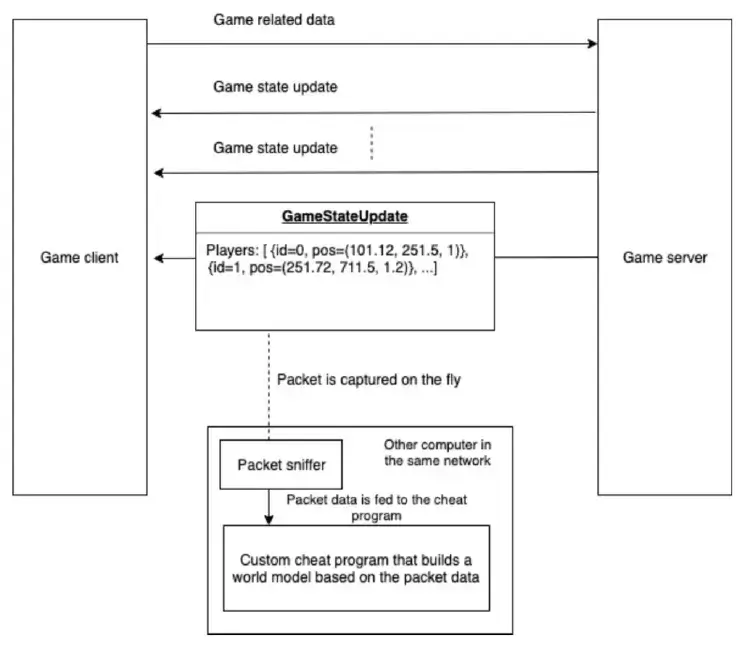

Packet Interception and Manipulation

数据包拦截和操纵

  • When the data is not encrypted or hacked, the player can build game logic based on packet data even without starting the game

    当数据未被加密或黑客攻击时，即使不启动游戏，玩家也可以基于数据包构建游戏逻辑

  • Such cheat programs often become money-making tools, which seriously reduce game's the overall profit

    这种作弊程序往往成为赚钱的工具，严重降低了游戏的整体利润

webp

Encrypt the Network Traffic

加密网络流量

Two kinds of algorithms

两种算法

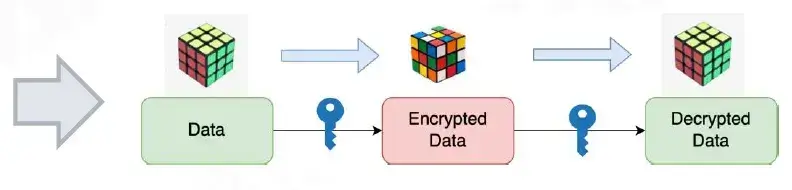

  • Symmetric-key algorithm

    对称密钥算法

    • Obfuscate and restore data according to the same key

      根据同一密钥混淆和还原数据

    • Fast and efficient

      快速高效

webp

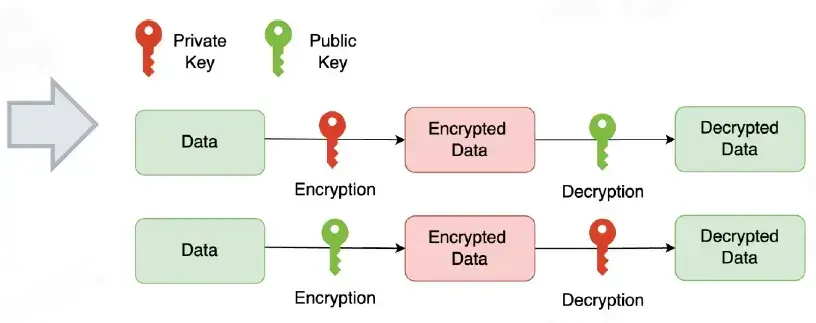

Asymmetric encryption

非对称加密

  • Encryption and decryption use different keys

    加密和解密使用不同的密钥

  • Slow, only used for encrypting critical data

    速度慢，仅用于加密关键数据

webp

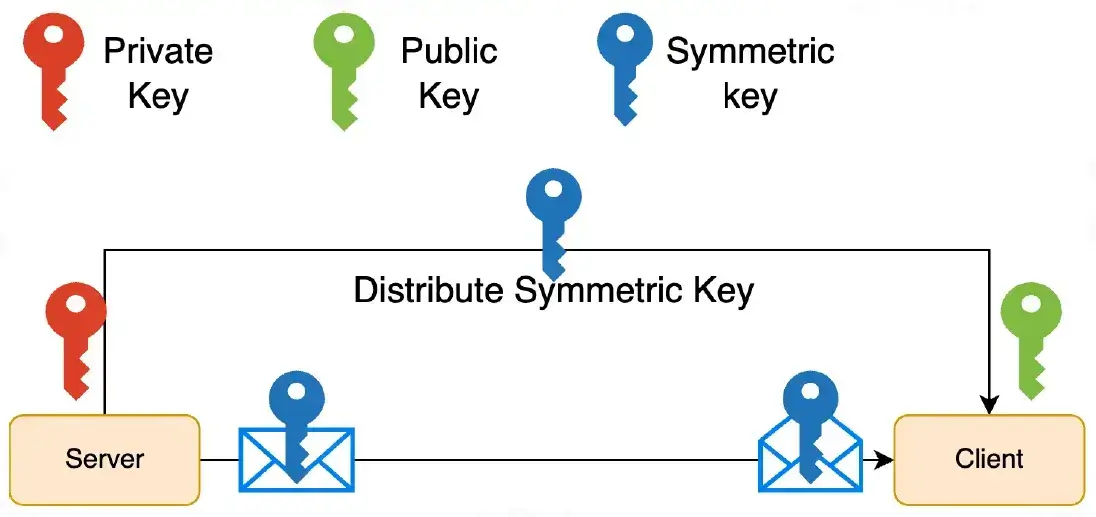

  • Distribute symmetric key securely using asymmetric encryption

    使用非对称加密安全地分发对称密钥

  • Transfer data using symmetric encryption key

    使用对称加密密钥传输数据

webp

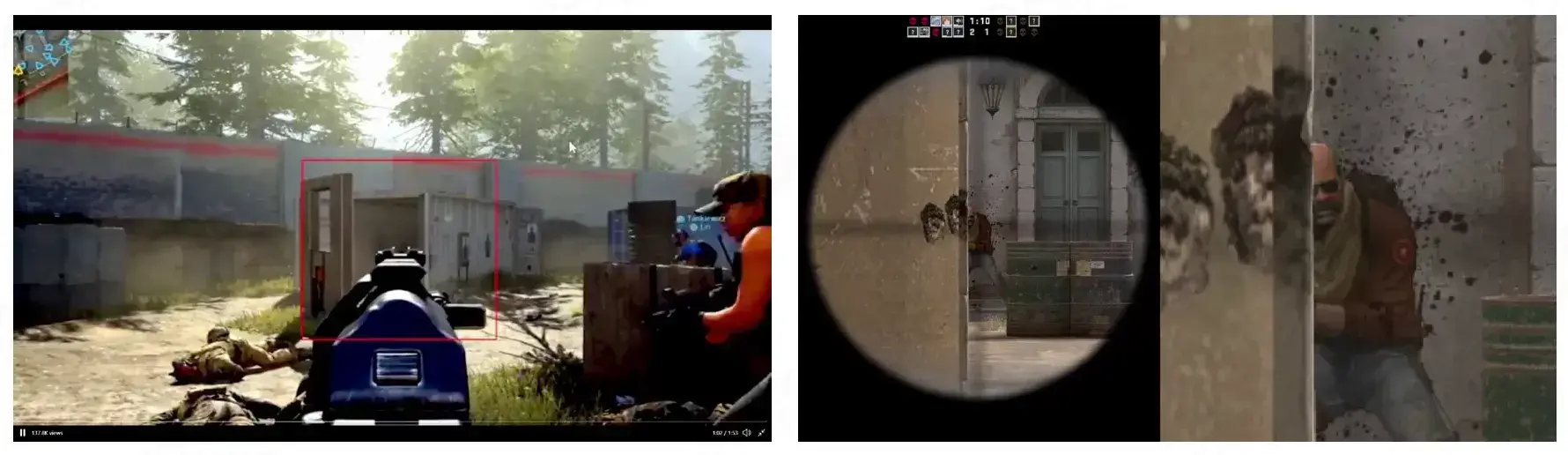

System Software Invoke

系统软件调用

  • Modify the DirectX kernel and change the execution flow of the rendering function

    修改 DirectX 内核并更改渲染函数的执行流程

  • Can force the rendering engine to modify the occlusion relationship

    可以强制渲染引擎修改遮挡关系

  • See the movement of the enemy behind the wall

    看墙后敌人的动向

webp

Valve Anti-Cheat and Easy Anti-Cheat

阀门防作弊和简易防作弊

  • Detects malicious behavior caused by any file conflicts while interacting with the game

    检测与游戏交互时由任何文件冲突引起的恶意行为

  • Stops the player from playing the game at all

    完全阻止玩家玩游戏

  • Prevents any illegal modifications and configuration changes that enable the use of exploits in a game

    防止任何非法修改和配置更改，从而在游戏中使用漏洞

webp

AI Cheat

AI 作弊

  • All platforms

    所有平台

  • No code modification required

    无需修改代码

  • Independent from the game

    独立于游戏

  • Game screen

    游戏画面

  • Target detection

    目标检测

  • Move cursor

    移动光标

  • Fire

    开火

webp

Rich AI Middlewares

丰富的 AI 中间件

  • Real-Time Object Detection. YOLO V5, V7...

    实时目标检测。YOLO V5，V7…

  • Skeleton based Action recognition

    基于骨架的动作识别

webp

Counter-Strike: Overwatch

反恐精英：守望先锋

  • The system is based on other players reviewing footage from players that are suspected of cheating

    该系统基于其他玩家查看涉嫌作弊的玩家的录像

  • Many reviewers are looking at the same cases and the majority decide whether the suspect was cheating or not

    许多审查人员正在审查同样的案件，大多数人决定嫌疑人是否作弊

webp

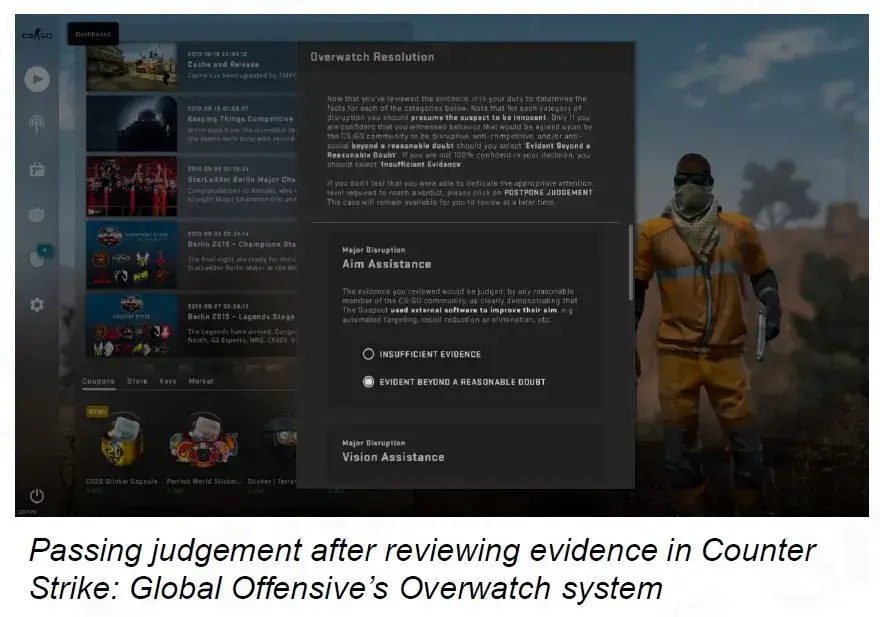

Passing judgement after reviewing evidence in Counter Strike: Global Offensive’s Overwatch system

在《反恐精英：全球攻势的守望先锋》系统中审查证据后作出判断

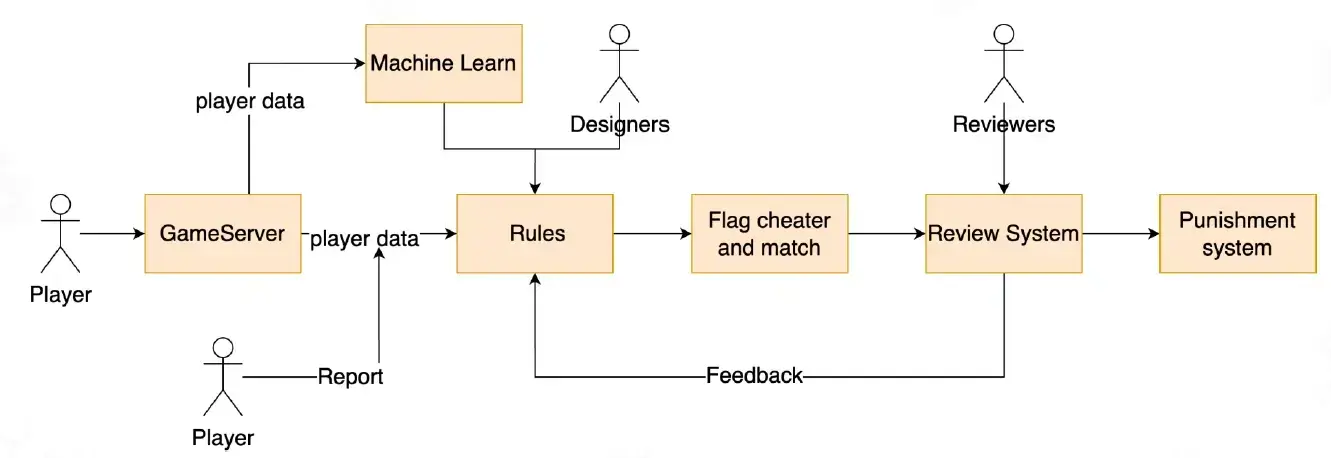

Statistic-based System

基于统计的系统

  • Collect the user's game information, such as victory and critical hit rate

    收集用户的游戏信息，如胜利和暴击率

  • Compare your own historical data and some thresholds rules or from other player's reports to mark players

    比较您自己的历史数据和一些阈值规则或其他玩家的报告，以标记玩家

  • Check manually to confirm whether they cheat

    手动检查以确认他们是否作弊

webp

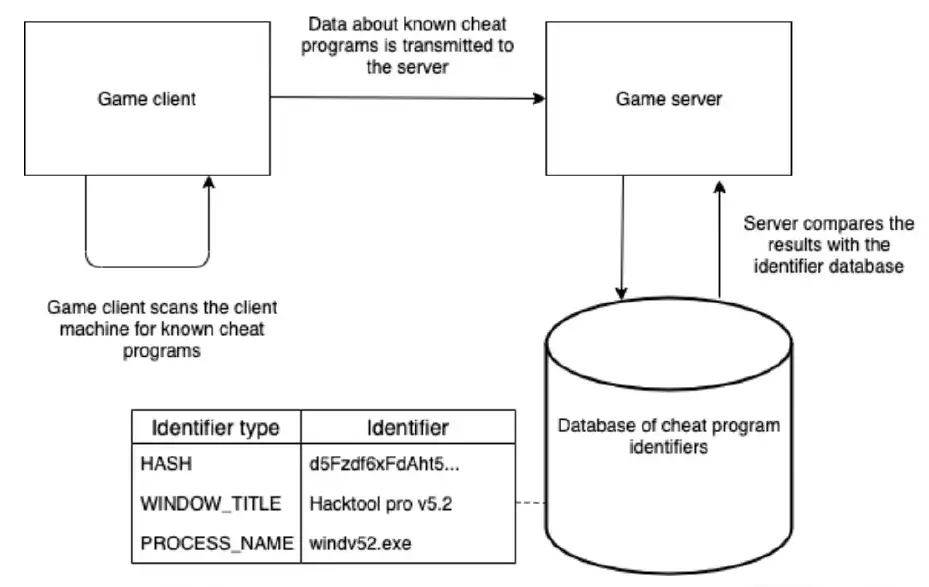

Detecting Known Cheat Program

检测已知作弊程序

  • A proper anti-cheat program should have a way to scan the user's computer for known cheating programs based on various signatures

    一个合适的反作弊程序应该有一种方法，可以根据各种签名扫描用户的计算机，寻找已知的作弊程序

  • The simplest method can simply entail comparing hashes or process names

    最简单的方法可能只是比较哈希或进程名称

webp

Build a Scalable World

构建一个可扩展的世界

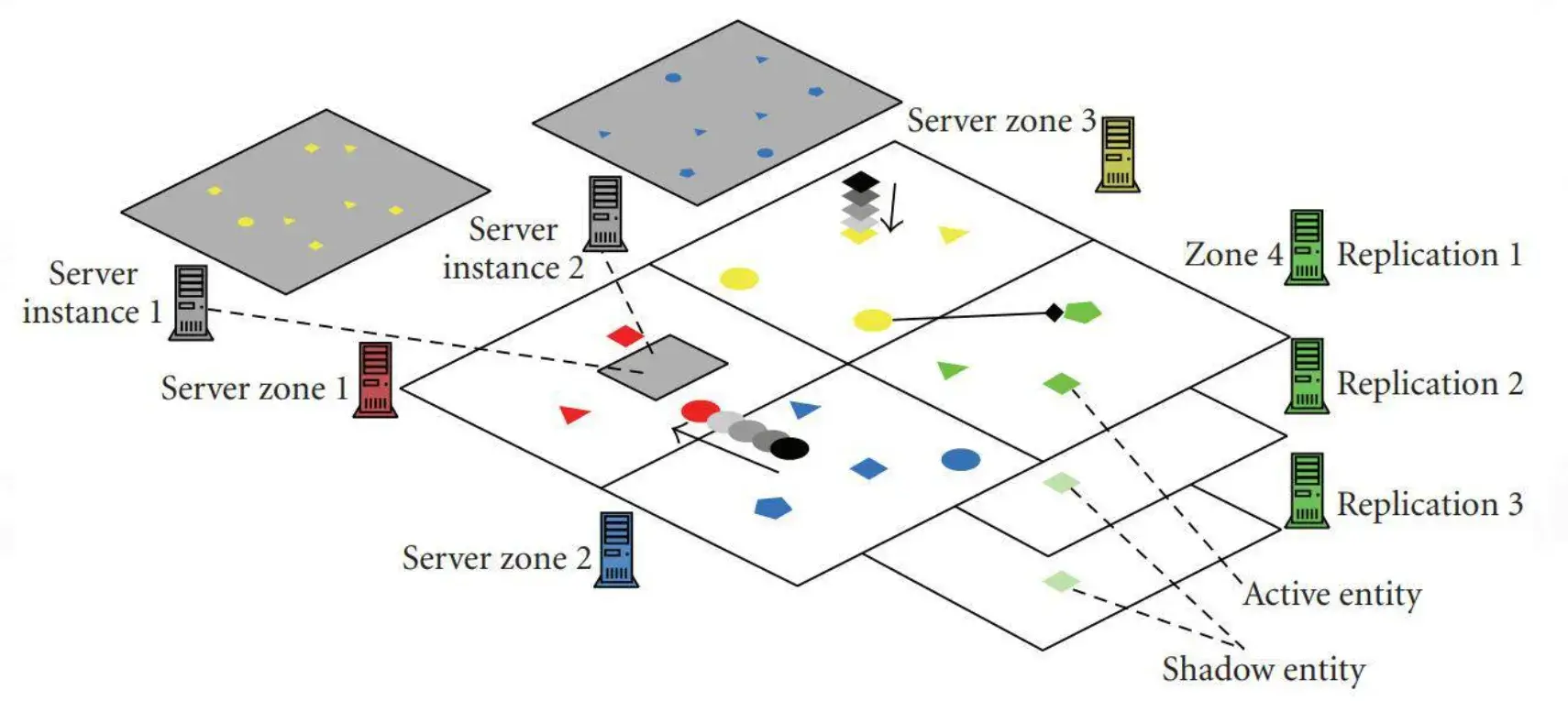

Scalable Game Servers

可扩展游戏服务器

Zoning

分区

  • Distribute large player numbers in a large world

    在广阔的世界中分配大量玩家

  • Distribution might be uneven

    分布可能不均匀

Instancing

实例化

  • Run a large number of game areas independently in parallel

    并行独立运行大量游戏区域

  • Reduce congestion/competition

    减少拥堵 / 竞争

Replication

同步

  • Allows high user density

    允许高用户密度

  • E.g. high density PVP games

    例如高密度 PVP 游戏

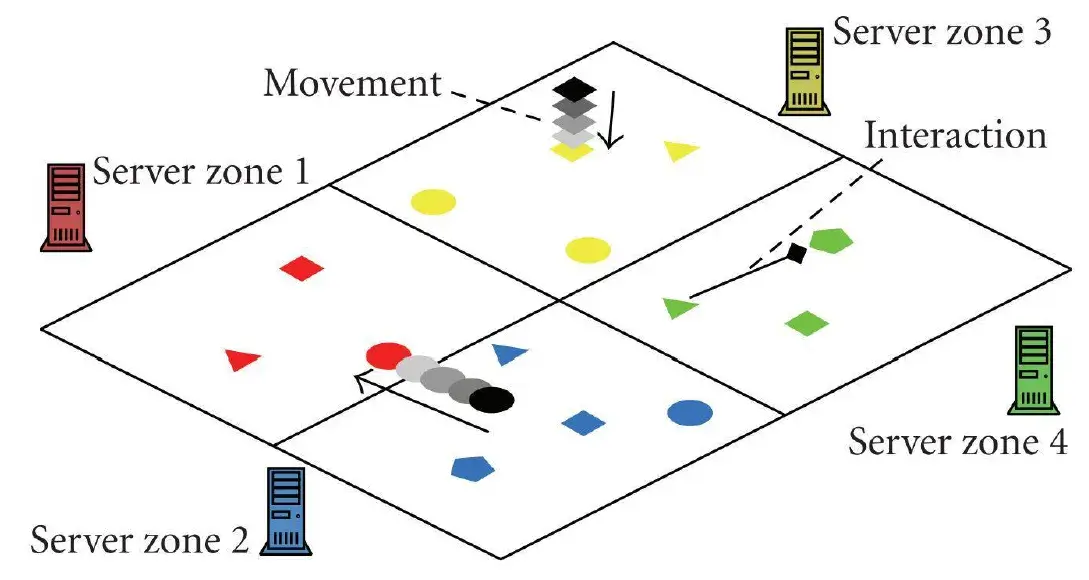

Zoning - Seamless Zones

分区-无缝分区

  • Players are reasonably distributed in a large world

    玩家在广阔的世界中分布合理

  • The client only connects to one responsible server

    客户端只连接到一个负责的服务器

  • Cross border: auto transfer client to another server

    跨境：自动将客户端转移到另一台服务器

webp

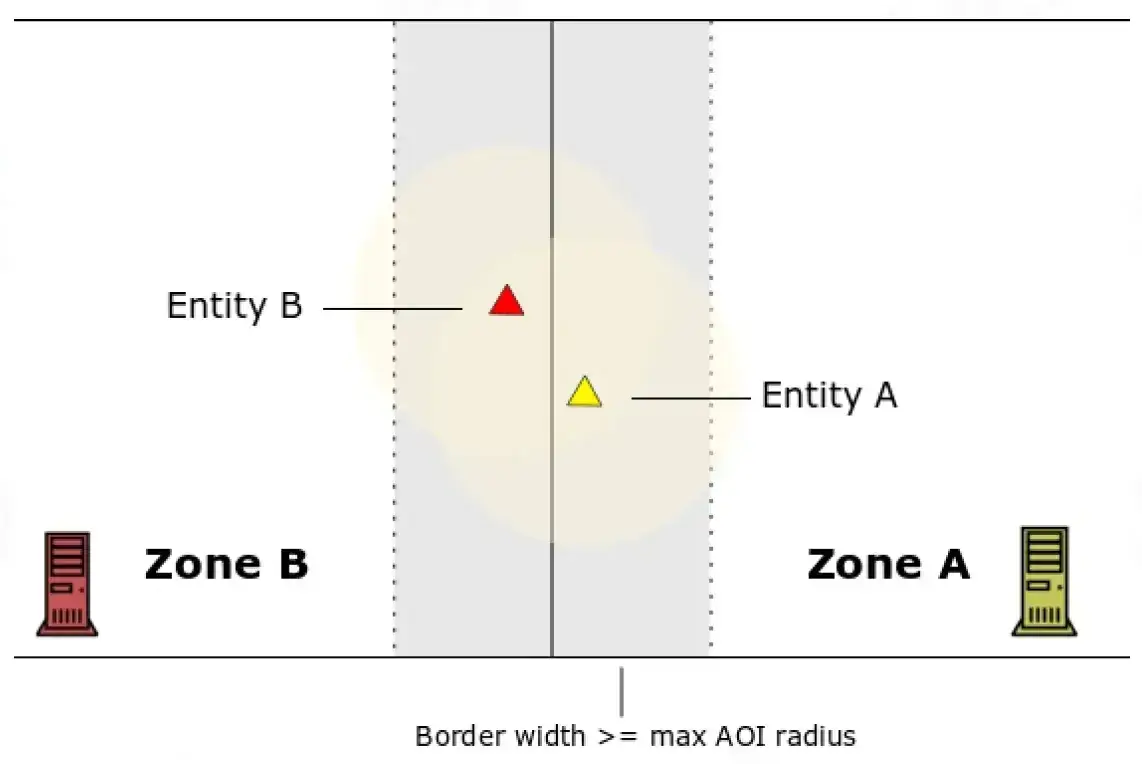

Zone Border

区域边界

Smooth experience:

流畅体验：

  • Border width >= max AOI radius

    边框宽度 >= 最大 AOI 半径

But how to make them interact?

但是如何让它们互动呢？

webp

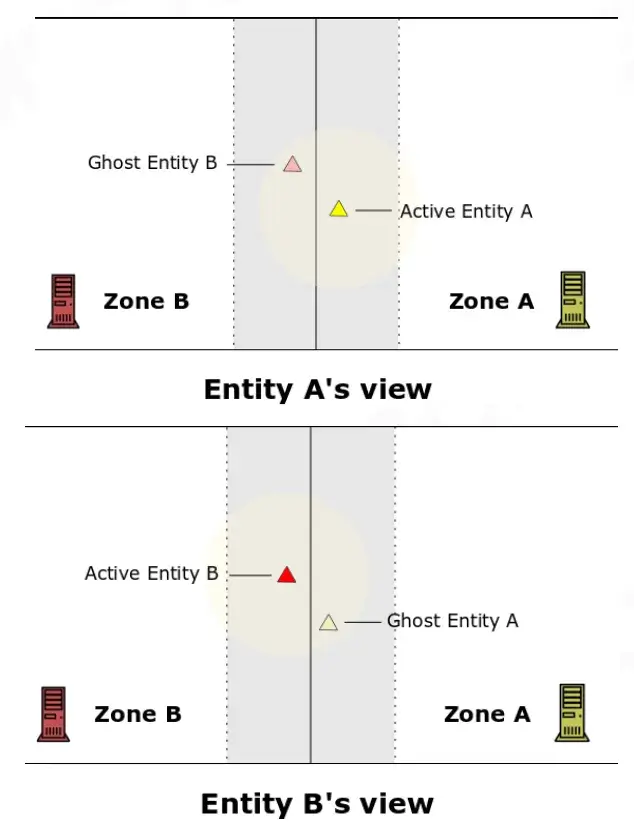

Zone Border - Entities

区域边界-实体

Active Entity

活跃实体

  • Resides in connected zoned server (authority)

    驻留在已连接的分区服务器（权限）中

  • Has a ghost agent in other zones

    在其他区域有幽灵特工

  • Can see ghost entities in another zone

    可以在另一个区域中看到幽灵实体

Ghost Entity

幽灵实体

  • Also called shadow entity

    也称为阴影实体

  • Is an agent entity owned by another zone

    代理实体是否由另一个区域拥有

  • Receive updates from original entity

    接收来自原始实体的更新

webp

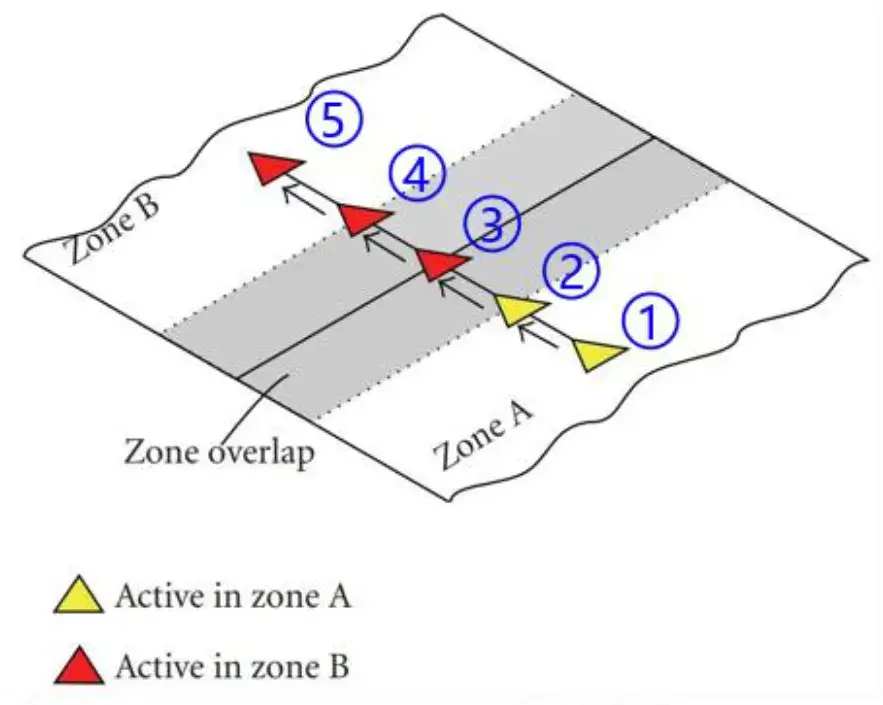

Cross Border: A -> B

跨境：A->B

  1. Before move

    移动前

    • An active entity in zone A

      A 区中的活动实体

  2. Near boundary (A)

    近边界（A）

    • Active in A; Ghost in B

      活跃在 A；鬼魂在 B

  3. At boundary

    边界处

    • The entity has been transferred to zone B

      实体已转移到 B 区

  4. Near boundary (B)

    边界附近（B）

    • Active in B; Ghost in A

      活跃于 B；鬼魂在 A

  5. Beyond boundary (B)

    边界之外（B）

    • Removedfrom zone A

      从 A 区移除

webp

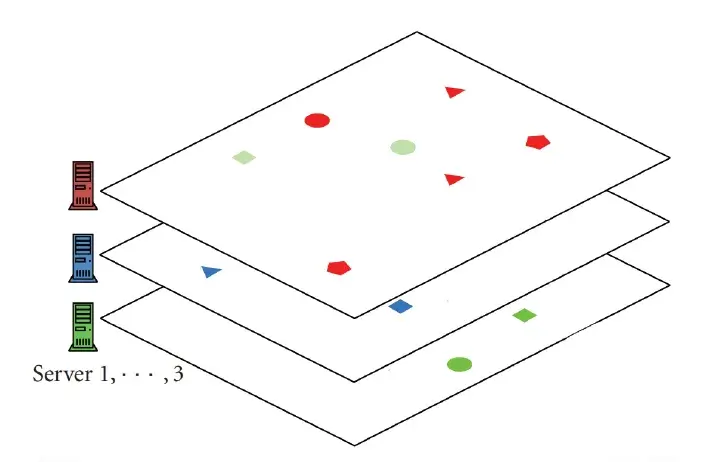

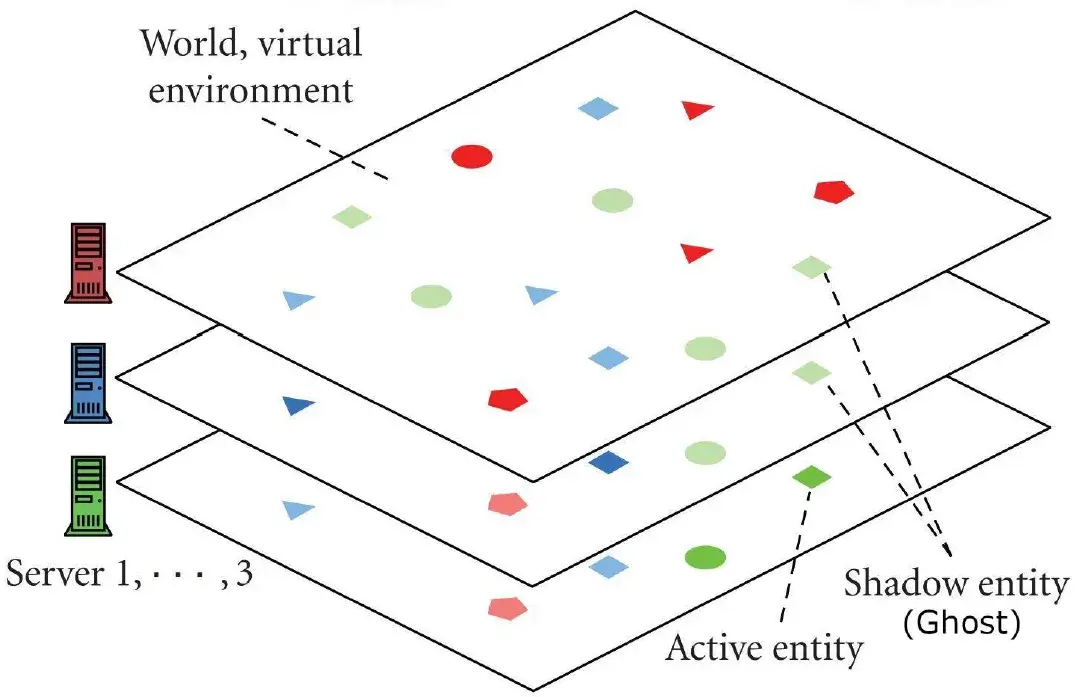

Replication

同步

  • Cooperatively process same world zone

    合作处理同一世界区

  • Entity updates are distributed among servers

    实体更新分布在服务器之间

  • Each server creates its own active entities

    每个服务器都创建自己的活动实体

  • Updates to active entities will be auto replicated to all remaining servers (as Ghost)

    对活动实体的更新将自动复制到所有剩余的服务器（作为 Ghost）

webp

Scalable Game Servers -Combination

webp

References

Replicate Character Movement

Lag Mitigation

MMOG Network Architecture

Bandwidth Optimization

Anti-Cheat

Citation
