第十二节：游戏引擎中的粒子和声效系统

Effects

webp

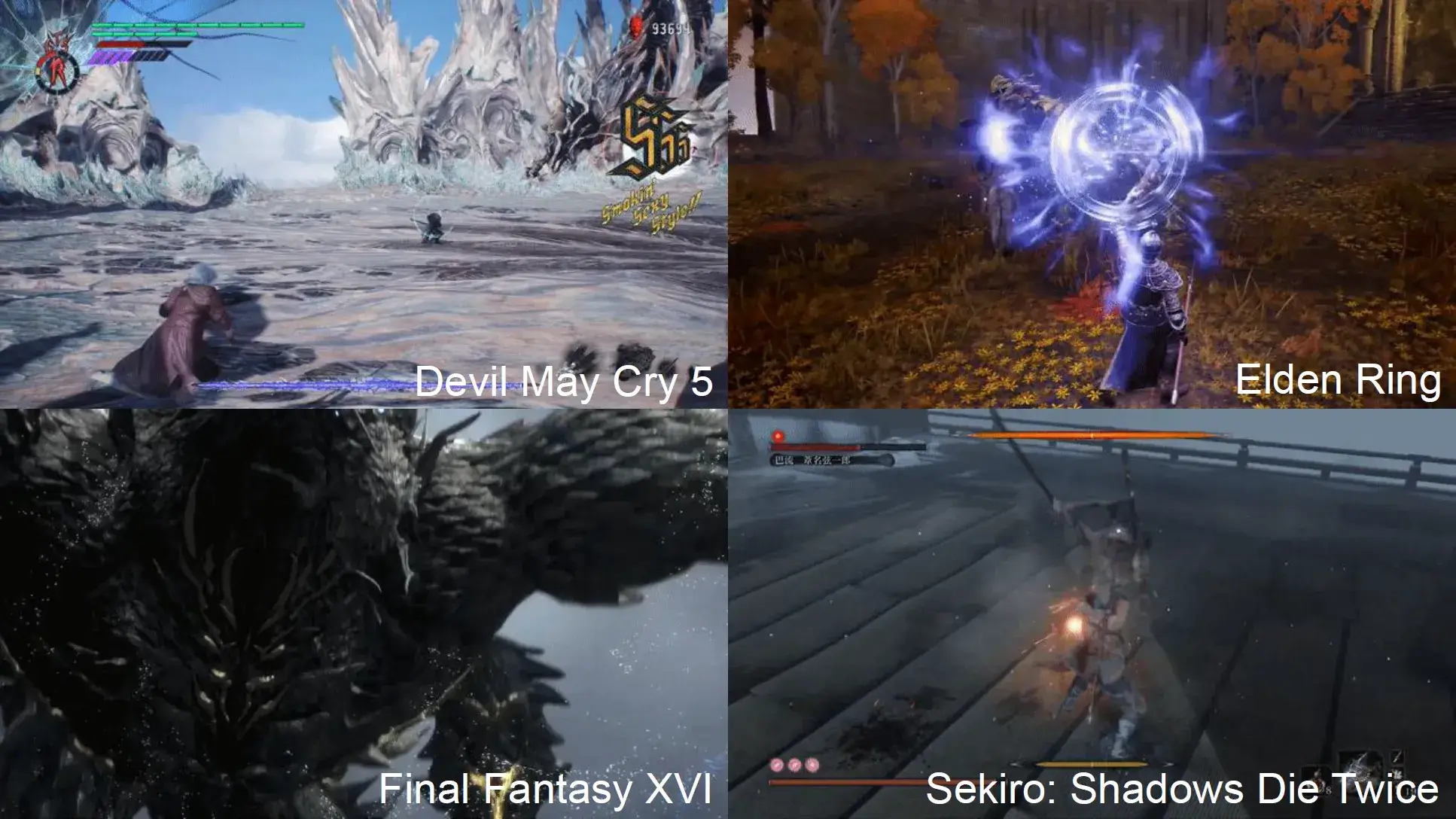

粒子系统特效是提升游戏效果的重要手段！

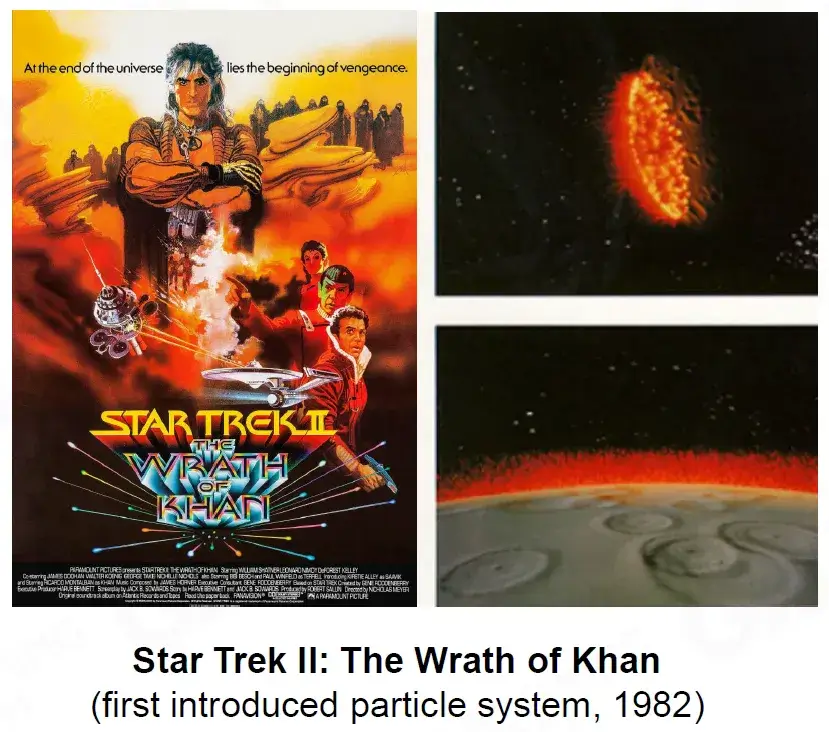

History of Particle System

粒子系统的历史，最早也源自电影

webp

“A particle system is a collection of many many minuteparticles that together represent a fuzzy object. Over aperiod of time, particles are generated into a systemmove and change from within the system, and die fromthe system."

“粒子系统是许多微小粒子的集合，它们共同代表一个模糊物体。在一段时间内，粒子会生成一个系统，在系统内部移动和变化，然后从系统中消亡。”

——William Reeves, “Particle Systems——A Technique forModeling a Class of Fuzzy Objects,” ACM Transactionson Graphics 2:2 (April 1983), 92.

——William Reeves，《粒子系统——一种对模糊物体进行建模的技术》，ACM Transactionson Graphics 2:2（1983 年 4 月），92。

Particle

webp

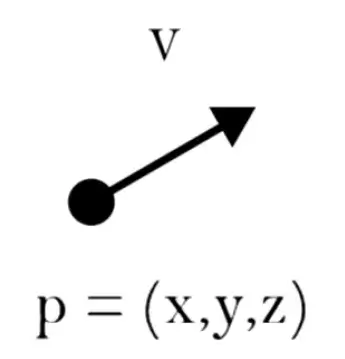

A particle in game is usually a sprite or 3D model, with the following attributes:

游戏中的粒子通常是一个精灵或 3D 模型，具有以下属性：

Position

位置
Velocity

速度
Size

大小
Color

颜色
Lifetime

寿命

……

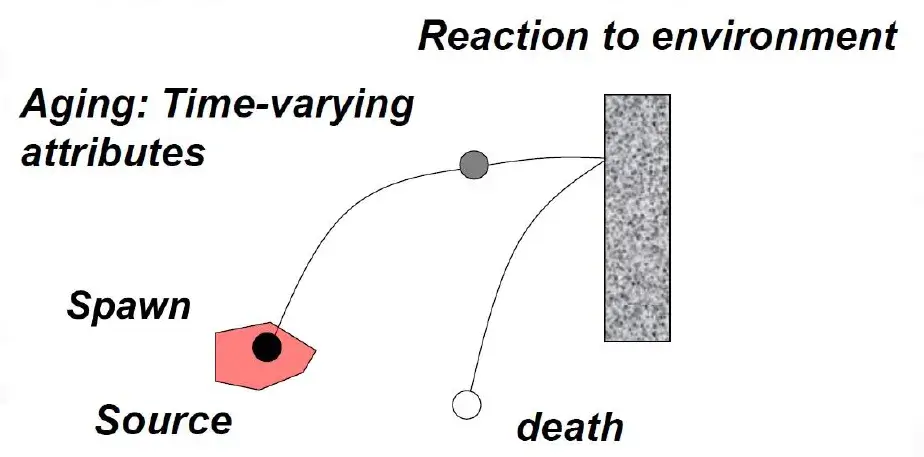

Particle’s Life Cycle

粒子生命周期

webp

Particle Emitter

粒子发射器

webp

Particle Emitter is used to define the particles simulation

粒子发射器用于定义粒子模拟

Specify the spawn rules

指定生成规则
Specify simulation logic

指定模拟逻辑
Describe how to render particles

描述如何渲染粒子

Particle System

webp

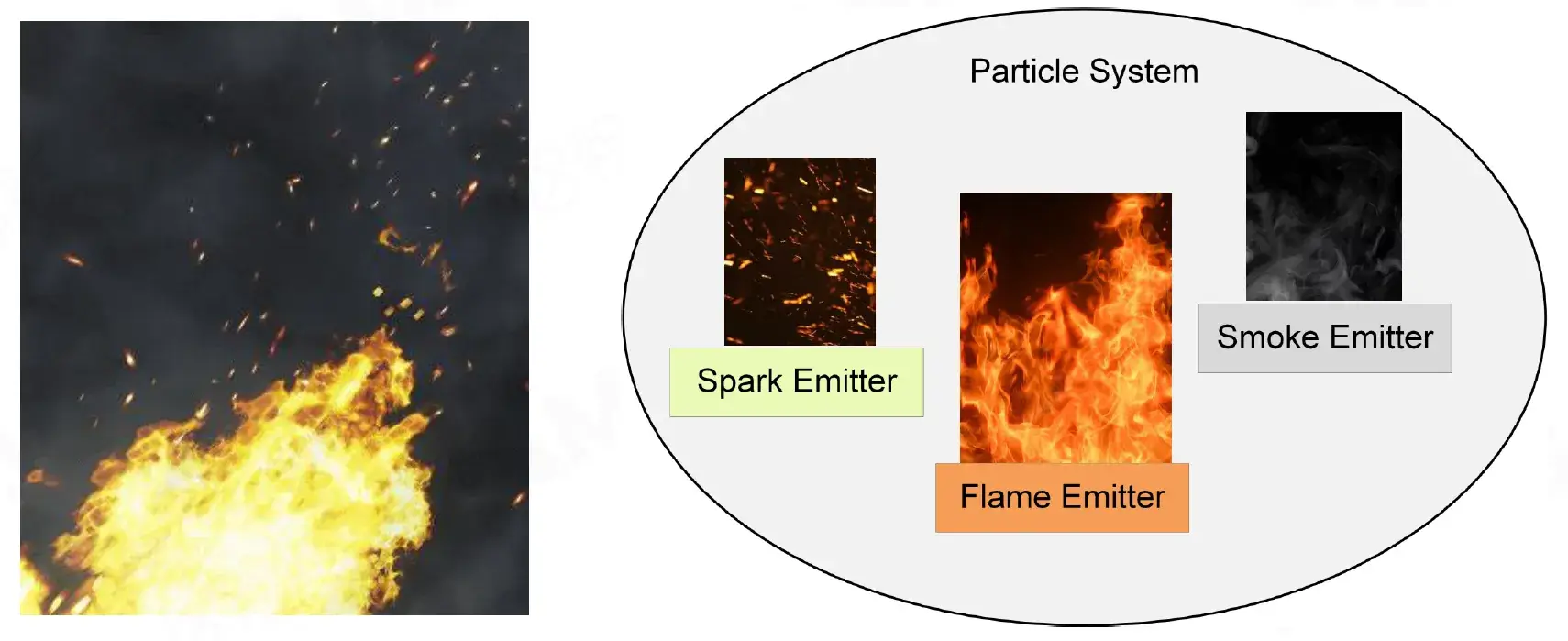

A particle system is a collection of individual emitters

粒子系统是单个发射器的集合

A simple case, just combine different emitters

一个简单的例子，只需组合不同的发射器

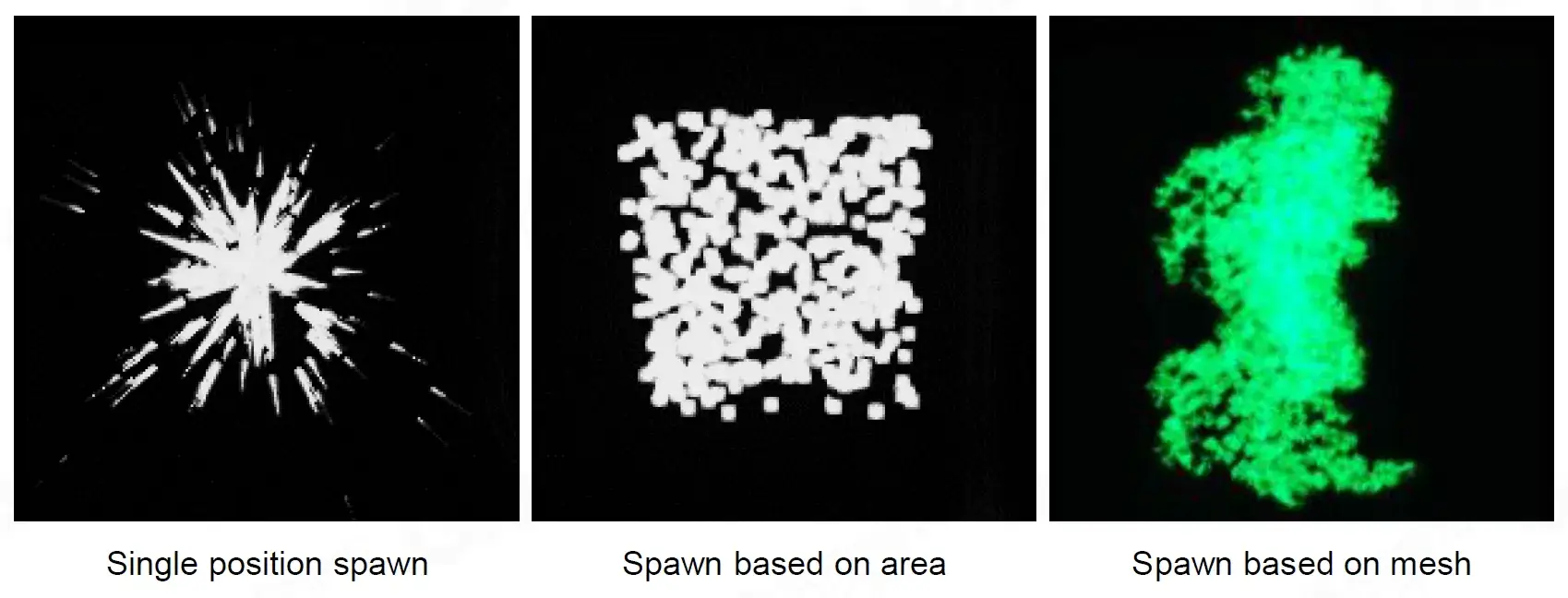

Particle Spawn Position

webp

Single position spawn

单一位置生成
Spawn based on area

根据区域生成
Spawn based on mesh

根据网格生成

Particle Spawn Mode

粒子生成模式

Continuous

连续

variable spawn rate per frame

每帧生成率可变
time, distance based, etc.

基于时间、距离等

Burst

爆发

all particle spawn and simulated at once

所有粒子同时生成并模拟

Simulate

模拟

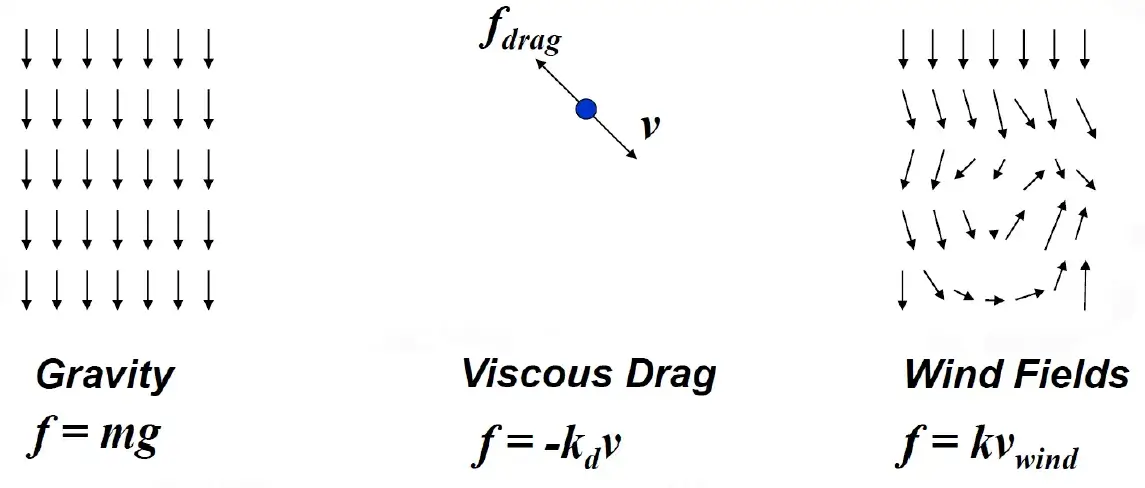

Common forces

共同力量

webp

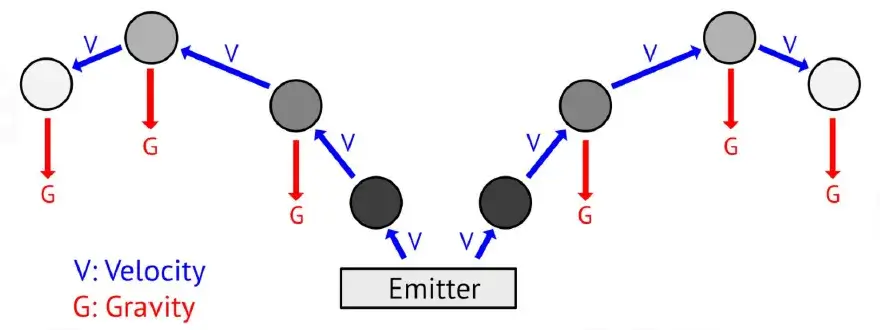

Simulate controls how the particles change over time

模拟控制粒子随时间的变化

webp

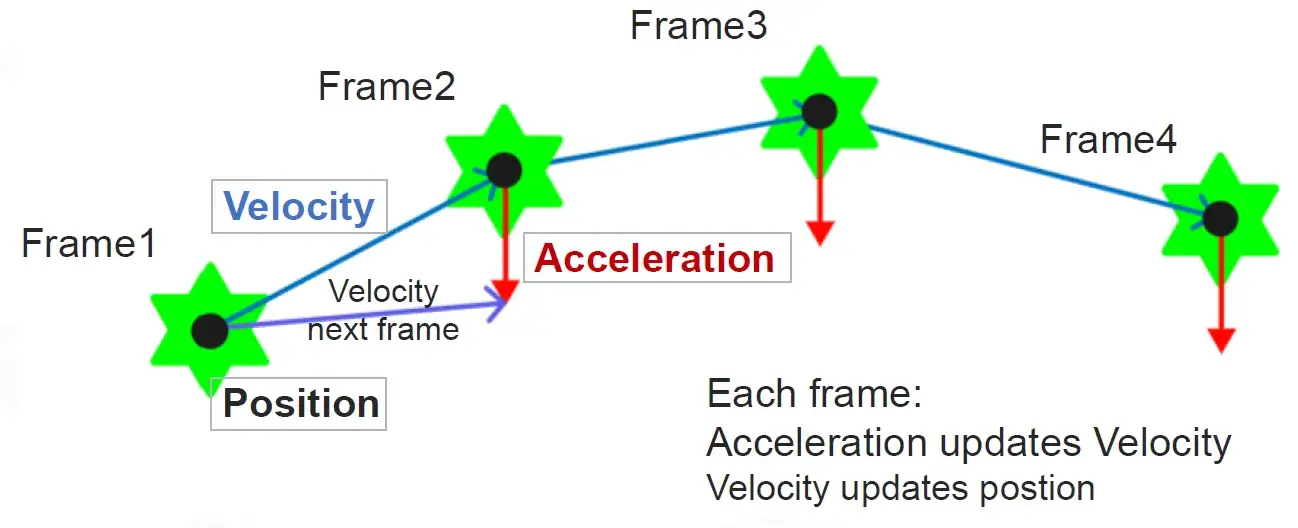

Each frame:

每帧：

Acceleration updates Velocity

加速度更新速度

Velocity updates postion

速度更新位置

Simulate gravity

模拟重力
Simulate gravity & rotation

模拟重力和旋转
Simulate gravity & color

模拟重力和颜色
Simulate gravity & size

模拟重力和大小
Collision

碰撞

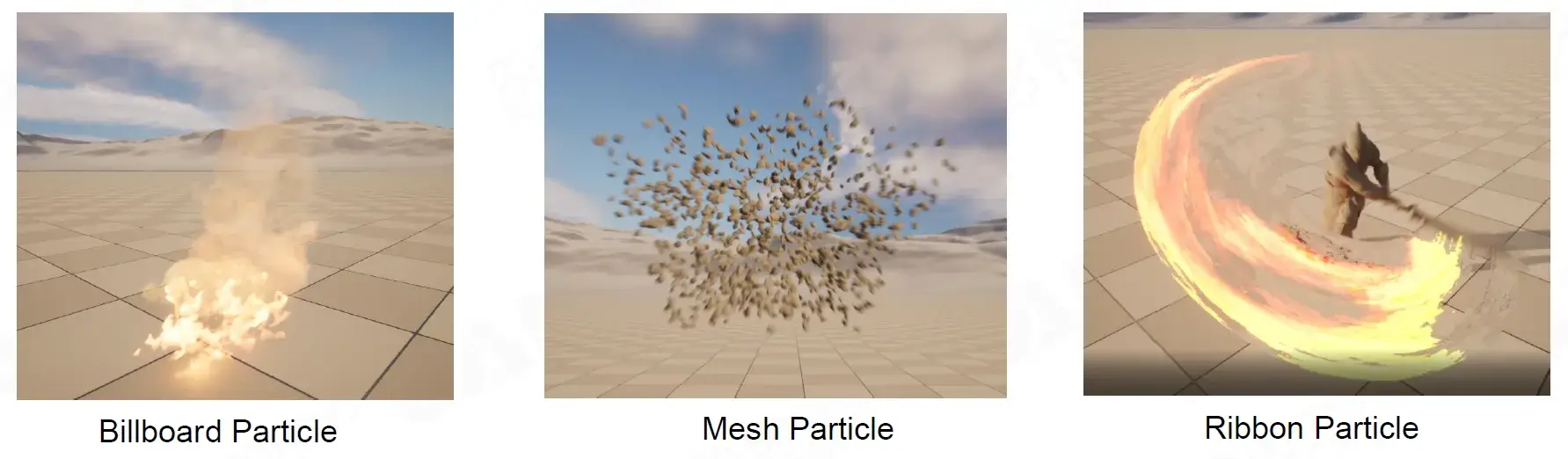

Particle Type

粒子类型

webp

Billboard Particle

广告牌粒子
Mesh Particle

网络粒子
Ribbon Particle

带状粒子

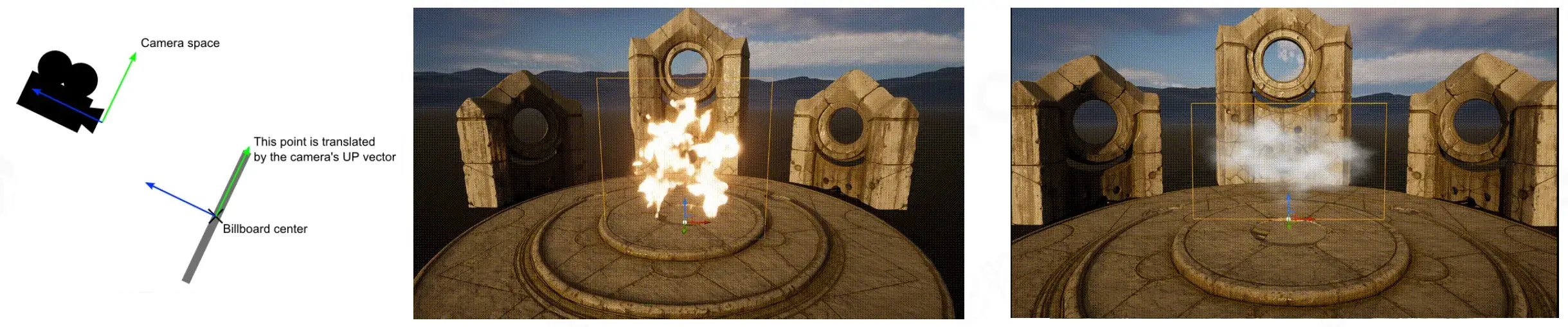

Billboard Particle

广告牌粒子

webp

粒子只在平面上显示，这个平面始终朝着相机，减少计算量。

Each particle is a sprite

每个粒子都是一个精灵

Appears to be 3D

看起来像 3D
Always face the camera

始终面向相机

Mesh Particle

网格粒子

webp

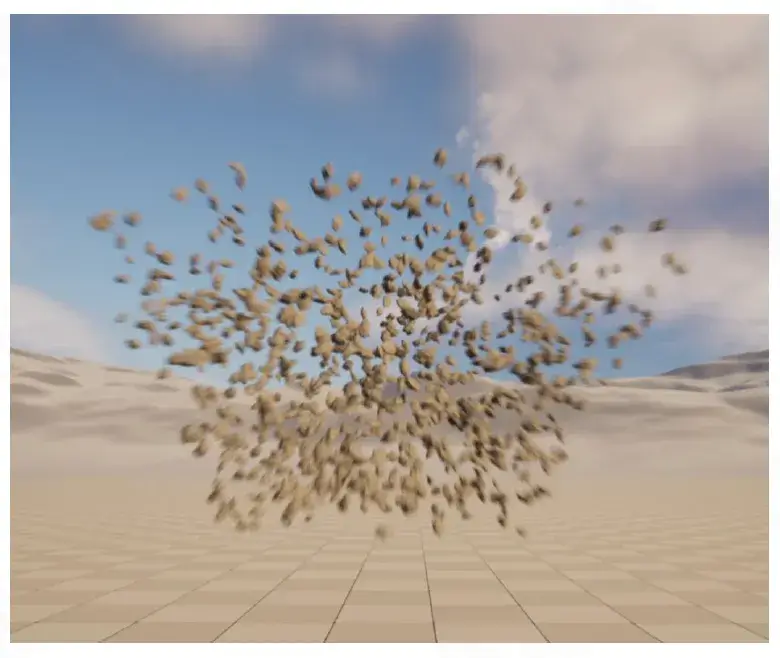

Each particle is a 3D model.

每个粒子都是一个 3D 模型。

Rocks coming from a explosion

爆炸产生的岩石

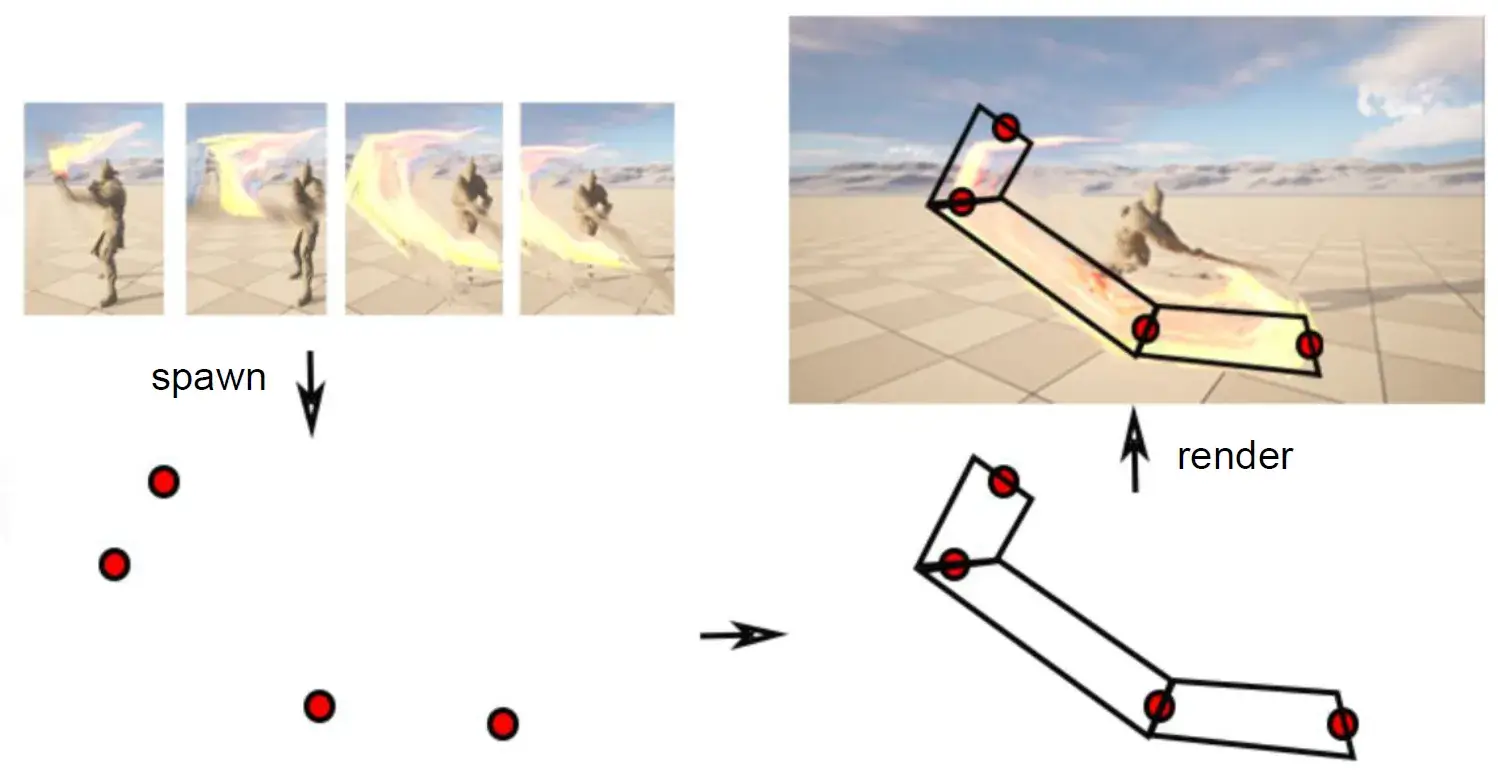

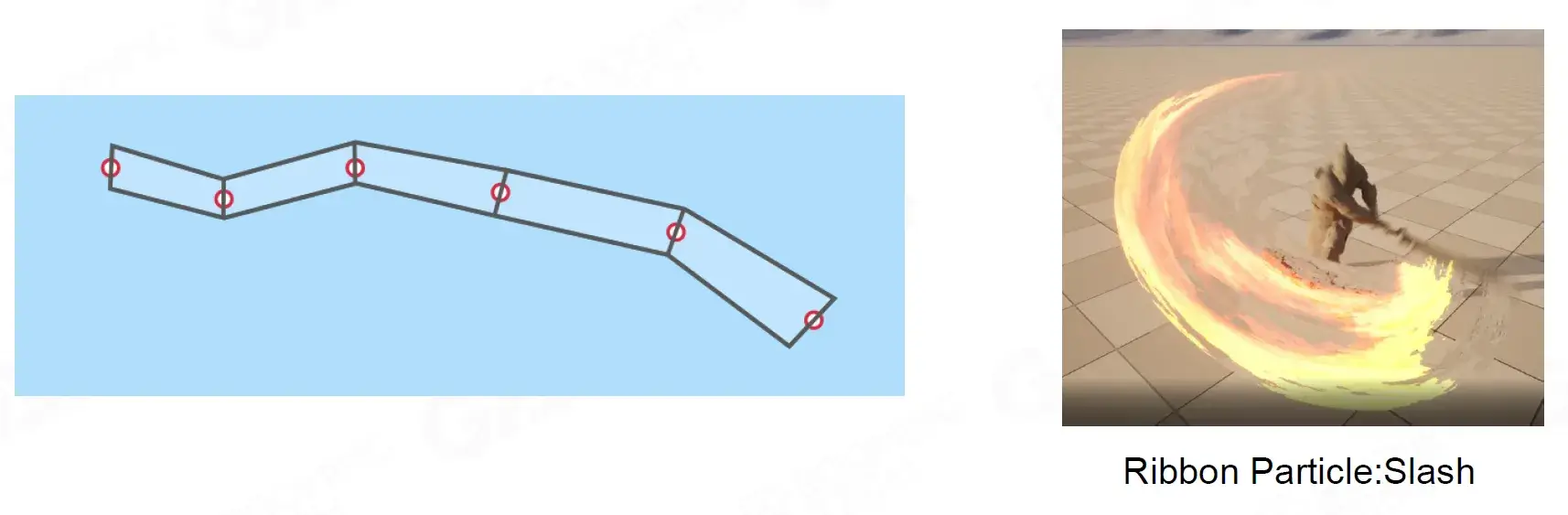

Ribbon Particle

带状粒子

webp

挥剑特效。

A strip is created by connecting the particles and rendering quads between the adjacent particles.

通过连接粒子并在相邻粒子之间渲染四边形来创建条带。

particles (represented as red dots)

粒子（表示为红点）

webp

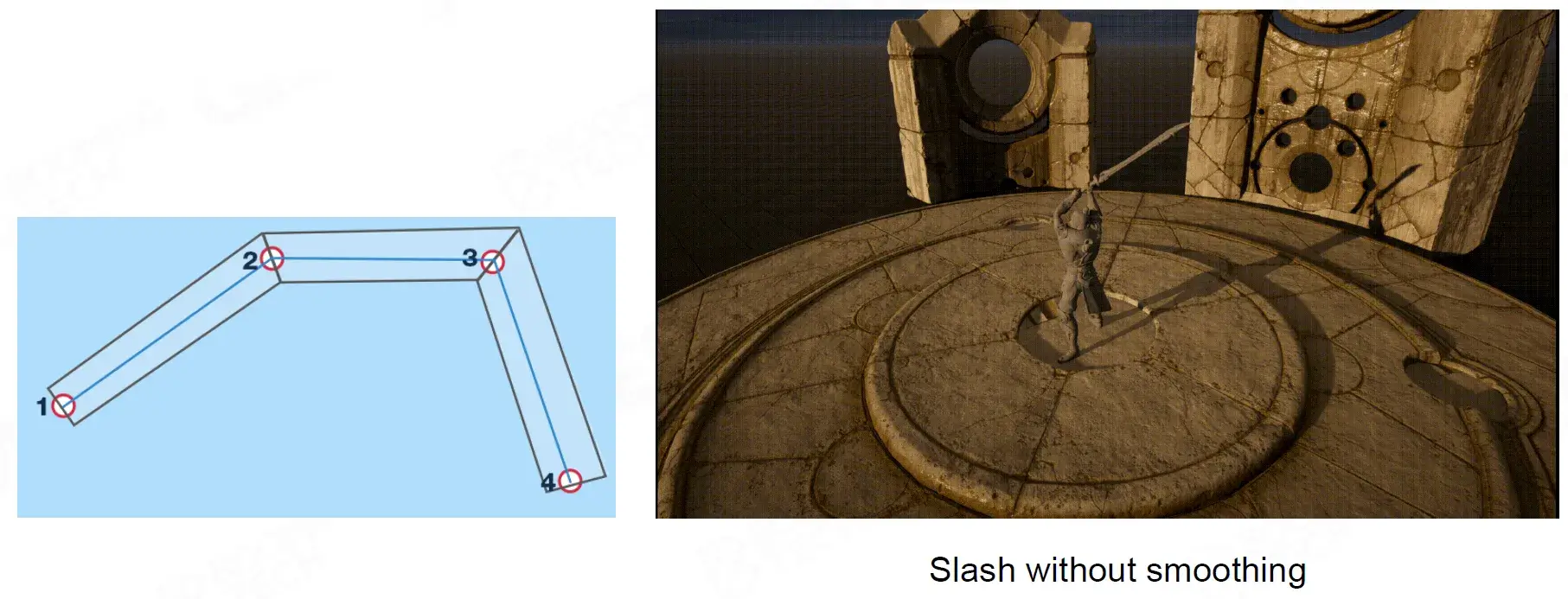

No smoothing shape

无平滑形状

webp

with sharp angles

有锐角

webp

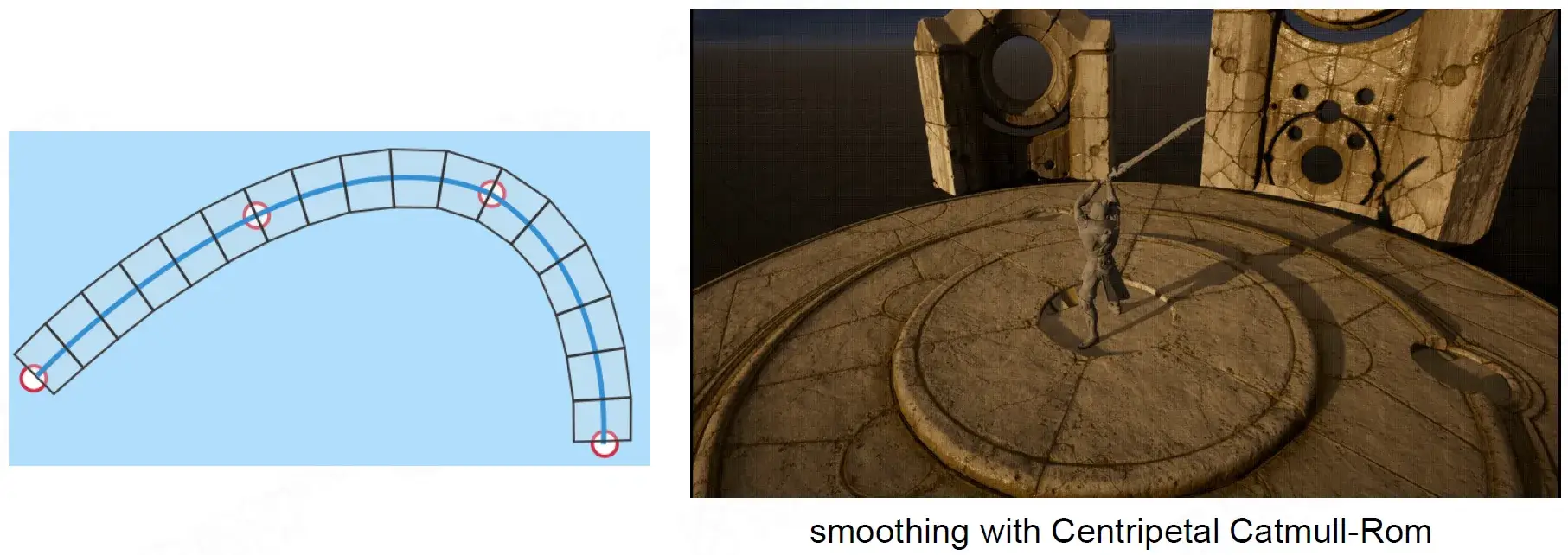

Smoothing with Centripetal Catmull-Rom interpolation

使用向心 Catmull-Rom 插值进行平滑

add extra segments between particles

在粒子之间添加额外的段
can set the number of segments

可以设置段数
requires more CPU

需要更多 CPU

Particle System Rendering

粒子系统渲染

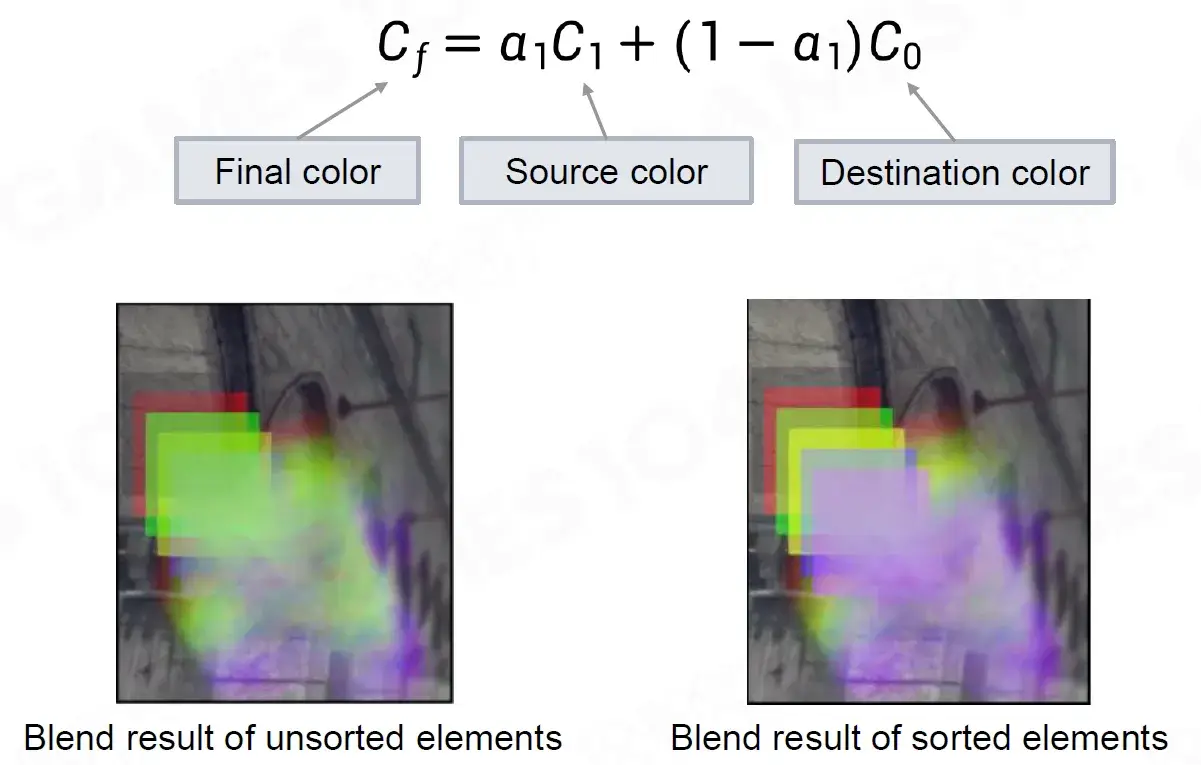

Alpha Blending Order

Alpha 混合顺序

webp

粒子有可能是透明的，如果没有排序会导致错误的渲染结果。

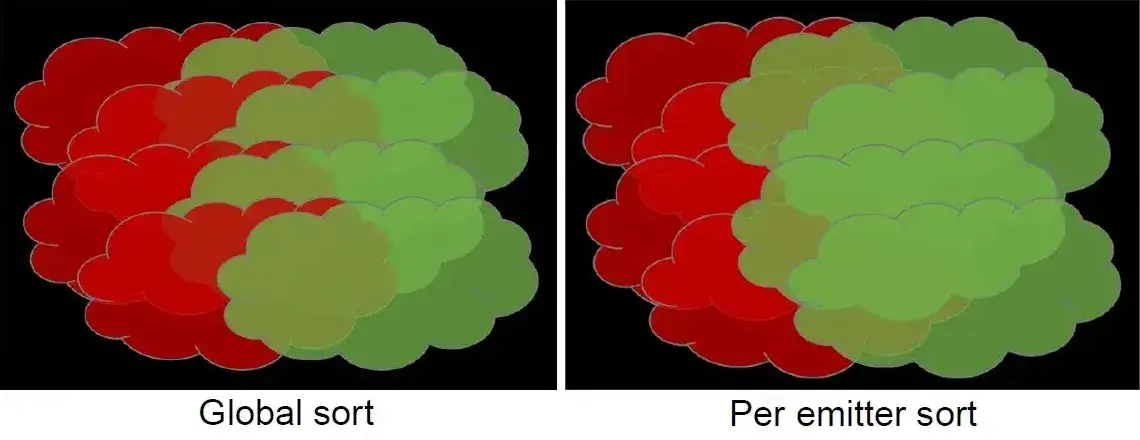

Particle Sort

粒子排序

webp

Global sort 是正确的，Per emitter sort 错误。

Sorting mode

排序模式

Global

全局
- Accurate, but large performance consumption

  准确，但性能消耗大
Hierarchy: Per system → Per emitter → Within emitter

层次结构：每个系统 → 每个发射器 → 发射器内

Sort rules

排序规则

Between particles: based on particle distance with camera

粒子之间：基于粒子与相机的距离
Between systems or emitters: bounding box

系统或发射器之间：边界框

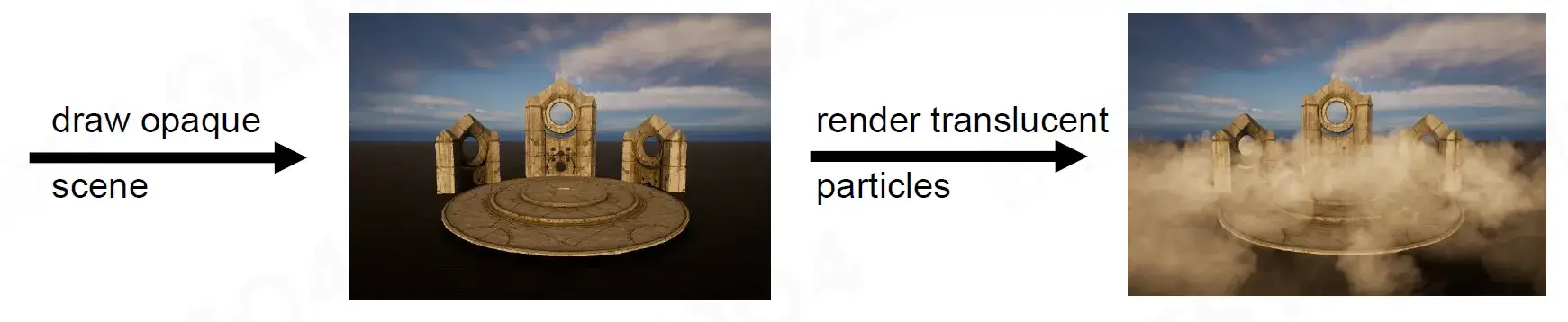

Full-Resolution Particles

全分辨率粒子

webp

Costly

成本高昂
Worst case as particles fill the screen

最坏的情况是颗粒会填满屏幕

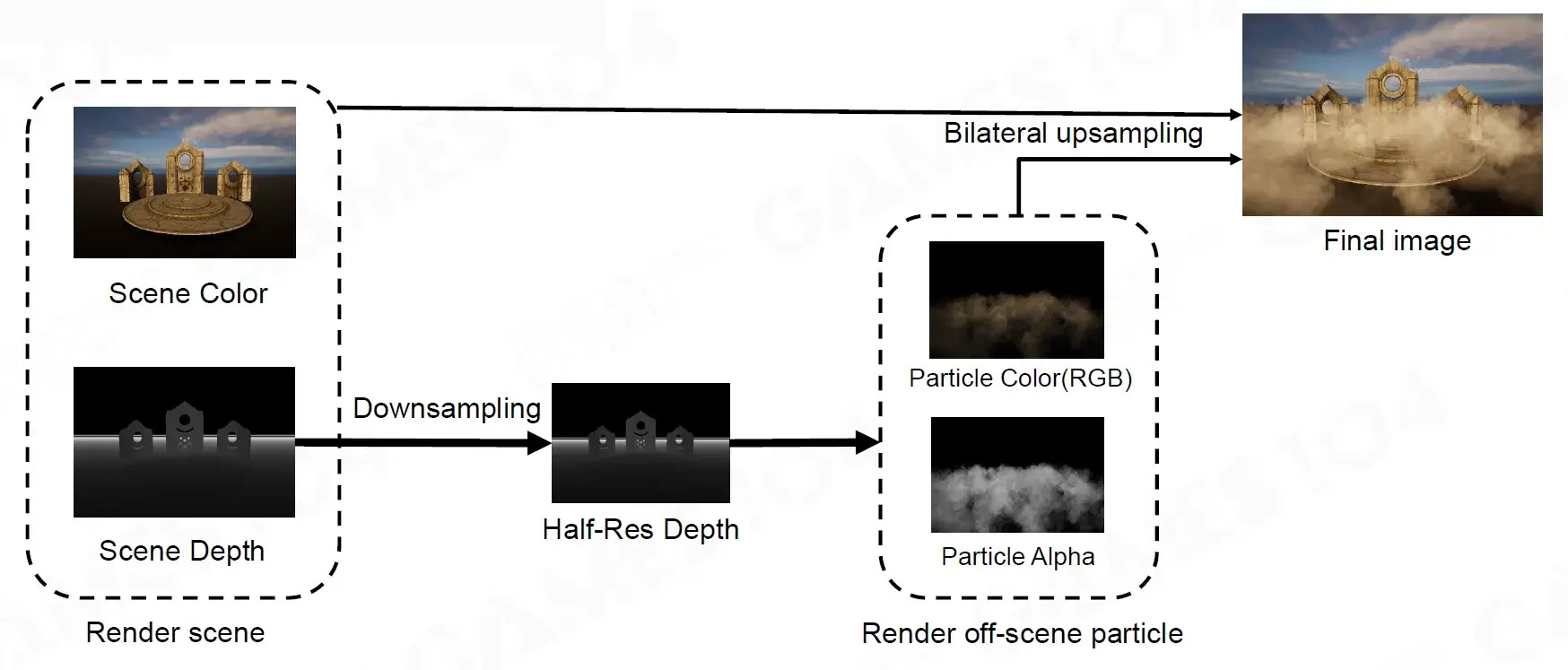

Low-Resolution Particles

低分辨率粒子，计算粒子系统时，在较低分辨率上进行。

webp

$result_{color}=dst_{color}*(1-src_{alpha})+ src_{color}*src_{alpha}$

$result_{alpha} = dst_{alpha} *(1-src_{alpha})$

GPU Particle

GPU 粒子

Processing Particles on GPU

在 GPU 上处理粒子

Why use GPU?

为什么使用 GPU？

Highly parallel workload, suitable for simulation of large numbers of particles

高度并行的工作负载，适合模拟大量粒子
Free your CPU to do game code

释放您的 CPU 来执行游戏代码
Easy to access depth buffer to do collision

轻松访问深度缓冲区以进行碰撞

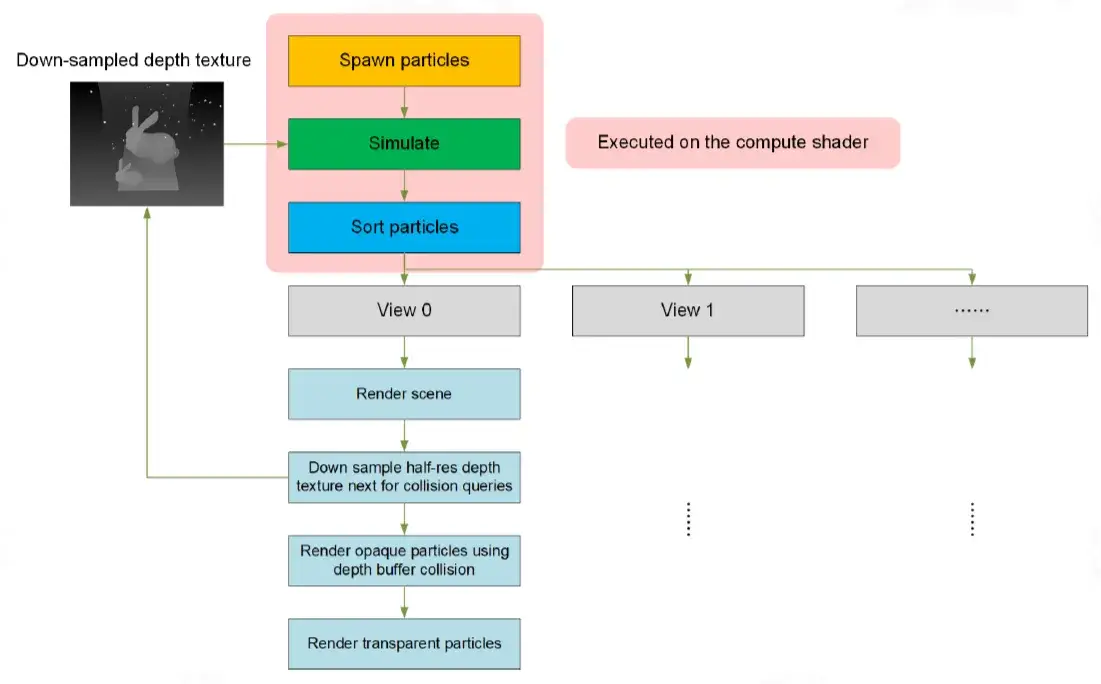

GPU Particles-Frame Overview

GPU 粒子帧概述

webp

Compute shader provides high-speed general purpose computing and takes advantage of the large numbers of parallel processors on the GPU

计算着色器提供高速通用计算，并利用 GPU 上的大量并行处理器

Initial State

初始状态

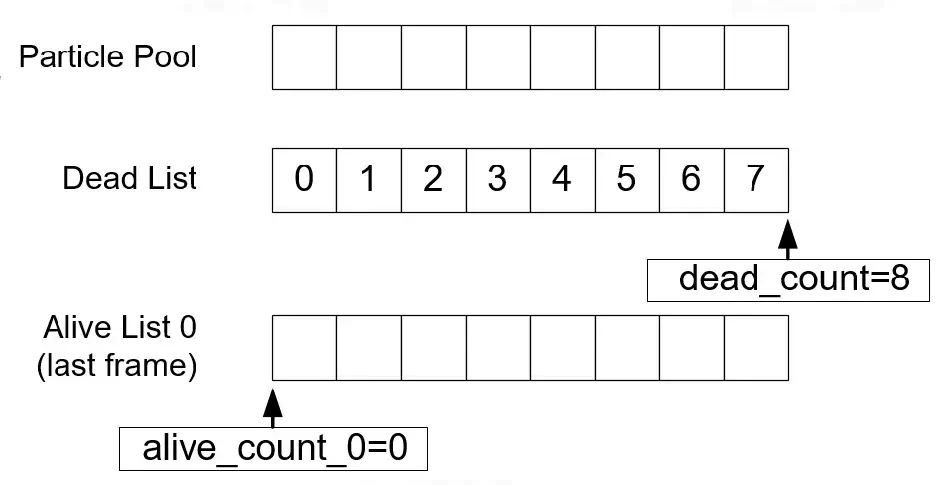

The diagram on the right shows an empty pool containing a maximum of 8 particles, starting with all 8 slots in a DEAD usable state

右图显示一个空池，最多包含 8 个粒子，所有 8 个槽位都处于 DEAD 可用状态

webp

Particle pool is a single buffer storage containing all particles data

粒子池是一个包含所有粒子数据的缓冲存储器

Spawn Particles

生成粒子

webp

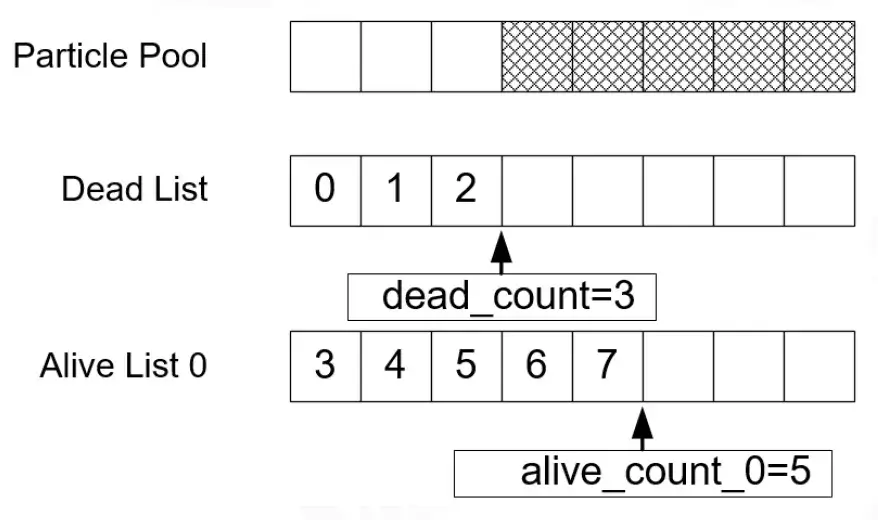

The diagram on the right shows the emission of 5 particles

右（上）图显示了 5 个粒子的发射

Dispatch 5 compute shader threads to dothe spawn calculation

调度 5 个计算着色器线程进行生成计算
Access to the dead list and the alive listneeds to be atomic

对死亡列表和存活列表的访问需要是原子的

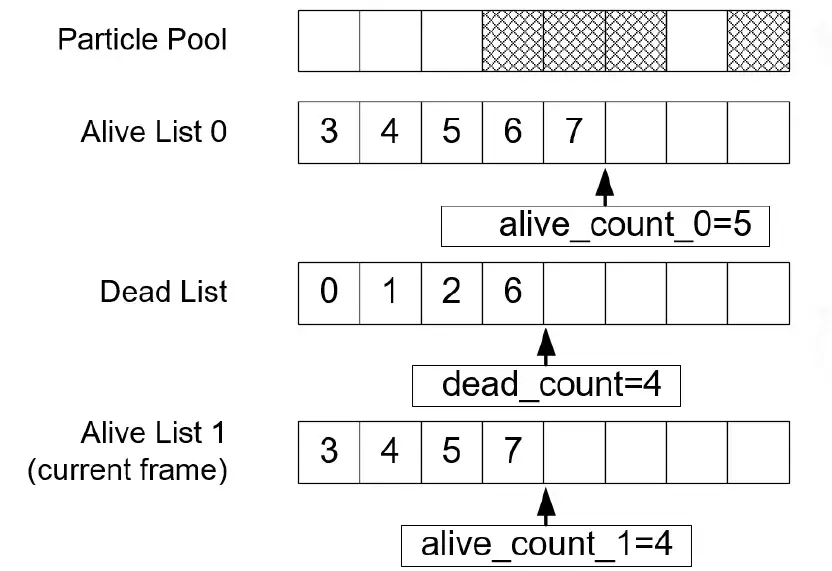

Simulate

模拟

webp

Calculate position, velocity, doing depth collision etc. And writing data back to particle pool (right diagram shows if particle 6 is dead)

计算位置、速度、进行深度碰撞等。并将数据写回粒子池（右图显示粒子 6 是否已死亡）

Dispatch alive_count_0 threads

调度 alive_count_0 线程
Access to dead list and alive list 1 should be atomic

对死亡列表和存活列表 1 的访问应为原子操作

webp

Do frustum culling, and write calculated distance to distance buffer (right diagram shows if particle 5 is culled)

进行视锥剔除，并将计算出的距离写入距离缓冲区（右图显示粒子 5 是否被剔除）

Sort, Render and Swap Alive Lists

排序、渲染和交换活动列表

webp

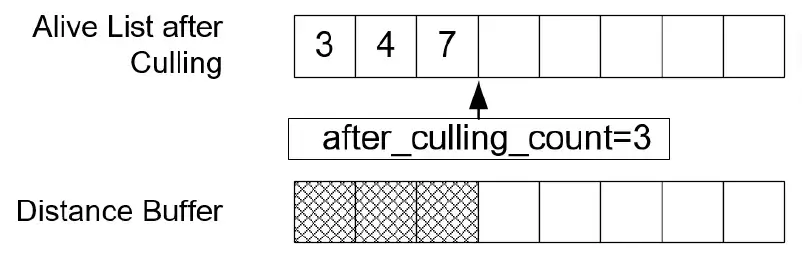

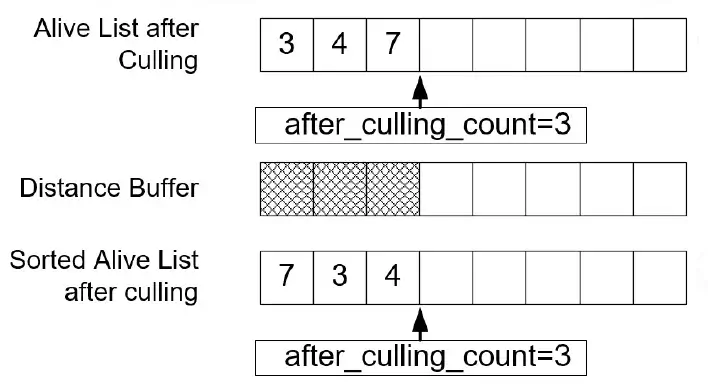

Sort alive list after culling according to distance buffer

根据距离缓冲区对剔除后的存活列表进行排序

webp

Render particles in sorted alive list after culling

剔除后，在排序的存活列表中渲染粒子

webp

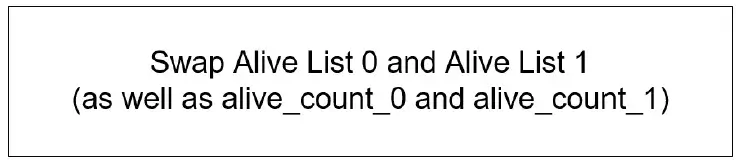

Swap alive list

交换激活列表

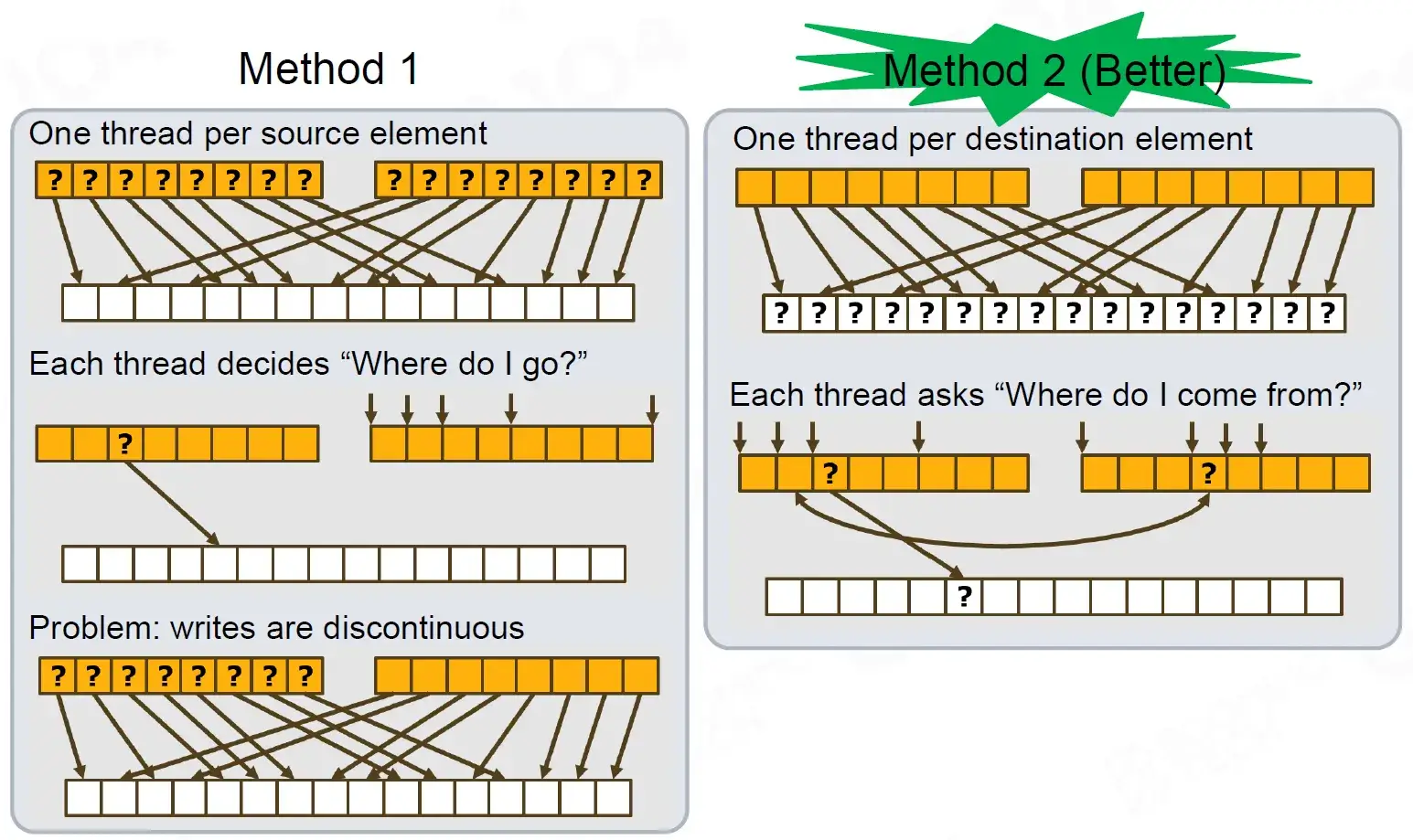

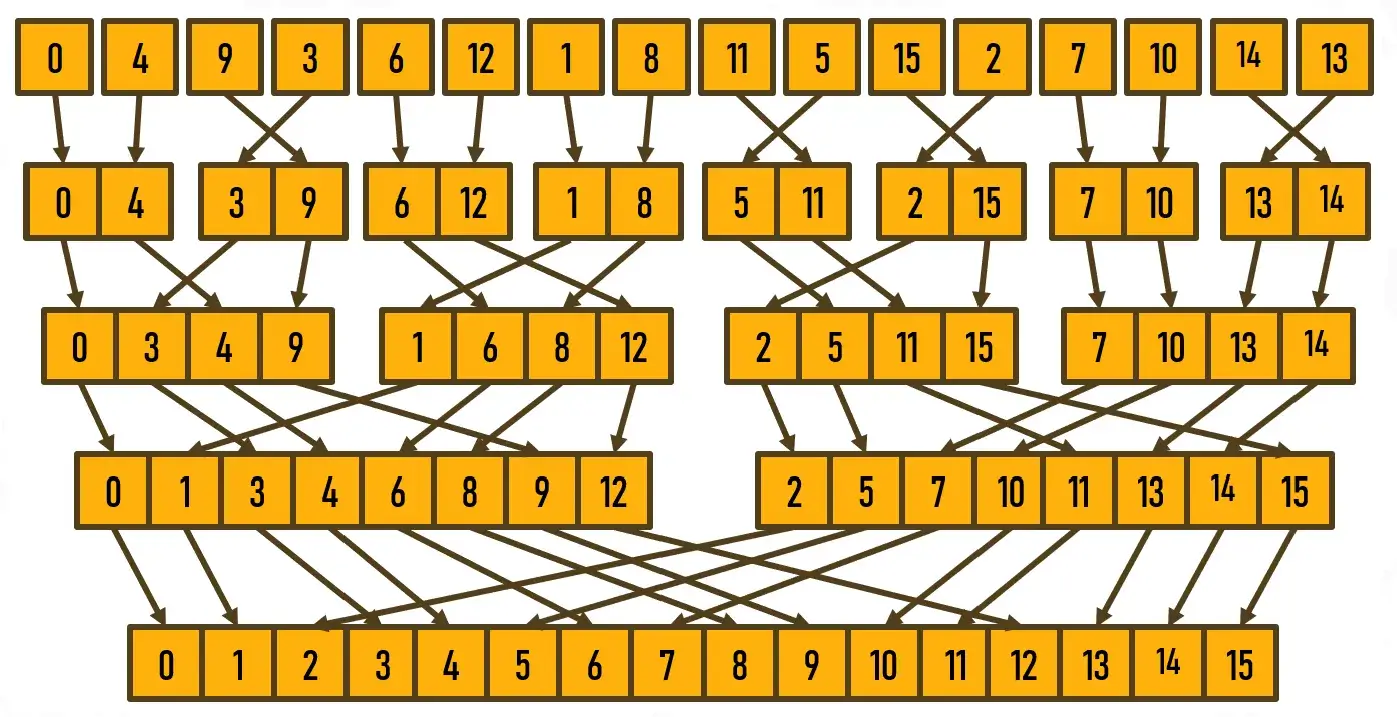

Parallel Mergesort

计算排序时使用归并排序。

webp

Depth Buffer Collision

webp

Reproject particle position to previous frame screenspace texture coordinate

将粒子位置重新投影到前一帧屏幕空间纹理坐标
Read depth value from presious frame depth texture

从前一帧深度纹理读取深度值
Check if particle is colliding with the depth buffer, but not completely behind it (where thickness value isused)

检查粒子是否与深度缓冲区发生碰撞，但未完全位于其后方（使用厚度值的地方）
If collision is happened, calculate surface normal andbounce off the particle

如果发生碰撞，则计算表面法线并从粒子上弹起

Advanced Particles

高级粒子系统

Crowd Simulation

云模拟

Animated Particle Mesh

动画粒子网格

webp

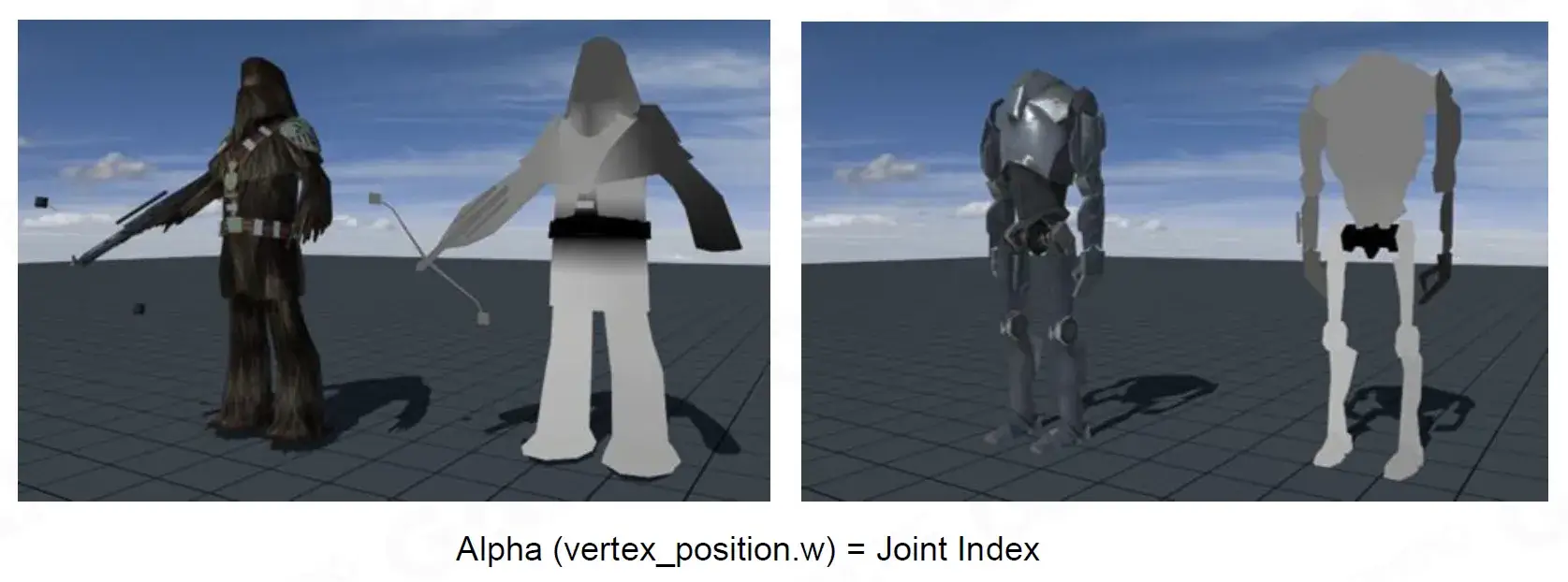

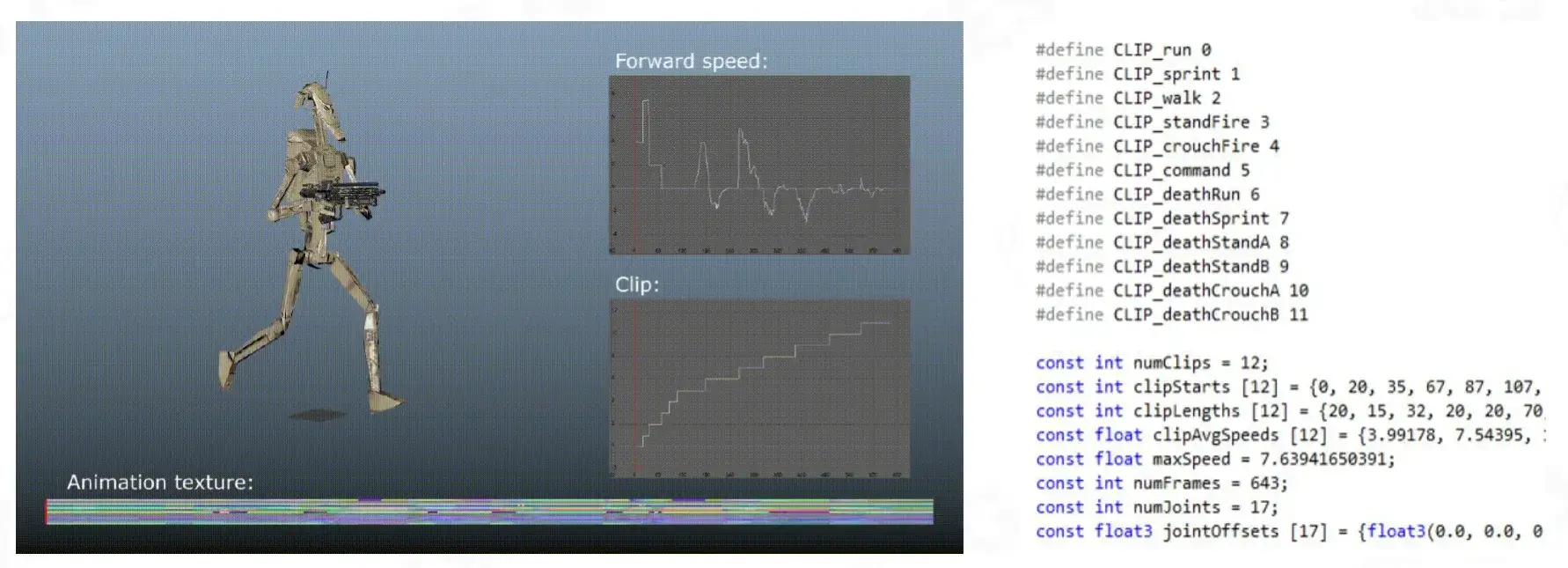

Particle Animation Texture

粒子动画纹理

webp

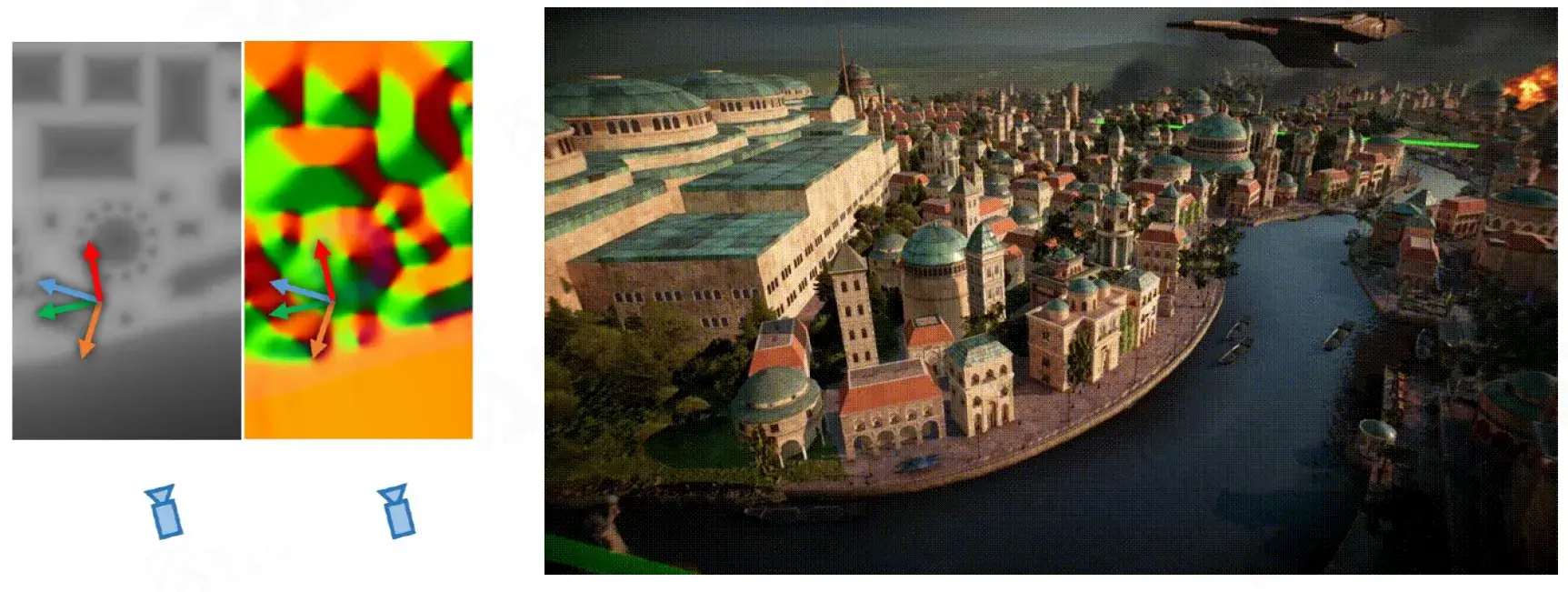

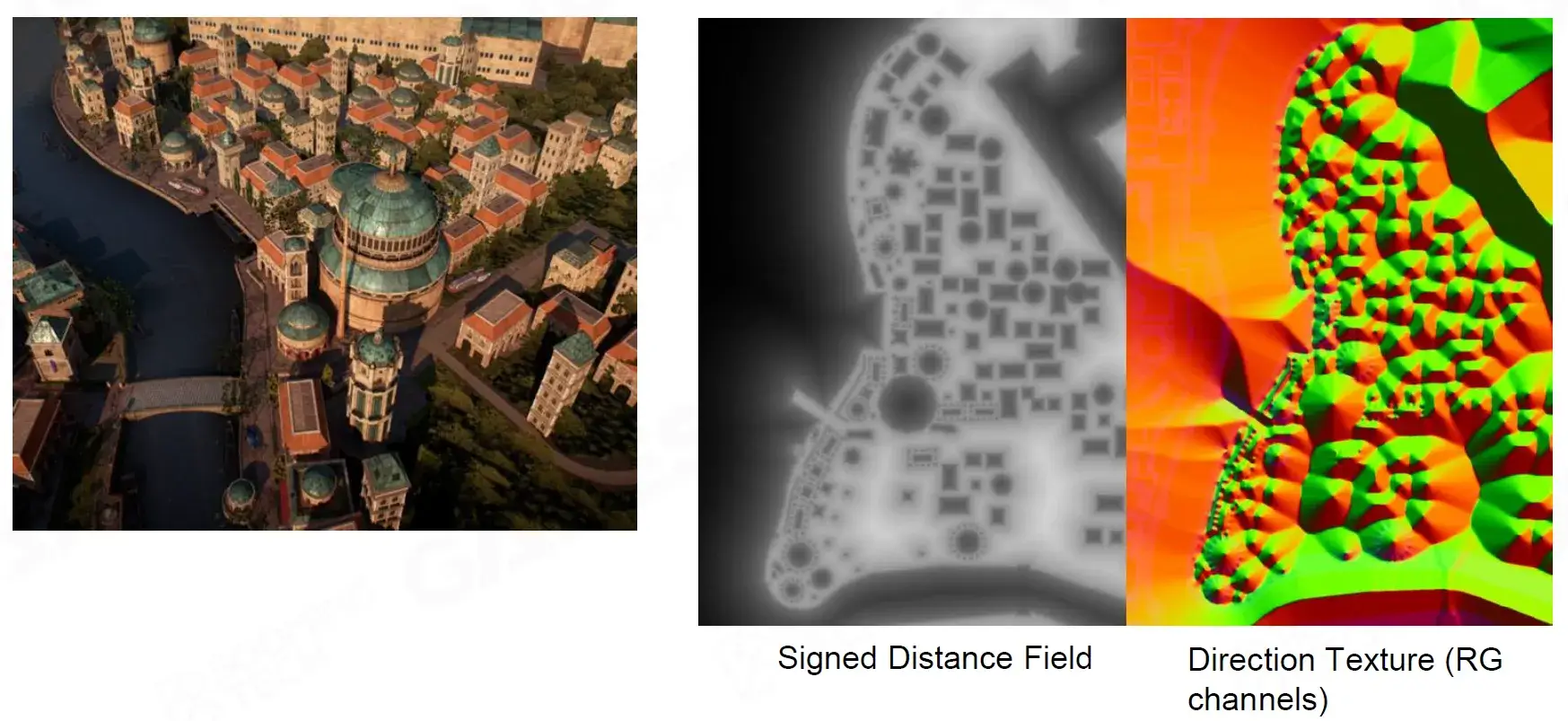

导航纹理

webp

Crowds-Runtime Behavior

人群-运行时行为

webp

Design target locations to guide the movement of crowds

设计目标位置来引导人群的移动
The desire moving towards the target location, pushing away from blocking geometry, all become forces to influence the movement of crowds (if close enough, the camera also acts as a force)

向目标位置移动的欲望、远离阻挡几何体，都成为影响人群移动的力量（如果距离足够近，相机也会起到作用）

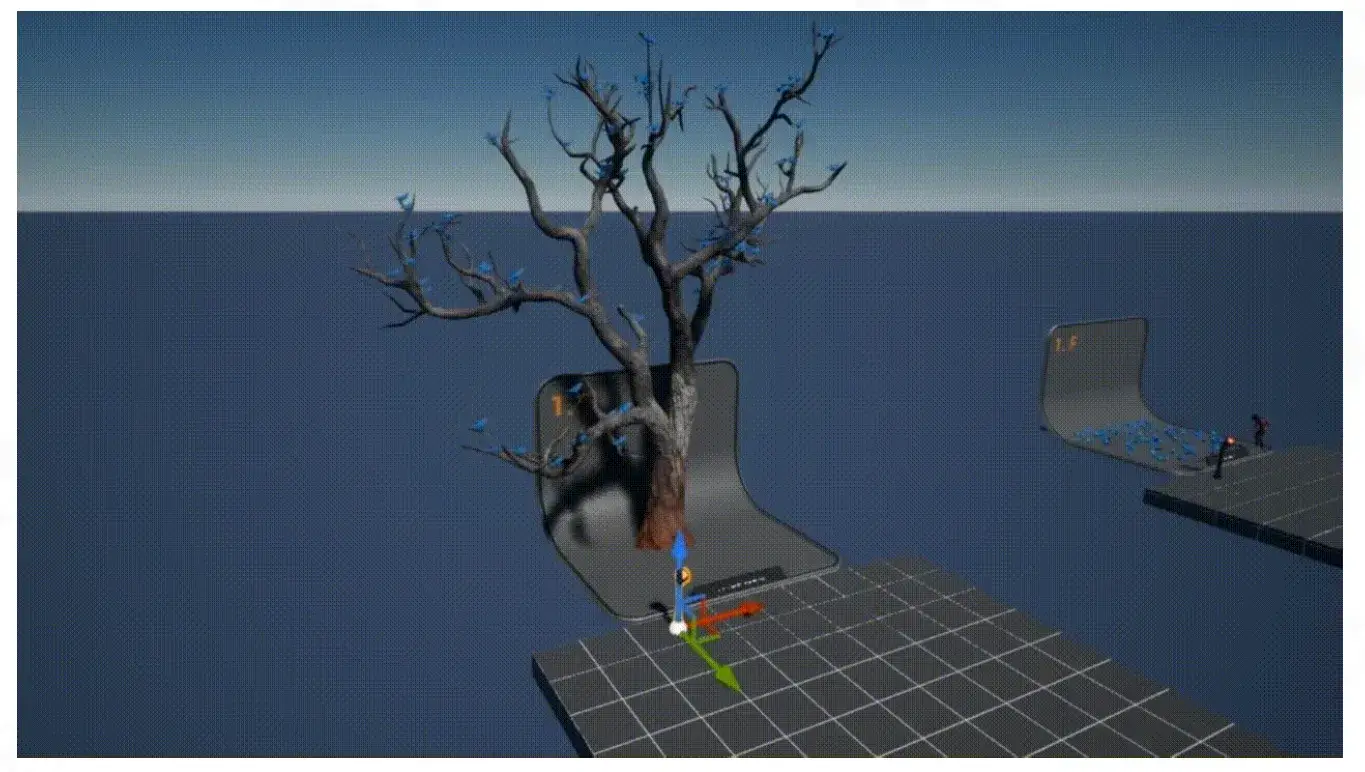

Advanced Particle Demos

高级粒子演示

webp

Skeleton mesh emitter

骨架网格发射器
Dynamic procedural splines

动态程序样条线
Reactions to other players

对其他玩家的反应
Interacting with environment

与环境互动（人靠近时鸟飞走）

……

Utilizing Particle System in Games

在游戏中使用粒子系统

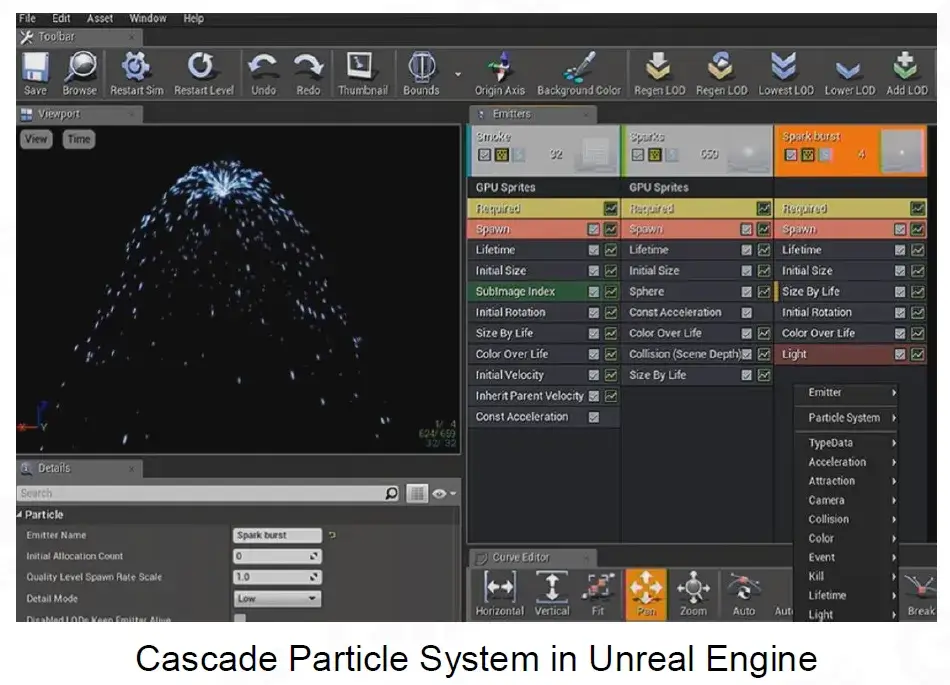

Design Philosophy-Preset Stack-Style Mddules

设计理念 - 预设堆栈式模块

webp

Pros

优点

Fast to add behaviors as stacked modules

快速添加行为作为堆栈模块
Non technical artists have lots of control via a suite of typical behaviors

非技术艺术家可以通过一套典型行为进行大量控制
Easy to understand at a glance

一目了然

Cons

缺点

Fixed functions, new feature requires new code

固定功能，新功能需要新代码
Code-based, divergence in game team code

基于代码，游戏团队代码存在分歧
Fixed particle data, data sharing is mostly impossible

固定粒子数据，数据共享几乎不可能

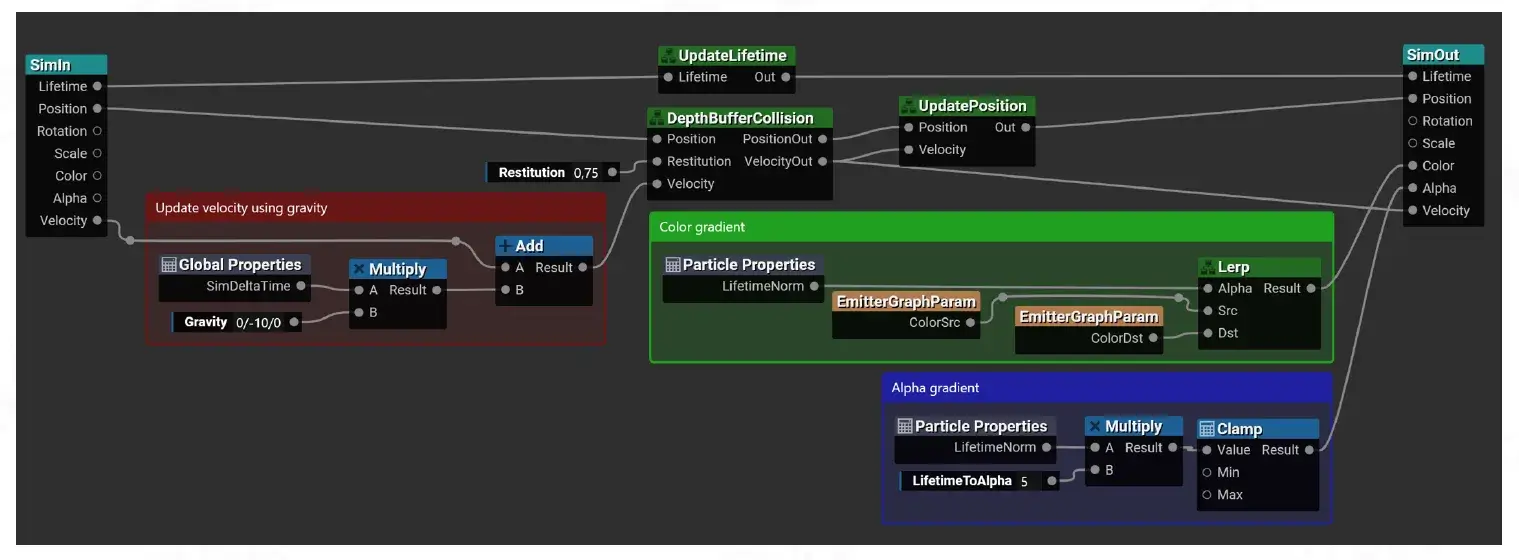

Design Philosophy-Graph-Based Design

设计理念-基于图的设计

webp

Parameterizable and shareable graphs asset

可参数化和可共享的图形资产
Less code divergence

更少的代码分歧
Provide modular tools instead of hardcoded features

提供模块化工具而不是硬编码功能

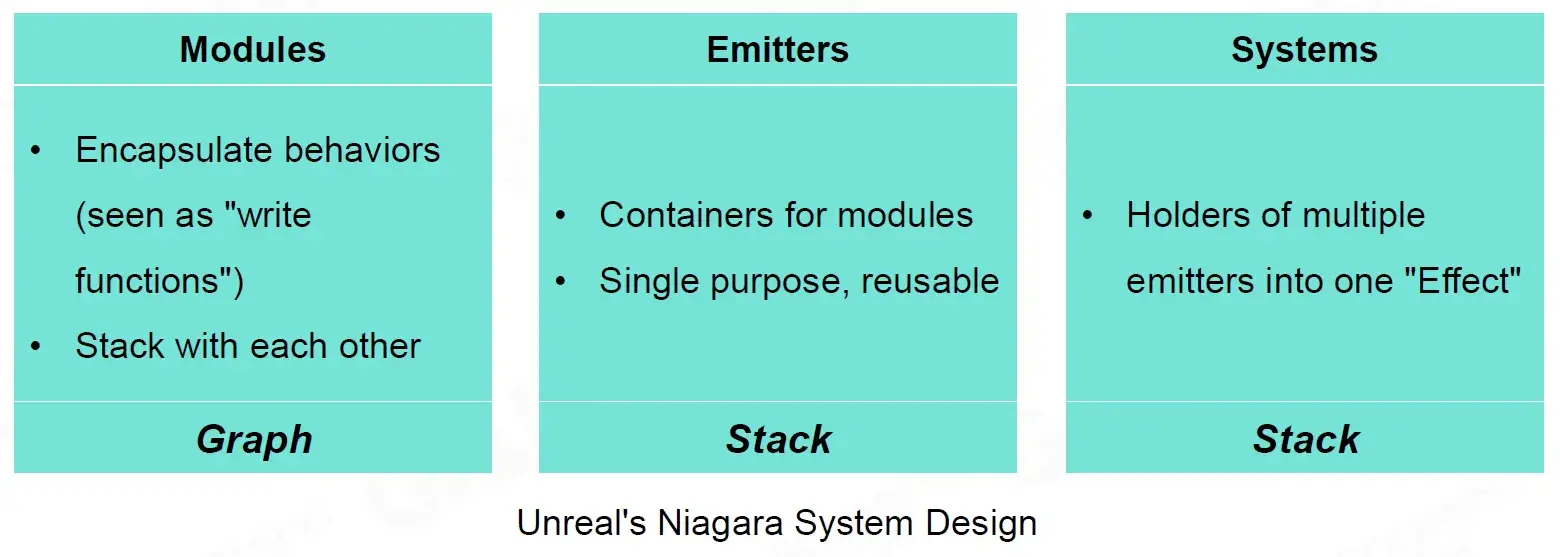

Hybrid Design

混合设计

webp

Graphs give total control

图提供全面控制
Stacks provide modular behavior and glance readability

堆栈提供模块化行为和一目了然的可读性

Sound System

Audio

webp

Entertains the player

娱乐玩家
Enhances the realism

增强真实感
Establishes atmosphere

营造氛围

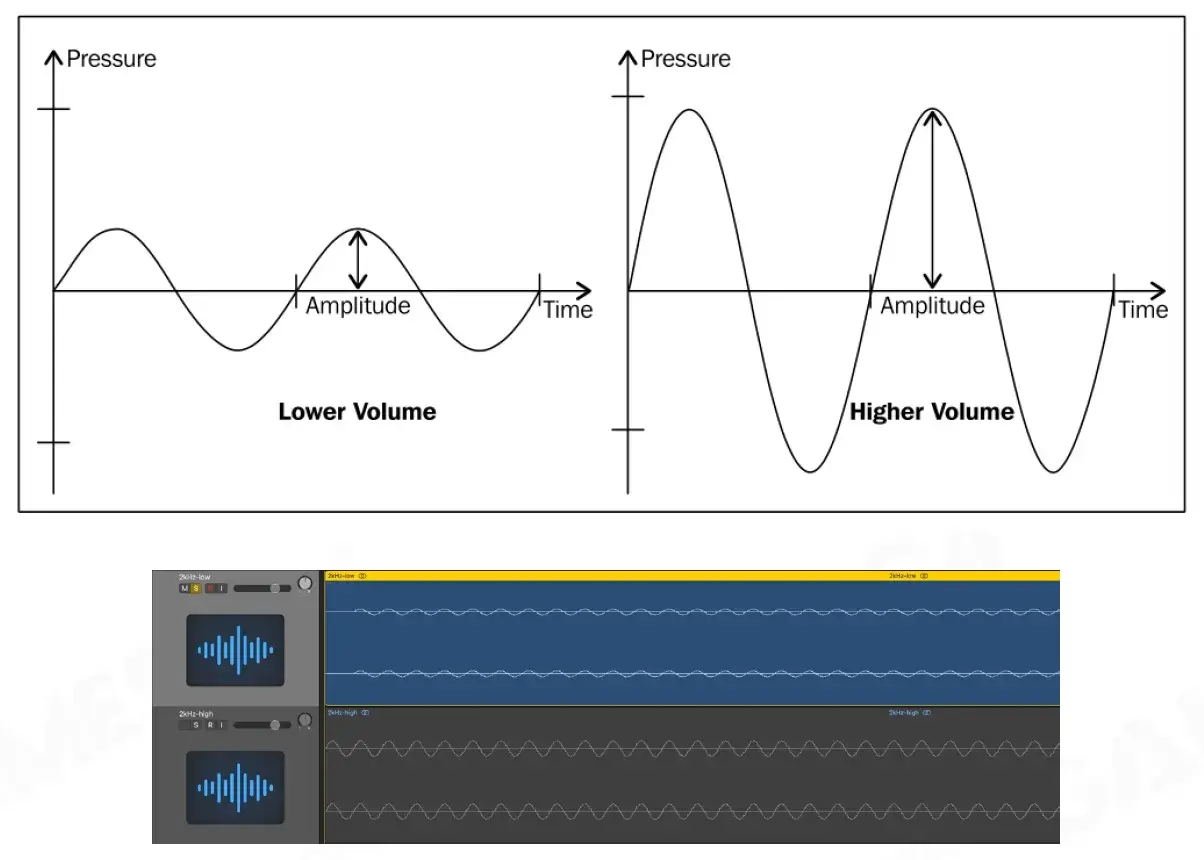

Volume

音量

The amplitude of the sound wave

声波的振幅

webp

Volume - Terminologies

音量 - 术语

Sound Pressure ( $p$ ): Local deviation from the ambient atmospheric pressure caused by sound wave, SI unit ( $P_a$ )

声压 ( $p$ )：声波引起的与周围大气压力的局部偏差，SI 单位 ( $P_a$ )

Particle Velocity ( $V$ ): The velocity of a particle in a medium as it transmits a wave, Sl unit ( $m/s$ )

**粒子速度 ( $V$ )：**介质中粒子传播波的速度，SI 单位 ( $m/s$ )

Sound Intensity ( $I$ ): The power carried by sound waves per unit area in a direction perpendiculato that area,Sl unit: $W/m^2$

**声强 ( $I$ )：**声波在垂直于该面积的方向上每单位面积携带的功率，SI 单位： $W/m^2$

$I=pV$

Sound Pressure Level ( $L_p$ ): A logarithmic measure of the effective pressure of a sound relative to a reference yalue,SI unit ( $\mathrm{dB}$ )

**声压级 ( $L_p$ )：**相对于参考值的声音有效压力的对数测量，SI 单位 ( $\mathrm{dB}$ )

$L_p=20\log_{10}(\frac p{p_0})dB$

$p_0$ : Reference sound pressure, the threshold of human hearing, commonly used in air is

$p_0$ ：参考声压，即人类听觉的阈值，在空气中常用的是

$p_0=20\mu Pa$

(roughly the sound of a mosquito flying 3m away)

（大约相当于 3 米外蚊子飞行的声音）

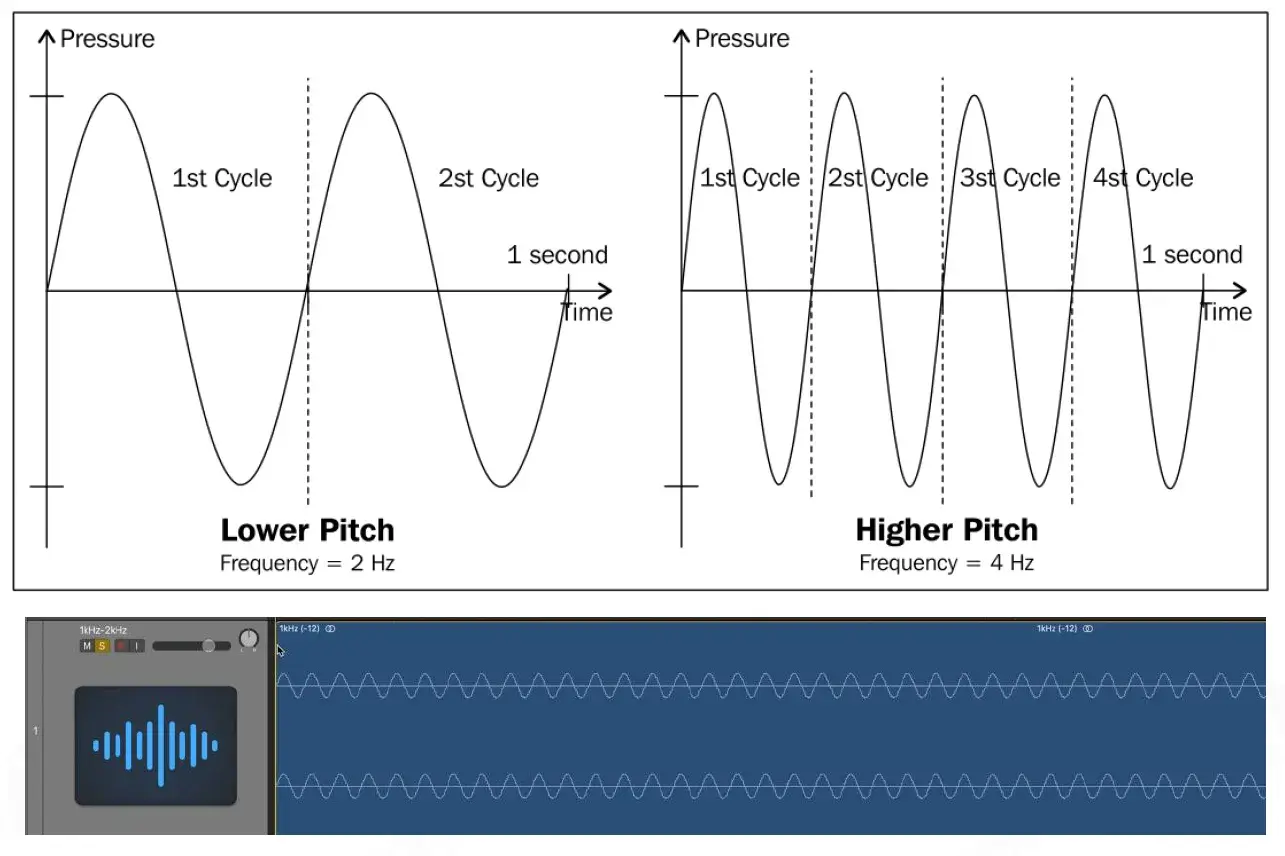

Pitch

音调

webp

Determines how high or low the sound is

确定声音的高低
Depends on the frequency of the soundwave

取决于声波的频率

Timbre

音色

webp

Combinations of overtones or harmonics

泛音或谐波的组合

frequencies

频率
relative intensities

相对强度

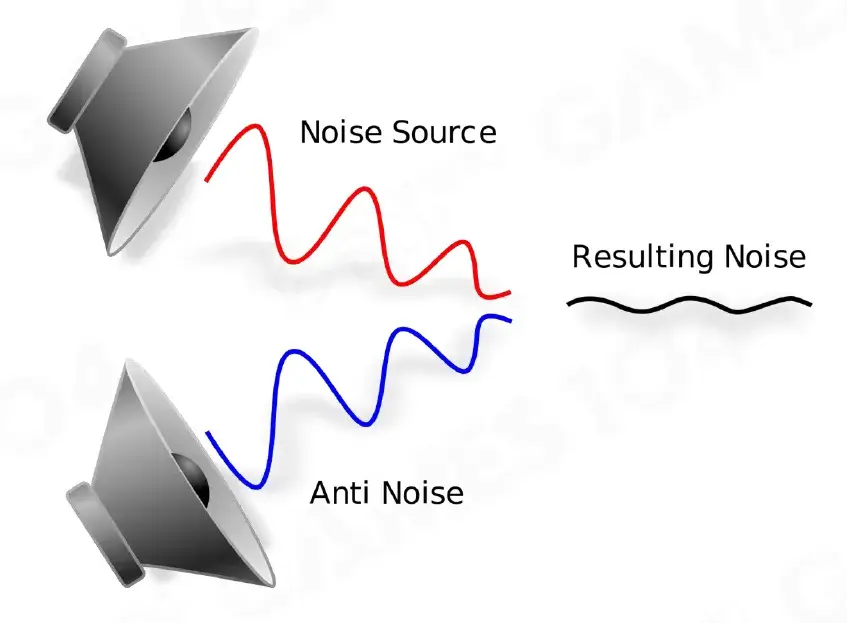

Phase and Noise Cancelling

相位和噪声消除

Same frequency, amplitude, but in different phase

频率、振幅相同，但相位不同

webp

降噪耳机的原理，发出 Anti Noise 抵消 Noise Source 的纵波。

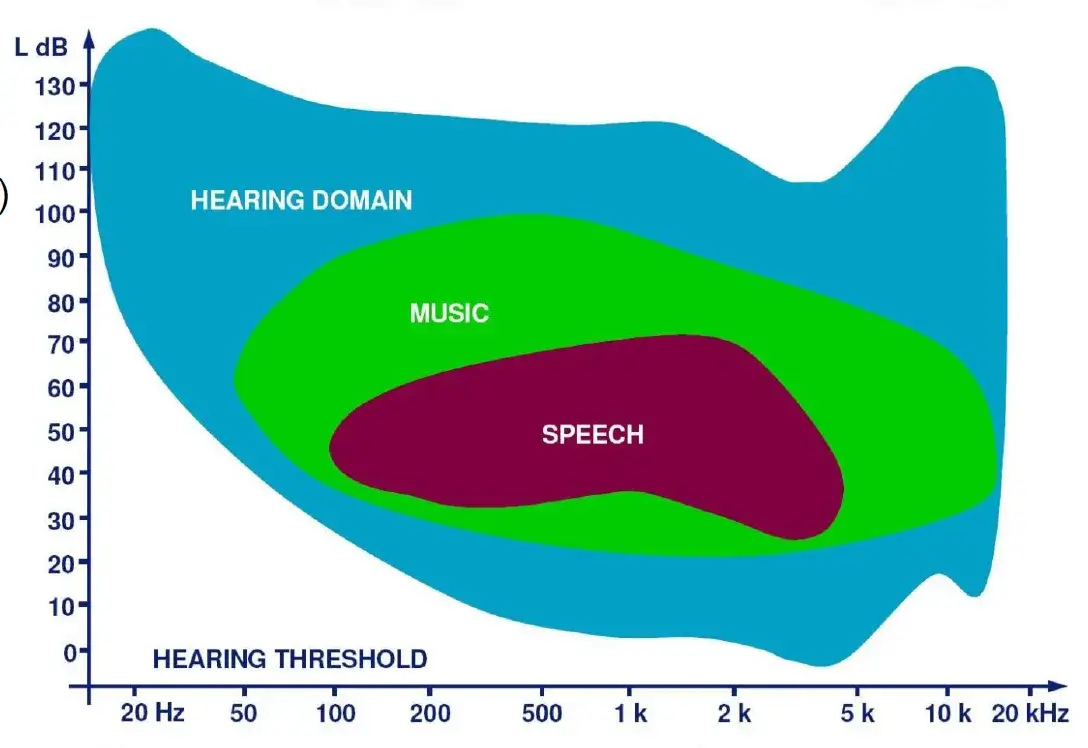

Human Hearing Characteristic

人类听觉特性

webp

The audible sound of human ear

人耳可听到的声音

frequency range: 20-20KHz

频率范围：20-20 KHz
sound pressure level range (0-130db)

声压级范围（0-130db）

Digital Sound

电子声

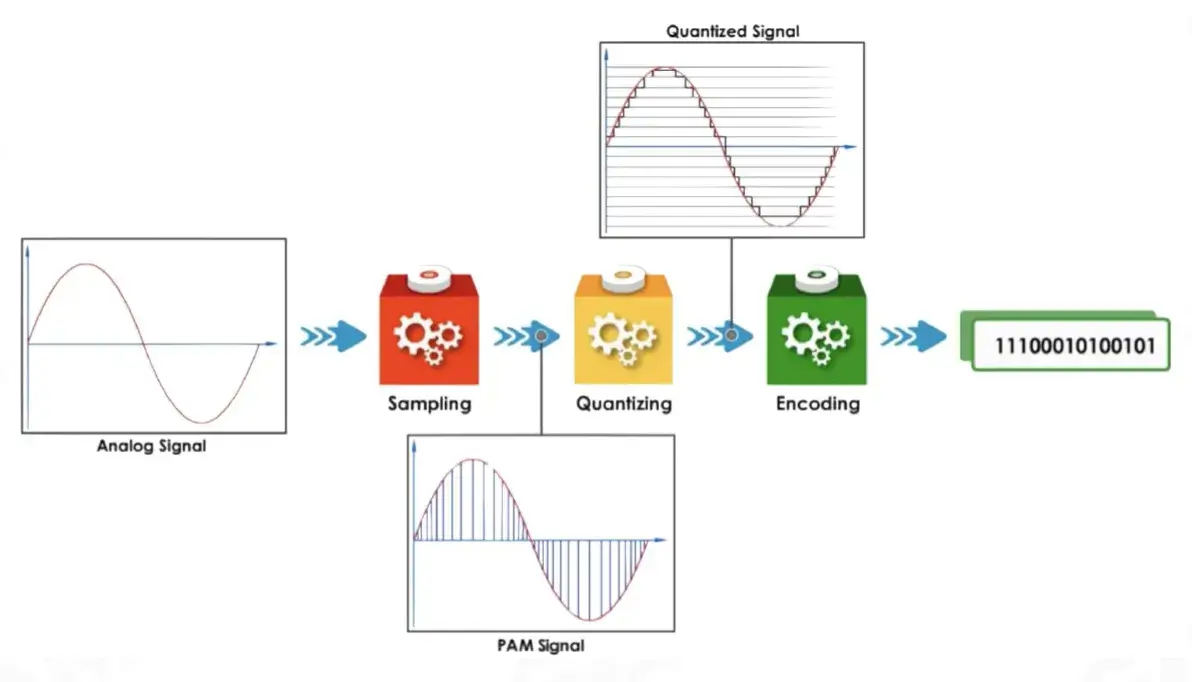

Pulse-code Modulation (PCM)

脉冲编码调制 (PCM)

webp

Standard method for encoding a sampledanalog sound signal

对采样模拟声音信号进行编码的标准方法

Sampling

采样
Quantizing

量化
Encoding

编码

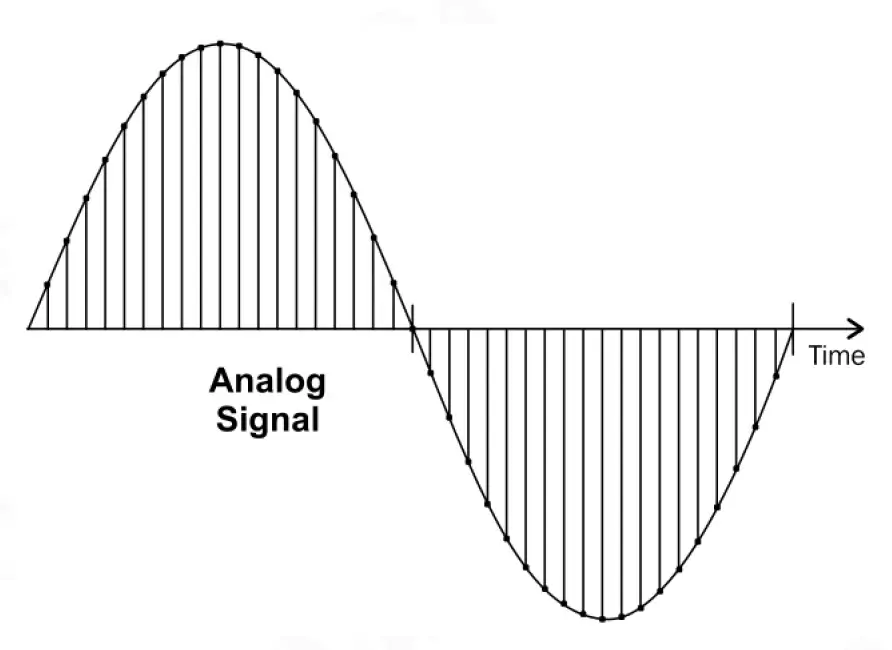

Sampling

采样

Sample Frequency: Samples per second (Hz)

采样频率：每秒采样数 (Hz)

webp

Nyquist Shannon Sampling Theorem: The minimum sampling frequency ofa signal that it will not distort its underlying information, should be double the frequency of its highest frequency component

奈奎斯特香农采样定理：信号的最低采样频率应为其最高频率分量频率的两倍，以免扭曲其底层信息

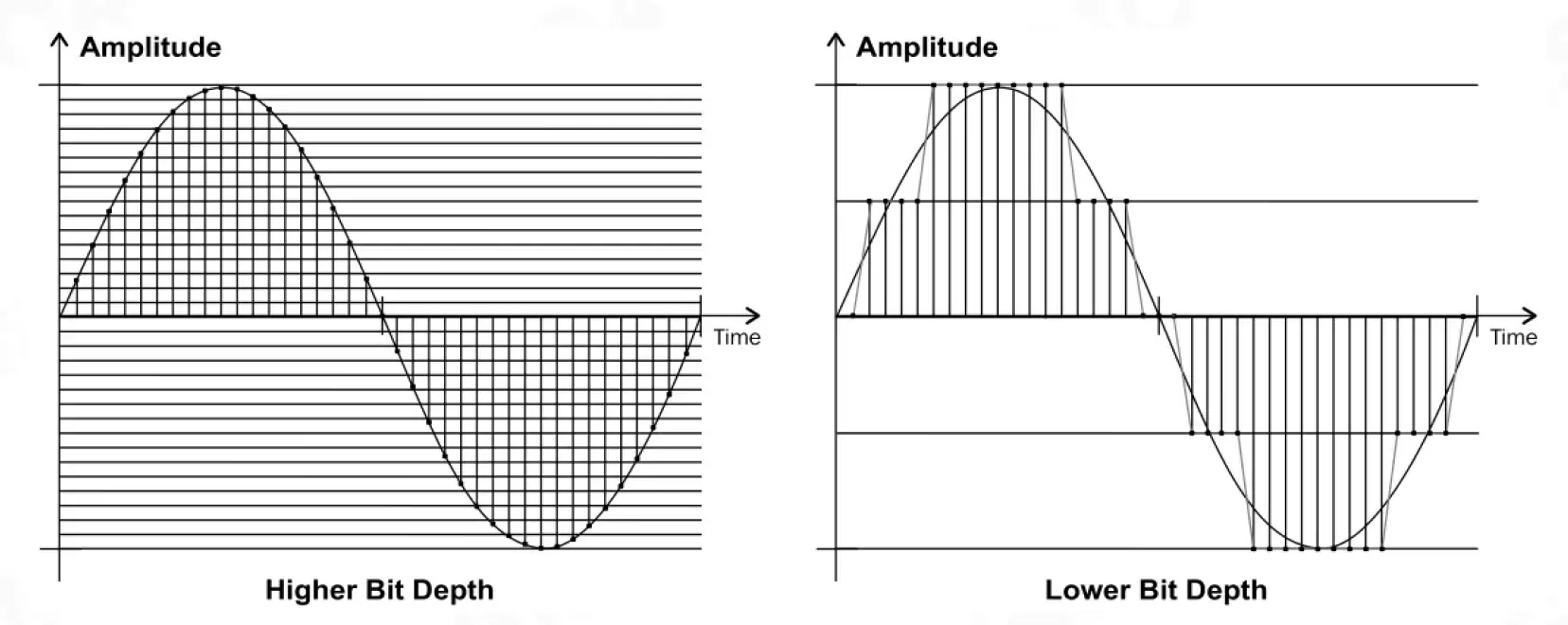

Quantizing

量化

webp

bit-depth: bit depth is the number of bits of information in each sample

位深度：位深度是每个样本中的信息位数

Format	Quality	Storage	Multi-channel	Patent
WAV (uncompressed)	⭐⭐⭐	⭐	⭐⭐⭐	⭐⭐⭐
FLAC (lossless)	⭐⭐⭐	⭐⭐	⭐⭐⭐	⭐⭐⭐
MP3 (lossy)	⭐	⭐⭐⭐	⭐	⭐
OGG (lossy)	⭐	⭐⭐⭐	⭐⭐⭐	⭐⭐⭐

对于游戏引擎中，一般使用 OGG，MP3 不支持多声道且要付一笔版权费。

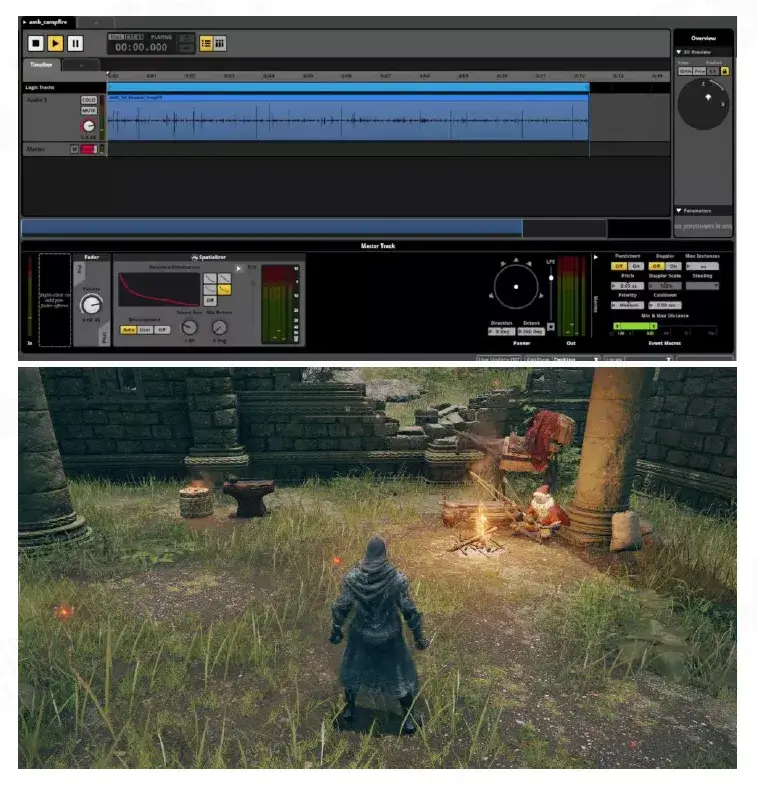

3D Audio Rendering

3D 声音渲染

3D Sound Sources

webp

a mono-phonic audio signal

单声道音频信号
emanating from a specific position

来自特定位置

Listener

听者

webp

A “virtual microphone”

“虚拟麦克风”

position

位置
velocity

速度
orientation

方向

Spatialization

空间化

webp

The techniques used to orient the sound relative to a listener

用于将声音定位到听众的技术

Panning

声像
Soundfield

声场

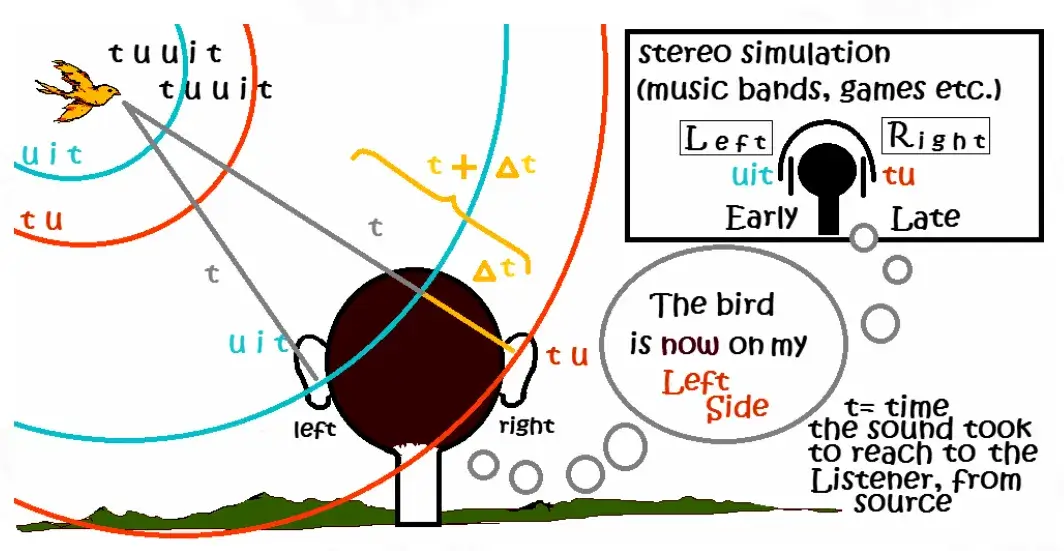

Binaural Audio

双耳音频

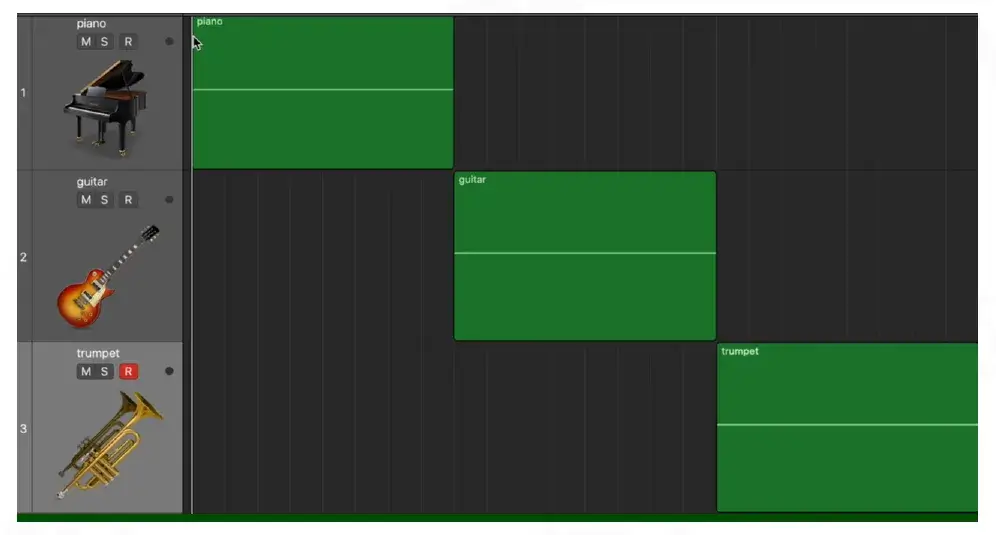

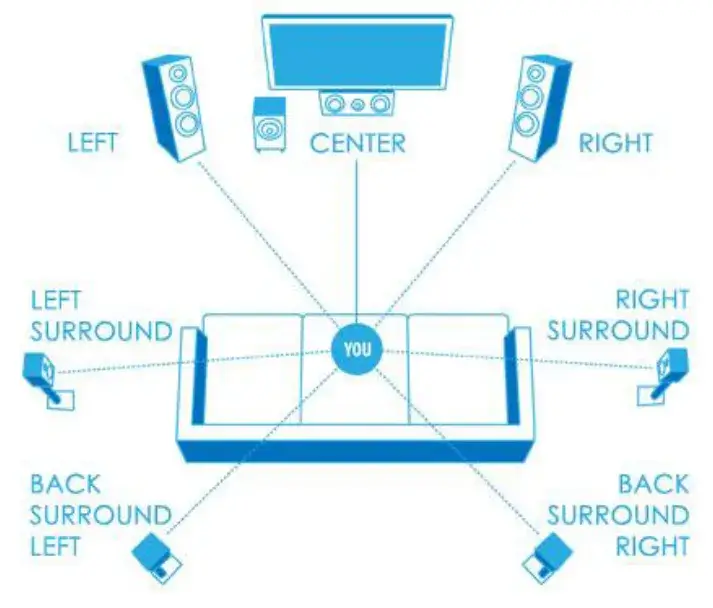

Panning

Channel

声像 - 声道

webp

Distribution of an audio signal into a new stereo or multi-channel sound field

将音频信号分配到新的立体声或多声道声场中

Panning

声像

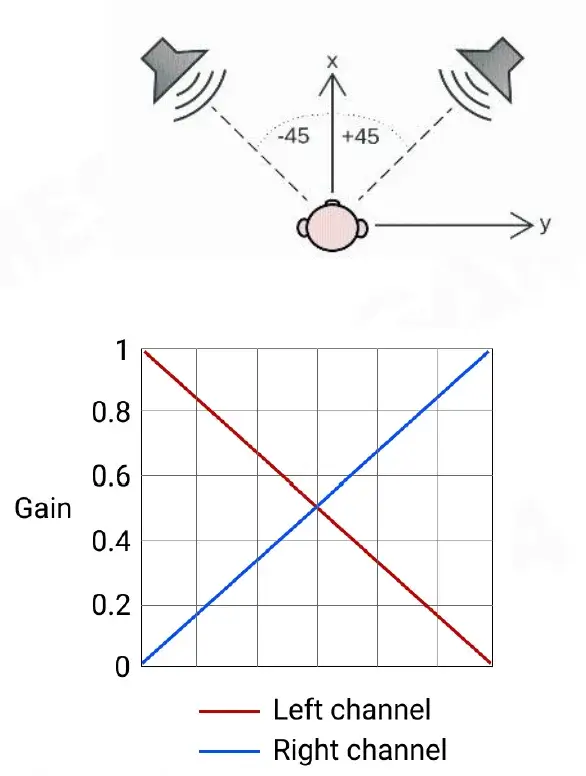

Linear Panning

线性声像

webp

Main idea: for a stereo signal with gain 1, the gains of the left and right channels should sum to 1

主要思想：对于增益为 1 的立体声信号，左右声道的增益总和应为 1

$Gain_{left}=x$

$Gain_{right}=1-x$

$Gain_{left}+Gain_{right}=1$

Human perception of loudness is actually proportional to the power of a sound wave

人类对响度的感知实际上与声波的功率成正比
Power is equal to the square of the signal’s amplitude

功率等于声波振幅的平方

$Power_{right}=Gain^2_{right}=(1-x)^2$

$Power_{left}=Gain^2_{left}=x^2$

$Power_{total}=x^2+(1-x)^2$

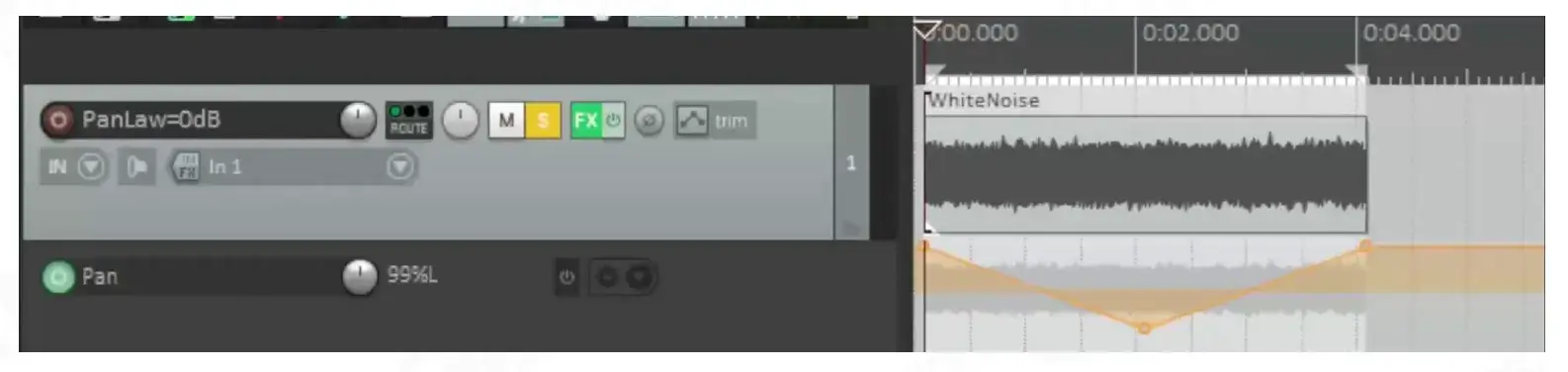

The power will drop when the sound is panned in the middle ( $x= 0.5$ )

当声音在中间时，功率会下降（ $x= 0.5$ ）

$Power_{total}=(0.5)^2+(1-0.5)^2=0.5$

webp

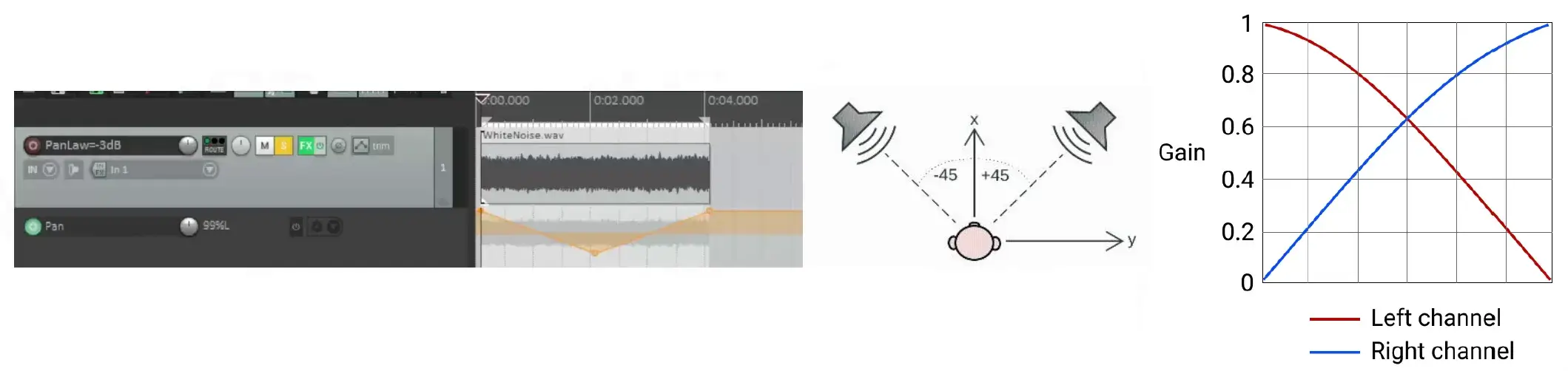

Equal Power Panning

等功率平移

webp

Retain constant loundness by holding the powerconstriant during the pan, instead of holding the amplitude constant

通过在平移过程中保持功率约束来保持恒定的响度，而不是保持振幅恒定

$Power_{total}=Gain^2_{left}+ Gain^2_{right}= 1.0$

Thera are several possible solutions to this equation, one is a sine/cosine equation

通过在平移过程中保持功率约束来保持恒定的响度，而不是保持振幅恒定

$Gain^2_{left}=\sin^2x\quad Gain^2_{right}=\cos^2(x)$

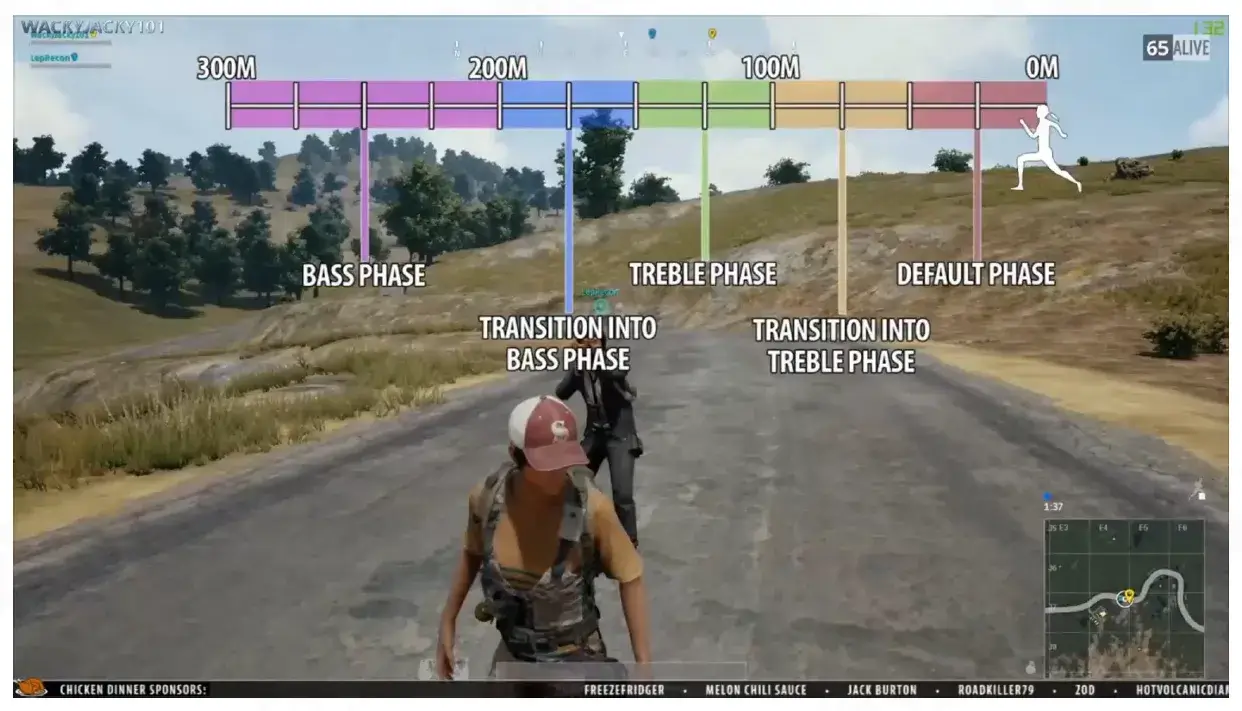

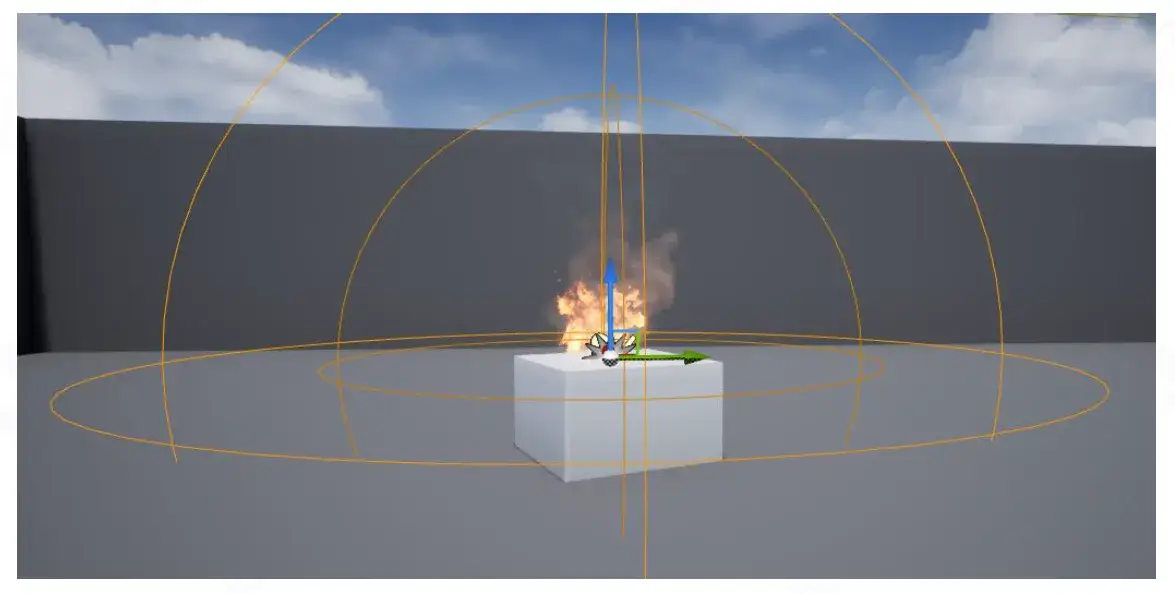

Attenuation

衰减，帮助玩家判断位置。

webp

Volume will attenuate as the listener moves away from it

随着听众远离，音量会减弱

In real world, the sound pressure ( $p$ ) of a spherical sound wave decreases as $1/r$ from the centre of the sphere.

在现实世界中，球形声波的声压（ $p$ ）从球心开始以 $1/r$ 的速度减小。

Attenuation Shape - Sphere

衰减形状 - 球体

webp

Useful for most spot sounds as it models how sound propagates in the real world

适用于大多数点声音，因为它模拟了声音在现实世界中的传播方式

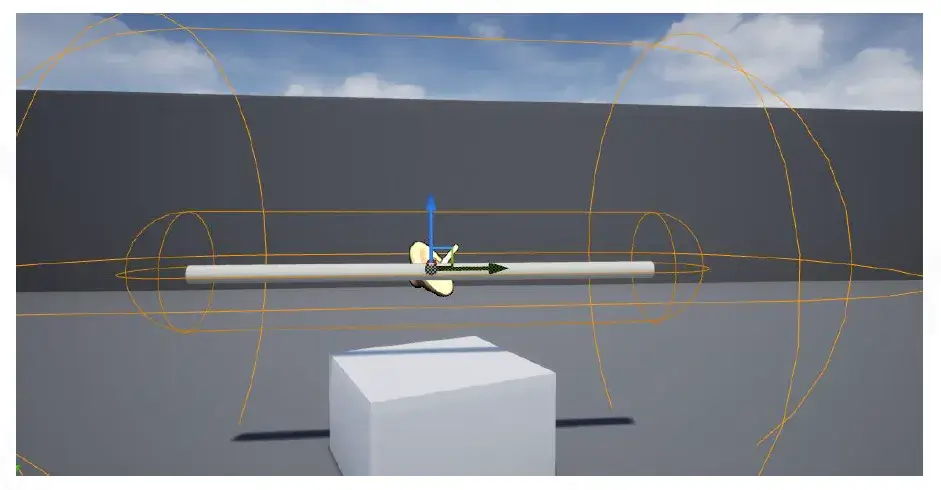

Attenuation Shape - Capsule

衰减形状 - 胶囊

webp

Useful for things like water pipes, where the sound doesn’t want to appear to come from a single, specific point in space - the sound of gurgling water would follow the length of the pipe

适用于水管等物体，声音不会从空间中的某个特定点发出 - 潺潺的水声会沿着水管的长度传播

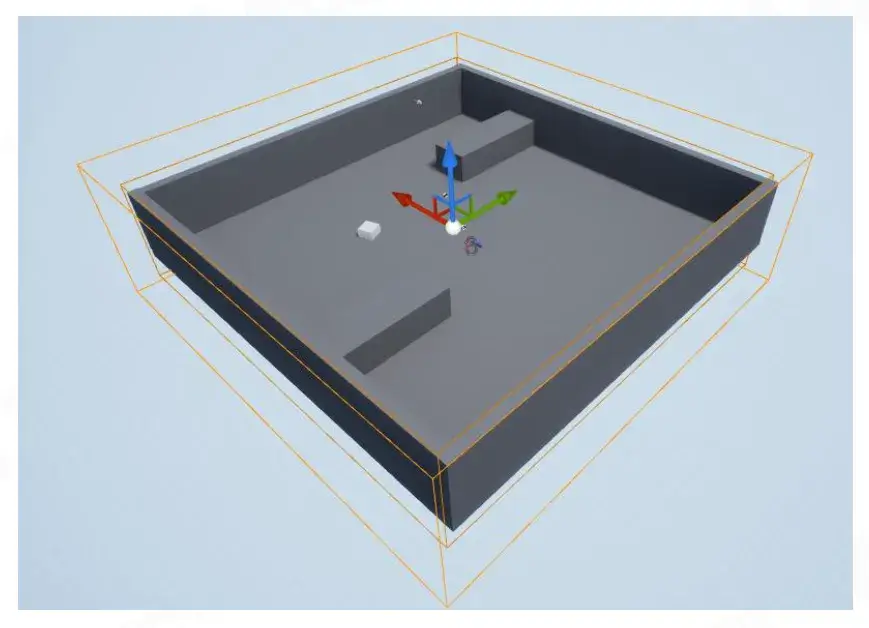

Attenuation Shape - Box

衰减形状 - 盒子

webp

useful for things like room tone/ambience as you can define the shape of the box to match that of the room

对于房间音调/氛围等很有用，因为您可以定义盒子的形状以匹配房间的形状

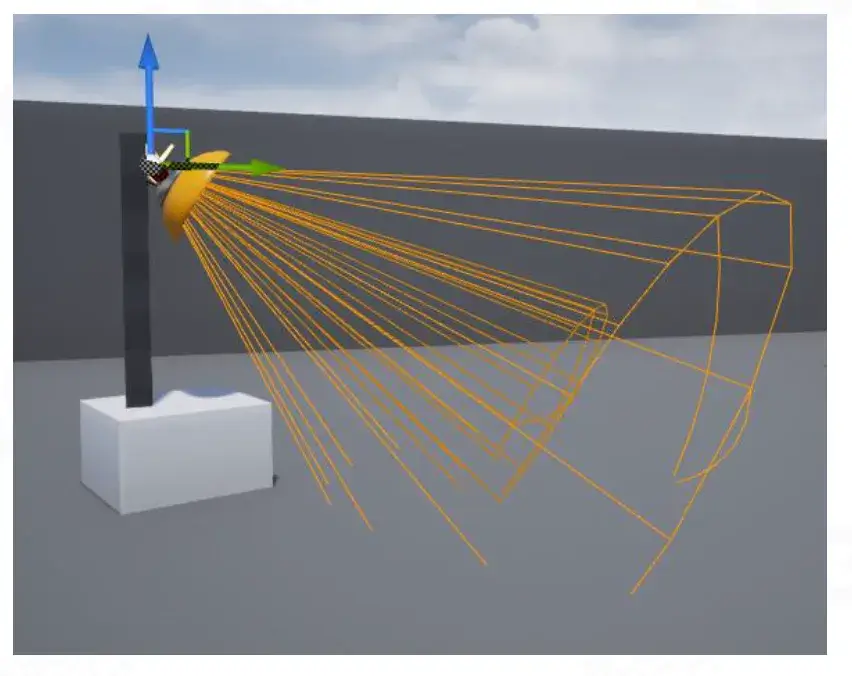

Attenuation Shape - Cone

衰减形状 - 锥形

webp

Useful in situations when you want a directional attenuation pattern——forexample, public address speakers

在需要定向衰减模式的情况下很有用——例如，公共广播扬声器

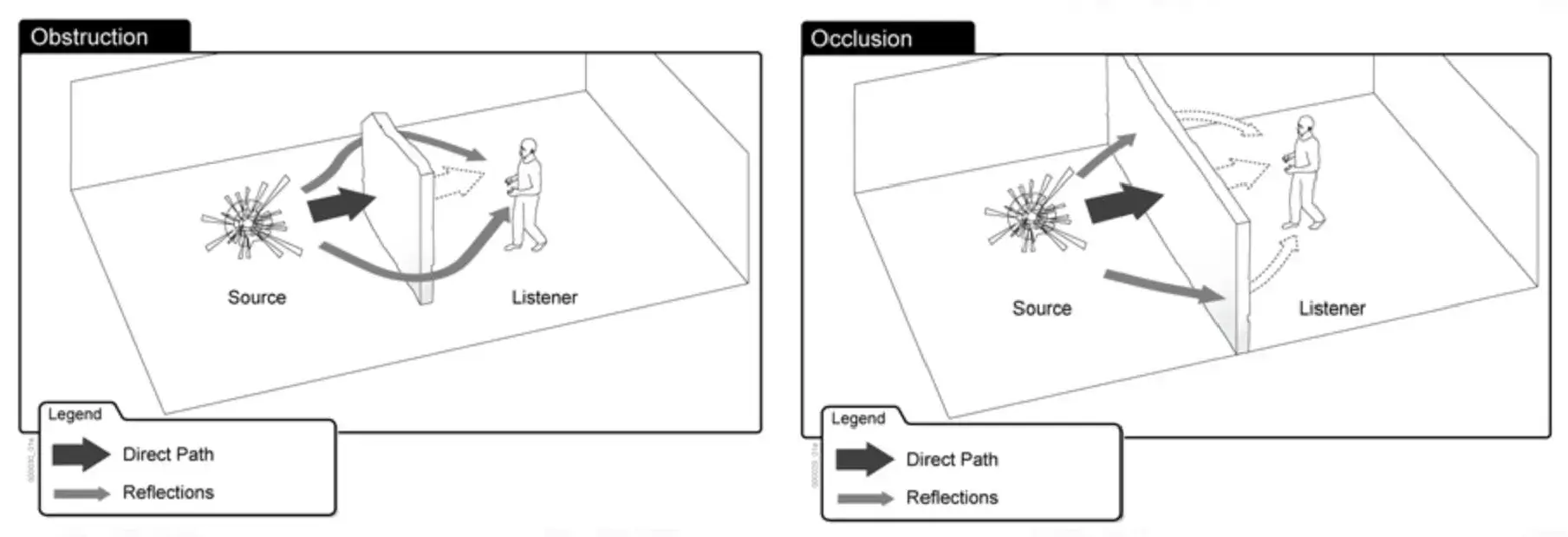

Obstruction and Occlusion

阻塞和闭塞

webp

声音经过墙壁时，可能绕过墙壁，也可能穿过墙壁能量衰减。

webp

Cast a few divergent rays from listener to sound with different angle

从听者的角度向声音投射几条发散的射线
query the material properties of the impacted surface to determine how much of the sound’s energy it absorbs by the count of the blocked rays

查询受影响表面的材料特性，通过阻挡射线的数量来确定它吸收了多少声音的能量

Reverb

混响

webp

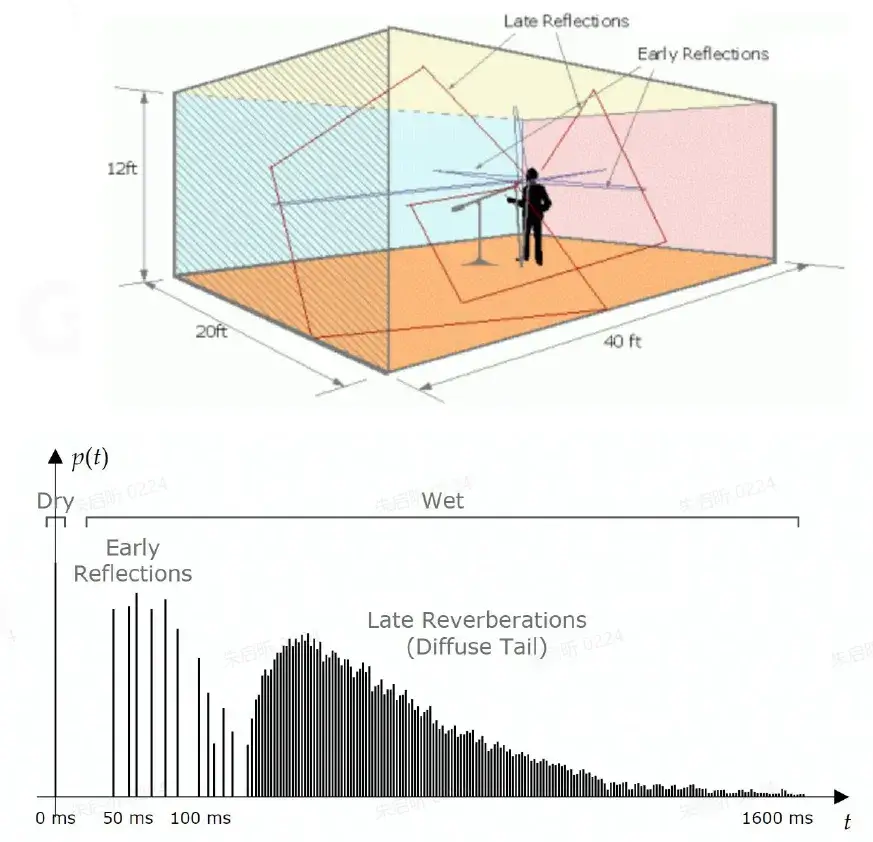

In any environment containing sound-reflective surfaces, a listener generally receives three kinds of sound waves from a sound source

在任何包含声音反射表面的环境中，听众通常会从声源接收到三种声波

Direct (dry)

直接（干声）
Early reflections (echo)

早期反射（回声）
Late reverberations (tail)

后期混响（尾声）

Reverberation Time: Measure of how fast the sound dies away in a given room. The size of the room and the choice of materials determine the reverberation time

混响时间：衡量给定房间内声音消失的速度。房间的大小和材料的选择决定了混响时间

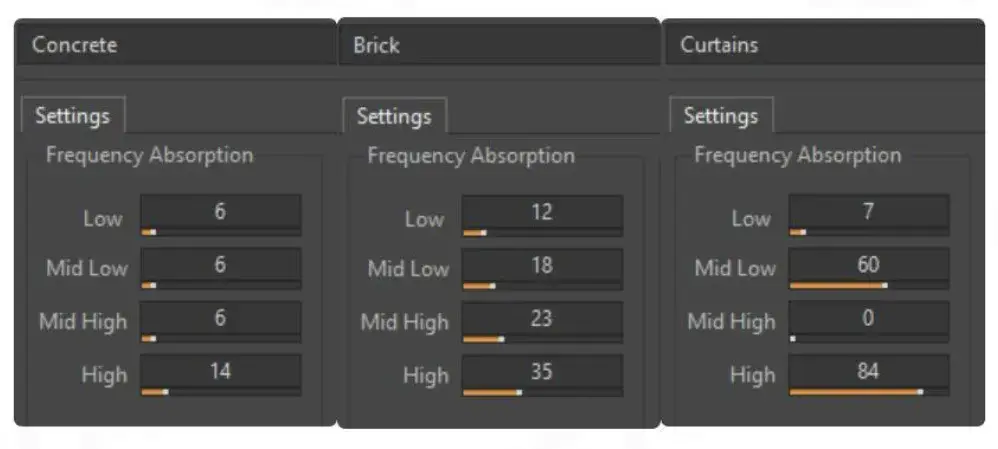

Absorption: Absorption coefficient of a material and material count determine the absorption

吸收：材料的吸收系数和材料数量决定了吸收

$A=S\times\alpha(m^2sab)\quad T=0.16\times\frac{V}{A}(s)$

$\alpha$ : absorption coefficient

吸收系数

$S$ : square

房间

$A$ :equivalent absorption area

等效吸收面积

$V$ : volume in the room

房间内体积

$T$ : reverberation time

混响时间

$0.16$ : proportionality factor, the time (in seconds) it takes for the initial sound pressure level to be reduced by 60 dB

比例因子，初始声压级降低 60 dB 所需的时间（以秒为单位）

webp

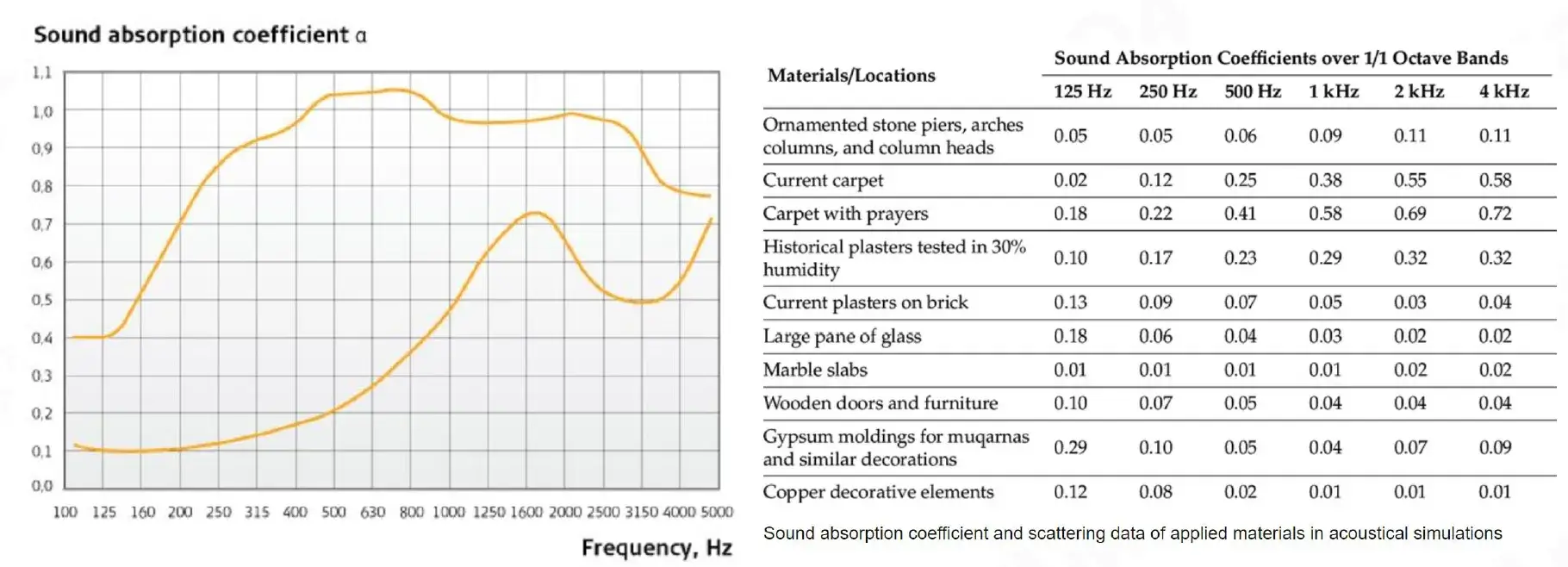

不同材质有着不同的吸收率

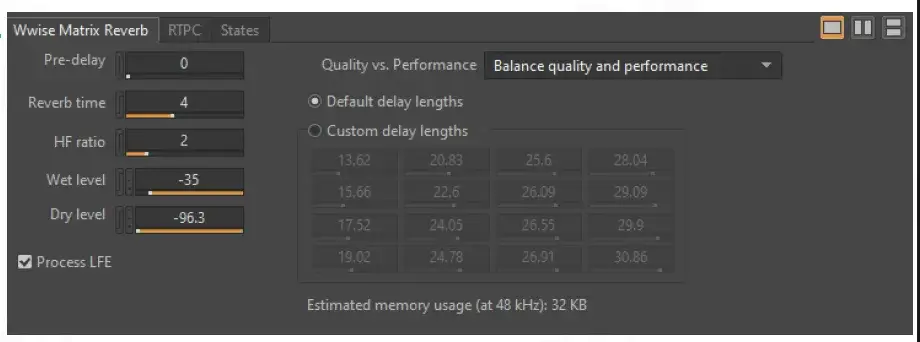

Reverb in Action - Reverb Effect Control from Acoustic Parameters

混响效果 - 来自声学参数的混响效果控制

webp

Pre-delay (seconds): The delay that occurs before the sianal enters the reverberation unit. A longer pre-delay time can be used to simulate larger rooms where the first echoes take longer to be heard.

预延迟（秒）：信号进入混响单元之前发生的延迟。较长的预延迟时间可用于模拟较大的房间，因为较大的房间中第一次回声需要较长时间才能被听到。

HF ratio: A rolloff factor to control the reverberation time for high relative to low frequencies

HF 比率：用于控制高频相对于低频混响时间的衰减系数

Wet level: Gain factor applied to reverberated sound.

湿水平：应用于混响声音的增益系数。

Dry level: Gain factor applied to direct path sound

干水平：应用于直接路径声音的增益系数

Sound in Motion: The Doppler Effect

运动中的声音：多普勒效应

The change in frequency of a wave in relation to an observer who is moving relative to the wave source

相对于相对于波源移动的观察者，波的频率变化

$f'=\left(\frac{v+v_0}{v+v_s}\right)f$

$f$ : original frequency

原始频率
$f'$ : Doppler-shifted (observed) frequency at the listener

听众处的多普勒频移（观察到的）频率
$v$ : the speed of sound in air

空气中的声音传播速度
$v_0$ : the speed of the listener

听众的速度
$v_s$ : the speed of the sound source

声源的速度

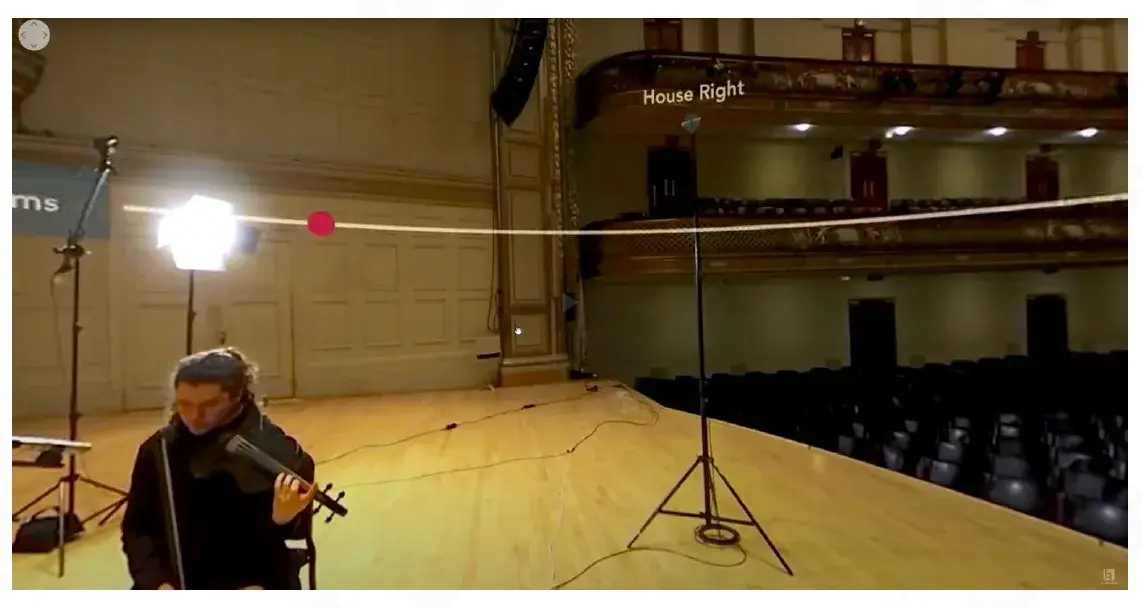

Spatialization-Soundfield

空间化声场

webp

Full-sphere surround sound

全方位环绕声
Also known as ambisonics

也称为环境立体声
Used in 360 videos and VR

用于 360 度视频和 VR

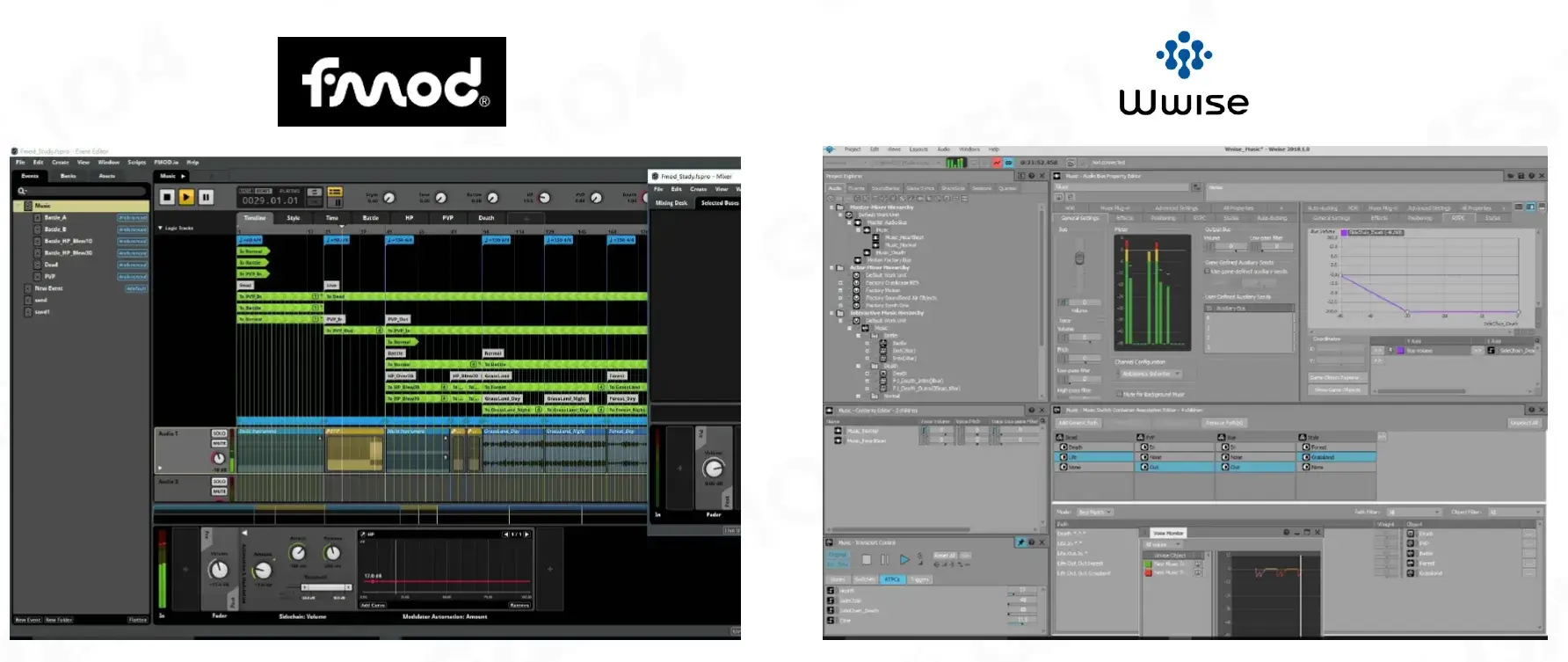

Common Middlewares

webp

有专门的 middlewares 来解决这些问题，fmod 有点年久失修了。

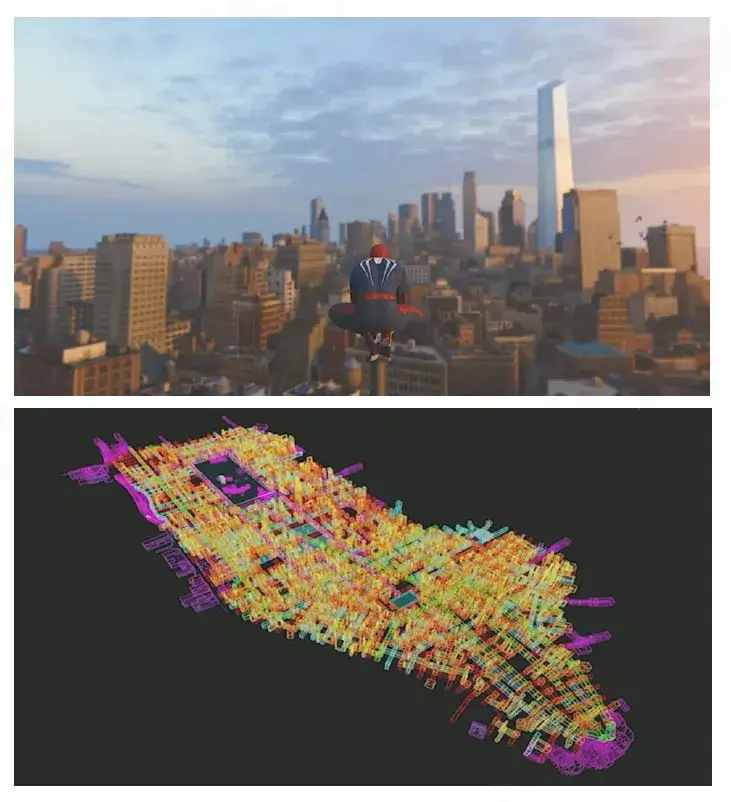

Modeling Audio World

建模音频世界

webp

Geometry and properties of thesurfaces and object

表面和物体的几何形状和属性
Acoustic properties of the listening spaces

聆听空间的声学属性

Reference

Particle System

Programmable VFX with Unreal Engine’s Niagara-GDC 2018.https://www.unrealengine.com/en-US/events/gdc2018/programmable-vfx-with-unreal-engine-s-niagara

The Destiny Particle Architecture-SlGGRAPH 2017:https://ladvances.realtimerendering.com/s2017/Destiny_Particle_Architecture_Siggraph_Advances_2017.pptx

Frostbite GPU Emitter Graph System- GDC 2018. http://www.gdcvault.com/play/1025132/Frostbite-GPU-Emitter-Graph

The inFAMOUS: Second Son Particle System Architecture- GDC 2014.https://www.gdcvault.com/play/1020367/The-inFAMOUS-Second-Son-Particle

Compute-Based GPU Particle Systems-GDC 2014: https://www.gdcvault.com/play/1020002/Advanced-Visual-Effects-with-DirectX

The Visual Effects of inFAMOUS: Second Son-GDC 2014:https://www.gdcvault.com/play/1020158/The-Visual-Effects-of-inFAMOUS Mergesort -Modern GPU: https://moderngpu.github.io/mergesort.html

A Faster Radix Sort lmplementation-Nvidia: https://developer.download.nvidia.cn/video/aputechconf/atc!2020/presentations/s21572-a-faster-radix-sort-implementation.pdf

Audio System

Designing the Bustling Soundscape of New York City in ‘Marvel’s Spider-Man’_ GDC 2019.https://www.gdcvault.com/play/1026515/Designing-the-Bustling-Soundscape-of

An Interactive Sound Dystopia: Real-Time Audio Processing in ‘NieR:Automata’ GDC 2018.http://www.gdcvault.com/play/1025132/Frostbite-GPU-Emitter-Graph

Game Audio Programming in C+±CppCon:https://www.youtube.com/watch?v=M8Bd7uHH4Yg

Spatialization Overview:https://docs.unrealengine.com/5.0/en-US/spatialization-overview-in-unreal-engine/

Sound Attenuation: https://docs.unrealengine.com/5.0/en-US/sound-attenuation-in-unreal-engine/

A Wwise Approach to Spatial Audio-Part1- Distance Modeling and Early Reflections: https://blog.audiokinetic.com/zh/a-wwise-approach-to-spatial-audio-part-1/

A Wwise Approach to Spatial Audio-Part1-Diffraction:https://blog.audiokinetic.com/zh/a-wwise-approach-to-spatial-audio-part-2-diffraction/

A Wwise Approach to Spatial Audio-Part1-Beyond Early Reflections. https://blog.audiokinetic.com/zh/a-wwise-approach-to-spatial-audio-part-3-bevond-early-reflections/

资源

课程

第十二节：游戏引擎中的粒子和声效系统

Effects

History of Particle System

Particle

Particle’s Life Cycle

Particle Emitter

Particle System

Particle Spawn Position

Particle Spawn Mode

Simulate

Particle Type

Billboard Particle

Mesh Particle

Ribbon Particle

Particle System Rendering

Alpha Blending Order

Particle Sort

Full-Resolution Particles

Low-Resolution Particles

GPU Particle

Processing Particles on GPU

GPU Particles-Frame Overview

Initial State

Spawn Particles

Simulate

Sort, Render and Swap Alive Lists

Parallel Mergesort

Depth Buffer Collision

Advanced Particles

Crowd Simulation

Animated Particle Mesh

Particle Animation Texture

Navigation Texture

Crowds-Runtime Behavior

Advanced Particle Demos

Utilizing Particle System in Games

Design Philosophy-Preset Stack-Style Mddules

Design Philosophy-Graph-Based Design

Hybrid Design

Sound System

Audio

Volume

Volume - Terminologies

Pitch

Timbre

Phase and Noise Cancelling

Human Hearing Characteristic

Digital Sound

Pulse-code Modulation (PCM)

Sampling

Quantizing

3D Audio Rendering

3D Sound Sources

Listener

Spatialization

Panning

Channel

Panning

Linear Panning

Equal Power Panning

Attenuation

Attenuation Shape - Sphere

Attenuation Shape - Capsule

Attenuation Shape - Box

Attenuation Shape - Cone

Obstruction and Occlusion

Reverb

Reverb in Action - Reverb Effect Control from Acoustic Parameters

Sound in Motion: The Doppler Effect

Spatialization-Soundfield

Common Middlewares

Modeling Audio World

Reference

Particle System

Audio System
