第十节：游戏引擎中物理系统的基础理论和算法

Physics System: Basic Concepts

Physics in Games (1/4) - Physical Intuition

游戏中的物理（1/4）- 物理直觉

Physics in Games (2/4) - Dynamic Environment

游戏中的物理（2/4）- 动态环境

Physics in Games (3/4) - Realistic Interaction

游戏中的物理（3/4）- 真实交互

Physics in Games (4/4) - Artistic

游戏中的物理（4/4）- 艺术

Outline of Physics System

Basic Concepts

Physics Actors and Shapes

物理角色和形状
Forces

力
Movements

运动
Rigid Body Dynamics

刚体动力学
Collision Detection

碰撞动力学
Collision Resolution

碰撞解决

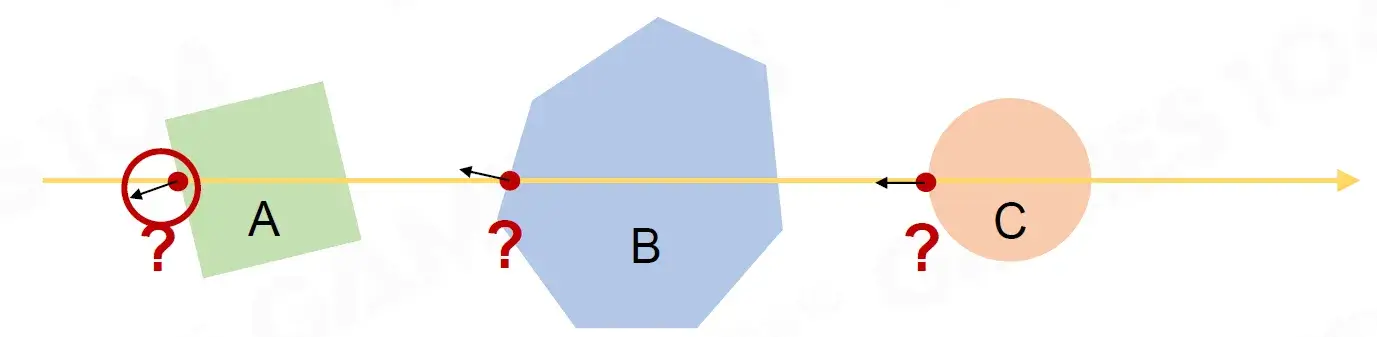

Scene Query

场景查询
Efficiency, Accuracy, and Determinism

效率、准确性和确定性

Applications

Character Controller

角色控制器

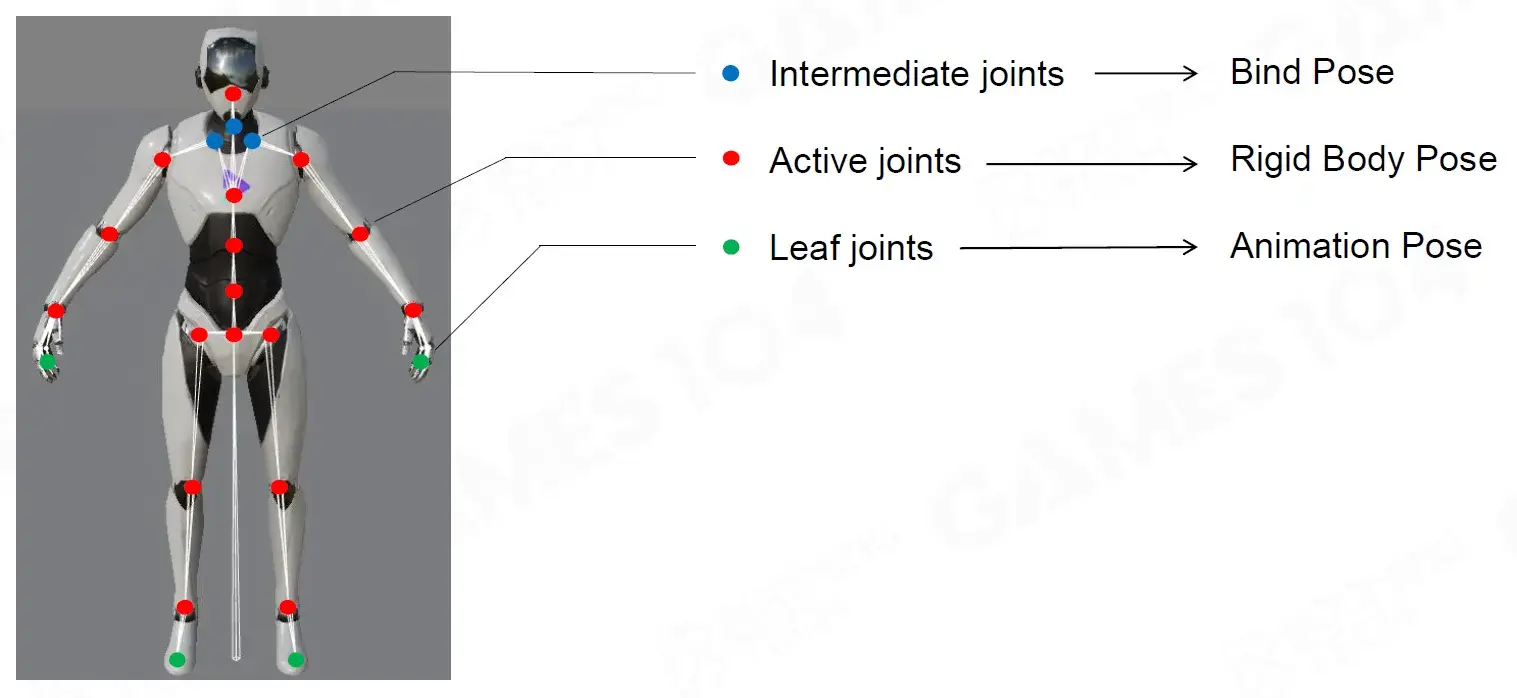

Ragdoll

布娃娃

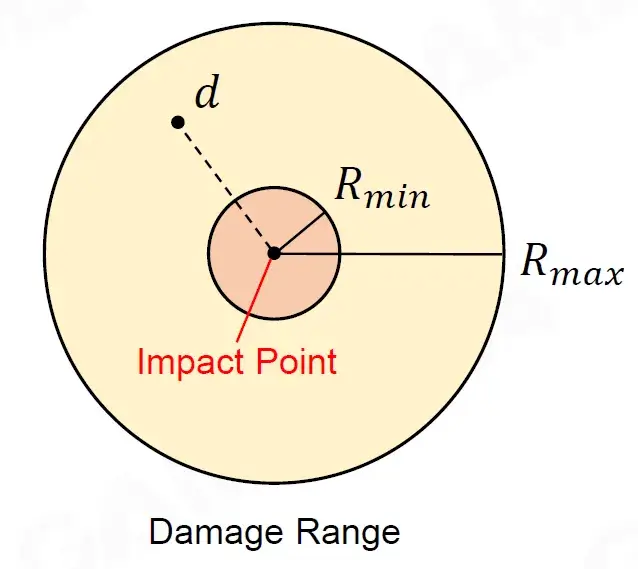

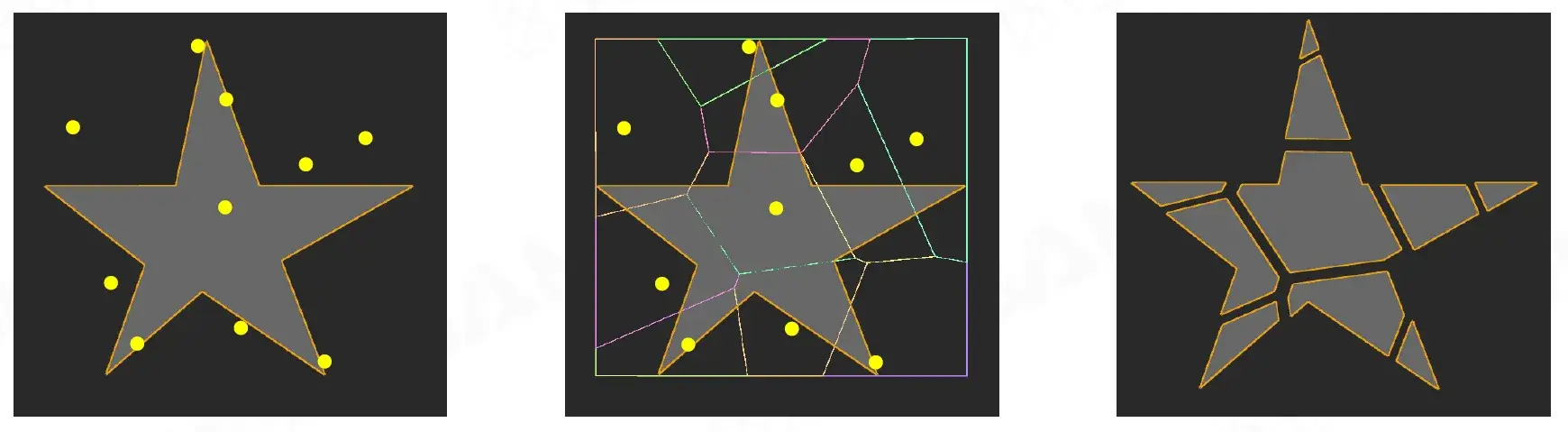

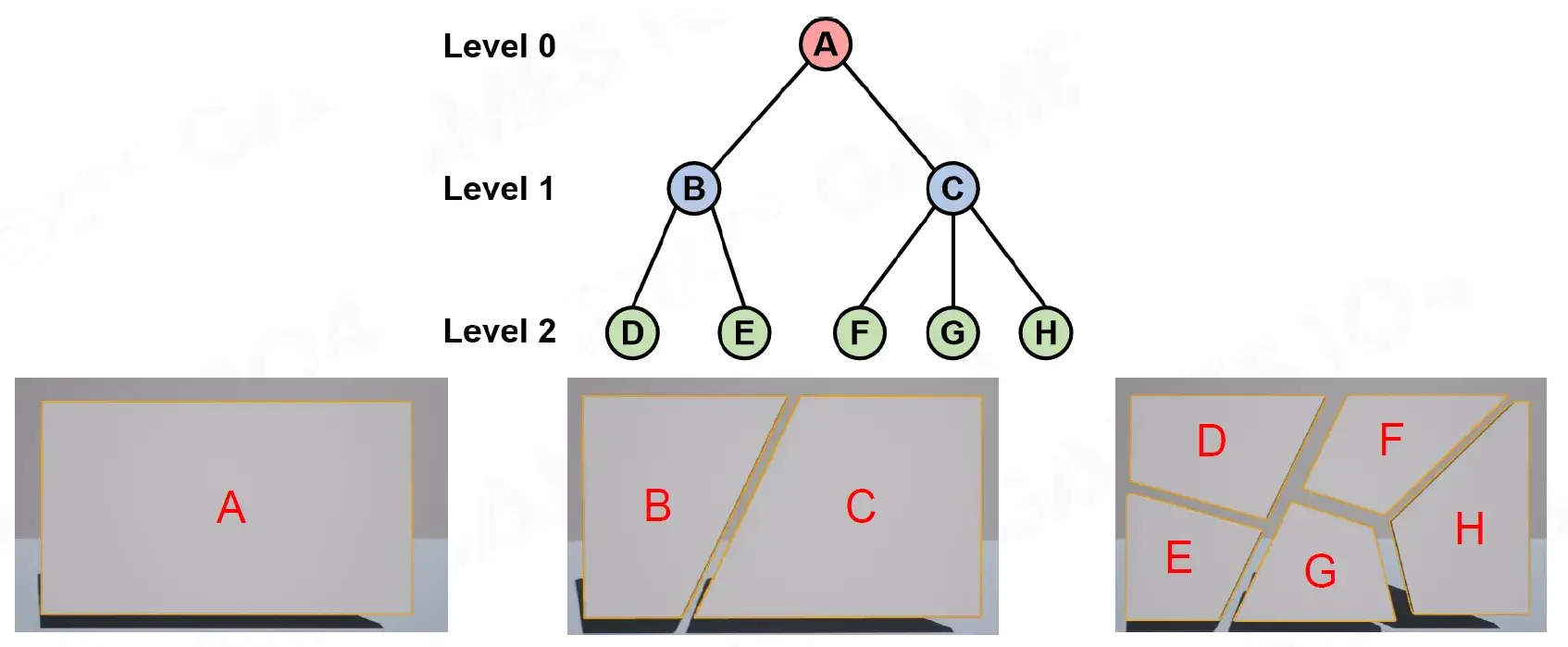

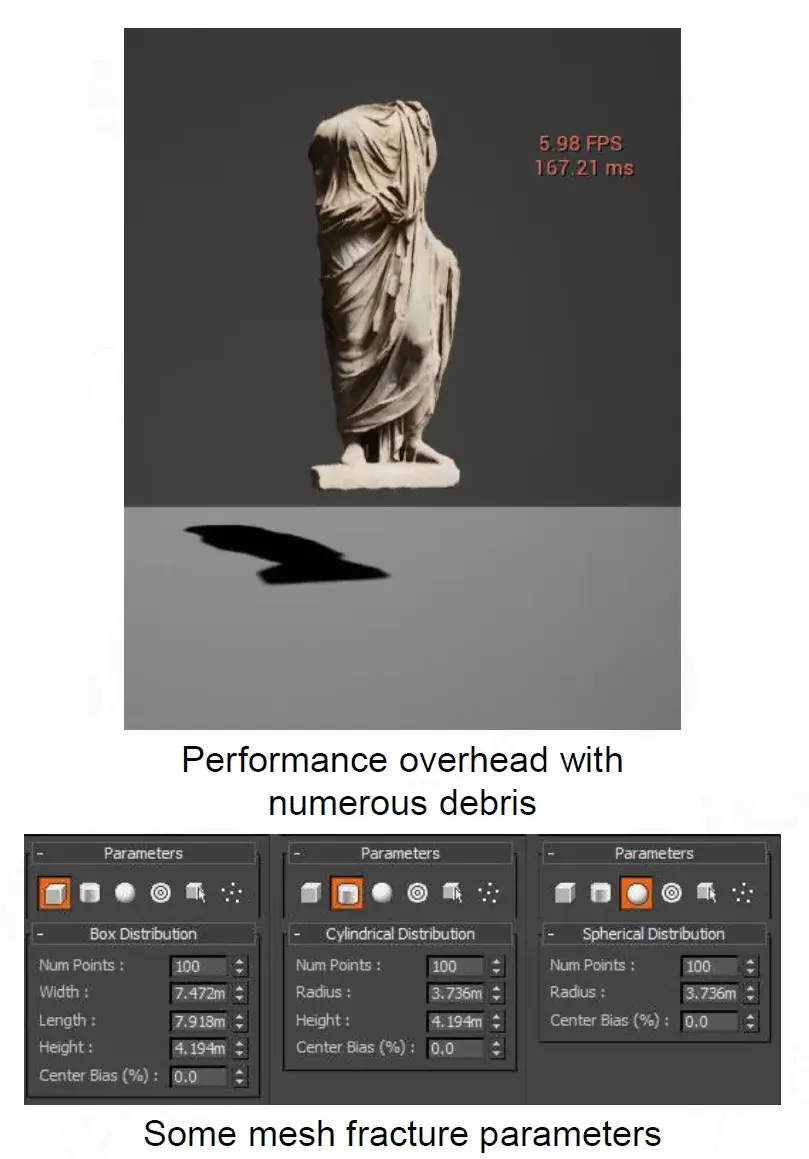

Destruction

破坏

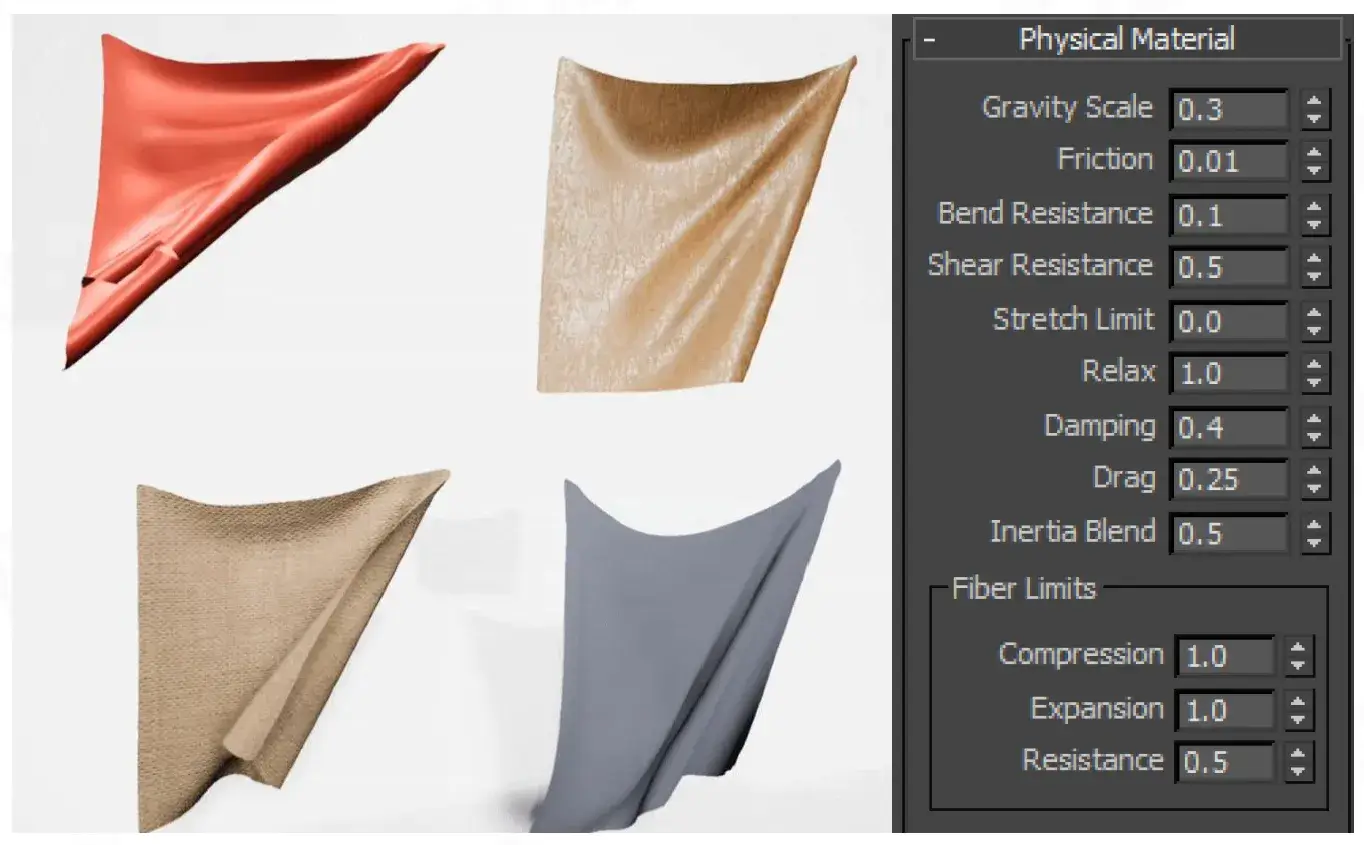

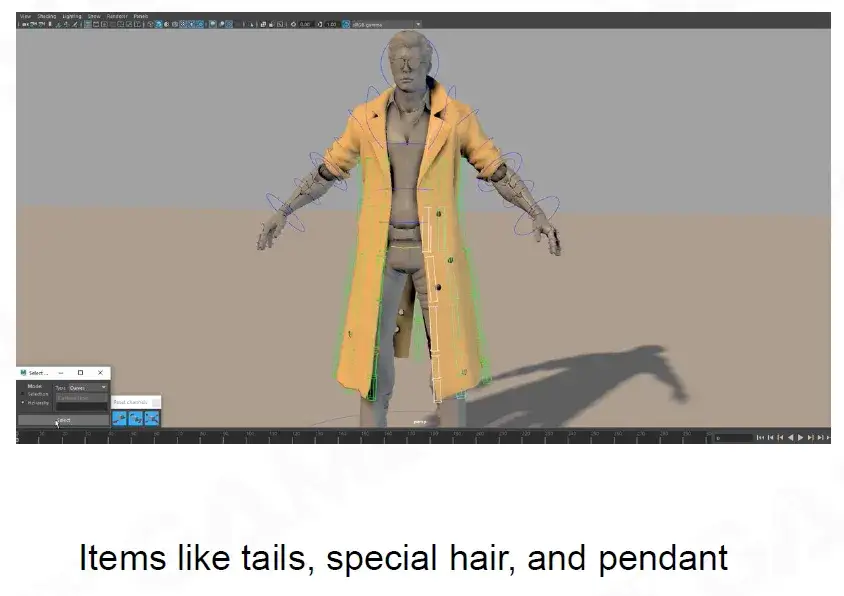

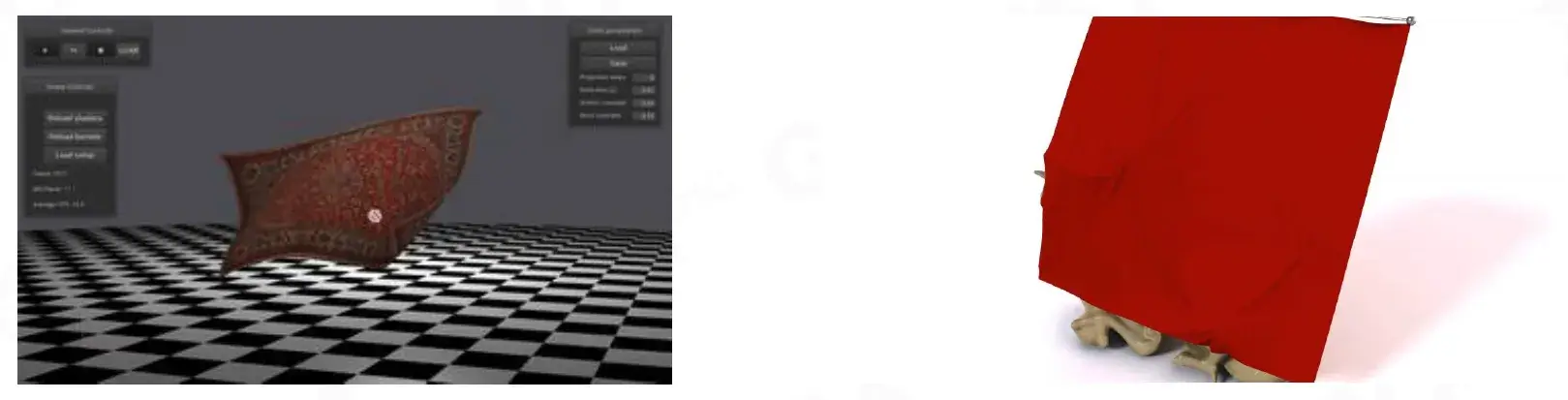

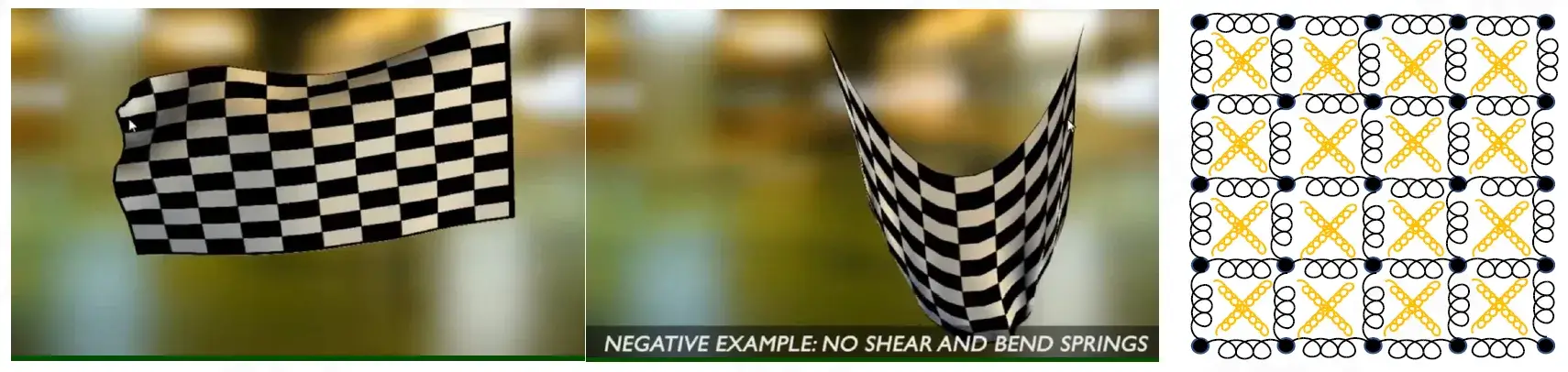

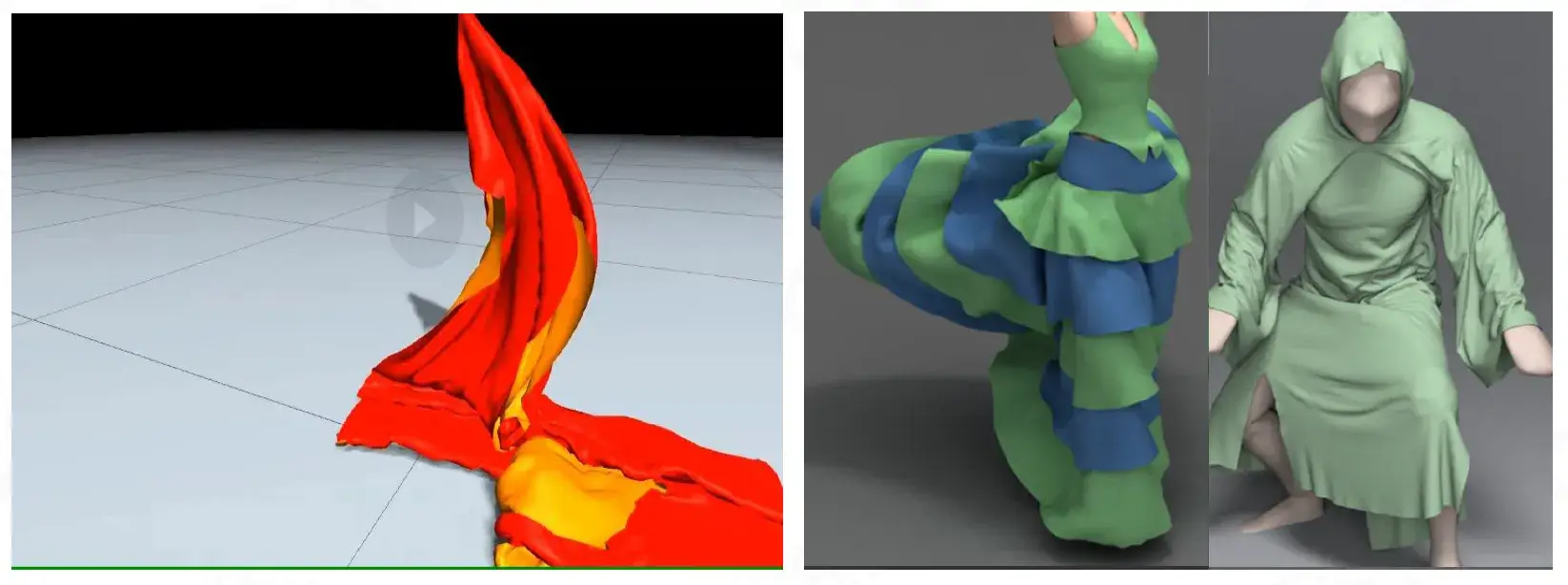

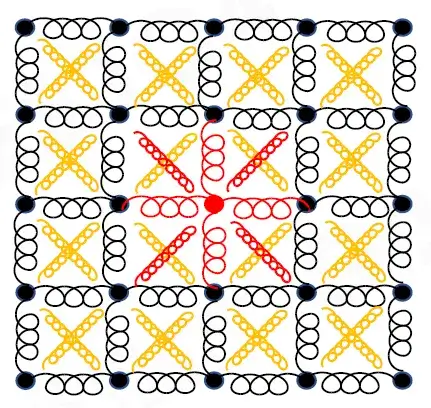

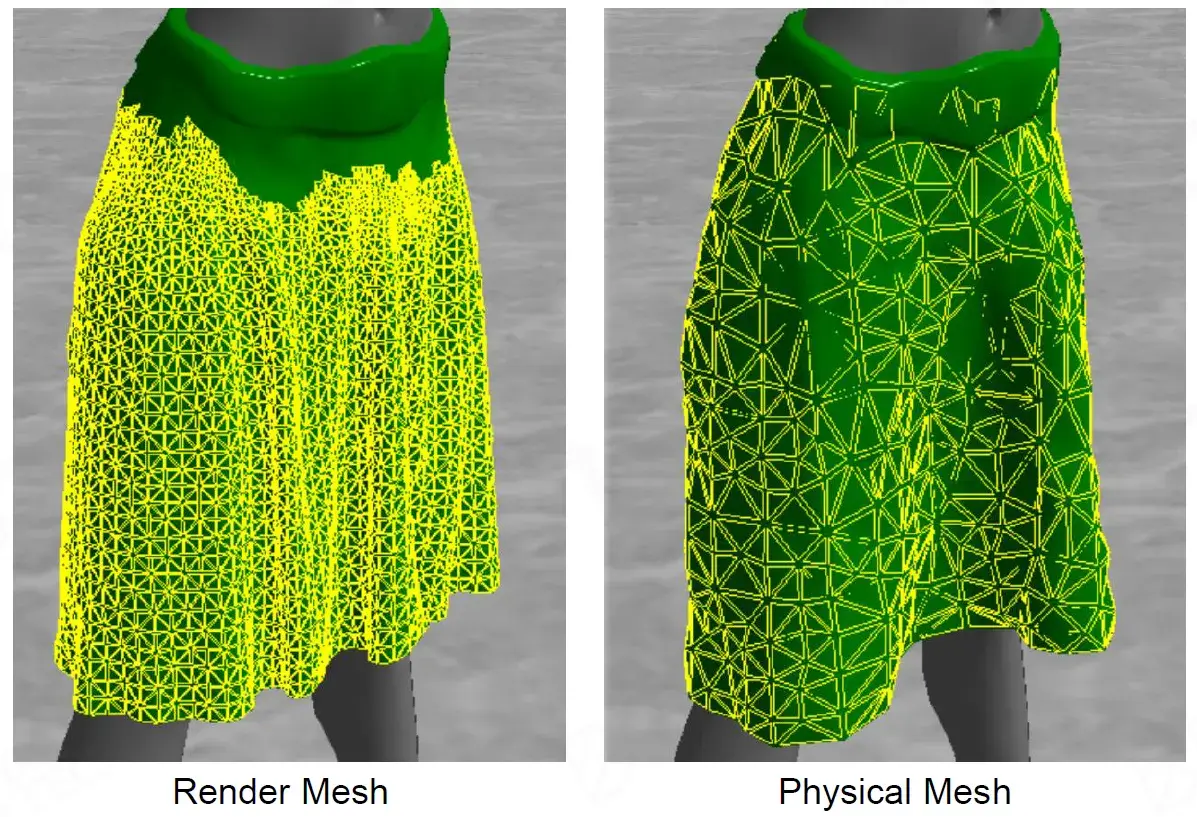

Cloth

布料

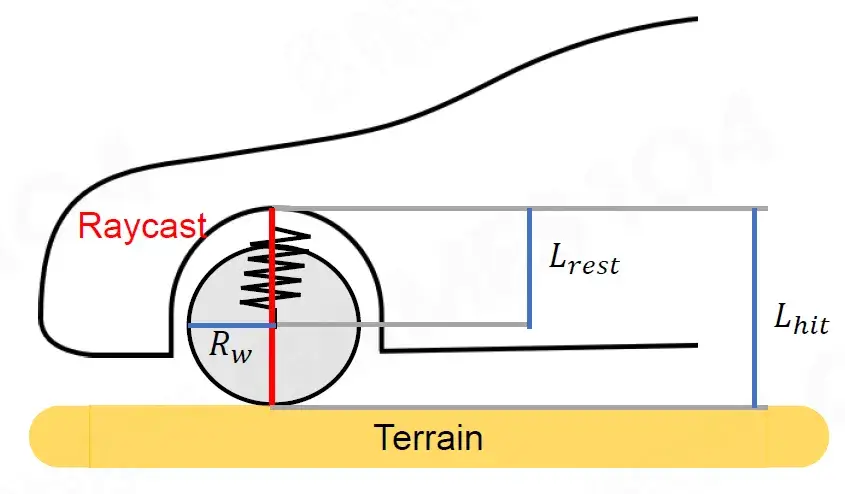

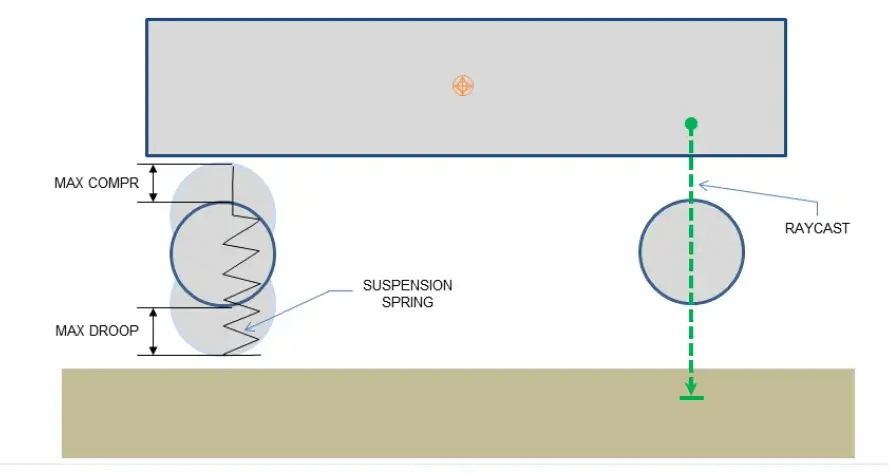

Vehicle

车辆

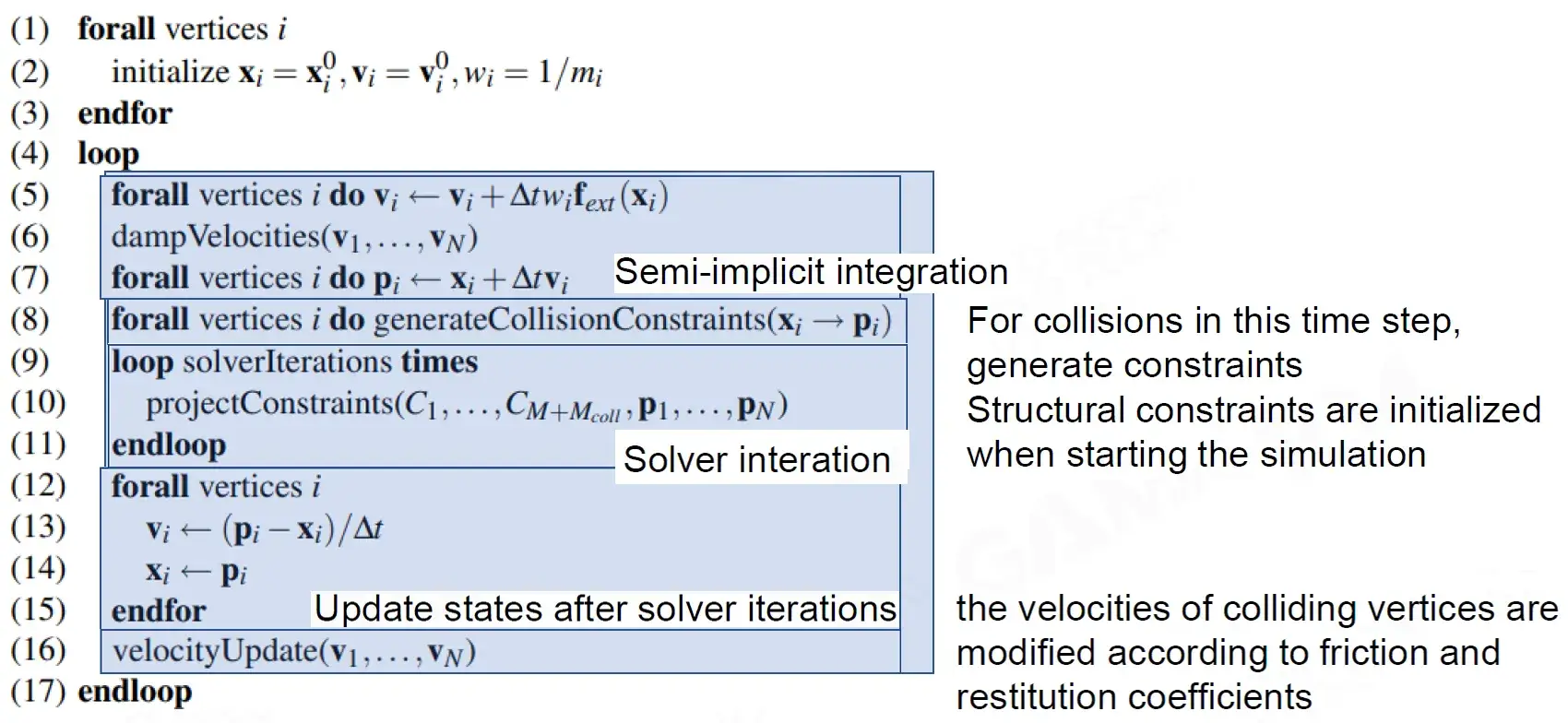

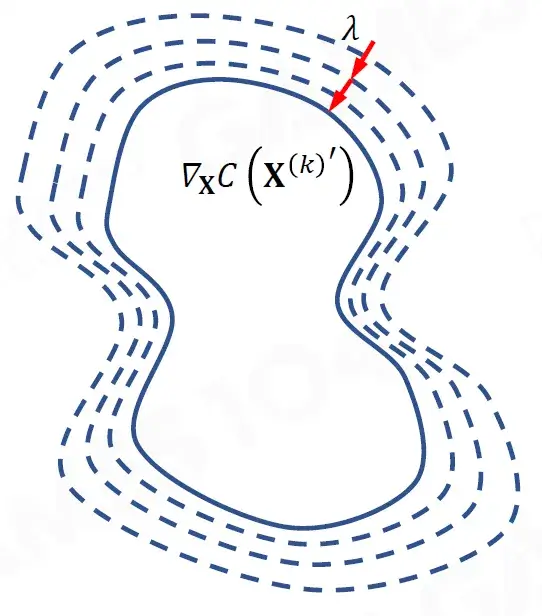

Advanced Physics: PBD

高级物理：PBD

PBD 基本上是一种进行物理模拟的方法。与质量弹簧系统、FEM、SPH 和 FLIP 等其他传统方法相比，PBD 在物理上并不准确，因为没有根据物理定律计算系统的内力。但 PBD 的一大优势是它速度非常快，并且产生视觉上合理的模拟结果，这使得 PBD 成为游戏中模拟的完美解决方案。

Physics Actors and Shapes

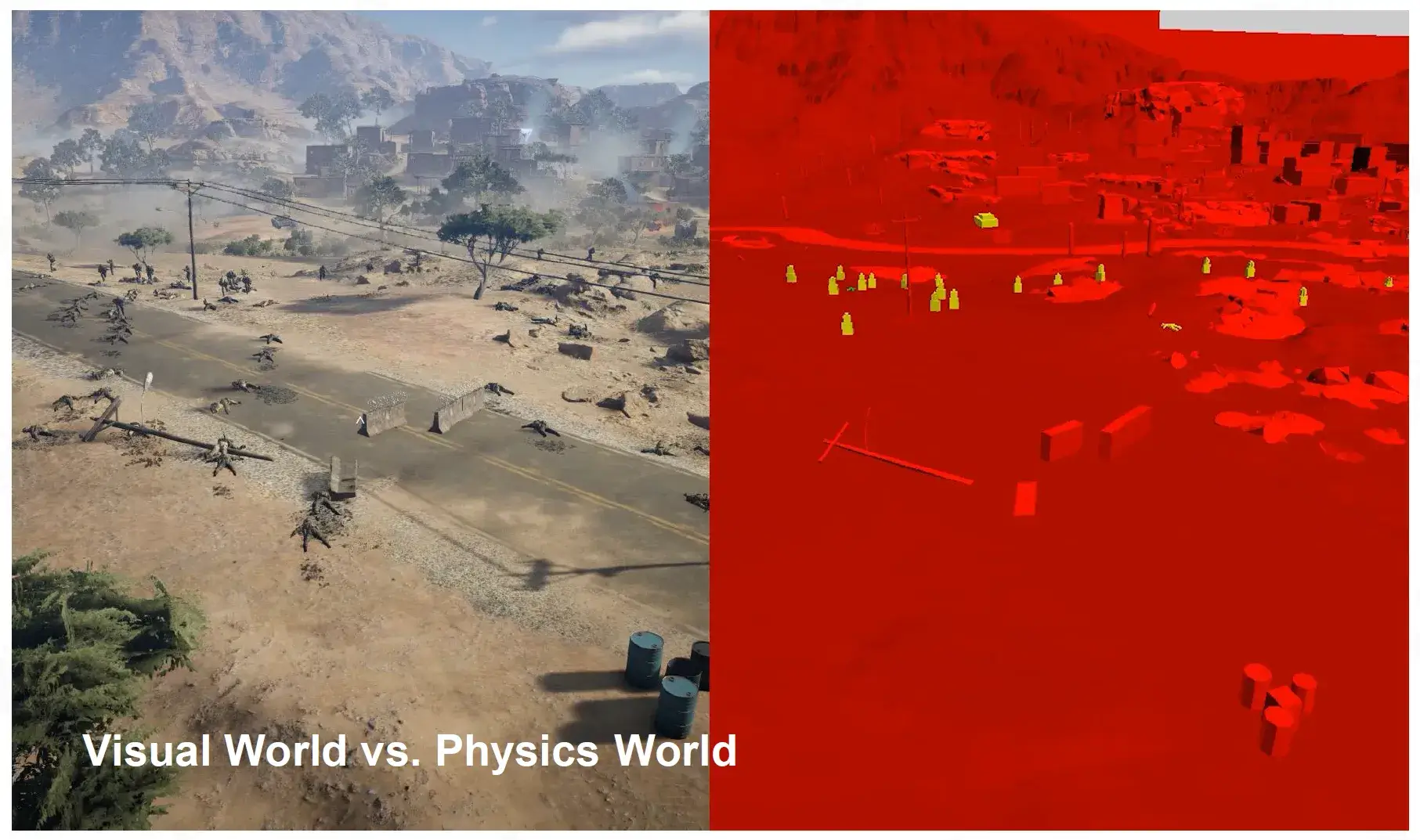

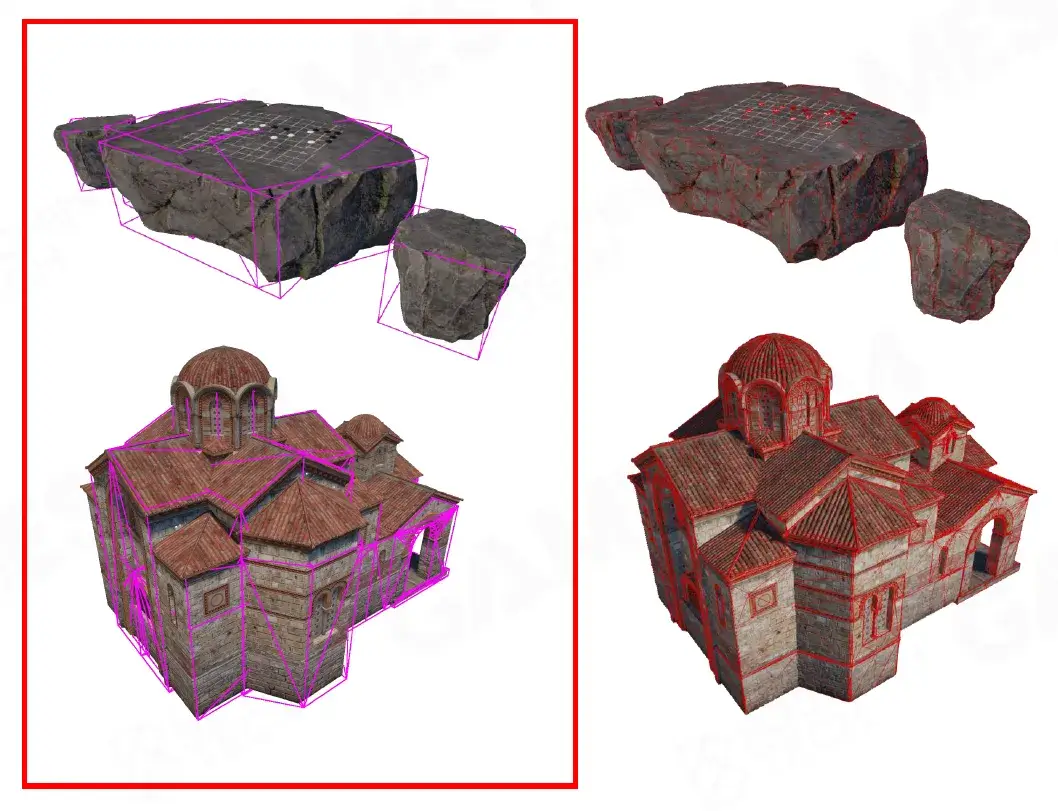

Visual World vs. Physics World

物理世界使用较简单的模型。

Actor - Static

静态 actor，不受物理影响，一直不动。

Actor - Dynamic

动态 actor，物体的 transform 受物理影响。

Trigger

Like static actor, not moving

像静态 actor 一样，不动
But not blocking

但不会阻挡
Notifies when actors enter or exit

在 actor 进入或退出时通知

Physics Law is Unbreakable, But in Game…

物理定律是牢不可破的，但在游戏中是可以的。

Actor-Kinematic (No Physics Law)

不服从物理规律，直接设定 Actor 的 transform，而不是通过施加力改变它。

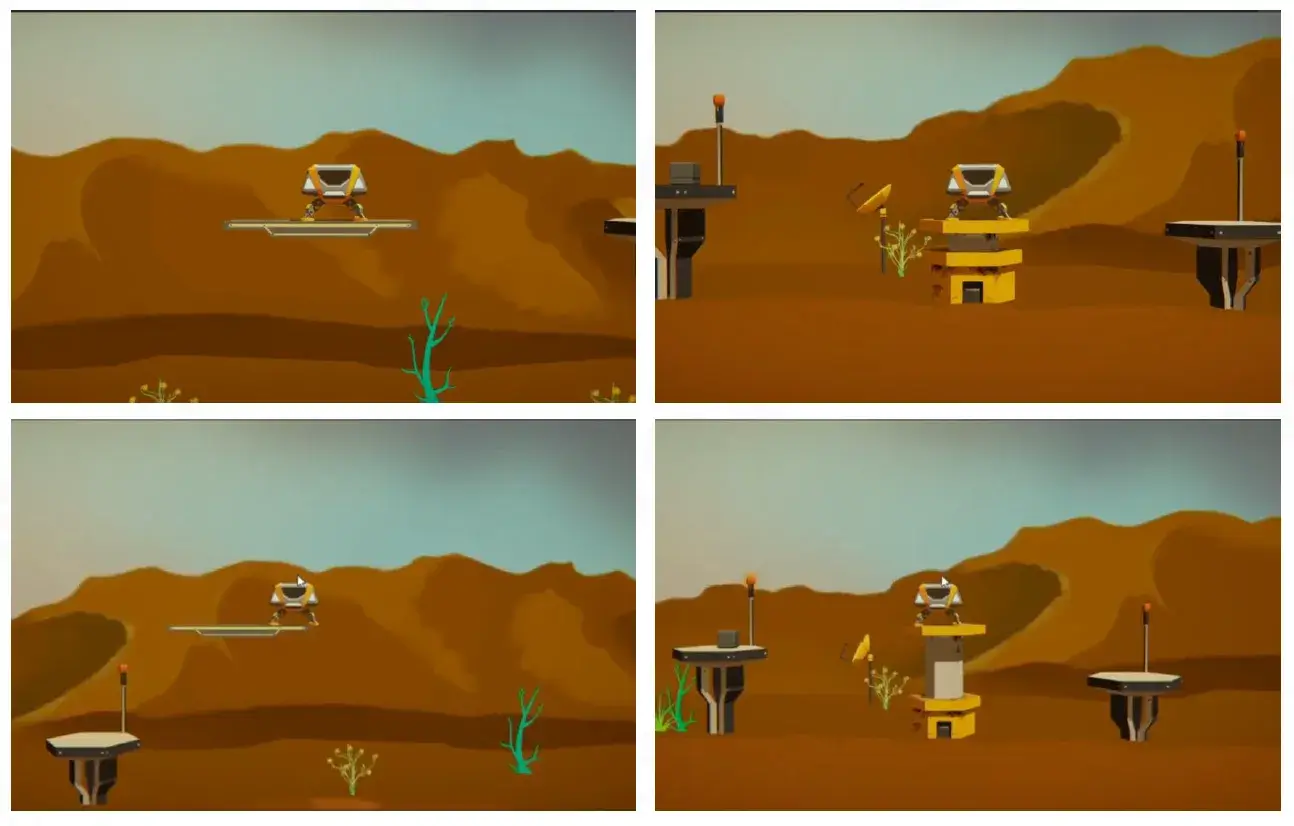

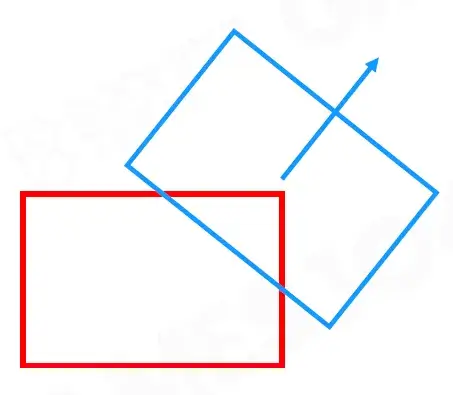

Kinematic Actors are Troublemakers

这种方法容易卡 bug。

Actor-Summary

Static Actor 静态 Actor

Not moving

不移动

Dynamic Actor 动态 Actor

Can be affected by forces/torques/impulses

可受力/扭矩/脉冲影响

Trigger 触发器

Kinematic Actor

lgnoring physics rules

忽略物理规则
Controlled by gameplay logic directly

直接由游戏逻辑控制

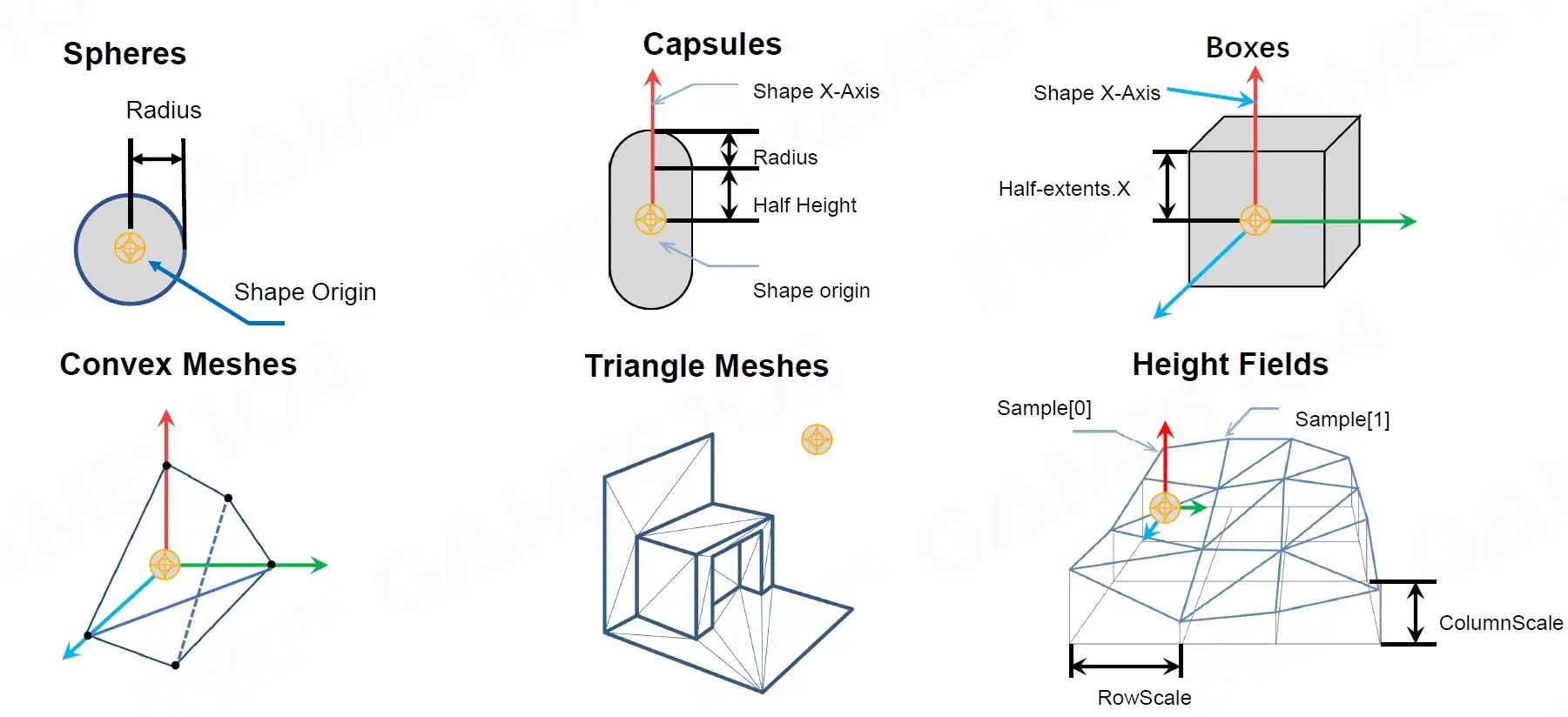

Actor Shapes

为了简便计算，Actor 一般有如下几种形态：

Spheres

球体
Capsules

胶囊
Boxes

盒子
Convex Meshes

凸包网络
Triangle Meshes

三角形网络
Height Fields

高度场

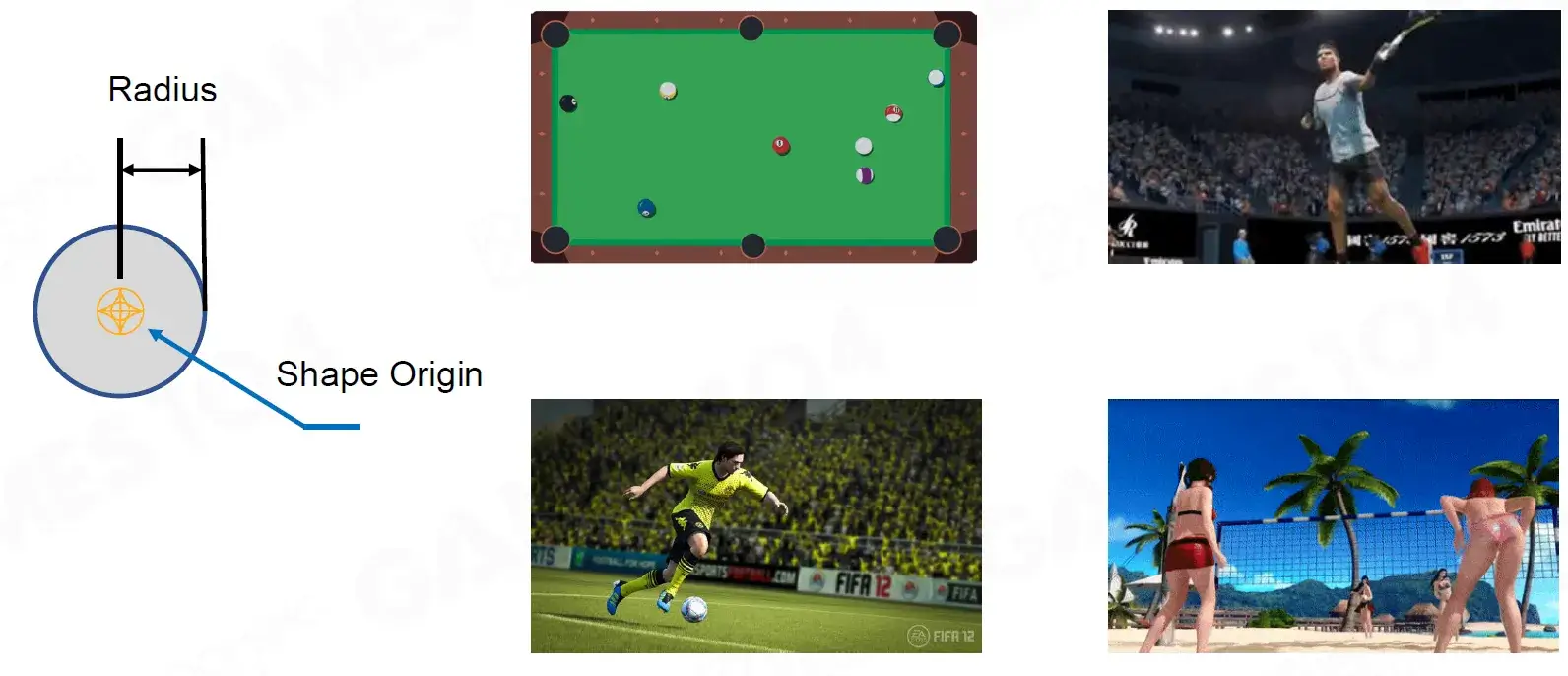

Shapes - Spheres

由球心和半径组成。常用于描述现实生活中的球体。

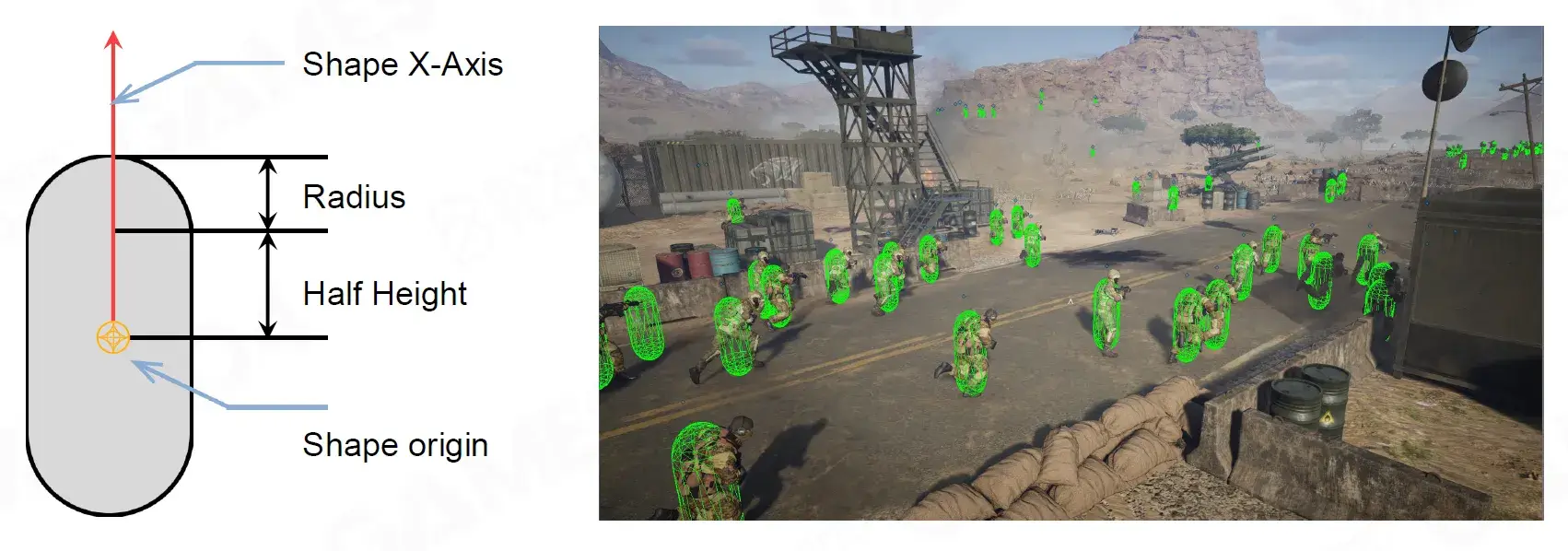

Shapes - Capsules

胶囊体，通常用于表示人物。

Shapes - Boxes

立方体，通常用于表示建筑物以减少计算量。

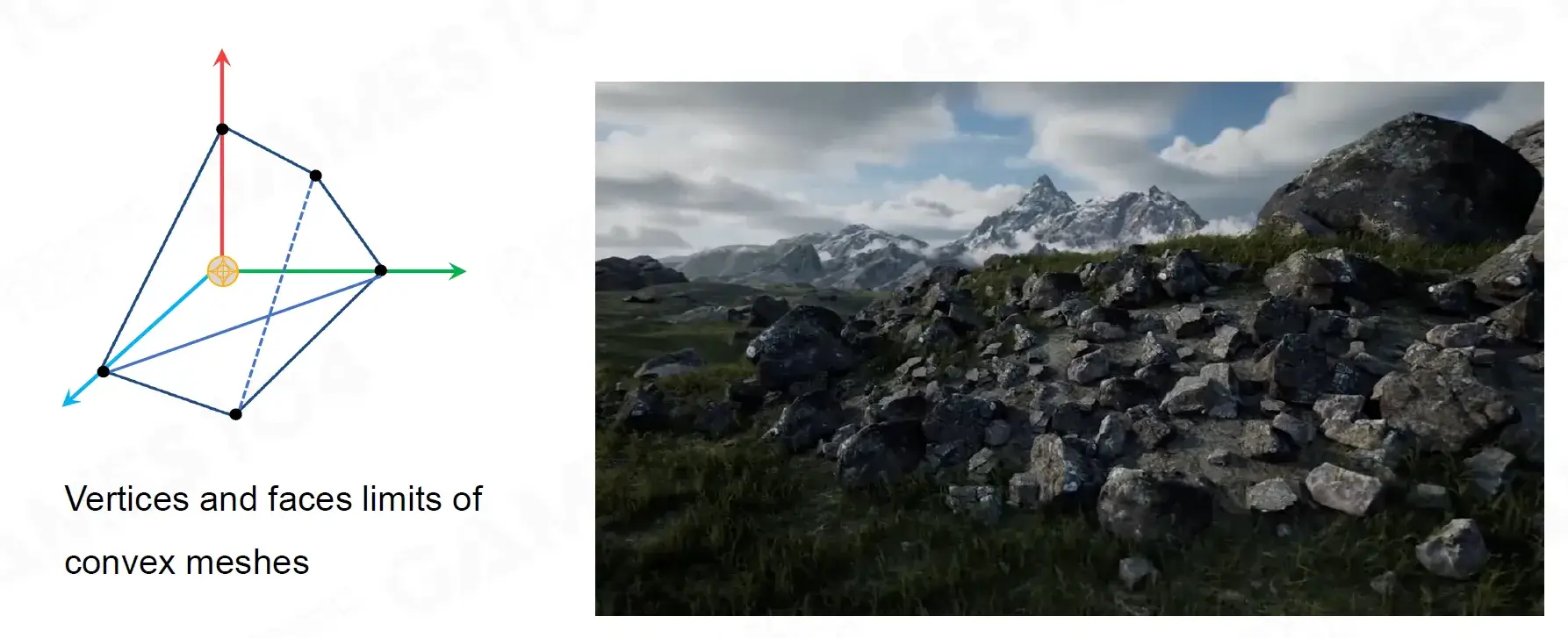

Shapes - Convex Meshes

凸包，通常表示不规则物体。

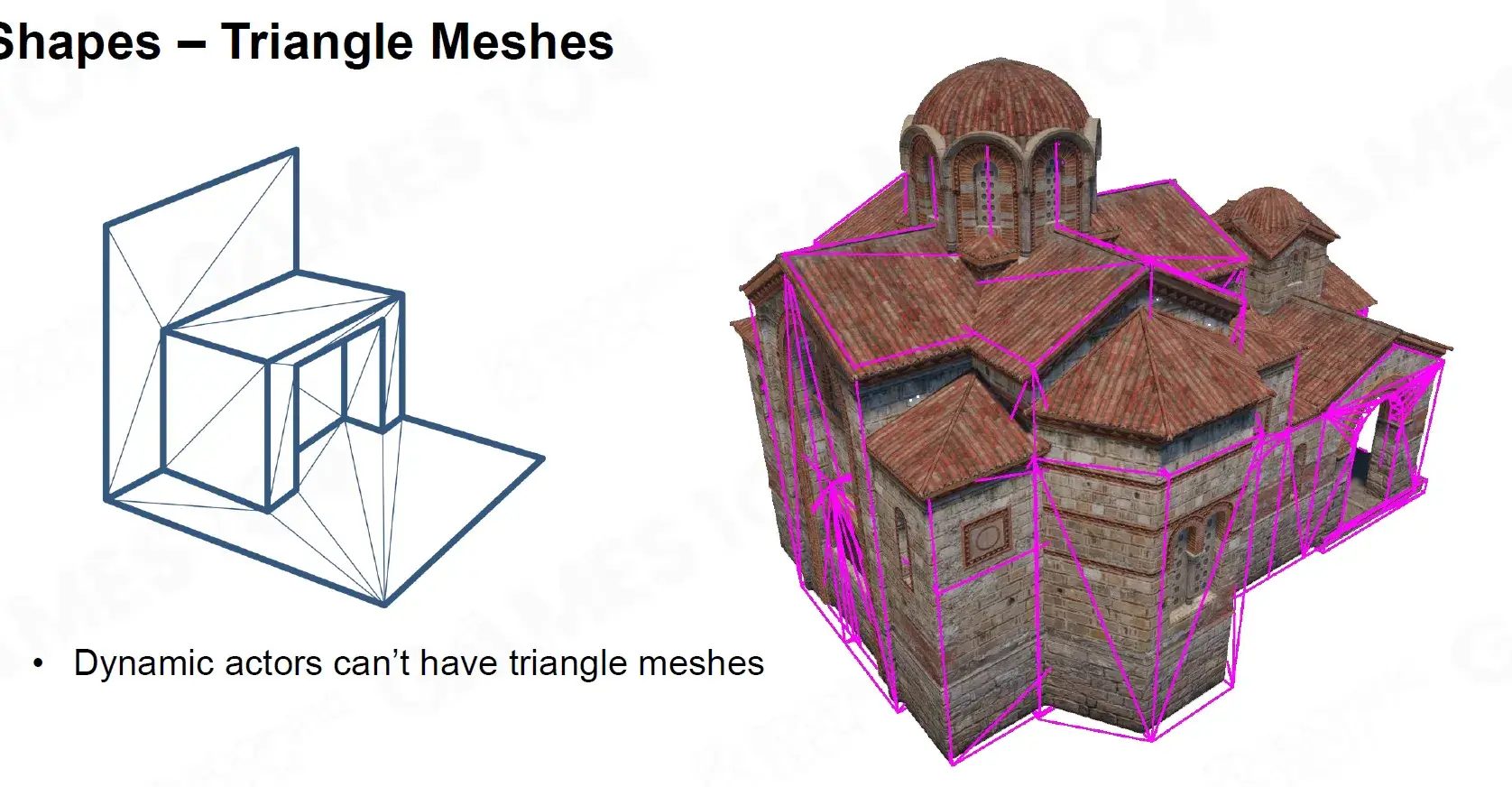

Shapes - Triangle Meshes

用三角形面表示的物体不可用于动态 Actor。

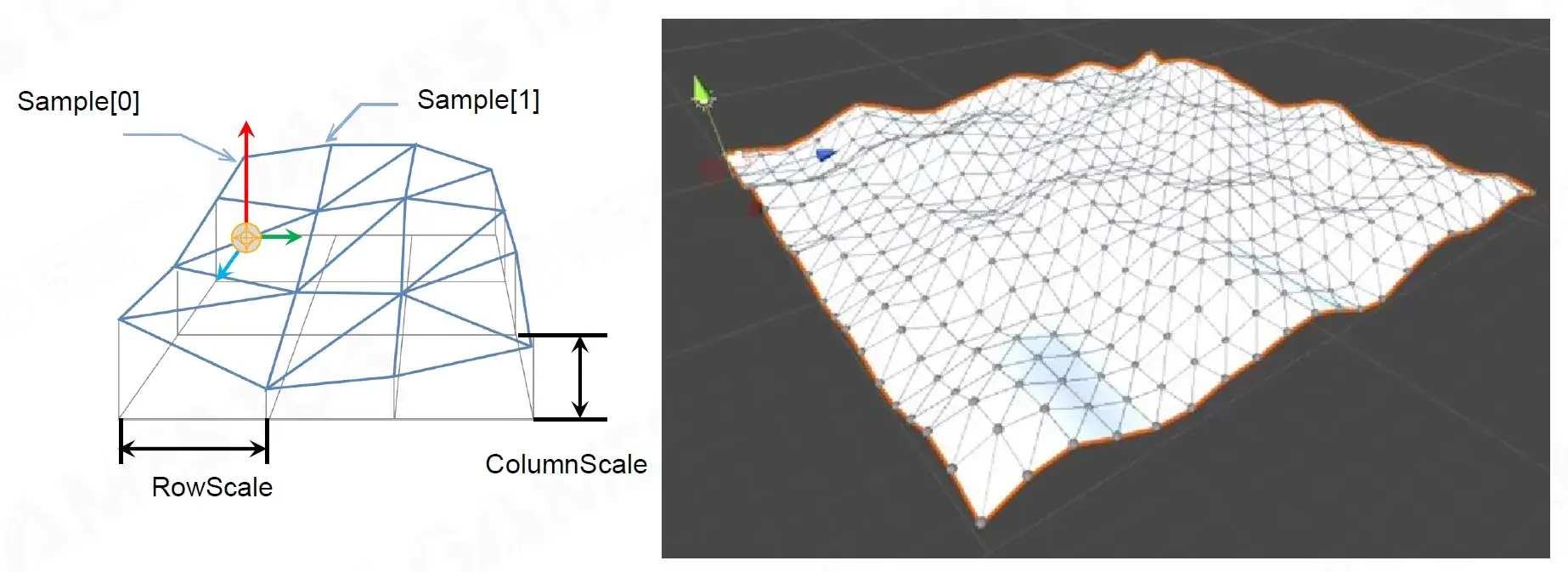

Shapes - Height Fields

高度场，表示地面。

Wrap Objects with Physics Shapes

用物理形状包裹物体

给物体选用 Collider 的要点：

Approximated Wrapping

近似包裹
- Don’t need to be perfect

  无需完美
Simplicity

简单
- Prefer simple shapes (avoid triangle mesh if possible)

  首选简单形状（尽可能避免三角形网格）
- Least shapes

  最少形状

Shape Properties - Mass and Density

形状属性：质量和密度

物体的 Collider 对物理的影响巨大。

冈布茨（匈牙利语：Gömböc，发音：[ˈɡømbøt͡s]）是第一个被制造出来的为人所知的具有单单稳态性质的三维凸均匀体，在平面上，单单稳态物体只具有一个稳定和一个不稳定的力学平衡点。1995 年俄罗斯数学家弗拉基米尔·阿诺尔德猜想存在这类三维凸均匀体。2006 年匈牙利科学家多莫科什·加博尔（英语：Gábor Domokos）和瓦尔科尼·彼得证明了这类物体存在并构造出来。单单稳态的形态多种多样，它们中大多数都接近圆形并且有着非常严苛的形状公差要求（大约千分之一）。

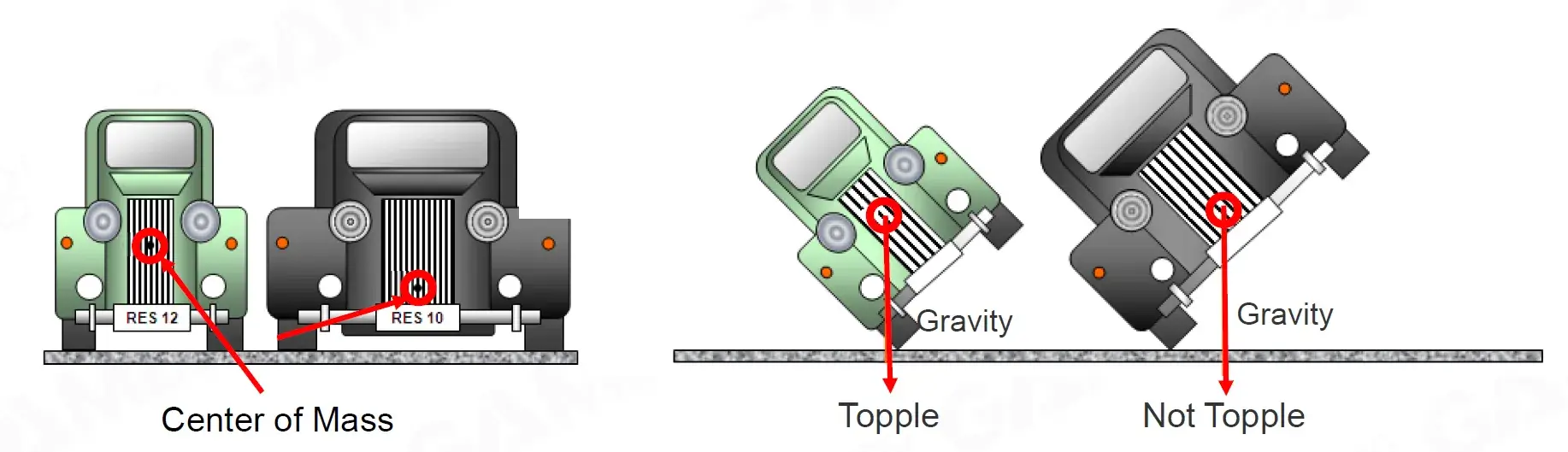

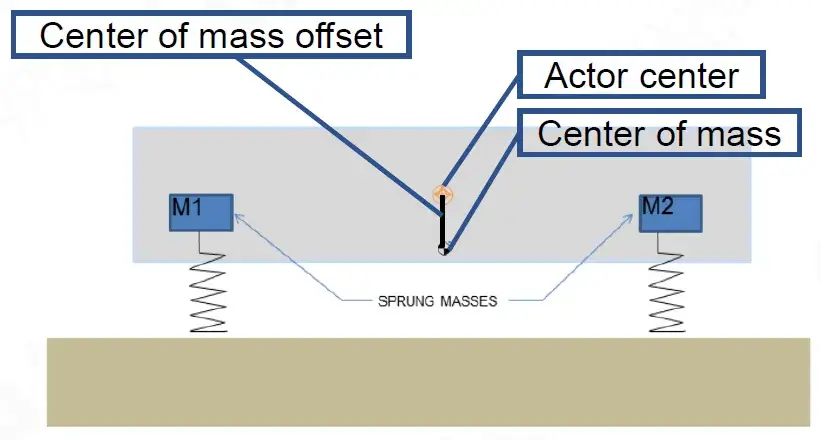

Shape Properties - Center of Mass

Shape Properties - Friction & Restitution

形状属性 - 摩擦和弹性

这可使用物理材质贴图来定义。

Forces

Force

We can apply forces to give dynamic objects accelerations, therefore affecting their movements

我们可以施加力来使动态物体加速，从而影响它们的运动

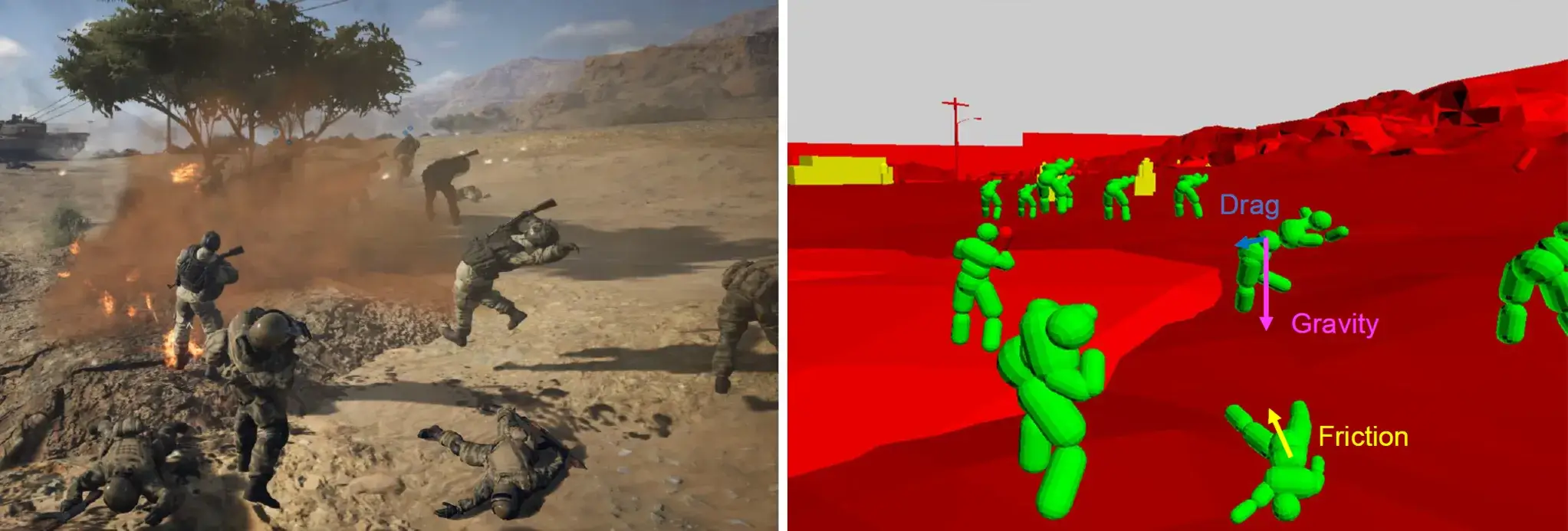

Examples
- Gravity

  重力
- Drag

  阻力
- Friction

  摩擦力
- …

Impulse

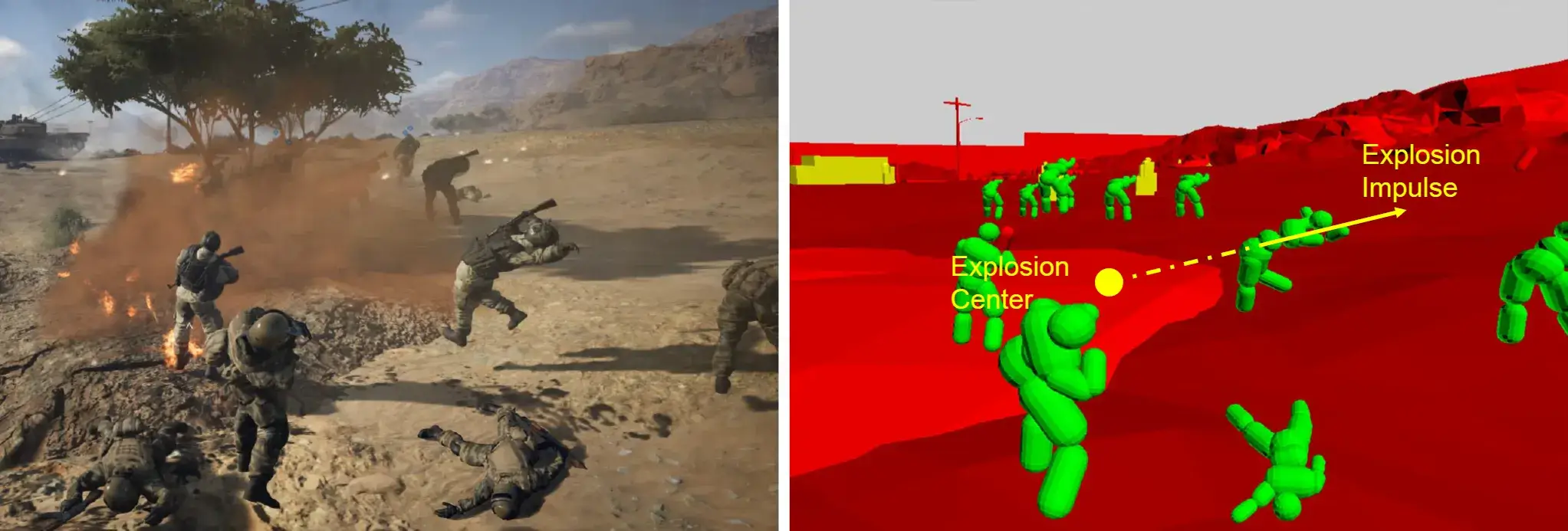

We can change velocity ofactors immediately by applying impulses

我们可以通过施加脉冲立即改变行为者的速度
E.g.simulating an explosion

例如模拟爆炸

Movements

Newton’s 1st Law of Motion

If there is no external force

如果物体不受力的作用，那么它将静止或者一直做匀速直线运动。

$\vec{v}(t+\Delta t)=\vec{v}(t)$

$\vec{x}(t+\Delta t)=\vec{x}(t)+\vec{v}(t)\Delta t$

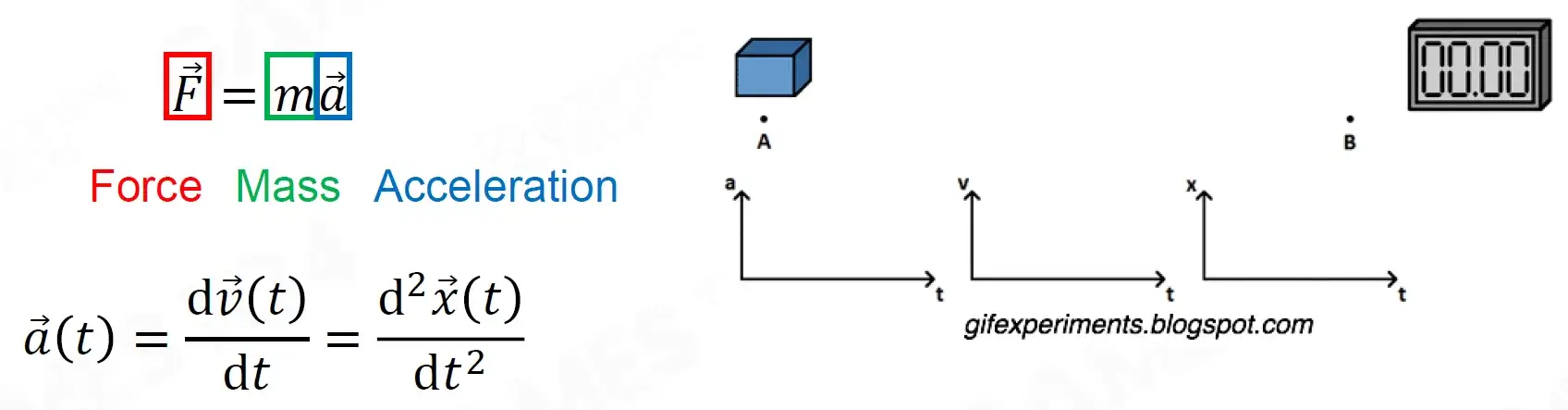

Newton’s 2st Law of Motion

$\vec F=m\vec a$

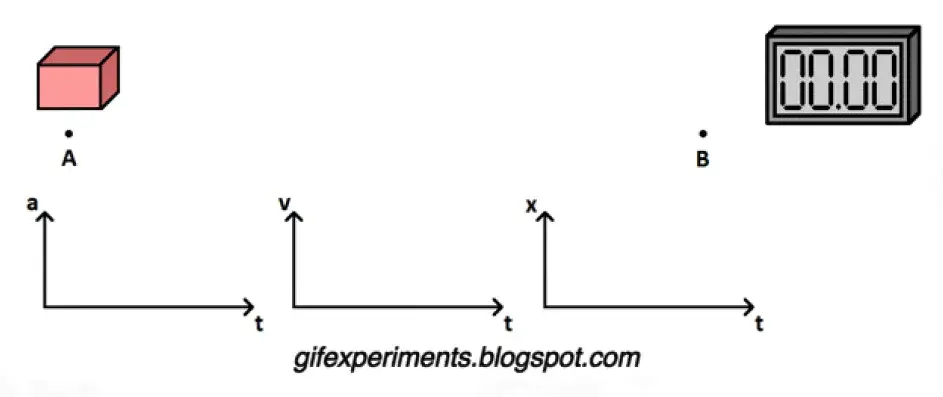

Movement under Constant Force

在恒定力作用下的运动：

$\begin{aligned}&\vec{F}=m\vec{a} \\&\vec{a}=\vec{F}/m \\&\vec{v}(t+\Delta t)=\vec{v}(t)+\vec{a}(t)\Delta t \\&\vec{x}(t+\Delta t)=\vec{x}(t)+\vec{v}(t)\Delta t+\frac{1}{2}\vec{a}(t)\Delta t^2\end{aligned}$

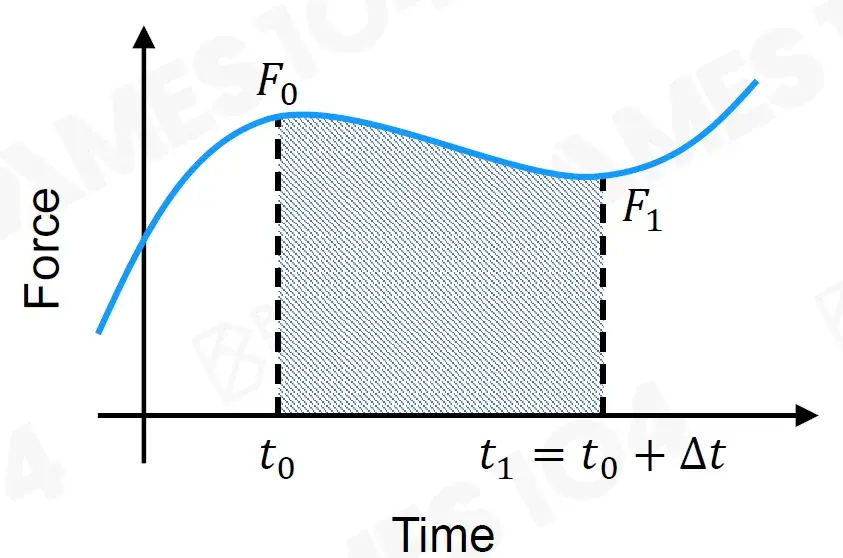

Movement under Varing Force

在变力作用下的运动：

Newton’s 2st Law of Motion

If there is varying external force

$\begin{aligned} \vec{F}&=m\vec{a} \\ \vec{a}&=\vec F/m \\ \vec{\nu}(t+\Delta t)& =\vec{v}(t)+\int_t^{t+\Delta t}\vec{a}(t')\mathrm{d}t' \\ \vec{x}(t+\Delta t)& =\vec{x}(t)+\int_t\vec{v}(t')\mathrm{d}t' \end{aligned}$

Example of Simple Movement

简单运动示例

Position

位置
Orientation

方向
Linear Velocity

线速度
Angular Velocity

角速度

$\mathbf{X}(t)=\begin{pmatrix}\vec{x}(t)\\R(t)\\\vec{v}(t)\\\vec{\omega}(t)\end{pmatrix}$

Motion in Reality

在现实生活中的运动：

At time $t$

Position: $\vec x(t)$
Linear Velocity: $\vec t = \frac{d\vec x(t)}{dt}$

Simulation in Game

现实生活中时间是连续的，游戏中是离散的。

Simulation Step

Given $\vec x(t), \vec v(t)$

Compute $\vec x(t+\Delta t),\vec v(t+\Delta t)$

$\Delta t$ is the time step size

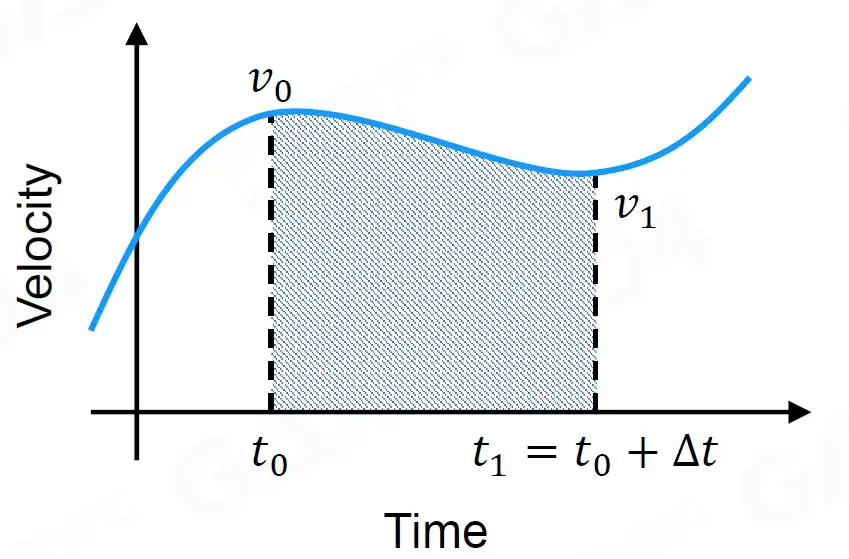

Time integration

时间整合

$\vec{x}(t_1)=\vec{x}(t_0)+\int_{t_0}^{t_1}\vec{v}(t)\mathrm{d}t$

Euler’s Method

使用欧拉方法求解上述方程。

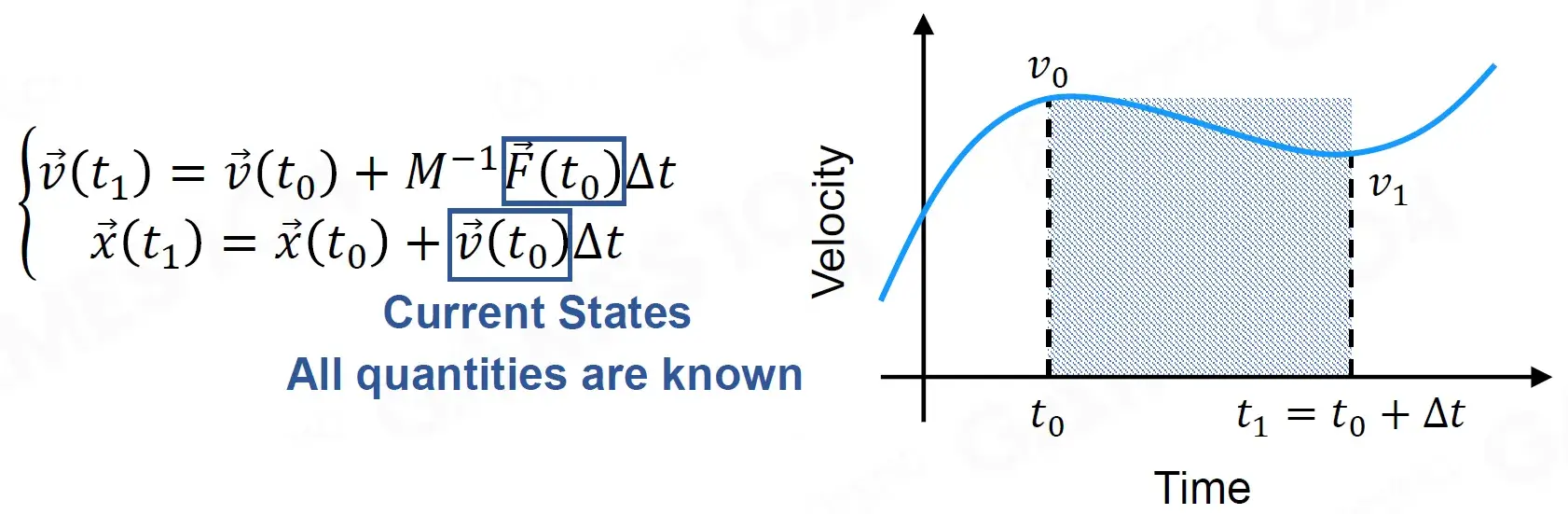

Explicit (Forward) Euler’s Method

Simplest estimation

最简单的估计

Assume the force is constant during the time step

假设力在时间步长内是恒定的。

用前一时刻的 $\vec v(t_0)\Delta t$ 代替 $\int_t\vec{v}(t')\mathrm{d}t'$ 。

这么做容易导致能量不守恒，越来越多。

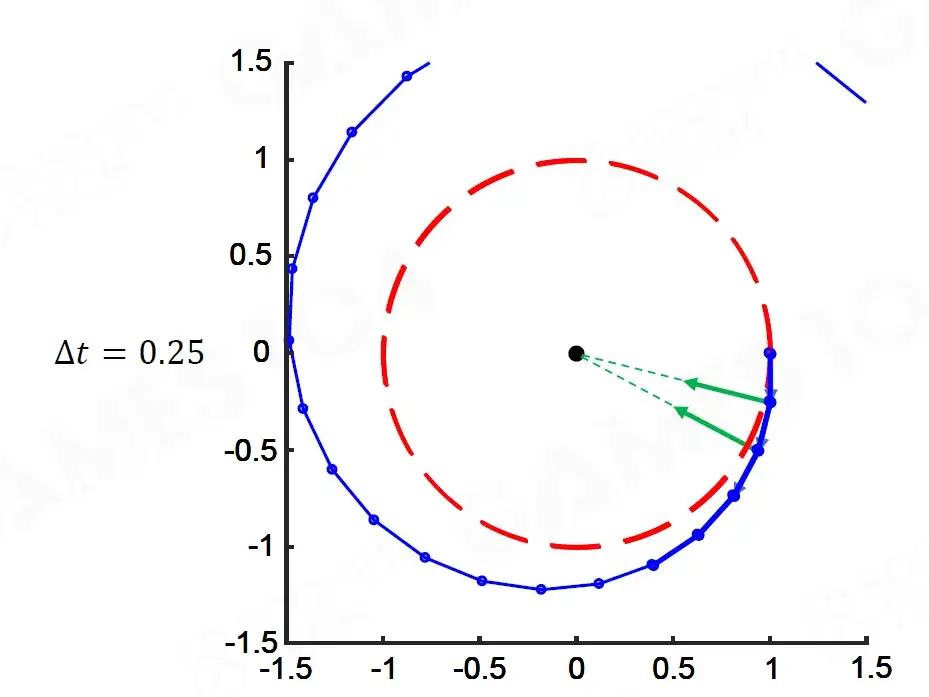

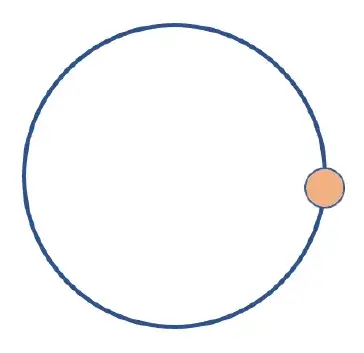

The result of explicit Euler’s method explodes!

显式欧拉方法结果爆炸！

Pros:

Easy to calculate, efficient

计算方便，效率高

Cons:

Poor stability

稳定性差
Energy growing as time progresses

能量随时间推移而增长

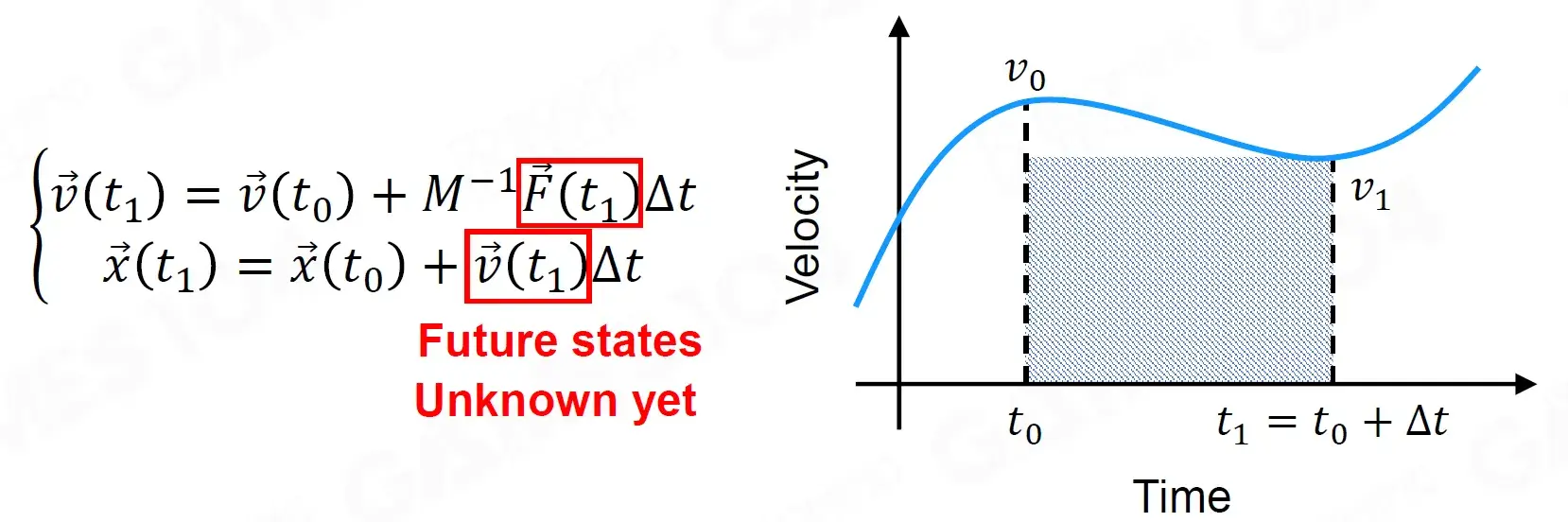

Implicit (Backward) Euler’s Method

用后一时刻的 $\vec v(t_1)\Delta t$ 代替 $\int_t\vec{v}(t')\mathrm{d}t'$ 。

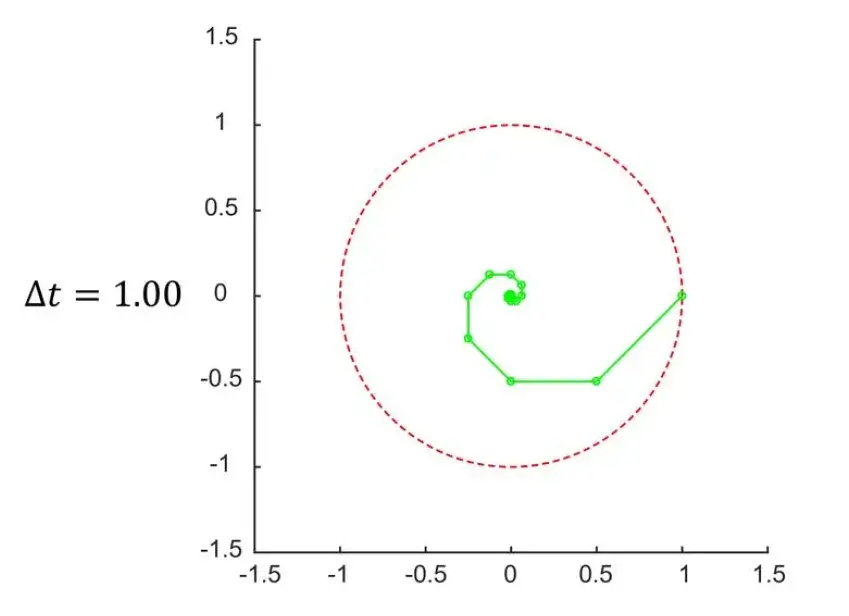

The result of implicit Euler’s method spirals!

隐式欧拉法的结果呈螺旋状！

Pros:

Unconditionally stable

无条件稳定（最后会收敛）

Cons:

Expensive to solve

求解成本高
Challenging to implement when non-linearity presents

存在非线性时实施难度大
Energy attenuates as time progresses

能量随时间衰减

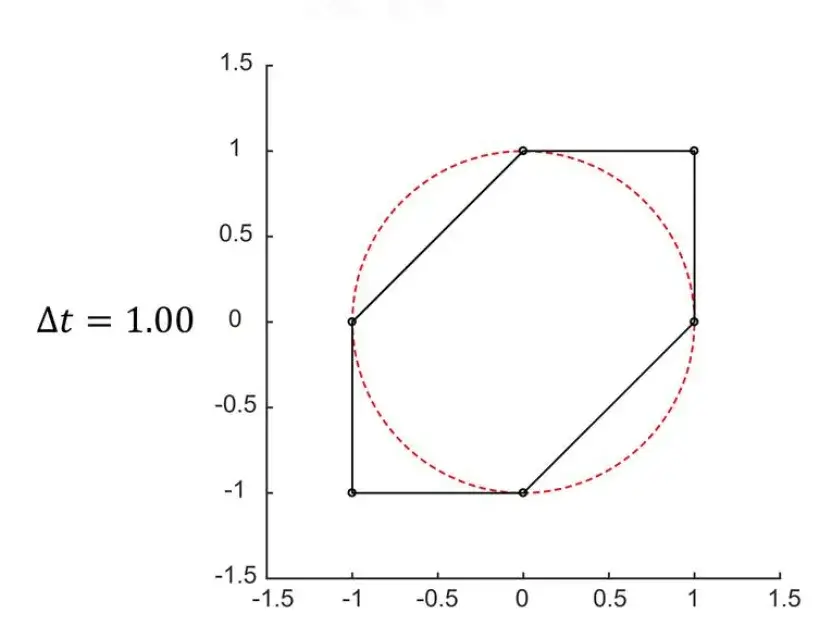

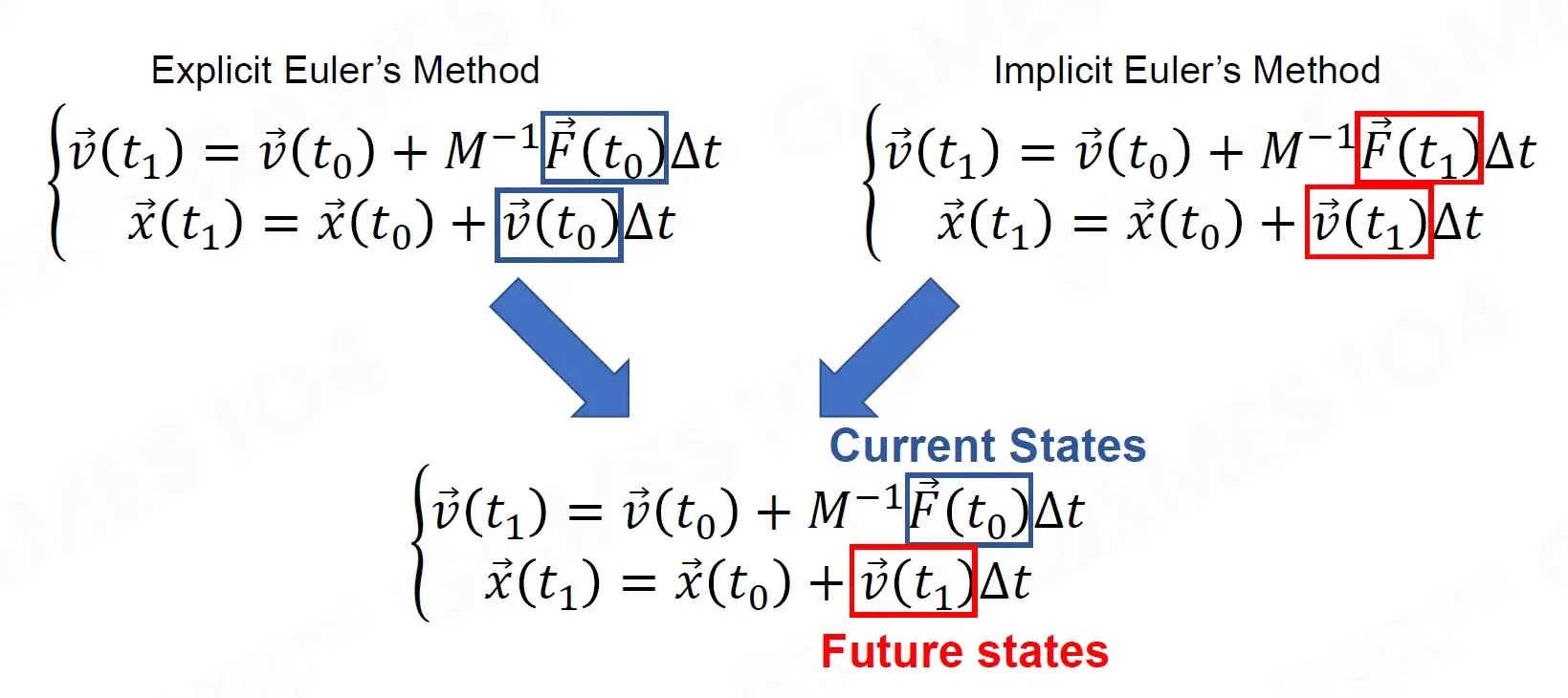

Semi-implicit Euler’s Method

将上述两个方法结合。

The result approximates the circle well if the timestep is small enough

如果时间步长足够小，结果就能很好地近似圆

Conditionally stable

条件稳定
Easy to calculate, efficient

易于计算，高效
Preserves energy as time progresses

随着时间的推移保存能量

Rigid Body Dynamics

刚体动力学

Particle Dynamics

粒子动力学（将物体视为质点）

Position: $\vec x$
Linear Velocity: $\vec v=\frac{d\vec x}{dt}$
Acceleration: $\vec a=\frac{d\vec v}{dt}=\frac{d^2\vec x}{dt^2}$
Mass: $M$
Momentum: $\vec p = M\vec v$
Force: $\vec F=\frac{d\vec p}{dt}=M\vec a$

Rigid body Dynamics

刚体动力学

Besides linear values, rigid body dynamics have angular values

除了线性值外，刚体动力学还有角度值

Orientation: $\mathbf R$
Angular velocity: $\vec \omega$
Angular acceleration: $\vec \alpha$
Inertia tensor 惯性张量: $\mathbf I$
Angular momentum: $\vec L$
Torque 力矩: $\vec{\tau}$

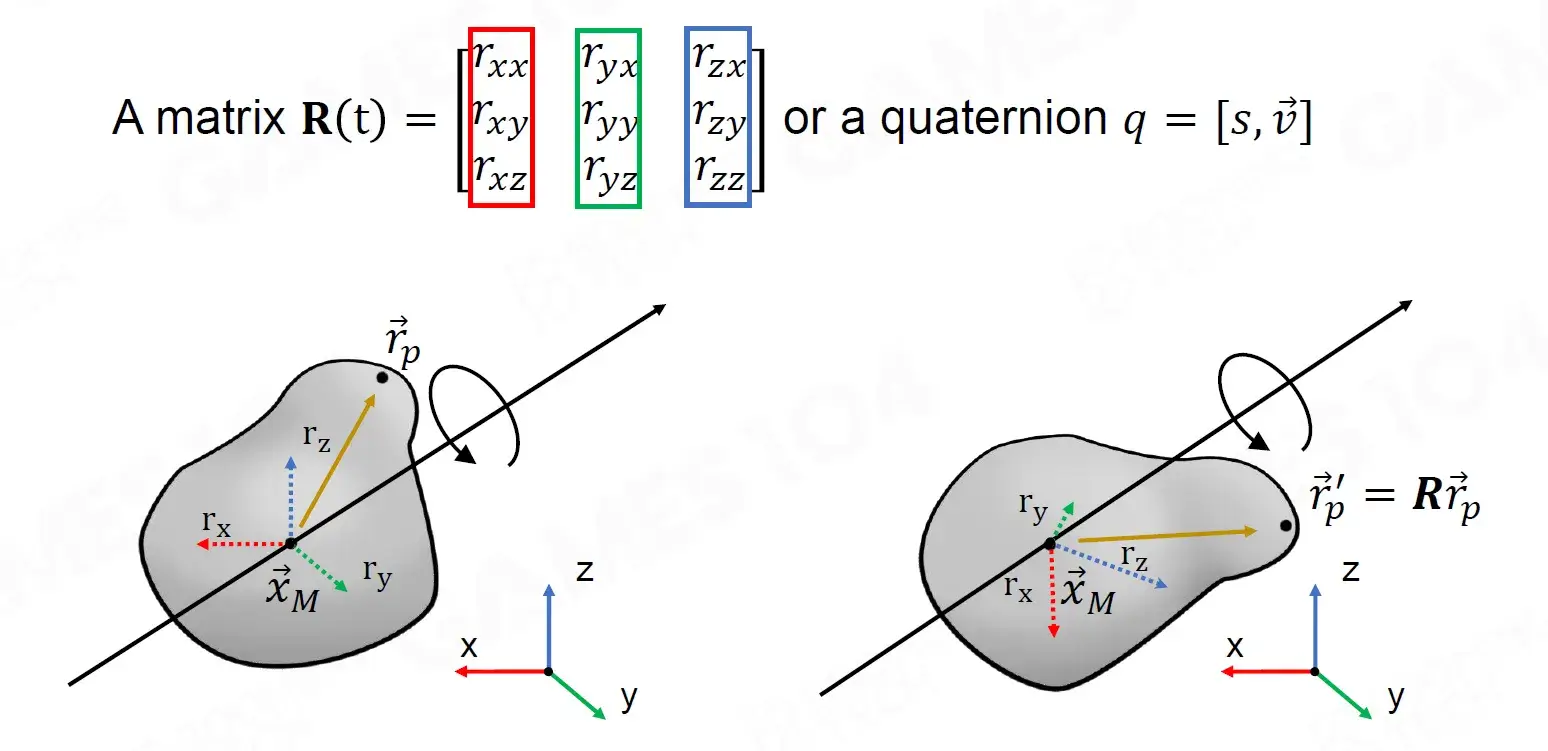

Orientation - R

物体的旋转，可用旋转矩阵或是四元数来表示。

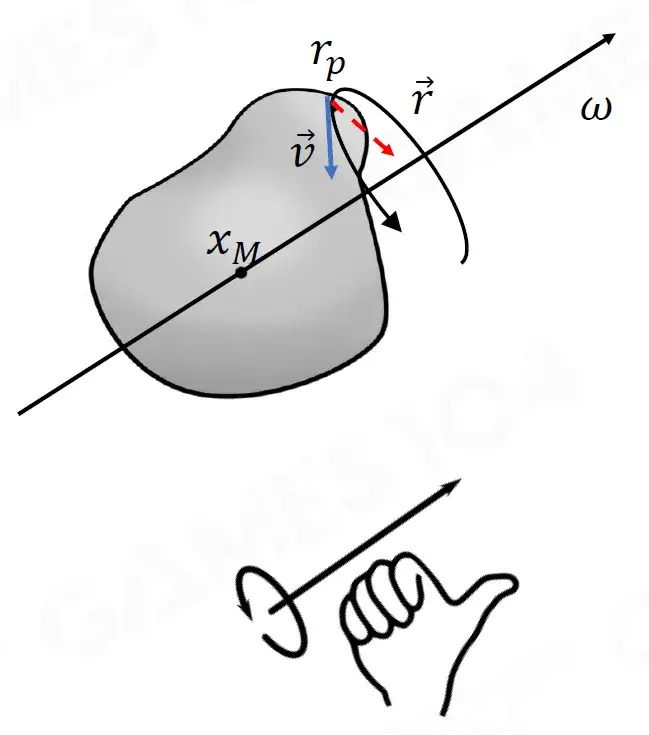

Angular Velocity - $\vec \omega$

Direction of $\vec \omega$ is the direction of the rotation axis

$\vec \omega$ 的方向是旋转轴的方向

$\theta$ : rotated angle in radians

$\theta$ ：以弧度为单位的旋转角度

$\begin{aligned}&\|\vec{\omega}\|=\frac{d\theta}{dt}\\&\vec{\omega}=\frac{\vec{v}\times\vec{r}}{\|\vec{r}\|^2}\end{aligned}$

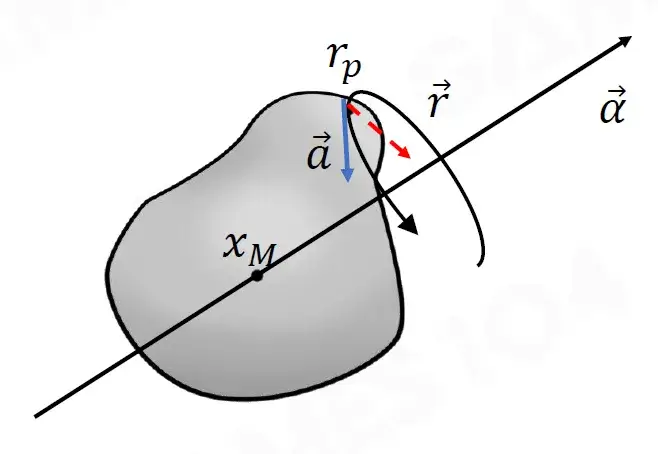

Angular Accelation - $\vec \alpha$

$\vec{\alpha}=\frac{\mathrm{d}\vec{\omega}}{\mathrm{d}t}=\frac{\vec{a}\times\vec{r}}{\|\vec{r}\|^2}$

Rotational Inertia - $\mathbf I$

转动惯量

Rotational inertia describes the distribution of mass for a rigid body

转动惯量描述刚体的质量分布

$\mathbf{I}=\mathbf{R}\cdot\mathbf{I}_0\cdot\mathbf{R}^\mathrm{T}$

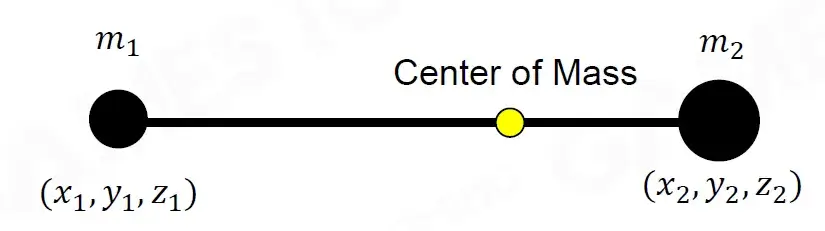

Total Mass: $M=m_1+m_2$

Center of Mass: $CoM=\frac{m_1}{M}(x_1,y_1,z_1)+\frac{m_2}{M}(x_2,y_2,z_2)$

Initial lnertia Tensor 初始惯性张量:

\begin{gathered}I_0=\begin{bmatrix}m_1(y_1^2+z_1^2)+m_2(y_2^2+z_2^2)&-m_1x_1y_1-m_2x_2y_2&-m_1x_1z_1-m_2x_2z_2\\-m_1y_1x_1-m_2y_2x_2&m_1(x_1^2+z_1^2)+m_2(x_2^2+z_2^2)&-m_1y_1z_1-m_2y_2z_2\\-m_1z_1x_1-m_2z_2x_2&-m_1z_1y_1-m_2z_2y_2&m_1(x_1^2+y_1^2)+m_2(x_2^2+y_2^2)\end{bmatrix}\end{gathered}

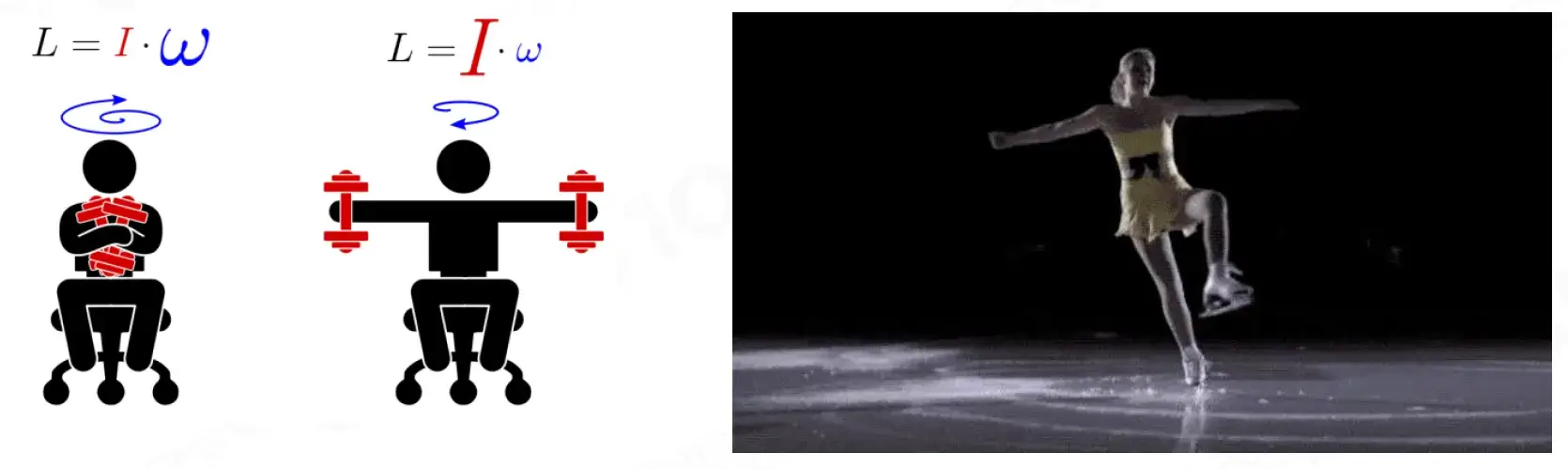

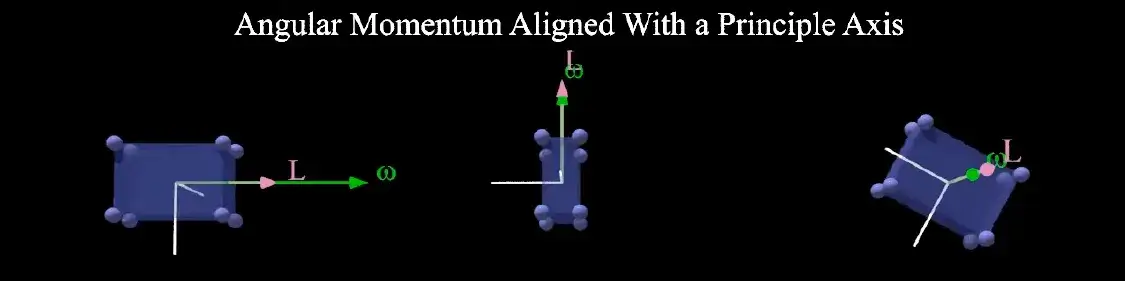

Angular Momentum - $\vec L$

$\vec L=\mathbf I\vec \omega$

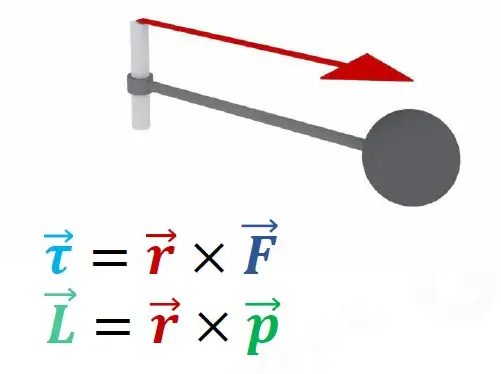

Torque - $\vec{\tau}$

We denote external force $\vec F$ exerted on position $\vec r$ on the rigid body, therefore

我们将施加于刚体上位置 $\vec r$ 的外力 $\vec F$ 表示为，因此

$\vec{\tau}=\vec{r}\times\vec{F}=\frac{d\vec{L}}{dt}$

Summary

Angular Values vs. Linear Values
- Orientation: $\mathbf R$
- Angular velocity: $\vec{\omega}=\frac{\vec{v}\times\vec{r}}{\|\vec{r}\|^2}$
- Angular acceleration: $\vec{\alpha}=\frac{\mathrm{d}\vec{\omega}}{\mathrm{d}t}=\frac{\vec{a}\times\vec{r}}{\|\vec{r}\|^2}$
- Inertia tensor 惯性张量: $\mathbf{I= R\cdot I_o\cdot R^T}$
- Angular momentum: $\vec L=\mathbf I\vec\omega$
- Torque: $\vec\tau=\frac{d\vec L}{dt}$
- Position: $\vec x$
- Linear velocity: $\vec v=\frac{d\vec x}{dt}$
- Linear accelation: $\vec a=\frac{d\vec v}{dt}=\frac{d^2\vec x}{dt^2}$
- Mass: $M=\sum m_i$
- Linear momentum: $\vec p=M\vec v$
- Force: $\vec F=\frac{d\vec p}{dt}=m\vec a$

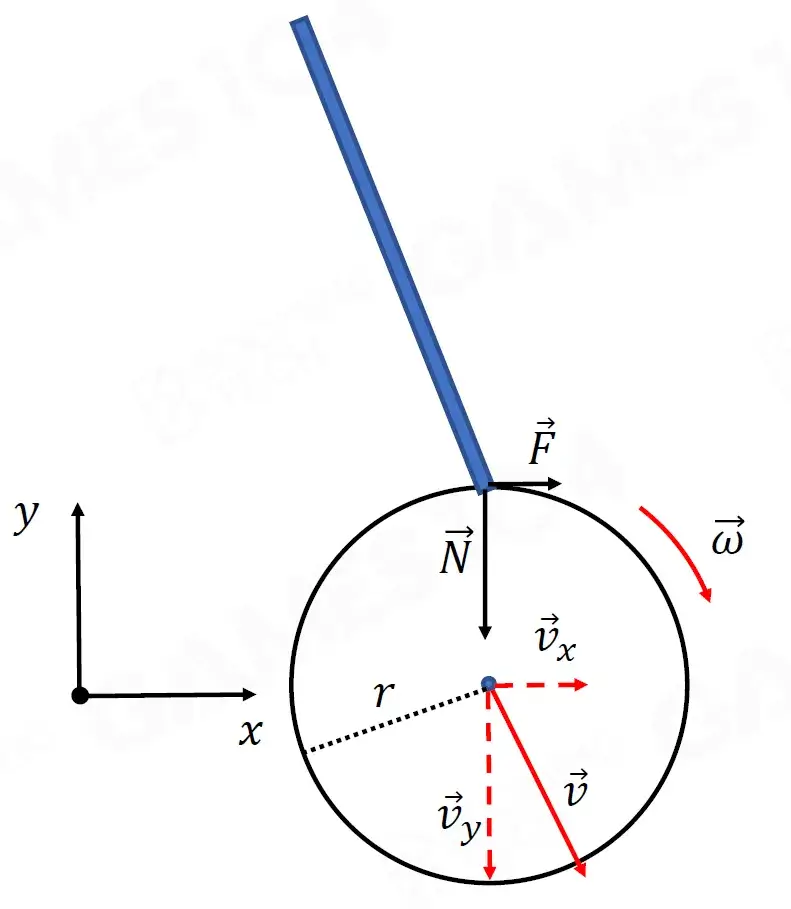

Application-Billiard Dynamics

Even though we have known the elements of rigid body dynamics, the physics in a light billiard game is still complicated…

即使我们已经了解了刚体动力学的要素，轻型台球游戏中的物理仍然很复杂。

击打桌球时要故意打偏一点让球旋转。

Friction lmpulse 摩擦脉冲: $\vec{p}_F=\int\vec{F}dt=m\vec{v}_x$
Pressure lmpulse 压力脉冲: $\vec{p}_N=\int\vec{N}dt=m\vec{v}_y$
Ball Angular Momentum 球角动量: \vec{L}_b=\boldsymbol{I}_b\vec{\omega}=\vec{p}_F\times\vec{r}_F
Ball Linear Velocity 球线速度: $\vec{v}=\vec{v}_x+\vec{v}_y$

Collision Detection

碰撞检测

Broad phase

广泛阶段
- Find intersected rigid body AABBS

  查找相交刚体 AABBS
- Potential overlapped rigid body pairs

  潜在重叠刚体对
Narrow phase

严格阶段
- Detect overlapping precisely

  精确检测重叠
- Generate contact information

  生成接触信息

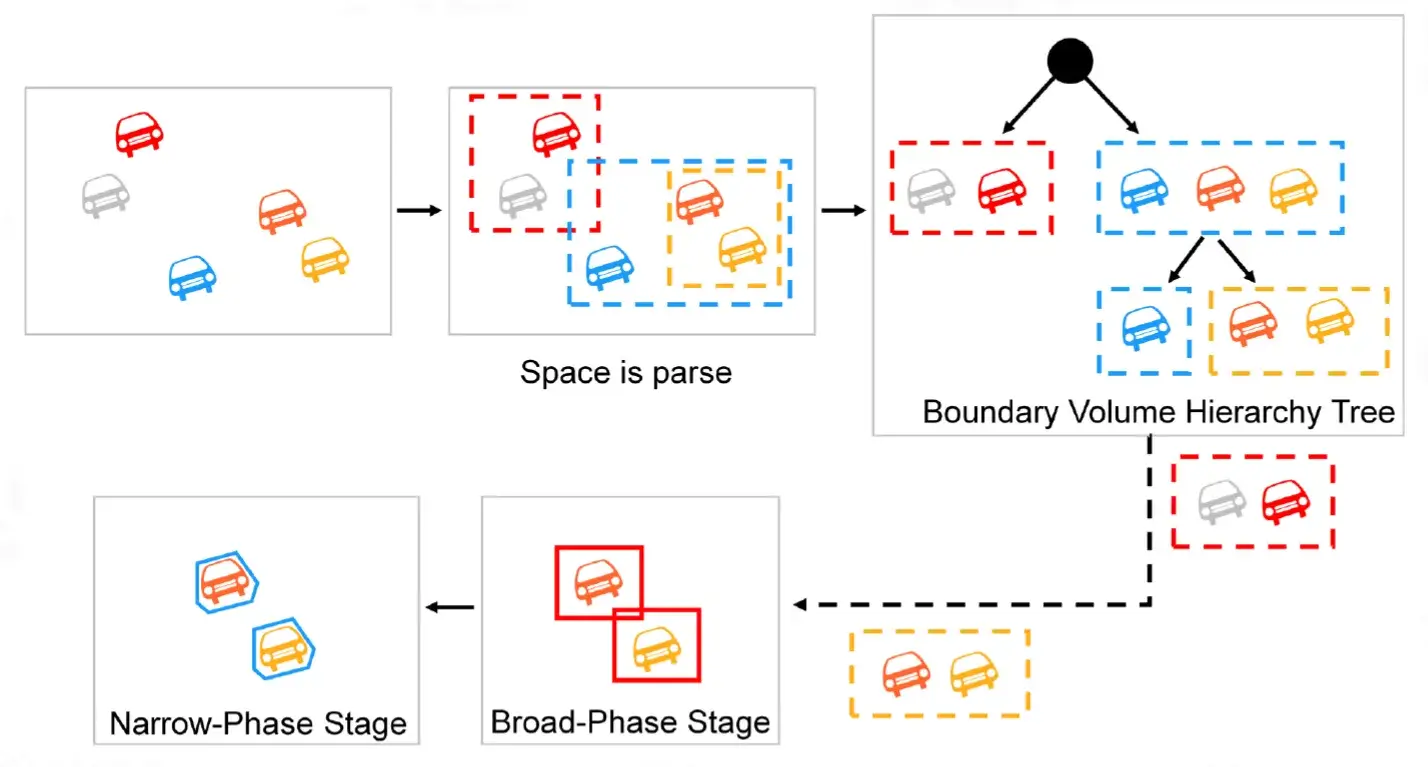

Broad Phase and Narrow Phase

Broad Phase

Objective

目标
- Find intersected rigid body AABBS

  查找相交刚体 AABBS
- Potential overlapped rigid body pairs

  潜在重叠刚体对
Two approaches

两种方法
- Space partitioning

  空间分割
  - i.e. Boundary Volume Hierarchy (BVH) Tree

    边界体积层次（BVH）树
- Sort and Sweep

  排序和扫描

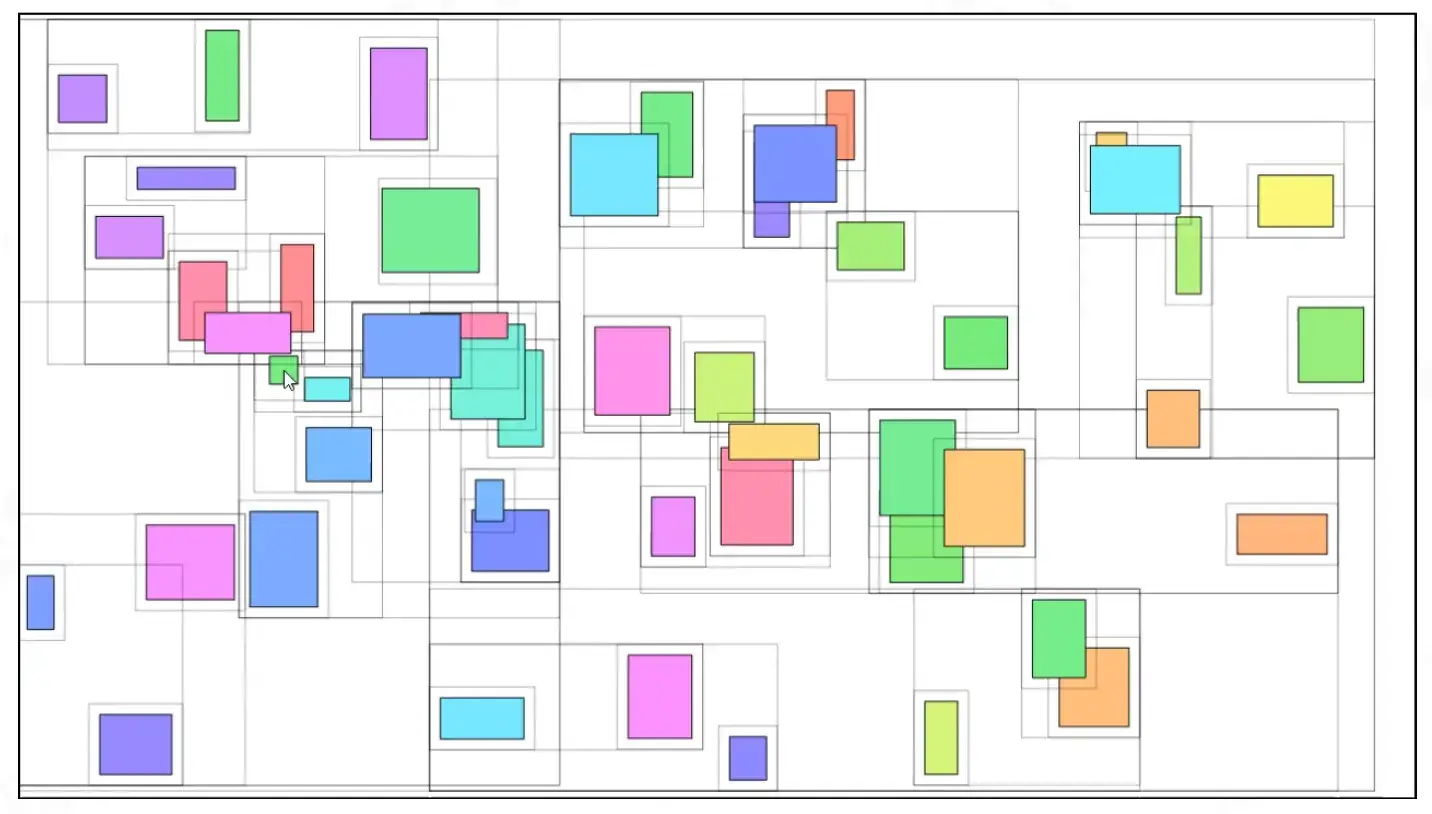

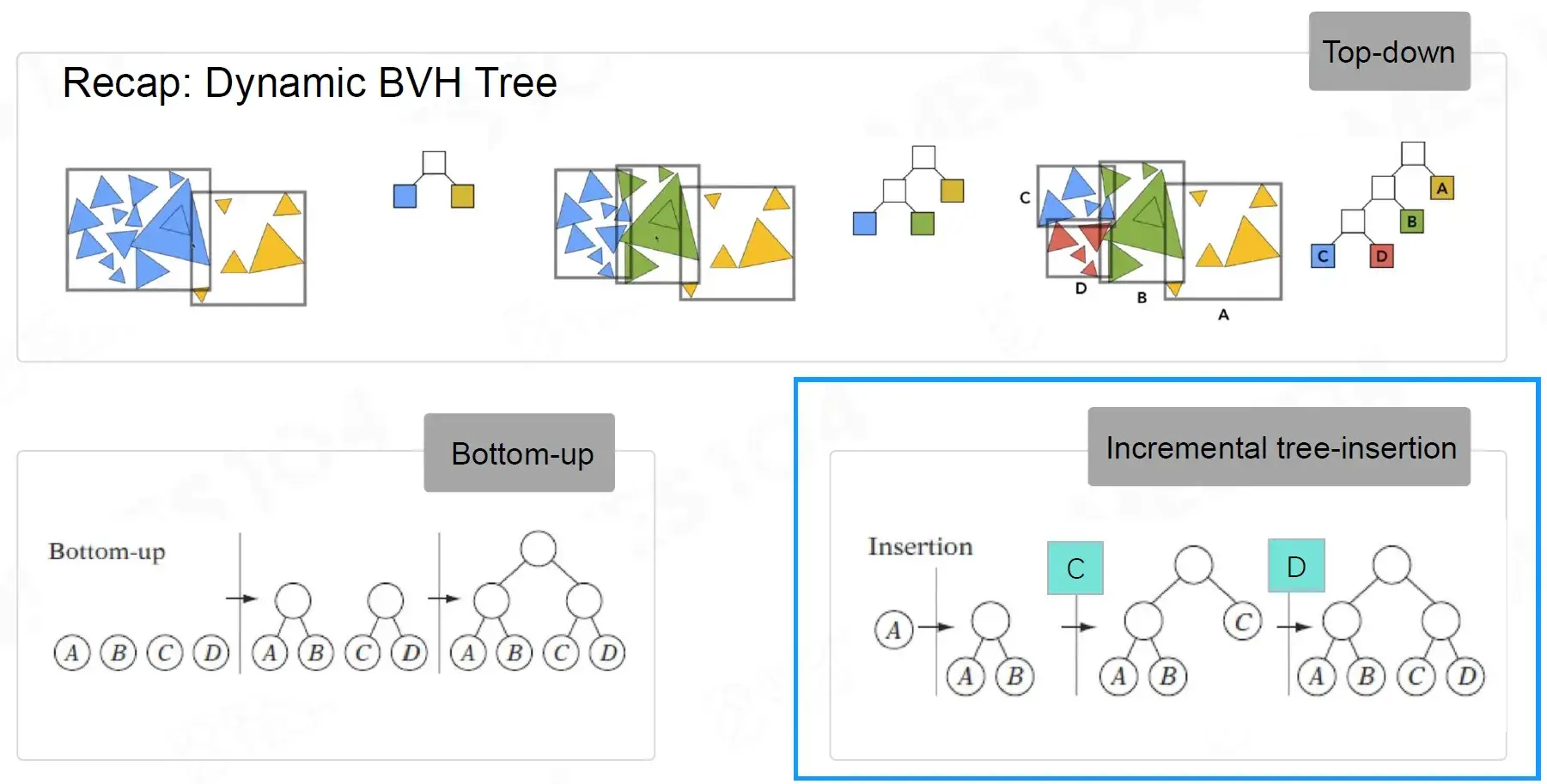

Broad Phase - BVH Tree

鼠标所指的那个绿色小框框的移动只会改变少部分 BVH 树的结构。

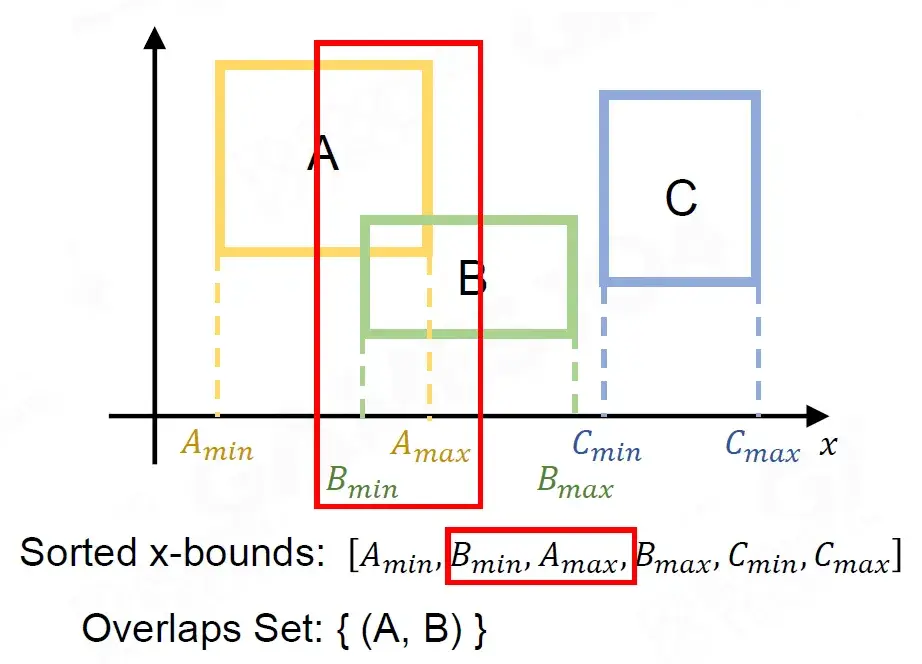

Broad Phase - Sort and Sweep (1/2)

Sorting Stage (lnitialize)

排序阶段（初始化）

For each axis

针对每个轴

Sort AABB bounds along each axis when initializing the scene

初始化场景时，沿每个轴对 AABB 边界进行排序
Check AABB bounds of actors along each axis

检查每个轴上 actor 的 AABB 边界
$A_{max} \ge B_{min}$ indicates potential overlap of $A$ and $B$

$A_{max} \ge B_{min}$ 表示 $A$ 和 $B$ 可能重叠

Sweeping Stage (Update)

扫描阶段（更新）

Only check swapping of bounds

仅检查边界交换
- temporal coherence

  时间连贯性
- local steps from frame to frame

  帧与帧之间的局部步骤
Swapping of min and max indicates add/delete potential overlap pair from overlaps set

最小值和最大值的交换表示从重叠集添加/删除潜在重叠对
Swapping of min and min or max and max does not affect overlaps set

最小值和最小值或最大值和最大值的交换不影响重叠集

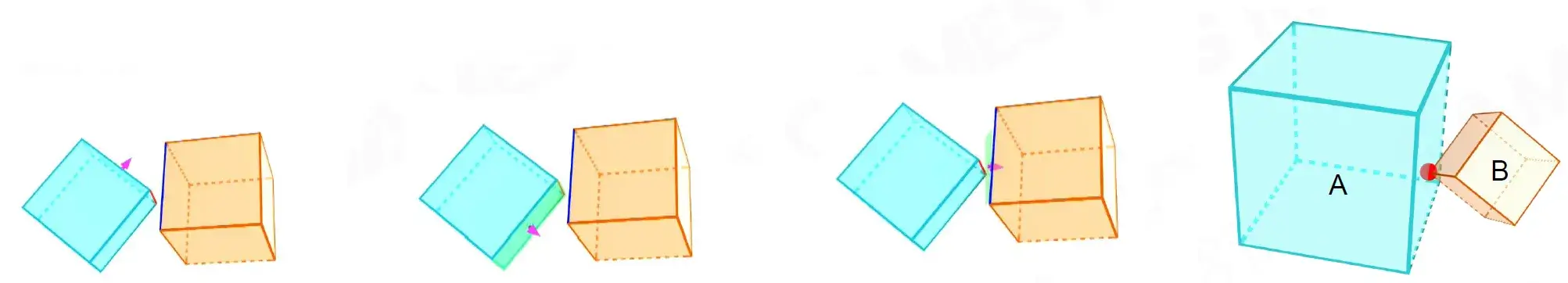

Narrow Phase - Objectives

Detect overlapping precisely

精确检测重叠

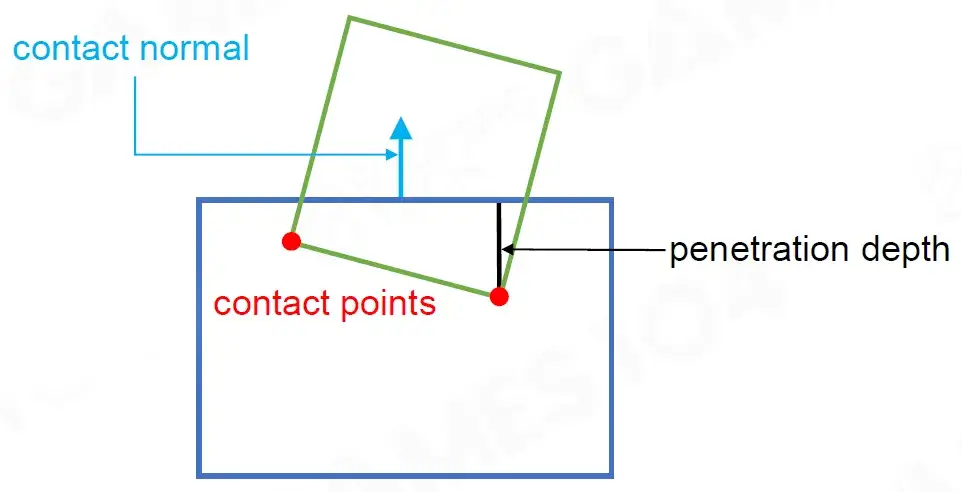

Generate contact information

生成接触信息
- Contact manifold

  接触流形
  - approximated with a set of contact points

    用一组接触点近似
- Contact normal

  接触法线
- Penetration depth

  穿透深度

Narrow Phase - Approaches

Three approaches

三种方法
- Basic Shape Intersection Test

  基本形状相交测试
- Minkowski Difference-based Methods

  基于明可夫斯基差异的方法

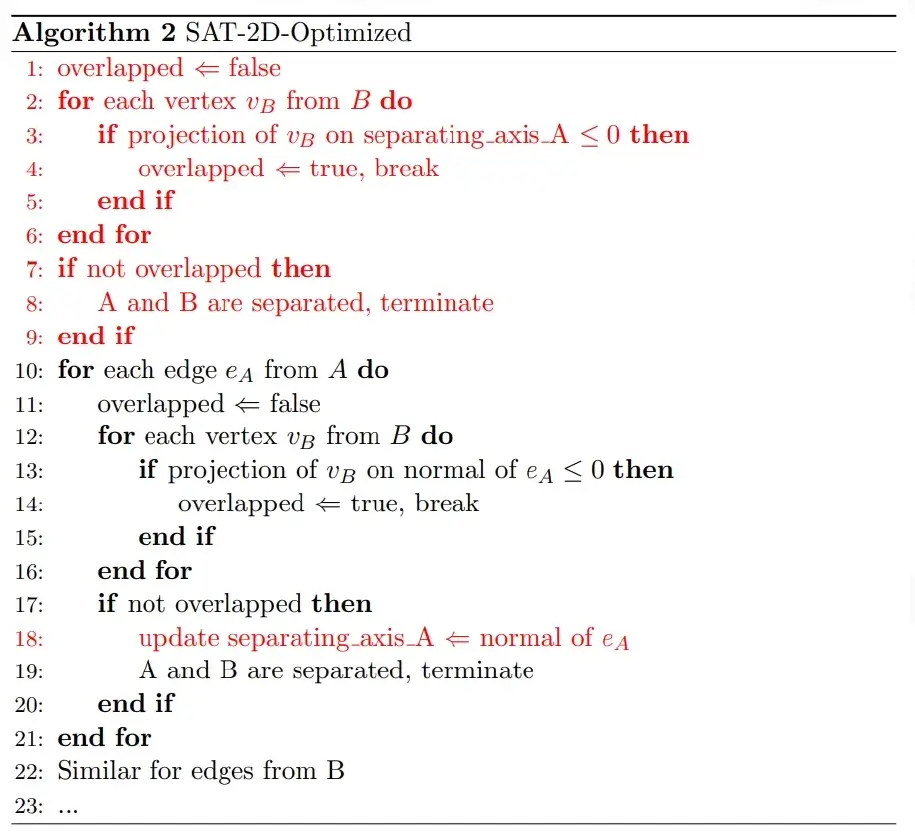

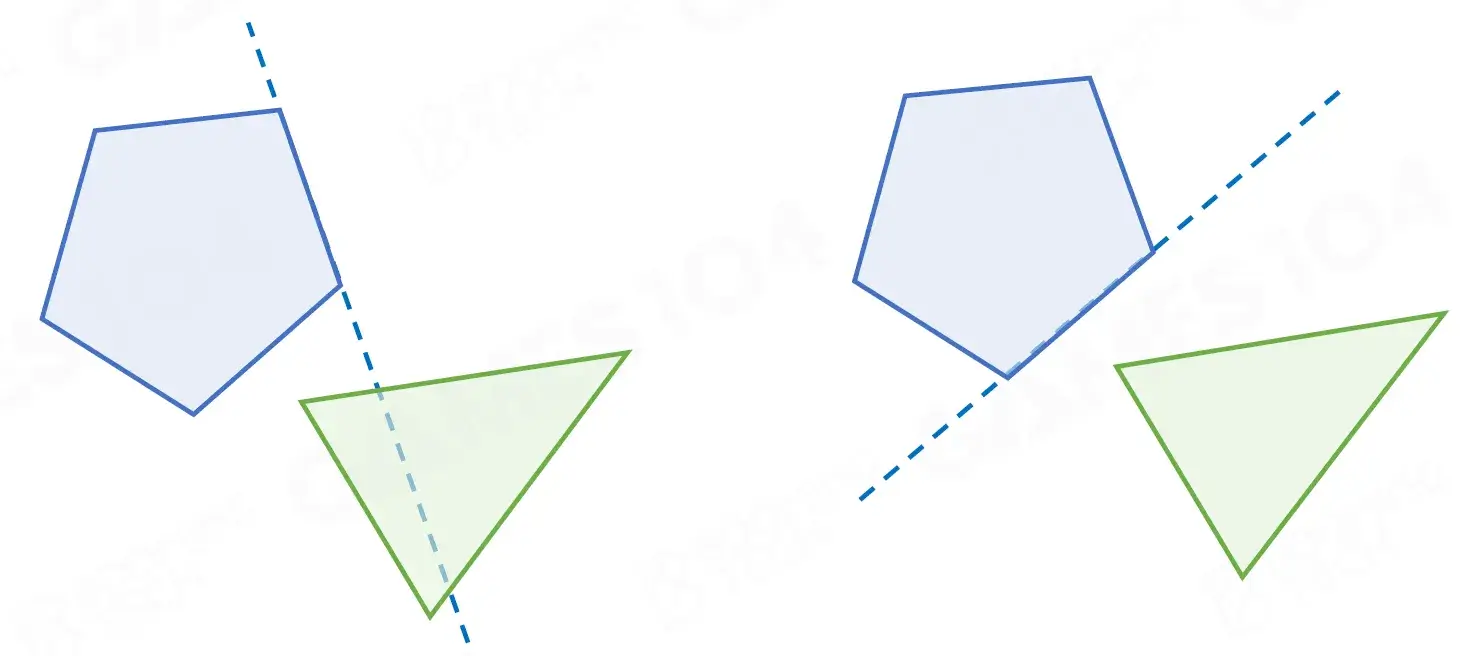

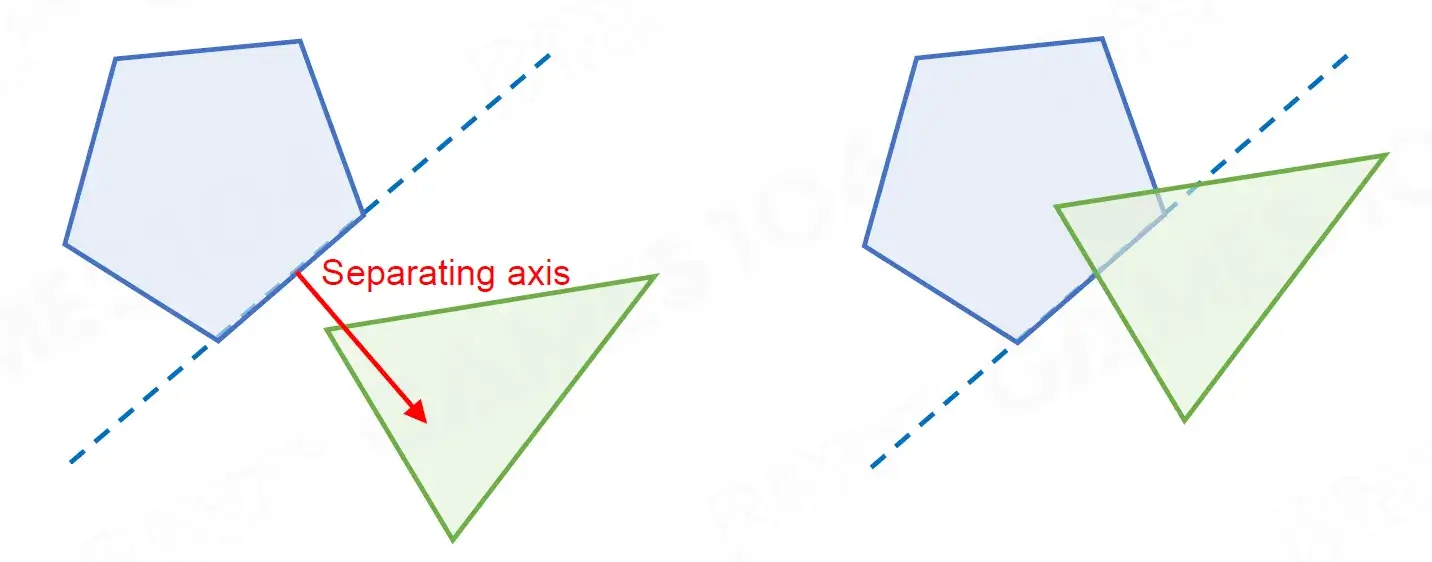

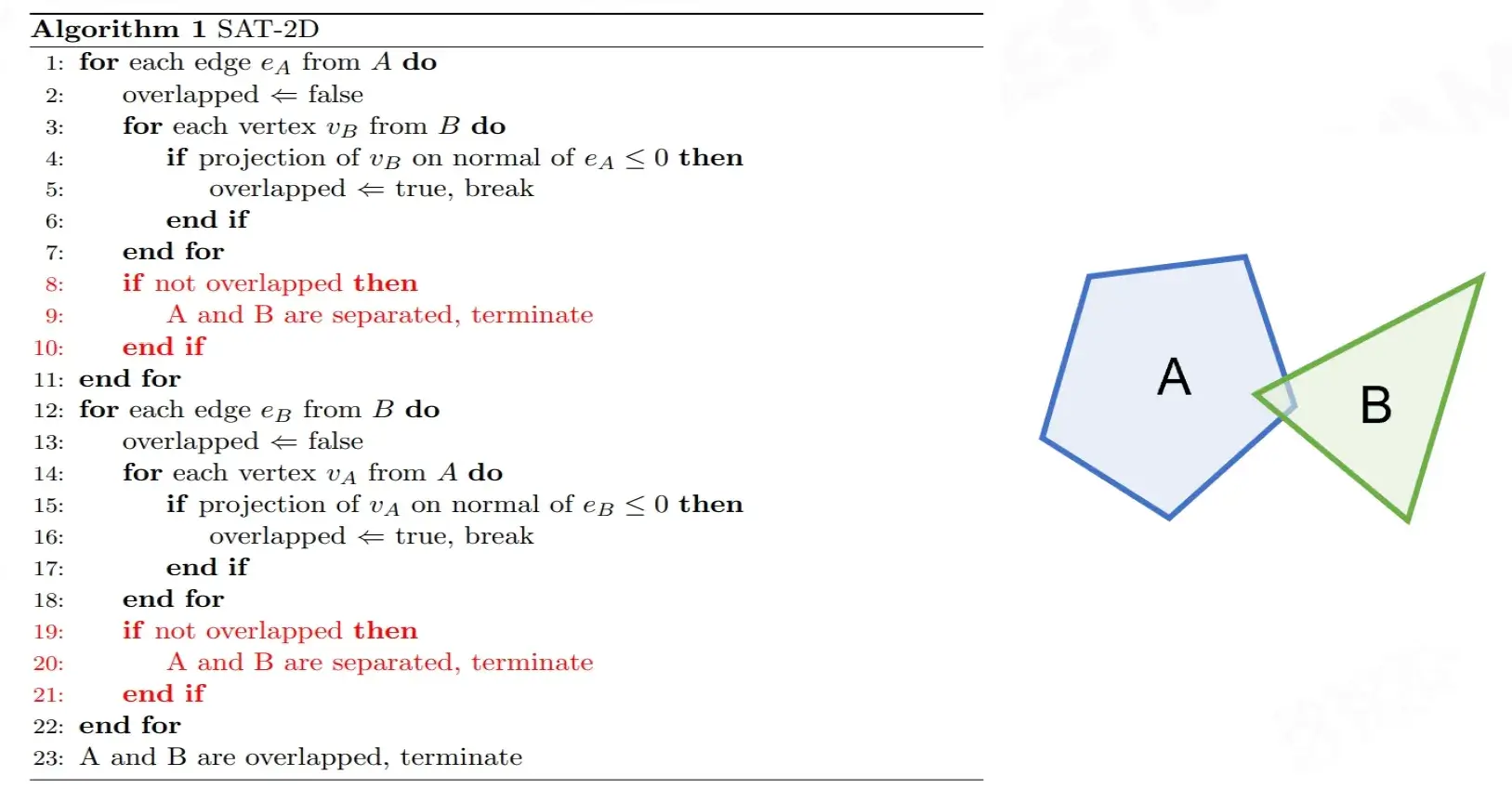

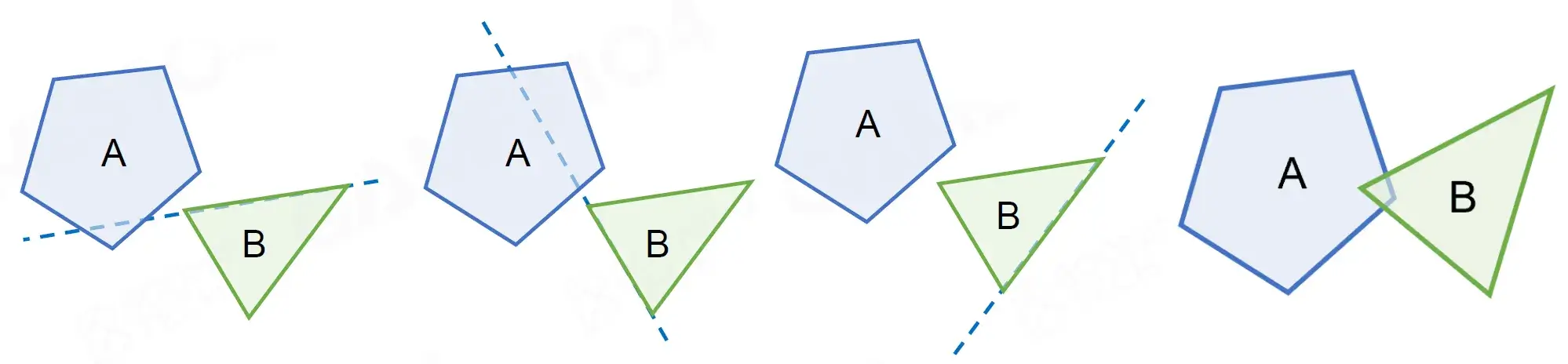

- Separating Axis Theorem

  分离轴定理

Basic Shape lntersection Test

基础模型计算物理比较快是因为有专门的公式。

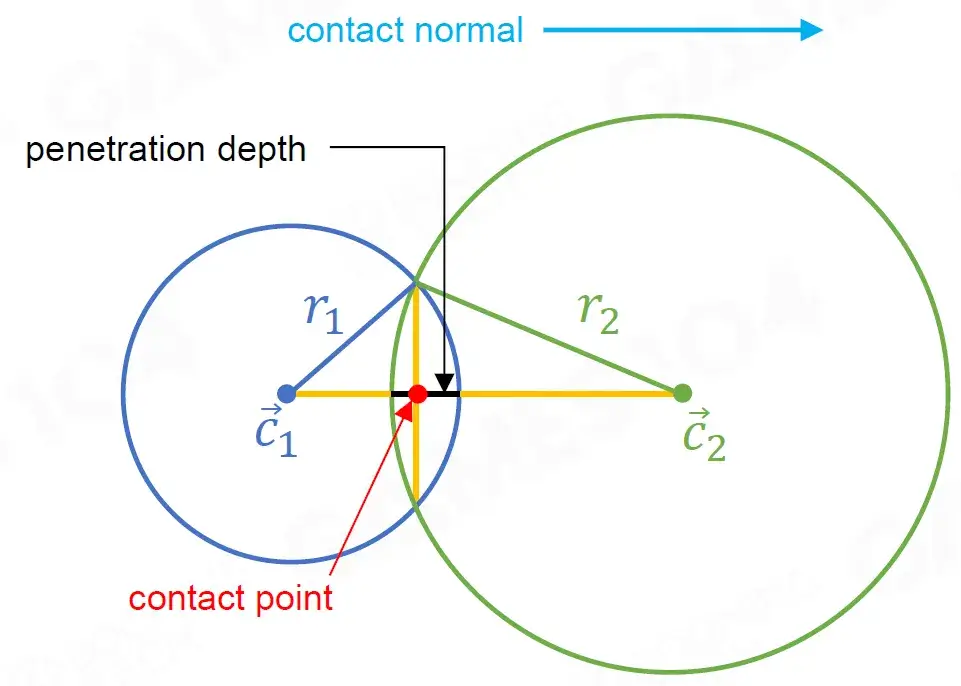

Sphere-Sphere Test

球-球测试

overlap 重叠: $|\vec c_2-\vec c_1|-r_1-r_2\le 0$
contact information 接触信息:
- contact normal 接触法线: $\vec c_2-\vec c_1/|\vec c_2 -\vec c_1|$
- penetration depth 穿透深度: $\vec c_2-\vec c_1|-r_1-r_2$

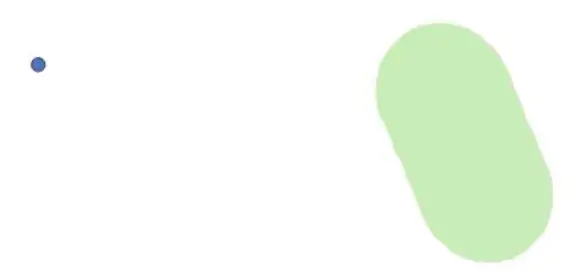

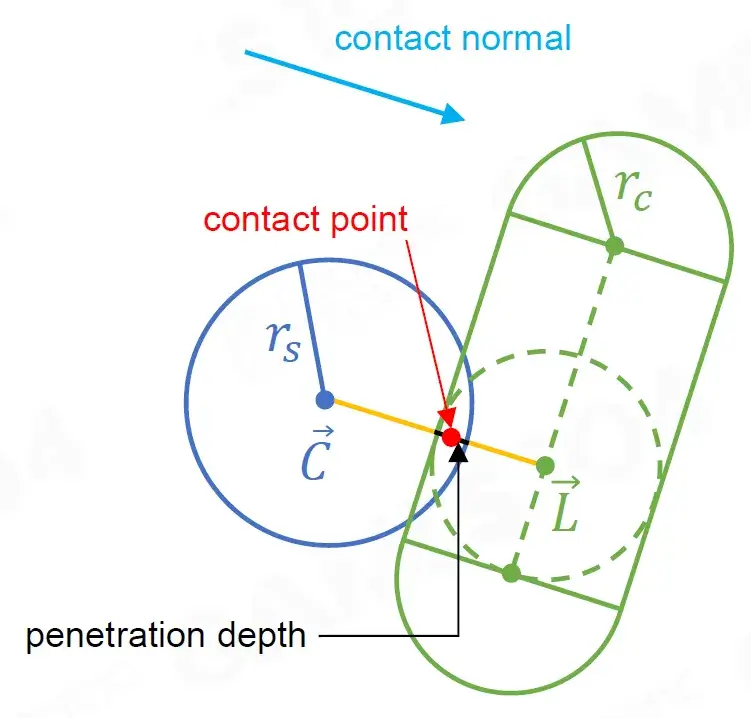

Sphere-Capsule Test

球体胶囊测试

$\vec L$ is the closest point on the inner capsule segment

$\vec L$ 是内胶囊段上的最近点

overlap 重叠: $|\vec C-\vec L|-r_S-r_C\le 0$
contact information 接触信息:
contact normal 接触法线: $\vec L-\vec C/|\vec L-\vec C|$
penetration depth 穿透深度: $|\vec C-\vec L|-r_S-r_C$

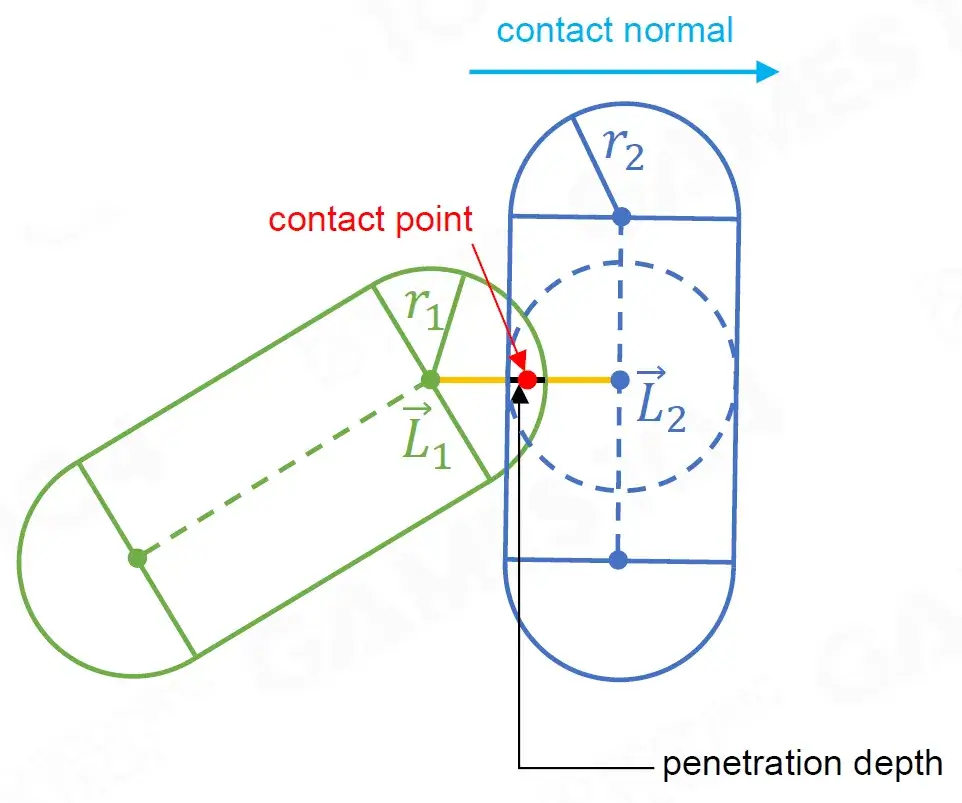

Capsule-Capsule Test

胶囊-胶囊测试

$\vec L_1$ , and $\vec L_2$ , are the closest points on the two segments

$\vec L_1$ 和 $\vec L_2$ 是两个段上最接近的点

overlap 重叠: $|\vec L_2-\vec L_1|-r_1-r_2\le 0$

contact normal 接触法线: $\vec L_2-\vec L_1/|\vec L_2-\vec L_1|$

penetration depth 穿透深度: $|\vec L_2-\vec L_1|-r_1-r_2$

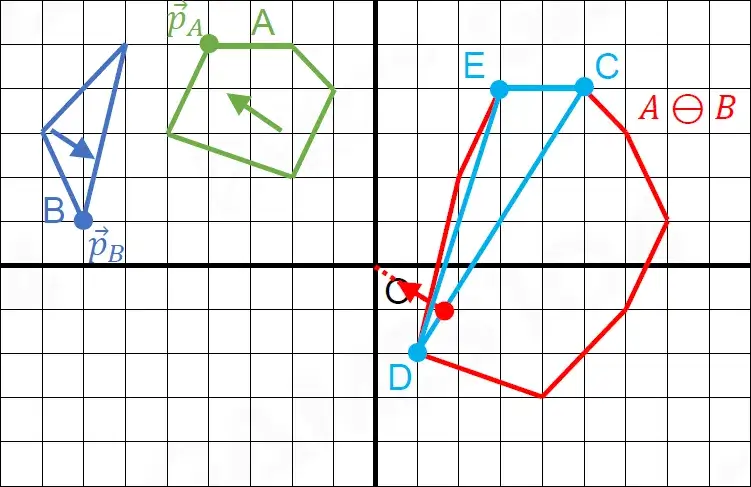

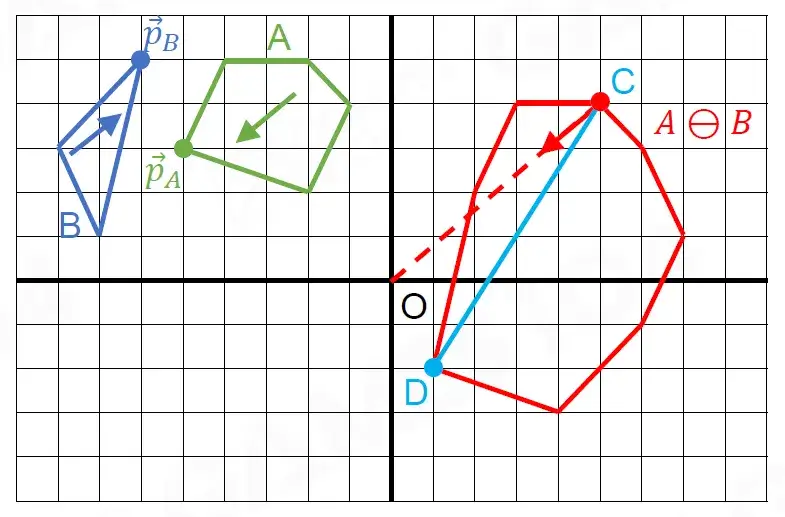

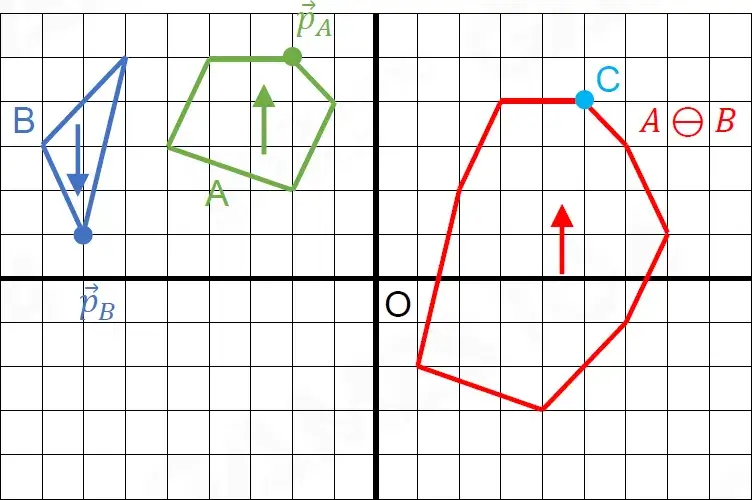

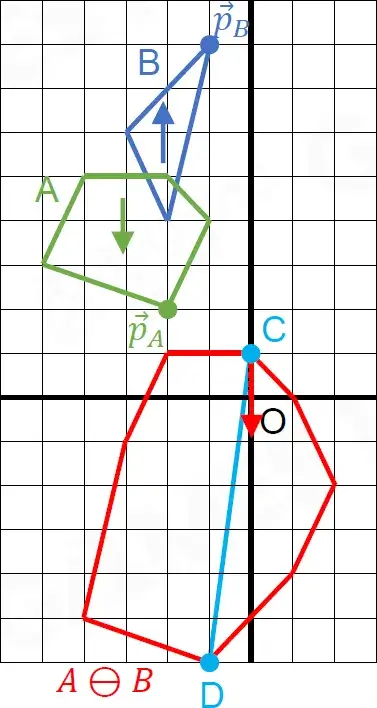

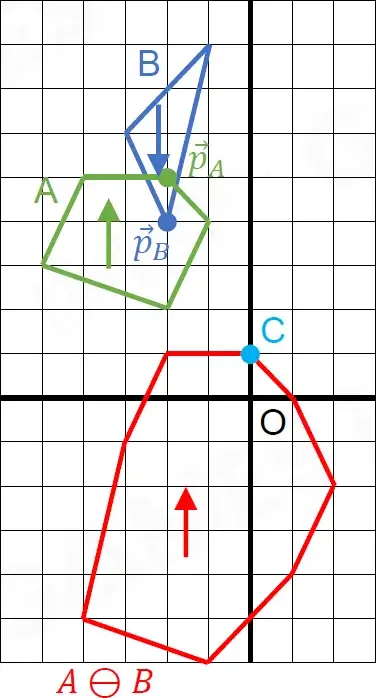

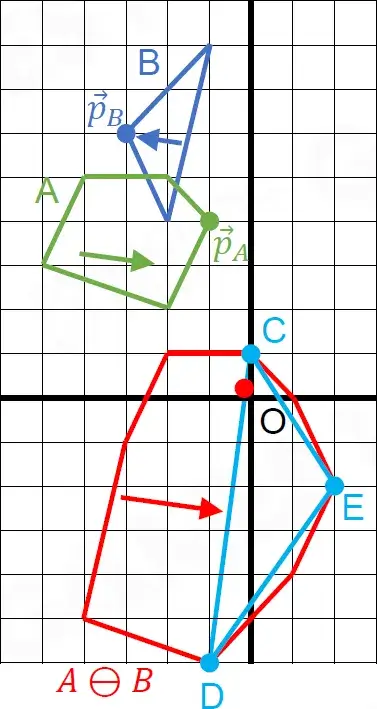

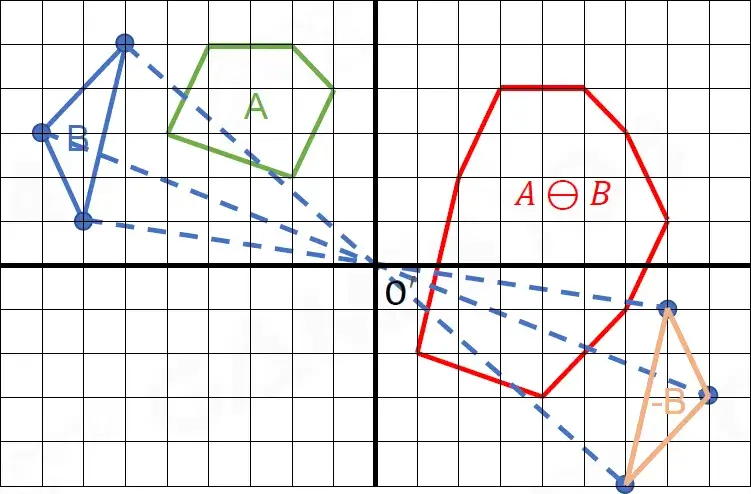

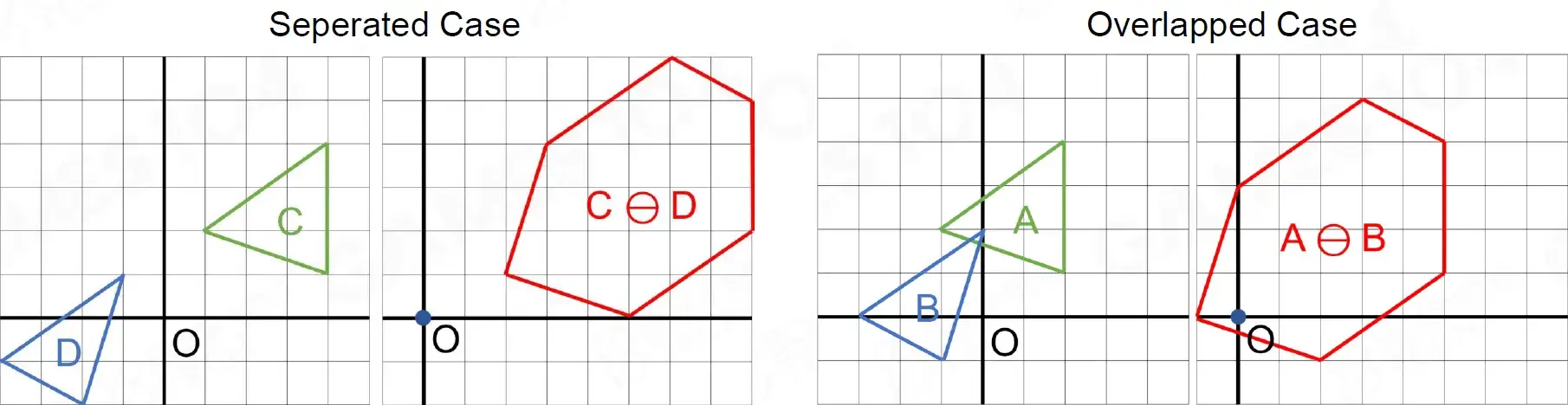

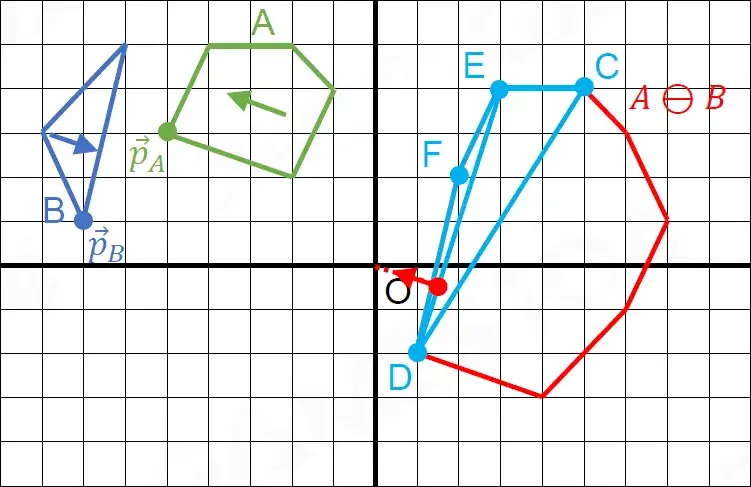

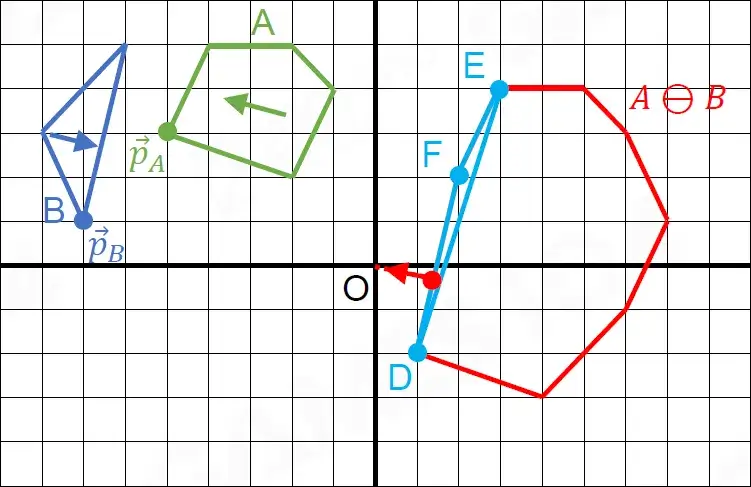

Minkowski Difference-based Methods-concepts

基于闵可夫斯基差异的方法概念

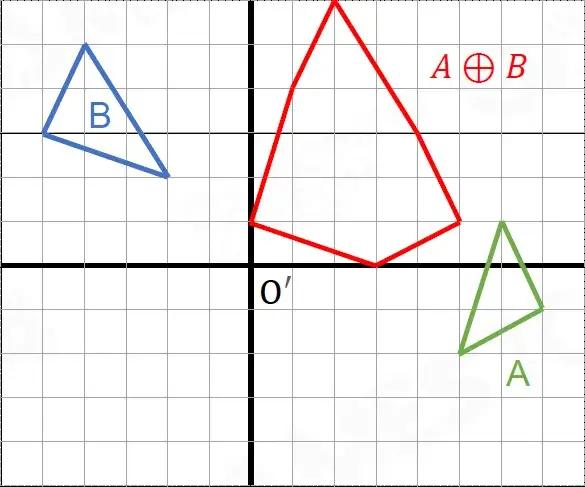

Minkowski Sum

闵可夫斯基

Points from $A$ + Points from $B$ = Points in Minkowski Sum of $A$ and $B$

来自 $A$ 的点 + 来自 $B$ 的点 = $A$ 与 $B$ 的闵可夫斯基和中的点

$A\oplus B=\{\vec{a}+\vec{b}{:}\vec{a}\in A,\vec{b}\in B\}$

$\begin{aligned}&A{:}\{\vec{a}_1,\vec{a}_2\}\\&B{:}\{\vec{b}_1,\vec{b}_2,\vec{b}_3\}\\&A\oplus B=\{\vec{a}_1+\vec{b}_1,\vec{a}_1+\vec{b}_2,\vec{a}_1+\vec{b}_3,\vec{a}_2+\vec{b}_1,\vec{a}_2+\vec{b}_2,\vec{a}_2+\vec{b}_3\}\end{aligned}$

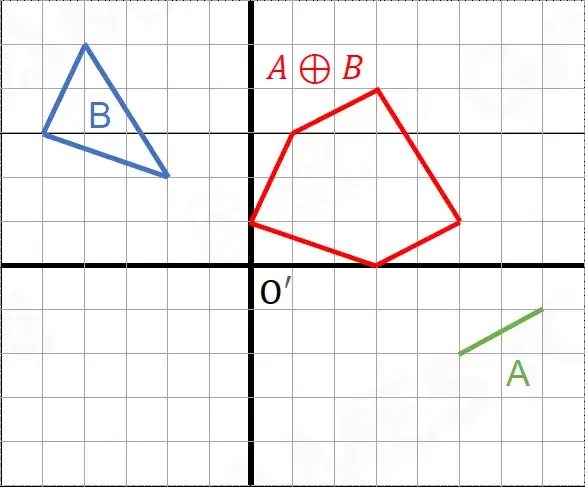

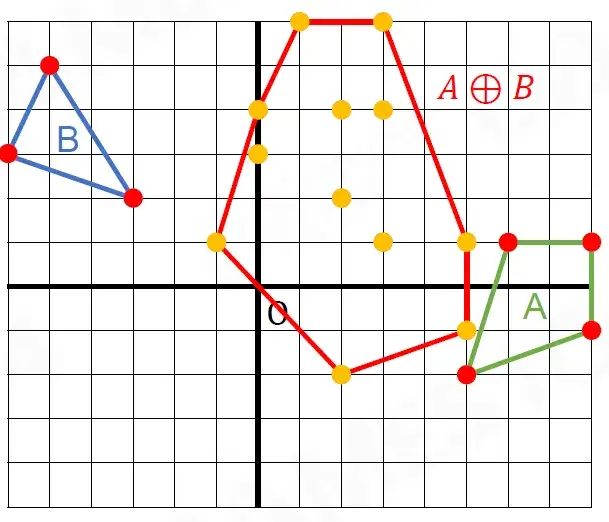

Minkowski Sum

Points from A+ Points from B = Points in Minkowski Sum of A and B

来自 A 的点 + 来自 B 的点 = A 与 B 的 Minkowski 和中的点

$A\oplus B=\{\vec{a}+\vec{b}:\vec{a}\in A,\vec{b}\in B\}$

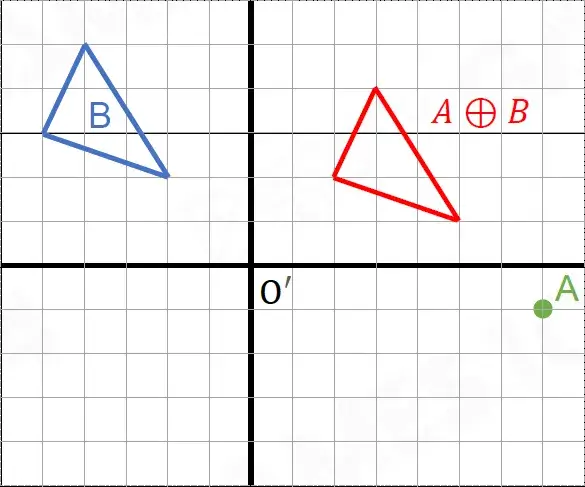

如果 $A$ 是一个点，则 $A\oplus B$ 相当于 $B$ 沿 \overrightarrow{O'A} 移动。

如果 $A$ 是一条线，则 $A\oplus B$ 相当于 $B$ 沿 $A$ 起点移动所形成的三角形再按 $A$ 线条方向再移动……（真难表述）

如果 $A$ 是一个三角形，则 $A\oplus B$ 相当于 $B$ 沿 $A$ 起点移动所形成的三角形再按 $A$ 三角形的逐个线条方向再移动……（真难表述）

Minkowski Sum-Convex Polygons

$A\oplus B=\{\vec{a}+\vec{b}:\vec{a}\in A,\vec{b}\in B\}$

Theorem

定理
- For convex polygons $A$ and $B$ ,

  对于凸多边形 $A$ 和 $B$ ，

  $A\oplus B$ is also a convex polygon

  $A\oplus B$ 也是凸多边形
The vertices of $A\oplus B$ are the sum ofthe vertices of $A$ and $B$

$A\oplus B$ 的顶点是 $A$ 和 $B$ 的顶点之和

Minkowski Difference

闵可夫斯基差

$-B$ 看上去就是 $B$ 的中心对称图形。

Points from $A$ - Points from $B$ = Points in Minkowski Difference of A and $B$

来自 $A$ 的点 - 来自 $B$ 的点 = $A$ 和 $B$ 的闵可夫斯基差中的点

$A\ominus B=\{\vec a-\vec b: \vec a\in A,\vec b\in B\}$
Minkowski sum of $A$ and mirrored $B$

$A$ 和镜像 $B$ 的闵可夫斯基和

$A\ominus B=A\oplus (-B)$

Origin and Minkowski Difference

$A\ominus B=\{\vec a-\vec b:\vec a\in A,\vec b \in B\}$

Same point in $A$ and $B$

$A$ 和 $B$ 中的相同点
The origin is in the Minkowski Difference!

如果重复，则 $A\ominus B$ 必过原点！

GJK Algorithm - Walkthrough (Separation Case)

GJK 算法 - 演练（分离案例）

Determine iteration direction

确定迭代方向
Find supporting points $\vec p_A$ and $\vec p_B$

找到支撑点 $\vec p_A$ 和 $\vec p_B$
Add new point $\vec p_A - \vec p_B$ to iteration simplex on Minkowski difference

在 Minkowski 差分上将新点 $\vec p_A - \vec p_B$ 添加到迭代单纯形中

Determine iteration direction

确定迭代方向
- Check if origin is in the simplex

  检查原点是否在单纯形中
- Find nearest point to origin in the simplex

  在单纯形中查找距离原点最近的点
- If nearest distance reduced, continue iterating

  如果最近距离减小，则继续迭代
Find supporting points $\vec p_A$ and $\vec p_B$

查找支持点 $\vec p_A$ 和 $\vec p_B$
Add new point $\vec p_A-\vec p_B$ to iteration simplex on Minkowski difference

在 Minkowski 差分上将新点 $\vec p_A-\vec p_B$ 添加到迭代单纯形中

Determine iteration direction

确定迭代方向
- Check if origin is in the simplex

  检查原点是否在单纯形中
- Find nearest point to origin in the simplex

  在单纯形中查找距离原点最近的点
- Find nearest distance reduced, continue iterating

  查找距离最近的点，继续迭代
Remove point having no contribution to the new nearest point from simplex

从单纯形中删除对新最近点没有贡献的点
Find supporting points $\vec p_A$ and $\vec p_B$

查找支持点 $\vec p_A$ 和 $\vec p_B$
Add new point $\vec p_A-\vec p_B$ to iteration simplex on Minkowski difference

在 Minkowski 差分上将新点 $\vec p_A-\vec p_B$ 添加到迭代单纯形中

GJK Algorithm-Walkthrough (Overlapped Case)

Determine iteration direction

确定迭代方向
Find supporting points $\vec p_A$ and $\vec p_B$

找到支撑点 $\vec p_A$ 和 $\vec p_B$
Add new point $\vec p_A - \vec p_B$ to iteration simplex on Minkowski difference

在 Minkowski 差分上将新点 $\vec p_A - \vec p_B$ 添加到迭代单纯形中

Determine iteration direction

确定迭代方向
- Check if origin is in the simplex

  检查原点是否在单纯形中
- Find nearest point to origin in the simplex

  在单纯形中查找距离原点最近的点
- If nearest distance reduced, continue iterating

  如果最近距离减小，则继续迭代
Find supporting points $\vec p_A$ and $\vec p_B$

查找支持点 $\vec p_A$ 和 $\vec p_B$
Add new point $\vec p_A-\vec p_B$ to iteration simplex on Minkowski difference

在 Minkowski 差分上将新点 $\vec p_A-\vec p_B$ 添加到迭代单纯形中

Separating Axis Theorem (SAT)-Convexity

分离轴定理 (SAT)-凸性

Edges can separate two convex polygons due to convexity

由于凸性，边可以分离两个凸多边形

Separating Axis Theorem(SAT)-Necessity for overlapping

分离轴定理 (SAT)-重叠的必要性

An edges failed to separate the polygons is not sufficient for overlapping

无法分离多边形的边不足以重叠
All edges must be checked until a separating axis is found

必须检查所有边，直到找到分离轴

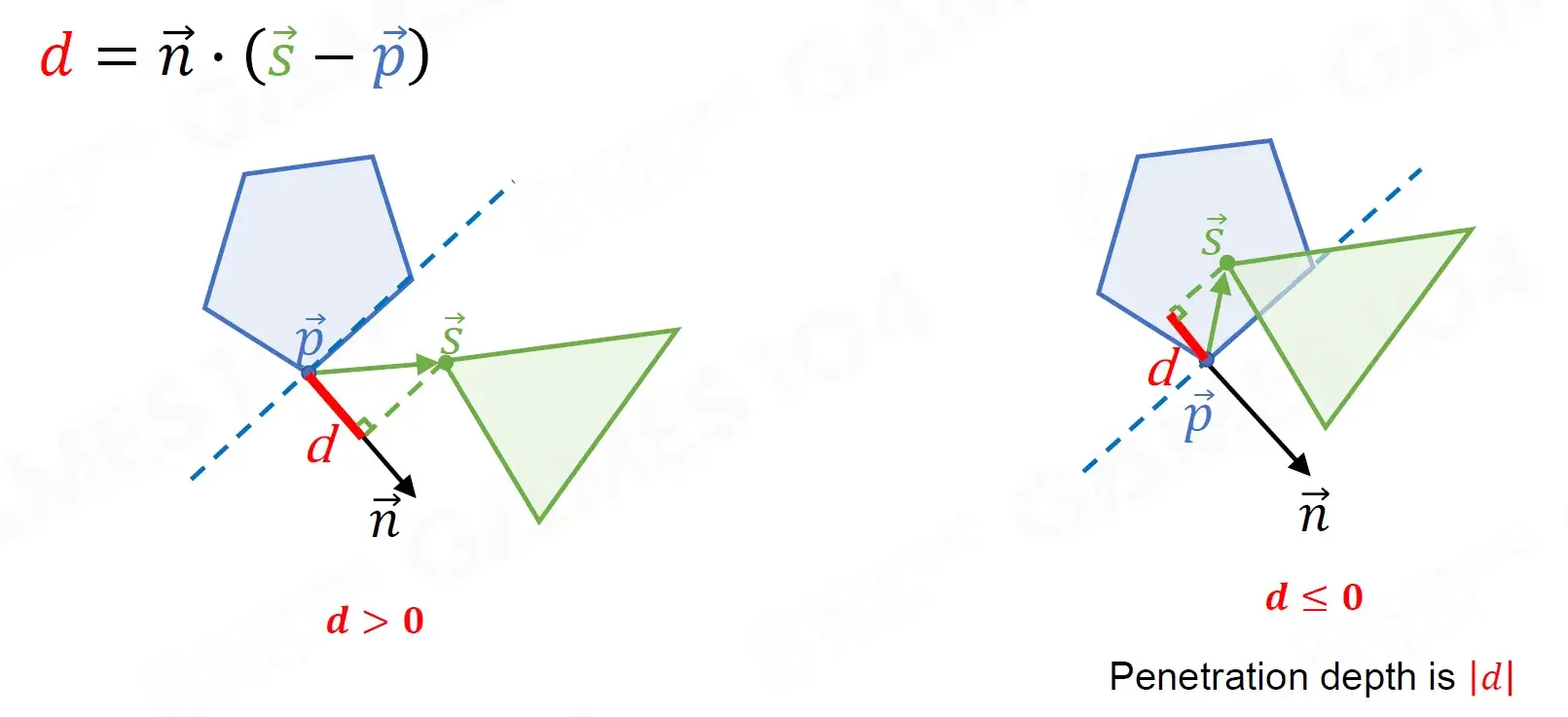

Separating Axis Theorem(SAT)-Separating Criteria

分离轴定理 (SAT)-分离标准

Separating Axis Theorem(SAT) - 2D Case

分离轴定理 (SAT) - 2D 案例

Check edges from $A$ and vertices from $B$

检查来自 $A$ 的边和来自 $B$ 的顶点
Check vertices from $A$ and edges from $B$

检查来自 $A$ 的顶点和来自 $B$ 的边

All edges from B failed

Separating Axis Theorem(SAT)-Optimization for 2D Case

分离轴定理 (SAT)-二维情况的优化

Check edges from A and vertices from B

检查来自 A 的边和来自 B 的顶点
Check vertices from A and edges from B

检查来自 A 的顶点和来自 B 的边

Optimization

优化

Cache the last separating axis

缓存最后一个分离轴

Separating Axis Theorem (SAT)-3D Case

分离轴定理 (SAT)-3D 案例

Check faces from A and vertices from B

检查来自 A 的面和来自 B 的顶点
- Separating axis: face normals of A

  分离轴：A 的面法线
Check vertices from A and faces from B

检查来自 A 的顶点和来自 B 的面
- Separating axis: face normals of B

  分离轴：B 的面法线
Check edges from A and edges from B

检查来自 A 的边和来自 B 的边
- Separating axis: cross product of two edges

  分离轴：两个边的交叉积

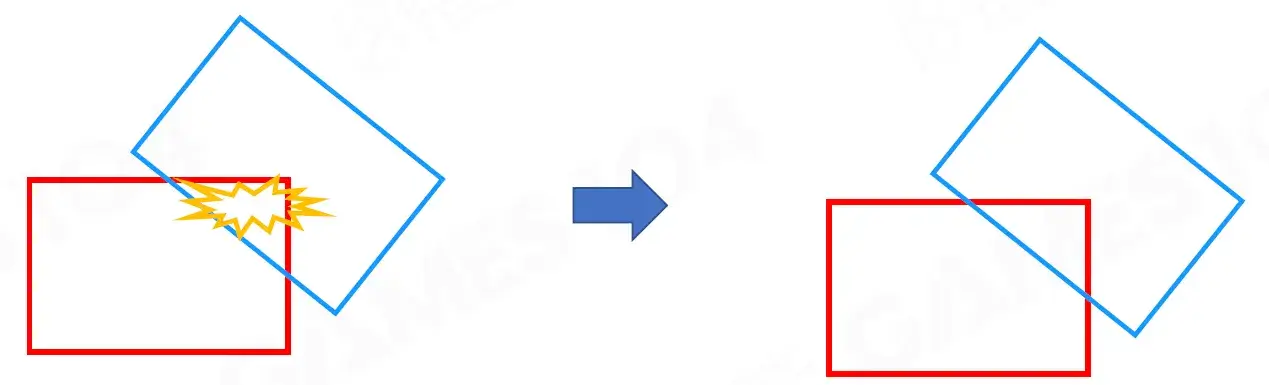

Collision Resolution

碰撞解决

Collision Resolution

We have determined collisions precisely

我们已经精确地确定了碰撞
We have obtained collision information

我们已经获得了碰撞信息
Next, let’s deal with collision resolution

接下来，让我们处理碰撞解决

Approaches

方法（当物体发生碰撞时，执行操作）

Three approaches

三种方法
- Applying Penalty Force

  施加惩罚力
- Solving Velocity Constraints

  解决速度约束
- Solving Position Constraints (will be covered in the next lecture)

  解决位置约束（将在下一讲中介绍）

Applying Penalty Force

应用惩罚力

Rarely used in games

游戏中很少使用
Large forces and small time steps are needed to make colliding actors look rigid

需要较大的力和较小的时间步长来使碰撞的演员看起来僵硬

Solving Constraints

解决约束

Modelling constraints based on Lagrangian mechanics

基于拉格朗日力学的建模约束
- Collision constraints

  碰撞约束
  - Non-penetration

    非穿透
  - Restitution

    恢复
  - Friction

    摩擦
lterative solver

迭代求解器

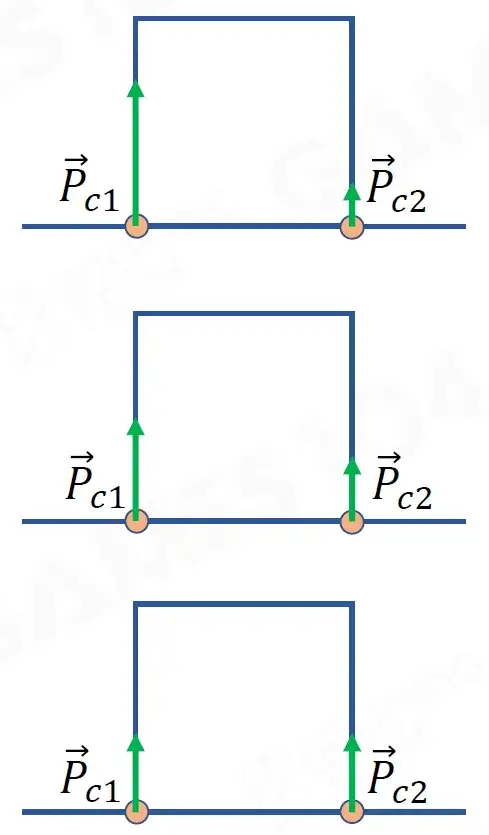

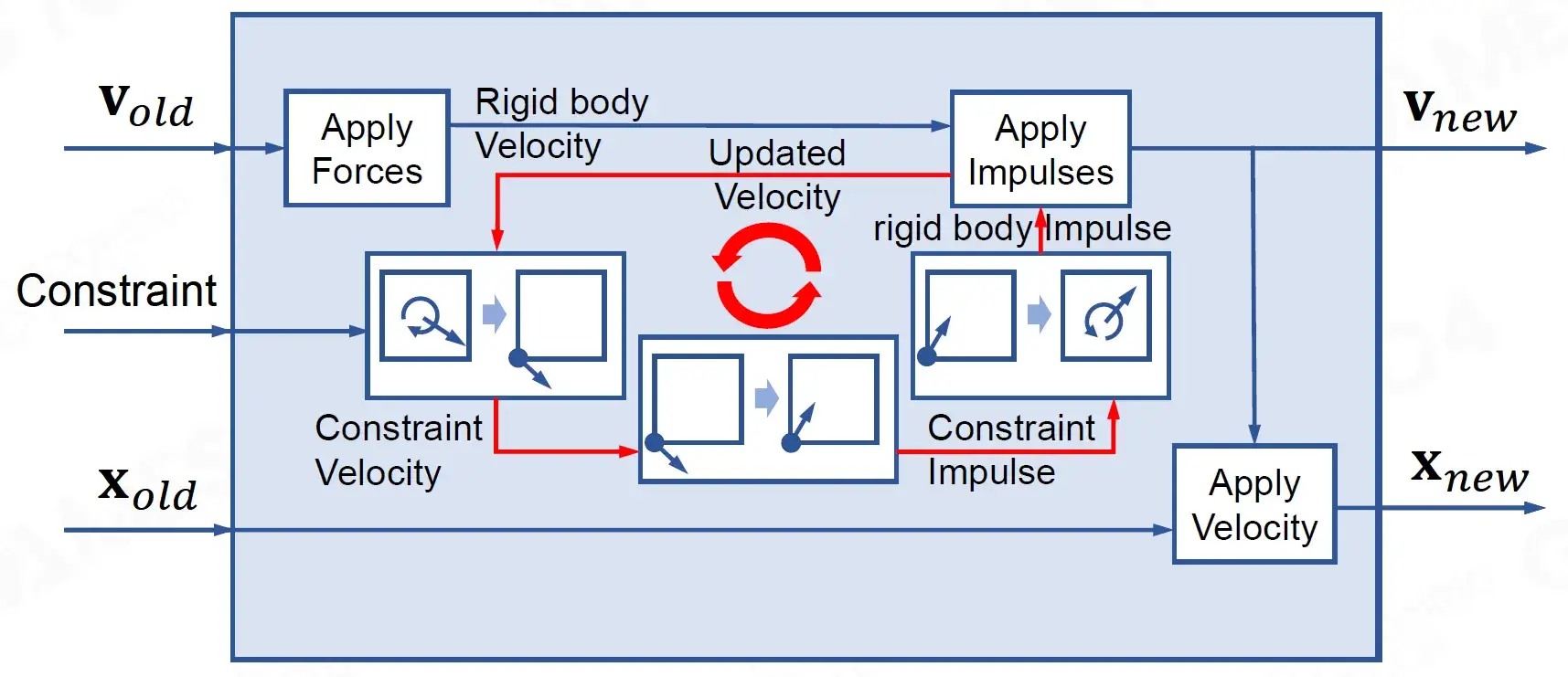

Solving Velocity constraints

解决速度约束

Approaches:

方法：

Sequential impulses

顺序脉冲
Semi-implicit integration

半隐式积分
Non-linear Gauss-Seidel Method

非线性高斯-赛德尔方法

Characteristics:

特点

Fast, stable for most cases

大多数情况下快速、稳定
Commonly used in most physics engines

大多数物理引擎中常用

Scene Query

场景查询

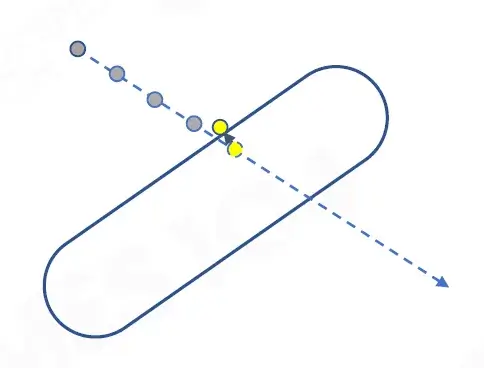

Raycast

射线投射

Intersect a user-defined ray with the whole scene

将用户定义的射线与整个场景相交
Point, direction, distance and query mode can be defined

可以定义点、方向、距离和查询模式

Mutiple hits

looks for all blocking hits, picks the one with the minimum distance多次命中寻找所有阻挡命中，选择距离最小的命中
Closest hit

looks for all blocking hits

最近命中寻找所有阻挡命中
Any hit

any hit encountered will do

遇到的任何命中都可以

Sweep

扫描

Geometrically similar to raycast

几何形状类似于射线投射
Shape and pose can be defined

可以定义形状和姿势
Box, sphere, capsule and convex

盒子、球体、胶囊和凸面

Overlap

Search a region enclosed by a specified shape for any overlapping objects in the scene

在特定形状所包围的区域中搜索场景中任何重叠的物体
Box, sphere, capsule and convex

盒子、球体、胶囊和凸面

Collision Group

碰撞组

Actor has a collision group property

Actor 具有碰撞组属性

Player: Pawn

玩家：Pawn

Obstacle: Static

障碍物：静态

Movable box: Dynamic

可移动框：动态

Trigger box : Trigger

触发框：触发器

…

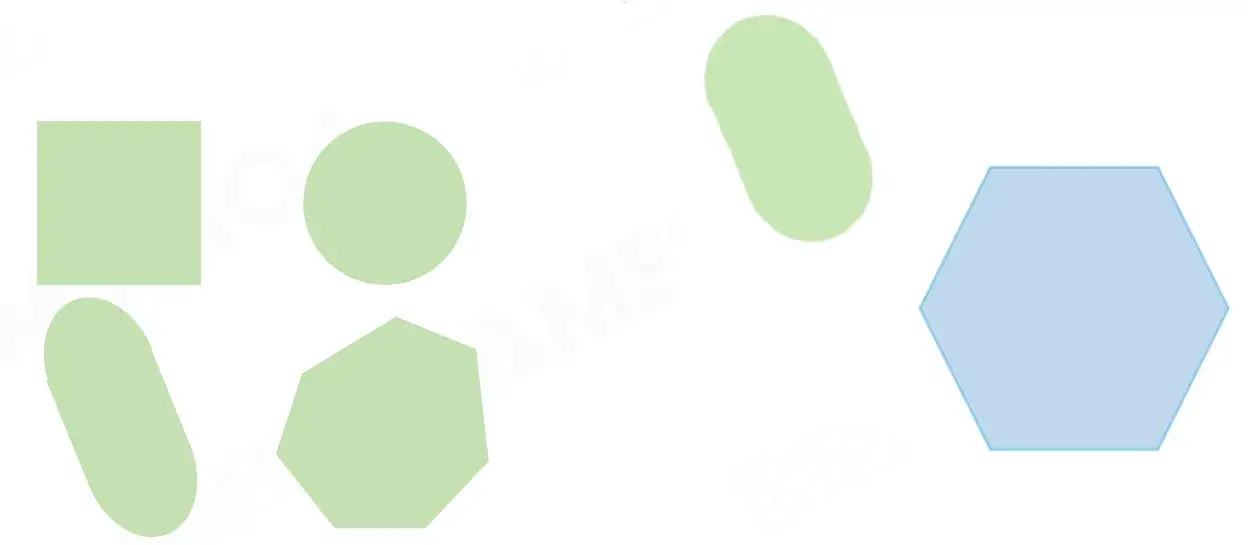

Scene query can filter collision groups

场景查询可以过滤碰撞组

Player moving query collision group:

玩家移动查询碰撞组：

(Pawn, Static, Dynamic)

（Pawn、静态、动态）

Trigger query collision group.

触发查询碰撞组。

(Pawn)

Efficiency, Accuracy, and Determinism

效率、准确性和确定性

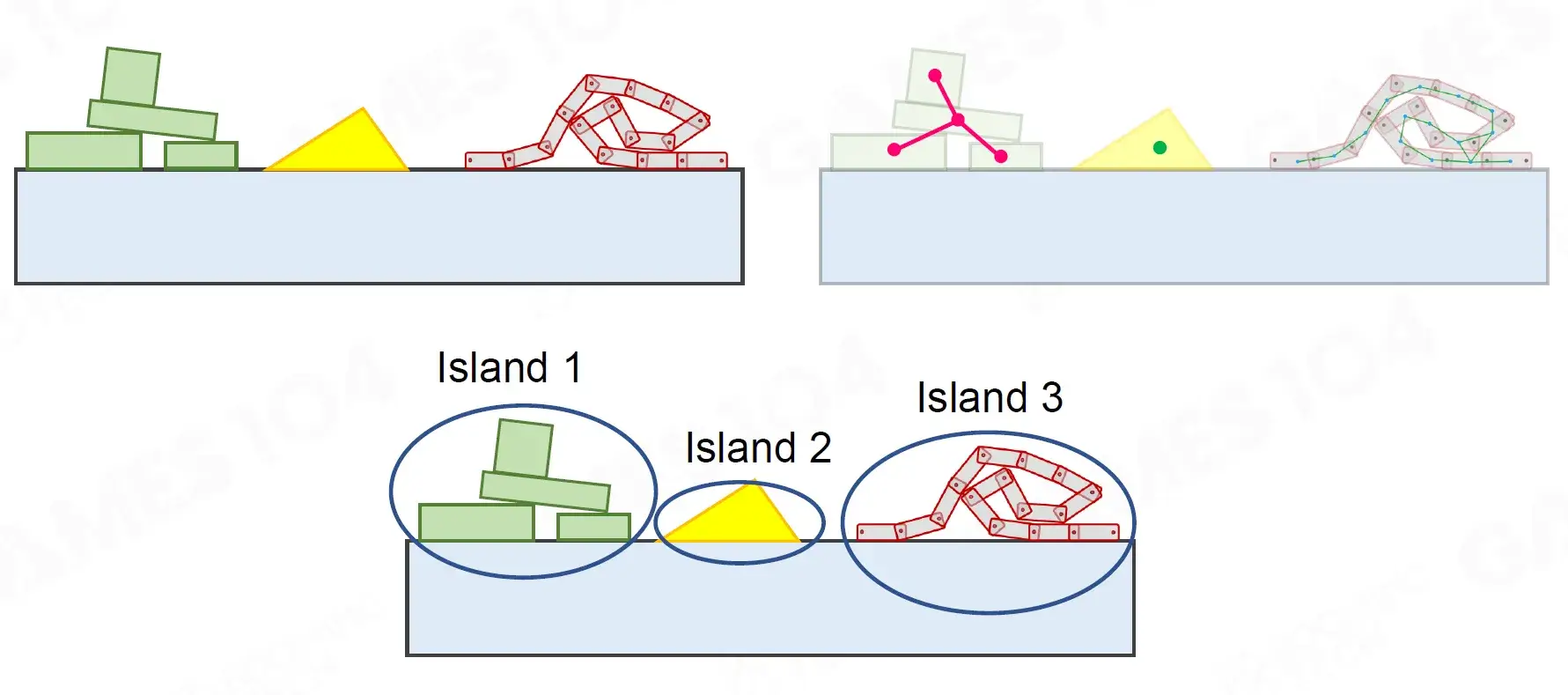

Simulation Optimization - Island

仿真优化

将不常用的物体组合在一起，减少运算量。

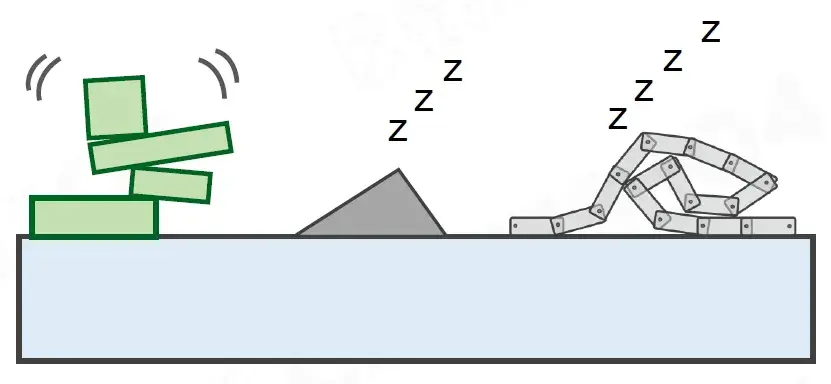

Simulation Optimization - sleeping

Simulating and solving all rigid bodies uses lots of resources

模拟和解决所有刚体需要大量资源
Introducing sleeping

引入休眠
- A rigid body does not move for a period of time

  刚体在一段时间内不会移动
- Until some external force acts on it

  直到有外力作用于它

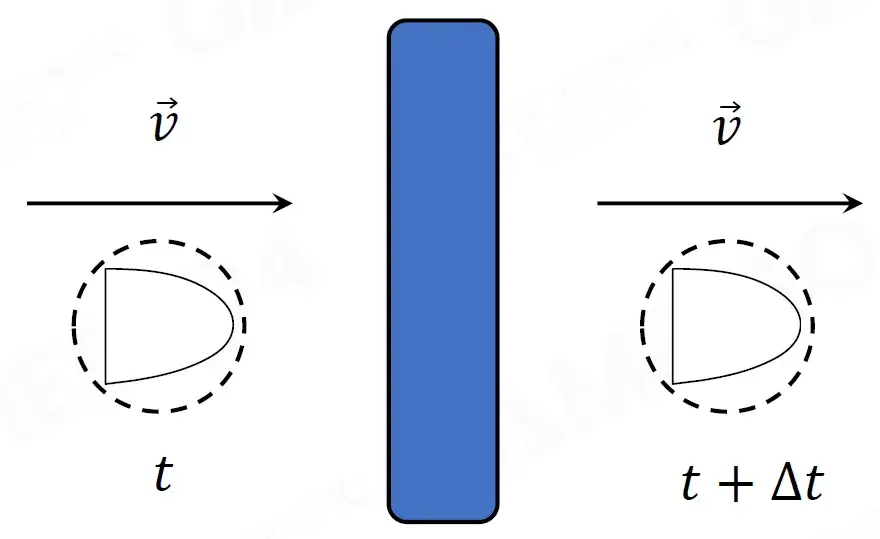

Continuous Collision Detection

碰撞盒太小，速度太快，导致帧与帧之前没有发生碰撞，直接穿过碰撞盒。就要引入 Continuous Collision Detection

Thin obstacle vs. fast moving actors

细小障碍物与快速移动的行动者
Tunneling

隧穿效应

Solution to tunnelling

隧穿解决方案

Let it be-some thing unremarkable

顺其自然吧——一些平凡的事

Make the floor thicker- boundary air wall

使地板更厚-边界空气墙

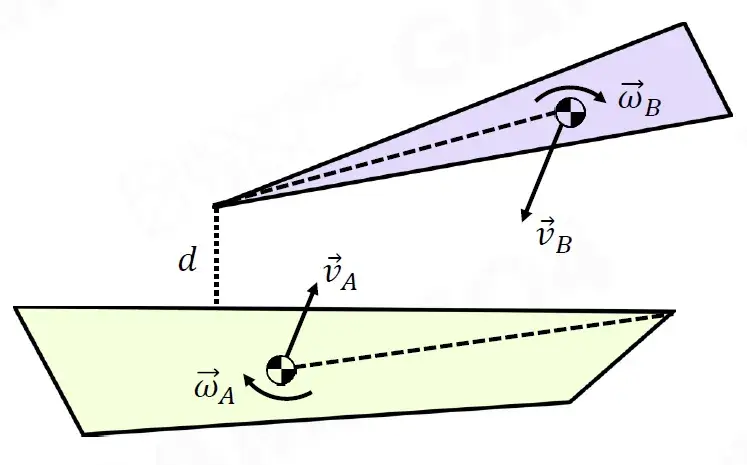

Time-of-lmpact (TOl) - Conservative advancement

撞击时间 (TOl) - 保守推进
- Estimate a “safe” time substep A and B won’t collide

  估计 A 和 B 不会发生碰撞的“安全”时间子步
- Advance A and B by the “safe” substep

  将 A 和 B 推进“安全”子步
- Repeat until the distance is below a threshold

  重复，直到距离低于阈值

Deterministic Simulation

确定性模拟

如果输入相同，则保证物理模拟的输出相同。这很难。

Multiplayer game with gameplay-impacting physics

具有影响游戏玩法的物理特性的多人游戏
Small error causes butterfly effect

小错误会引起蝴蝶效应
Synchronizing states requires bandwidth

同步状态需要带宽
Synchronizing inputs requires deterministic simulations

同步输入需要确定性模拟

Same old states + same inputs = same new states

相同的旧状态 + 相同的输入 = 相同的新状态

Requirements

要求

Fixed step of physics simulation

物理模拟的固定步骤
Deterministic simulation solving sequence

确定性模拟求解序列
Float point consistency

浮点一致性

第十一节：物理系统：高级应用

Physics System: Applications

Character Controller

Character Controller vs. Rigid Body Dynamics

角色控制器与刚体动力学的区别

Controllable rigid body interaction

可控刚体相互作用
Almost infinite friction / No restitution

几乎无限的摩擦/无恢复
Accelerate and brake change direction almost instantly and teleport

加速和制动几乎立即改变方向并传送

Legacy Hack in Character Control

角色控制中的遗留 hack

对于早期没有物理引擎的游戏或是一些物理引擎难以模拟的特殊场景，都是使用 Hack（具体问题用具体代码解决）。

A lot of carefully tweaked values provide a good feeling

大量经过精心调整的数值带来良好的感觉
Legacy code in the industry

行业中的遗留代码

Build a Controller in Physics System

在物理系统中构建控制器

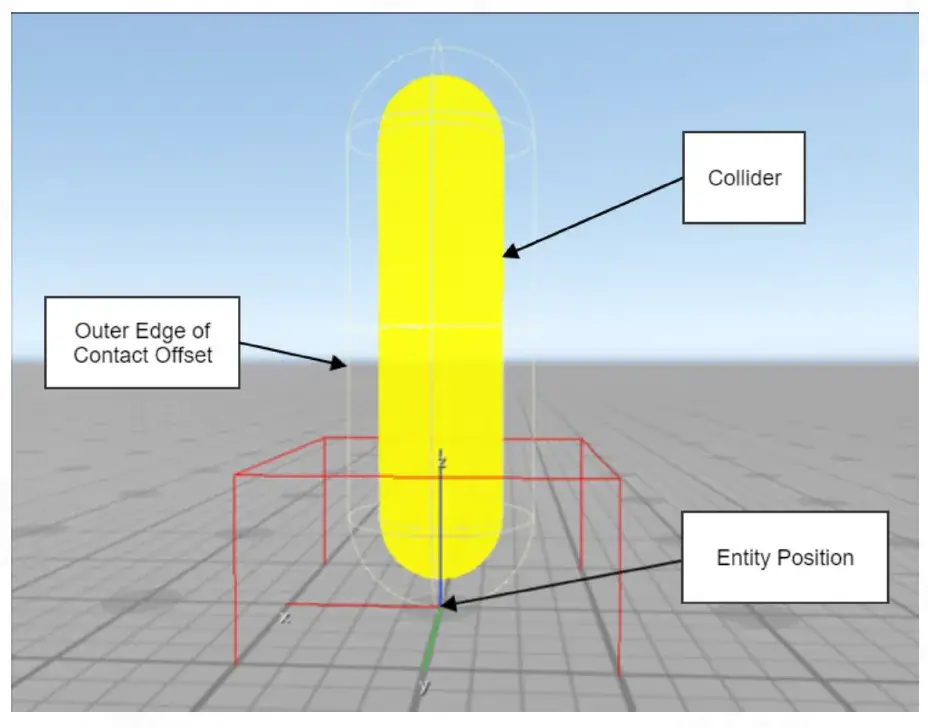

一般用两个胶囊体来表示人物的碰撞。

Outer Edge of Contant Offset

接触外缘偏移，给 Collider 预留一个缓冲，防止摄影机穿墙等 bug。
Collider
Entity Position

实体位置，胶囊体底部。

Kinematic Actor
- Not affected by physics rules

  不受物理规则影响
- Push other objects

  推动其他物体
Shape: Humanoids

形状：人形
- Capsule

  胶囊
- Box

  盒子
- Convex

  凸面

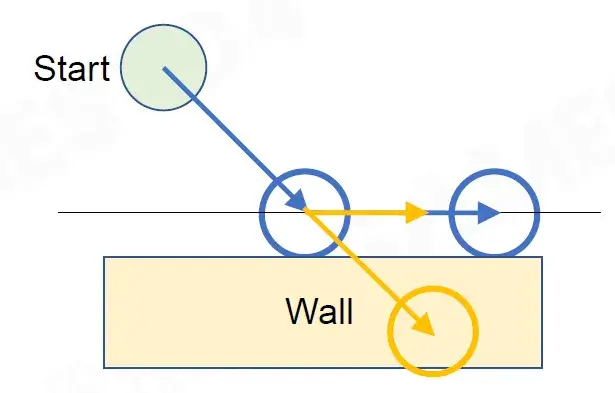

Collide with environment

玩家斜着往墙上撞，沿着墙壁方向移动

Collision detection with environment

与环境的碰撞检测
- Sweep test

  扫描测试
Auto slide with wall

自动沿墙移动
- Calculate tangent direction

  计算切线方向
- Move along tangent direction

  沿切线方向移动

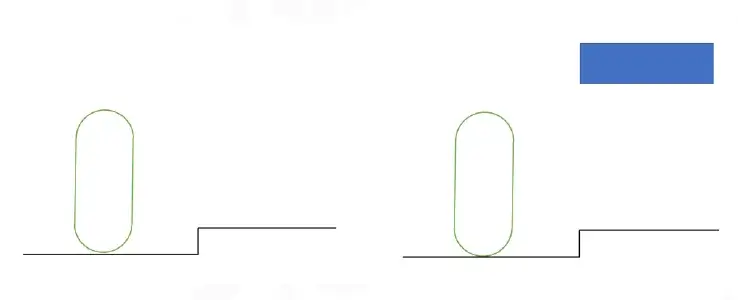

Auto Stepping and its Problem

自动步进及其问题

玩家能够自动爬楼梯。

Sweep with step offset

步进偏移扫描
Virtual gap

虚拟间隙

Slope Limits and Force Sliding Down

坡度限制和强制下滑

Max climb slopes

最大爬坡坡度
Slide down on steep slopes

在陡坡上下滑

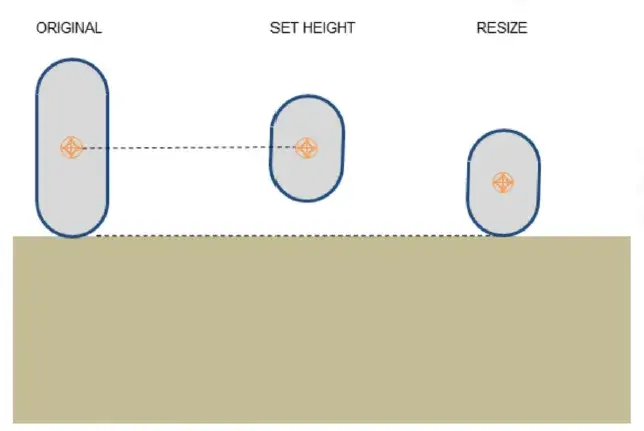

Controller Volume Update

控制器体积更新

Change the controller volume size at runtime,

在运行时更改控制器体积大小，

e.g.crouching

例如蹲伏
Overlap test before update to avoid insertion inside objects

更新前进行重叠测试，以避免插入物体内部

Controller Push Objects

控制器推动对象，顶着某些物体前进

Hit Callback when character controller collides with dynamic actor

当角色控制器与动态角色发生碰撞时触发回调
Apply force to dynamic actor

对动态角色施加力量

Standing on Moving Platform

站在移动平台上

这个问题自己还遇到过……玩家站在水平移动的平台上，并不会因摩擦力而随着平台移动，站在竖直移动的平台上，出于计算延迟会一跳一跳的，需要 Hack（如判定在平台上时，将玩家和平台视作是一个整体）。

Ragdoll

Why Should We Use Ragdoll

传统的动画是不考虑地形的，引入布娃娃系统，给人物的动画引入物理因素，使得动画更加真实。

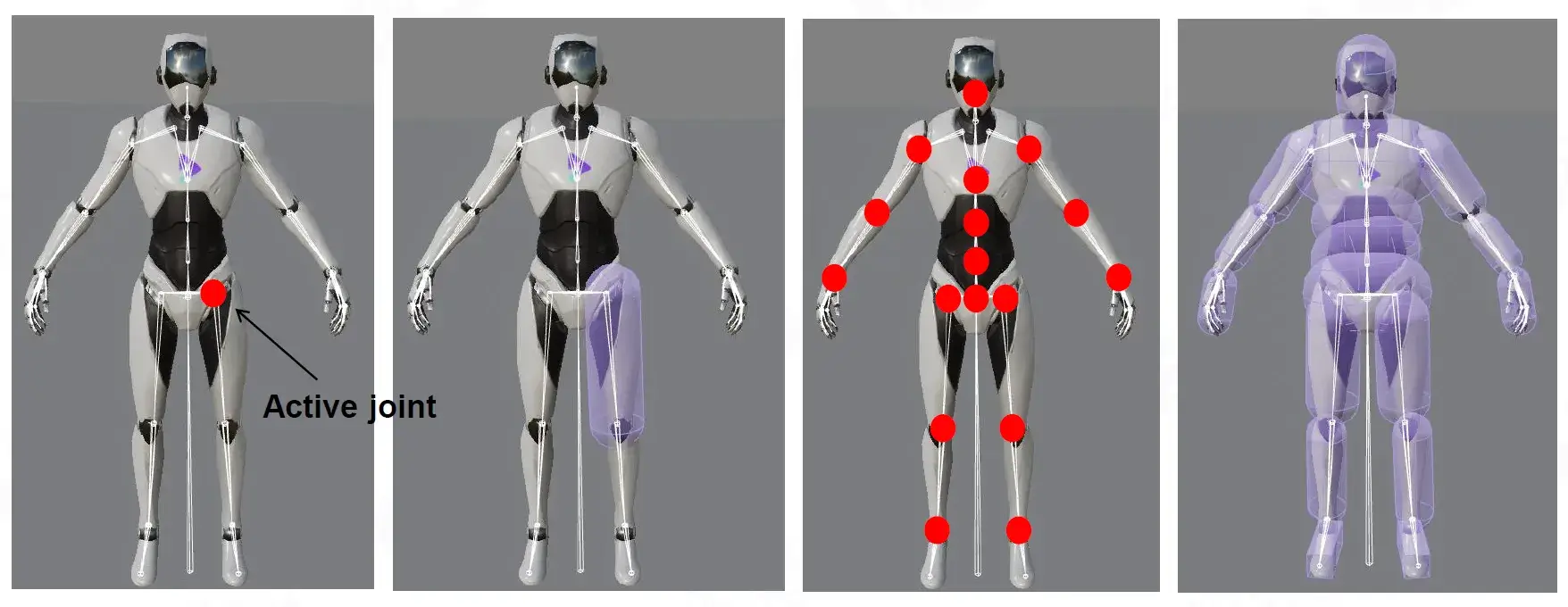

Map Skeleton to Rigid Bodies

将骨架映射到刚体

Bind key joints with rigid bodies

将关键关节与刚体绑定

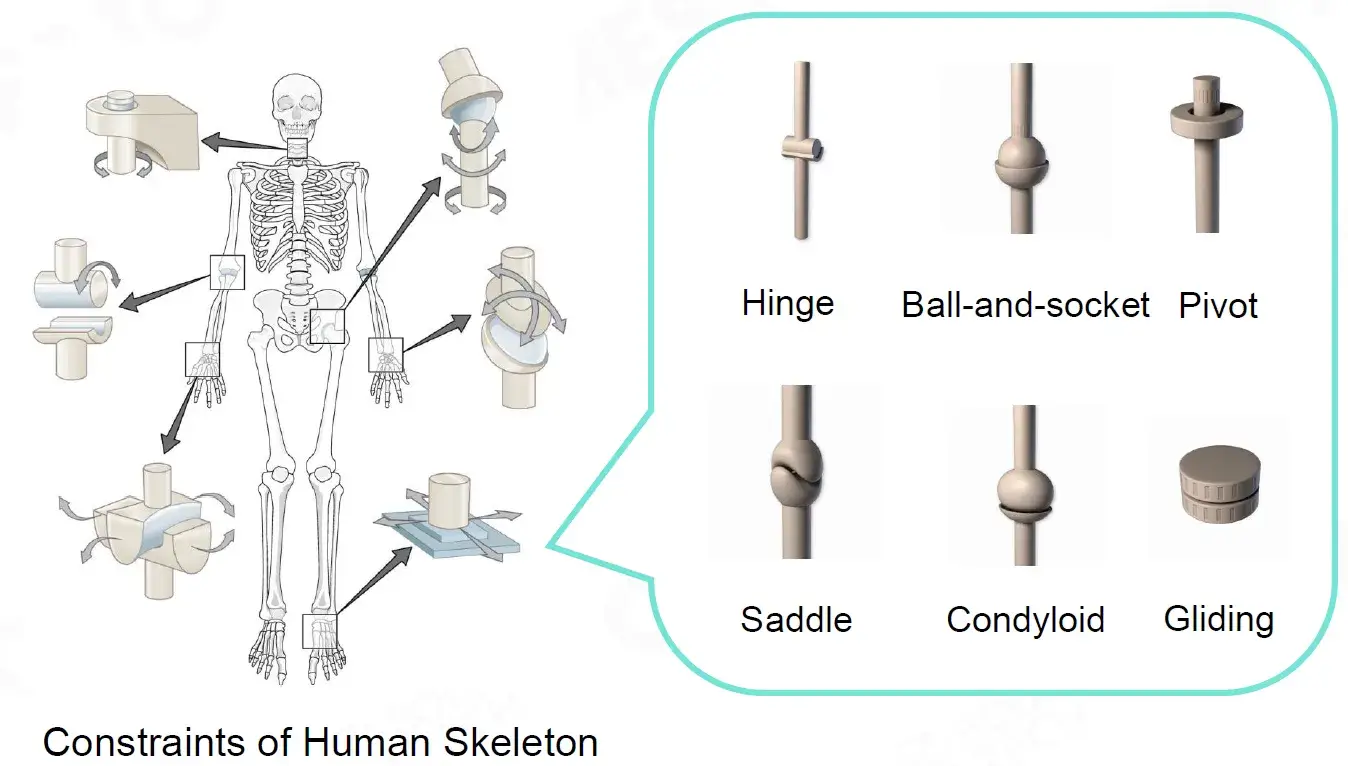

Human joint Constraints

人体关节约束

Various constraints

各种约束

Ball-and-socket

球窝关节
Hinge

铰链
Pivot

枢轴
Condyloid

踝状关节
Saddle

鞍状关节
Gliding

滑动
…

Importance of yoint Constraints

关节约束的重要性

The constraints should match the anatomical skeleton

约束应与解剖骨架相匹配，不然就不真实了。

Constraints-Properties

约束-属性

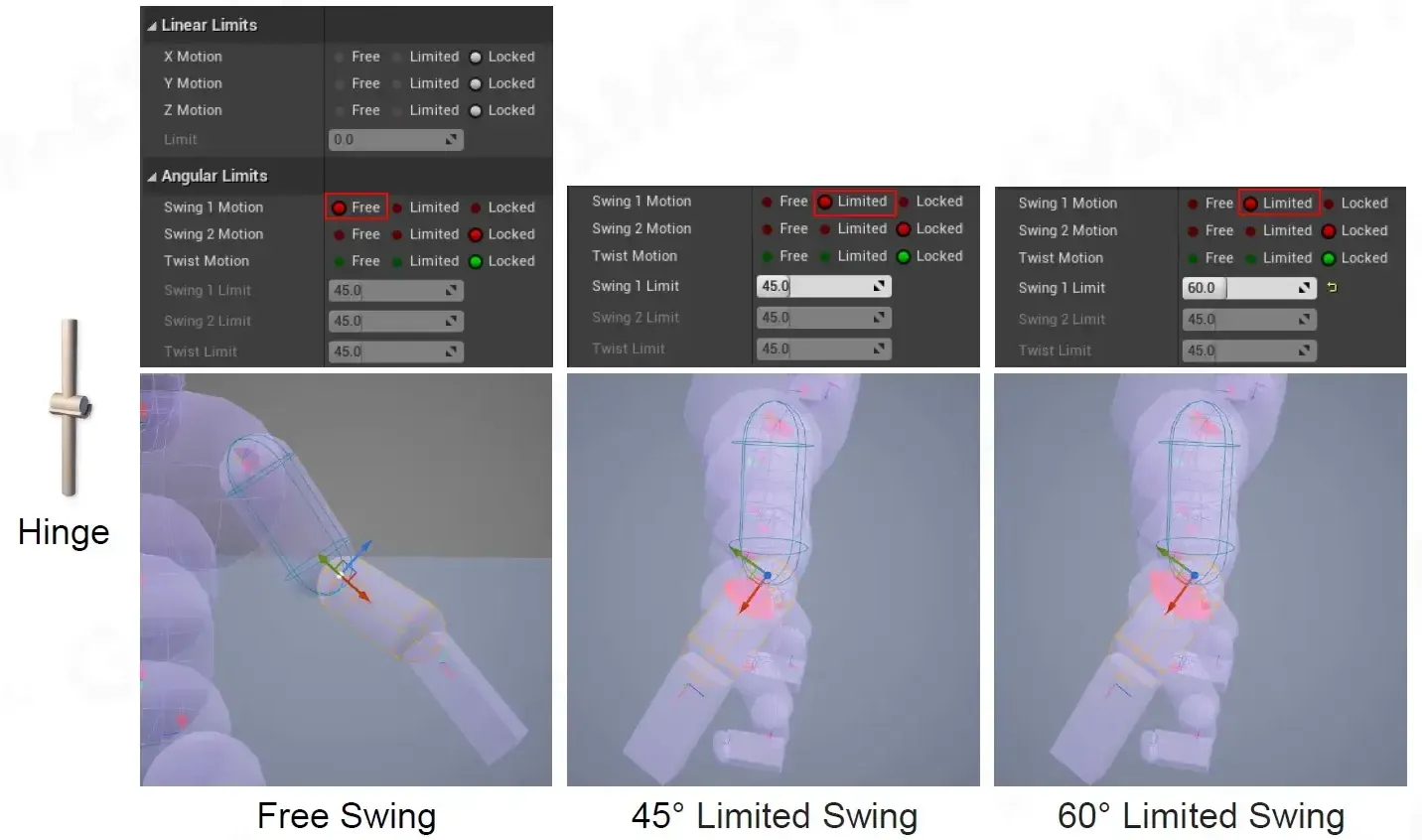

Case: Hinge Constraint

案例：铰链约束

目前虚幻引擎就有这样的功能。

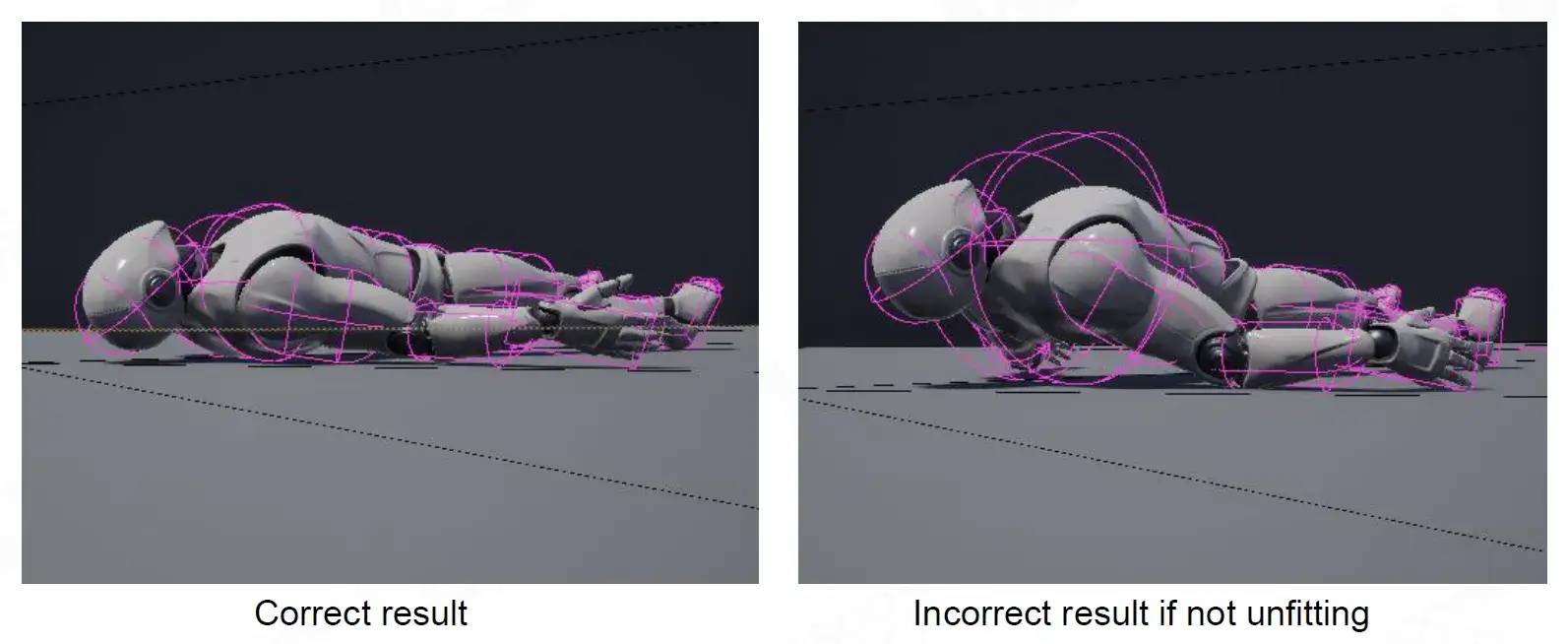

Carefully Tweaked Constraints

仔细调整约束

The rigid bodies should fit the mesh as much as possible

刚体应尽可能贴合网格

Animating Skeleton by Ragdoll

使用 Ragdoll 制作动画骨架

Update skeleton per frame

每帧更新骨架

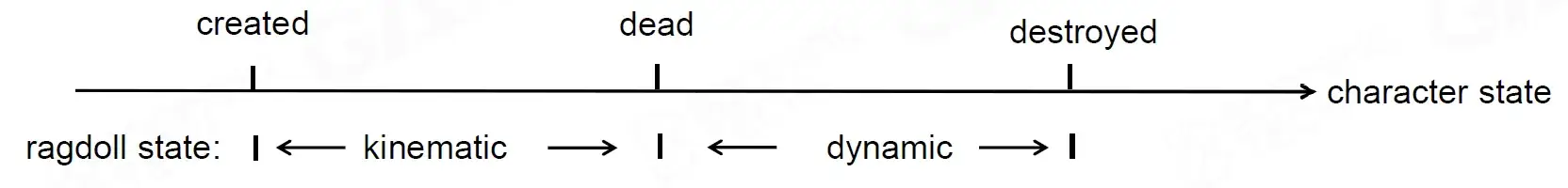

Blending between Animation and Ragdoll

动画与布娃娃之间的混合

动画在执行一段时间后，改为 Ragdoll。

Kinematic state ragdoll

运动状态布娃娃

Rigid bodies are driven by animation

刚体由动画驱动

Dynamic state ragdoll

动态状态布娃娃

Rigid bodies are simulated by physics

刚体由物理模拟

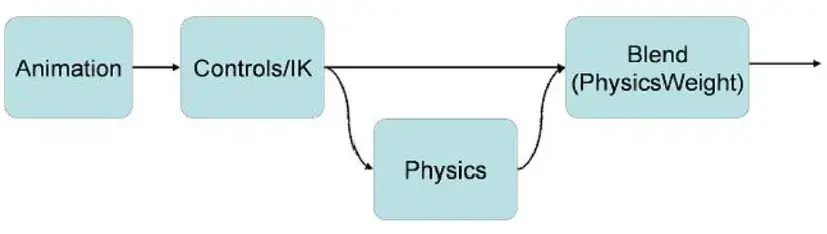

Powered Ragdol-Physics-Animation Blending

动力布娃娃-物理-动画混合

Blend between the animation pose and the physics pose

动画姿势与物理姿势之间的混合，以保证最终的动画显示得自然。

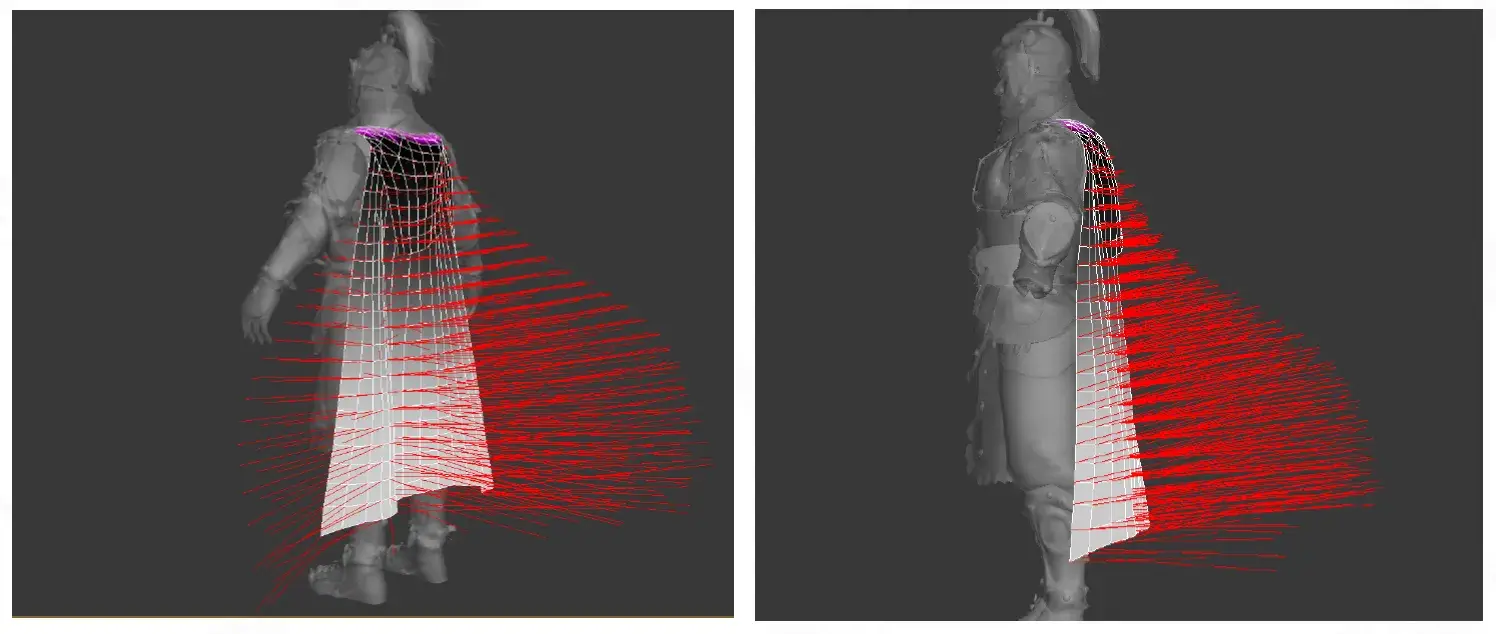

Clothing

布料模拟

Animation-based Cloth Simulation

基于动画的布料模拟

Pipeline

流程
- Animators produce the animation of bones

  动画师制作骨骼动画
- Generate more animation data via DCC tools

  通过 DCC 工具生成更多动画数据
- Engine replays the animation when running

  引擎运行时重播动画
Pros

优点
- Cheap

  成本低
- Controllable

  可控
Cons

缺点
- Not realistic

  不逼真
- Could not interact with environment

  无法与环境互动
- The designation of clothes is limited

  衣服的（动画）设计有限

Rigid Body-based Cloth Simulation

基于刚体的布料模拟

Pipeline

管道
- The bones of cloth are bound with rigid bodies and constraints

  布料的骨骼与刚体和约束绑定
- The effect are solved by physics engine

  效果由物理引擎解决
Pros

优点
- Cheap

  成本低
- Interactive

  互动性强
Cons

缺点
- Undetermined quality

  质量不确定
- Work load for animators

  动画师工作量大（需要绑定大量的骨骼和刚体）
- Not robust

  不够鲁棒
- Needs physics engine with high performance

  需要高性能的物理引擎

Mesh-based Cloth Simulation

基于网格的布料模拟

Render Mesh vs. Physical Mesh

考虑到计算量的问题，Physical Mesh 要比 Render Mesh 的结构更简单。

Paint Cloth Simulation Constraints

油漆布模拟约束

Add maximum radius constraints to each vertex

为每个顶点添加最大半径约束

Set Cloth Physical Material

设置物理布料材质（看上去是 3ds max）

Cloth Solver - Mass-Spring system

布料解算器 - 质量弹簧系统

将布料视为若干弹簧组成的系统。

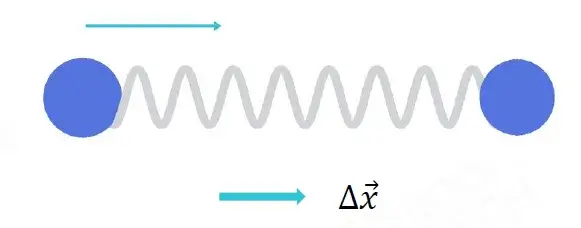

Spring force

弹簧力（胡克定律）
- $\vec F^S=k_{\mathrm{spring} }\Delta\vec x$
Spring damping force

弹簧阻尼力
- $\vec F^D=-k_{\mathrm{daming} }\vec v$

For a vertex, we could apply force analysis on it

对于一个顶点，我们可以对其应用力分析

$\vec{F}_{net}^{vertex}(t)=M\vec{g}+\vec{F}_{wind}(t)+\vec{F}_{airresistance}(t)+\sum_{Springs\in v}\left(k_{spring}\Delta\vec{x}(t)-k_{damping}\vec{v}(t)\right)=M\vec{a}(t)$

Then, we just need to use integration to calculate the next position. In the cloth simulation, Verlet is a good choice.

然后我们只需要用积分来计算下一个位置即可。在布料模拟中，Verlet是一个不错的选择。

$\vec{x}(t+\Delta t)=2\vec{x}(t)-\vec{x}(t-\Delta t)+\vec{a}(t)(\Delta t)^2$

Verlet integration

Verlet 积分

Recap Semi-Euler method

回顾半欧拉方法

$\begin{cases}\vec{v}(t+\Delta t)=\vec{v}(t)+\vec{a}(t)\Delta t\\\vec{x}(t+\Delta t)=\vec{x}(t)+\vec{v}(t+\Delta t)\Delta t\\\vec{x}(t)=\vec{x}(t-\Delta t)+\vec{v}(t)\Delta t\end{cases}\Rightarrow \begin{cases}\vec{x}(t+\Delta t)=\vec{x}(t)+(\vec{v}(t)+\vec{a}(t)\Delta t)\Delta t\\\vec{x}(t)=\vec{x}(t-\Delta t)+\vec{v}(t)\Delta t\end{cases}$

$\Rightarrow\vec{x}(t+\Delta t)=2\vec{x}(t)-\vec{x}(t-\Delta t)+\vec{a}(t)(\Delta t)^2$

Verlet integration does not need to consider about velocity when calculate, so it is faster.

计算时不需要考虑有关速度的考虑，因此它更快。

Cloth Solver - Position Based Dynamics

Cloth Solver - 基于位置的动态

Basically, the simulation needs

基本上，模拟需要

Constrains → Force → Velocity → Position

约束 → 力 → 速度 → 位置

Luckily, we have Position Based dynamics (PBD)

幸运的是，我们有基于位置的动态（PBD）

Constrains → Position

约束 → 位置。减少计算量。

Self Collision

自我碰撞

As a kind of flexible material, cloth can fold and collide with itself

作为一种灵活的材料，布可以折叠并与自己碰撞（导致布的正反两面颜色重叠）
This is pretty tricky in real-time game physics simulation

这在实时游戏物理模拟中非常棘手

Common Solutions for Self collision

自我碰撞的常见解决方案

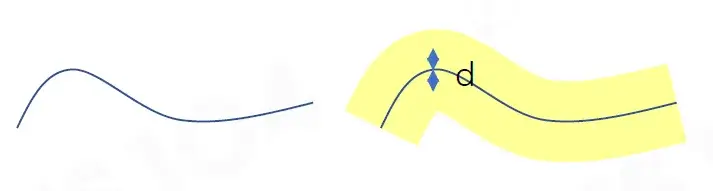

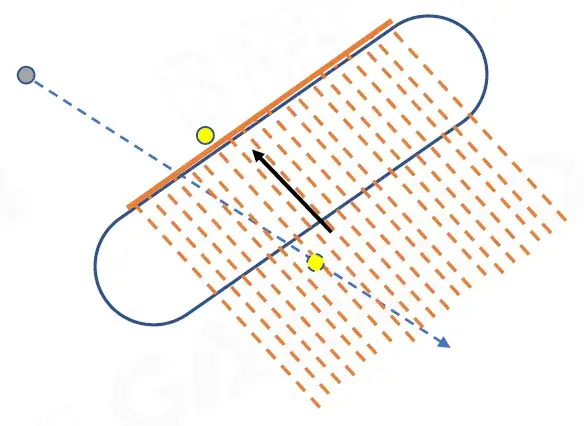

Make the cloth thicker

让布更厚

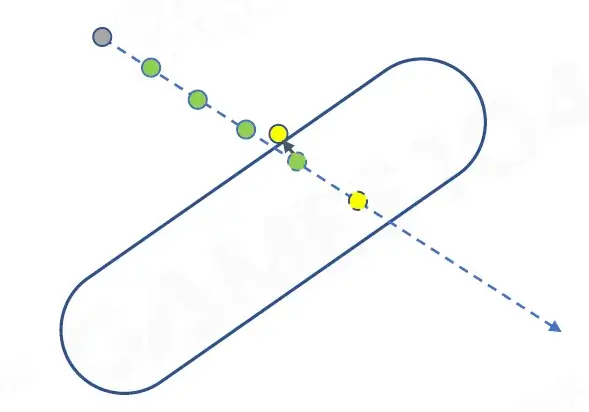

Use many substeps in one physics simulation step

在一个物理模拟步骤中使用许多取代

Enforce maximal velocity

执行最大速度
Introduce contact constraints and friction constraints

引入联系人约束和摩擦约束

Destruction

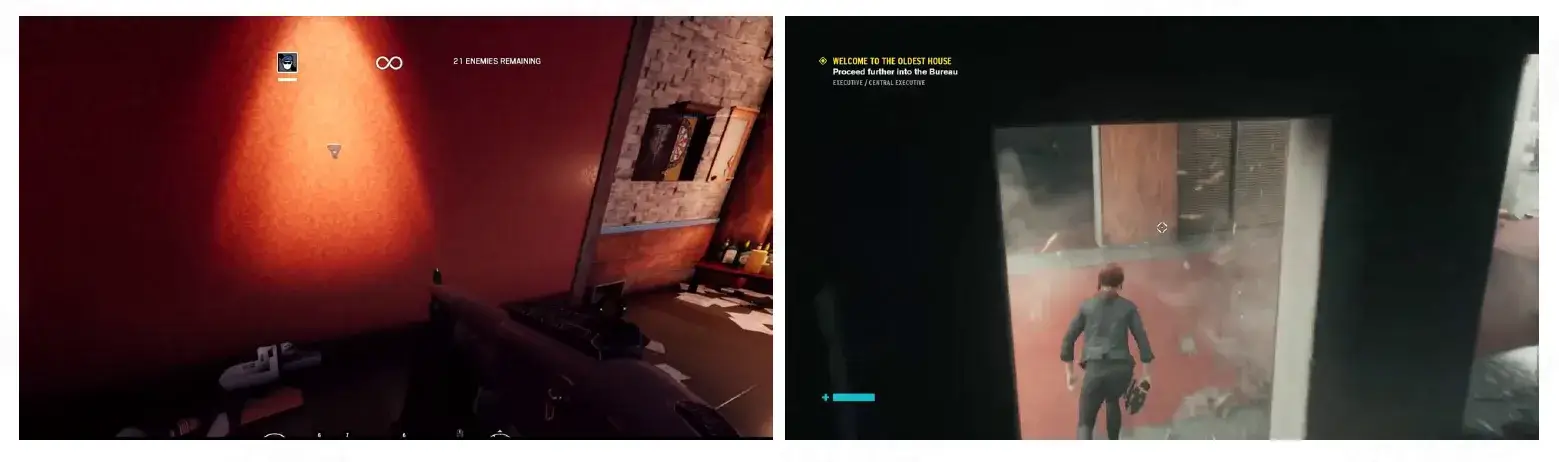

Destruction is lmportant

破坏很重要

Not only a visual effect

不仅是视觉效果
Making the game world much more vivid and immersive

使游戏世界变得更加生动和沉浸式
A key mechanism in many games

在许多游戏中都是关键机制（改变场景是自己获取优势）

Chunk Hierarchy

块层次结构

事先划分范围。

Organize the fractured chunks level by level

按水平组织断裂的块
Different damage threshold for each level

每个级别的损坏阈值不同

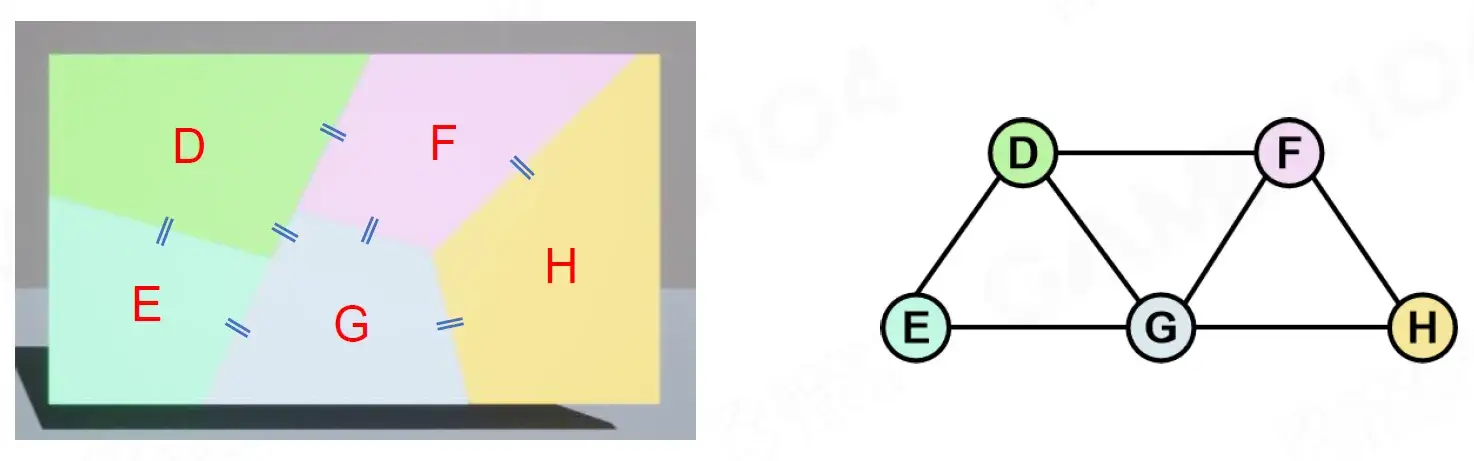

Connectivity Graph

连接图

Construct connectivity graph for chunks at the deepest level

在最深层次上构建块的连接图

One node per chunk

每个块一个节点
One edge if two chunks share a face

如果两个块共享表面，则一个边优先
Update at runtime

运行时更新

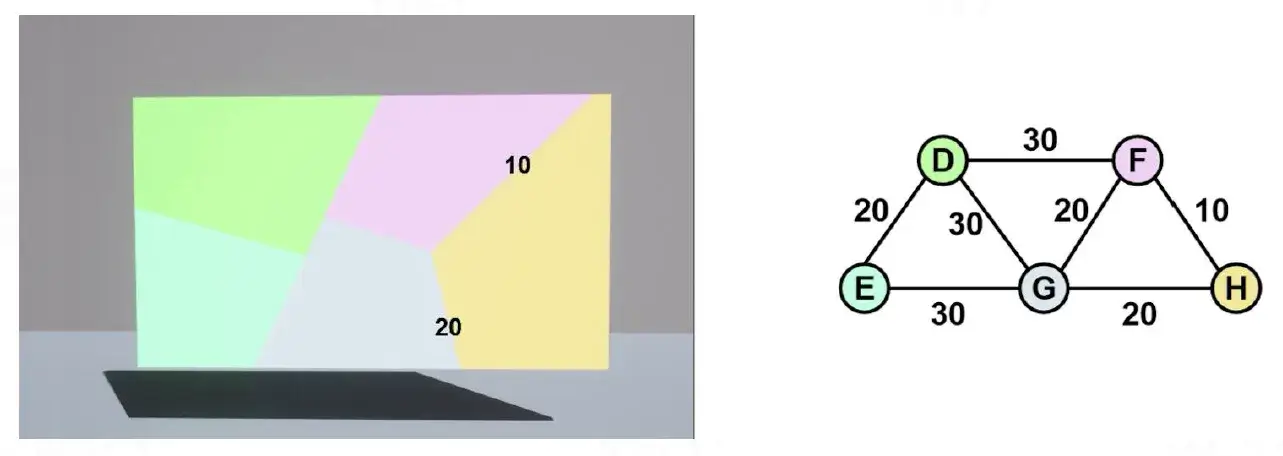

Connectivity Value

连接值

The value on each edge in the connectivity graph

连接图中每个边缘的值

How much damage needed to break the edge

打破边缘需要多少伤害
Update after each damage

每次损坏后更新
- Break the edge when the value goes to 0

  当值转到 0 时破坏边缘

Damage Calculation

损坏计算

Calculate damage from impulse at the impact point

计算影响点冲动的损害

$I$ :the applied impulse (e.g. by collision)

$I$ ：应用的冲动（例如，碰撞）
$H$ : the material hardness of the rigid body

：刚体的物质硬度

The damage at the impact point is

影响点的损坏是

$D=\frac{I}{H}$

Damage distribution

损伤分布

$D$ : the damage at the impact point

$ D $：影响点的损坏
$R_{min}$ : the minimum damage radius

$R_{min} $：最小伤害半径
$R_{max}$ : the maximum damage radius

$R_{max}$ ：最大伤害半径
$k$ : the damage fall off exponent

$k$ ：损坏系数

The damage $D_d$ at distance $d$ is

损坏 $D_d$ 在距离 $d$ 是

$D_d=\begin{cases}D&\quad d\leq R_{min}\\D\cdot\left(\frac{R_{max}-d}{R_{max}-R_{min}}\right)^K&\quad R_{min}<d<R_{max}\\0&\quad d\geq R_{max}\end{cases}$

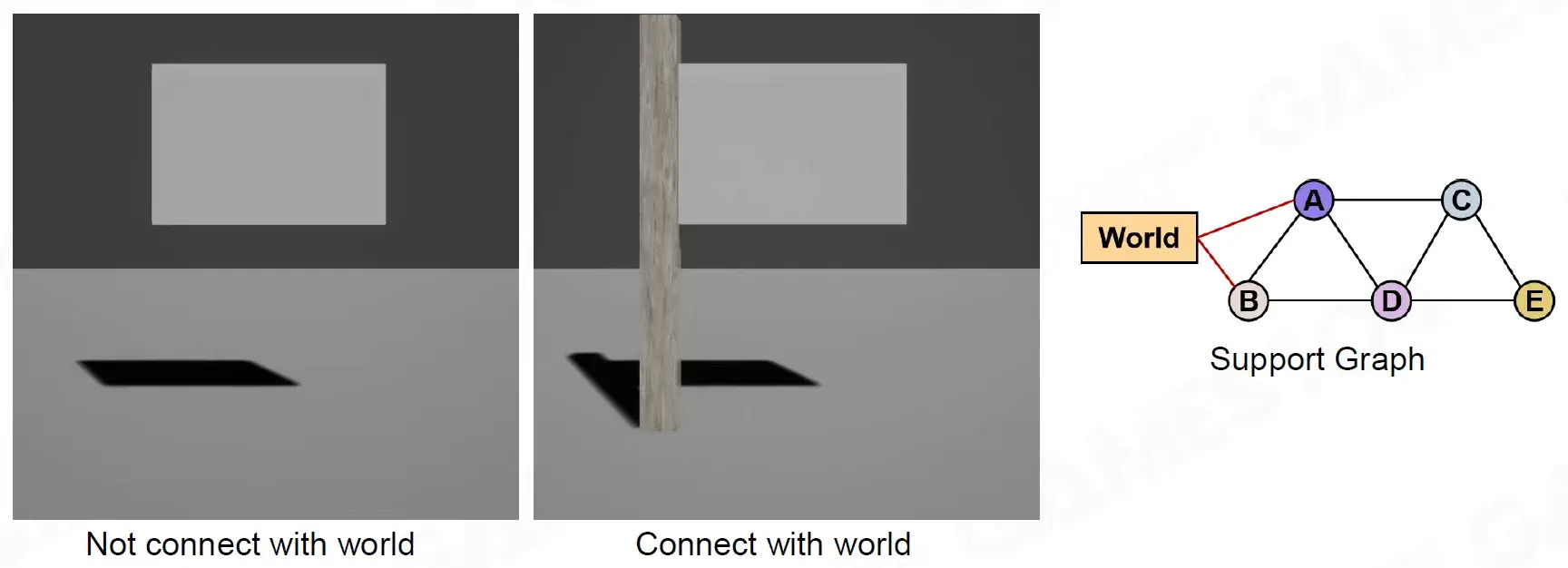

Destruction with/without Support Graph

带有/没有支持图的破坏

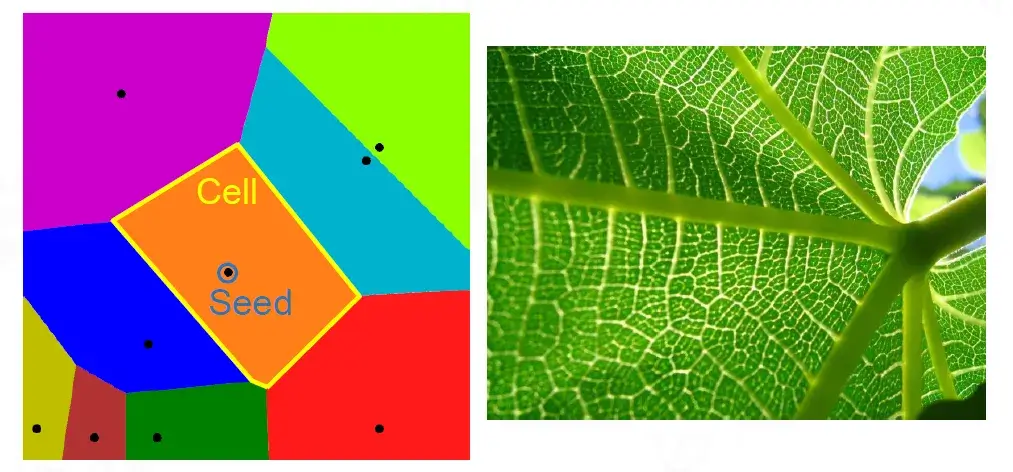

Build Chunks by Voronoi Diagram

Voronoi 图构建块

A partition of a plane into regions close to each of seeds

平面分为几个种子的区域

Voronoi Cell

Voronoi 细胞

the region for each seed

每个种子的区域
Points in the cell are closer to the seed than to any other

细胞中的点比种子更接近种子

Fracturing with Voronoi Diagram - 2D Mesh

Voronoi 图 - 2D 网格

Pick N random points within the bounding rect of the mesh

在网格的边界成分中选择 N 个随机点

Construct the Voronoi diagram

构建 Voronoi 图
Intersect each Voronoi cell with the mesh to get all fractured chunks

将每个 Voronoi 单元与网格相交以获取所有碎裂的块

Fracturing with Voronoi Diagram - 3D Mesh

Voronoi 图 - 3D 网格

Similar to the 2D situation, but not trivial

类似于 2D 情况，但不是微不足道的

New triangles need to be generated for all fracture surfaces

需要为所有骨折表面生成新的三角形

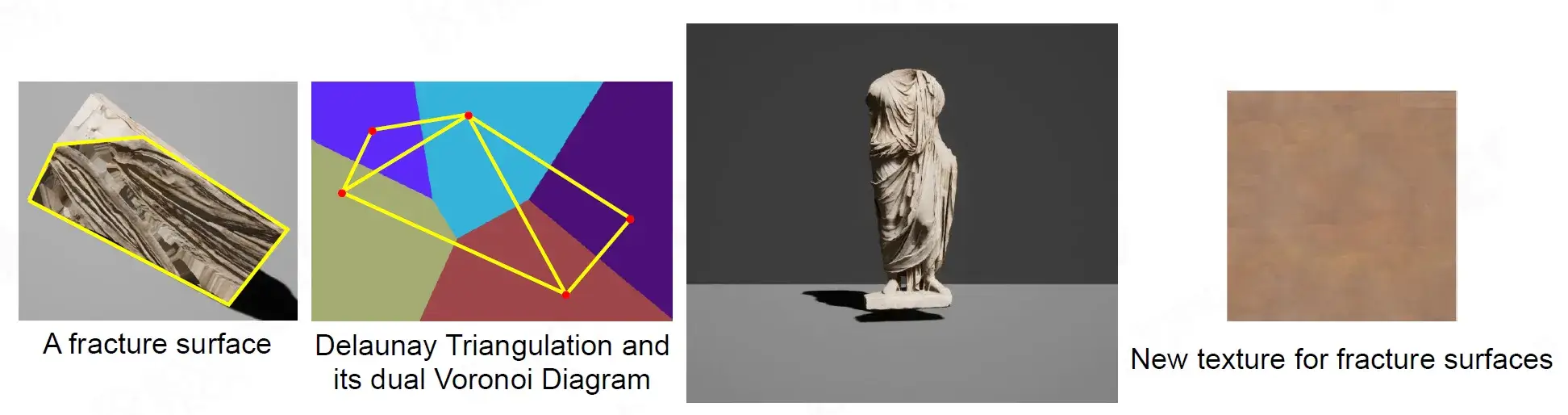

Generate triangles for all fracture surfaces

生成所有裂缝表面的三角形

Usually by Delaunay Triangulation (is dual to Voronoi diagram)

通常是通过 Delaunay 三角剖分（是双重的 Voronoi 图）
New texture and texture coordinates

新的纹理和纹理坐标

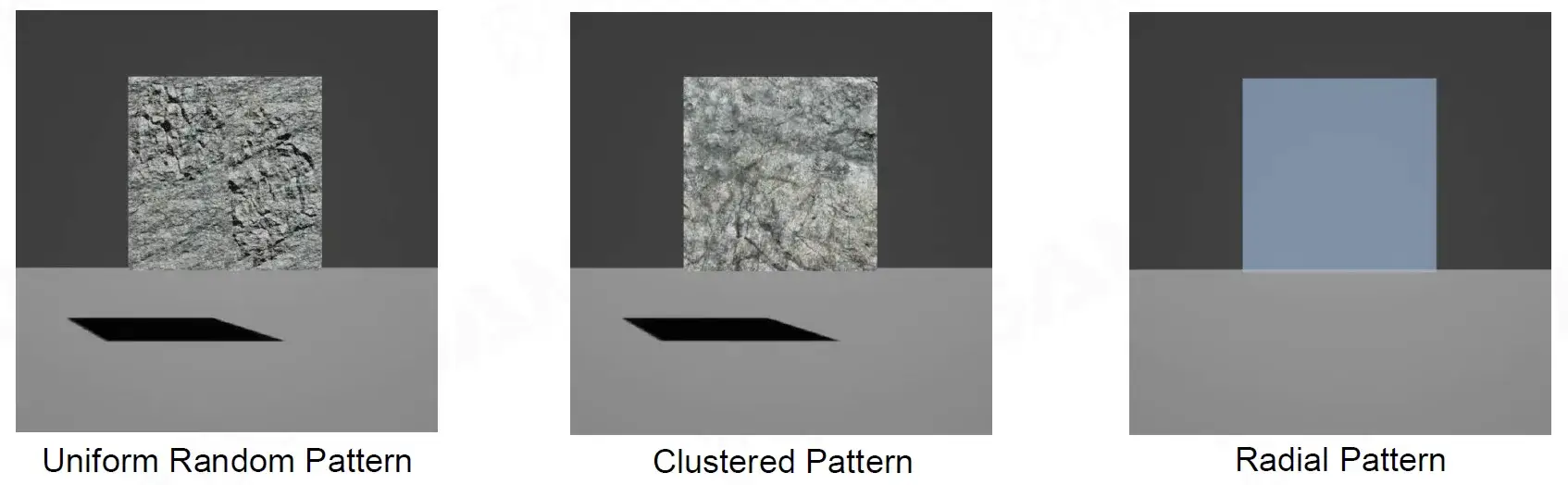

Different Fracture Patterns with Voronoi Diagram

带有 Voronoi 图的不同断裂图案

Uniform random pattern

均匀的随机模式
Clustered pattern

聚类模式
Radial pattern

径向图案
etc.

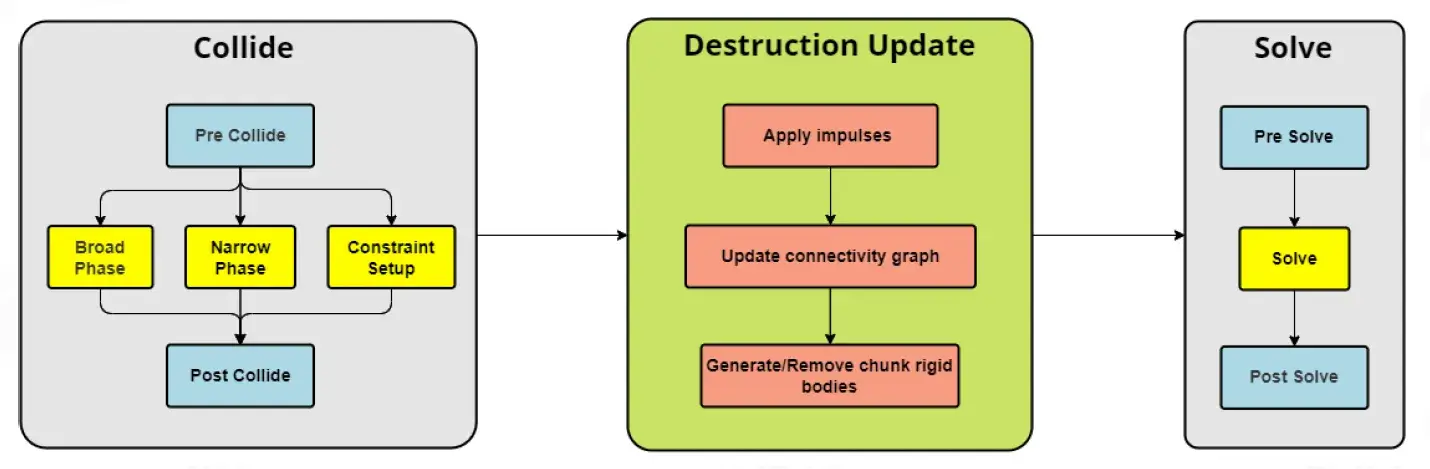

Destruction in Physics System

物理系统破坏

Handle destruction after collision

碰撞后处理破坏

New rigid bodies may be generated after destruction

破坏后可能会产生新的刚体

Make it more realistic

使其更现实

Fracture is not enough

物体模型被破坏，还不够

Sound effects

声音特效
Particle effects

粒子效应
Navigation updated

更新导航网络

Issues with Destruction

破坏导致的问题

Add destruction with caution

谨慎增加破坏

Numerous debris may cause larger performance overhead

许多碎屑可能会导致较大的性能开销

Empirical when artists design the destruction effect

当艺术家设计破坏效果时的经验

Many parameters to be tuned, e.g. fracture parameters

许多要调整的参数，例如断裂参数
Produce performance highly depends on the authoring tool

产生性能很大取决于创作工具

Popular Destruction lmplementations

通常破坏的解决方案

NVIDIA APEX Destruction

NVIDIA APEX 破坏

Widely used in games (supported in UE4)

广泛用于游戏（在 UE4 中支持）
Official destruction authoring tool (PhysX Lab)

官方破坏创作工具（Physx Lab）
Deprecated in 2017

官方破坏创作工具（Physx Lab）

NVIDIA Blast

Successor of APEX

Apex 的继任者
Better performance, scalability and flexibility

更好的性能，可伸缩性和灵活性

Havok Destruction

Widely used in games (supported in Unity)

广泛应用于游戏（Unity 支持）
Good performance and various features

性能良好，功能多样
High license fee

许可费用高

Chaos Destruction (Epic Games.)

Complete tool chain supported

支持完整的工具链
Still beta in UE5

UE5 中仍为测试版

Vehicle

Vehicle lmplementation Spectrum

赛车游戏的物理可以为了游戏性而风格化，也可以真实化。

Vehicle Mechanism Modeling

车辆机构建模

A rigid body actor

刚体角色
- Shapes for the chassis and wheels

  底盘和车轮的形状
- Scene query for the suspension simulation

  悬架模拟的场景查询

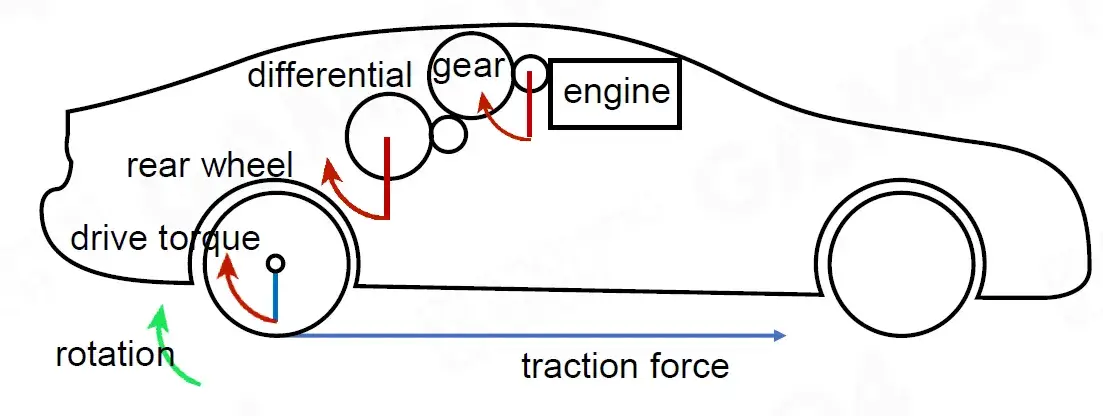

Traction Force

牵引力

Get torque from a curve

从曲线获取扭矩
- $T=T_{engine}X_gX_dn$
Calculate traction

计算牵引力
- $\vec F_{traction}=\frac{T}{R_W}\vec u$

$\vec u$ : a unit vector which reflects vehicle heading

反映车辆航向的单位向量

$T$ : wheel torque

车轮扭矩

$T_{engine}$ : engine torque represented by curves

曲线表示的发动机扭矩

$X_g$ : the gear ratio

齿轮比

$X_d$ : the differential ratio

差速比

$n$ : transmission efficiency and

传动效率和

$R_w$ : wheel radius

车轮半径

Suspension Force

悬架力

Apply on attachment points of chassis and suspension

作用于底盘和悬架的连接点
Calculated independently for each wheel

为每个车轮独立计算
- $|\vec F_{suspension}|= k(L_{rest}-(L_{nit} - R_w))$

  $k$ : spring stiffness

  弹簧刚度

  $R_w$ : wheel radius

  车轮半径

  $L_{rest}$ : length of spring rest

  弹簧静止长度

  $L_{hit}$ : distance of raycast hit

  射线投射命中距离

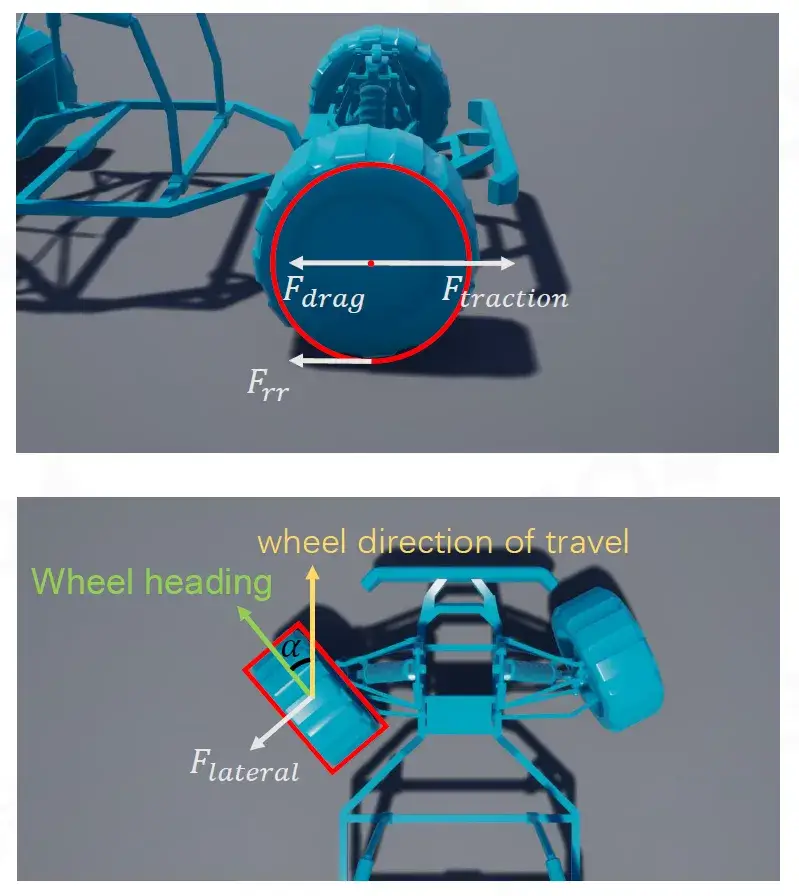

Tire Forces

轮胎力

Longitudinal force

纵向力
- $F_{long}=F_{traction}+F_{drag}+F_{rr}$
Lateral force

横向力
- $F_{lateral}=C_c*\alpha$

$F_{rr}$ : rolling resistance 滚动阻力

$C_c$ : cornering stiffness 转弯刚度

$\alpha$ : slip angle 滑移角

Center of Mass

重心

Affects handling, acceleration, and traction

影响操控性、加速度和牵引力
Should be a tunable value

应为可调值

$M_1, M_2$ : the sprung masses

悬挂质量

$\vec x_1, \vec x_2$ : the sprung mass coordinates in actor space

演员空间中的悬挂质量坐标

$M$ : the rigid body mass

刚体质量

$\vec x_{cm}$ : the rigid body center of mass offset

刚体质心偏移

$M=M_1+M_2$

$\vec x_{cm}=\frac{M_1\vec x_1 + M_2\vec x_2}{M}$

Affects the stability of the vehicle in the air

影响车在空中在空中的稳定性

front-heavy → dive

重心靠前 → 俯冲
rear-heavy → stabilize

重心靠后 → 稳定

Affects vehicle steering control

影响车辆转向控制

front-heavy → understeering

前轮重 → 转向不足

rear-heavy → oversteering

后轮重→转向过度

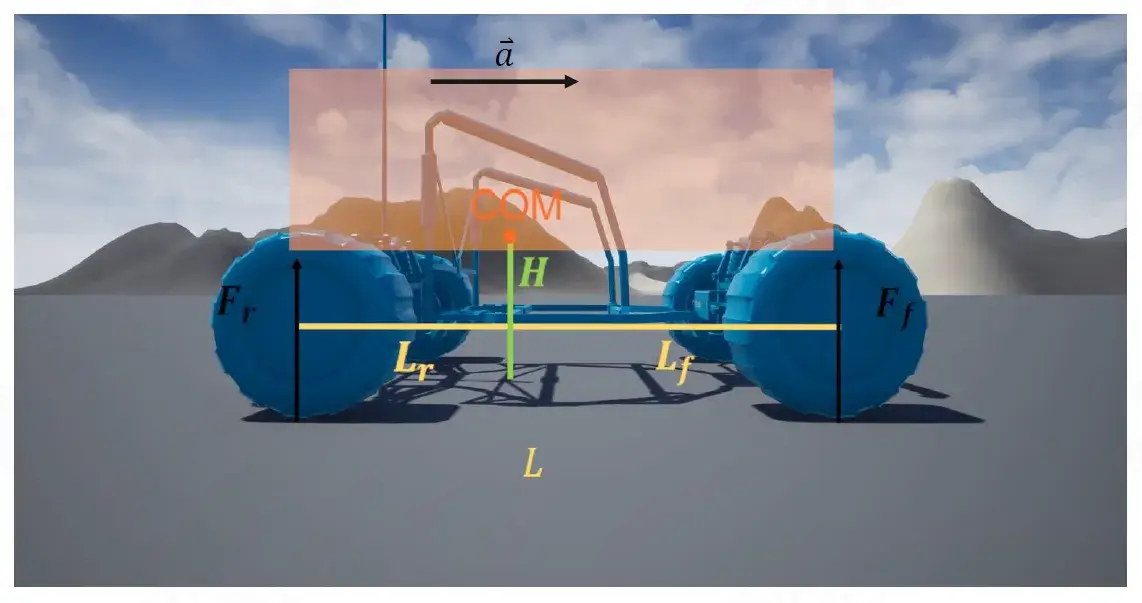

Weight Transfer

重量转移

Affects the maximum traction force per wheel

影响每个车轮的最大牵引力

$\vec F_f=\frac{L_f}{L}M\vec g\mp\frac{H}{L}M\vec a$
$\vec F_r=\frac{L_r}{L}M\vec g\pm\frac{H}{L}M\vec a$
$\vec F_{traction}=\mu\vec F_{suspension}$

$M$ : mass of vehicle

车辆质量

$\mu$ : friction coefficient of the tire

轮胎摩擦系数

Steering angles

转向角度

Same steering angle causes slipping

相同的转向角度会导致打滑

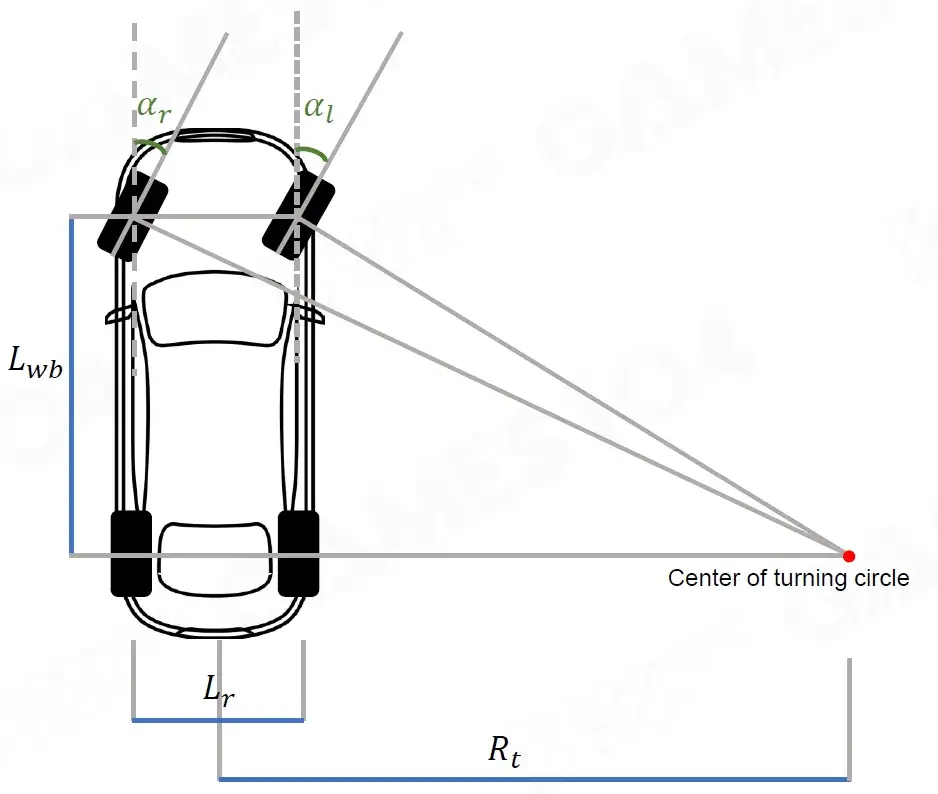

Ackermann steering

阿克曼转向
- different steering angles

  不同的转向角度

  \alpha_l=\tan^{-1}\frac{L_{wb}}{R_t+\frac{L_r}2}\\\alpha_r=\tan^{-1}\frac{L_{wb}}{R_t-\frac{L_r}2}

  $L_{wb}$ : length of wheel base

  轮距长度

  $L_r$ : length of rear track

  后轮距长度

  $R_t$ : turn radius

  转弯半径

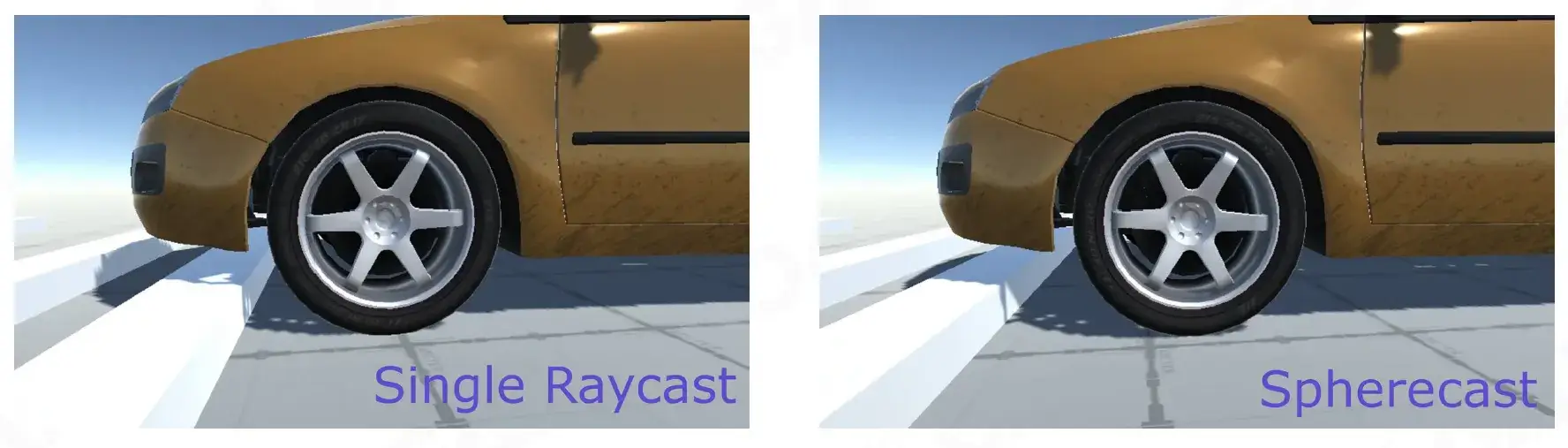

Advanced Wheel Contact

轮胎检测预判

Spherecast 比 Single Raycast 更好，更好防止车轮嵌入低面。

Advanced: PBD/XPBD

Recap: Solving constraints

回顾：解决约束

Modelling constraints based on Lagrangian mechanics

基于拉格朗日力学的建模约束
- Collision constriaints

  碰撞约束
- Non-penetration

  非穿透
- Friction

  摩擦
- Restitution

  恢复
Cloth constraints

布料约束
- Stretching

  拉伸
- Bending

  弯曲

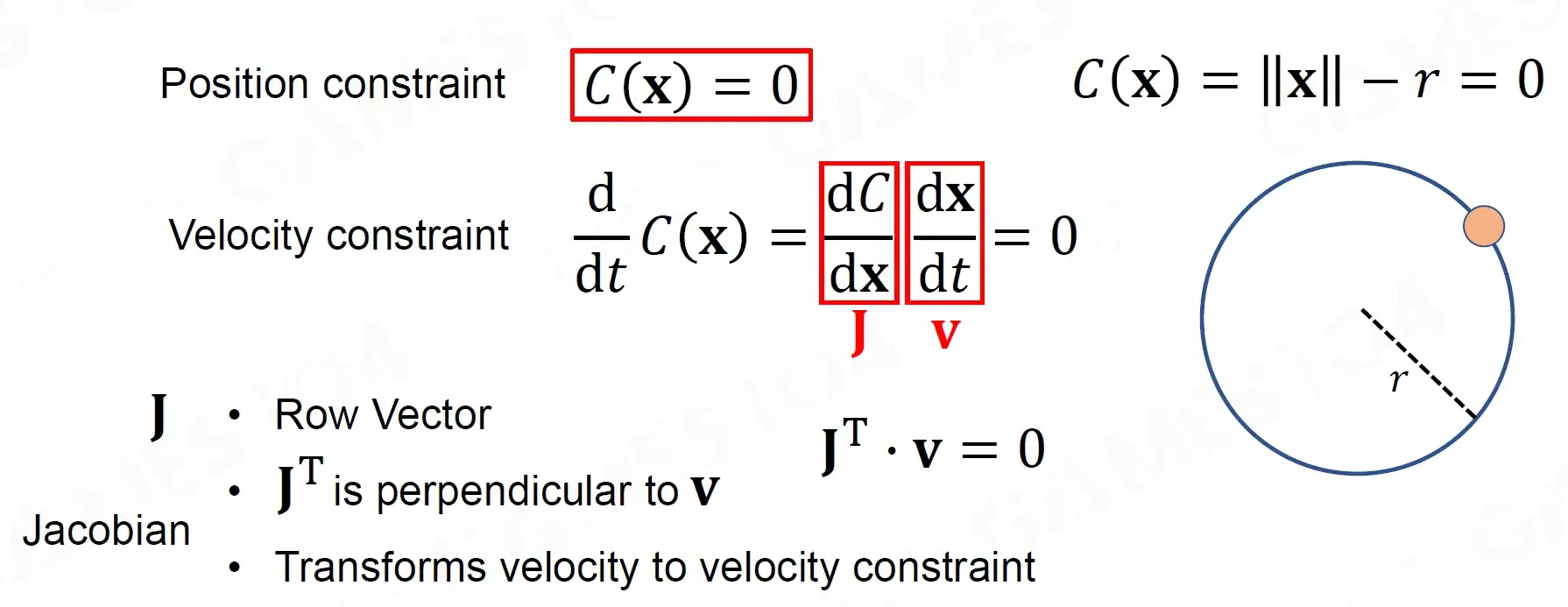

Circling Constraint

圆周约束

引入雅可比来解决这样的问题。

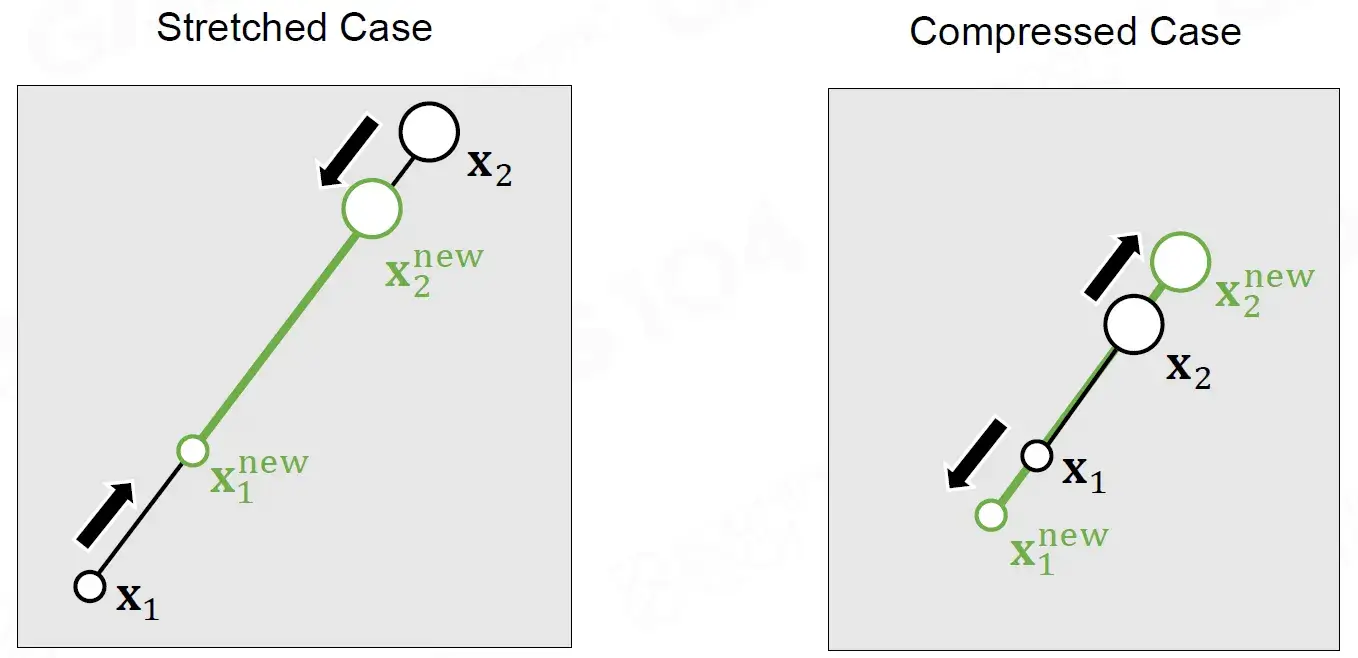

String Constraints

弹簧约束

$C_{stretch}(\mathbf{x}_1,\mathbf{x}_2)=\|\mathbf{x}_1-\mathbf{x}_2\|-d$

PBD-Constraints Projection

PBD 约束投影

$\mathbf{X}^{(k)'}=\begin{bmatrix}\mathbf{x}_1^{(k)'}\\\vdots\\\mathbf{x}_n^{(k)'}\end{bmatrix}$

$k=0$ : Integrated positions

综合位置
$k>0$ : position with correction from last iteration

位置与上次迭代的修正值

$C\left(\mathbf{X}^{(k)'}+\Delta\mathbf{X}\right) \approx C\left(\mathbf{X}^{(k)'}\right)+\nabla_\mathbf{X}C\left(\mathbf{X}^{(k)'}\right)\cdot\Delta\mathbf{X}=0$

$\Delta\mathbf{X}=\lambda\nabla_\mathbf{X}C\left(\mathbf{X}^{(k)'}\right)$

$C\left(\mathbf{X}^{(k)'}\right)+\nabla_\mathbf{X}C\left(\mathbf{X}^{(k)'}\right)\cdot\lambda\nabla_\mathbf{X}C\left(\mathbf{X}^{(k)'}\right)=0$

$\lambda=-\frac{C\left(\mathbf{X}^{(k)'}\right)}{\left\|\nabla_\mathbf{X}C\left(\mathbf{X}^{(k)'}\right)\right\|^2}\quad\Delta\mathbf{X}=-\frac{C\left(\mathbf{X}^{(k)'}\right)}{\left\|\nabla_\mathbf{X}C\left(\mathbf{X}^{(k)'}\right)\right\|^2}\nabla_\mathbf{X}C\left(\mathbf{X}^{(k)'}\right)$

Position Based Dynamics-Workflow

基于位置的动力学-工作流程

Advantages of PBD

PBD 的优势

Projecting constraints to position corrections

将约束投射到位置校正
Fast, stable for most cases

将约束投射到位置校正
Hard to control constraint satisfaction

难以控制约束满足
- Cannot prioritize collision constraints over others

  无法优先考虑碰撞约束
Commonly used for cloth simulation in games

常用于游戏中的布料模拟
NVIDIA Flex

Extended Position Based Dynamics (XPBD)

扩展基于位置的动力学 (XPBD)

Use compliances as inverse of constraint stiffness to handle infinite stiffness constraints (rigidbody)

使用柔顺性作为约束刚度的倒数来处理无限刚度约束（刚体）
Reintroduce rigidbody orientation to XPBD for rigidbody simulation application

将刚体方向重新引入 XPBD 以用于刚体模拟应用
Unreal Chaos physics engine

Unreal Chaos 物理引擎

$U(\mathbf{X})=\frac{1}{2}C(\mathbf{X})^{\mathrm{T}}\alpha^{-1}C(\mathbf{X})$

Block diagonal compliance matrix

块对角合规矩阵

References

Character Controller & Ragdoll

Character Controllers Chapter in PhysX User’s Guide.
https://docs.nvidia.com/gameworks/content/gameworkslibrary/physx/guide/Manual/CharacterControllers.html
Diablo 3 Ragdolls: How to smack a demon, Erin Catto, GDC 2012.https://box2d.org/files/ErinCatto_Ragdolls_GDC2012.pdf
Physics Animation in ‘Uncharted 4: A Thief’s End’, Michal Mach, Naughty Dog, GDC 2017.https://gdcvault.com/play/1024087/Physics-Animation-in-Uncharted-4
Physics Driven Ragdolls and Animation at EA: From Sports to Star Wars, jalpesh Sachania, FrostbiteEA, GDC 2018: https://gdcvault.com/play/1025210/Physics-Driven-Ragdolls-and-Animation
Physical Animation in ‘Star Wars Jedi: Fallen Order’, Bartlomiej Waszak, Respawn Entertainment, GDC Summit 2020: https://gdcvault.com/play/1026848/Physical-Animation-in-Star-Wars

Clothing

Blowing from the West: Simulating Wind in ‘Ghost of Tsushima’, Bill Rockenbeck, Sucker PunchProductions, GDc 2021: https://www,gdcvault.com/play/1027124/Blowing-from-the-West-Simulating
Cloth Self Collision with Predictive Contacts, Chris Lewin, Electronic Arts, GDC 2018: https://www.gdcvault.com/play/1025083/Cloth-Self-Collision-with-Predictive
Machine Learning: Physics Simulation, Kolmogorov Complexity, and Sauishy Bunnies, Daniel HoldenUbisoft Montreal, Dc 2020: https://www,adcvault,com/play/1026713/Machine-Learning-Physics.Simulation-Kolmogorov
Matt’s Webcorner - Cloth -Stanford Computer Graphics, Stanford 2014 Course, https://graphics.stanford.edu/~mdfisher/cloth.html
从零开始学图形学:弹簧质点系统–Euler Method和Verlet Integration,启思,知乎专栏 https://zhuanlan.zhihu.com/p/355170943

Destruction

游戏破坏系统简介，网易游戏雷火事业群，知乎 https://zhuanlan.zhihu.com/p/346846195
Destructible Environments in ‘Control’: Lessons in Procedural Destruction, johannes Richter, Remedy.GDC Summer 2020, https://www.gdcvault.com/play/1026820/Destructible-Environments-in-Control-Lessons
The Art of Destruction in ‘Rainbow Six: Siege’, Julien L’Heureux, Ubisoft, GDC 2016https://www.gdcvault.com/play/1023307/The-Art-of-Destruction-in
NVIDlA Blast official site, https://developer.nvidia.com/blast
Voronoi Diagram, https://cs.brown.edu/courses/cs252/misc/resources/lectures/pdf/notes09.pdf
Delaunay Triangulations,
https://members.loria.fr/monique.teillaud/collab/Astonishing/2017_workshop_slides/Olivier_Devillers.pdf
Unreal Engine Chaos, https://docs.unrealengine.com/4.27/en-US/InteractiveExperiences/Physics/ChaosPhysics/Overview/

Vehicle

Vehicle Chapter in PhysX User’s Guidehttps://docs.nvidia.com/gameworks/contentgameworkslibrary/physx/guide/Manual/CharacterControllels.html
Vehicle in Unreal Engine User’s Guide: https://docs.unrealengine.com/4.27/en-US/InteractiveExperiences/ehicles/VehicleUserGuide/
Car Physics for Games, Marco Monster:
https://asawicki.info/Mirror/Car Physics for Games/Car Physics for Games.html
Replicating Chaos: Vehicle Replication in Watch Dogs 2, Matt Delbosc, Ubisoft Toronto, GDC 2017.https://www.gdcvault.com/play/1026956/Replicating-Chaos-Vehicle-Replication-in

PBD

Positon Based Dynamics, M. Muller et al., 3rd Workshop in Virtual Reality Interactions and PhysicalSimulation “VRlPHYS”, 2006: https://matthias-research.github.io/pages/publications/posBasedDyn.pdf
XPBD: Position-Based Simulation of Compliant Constrained Dynamics, M. Macklin et al., MlG '16:Proceedings of the 9th International Conference on Motion in Games, 2016.http://mmacklin.com/xpbd.pdf
Detailed Rigid Body Simulation using Extended Position Based Dynamics, M. Muller et al… Symposiumon Computer Animation. 2020: https://www.researchgate.net/publication/344464310_Detailed_Rigid_Body_Simulation_using_Extended_Position_Based_Dynamics
Position Based Dynamics: A fast yet physically plausible method for deformable body simulation.Tiantian Liu, GAMES Webinar 2019-88: https://slides.gamescn.org/pdf/Games201988刘天添.pdf

资源

课程

第十节：游戏引擎中物理系统的基础理论和算法

Physics System: Basic Concepts

Physics in Games (1/4) - Physical Intuition

Physics in Games (2/4) - Dynamic Environment

Physics in Games (3/4) - Realistic Interaction

Physics in Games (4/4) - Artistic

Outline of Physics System

Basic Concepts

Applications

Physics Actors and Shapes

Visual World vs. Physics World

Actor - Static

Actor - Dynamic

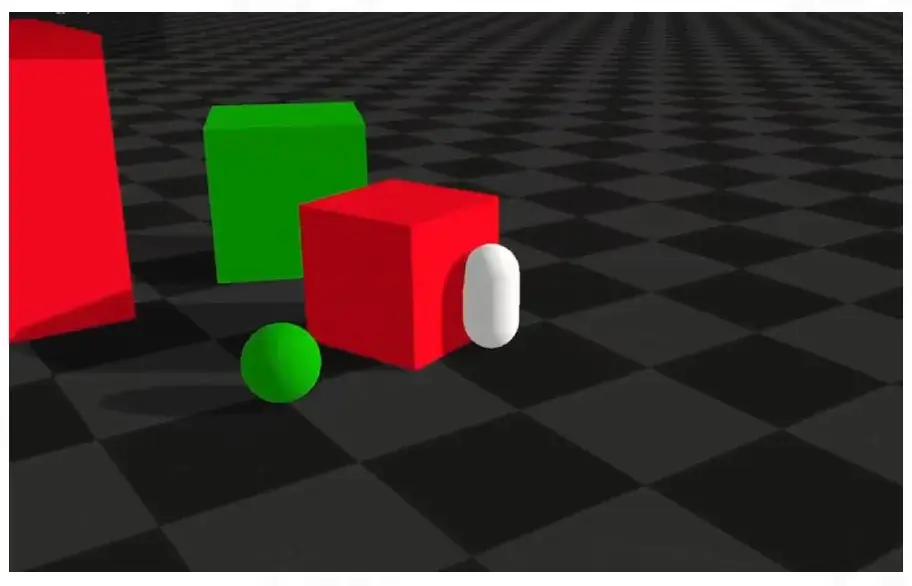

Trigger

Physics Law is Unbreakable, But in Game…

Actor-Kinematic (No Physics Law)

Kinematic Actors are Troublemakers

Actor-Summary

Static Actor 静态 Actor

Dynamic Actor 动态 Actor

Trigger 触发器

Kinematic Actor

Actor Shapes

Shapes - Spheres

Shapes - Capsules

Shapes - Boxes

Shapes - Convex Meshes

Shapes - Triangle Meshes

Shapes - Height Fields

Wrap Objects with Physics Shapes

Shape Properties - Mass and Density

Shape Properties - Center of Mass

Shape Properties - Friction & Restitution

Forces

Force

Impulse

Movements

Newton’s 1st Law of Motion

Newton’s 2st Law of Motion

Movement under Constant Force

Movement under Varing Force

Example of Simple Movement

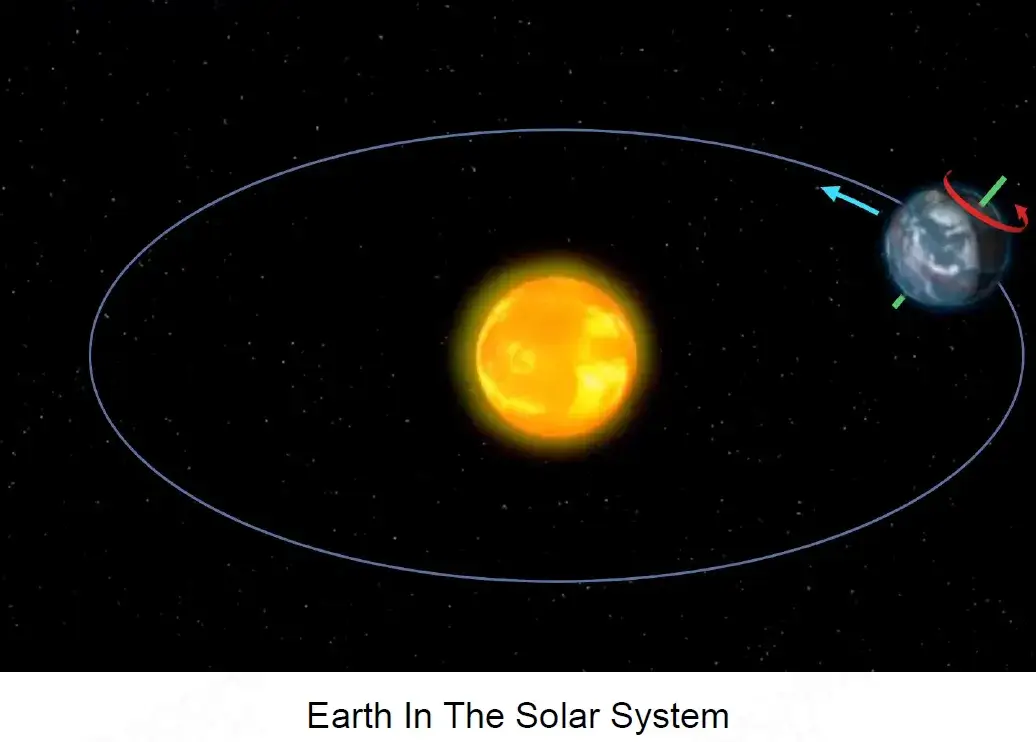

Motion in Reality

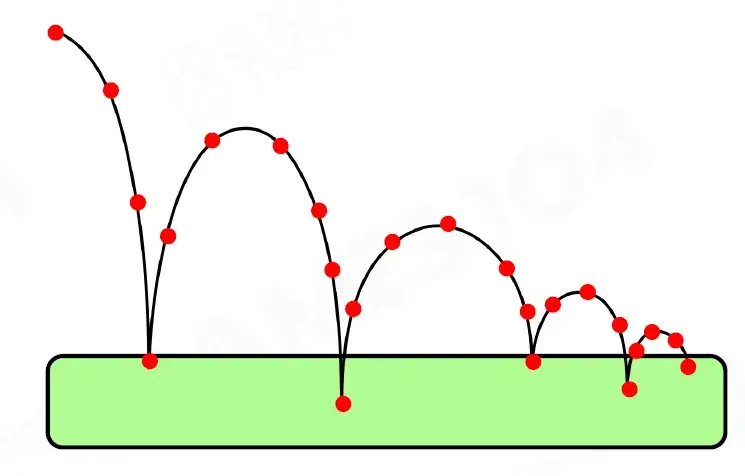

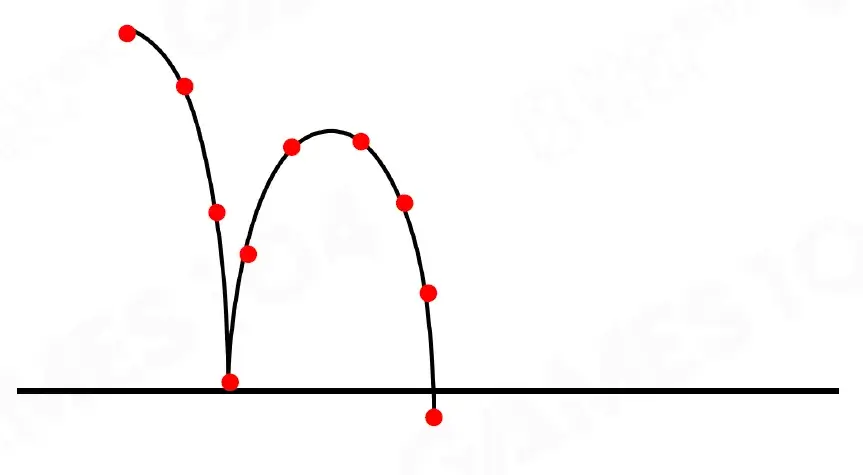

Simulation in Game

Time integration

Euler’s Method

Explicit (Forward) Euler’s Method

Implicit (Backward) Euler’s Method

Semi-implicit Euler’s Method

Rigid Body Dynamics

Particle Dynamics

Rigid body Dynamics

Orientation - R

Angular Velocity - ω⃗\vec \omega​ω​⃗​​

Angular Accelation - α⃗\vec \alpha​α​⃗​​

Rotational Inertia - I\mathbf II

Angular Momentum - L⃗\vec L​L​⃗​​

Torque - τ⃗\vec{\tau}​τ​⃗​​

Summary

Application-Billiard Dynamics

Collision Detection

Broad Phase and Narrow Phase

Broad Phase

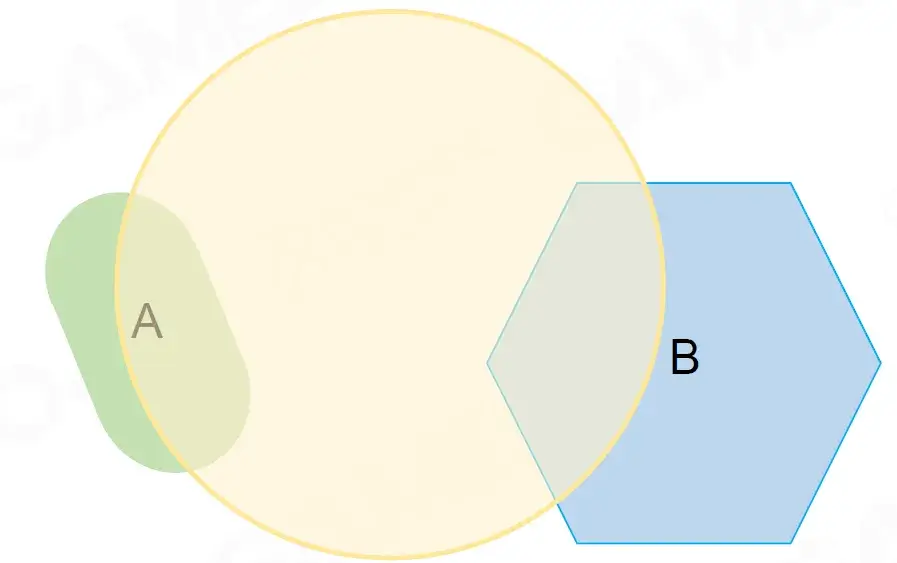

Broad Phase - BVH Tree

Broad Phase - Sort and Sweep (1/2)

Narrow Phase - Objectives

Narrow Phase - Approaches

Basic Shape lntersection Test

Minkowski Difference-based Methods-concepts

Minkowski Sum

Minkowski Sum-Convex Polygons

Minkowski Difference

Origin and Minkowski Difference

GJK Algorithm - Walkthrough (Separation Case)

GJK Algorithm-Walkthrough (Overlapped Case)

Separating Axis Theorem (SAT)-Convexity

Separating Axis Theorem(SAT)-Necessity for overlapping

Separating Axis Theorem(SAT)-Separating Criteria

Angular Velocity - $\vec \omega$

Angular Accelation - $\vec \alpha$

Rotational Inertia - $\mathbf I$

Angular Momentum - $\vec L$

Torque - $\vec{\tau}$
