Ep. 1 - Card Data

新建一个 2D 项目，创建 Assets/Scripts/Card.cs：定义卡牌的属性。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace SinuousProductions
{
    [CreateAssetMenu(fileName = "New Card", menuName = "Card")]
    public class Card : ScriptableObject
    {
        public string cardName;
        public List<CardType> cardType;
        public int health;
        public int damageMin;
        public int damageMax;
        public Sprite cardSprite;
        public List<DamageType> damageType;

        public enum CardType
        {
            Fire,
            Earth,
            Water,
            Dark,
            Light,
            Air
        }

        public enum DamageType
        {
            Fire,
            Earth,
            Water,
            Dark,
            Light,
            Air
        }

    }
}

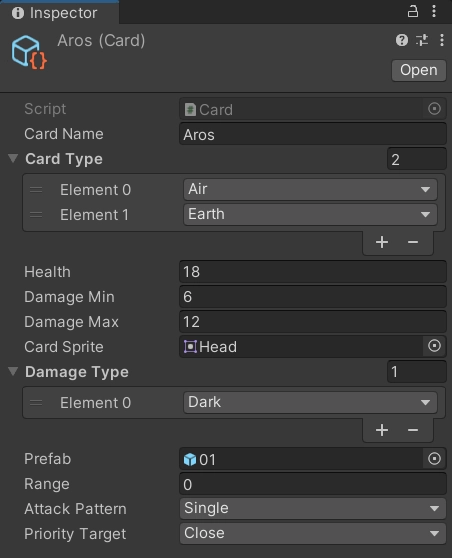

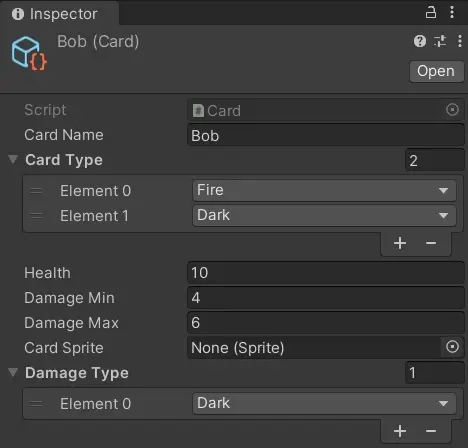

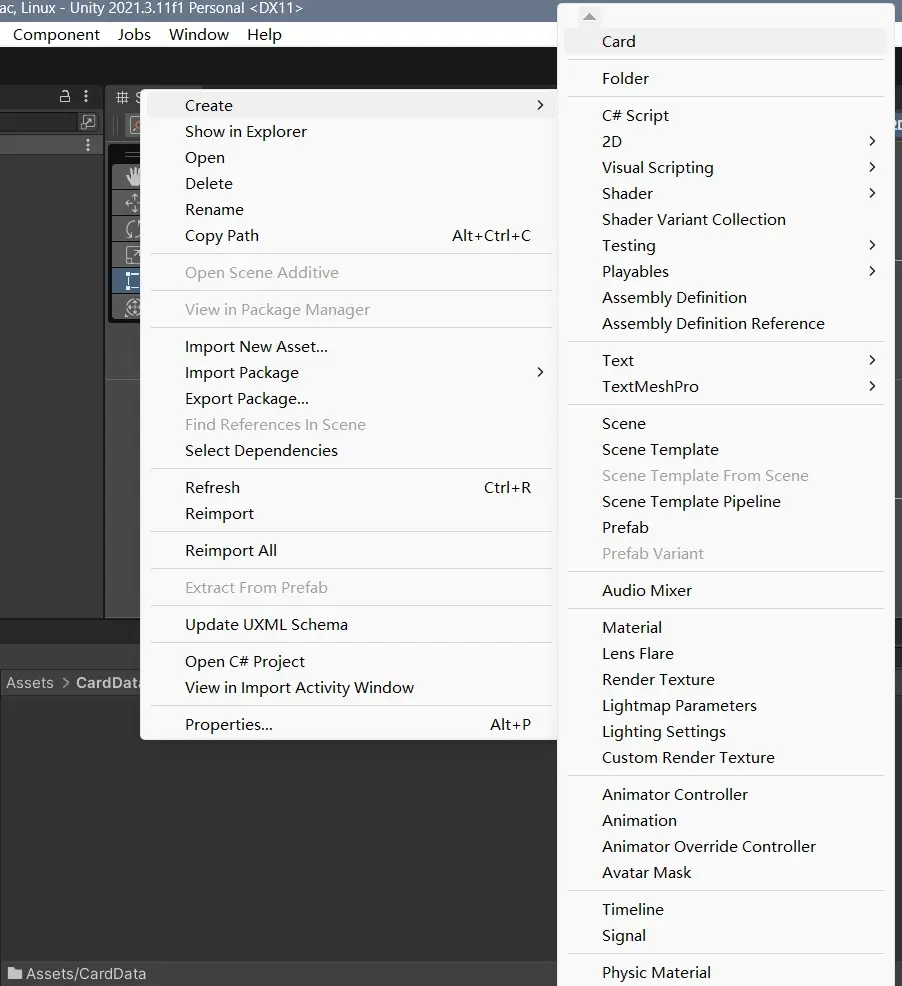

如此做，便可在面板中创建一个序列化对象：

webp

webp

Ep. 2 - Card Prefab

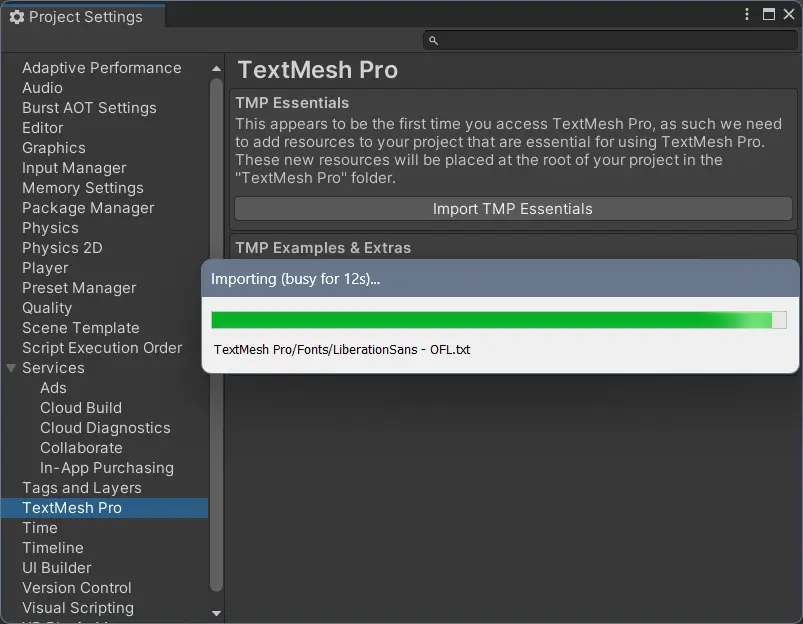

Project Settings 中开启 TextMesh Pro：

webp

从 Episode 2 - Google Drive 获取 TutorialCard1.png 放置在 Assets/Sprites/ 下。

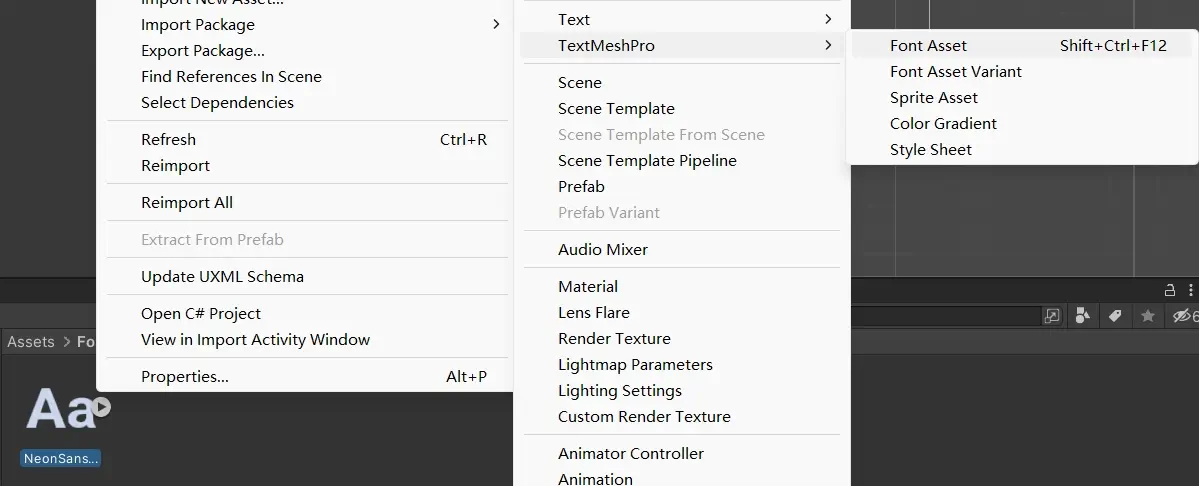

从 Neon Sans Font | GGBotNet | FontSpace 获取 NeonSans-m2YEx.ttf 放置在 Assets/Fonts/ 下。右键之以创建 Font Asset。

webp

场景中创建 EventSystem。

从 Modern RPG - Free icons pack | 2D 图标 | Unity Asset Store 导入资产。

webp

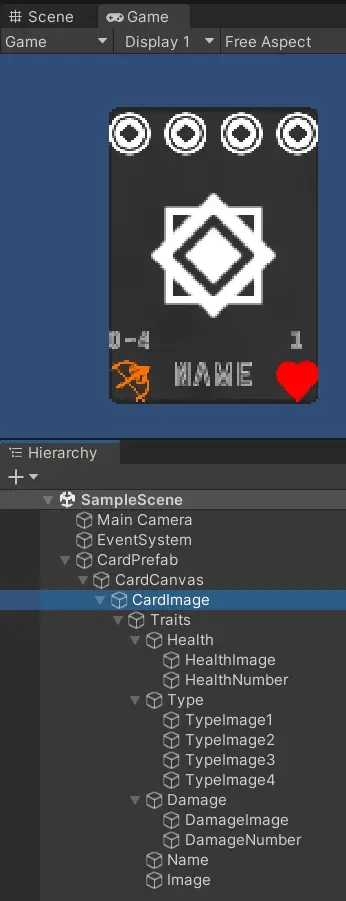

如此设置 UI 的布局并保存成 CardPrefab。CardCanvas 的 Render Mode 为 World Space。CardImage 的 Witdh 为 2.5，Height 为 3.5。

Ep. 3 - Card Display Script

创建 Assets/Scripts/CardDisplay.cs：将 Card 中的信息显示出来。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using TMPro;
using SinuousProductions;

public class CardDisplay : MonoBehaviour
{
    public Card cardData;
    public Image cardImage;
    public TMP_Text nameText;
    public TMP_Text healthText;
    public TMP_Text damageText;
    public Image[] typeImages;

    private Color[] cardColors =
    {
        Color.red,  // Fire
        new Color(0.8f, 0.52f, 0.24f),  // Earth
        Color.blue,  // Water
        new Color(0.2327043f, 0.057181015f, 0.2052875f), // Dark
        Color.yellow,  // Light
        Color.cyan  // Air
    };

    private Color[] typeColors =
    {
        Color.red, // Fire
        new Color(0.8f, 0.52f, 0.24f),  // Earth
        Color.blue,  // Water
        new Color(0.47f, 0f, 0.4f),  // Dark
        Color.yellow,  // Light
        Color.cyan  // Air
    };

    void Start()
    {
        UpdateCardDisplay();
    }

    public void UpdateCardDisplay()
    {
        cardImage.color = typeColors[(int)cardData.cardType[0]];
        nameText.text = cardData.cardName;
        healthText.text = cardData.health.ToString();
        damageText.text = $"{cardData.damageMin} - {cardData.damageMax}";

        for (int i = 0; i < typeImages.Length; i++)
        {
            if (i < cardData.cardType.Count)
            {
                typeImages[i].gameObject.SetActive(true);
                typeImages[i].color = typeColors[(int)cardData.cardType[i]];
            }
        }
    }
}

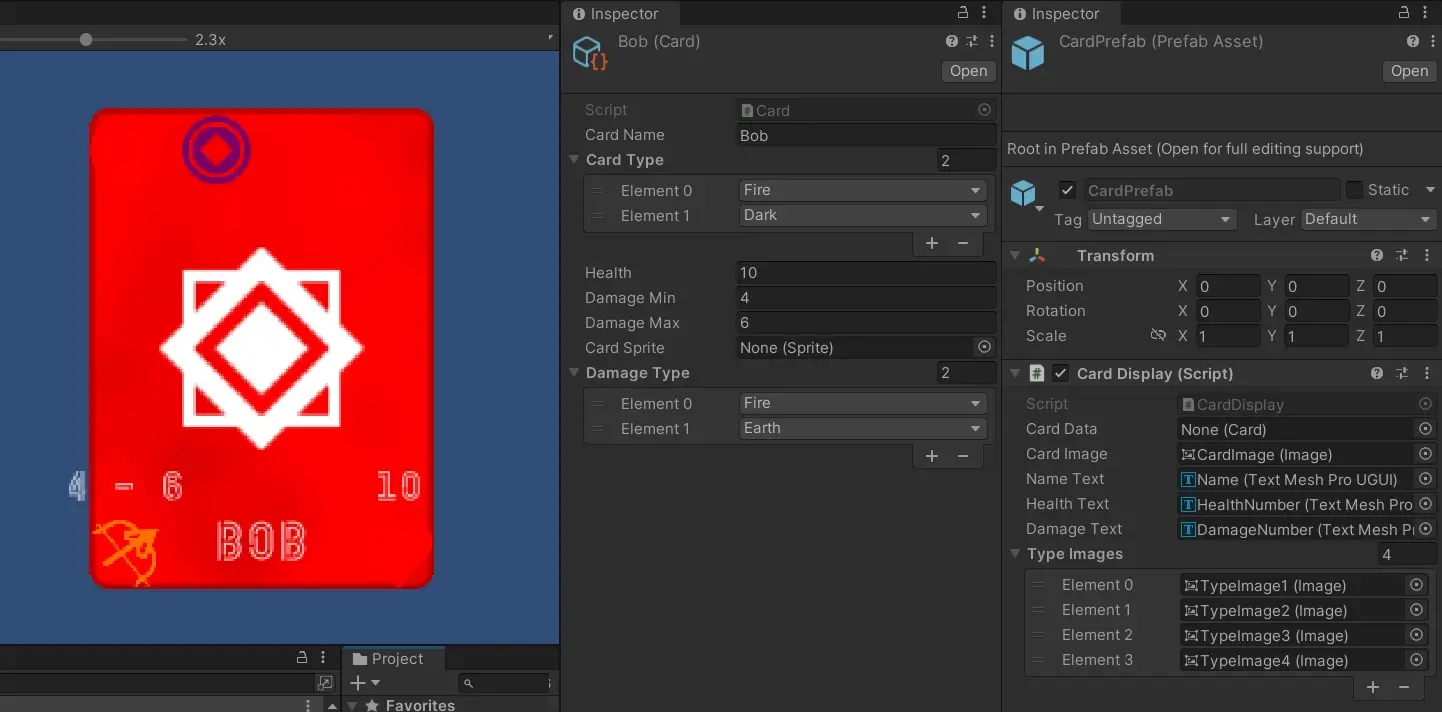

将 CardDisplay 绑到 CardPrefab 上。

webp

Ep. 4 - Hand Manager

场景中创建如下的对象结构：

  • Canvas
    • HandManager
    • HandPosition
    • DeckManager

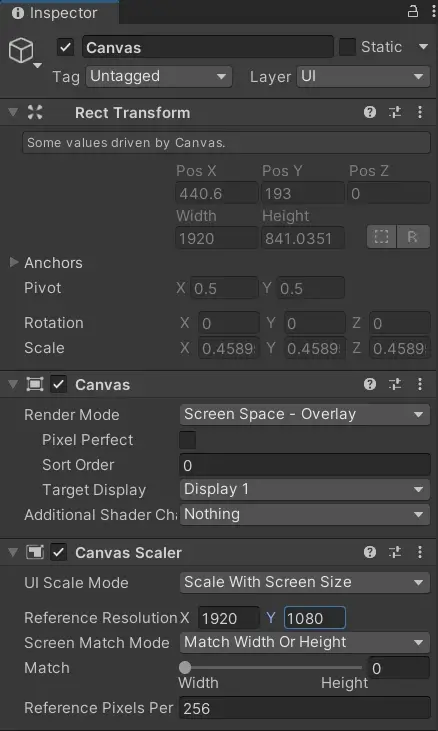

Canvas 如此设置：Render Mode 设为 Screen Space - Overlay，UI Scale Mode 设为 Scale With Screen Size。

webp

Note

Render Mode 适用场景
Screen Space - Overlay UI 始终在前面，不受摄像机影响（HUD、菜单）。
Screen Space - Camera UI 受摄像机影响，可与 3D 物体有深度关系（FPS HUD）。
World Space UI 作为 3D 物体放置在场景中（3D UI，NPC 头顶血条）。
UI Scale Mode 适用场景
Constant Pixel Size UI 大小固定，适用于固定分辨率游戏。
Scale With Screen Size UI 适应不同分辨率，常用于跨平台游戏。
Constant Physical Size UI 依据设备 DPI 缩放，适用于 AR/VR 应用。

创建 Assets/Scripts/HandManager.cs，用于将卡牌创建到 HandPosition 处。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using SinuousProductions;

public class HandManager : MonoBehaviour
{
    public GameObject cardPrefab;
    public Transform handTransform;
    public float fanSpread = 7.5f;
    public float cardSpacing = 100f;
    public float verticalSpacing = 10f;
    public List<GameObject> cardsInHand = new List<GameObject>();

    public void AddCardToHand(Card cardData)
    {
        GameObject newCard = Instantiate(cardPrefab, handTransform.position, Quaternion.identity, handTransform);
        cardsInHand.Add(newCard);

        newCard.GetComponent<CardDisplay>().cardData = cardData;

        UpdateHandVisuals();
    }

    private void UpdateHandVisuals()
    {
        int cardCount = cardsInHand.Count;

        if (cardCount == 1)
        {
            cardsInHand[0].transform.localRotation = Quaternion.Euler(0f, 0f, 0f);
            cardsInHand[0].transform.localPosition = new Vector3(0f, 0f, 0f);
            return;
        }

        for(int i = 0; i < cardCount; i++)
        {
            float rotationAngle = (fanSpread * (i / (cardCount - 1) / 2f));
            cardsInHand[i].transform.localRotation = Quaternion.Euler(0f, 0f, rotationAngle);

            float horizontalOffset = (cardSpacing * (i - (cardCount - 1) / 2f));
            float normalizedPosition = (2f * i / (cardCount - 1) - 1f);
            float verticalOffset = verticalSpacing * (1 - normalizedPosition * normalizedPosition);
            cardsInHand[i].transform.localPosition = new Vector3(horizontalOffset, verticalOffset, 0f);
        }
    }
}

创建 Assets/Scripts/DeckManager.cs：控制牌库以及从牌库中抽牌的逻辑。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using SinuousProductions;

public class DeckManager : MonoBehaviour
{
    public List<Card> allCards = new List<Card>();
    private int currentIndex = 0;

    public void DrawCard(HandManager handManager)
    {
        if (allCards.Count == 0)
            return;
        Card nextCard = allCards[currentIndex];
        handManager.AddCardToHand(nextCard);
        currentIndex = (currentIndex + 1) % allCards.Count;
    }
}

创建 Assets/Editor/DeckManagerEditor.cs：给 DeckManager 加一个抽牌按钮的 UI。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

#if UNITY_EDITOR
using UnityEditor;
[CustomEditor(typeof(DeckManager))]
public class DeckManagerEditor : Editor
{
    public override void OnInspectorGUI()
    {
        DrawDefaultInspector();
        DeckManager deckManager = (DeckManager)target;
        if (GUILayout.Button("Draw Next Card"))
        {
            HandManager handManager = FindObjectOfType<HandManager>();
            if (handManager != null)
            {
                deckManager.DrawCard(handManager);
            }
        }
    }
}
#endif

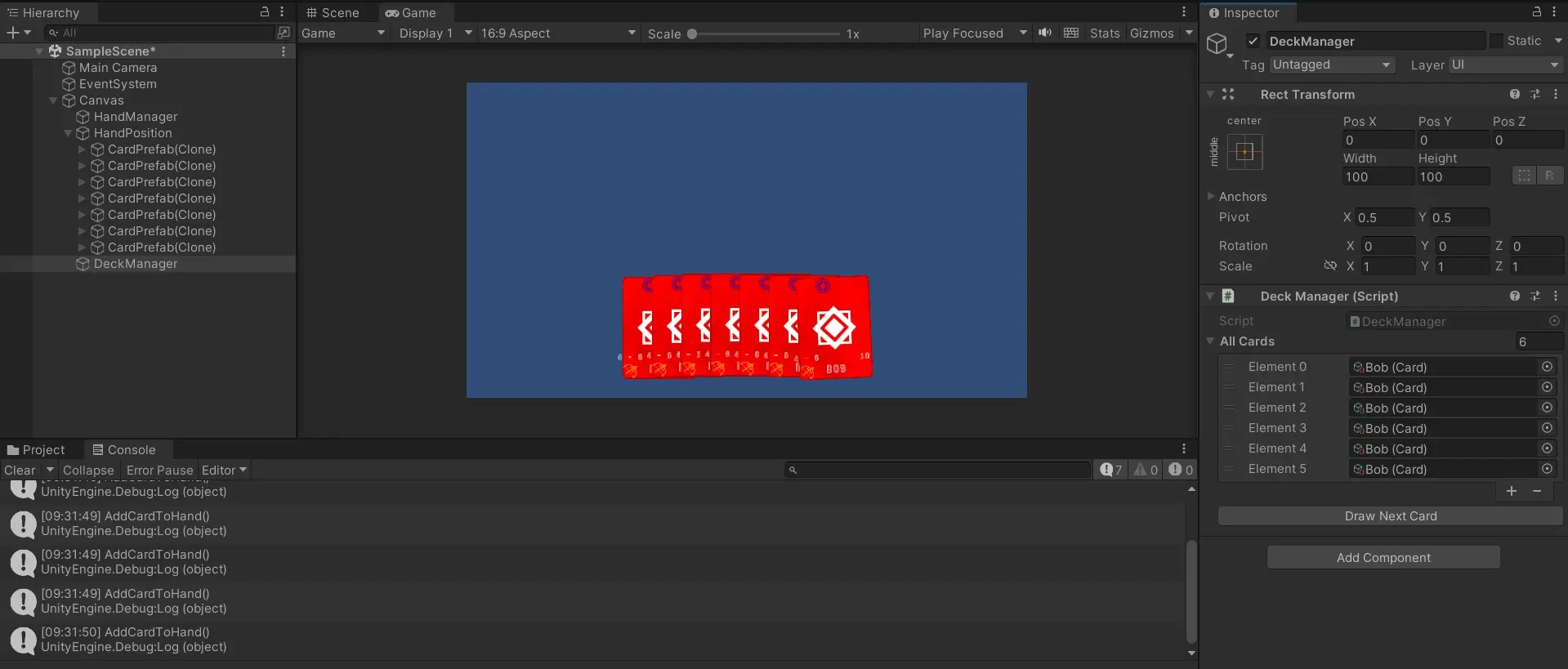

调整各个对象的 Transform（CardPrefab 中 Scale 的 X 和 Y 设为 100），得到如图的效果。

webp

Ep. 5 - Card Movement

从 Episode 5 - Google Drive 中导入 Assets/Sprites/TutorialCardHighlight.png 和 Assets/Scripts/DragUIObject.cs。

将 TutorialCardHighlight.png 的 Pixels Per Unit 设为 256（每 256 像素宽度的图片，在 Unity 中相当于 1 个单位（而非默认的 100 像素 = 1 单位））。

webp

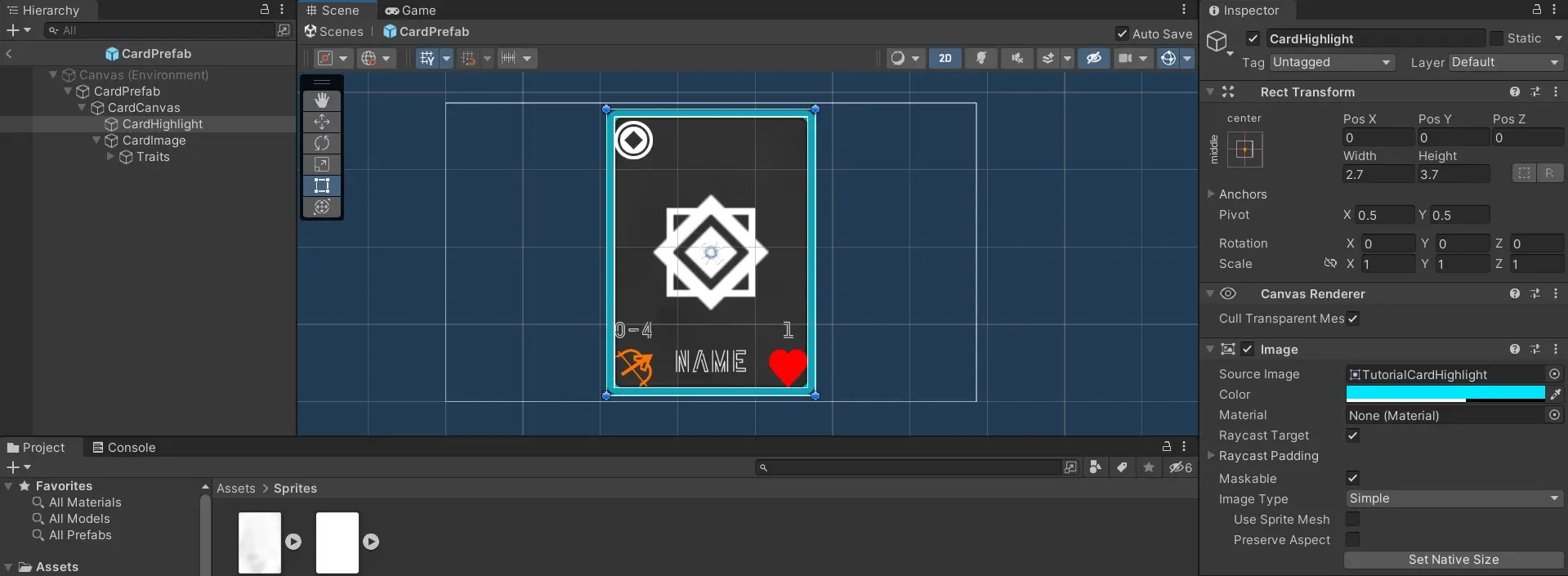

在 CardPrefab 中创建一个 CardHighlight 的 Image。

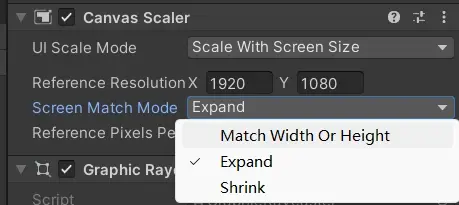

将场景中的 Canvas Scaler 的 Screen Match Mode 设为 Expand。

webp

Note

模式 作用 适用场景
Match Width Or Height 让 UI 根据宽度、高度比例进行缩放。 适用于不同屏幕比例的 UI 适配。
Expand 如果屏幕比参考分辨率 更大，则 UI 扩展 以填满屏幕；如果屏幕更小，则 UI 按原比例缩小。 UI 需要 填满整个屏幕，但不会裁剪任何部分（如全屏 UI）。
Shrink 如果屏幕比参考分辨率 更大，UI 保持原比例，不放大；如果屏幕更小，则 UI 缩小以适应屏幕。 UI 需要 完全显示，但可能不会填满整个屏幕（如 UI 不能超出某个范围）。

webp

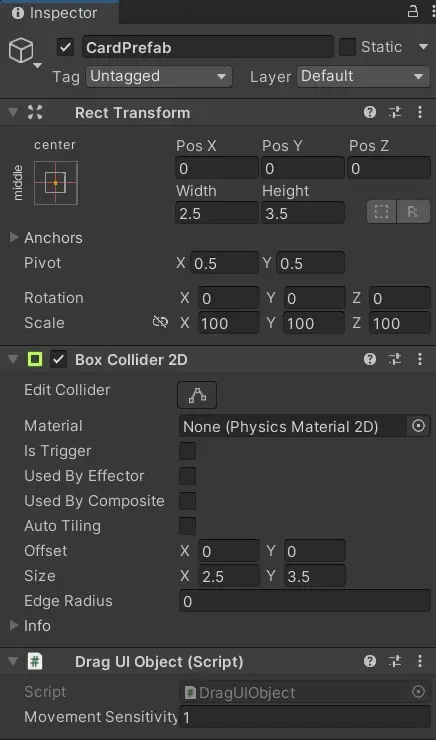

给 CardPrefab 添加 Box Collider 2D 和 Drag UI Object。

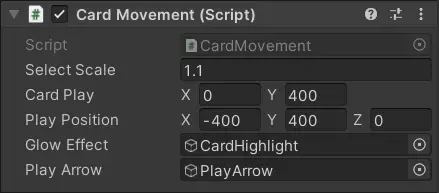

创建一个 Assets/Scripts/CardMovement.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.EventSystems;

public class CardMovement : MonoBehaviour, IDragHandler, IPointerDownHandler, IPointerEnterHandler, IPointerExitHandler
{
    private RectTransform rectTransform;
    private Canvas canvas;
    private Vector2 originalLocalPointerPosition;
    private Vector3 originalPanelLocalPosition;
    private Vector3 originalScale;
    private int currentState = 0;
    private Quaternion originalRotation;
    private Vector3 originalPosition;

    [SerializeField] private float selectScale = 1.1f;
    [SerializeField] private Vector2 cardPlay;
    [SerializeField] private Vector3 playPosition;
    [SerializeField] private GameObject glowEffect;
    [SerializeField] private GameObject playArrow;

    void Awake()
    {
        // 记录初始位置
        rectTransform = GetComponent<RectTransform>();
        canvas = GetComponentInParent<Canvas>();
        originalScale = rectTransform.localScale;
        originalPosition = rectTransform.localPosition;
        originalRotation = rectTransform.localRotation;
    }

    void Update()
    {
        // 处理状态机
        switch (currentState)
        {
            case 1:
                HandleHoverState();  // 处理悬停状态
                break;
            case 2:
                HandleDragState();  // 处理拖拽状态
                if (!Input.GetMouseButton(0))  // 如果鼠标松开
                {
                    TransitionToState0();  // 恢复默认状态
                }
                break;
            case 3:
                HandlePlayState();  // 处理放置状态
                if (!Input.GetMouseButton(0))  // 如果鼠标松开
                {
                    TransitionToState0();  // 恢复默认状态
                }
                break;
        }
    }

    private void TransitionToState0()
    {
        currentState = 0;
        rectTransform.localScale = originalScale;
        rectTransform.localRotation = originalRotation;
        rectTransform.localPosition = originalPosition;
        glowEffect.SetActive(false);
        playArrow.SetActive(false);
    }

    public void OnPointerEnter(PointerEventData eventData)
    {
        if (currentState == 0)
        {
            originalPosition = rectTransform.localPosition;
            originalRotation = rectTransform.localRotation;
            originalScale = rectTransform.localScale;
            currentState = 1;
        }
    }

    public void OnPointerExit(PointerEventData eventData)
    {
        if (currentState == 1)
        {
            currentState = 0;
            TransitionToState0();
        }
    }

    public void OnPointerDown(PointerEventData eventData)
    {
        if (currentState == 1)
        {
            currentState = 2;
            RectTransformUtility.ScreenPointToLocalPointInRectangle(canvas.GetComponent<RectTransform>(),
                eventData.position, eventData.pressEventCamera, out originalLocalPointerPosition);
            originalPanelLocalPosition = rectTransform.localPosition;
        }
    }

    public void OnDrag(PointerEventData eventData)
    {
        if (currentState == 2)
        {
            Vector2 localPointerPosition;
            if (RectTransformUtility.ScreenPointToLocalPointInRectangle(canvas.GetComponent<RectTransform>(),
                eventData.position, eventData.pressEventCamera, out localPointerPosition))
            {
                rectTransform.position = Input.mousePosition;

                if (rectTransform.localPosition.y > cardPlay.y)
                {
                    currentState = 3;
                    playArrow.SetActive(true);
                    rectTransform.localPosition = playPosition;
                }
            }
        }
    }

    private void HandleHoverState()
    {
        glowEffect.SetActive(true);
        rectTransform.localScale = originalScale * selectScale;
    }

    private void HandleDragState()
    {
        rectTransform.localRotation = Quaternion.identity;
    }

    private void HandlePlayState()
    {
        rectTransform.localPosition = playPosition;
        rectTransform.localRotation = Quaternion.identity;

        if (Input.mousePosition.y < cardPlay.y)
        {
            currentState = 2;
            playArrow.SetActive(false);
        }
    }
}

Note

IDragHandler：处理拖拽事件（OnDrag）。

IPointerDownHandler：处理鼠标按下事件（OnPointerDown）。

IPointerEnterHandler：处理鼠标悬停事件（OnPointerEnter）。

IPointerExitHandler：处理鼠标移出事件（OnPointerExit）。

悬停：鼠标进入时，卡牌变大并高亮。

拖拽：鼠标按下后，卡牌可拖动。

放置：如果拖到一定高度，卡牌会被固定到 playPosition，并显示 playArrow。

在 CardPrefab 上绑定 Card Movement。

webp

展示效果：

webp

Ep. 6 - Arc Renderer

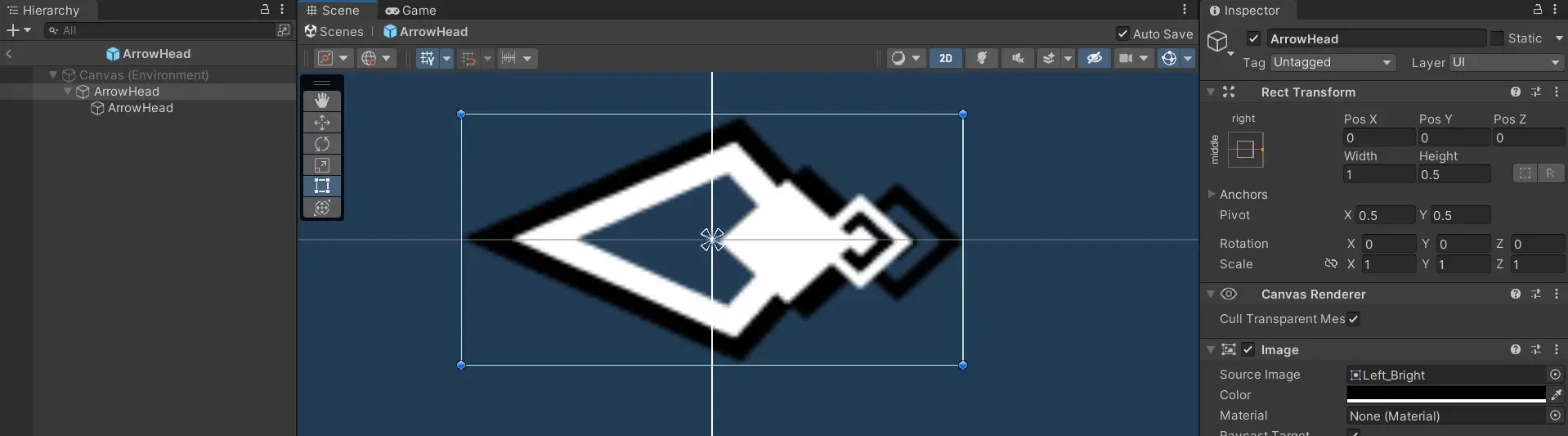

创建 ArrowHead.prefab：

webp

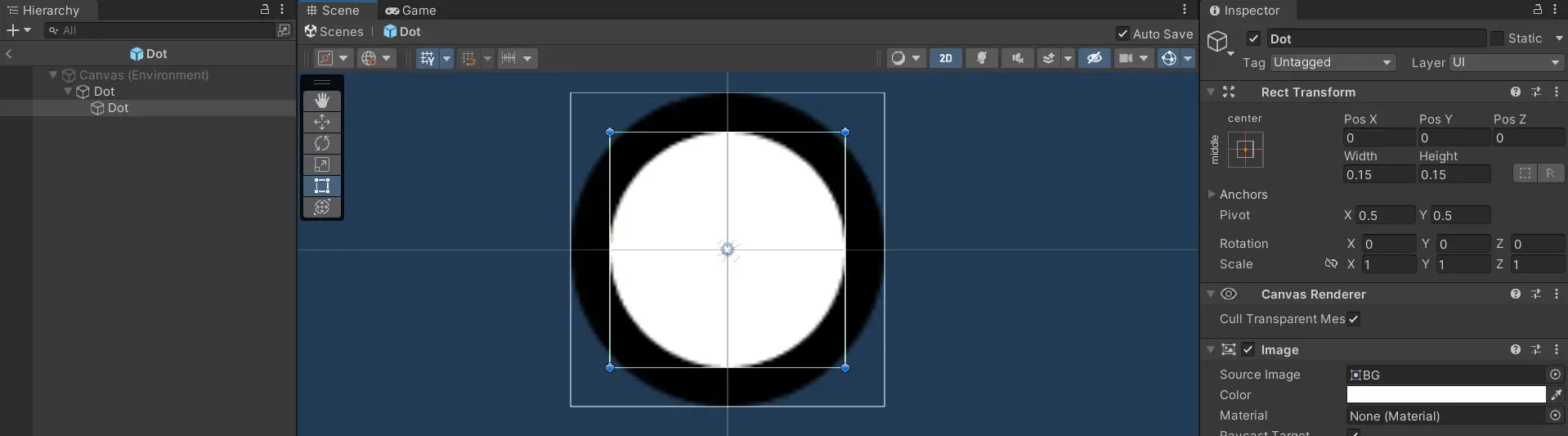

创建 Dot.prefab：

webp

创建 Assets/Scripts/ArcRenderer.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class ArcRenderer : MonoBehaviour
{
    public GameObject arrowPrefab;  // 箭头头部
    public GameObject dotPrefab;  // 点
    public int poolSize = 50;  // 最多由多少个点组成箭头柄部
    private List<GameObject> dotPool = new List<GameObject>();
    private GameObject arrowInstance;  // 箭头

    public float spacing = 50;  // 点间距
    public float arrowAngleAdjustment = 0;  // 箭头方向调整
    public int dotsToSkip = 1;
    private Vector3 arrowDirection;  // 箭头指向

    void Start()
    {
        arrowInstance = Instantiate(arrowPrefab, transform);
        arrowInstance.transform.localPosition = Vector3.zero;
        InitializeDotPool(poolSize);
    }

    // 更新抛物线
    void Update()
    {
        Vector3 mousePos = Input.mousePosition;
        mousePos.z = 0;
        Vector3 startPos = transform.position;
        Vector3 midPoint = CalculateMidPoint(startPos, mousePos);

        UpdateArc(startPos, midPoint, mousePos);
        PositionAndRotateArrow(mousePos);
    }

    // 计算抛物线轨迹
    void UpdateArc(Vector3 start, Vector3 mid, Vector3 end)
    {
        int numDots = Mathf.CeilToInt(Vector3.Distance(start, end) / spacing);

        for(int i = 0; i < numDots && i < dotPool.Count; i++)
        {
            float t = i / (float)numDots;
            t = Mathf.Clamp(t, 0f, 1f);
            Vector3 position = QuadraticBezierPoint(start, mid, end, t);

            if (i != numDots - dotsToSkip)
            {
                dotPool[i].transform.position = position;
                dotPool[i].SetActive(true);
            }

            if (i == numDots - (dotsToSkip + 1) && i - dotsToSkip + 1 >= 0)
            {
                arrowDirection = dotPool[i].transform.position;
            }
        }

        for(int i = numDots - dotsToSkip; i < dotPool.Count; i++)
        {
            if (i > 0)
            {
                dotPool[i].SetActive(false);
            }
        }
    }

    // 让箭头朝向正确方向
    void PositionAndRotateArrow(Vector3 position)
    {
        arrowInstance.transform.position = position;
        Vector3 direction = arrowDirection - position;
        float angle = Mathf.Atan2(direction.y, direction.x) * Mathf.Rad2Deg;
        angle += arrowAngleAdjustment;
        arrowInstance.transform.rotation = Quaternion.AngleAxis(angle, Vector3.forward);
    }

    // 计算抛物线中间控制点
    Vector3 CalculateMidPoint(Vector3 start, Vector3 end)
    {
        Vector3 midpoint = (start + end) / 2;
        float arcHeight = Vector3.Distance(start, end) / 3f;
        midpoint.y += arcHeight;
        return midpoint;
    }

    // 计算贝塞尔曲线上的点
    Vector3 QuadraticBezierPoint(Vector3 start, Vector3 control, Vector3 end, float t)
    {
        float u = 1 - t;
        float tt = t * t;
        float uu = u * u;

        Vector3 point = uu * start;
        point += 2 * u * t * control;
        point += tt * end;
        return point;
    }

    // 初始化对象池
    void InitializeDotPool(int count)
    {
        for (int i = 0; i < count; i++)
        {
            GameObject dot = Instantiate(dotPrefab, Vector3.zero, Quaternion.identity, transform);
            dot.SetActive(false);
            dotPool.Add(dot);
        }
    }
}

Note

计算 二次贝塞尔曲线 的插值公式：

P(t)=(1−t)2P0+2(1−t)tP1+t2P2P(t) = (1-t)^2 P_0 + 2(1-t)t P_1 + t^2 P_2

P_0：起点

P_1：中间控制点

P_2：终点

t：插值参数（范围 0 ~ 1）。

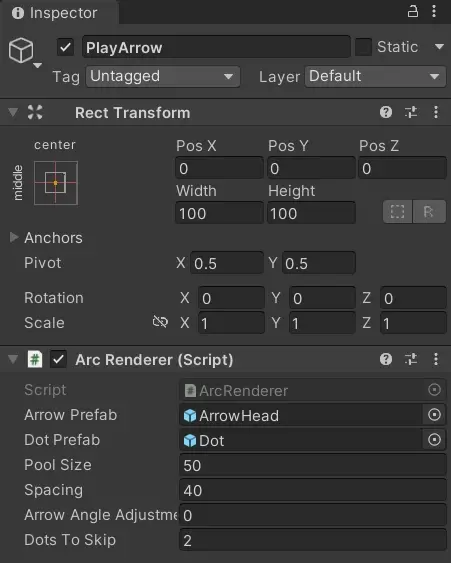

CardPreab 下的 PlayArrow 绑定好逻辑：

webp

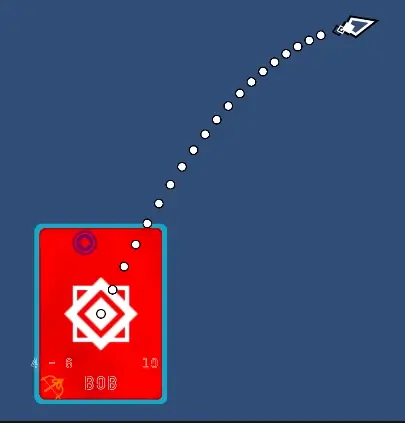

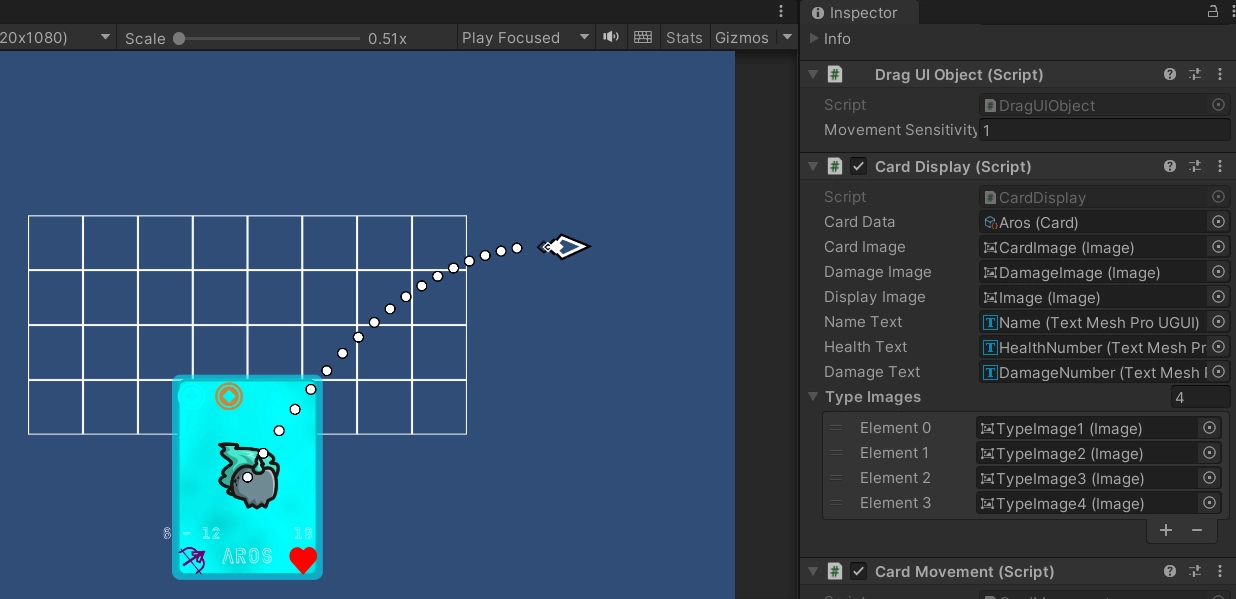

运行结果：

webp

Ep. 7 - Game Manager

创建以下类：

  • Assets/Scripts/OptionsManager.cs
  • Assets/Scripts/AudioManager.cs
  • Assets/Scripts/GameManager.cs

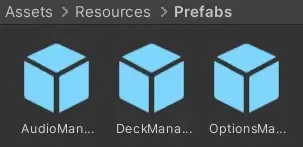

给 AudioManager、DeckManager 和 OptionsManager 绑成预制体，放入 Assets/Resources/Prefabs/ 下。

webp

Note

在 Unity 中，Resources/ 目录下的文件具有以下特点：

1. 可在运行时动态加载

  • Resources/ 目录下的资源可以使用 Resources.Load()、Resources.LoadAsync() 等方法在运行时动态加载。
  • 适用于需要按需加载的资源，比如 UI 界面、音效、材质等。

2. 打包进最终构建

  • Resources/ 目录下的所有文件都会被打包到最终的游戏构建（Build）中，即使它们没有被场景直接引用。
  • 这意味着即使一个资源在场景中未使用，只要它在 Resources/ 里，就会被包含在游戏中，可能会增加游戏包体积。

3. 无法按需卸载

  • Resources.Load() 加载的资源不会自动被卸载，必须手动调用 Resources.UnloadUnusedAssets() 或 Resources.UnloadAsset() 来释放不再使用的资源。
  • 这可能导致内存占用增加，特别是在移动端或资源密集型应用中要注意管理。

4. 无法通过 Addressables 直接管理

  • Unity 推荐使用 Addressables 进行资源管理，而不是 Resources/，因为 Resources/ 目录的资源无法动态更新，也不能按需加载和卸载得很好。

5. 路径限制

  • Resources.Load() 加载资源时，不需要写 Resources/，但需要写相对路径（不带后缀）。

  • 例如，Resources/Textures/MyTexture.png 需要通过：

    1
    Texture2D texture = Resources.Load<Texture2D>("Textures/MyTexture");

    来加载，而不是 Resources.Load("Resources/Textures/MyTexture.png")。

6. 适用场景

  • 适用于一些小型的、不会动态更新的资源，如游戏内置的默认 UI 图标、音效等。
  • 不适用于大规模资源管理，Unity 推荐使用 Addressables 进行更灵活的资源管理。

总结： Resources/ 目录适用于少量、固定的资源，适合简单的项目或临时加载需求。但由于无法有效管理内存和包体积，在复杂项目中，推荐使用 Addressables 或 AssetBundles 代替。

编辑 GameManager，使用单例模式：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GameManager : MonoBehaviour
{
    public static GameManager Instance { get; private set; }

    private void Awake()
    {
        if (Instance == null)
        {
            Instance = this;
            DontDestroyOnLoad(gameObject);
        }
        else if (Instance != this)
        {
            Destroy(gameObject);
        }
    }
}

Note

private set 限制外部修改

  • Instance 只有 类内部（GameManager 内部）可以修改，外部代码不能直接赋值：

    1
    GameManager.Instance = new GameManager(); // ❌ 错误，外部无法修改

  • 这样可以避免其他类意外修改单例实例，提高安全性。

继续写 GameManager：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GameManager : MonoBehaviour
{
    public static GameManager Instance { get; private set; }

    private int playerHealth;
    private int playerXP;
    private int difficulty = 5;

    public OptionsManager OptionsManager { get; private set; }
    public AudioManager AudioManager { get; private set; }
    public DeckManager DeckManager { get; private set; }

    private void Awake()
    {
        if (Instance == null)
        {
            Instance = this;
            DontDestroyOnLoad(gameObject);
            InitializeManagers();
        }
        else if (Instance != this)
        {
            Destroy(gameObject);
        }
    }

    private void InitializeManagers()
    {
        OptionsManager = GetComponentInChildren<OptionsManager>();
        AudioManager = GetComponentInChildren<AudioManager>();
        DeckManager = GetComponentInChildren<DeckManager>();

        if (OptionsManager == null)
        {
            GameObject prefab = Resources.Load<GameObject>("Prefabs/OptionsManager");
            if (prefab != null)
            {
                Instantiate(prefab, transform.position, Quaternion.identity, transform);
                OptionsManager = GetComponentInChildren<OptionsManager>();
            } else
            {
                Debug.LogError("OptionsManager prefab not found!");
            }
        }

        if (AudioManager == null)
        {
            GameObject prefab = Resources.Load<GameObject>("Prefabs/AudioManager");
            if (prefab != null)
            {
                Instantiate(prefab, transform.position, Quaternion.identity, transform);
                AudioManager = GetComponentInChildren<AudioManager>();
            }
            else
            {
                Debug.LogError("AudioManager prefab not found!");
            }
        }

        if (DeckManager == null)
        {
            GameObject prefab = Resources.Load<GameObject>("Prefabs/DeckManager");
            if (prefab != null)
            {
                Instantiate(prefab, transform.position, Quaternion.identity, transform);
                DeckManager = GetComponentInChildren<DeckManager>();
            }
            else
            {
                Debug.LogError("DeckManager prefab not found!");
            }
        }
    }

    public int PlayerHealth
    {
        get { return playerHealth; }
        set { playerHealth = value; }
    }

    public int PlayerXP
    {
        get { return playerXP; }
        set { playerXP = value; }
    }

    public int Difficulty
    {
        get { return difficulty; }
        set { difficulty = value; }
    }
}

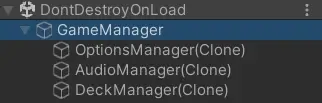

webp

Ep. 8 - Grid Manager

从 Episode 8 - Google Drive 处获取 GridOutline.png，放在 Assets/Sprites 下。

太大了，我压缩一下。

png

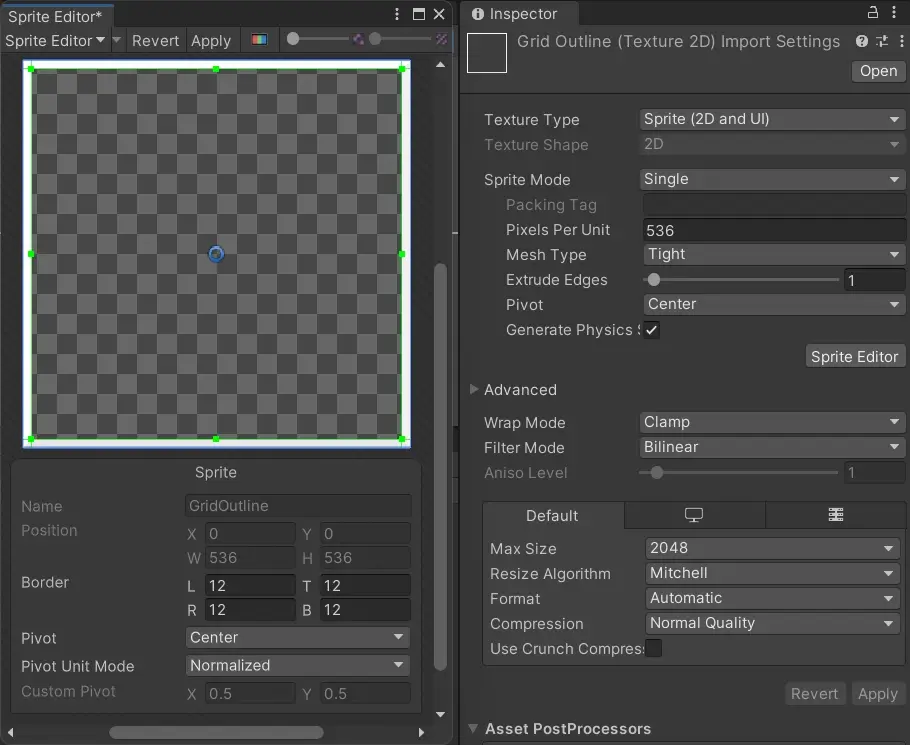

设置一下 Pixels Per Unit 及 Border：

webp

创建 Assets/Scripts/GridCell.cs：

1
2
3
4
5
6
7
8
9
10
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GridCell : MonoBehaviour
{
    public Vector2 gridIndex;
    public bool cellFull = false;
    public GameObject objectInCell;
}

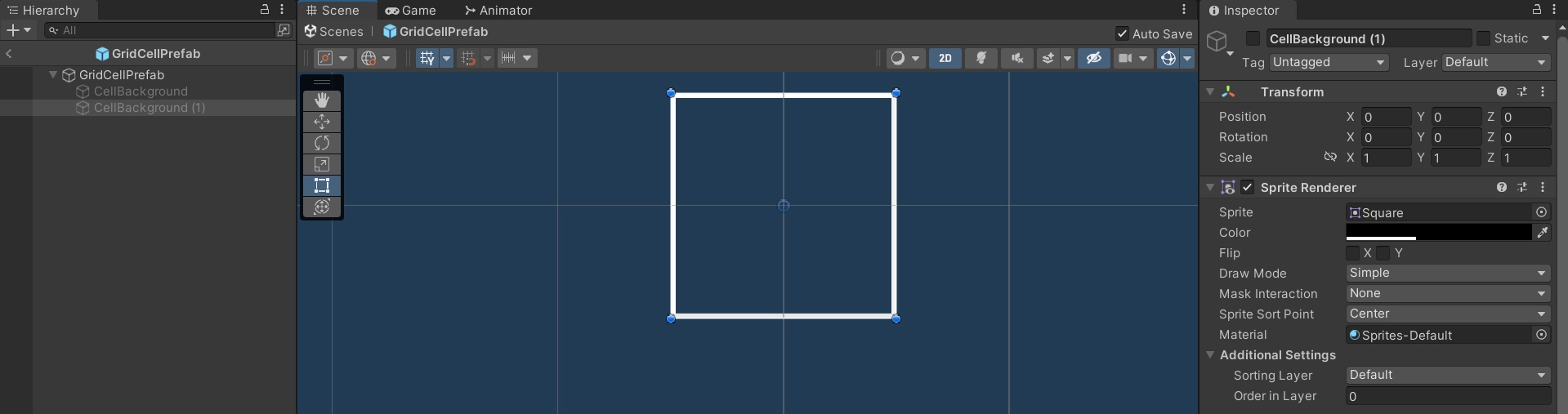

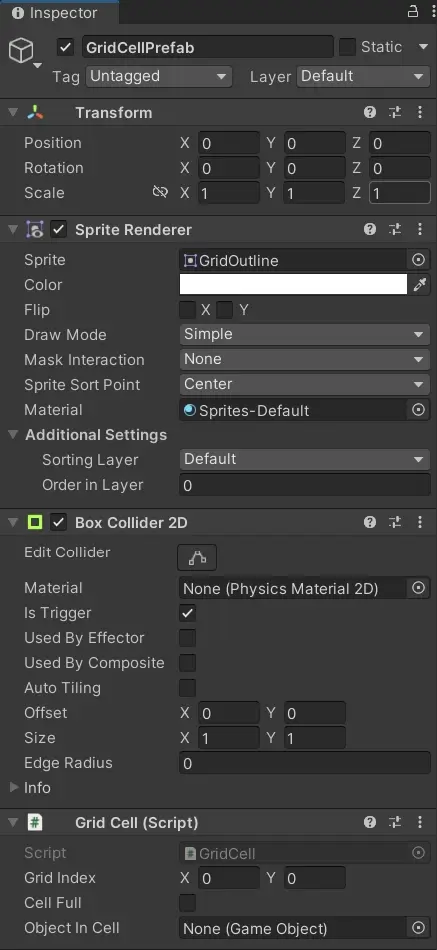

创建 Assets/Prefabs/GridCellPrefab.prefab：

webp

创建 Assets/Scripts/GridManager.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GridManager : MonoBehaviour
{
    public int width = 8;
    public int height = 4;
    public GameObject gridCellPrefab;
    public List<GameObject> gridObjects = new List<GameObject>();
    public GameObject[,] gridCells;

    private void Start()
    {
        CreateGrid();
    }

    private void CreateGrid()
    {
        gridCells = new GameObject[width, height];
        Vector2 centerOffset = new Vector2(width / 2.0f - 0.5f, height / 2.0f - 0.5f);

        for (int x = 0; x < width; x++)
        {
            for (int y = 0; y < height; y++)
            {
                Vector2 gridPosition = new Vector2(x, y);
                Vector2 spawnPosition = gridPosition - centerOffset;

                GameObject gridCell = Instantiate(gridCellPrefab, spawnPosition, Quaternion.identity);

                gridCell.transform.SetParent(transform);

                gridCell.GetComponent<GridCell>().gridIndex = gridPosition;

                gridCells[x, y] = gridCell;
            }
        }
    }

    public bool AddObjectToGrid(GameObject obj, Vector2 gridPosition)
    {
        if (gridPosition.x >= 0 && gridPosition.x < width && gridPosition.y >= 0 && gridPosition.y < height)
        {
            GridCell cell = gridCells[(int)gridPosition.x, (int)gridPosition.y].GetComponent<GridCell>();

            if (cell.cellFull)
                return false;
            else
            {
                GameObject newObj = Instantiate(obj, cell.GetComponent<Transform>().position, Quaternion.identity);
                newObj.transform.SetParent(transform);
                gridObjects.Add(newObj);
                cell.objectInCell = newObj;
                cell.cellFull = true;
                return true;
            }
        }
        return false;
    }
}

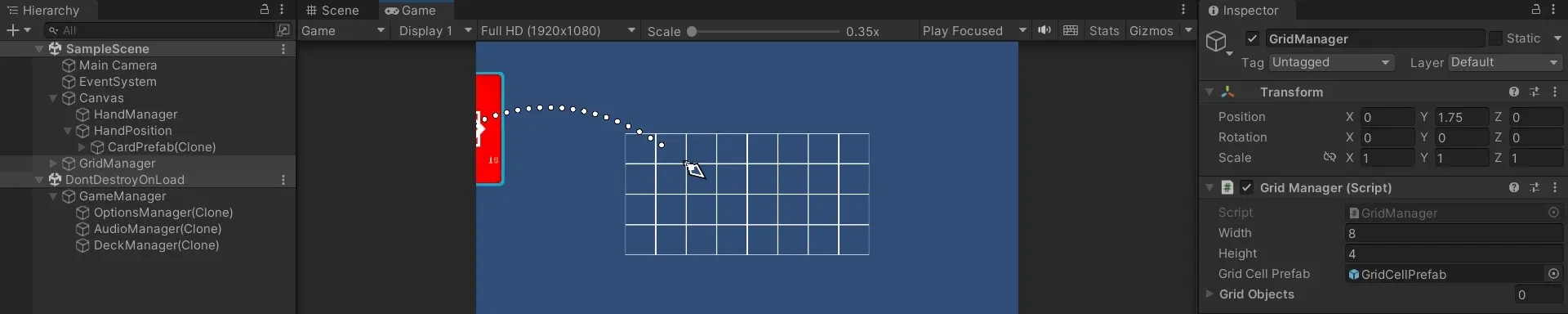

效果：

webp

Ep. 9 - Grid Population

下载这些内容：

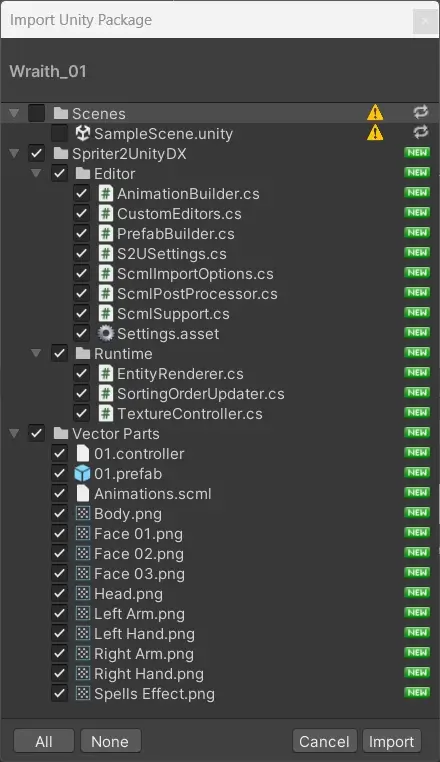

往项目中导入 craftpix-net-563568-free-wraith-tiny-style-2d-sprites.zip/Unity Package/Wraith_01.unitypackage：

（原教程说在导入非 Asset Store 的资产时，最好新建一个空白工程再导入，以避免导入过程中修改了什么关键设置）

webp

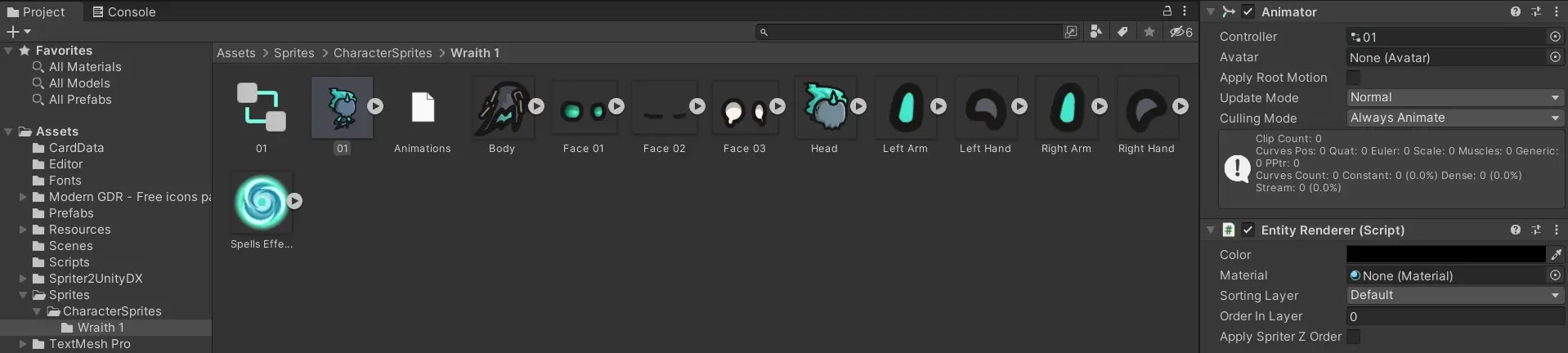

整理文件结构：

webp

更新 Assets/Scripts/Card.cs，添加一点卡牌数据：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace SinuousProductions
{
    [CreateAssetMenu(fileName = "New Card", menuName = "Card")]
    public class Card : ScriptableObject
    {
        public string cardName;
        public List<CardType> cardType;
        public int health;
        public int damageMin;
        public int damageMax;
        public Sprite cardSprite;
        public List<DamageType> damageType;
        public GameObject prefab;
        public int range;
        public AttackPattern attackPattern;
        public PriorityTarget priorityTarget;

        public enum CardType
        {
            Fire,
            Earth,
            Water,
            Dark,
            Light,
            Air
        }

        public enum DamageType
        {
            Fire,
            Earth,
            Water,
            Dark,
            Light,
            Air
        }

        public enum AttackPattern
        {
            Single,
            Multitarget,
            Cross,
            Column,
            Row,
            TwoByTwo,
            FourByFour
        }

        public enum PriorityTarget
        {
            Close,
            Far,
            LeastCurrentHealth,
            MostCurrentHealth,
            MostMaxHealth,
            MostDamage
        }
    }
}

webp

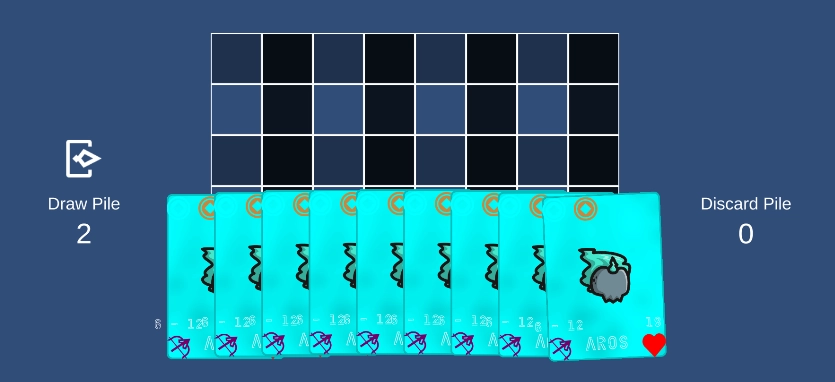

更新 Assets/Scripts/HandManager.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using SinuousProductions;

public class HandManager : MonoBehaviour
{
    public GameObject cardPrefab;
    public Transform handTransform;
    public float fanSpread = 7.5f;
    public float cardSpacing = 100f;
    public float verticalSpacing = 10f;
    public int maxHandSize = 12;
    public List<GameObject> cardsInHand = new List<GameObject>();

    public void AddCardToHand(Card cardData)
    {
        GameObject newCard = Instantiate(cardPrefab, handTransform.position, Quaternion.identity, handTransform);
        cardsInHand.Add(newCard);

        newCard.GetComponent<CardDisplay>().cardData = cardData;
        newCard.GetComponent<CardDisplay>().UpdateCardDisplay();

        UpdateHandVisuals();
    }

    private void UpdateHandVisuals()
    {
        int cardCount = cardsInHand.Count;

        if (cardCount == 1)
        {
            cardsInHand[0].transform.localRotation = Quaternion.Euler(0f, 0f, 0f);
            cardsInHand[0].transform.localPosition = new Vector3(0f, 0f, 0f);
            return;
        }

        for(int i = 0; i < cardCount; i++)
        {
            float rotationAngle = (fanSpread * (i / (cardCount - 1) / 2f));
            cardsInHand[i].transform.localRotation = Quaternion.Euler(0f, 0f, rotationAngle);

            float horizontalOffset = (cardSpacing * (i - (cardCount - 1) / 2f));
            float normalizedPosition = (2f * i / (cardCount - 1) - 1f);
            float verticalOffset = verticalSpacing * (1 - normalizedPosition * normalizedPosition);
            cardsInHand[i].transform.localPosition = new Vector3(horizontalOffset, verticalOffset, 0f);
        }
    }
}

更新 Assets/Scripts/CardDisplay.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using SinuousProductions;

public class HandManager : MonoBehaviour
{
    public GameObject cardPrefab;
    public Transform handTransform;
    public float fanSpread = 7.5f;
    public float cardSpacing = 100f;
    public float verticalSpacing = 10f;
    public int maxHandSize = 12;
    public List<GameObject> cardsInHand = new List<GameObject>();

    public void AddCardToHand(Card cardData)
    {
        GameObject newCard = Instantiate(cardPrefab, handTransform.position, Quaternion.identity, handTransform);
        cardsInHand.Add(newCard);

        newCard.GetComponent<CardDisplay>().cardData = cardData;
        newCard.GetComponent<CardDisplay>().UpdateCardDisplay();

        UpdateHandVisuals();
    }

    public void UpdateHandVisuals()
    {
        int cardCount = cardsInHand.Count;

        if (cardCount == 1)
        {
            cardsInHand[0].transform.localRotation = Quaternion.Euler(0f, 0f, 0f);
            cardsInHand[0].transform.localPosition = new Vector3(0f, 0f, 0f);
            return;
        }

        for (int i = 0; i < cardCount; i++)
        {
            float rotationAngle = (fanSpread * (i / (cardCount - 1) / 2f));
            cardsInHand[i].transform.localRotation = Quaternion.Euler(0f, 0f, rotationAngle);

            float horizontalOffset = (cardSpacing * (i - (cardCount - 1) / 2f));
            float normalizedPosition = (2f * i / (cardCount - 1) - 1f);
            float verticalOffset = verticalSpacing * (1 - normalizedPosition * normalizedPosition);
            cardsInHand[i].transform.localPosition = new Vector3(horizontalOffset, verticalOffset, 0f);
        }
    }
}

webp

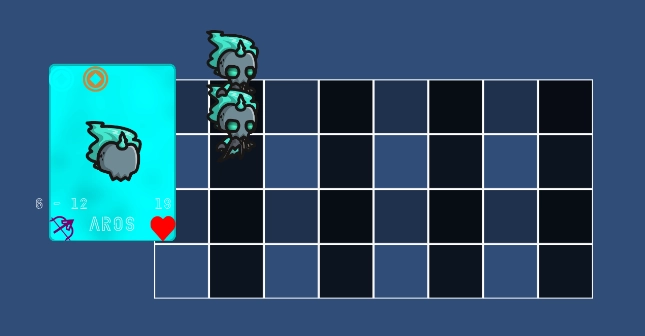

更新 Assets/Scripts/GridManager.cs，当棋盘上有对象时，更新数组：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GridManager : MonoBehaviour
{
    public int width = 8;
    public int height = 4;
    public GameObject gridCellPrefab;
    public List<GameObject> gridObjects = new List<GameObject>();
    public GameObject[,] gridCells;

    private void Start()
    {
        CreateGrid();
    }

    private void CreateGrid()
    {
        gridCells = new GameObject[width, height];
        Vector2 centerOffset = new Vector2(width / 2.0f - 0.5f, height / 2.0f - 0.5f);

        for (int x = 0; x < width; x++)
        {
            for (int y = 0; y < height; y++)
            {
                Vector2 gridPosition = new Vector2(x, y);
                Vector2 spawnPosition = gridPosition - centerOffset;

                GameObject gridCell = Instantiate(gridCellPrefab, spawnPosition, Quaternion.identity);

                gridCell.transform.SetParent(transform);

                gridCell.GetComponent<GridCell>().gridIndex = gridPosition;

                gridCells[x, y] = gridCell;
            }
        }
    }

    public bool AddObjectToGrid(GameObject obj, Vector2 gridPosition)
    {
        if (gridPosition.x >= 0 && gridPosition.x < width && gridPosition.y >= 0 && gridPosition.y < height)
        {
            GridCell cell = gridCells[(int)gridPosition.x, (int)gridPosition.y].GetComponent<GridCell>();

            if (cell.cellFull)
                return false;
            else
            {
                GameObject newObj = Instantiate(obj, cell.GetComponent<Transform>().position, Quaternion.identity);
                newObj.transform.SetParent(transform);
                gridObjects.Add(newObj);
                cell.objectInCell = newObj;
                cell.cellFull = true;
                return true;
            }
        }
        return false;
    }
}

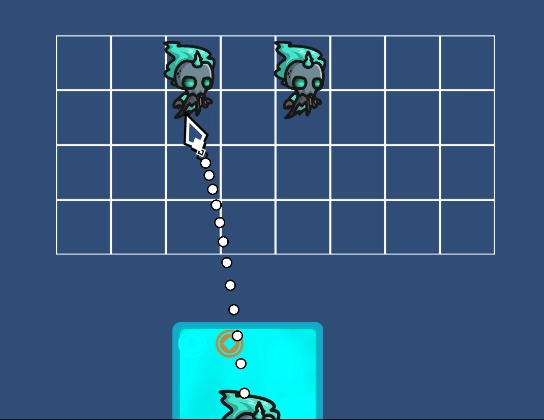

更新 Assets/Scripts/CardMovement.cs，更新 HandlePlayState()，射线检测是否点击到了格子，随后将卡牌放到对应格子中：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.EventSystems;

public class CardMovement : MonoBehaviour, IDragHandler, IPointerDownHandler, IPointerEnterHandler, IPointerExitHandler
{
    private RectTransform rectTransform;
    private Canvas canvas;
    private Vector2 originalLocalPointerPosition;
    private Vector3 originalPanelLocalPosition;
    private Vector3 originalScale;
    private int currentState = 0;
    private Quaternion originalRotation;
    private Vector3 originalPosition;
    private RectTransform canvasRectTransform;
    private GridManager gridManager;

    [SerializeField] private float selectScale = 1.1f;
    [SerializeField] private Vector2 cardPlay;
    [SerializeField] private Vector3 playPosition;
    [SerializeField] private GameObject glowEffect;
    [SerializeField] private GameObject playArrow;

    void Awake()
    {
        // 记录初始位置
        rectTransform = GetComponent<RectTransform>();
        canvas = GetComponentInParent<Canvas>();

        if (canvas != null)
        {
            canvasRectTransform = canvas.GetComponent<RectTransform>();
        }

        originalScale = rectTransform.localScale;
        originalPosition = rectTransform.localPosition;
        originalRotation = rectTransform.localRotation;
        gridManager = FindObjectOfType<GridManager>();
    }

    void Update()
    {
        // 处理状态机
        switch (currentState)
        {
            case 1:
                HandleHoverState();  // 处理悬停状态
                break;
            case 2:
                HandleDragState();  // 处理拖拽状态
                if (!Input.GetMouseButton(0))  // 如果鼠标松开
                {
                    TransitionToState0();  // 恢复默认状态
                }
                break;
            case 3:
                HandlePlayState();  // 处理放置状态
                if (!Input.GetMouseButton(0))  // 如果鼠标松开
                {
                    TransitionToState0();  // 恢复默认状态
                }
                break;
        }
    }

    private void TransitionToState0()
    {
        currentState = 0;
        rectTransform.localScale = originalScale;
        rectTransform.localRotation = originalRotation;
        rectTransform.localPosition = originalPosition;
        glowEffect.SetActive(false);
    }

    public void OnPointerEnter(PointerEventData eventData)
    {
        if (currentState == 0)
        {
            originalPosition = rectTransform.localPosition;
            originalRotation = rectTransform.localRotation;
            originalScale = rectTransform.localScale;
            currentState = 1;
        }
    }

    public void OnPointerExit(PointerEventData eventData)
    {
        if (currentState == 1)
        {
            currentState = 0;
            TransitionToState0();
        }
    }

    public void OnPointerDown(PointerEventData eventData)
    {
        if (currentState == 1)
        {
            currentState = 2;
            RectTransformUtility.ScreenPointToLocalPointInRectangle(canvas.GetComponent<RectTransform>(),
                eventData.position, eventData.pressEventCamera, out originalLocalPointerPosition);
            originalPanelLocalPosition = rectTransform.localPosition;
        }
    }

    public void OnDrag(PointerEventData eventData)
    {
        if (currentState == 2)
        {
            Vector2 localPointerPosition;
            if (RectTransformUtility.ScreenPointToLocalPointInRectangle(canvas.GetComponent<RectTransform>(),
                eventData.position, eventData.pressEventCamera, out localPointerPosition))
            {
                rectTransform.position = Input.mousePosition;

                if (rectTransform.localPosition.y > cardPlay.y)
                {
                    currentState = 3;
                    playArrow.SetActive(true);
                    rectTransform.localPosition = playPosition;
                }
            }
        }
    }

    private void HandleHoverState()
    {
        glowEffect.SetActive(true);
        rectTransform.localScale = originalScale * selectScale;
    }

    private void HandleDragState()
    {
        rectTransform.localRotation = Quaternion.identity;
    }

    private void HandlePlayState()
    {
        rectTransform.localPosition = playPosition;
        rectTransform.localRotation = Quaternion.identity;

        if(!Input.GetMouseButton(0))
        {
            Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);
            RaycastHit2D hit = Physics2D.Raycast(ray.origin, ray.direction);

            if (hit.collider != null && hit.collider.GetComponent<GridCell>())
            {
                GridCell cell = hit.collider.GetComponent<GridCell>();
                Vector2 targetPos = cell.gridIndex;
                if (gridManager.AddObjectToGrid(GetComponent<CardDisplay>().cardData.prefab, targetPos))
                {
                    HandManager handManager = FindObjectOfType<HandManager>();
                    handManager.cardsInHand.Remove(gameObject);
                    handManager.UpdateHandVisuals();
                }
            }
        }

        if (Input.mousePosition.y < cardPlay.y)
        {
            currentState = 2;
            playArrow.SetActive(false);
        }
    }
}

webp

Ep. 10a - Grid Cell Display

给 GameManager 中添加一个变量：

1
public bool PlayingCard = false;

在 CardMovement 类中的 TransitionToState0() 访问它：

1
2
3
4
5
6
7
8
9
10
private void TransitionToState0()
{
    currentState = 0;
    GameManager.Instance.PlayingCard = false;
    rectTransform.localScale = originalScale;
    rectTransform.localRotation = originalRotation;
    rectTransform.localPosition = originalPosition;
    glowEffect.SetActive(false);
    playArrow.SetActive(false);
}

HandlePlayState()：

1
2
3
4
5
6
7
8
private void HandlePlayState()
{
    if (!GameManager.Instance.PlayingCard)
    {
        GameManager.Instance.PlayingCard = true;
    }
    ...
}

修改 CardMovement.cs，添加 maxColumn 及其相关逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class CardMovement : MonoBehaviour, IDragHandler, IPointerDownHandler, IPointerEnterHandler, IPointerExitHandler
{

    private readonly int maxColumn = 2;

    ...

    private void HandlePlayState()
    {
		...

        if(!Input.GetMouseButton(0))
        {
            Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);
            RaycastHit2D hit = Physics2D.Raycast(ray.origin, ray.direction);

            if (hit.collider != null && hit.collider.GetComponent<GridCell>())
            {
                GridCell cell = hit.collider.GetComponent<GridCell>();
                Vector2 targetPos = cell.gridIndex;
                if (cell.gridIndex.x < maxColumn && gridManager.AddObjectToGrid(GetComponent<CardDisplay>().cardData.prefab, targetPos))
                {
                    HandManager handManager = FindObjectOfType<HandManager>();
                    handManager.cardsInHand.Remove(gameObject);
                    handManager.UpdateHandVisuals();
                }
            }
        }

		...
    }
}

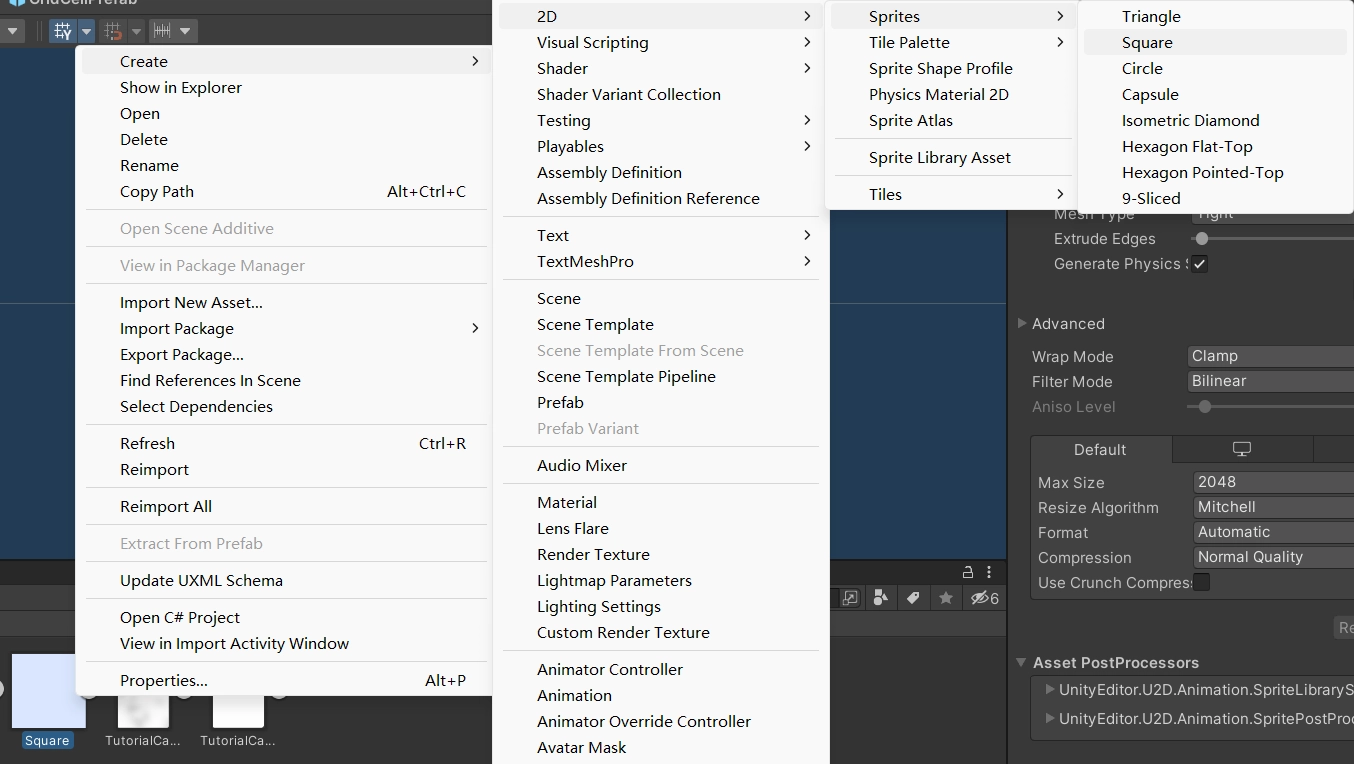

创建一个 Square 的 Sprites。

webp

调整 GridCellPrefab，颜色一个深一个浅。

webp

对于 Assets/Prefabs/GridCellPrefab.prefab，为其绑定一个 Assets/Scripts/GridCellDisplay.cs，控制 GridCellPrefab.prefab 的显示逻辑：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

[RequireComponent(typeof(SpriteRenderer))]
public class GridCellDisplay : MonoBehaviour
{
    private SpriteRenderer spriteRenderer;
    public Color highlightColor = Color.cyan;
    public Color posColor = Color.green;
    public Color negColor = Color.red;
    private Color originalColor;
    public GameObject[] backgrounds;
    private bool setBackground = false;
    public GridCell gridCell;

    void Awake()
    {
        spriteRenderer = GetComponent<SpriteRenderer>();
        gridCell = GetComponent<GridCell>();
        originalColor = spriteRenderer.color;
    }

    void Update()
    {
        if (!setBackground)
            SetBackground();
    }

    private void OnMouseEnter()
    {
        if (!GameManager.Instance.PlayingCard)
        {
            spriteRenderer.color = highlightColor;
        } else if (gridCell.cellFull || gridCell.gridIndex.x > 1)
        {
            spriteRenderer.color = negColor;
        } else
        {
            spriteRenderer.color = posColor;
        }
    }

    private void OnMouseExit()
    {
        spriteRenderer.color = originalColor;
    }

    private void SetBackground()
    {
        if (gridCell.gridIndex.x % 2 != 0)
        {
            backgrounds[0].SetActive(true);
        }
        if (gridCell.gridIndex.y % 2 != 0)
        {
            backgrounds[1].SetActive(true);
        }
        setBackground = true;
    }
}

最终效果（鼠标移到表格上面边框会高亮）：

webp

Ep. 10b - Piles

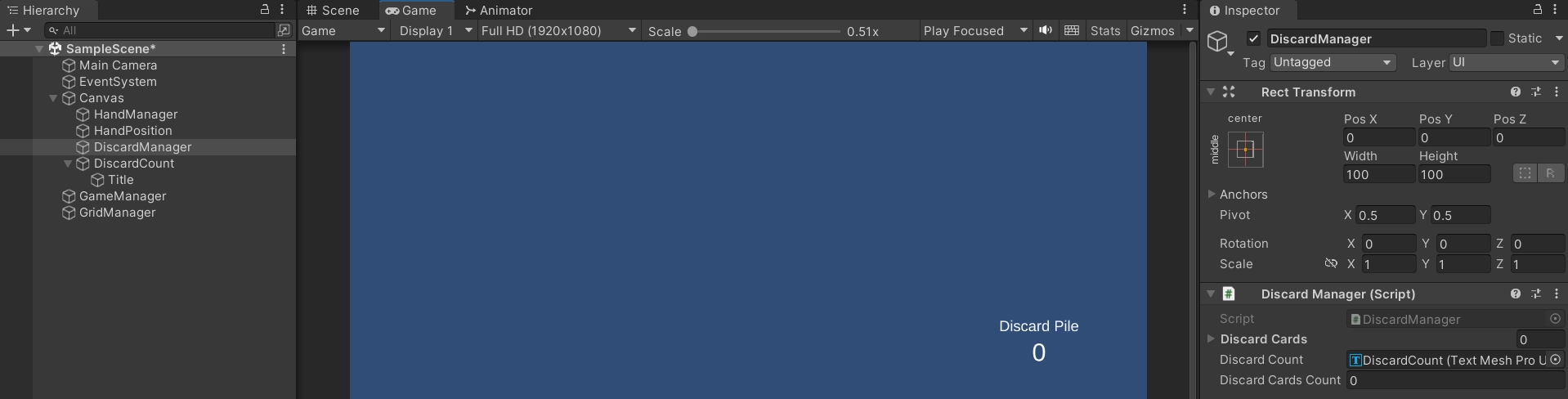

创建弃牌堆 Assets/Scripts/DiscardManager.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
using System.Collections;
using System.Collections.Generic;
using SinuousProductions;
using TMPro;
using UnityEngine;

public class DiscardManager : MonoBehaviour
{
    [SerializeField] public List<Card> discardCards = new List<Card>();
    public TextMeshProUGUI discardCount;
    public int discardCardsCount;

    private void Awake()
    {
        UpdateDiscardCount();
    }

    private void UpdateDiscardCount()
    {
        discardCount.text = discardCards.Count.ToString();
        discardCardsCount = discardCards.Count;
    }

    public void AddToDiscard(Card card)
    {
        if (card != null)
        {
            discardCards.Add(card);
            UpdateDiscardCount();
        }
    }

    public Card PullFromDiscard()
    {
        if (discardCards.Count > 0)
        {
            Card cardToReturn = discardCards[discardCards.Count - 1];
            discardCards.RemoveAt(discardCards.Count - 1);
            UpdateDiscardCount();
            return cardToReturn;
        } else
        {
            return null;
        }
    }

    public bool PullSelectCardFromDiscard(Card card)
    {
        if (discardCards.Count > 0 && discardCards.Contains(card))
        {
            discardCards.Remove(card);
            UpdateDiscardCount();
            return true;
        } else
        {
            return false;
        }
    }

    public List<Card> PullAllFromDiscard()
    {
        if (discardCards.Count > 0)
        {
            List<Card> cardsToReturn = new List<Card>(discardCards);
            discardCards.Clear();
            UpdateDiscardCount();
            return cardsToReturn;
        } else
        {
            return new List<Card>();
        }
    }
}

webp

创建 Assets/Scripts/Utility.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
using System.Collections.Generic;

namespace SinuousProductions
{
    public static class Utility
    {
        public static void Shuffle<T>(List<T> list)
        {
            System.Random random = new System.Random();
            int n = list.Count;
            for(int i = n - 1; i > 0; i--)
            {
                int j = random.Next(i + 1);
                (list[j], list[i]) = (list[i], list[j]);
            }
        }
    }
}

创建（抽）牌堆 Assets/Scripts/DrawPileManager.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
using System.Collections.Generic;
using SinuousProductions;
using TMPro;
using UnityEngine;

public class DrawPileManager : MonoBehaviour
{
    public List<Card> drawPile = new List<Card>();

    private int currentIndex = 0;
    public int maxHandSize;
    public int currentHandSize;
    private HandManager handManager;
    private DiscardManager discardManager;

    public TextMeshProUGUI drawPileCounter;

    void Start()
    {
        handManager = FindObjectOfType<HandManager>();
    }

    void Update()
    {
        if (handManager != null)
        {
            currentHandSize = handManager.cardsInHand.Count;
        }
    }

    public void MakeDrawPile(List<Card> cardsToAdd)
    {
        drawPile.AddRange(cardsToAdd);
        Utility.Shuffle(drawPile);
        UpdateDrawPileCount();
    }

    public void BattleSetup(int numberOfCardsToDraw, int setMaxHandSize)
    {
        maxHandSize = setMaxHandSize;
        for (int i = 0; i < numberOfCardsToDraw; i++)
        {
            DrawCard(handManager);
        }
    }

    public void DrawCard(HandManager handManager)
    {
        if (drawPile.Count == 0)
        {
            RefillDeckFromDiscard();
        }

        if (drawPile.Count > 0 && currentHandSize < maxHandSize)
        {
            Card nextCard = drawPile[currentIndex];
            handManager.AddCardToHand(nextCard);
            drawPile.RemoveAt(currentIndex);
            if (drawPile.Count > 0) currentIndex %= drawPile.Count; // Ensure currentIndex is always valid
        }
        UpdateDrawPileCount();
    }

    private void RefillDeckFromDiscard()
    {
        if (discardManager == null)
        {
            discardManager = FindObjectOfType<DiscardManager>();
        }

        if (discardManager != null && discardManager.discardCardsCount > 0)
        {
            drawPile = discardManager.PullAllFromDiscard();
            Utility.Shuffle(drawPile);
            currentIndex = 0;
        }
        UpdateDrawPileCount();
    }

    private void UpdateDrawPileCount()
    {
        drawPileCounter.text = drawPile.Count.ToString();
    }
}

更新 Assets/Scripts/DeckManager.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
using System.Collections.Generic;
using SinuousProductions;
using UnityEngine;

public class DeckManager : MonoBehaviour
{
    public List<Card> allCards = new List<Card>();

    public int startingHandSize = 6;
    public int maxHandSize = 12;
    private HandManager handManager;
    private DrawPileManager drawPileManager;
    private bool startBattleRun = true;

    void Start()
    {
        // Load all card assets from the Resources folder
        Card[] cards = Resources.LoadAll<Card>("Cards");

        // Add the loaded cards to the allCards list
        allCards.AddRange(cards);
    }

    void Awake()
    {
        if (drawPileManager == null)
        {
            drawPileManager = FindObjectOfType<DrawPileManager>();
        }
        if (handManager == null)
        {
            handManager = FindObjectOfType<HandManager>();
        }
    }

    void Update()
    {
        if (startBattleRun)
        {
            BattleSetup();
        }
    }

    public void BattleSetup()
    {
        handManager.BattleSetup(maxHandSize);
        drawPileManager.MakeDrawPile(allCards);
        drawPileManager.BattleSetup(startingHandSize, maxHandSize);
        startBattleRun = false;
    }
}

往 Assets/Scripts/HandManager.cs 中添加 BattleSetup()：

1
2
3
4
public void BattleSetup(int setMaxHandSize)
{
    maxHandSize = setMaxHandSize;
}

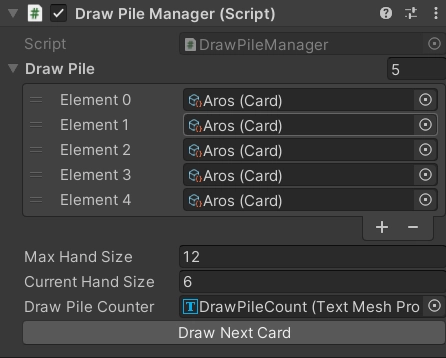

编辑 Assets/Editor/DeckManagerEditor.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

#if UNITY_EDITOR
using UnityEditor;
[CustomEditor(typeof(DrawPileManager))]
public class DeckManagerEditor : Editor
{
    public override void OnInspectorGUI()
    {
        DrawDefaultInspector();
        DrawPileManager deckManager = (DrawPileManager)target;
        if (GUILayout.Button("Draw Next Card"))
        {
            HandManager handManager = FindObjectOfType<HandManager>();
            if (handManager != null)
            {
                deckManager.DrawCard(handManager);
            }
        }
    }
}
#endif

设置牌堆：

webp

webp

Unity Troubleshooting Tutorial | Ep. 1

这篇视频是为了解决卡牌的 UI 遮挡住网格导致鼠标射线检测失效的问题。

创建一个 Grid 层。

webp

给 GridCellPrefab 设为 Grid 层。

webp

修改 Assets/Scripts/CardMovement.cs，使其值只检测 Grid 层。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.EventSystems;

public class CardMovement : MonoBehaviour, IDragHandler, IPointerDownHandler, IPointerEnterHandler, IPointerExitHandler
{
    private RectTransform rectTransform;
    private Canvas canvas;
    private Vector2 originalLocalPointerPosition;
    private Vector3 originalPanelLocalPosition;
    private Vector3 originalScale;
    private int currentState = 0;
    private Quaternion originalRotation;
    private Vector3 originalPosition;
    private RectTransform canvasRectTransform;
    private GridManager gridManager;
    private readonly int maxColumn = 2;

    [SerializeField] private float selectScale = 1.1f;
    [SerializeField] private Vector2 cardPlay;
    [SerializeField] private Vector3 playPosition;
    [SerializeField] private GameObject glowEffect;
    [SerializeField] private GameObject playArrow;

    private LayerMask gridLayerMask;

    void Awake()
    {
        // 记录初始位置
        rectTransform = GetComponent<RectTransform>();
        canvas = GetComponentInParent<Canvas>();

        if (canvas != null)
        {
            canvasRectTransform = canvas.GetComponent<RectTransform>();
        }

        originalScale = rectTransform.localScale;
        originalPosition = rectTransform.localPosition;
        originalRotation = rectTransform.localRotation;
        gridManager = FindObjectOfType<GridManager>();

        gridLayerMask = LayerMask.GetMask("Grid");
    }

    void Update()
    {
        // 处理状态机
        switch (currentState)
        {
            case 1:
                HandleHoverState();  // 处理悬停状态
                break;
            case 2:
                HandleDragState();  // 处理拖拽状态
                if (!Input.GetMouseButton(0))  // 如果鼠标松开
                {
                    TransitionToState0();  // 恢复默认状态
                }
                break;
            case 3:
                HandlePlayState();  // 处理放置状态
                if (!Input.GetMouseButton(0))  // 如果鼠标松开
                {
                    TransitionToState0();  // 恢复默认状态
                }
                break;
        }
    }

    private void TransitionToState0()
    {
        currentState = 0;
        GameManager.Instance.PlayingCard = false;
        rectTransform.localScale = originalScale;
        rectTransform.localRotation = originalRotation;
        rectTransform.localPosition = originalPosition;
        glowEffect.SetActive(false);
        playArrow.SetActive(false);
    }

    public void OnPointerEnter(PointerEventData eventData)
    {
        if (currentState == 0)
        {
            originalPosition = rectTransform.localPosition;
            originalRotation = rectTransform.localRotation;
            originalScale = rectTransform.localScale;
            currentState = 1;
        }
    }

    public void OnPointerExit(PointerEventData eventData)
    {
        if (currentState == 1)
        {
            currentState = 0;
            TransitionToState0();
        }
    }

    public void OnPointerDown(PointerEventData eventData)
    {
        if (currentState == 1)
        {
            currentState = 2;
            RectTransformUtility.ScreenPointToLocalPointInRectangle(canvas.GetComponent<RectTransform>(),
                eventData.position, eventData.pressEventCamera, out originalLocalPointerPosition);
            originalPanelLocalPosition = rectTransform.localPosition;
        }
    }

    public void OnDrag(PointerEventData eventData)
    {
        if (currentState == 2)
        {
            Vector2 localPointerPosition;
            if (RectTransformUtility.ScreenPointToLocalPointInRectangle(canvas.GetComponent<RectTransform>(),
                eventData.position, eventData.pressEventCamera, out localPointerPosition))
            {
                rectTransform.position = Input.mousePosition;

                if (rectTransform.localPosition.y > cardPlay.y)
                {
                    currentState = 3;
                    playArrow.SetActive(true);
                    rectTransform.localPosition = playPosition;
                }
            }
        }
    }

    private void HandleHoverState()
    {
        glowEffect.SetActive(true);
        rectTransform.localScale = originalScale * selectScale;
    }

    private void HandleDragState()
    {
        rectTransform.localRotation = Quaternion.identity;
    }

    private void HandlePlayState()
    {
        if (!GameManager.Instance.PlayingCard)
        {
            GameManager.Instance.PlayingCard = true;
        }
        rectTransform.localPosition = playPosition;
        rectTransform.localRotation = Quaternion.identity;

        if(!Input.GetMouseButton(0))
        {
            Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);
            RaycastHit2D hit = Physics2D.Raycast(ray.origin, ray.direction, Mathf.Infinity, gridLayerMask);

            if (hit.collider != null && hit.collider.GetComponent<GridCell>())
            {
                GridCell cell = hit.collider.GetComponent<GridCell>();
                Vector2 targetPos = cell.gridIndex;
                if (cell.gridIndex.x < maxColumn && gridManager.AddObjectToGrid(GetComponent<CardDisplay>().cardData.prefab, targetPos))
                {
                    HandManager handManager = FindObjectOfType<HandManager>();
                    handManager.cardsInHand.Remove(gameObject);
                    handManager.UpdateHandVisuals();
                }
            }
        }

        if (Input.mousePosition.y < cardPlay.y)
        {
            currentState = 2;
            playArrow.SetActive(false);
        }
    }
}

Ep. 11 - Spell Cards

创建一个额外的法术卡类继承卡牌类。

Ep.12 - Spell Effects

鼠标移到玩家上时会出现属性提示。

Icon
Icon
Icon
Icon
上一篇：Disign-40 Design Style Names You've Been Looking For (Find References Faster)
下一篇：Diary-我要找工作！
