Linux 下安装 bpy

从 Releases · TylerGubala/blenderpy (github.com) 下载静态安装包，然后：

1
pip install bpy-2.91a0-cp37-cp37m-manylinux2014_x86_64.whl && bpy_post_install

Create Curved Text In Blender | Bend Any Text | Part 1 in Text Effects | Two Easy Methods Explained

创建文本对象

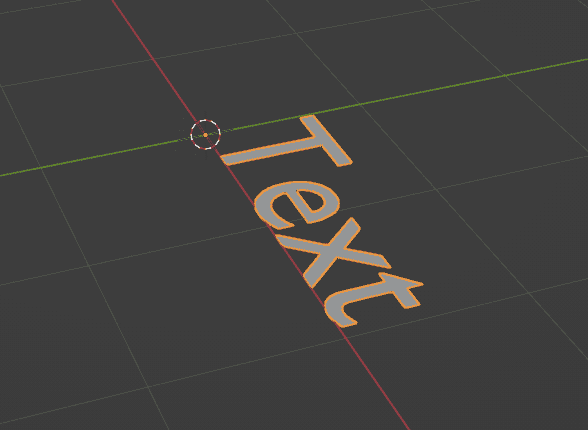

  1. 创建一个 Text 对象：

png

1
2
3
4
import bpy

bpy.ops.object.text_add()
text_obj = bpy.context.object

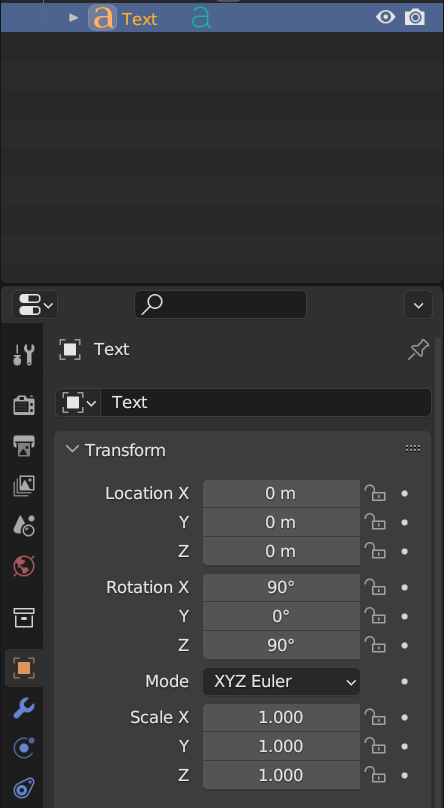

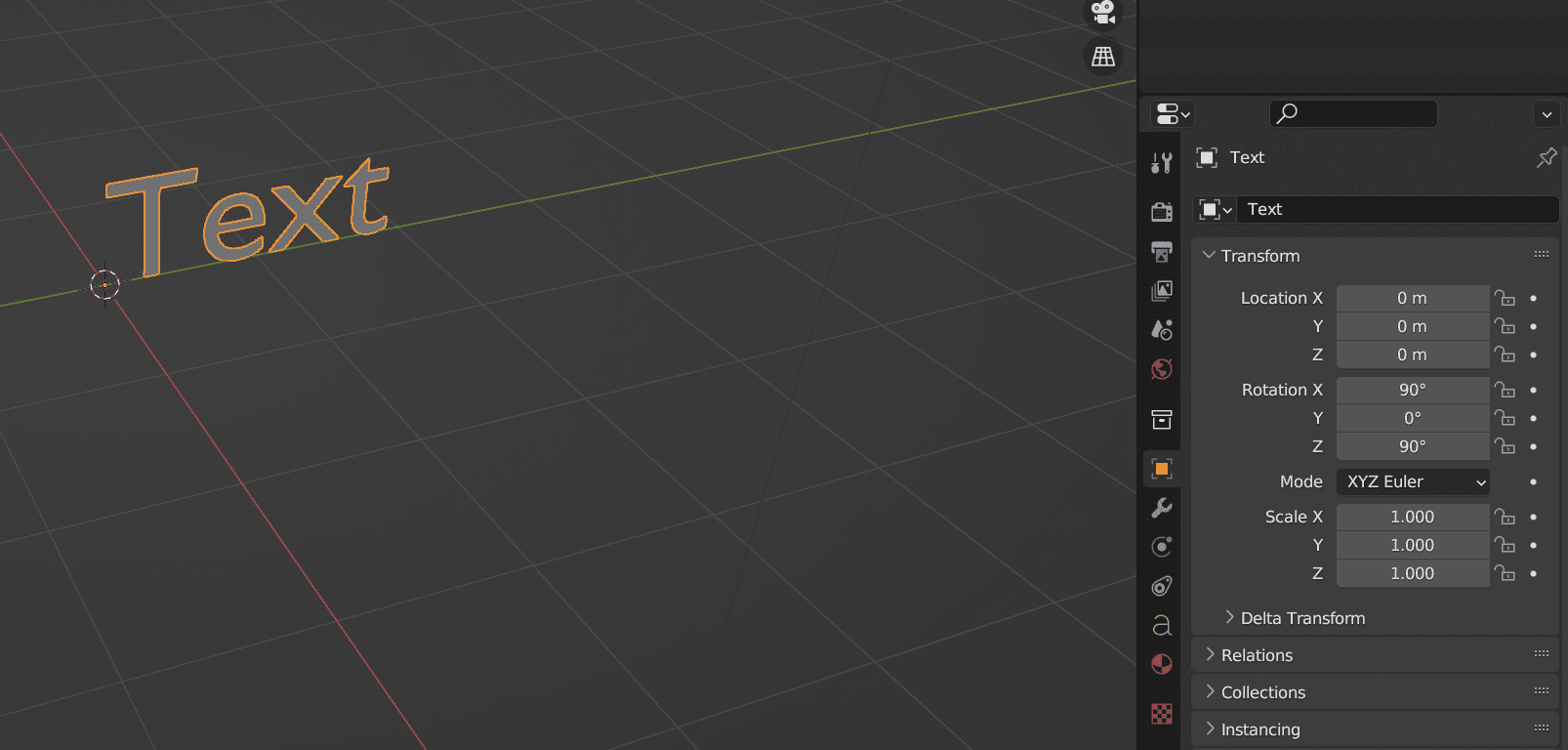

  1. 将这个 Text 对象的 Rotation X 和 Z 设为 90°：

png

1
2
3
4
import numpy as np

text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2

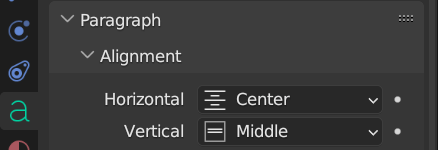

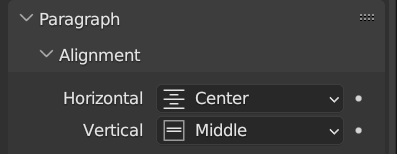

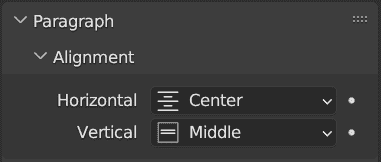

  1. 将文字设为居中对齐：

png

1
2
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

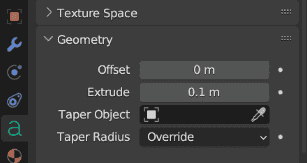

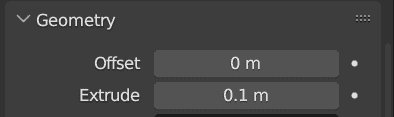

  1. 将这个 Text 的 Geometry 的 Extrude 设为 0.1 m，使其具有厚度。

png

1
text_obj.data.extrude = 0.1

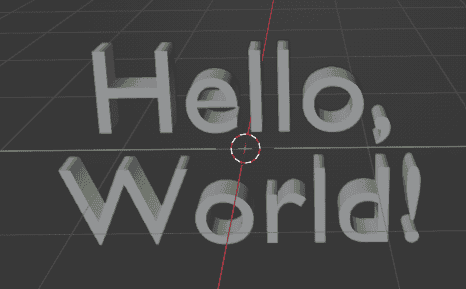

  1. 切换到 Edit Mode，可以更改其文字内容。

png

1
text_obj.data.body = "Hello,\nWorld!"

直接弯曲

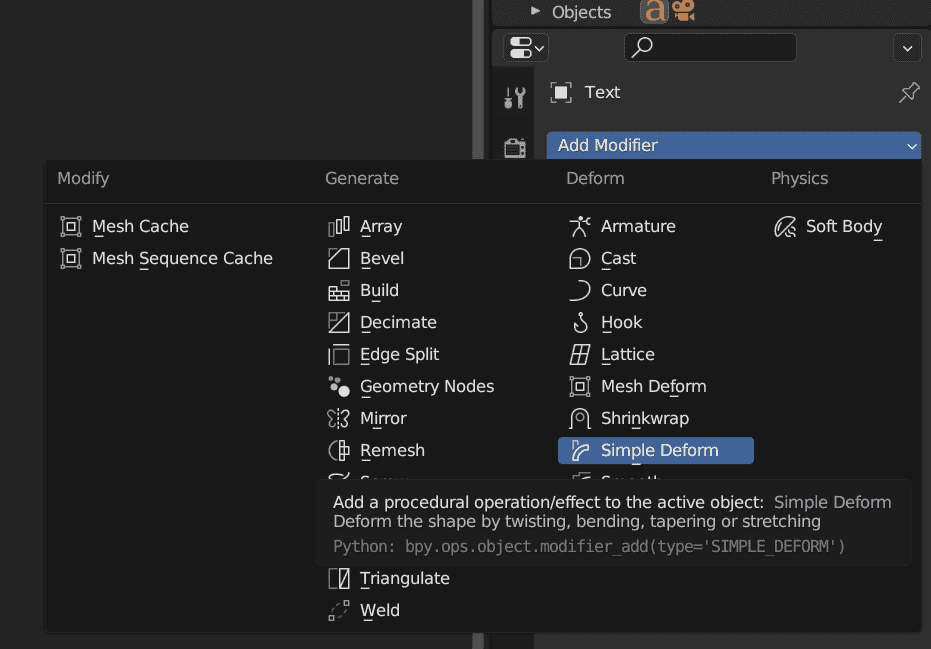

  1. 给 Text 对象添加一个 Simple Deform 的 Modifier：

png

1
text_modifier = text_obj.modifiers.new(name="Bend", type="SIMPLE_DEFORM")

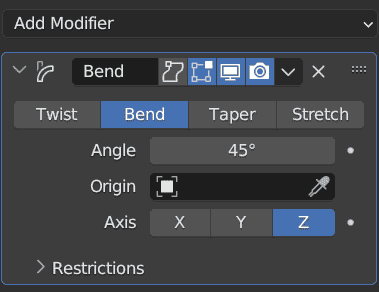

  1. 设置其属性：

png

1
2
3
text_modifier.deform_method = "BEND"
text_modifier.deform_axis = "Z"
text_modifier.angle = np.pi / 4

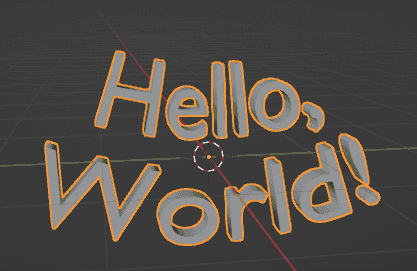

得到弯曲后的文本：

png

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
import bpy
import numpy as np

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2

text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

text_obj.data.extrude = 0.1

text_obj.data.body = "Hello,\nWorld!"

text_modifier = text_obj.modifiers.new(name="Bend", type="SIMPLE_DEFORM")

text_modifier.deform_method = "BEND"
text_modifier.deform_axis = "Z"
text_modifier.angle = np.pi / 4

沿 Bezier 曲线弯曲

  1. 新建一个 Circle 对象，将其 Rotation Z 设为 90°：

png

1
2
3
4
bpy.ops.curve.primitive_bezier_circle_add()
curve_obj = bpy.context.object

curve_obj.rotation_euler[2] = np.pi / 2

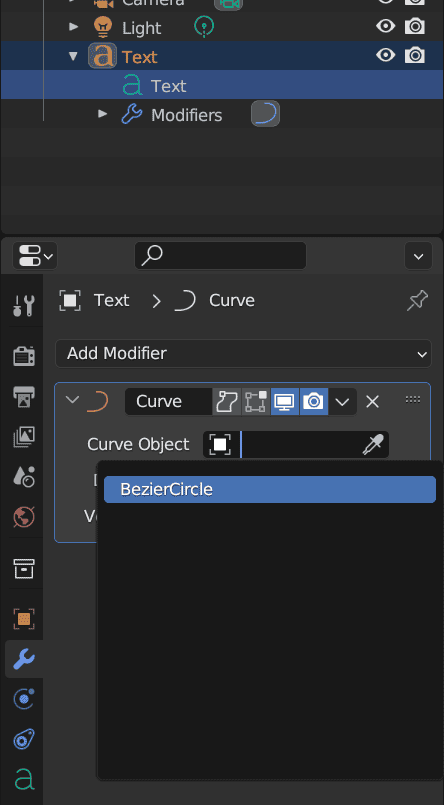

  1. 给 Text 对象添加一个 Modifier，选择 Curve，然后选择之前新建的 BezierCircle 对象：

png

1
2
curve_modifier = text_obj.modifiers.new(name="Curve", type="CURVE")
curve_modifier.object = curve_obj

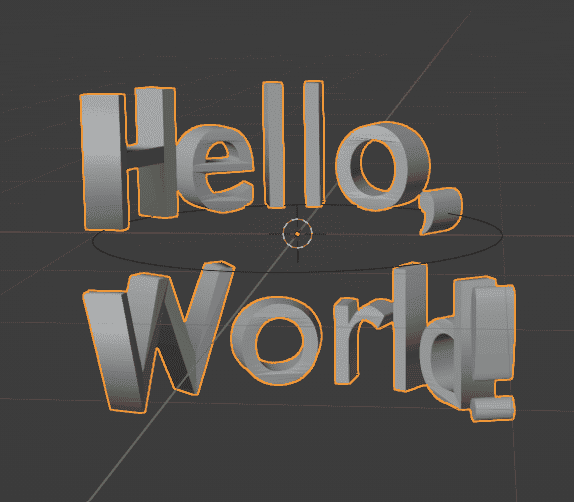

此时 Text 对象就会沿着 BezierCircle 曲线变形：

png

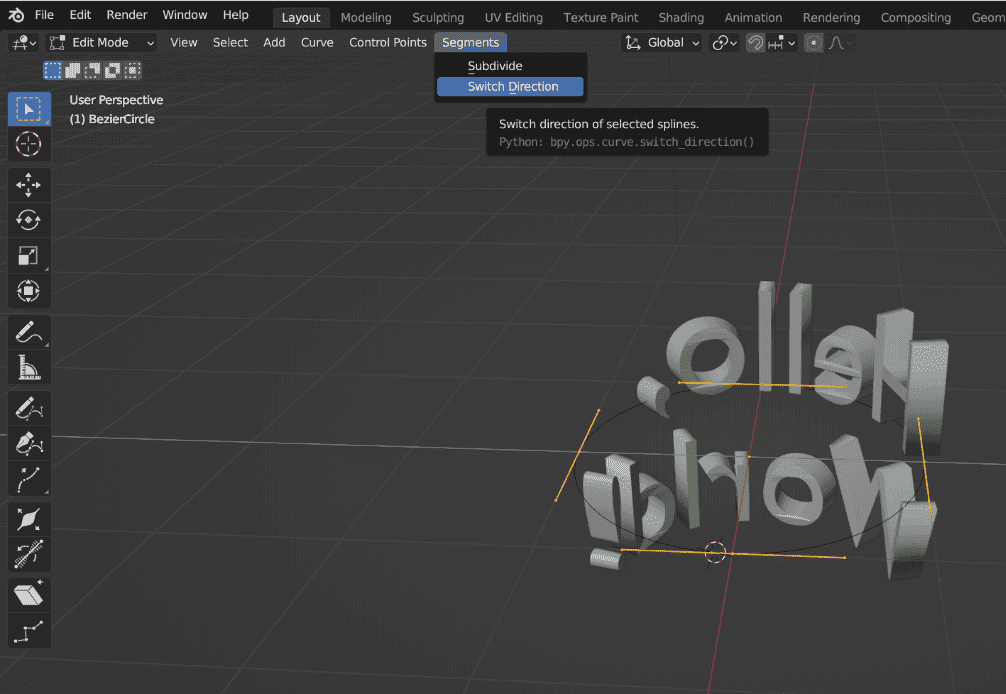

  1. 选中 BezierCircle 对象，切换到 Edit Mode，选择 Segments → Switch Direction，便可切换文字方向：

png

1
2
3
bpy.ops.object.editmode_toggle()
bpy.ops.curve.switch_direction()
bpy.ops.object.editmode_toggle()

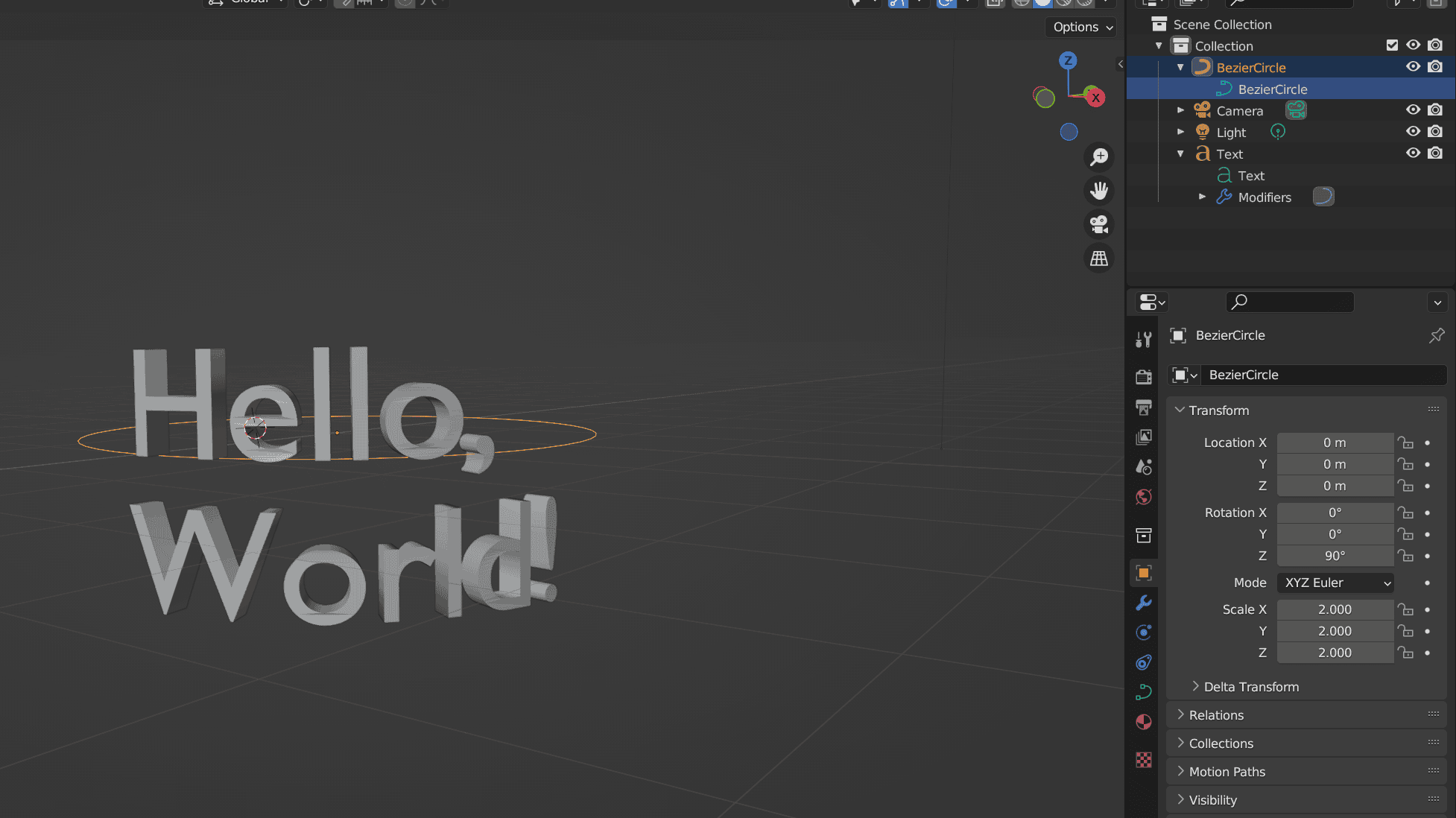

  1. 修改 BezierCircle 的 Scale，Text 对象也会随之变化：

png

1
curve_obj.delta_scale[0:3] = [2, 2, 2]

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
import bpy
import numpy as np

# 新建一个 TextCurve 对象
bpy.ops.object.text_add()
text_obj = bpy.context.object

# 修改文本位置和旋转角度
text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2

# 修改文本对齐方式
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

# 挤出文本
text_obj.data.extrude = 0.1

# 设置文本内容
text_obj.data.body = "Hello,\nWorld!"

# 创建一个圆形对象
bpy.ops.curve.primitive_bezier_circle_add()
curve_obj = bpy.context.object

# 旋转该圆形对象
curve_obj.rotation_euler[2] = np.pi / 2

# 让文本沿着圆形变换
curve_modifier = text_obj.modifiers.new(name="Curve", type="CURVE")
curve_modifier.object = curve_obj

# 修改方向
bpy.ops.object.editmode_toggle()
bpy.ops.curve.switch_direction()
bpy.ops.object.editmode_toggle()

# 修改圆形大小
curve_obj.delta_scale[0:3] = [2, 2, 2]

Add Text To Any Curved Surface In Blender | Part 2 in Text Effects | Blender Eevee & Cycles

  1. 新建一个茶壶：
1
2
3
4
5
import bpy
import numpy as np

bpy.ops.mesh.primitive_teapot_add()
teapot_obj = bpy.context.object

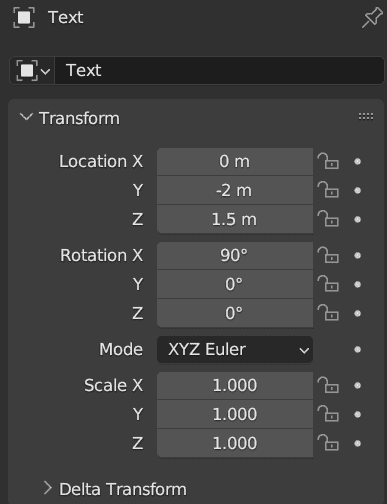

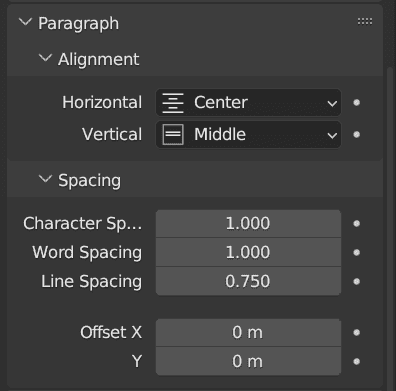

  1. 新建一个文本对象，设置其对齐、位置（使其靠近茶壶表面）、旋转、挤出、文字内容、行间距等：

png

png

png

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

text_obj.location[1] = -2
text_obj.location[2] = 1.5

text_obj.rotation_euler[0] = np.pi / 2

text_obj.data.extrude = 0.1

text_obj.data.body = "Hello,\nWorld!"

text_obj.data.space_line = 0.75

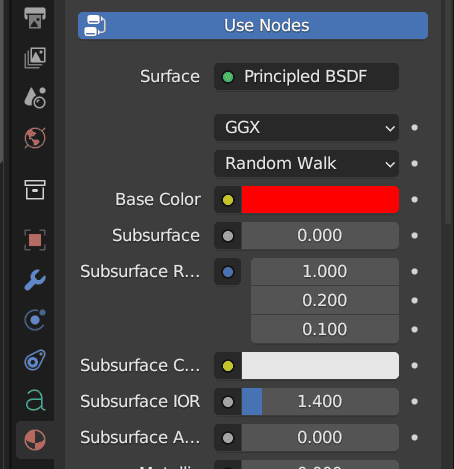

  1. 给文字对象添加一个红色的材质，此时转到渲染窗口，文字就会呈现红色：

png

1
2
3
4
5
6
7
8
text_material = bpy.data.materials.new(name="TextMaterial")
text_material.use_nodes = True
nodes = text_material.node_tree.nodes
principled_bsdf = nodes.get("Principled BSDF")
if principled_bsdf is not None:
    principled_bsdf.inputs[0].default_value = (1, 0, 0, 1)

text_obj.data.materials.append(text_material)

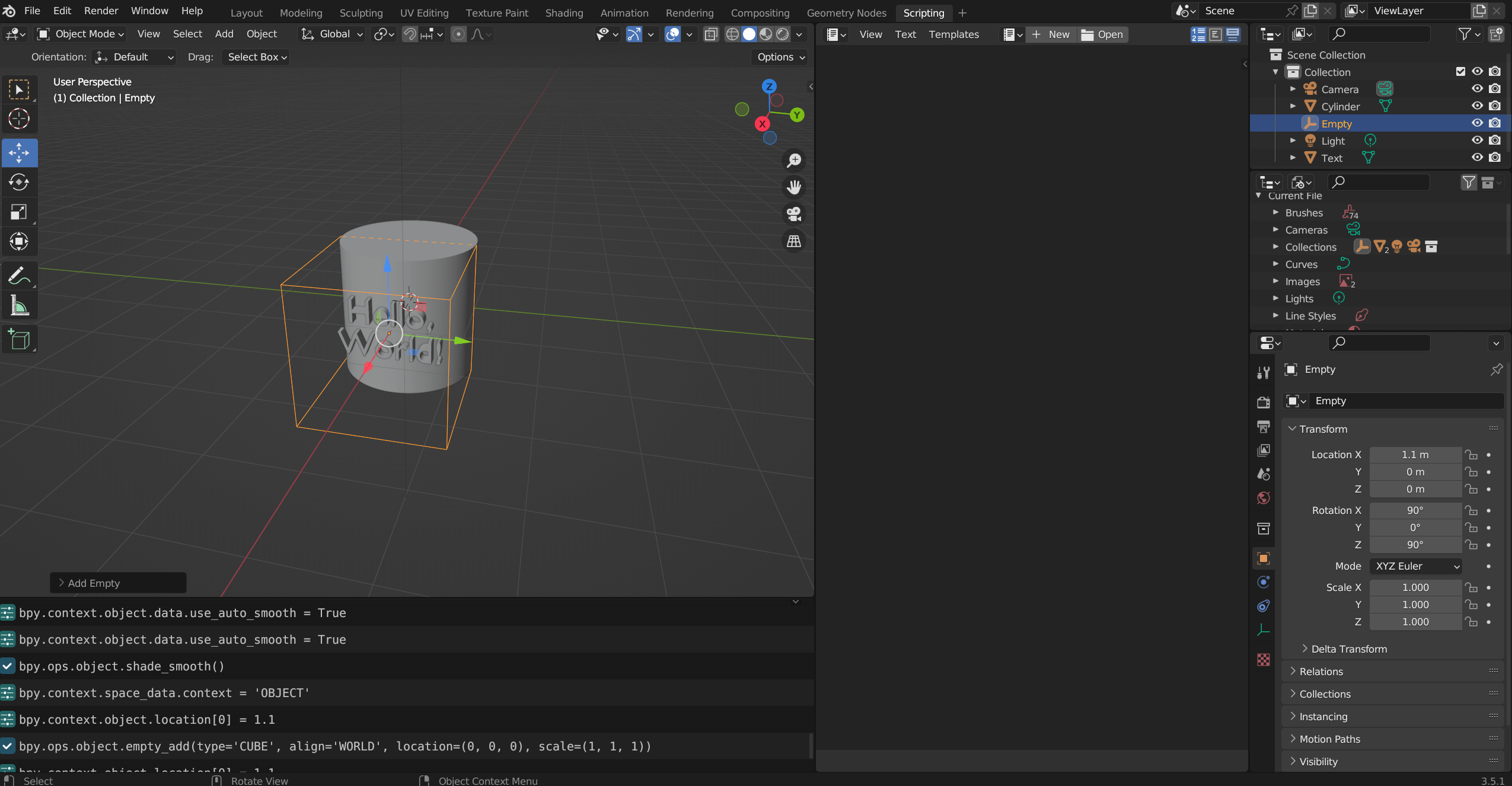

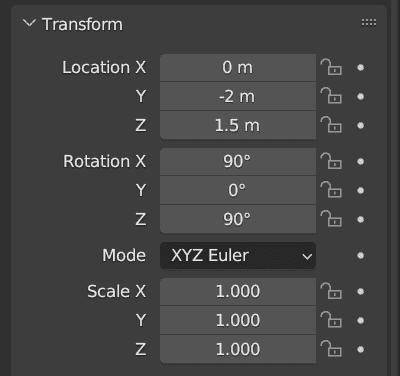

  1. 新建一个 Empty 的 Cube，设置其位置使其和 Text 相同，设置其旋转角，用于控制 Text 的旋转：

png

1
2
3
4
5
6
7
8
bpy.ops.object.empty_add(type="CUBE")
empty_obj = bpy.context.object

empty_obj.location[1] = -2
empty_obj.location[2] = 1.5

empty_obj.rotation_euler[0] = np.pi / 2
empty_obj.rotation_euler[2] = np.pi / 2
  1. 给 Text 对象添加 modifier：

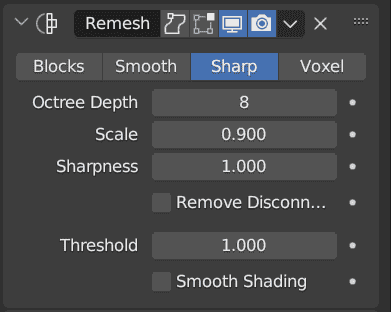

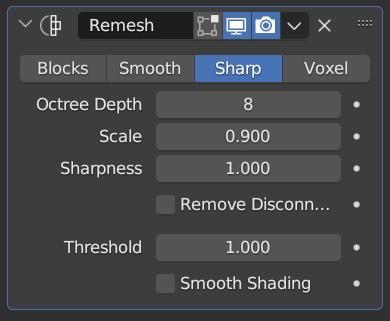

  • Remesh：用于使字体集合与弯曲操作兼容，选择 Sharp，Octree Depth 设为 8：

png

1
2
3
4
text_modifier_remesh = text_obj.modifiers.new(name="Remesh", type="REMESH")
text_modifier_remesh.mode = "SHARP"
text_modifier_remesh.octree_depth = 8
text_modifier_remesh.use_remove_disconnected = False

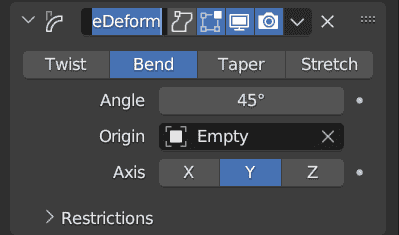

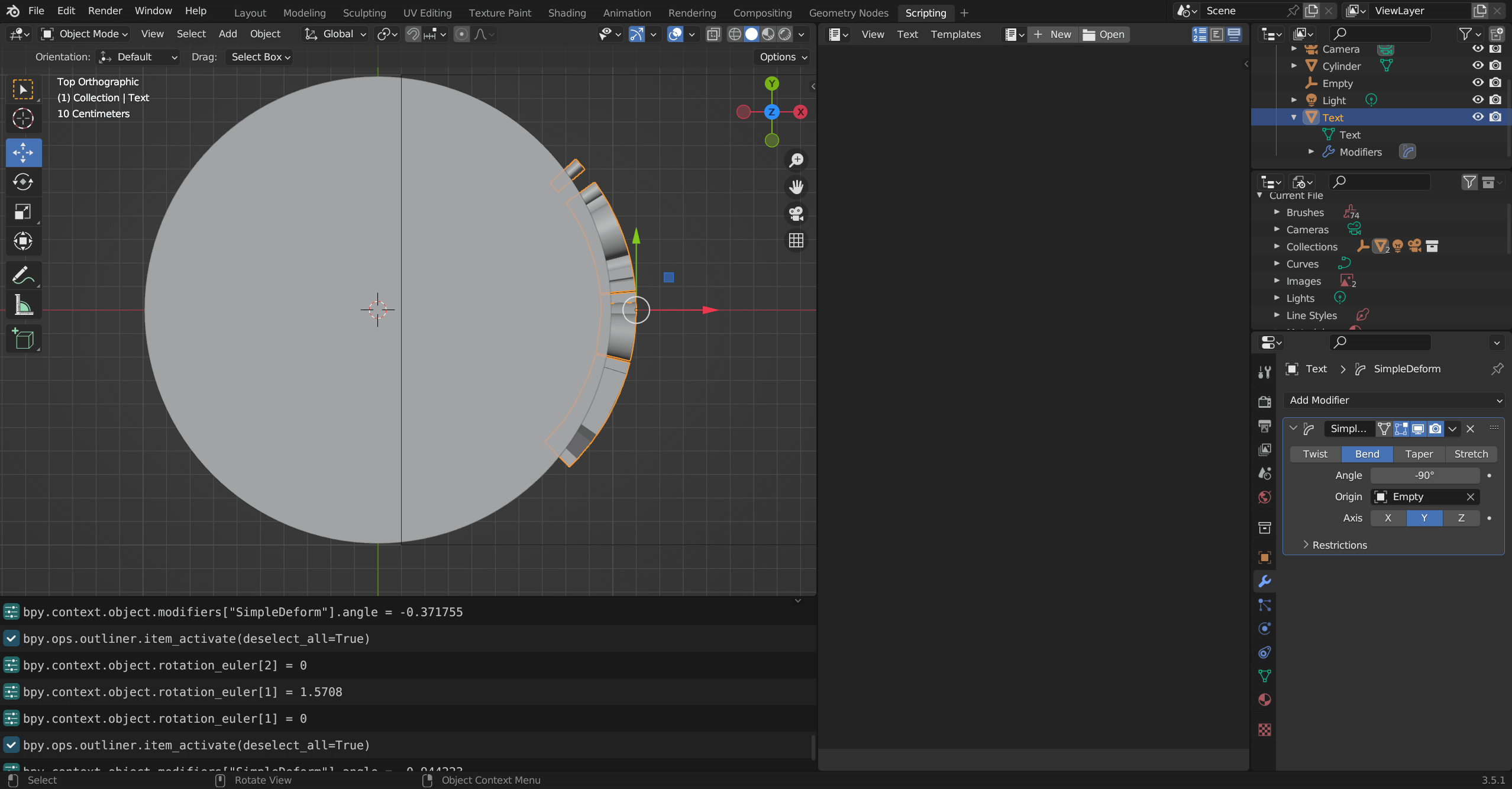

  • SimpleDeform：用于字体弯曲，选择 Bend，Origin 选择 Empty 对象，Axis 选择 Y 轴：

png

1
2
3
4
text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.origin = empty_obj
text_modifier_simple_deform.deform_axis = "Y"

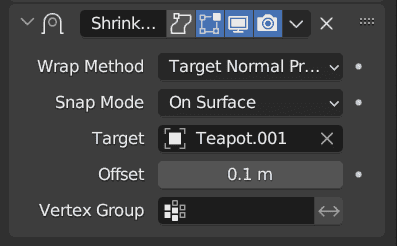

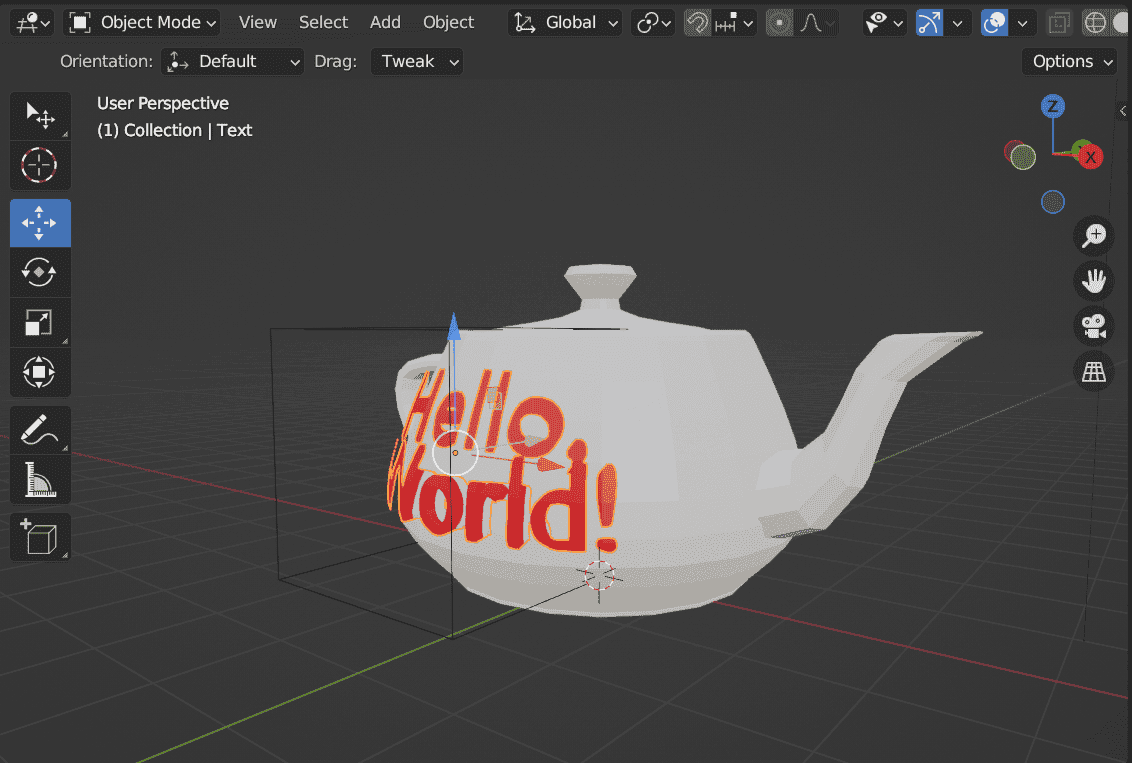

  • Shrinkwrap：使得文字映射到 teapot 上，Wrap Method 选择 Target Normal Project，Target 选择 Teapot 对象，Offset 选择 0.1 m：

png

1
2
3
4
text_modifier_shrink_wrap = text_obj.modifiers.new(name="Shrinkwrap", type="SHRINKWRAP")
text_modifier_shrink_wrap.wrap_method = "TARGET_PROJECT"
text_modifier_shrink_wrap.target = teapot_obj
text_modifier_shrink_wrap.offset = 0.1

png

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
import bpy
import numpy as np

# 新建 teapot 对象
bpy.ops.mesh.primitive_teapot_add()
teapot_obj = bpy.context.object

# 新建 text 对象
bpy.ops.object.text_add()
text_obj = bpy.context.object

# 居中对齐
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

# 设置位置
text_obj.location[1] = -2
text_obj.location[2] = 1.5

# 设置旋转角
text_obj.rotation_euler[0] = np.pi / 2

# 设置挤出举例
text_obj.data.extrude = 0.1

# 设置文本内容
text_obj.data.body = "Hello,\nWorld!"

# 设置行间距
text_obj.data.small_caps_scale = 0.75

# 新建材质
text_material = bpy.data.materials.new(name="TextMaterial")
text_material.use_nodes = True
nodes = text_material.node_tree.nodes
principled_bsdf = nodes.get("Principled BSDF")
if principled_bsdf is not None:
    principled_bsdf.inputs[0].default_value = (1, 0, 0, 1)

# 给文本添加材质
text_obj.data.materials.append(text_material)

# 新建 empty 对象
bpy.ops.object.empty_add(type="CUBE")
empty_obj = bpy.context.object

# 设置 empty 位置
empty_obj.location[1] = -2
empty_obj.location[2] = 1.5

# 设置 empty 旋转角
empty_obj.rotation_euler[0] = np.pi / 2
empty_obj.rotation_euler[2] = np.pi / 2

# 新建 Remesh 的 modifier
text_modifier_remesh = text_obj.modifiers.new(name="Remesh", type="REMESH")
text_modifier_remesh.mode = "SHARP"
text_modifier_remesh.octree_depth = 8
text_modifier_remesh.use_remove_disconnected = False

# 新建 SimpleDeform 的 modifier
text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.origin = empty_obj
text_modifier_simple_deform.deform_axis = "Y"

# 新建 Shrinkwrap 的 modifier
text_modifier_shrink_wrap = text_obj.modifiers.new(name="Shrinkwrap", type="SHRINKWRAP")
text_modifier_shrink_wrap.wrap_method = "TARGET_PROJECT"
text_modifier_shrink_wrap.target = teapot_obj
text_modifier_shrink_wrap.offset = 0.1

Engrave & Emboss Text Easily In Blender | Part 3 in Text Effects | Create 3D Text Logo In Blender

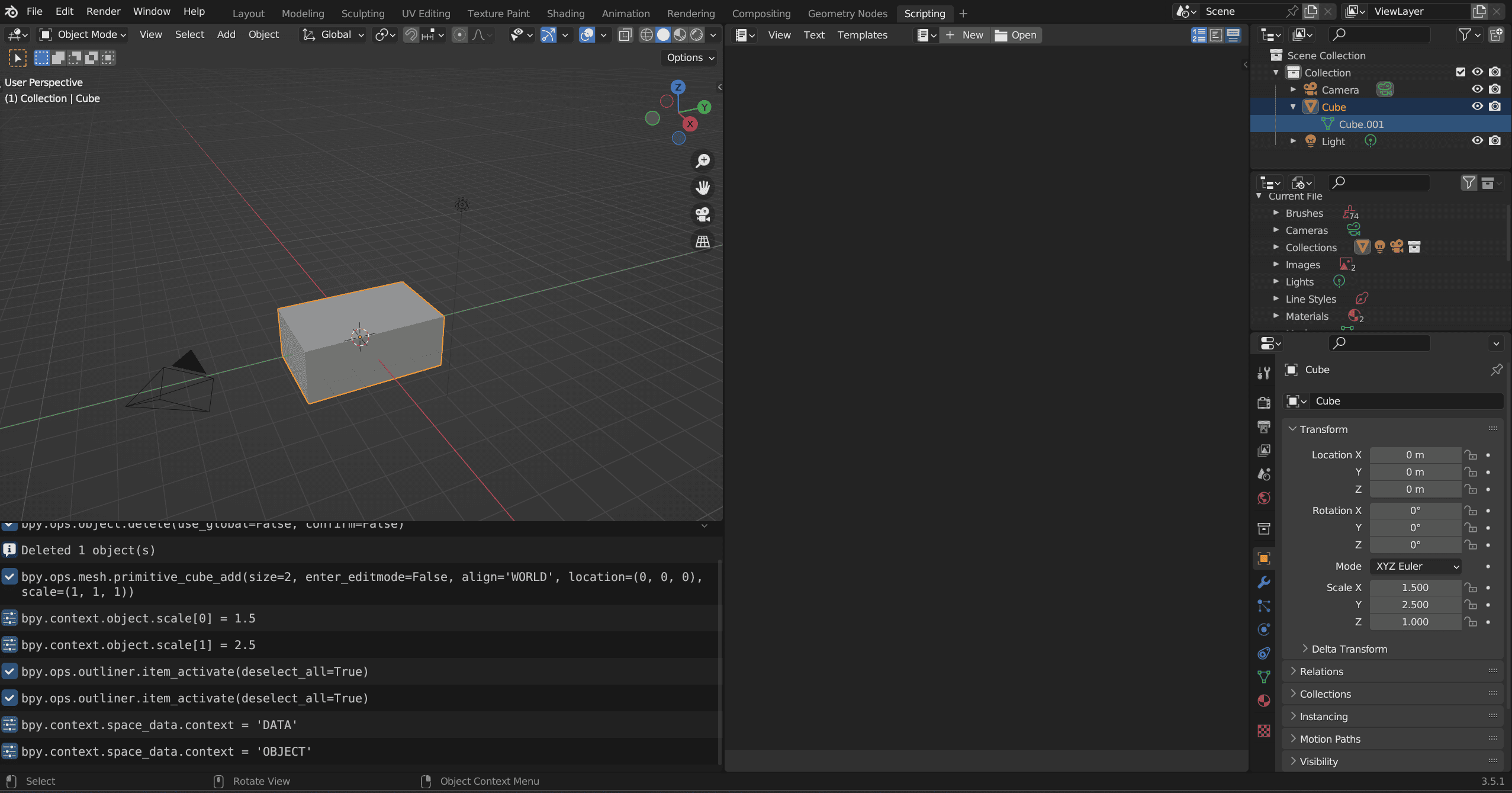

  1. 新建一个 Cube，并调整其 Scale：

png

1
2
3
4
5
6
7
8
import bpy
import numpy as np

bpy.ops.mesh.primitive_cube_add()
cube_obj = bpy.context.object

cube_obj.scale[0] = 1.5
cube_obj.scale[1] = 2.5

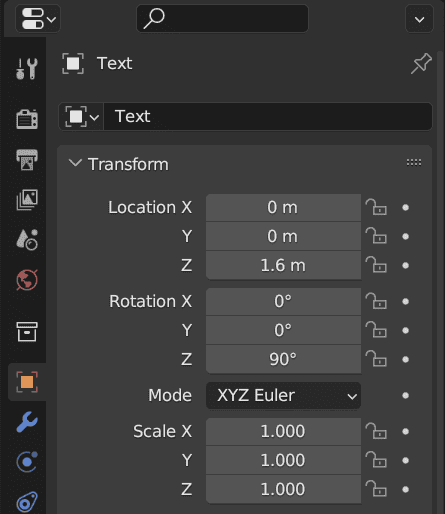

  1. 新建一个 Text，调整其 Transform：

png

1
2
3
4
5
bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.location[2] = 1.15
text_obj.rotation_euler[2] = np.pi / 2

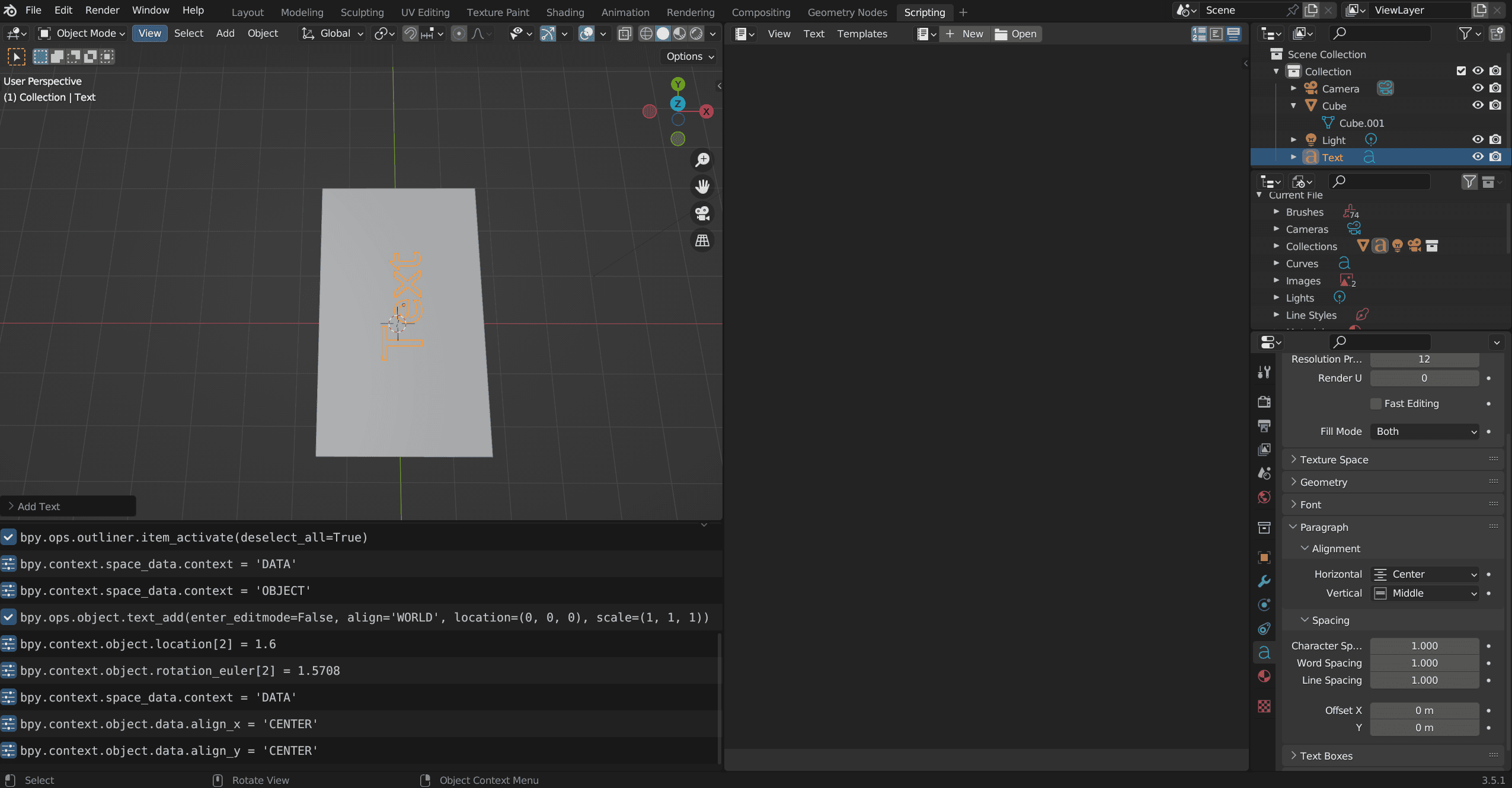

使其居中对齐：

png

1
2
3
4
5
bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.location[2] = 1.15
text_obj.rotation_euler[2] = np.pi / 2

设置文字内容：

png

1
text_obj.data.body = "Hello,\nWorld!"

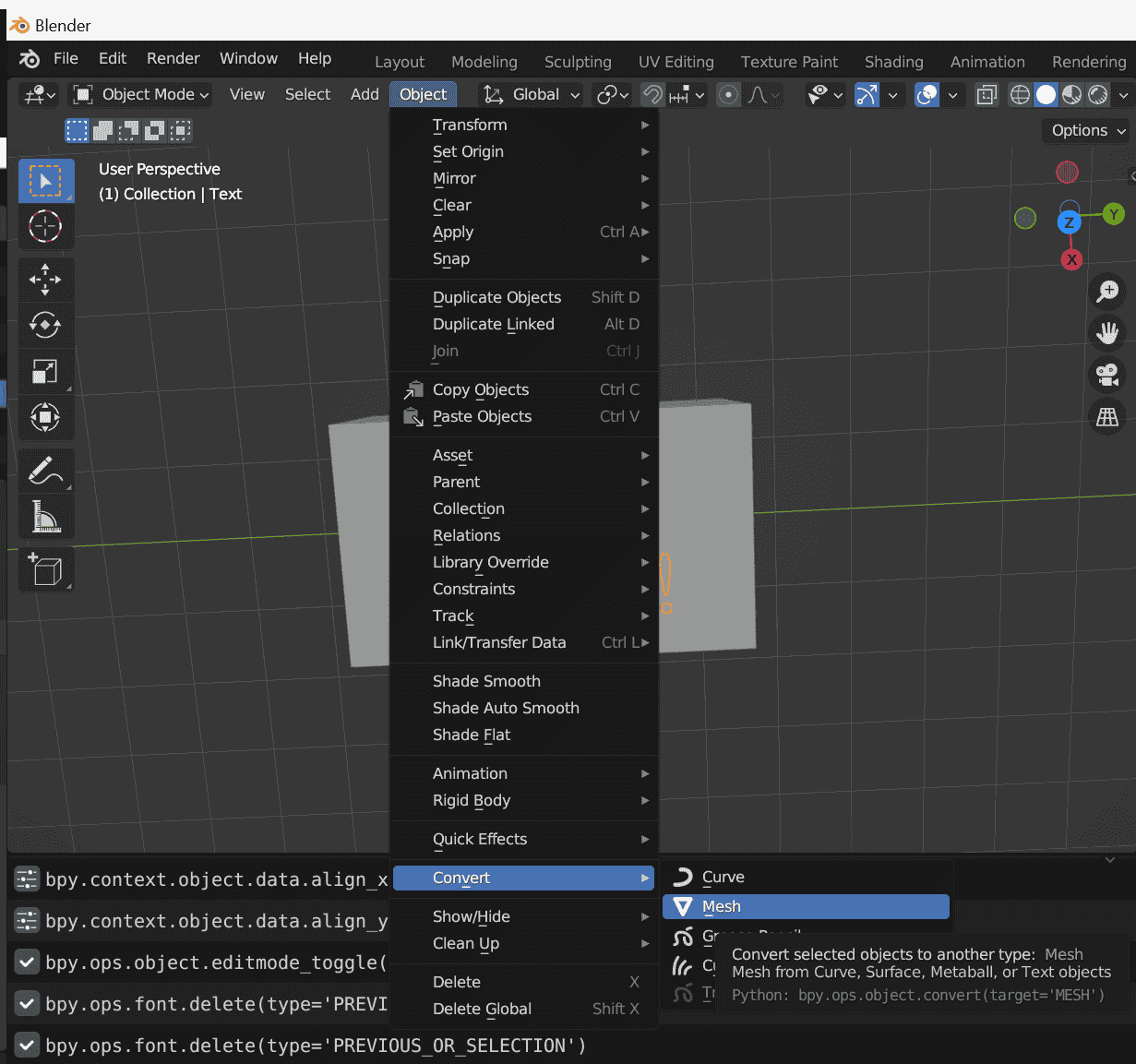

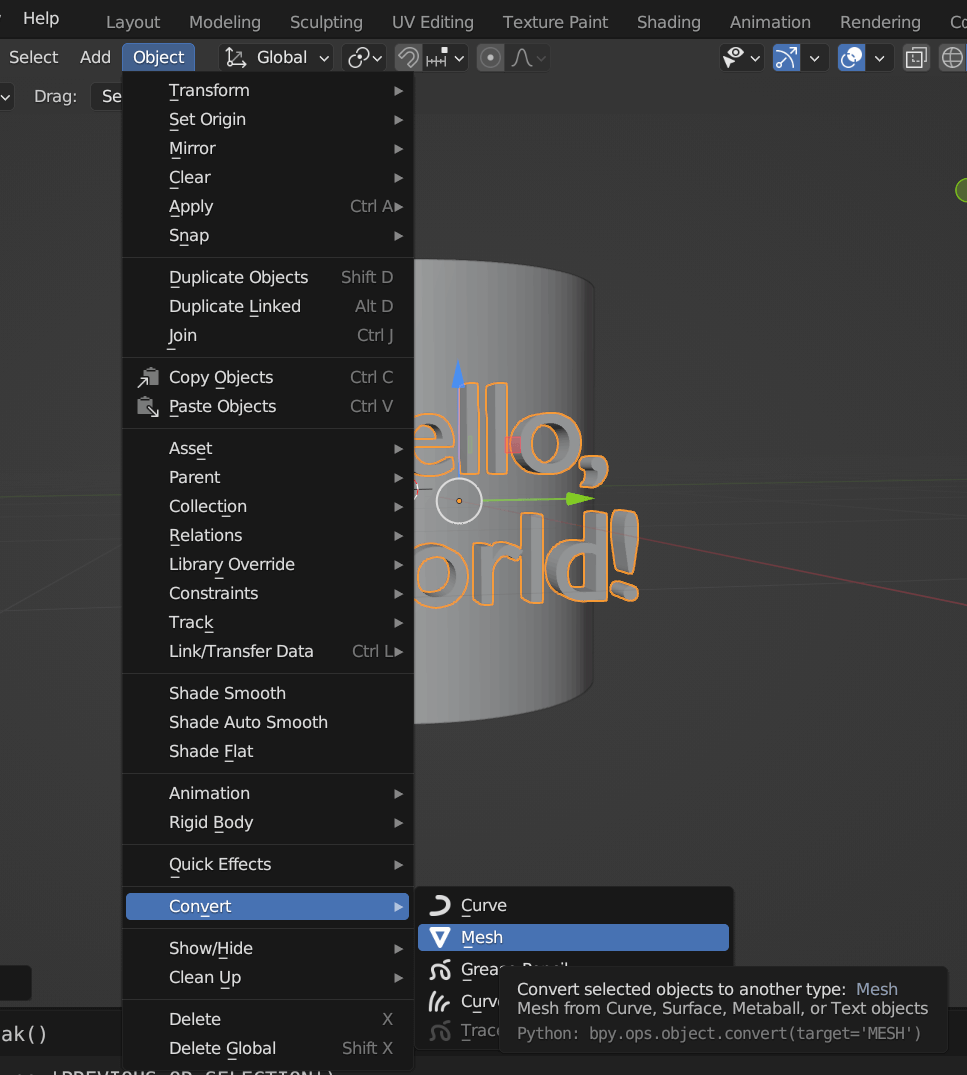

  1. 修改完文字内容后，将其转换成 Mesh，随后文字内容就不能再改变！

png

1
bpy.ops.object.convert(target="MESH")

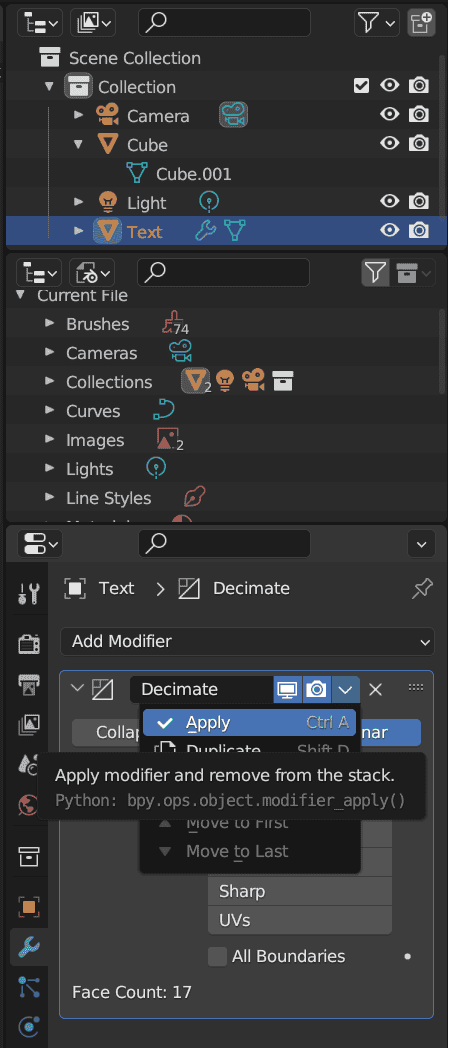

  1. 应用 Decimate 以减少过多的顶点：

png

1
2
3
text_modifier_decimate = text_obj.modifiers.new(name="Decimate", type="DECIMATE")
text_modifier_decimate.decimate_type = "DISSOLVE"
bpy.ops.object.modifier_apply(modifier="Decimate")

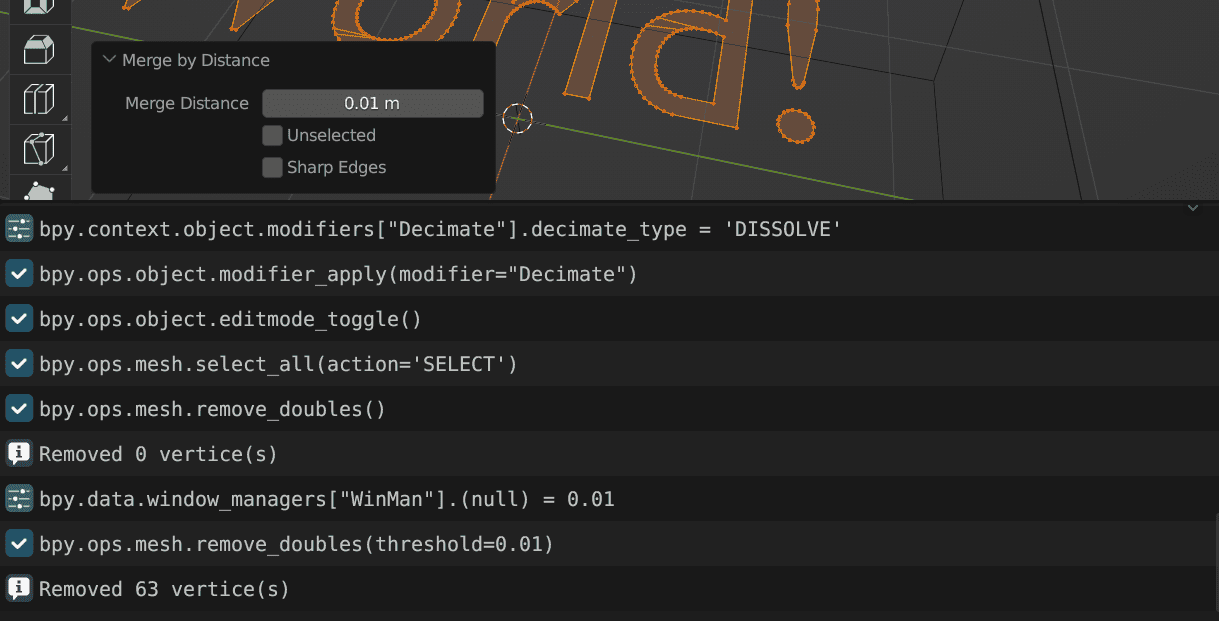

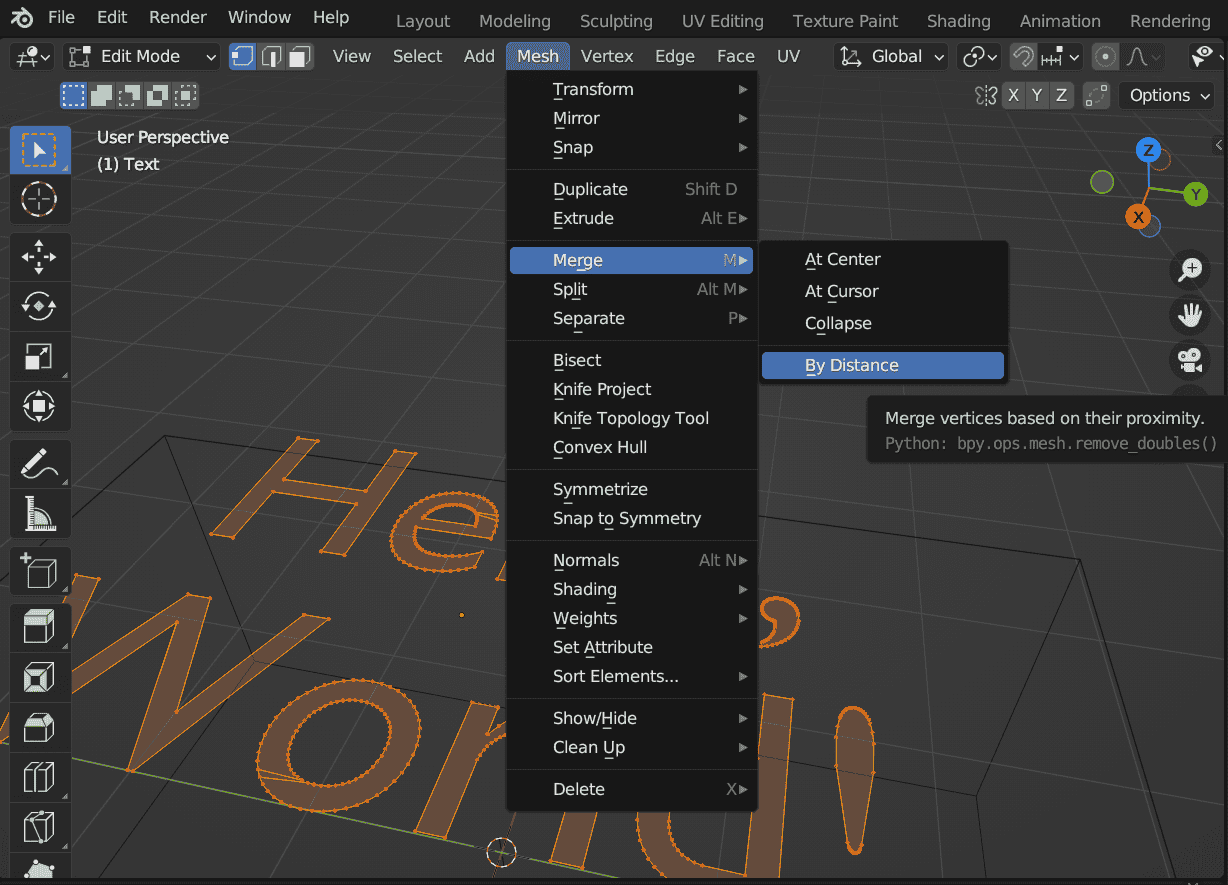

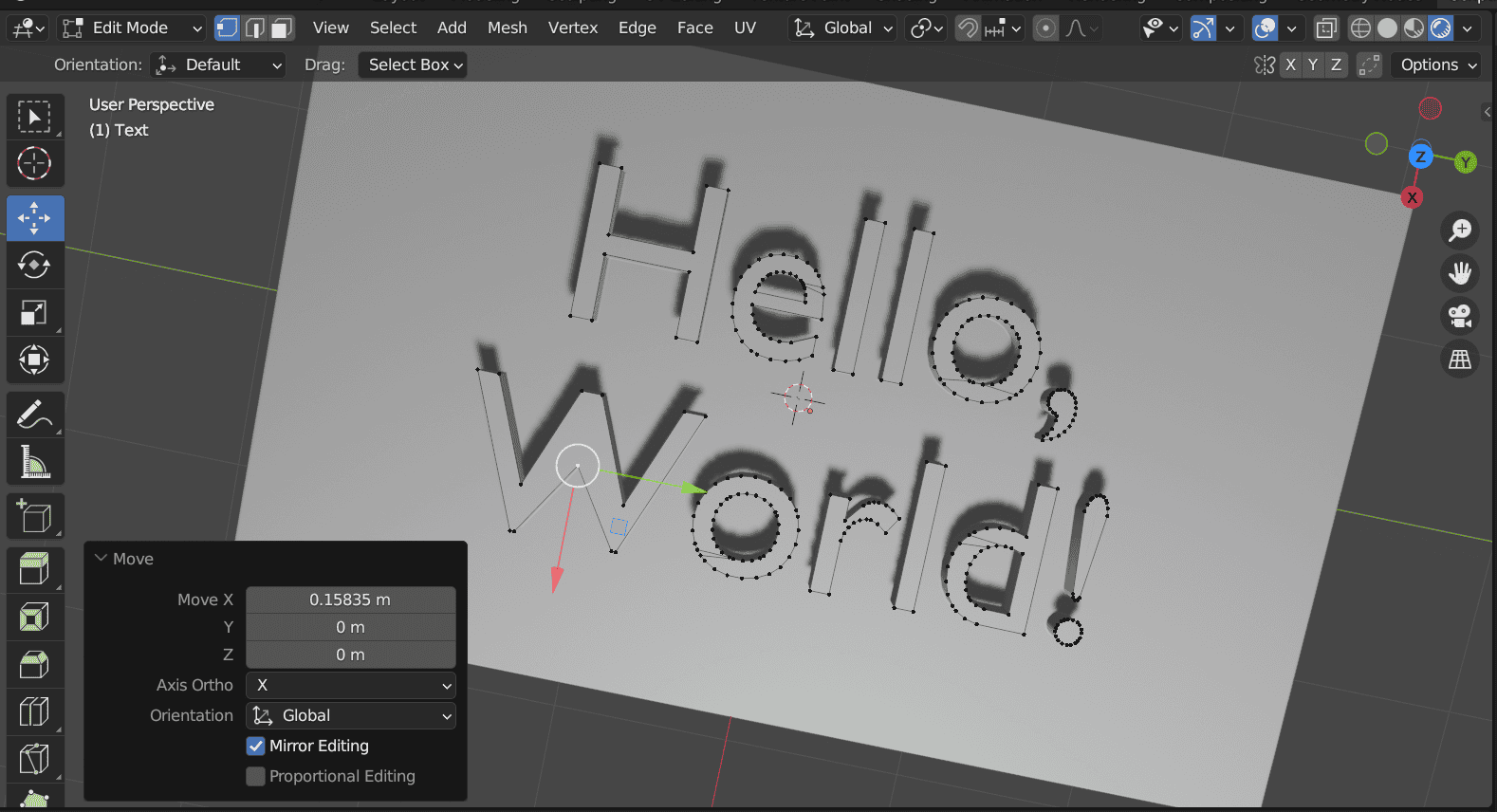

  1. Edit Mode 下，选择 Text 对象下的所有顶点，Mesh → Merge → By Distance：

png

在对话框中选择 0.01 m。

png

1
2
3
bpy.ops.object.editmode_toggle()
bpy.ops.mesh.select_all(action="SELECT")
bpy.ops.mesh.remove_doubles(threshold=0.01)

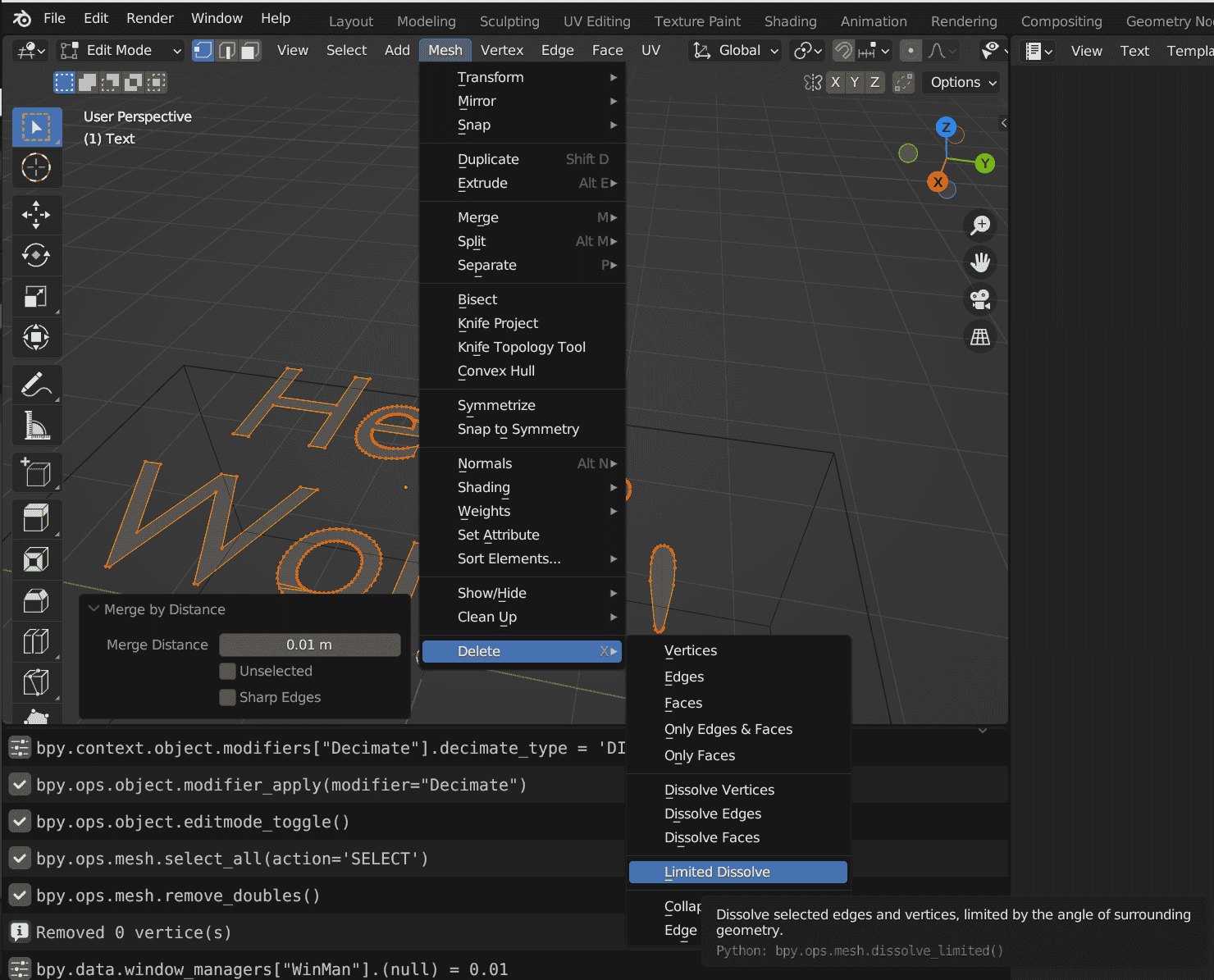

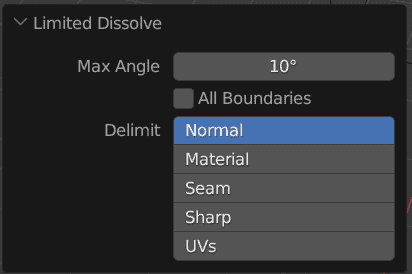

  1. Mesh → Delete → Limited Dissolve：

png

在对话框中选择 Max Angle：10°：

png

1
2
bpy.ops.mesh.dissolve_limited(angle_limit=np.pi / 18)
bpy.ops.object.editmode_toggle()

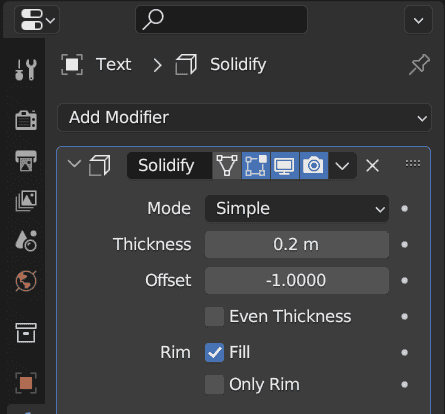

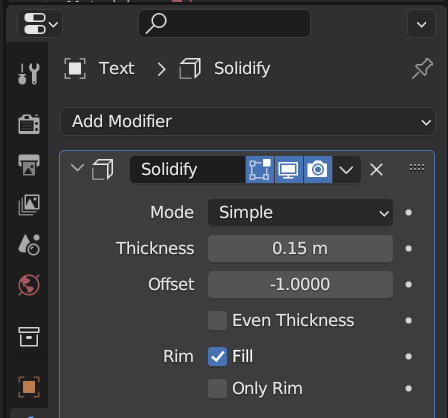

  1. 给 Text 添加一个 Solidfy，使其具有高度：

png

1
2
text_modifier_solidify = text_obj.modifiers.new(name="Solidify", type="SOLIDIFY")
text_modifier_solidify.thickness = 0.2

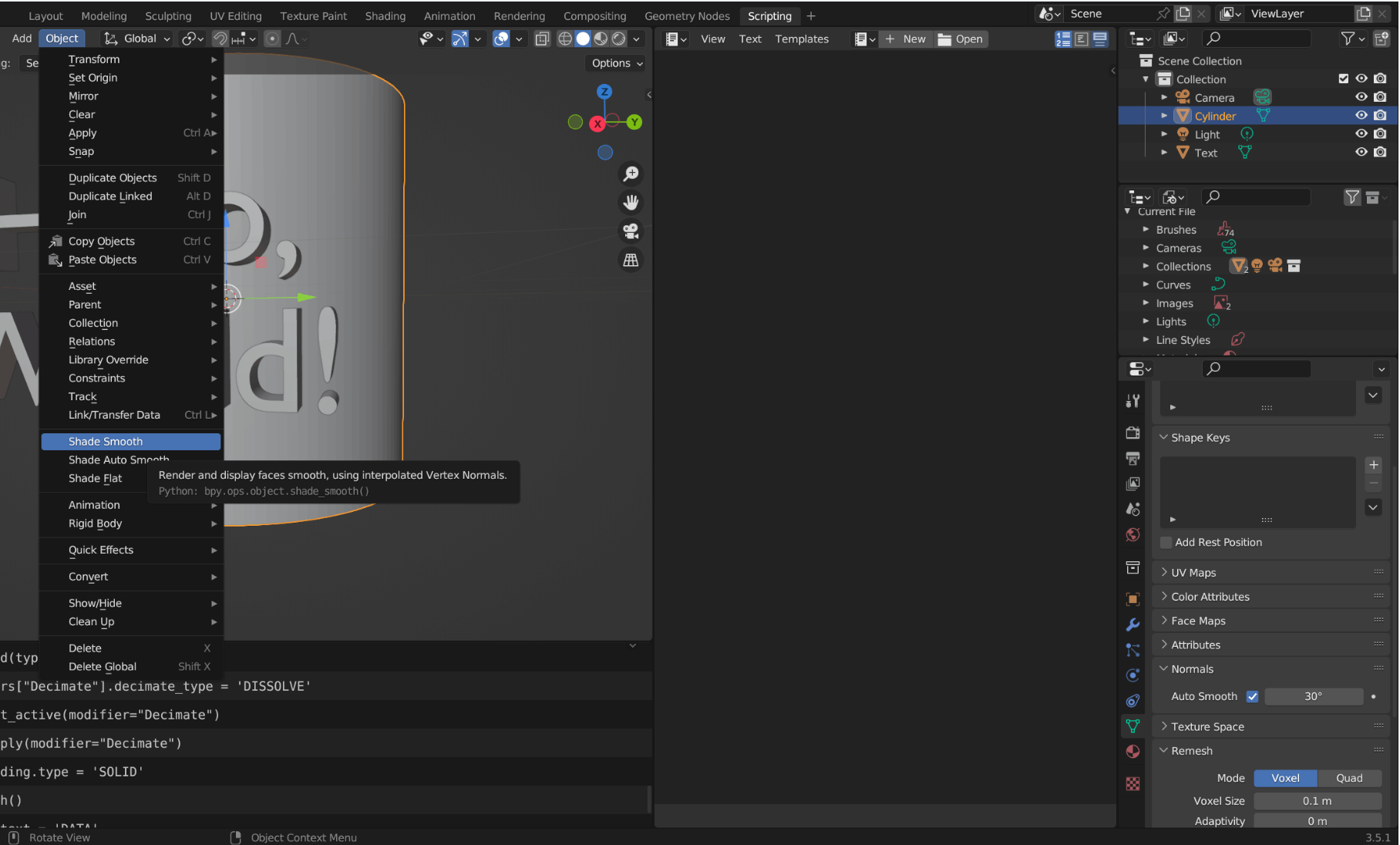

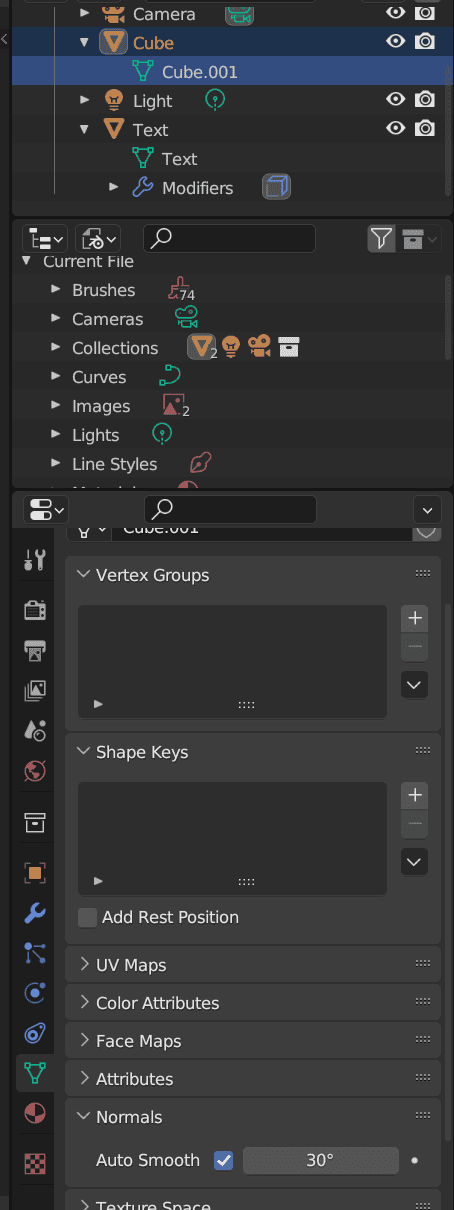

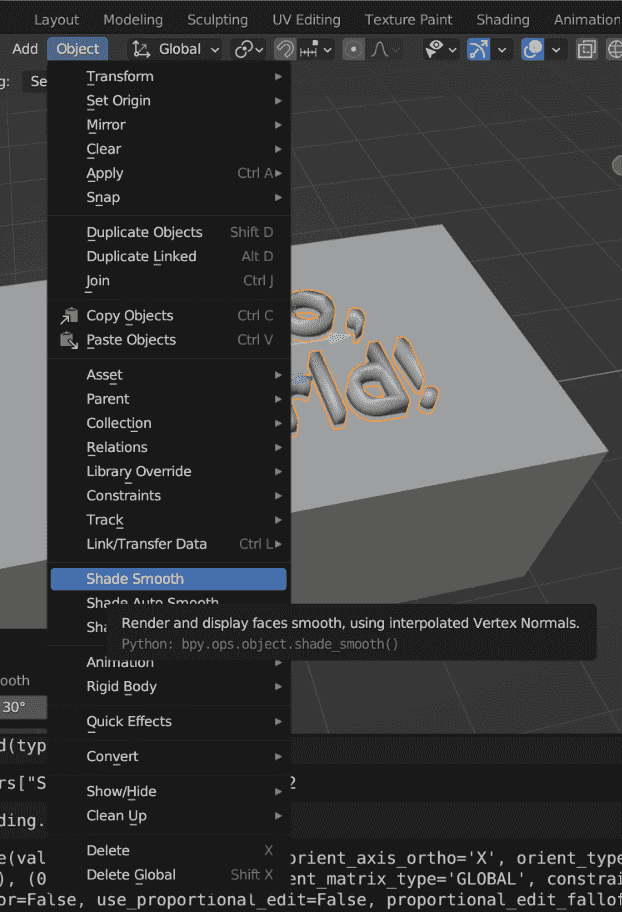

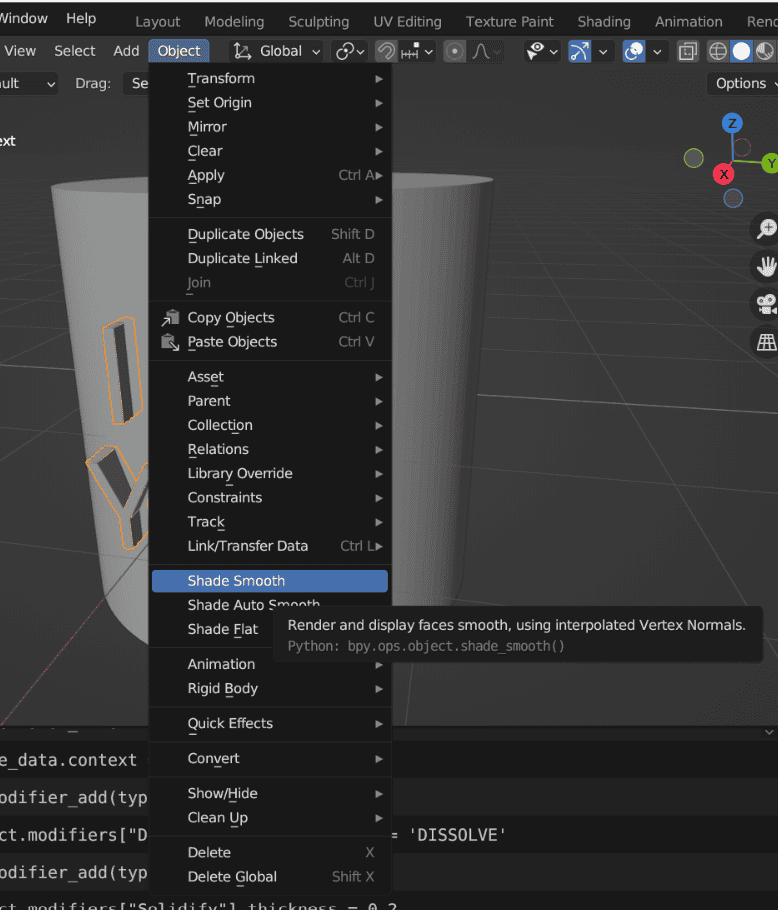

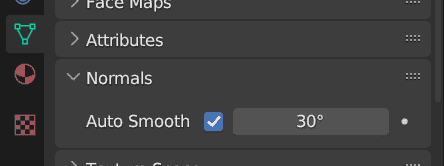

  1. Object Mode 下，给 Text 和 Cude 使用 Shade Smooth：

png

png

png

1
2
3
4
5
bpy.ops.object.shade_smooth()

text_obj.data.use_auto_smooth = True

cube_obj.data.use_auto_smooth = True

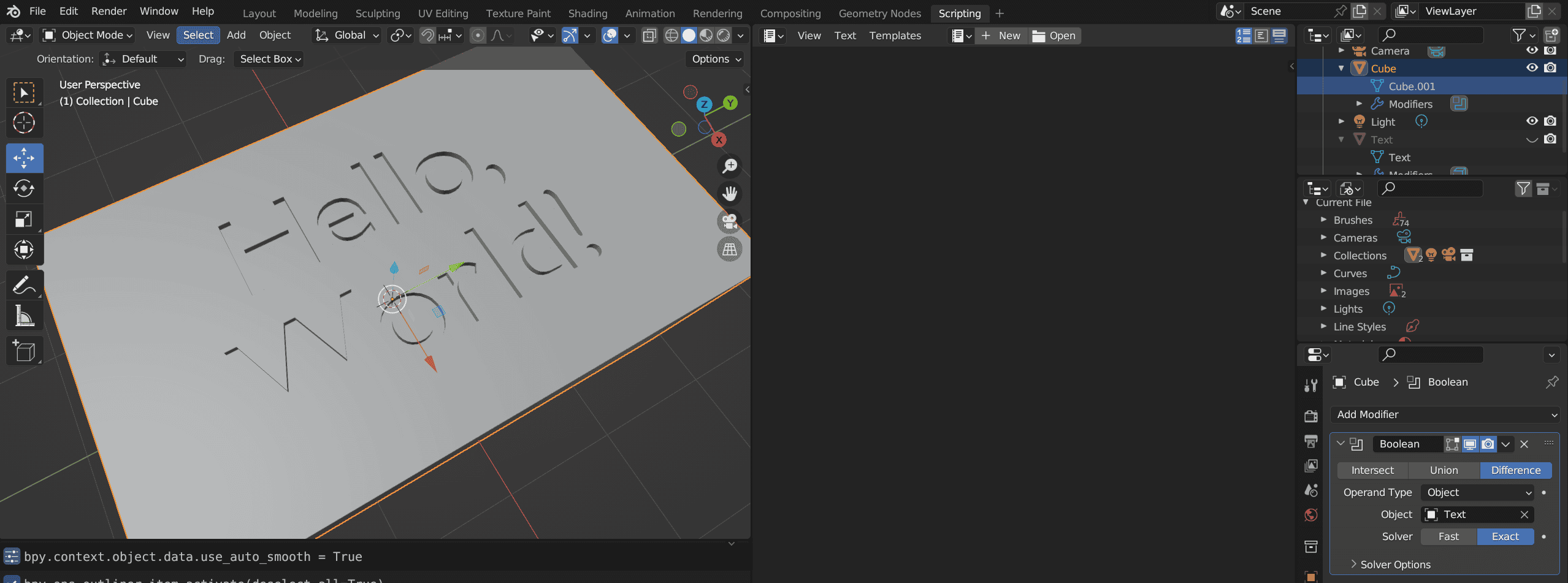

  1. 给 Cude 添加 Boolean，关闭 Text 的显示，形成雕刻效果：

png

1
2
cube_modifier_boolean = cube_obj.modifiers.new(name="Boolean", type="BOOLEAN")
cube_modifier_boolean.object = text_obj

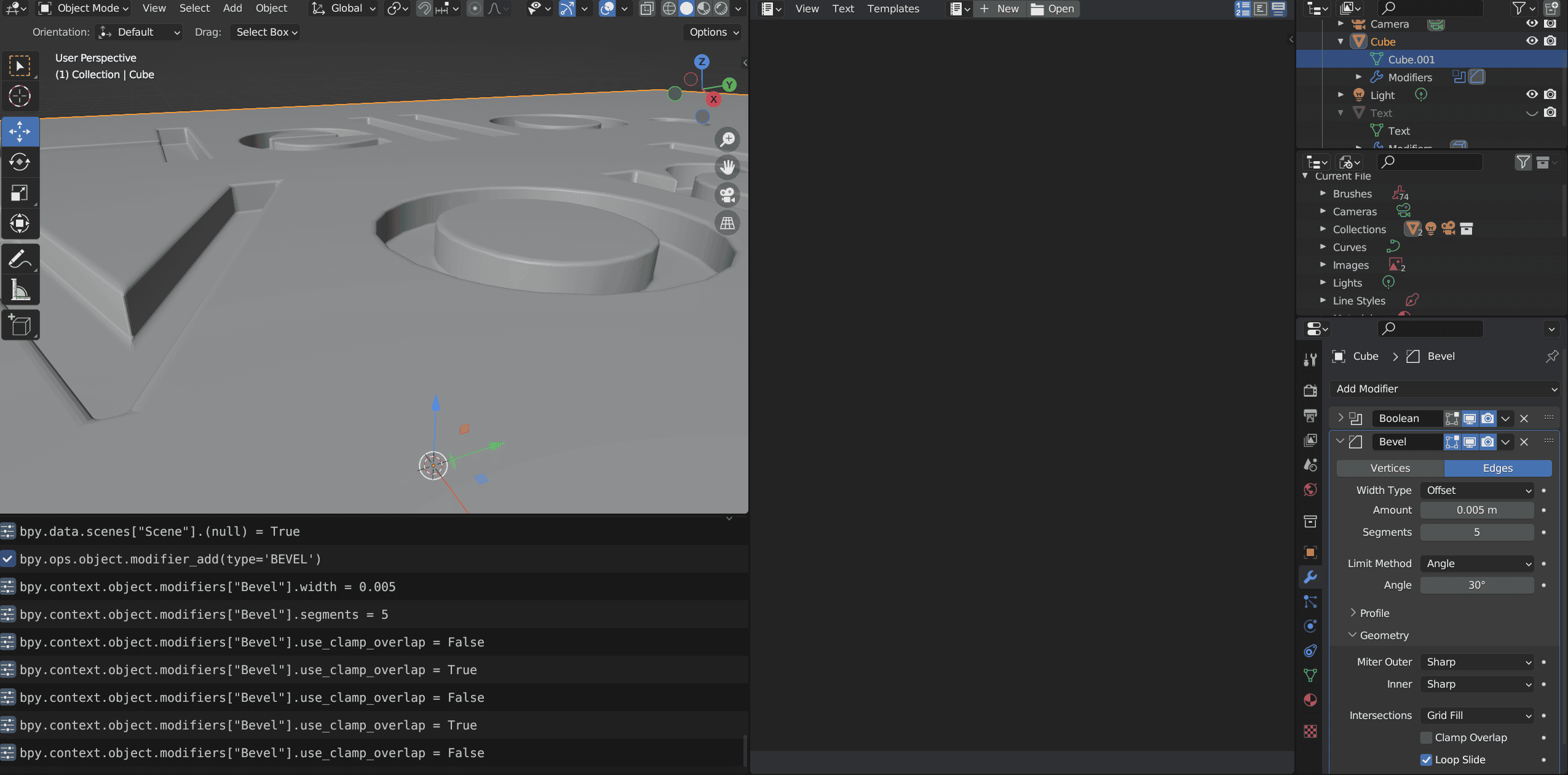

  1. 给 Cude 添加 Bevel，形成斜角效果：

png

1
2
3
4
5
cube_modifier_bevel = cube_obj.modifiers.new(name="Bevel", type="BEVEL")
cube_modifier_bevel.width = 0.005
cube_modifier_bevel.segments = 5
cube_modifier_bevel.use_clamp_overlap = False
cube_modifier_bevel.harden_normals = True

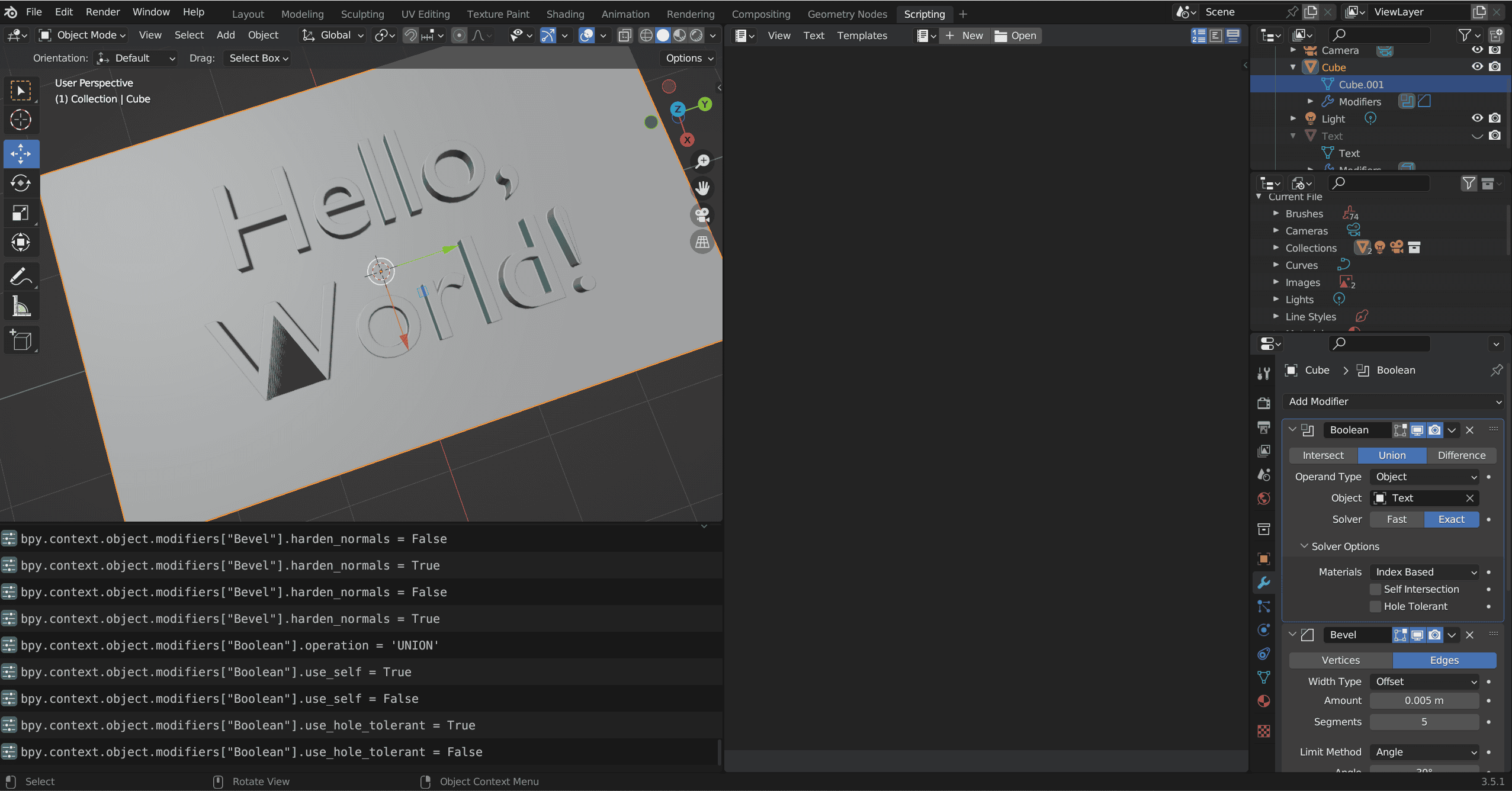

  1. 将 Boolean 改为 Union，形成浮雕效果：

png

1
cube_modifier_boolean.operation = "UNION"

emmmm 如果破了的话好像只能手动处理了。

png

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
import bpy
import numpy as np

bpy.ops.mesh.primitive_cube_add()
cube_obj = bpy.context.object

cube_obj.scale[0] = 1.5
cube_obj.scale[1] = 2.5

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.location[2] = 1.15
text_obj.rotation_euler[2] = np.pi / 2

text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

text_obj.data.body = "Hello,\nWorld!"

bpy.ops.object.convert(target="MESH")

text_modifier_decimate = text_obj.modifiers.new(name="Decimate", type="DECIMATE")
text_modifier_decimate.decimate_type = "DISSOLVE"
bpy.ops.object.modifier_apply(modifier="Decimate")

bpy.ops.object.editmode_toggle()
bpy.ops.mesh.select_all(action="SELECT")
bpy.ops.mesh.remove_doubles(threshold=0.01)

bpy.ops.mesh.dissolve_limited(angle_limit=np.pi / 18)
bpy.ops.object.editmode_toggle()

text_modifier_solidify = text_obj.modifiers.new(name="Solidify", type="SOLIDIFY")
text_modifier_solidify.thickness = 0.2

bpy.ops.object.shade_smooth()

text_obj.data.use_auto_smooth = True

cube_obj.data.use_auto_smooth = True

cube_modifier_boolean = cube_obj.modifiers.new(name="Boolean", type="BOOLEAN")
cube_modifier_boolean.object = text_obj

text_obj.hide_viewport = True
text_obj.hide_render = True

cube_modifier_bevel = cube_obj.modifiers.new(name="Bevel", type="BEVEL")
cube_modifier_bevel.width = 0.005
cube_modifier_bevel.segments = 5
cube_modifier_bevel.use_clamp_overlap = False
cube_modifier_bevel.harden_normals = True

cube_modifier_boolean.operation = "UNION"

Engrave or Carve Text On Curved Surface | Part 4 in Text Effects | Blender Eevee & Cycles

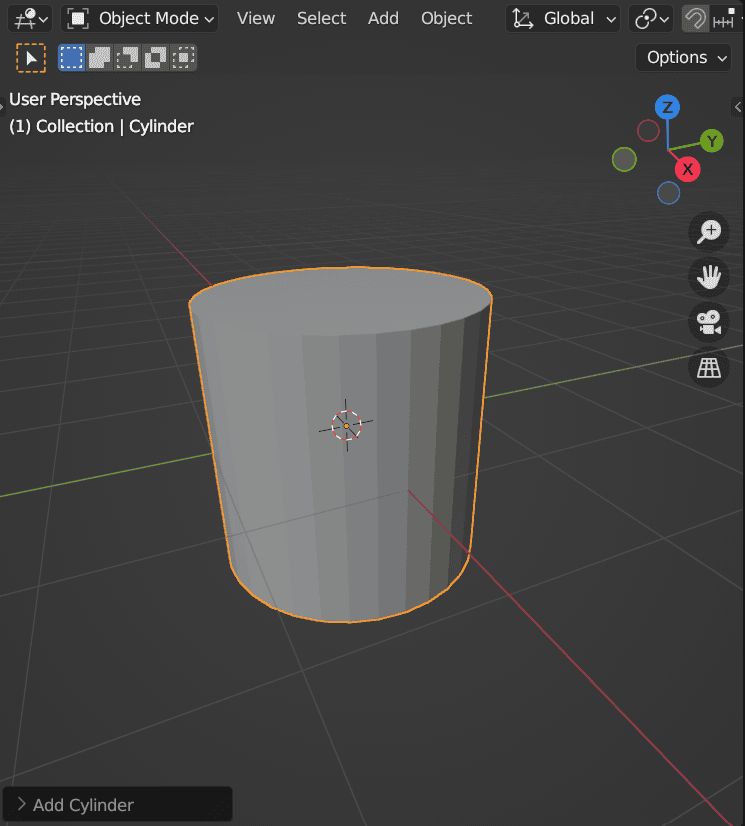

  1. 新建一个圆柱体：

png

1
2
3
4
5
import bpy
import numpy as np

bpy.ops.mesh.primitive_cylinder_add()
cylinder_obj = bpy.context.object

png

1

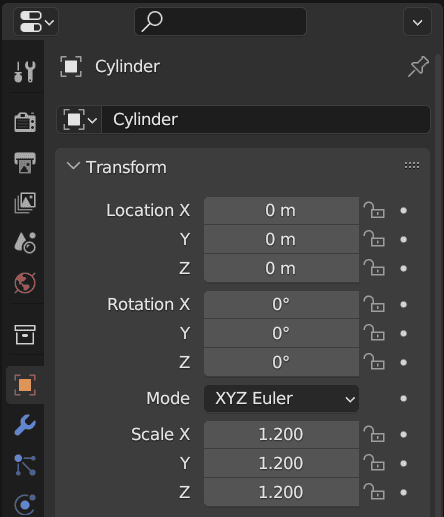

cylinder_obj.scale[0:3] = [1.2, 1.2, 1.2]

png

1
2
cylinder_modifier_edgesplit = cylinder_obj.modifiers.new(name="EdgeSplit", type="EDGE_SPLIT")
bpy.ops.object.modifier_apply(modifier="EdgeSplit")

png

1
2
3
cylinder_modifier_subsurf = cylinder_obj.modifiers.new(name="Subdivision", type="SUBSURF")
cylinder_modifier_subsurf.levels = 2
bpy.ops.object.modifier_apply(modifier="Subdivision")
  1. 新建一个文本对象：

png

1
2
3
4
5
text_obj.location[0] = 1.22
text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2

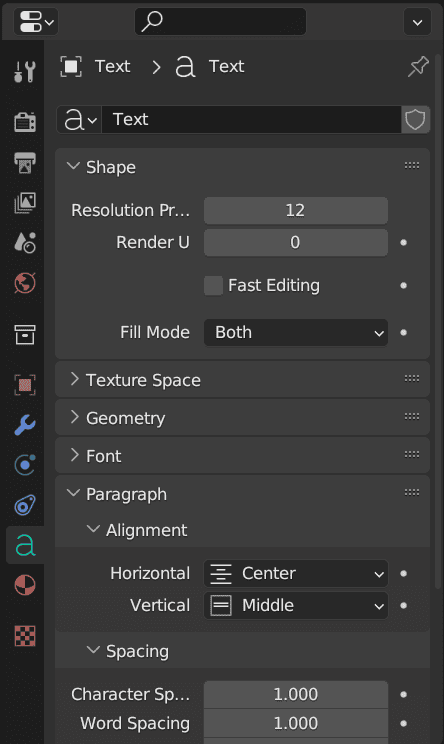

text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

png

1
2

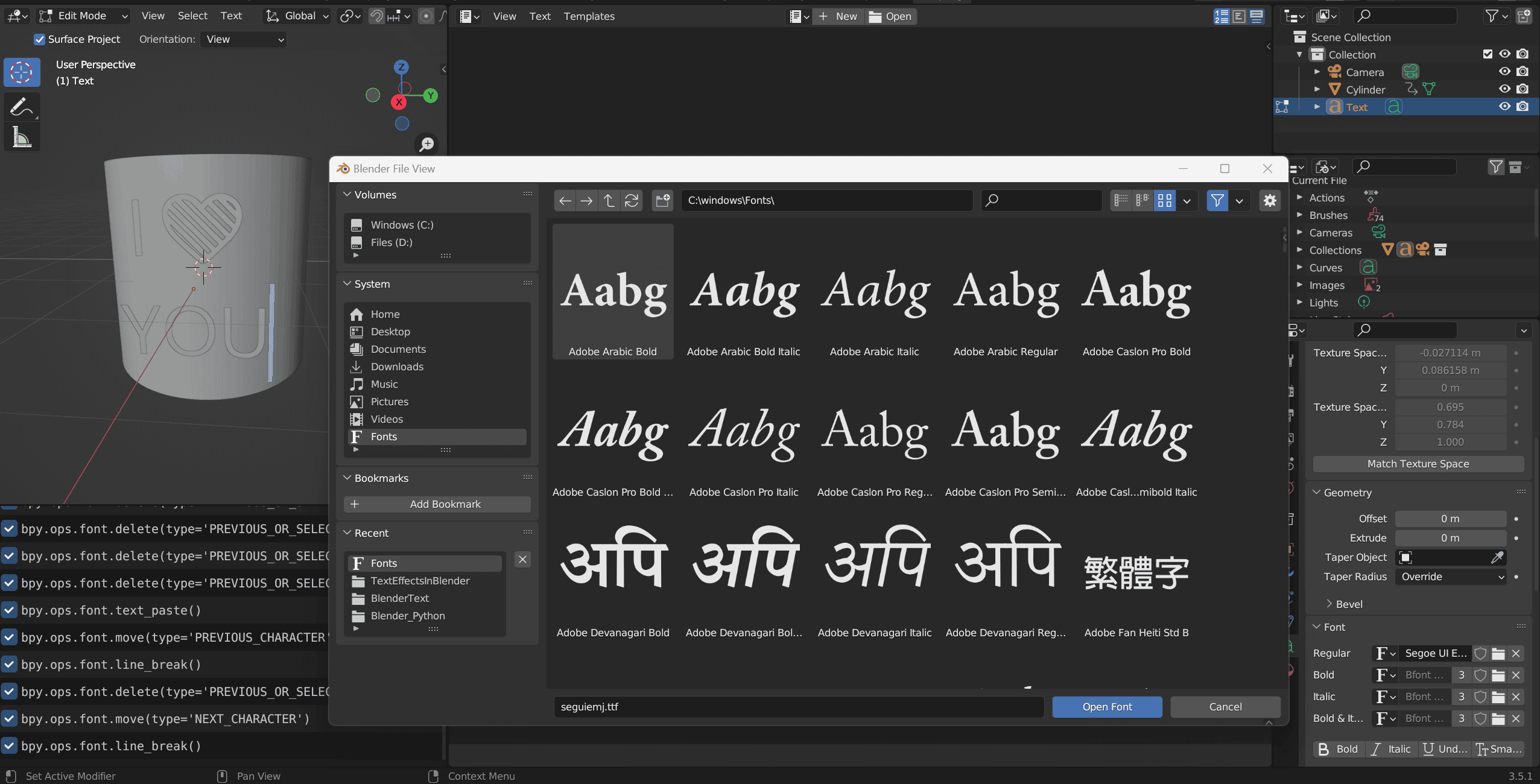

text_obj.data.font = bpy.data.fonts.load("C:\\windows\\Fonts\\seguiemj.ttf")
text_obj.data.body = "I❤\nYOU"
1
2
text_obj.data.size = 0.9
text_obj.data.space_line = 0.75

png

1

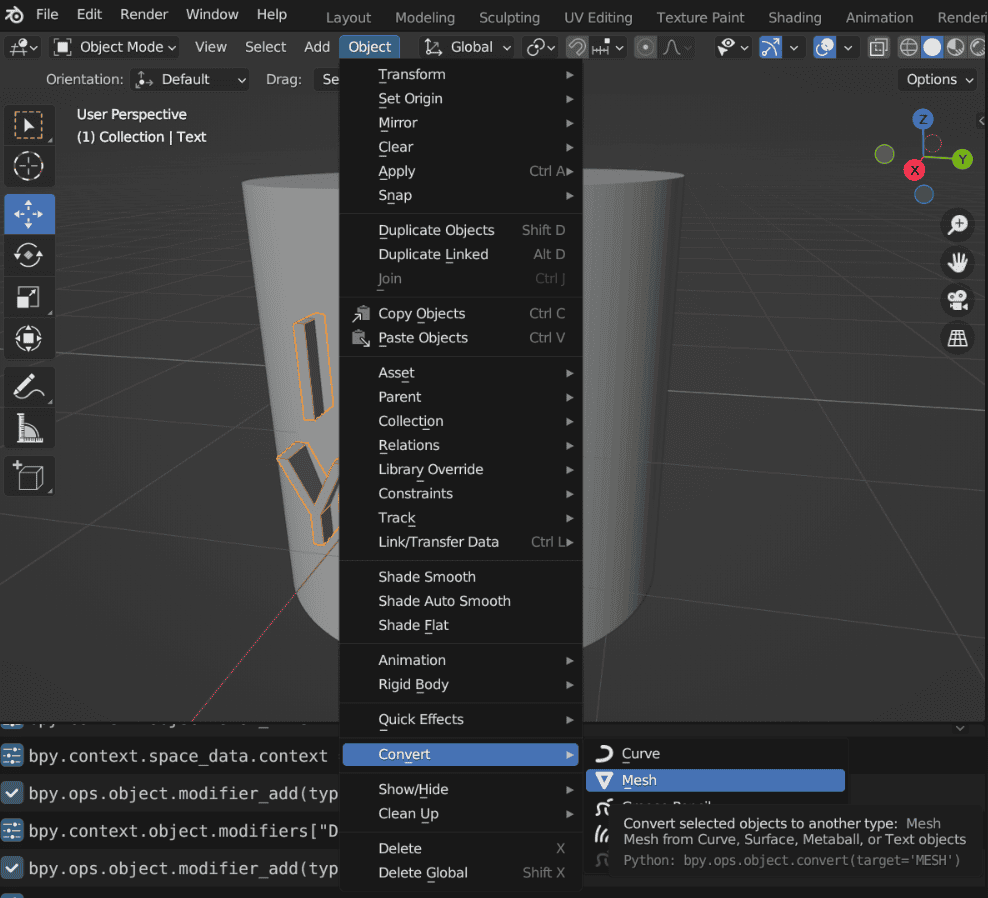

bpy.ops.object.convert(target="MESH")

png

1
2
3

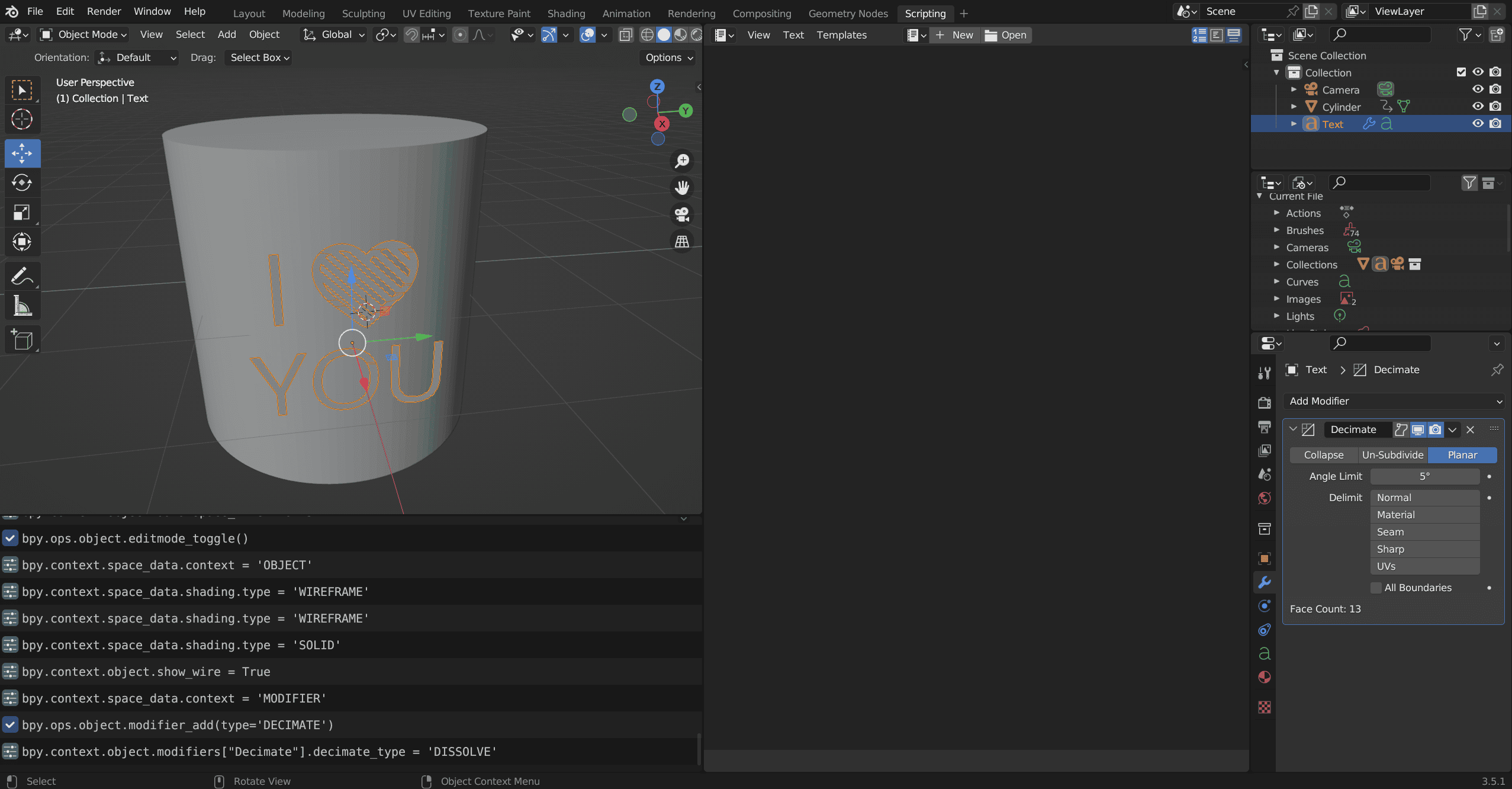

text_modifier_decimate = text_obj.modifiers.new(name="Decimate", type="DECIMATE")
text_modifier_decimate.decimate_type = "DISSOLVE"
bpy.ops.object.modifier_apply(modifier="Decimate")

png

1
2

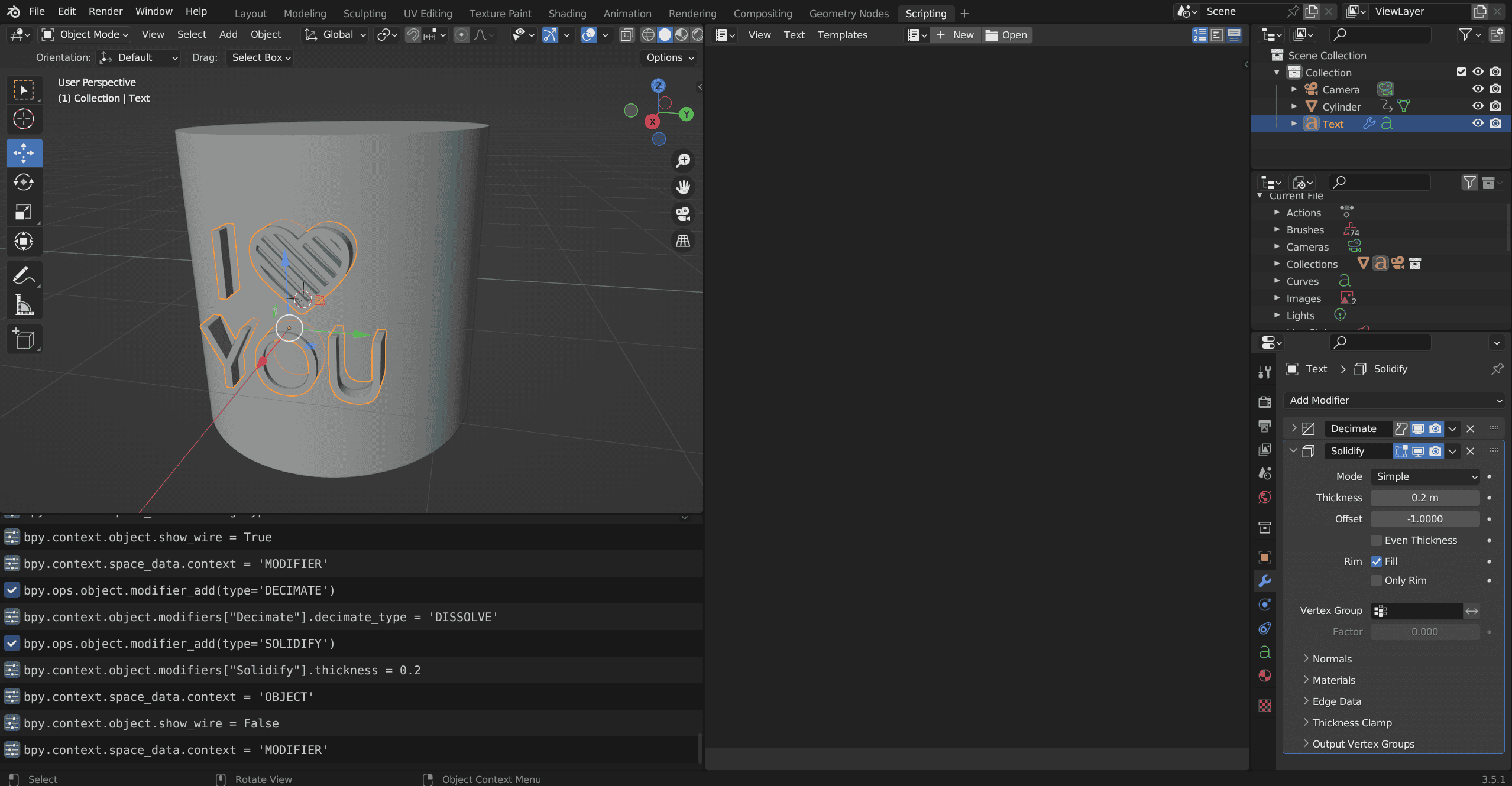

text_modifier_solidify = text_obj.modifiers.new(name="Solidify", type="SOLIDIFY")
text_modifier_solidify.thickness = 0.2

png

png

1
2
bpy.ops.object.shade_smooth()
text_obj.data.use_auto_smooth = True

png

1
2
3
4
5

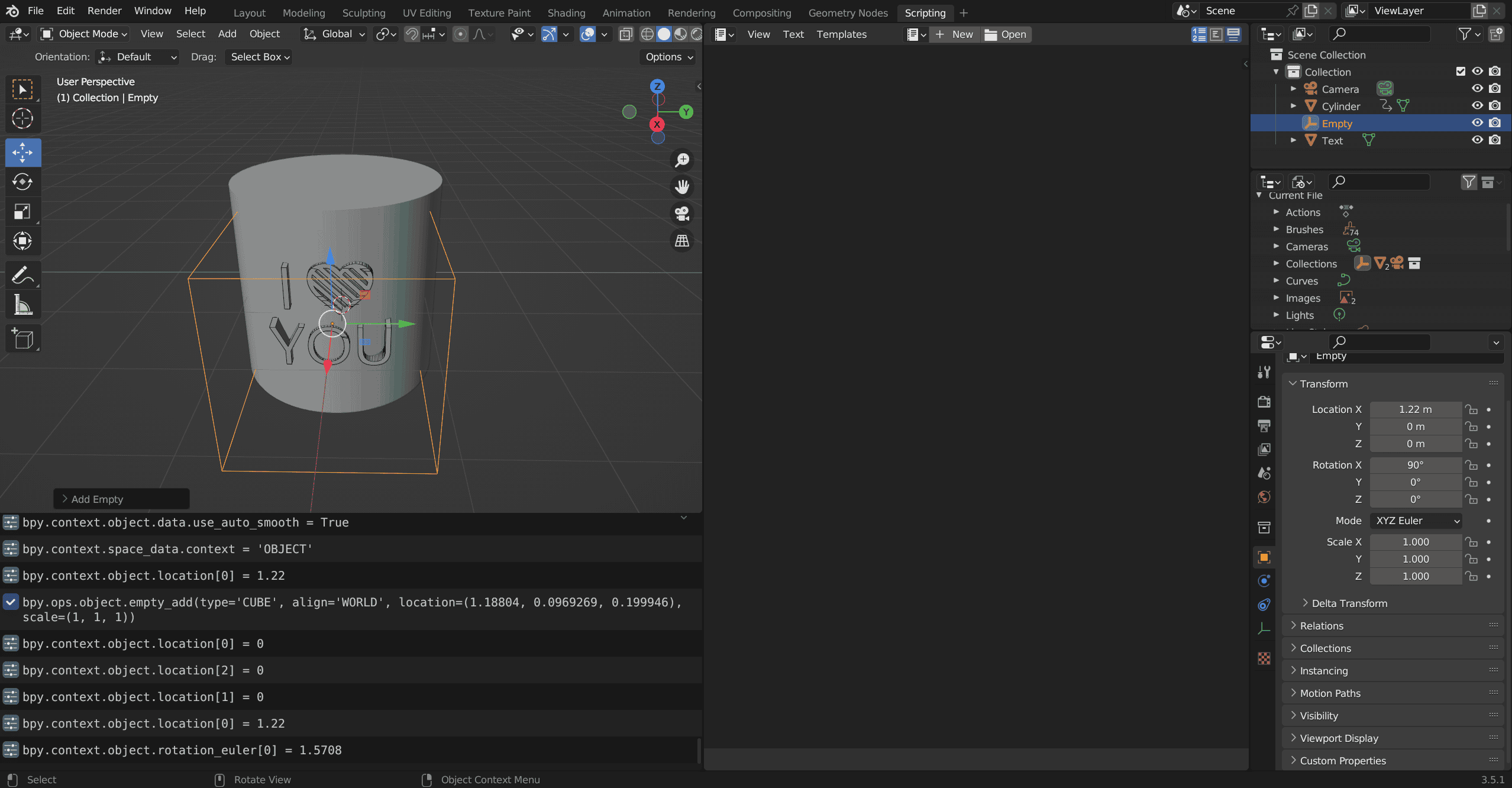

bpy.ops.object.empty_add(type="CUBE")
empty_obj = bpy.context.object

empty_obj.location[0:3] = text_obj.location[0:3]
empty_obj.rotation_euler[0] = np.pi / 2

png

1
2
3
4
5

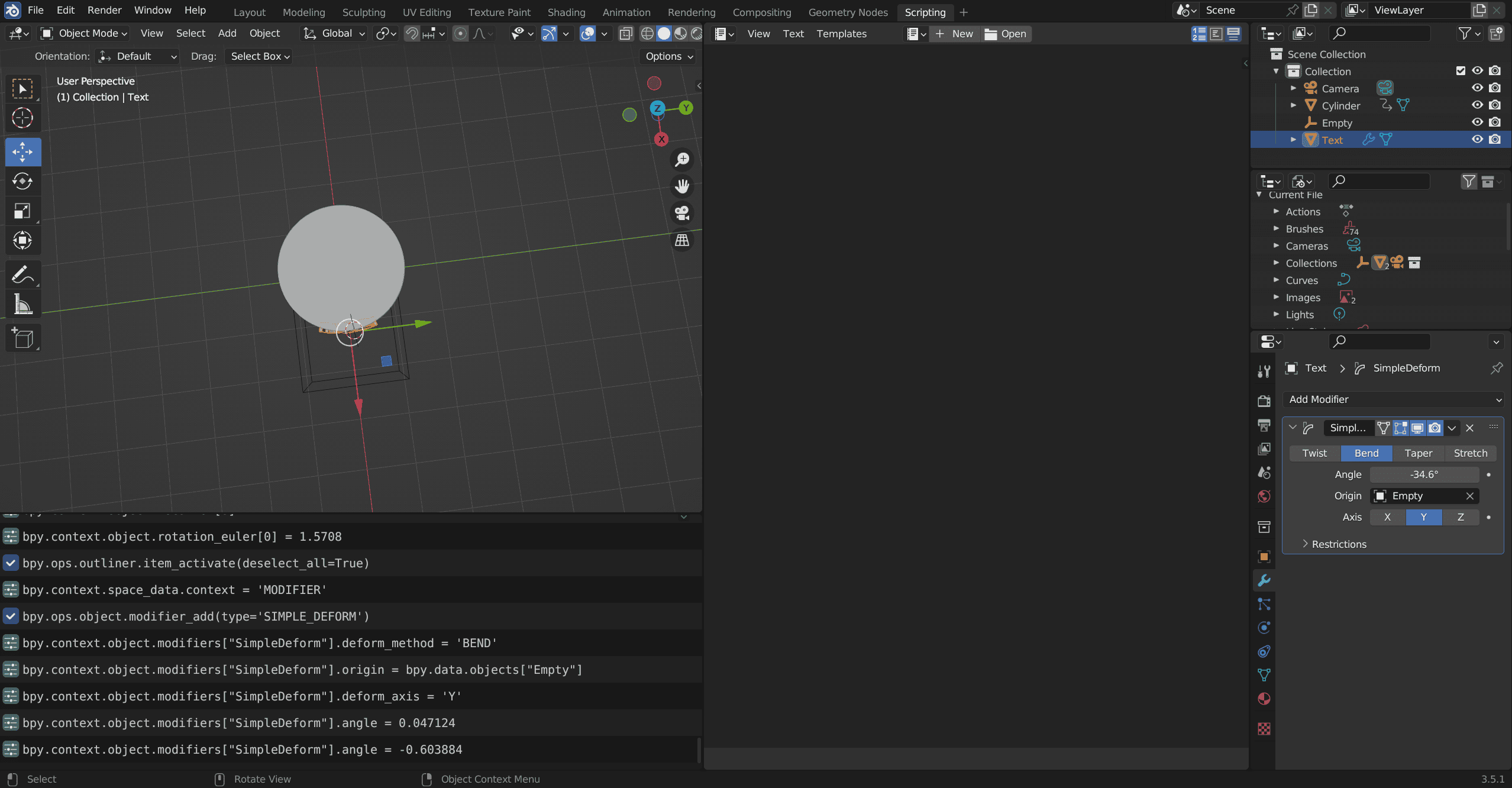

text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.origin = empty_obj
text_modifier_simple_deform.angle = - np.pi / 4
text_modifier_simple_deform.deform_axis = "Y"

png

1
2
3
4
5

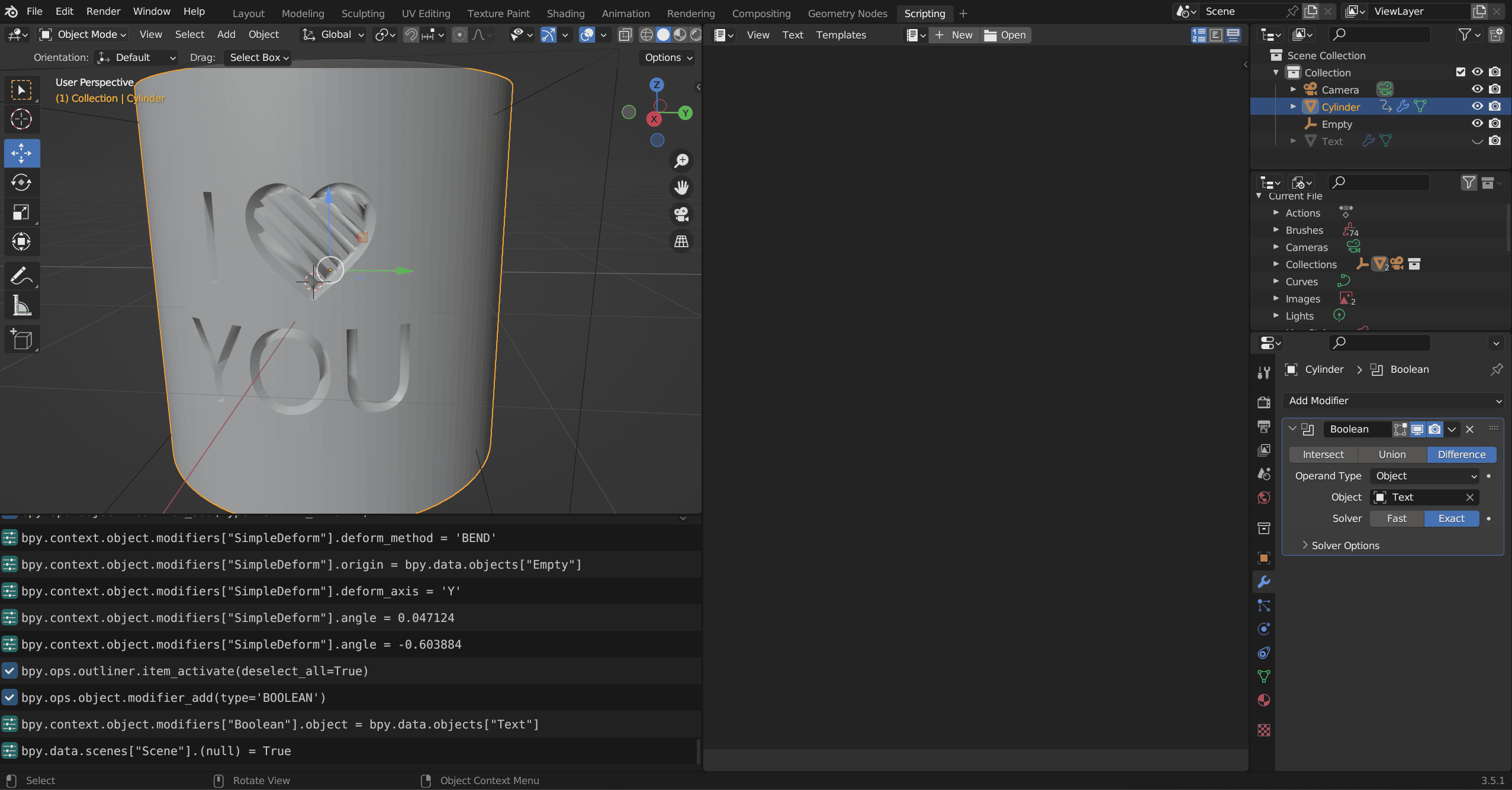

cylinder_modifier_boolean = cylinder_obj.modifiers.new(name="Boolean", type="BOOLEAN")
cylinder_modifier_boolean.object = text_obj

text_obj.hide_viewport = True
text_obj.hide_render = True

png

1
2
3
4
5
6
7
8

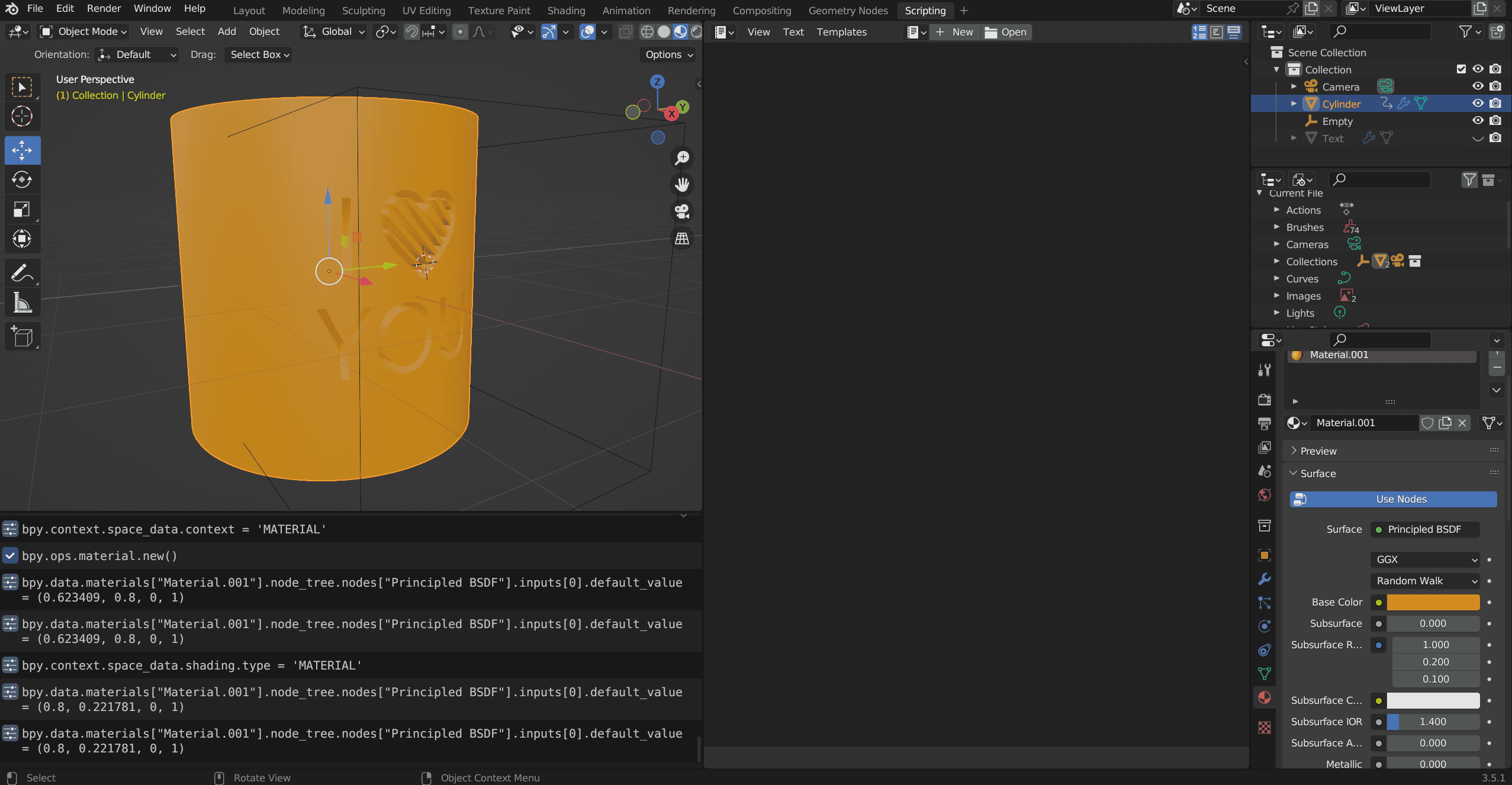

cylinder_material = bpy.data.materials.new(name="Material")
cylinder_material.use_nodes = True
nodes = cylinder_material.node_tree.nodes
principled_bsdf = nodes.get("Principled BSDF")
if principled_bsdf is not None:
    principled_bsdf.inputs[0].default_value = (1, 0.7, 0, 1)

cylinder_obj.data.materials.append(cylinder_material)

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
import bpy
import numpy as np

bpy.ops.mesh.primitive_cylinder_add()
cylinder_obj = bpy.context.object

cylinder_obj.scale[0:3] = [1.2, 1.2, 1.2]

cylinder_modifier_edgesplit = cylinder_obj.modifiers.new(name="EdgeSplit", type="EDGE_SPLIT")
bpy.ops.object.modifier_apply(modifier="EdgeSplit")

cylinder_modifier_subsurf = cylinder_obj.modifiers.new(name="Subdivision", type="SUBSURF")
cylinder_modifier_subsurf.levels = 2
bpy.ops.object.modifier_apply(modifier="Subdivision")

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.location[0] = 1.22
text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

text_obj.data.font = bpy.data.fonts.load("C:\\windows\\Fonts\\seguiemj.ttf")
text_obj.data.body = "I❤\nYOU"

text_obj.data.size = 0.9
text_obj.data.space_line = 0.75

bpy.ops.object.convert(target="MESH")

text_modifier_decimate = text_obj.modifiers.new(name="Decimate", type="DECIMATE")
text_modifier_decimate.decimate_type = "DISSOLVE"
bpy.ops.object.modifier_apply(modifier="Decimate")

text_modifier_solidify = text_obj.modifiers.new(name="Solidify", type="SOLIDIFY")
text_modifier_solidify.thickness = 0.2


bpy.ops.object.shade_smooth()
text_obj.data.use_auto_smooth = True

bpy.ops.object.empty_add(type="CUBE")
empty_obj = bpy.context.object

empty_obj.location[0:3] = text_obj.location[0:3]
empty_obj.rotation_euler[0] = np.pi / 2

text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.origin = empty_obj
text_modifier_simple_deform.angle = - np.pi / 4
text_modifier_simple_deform.deform_axis = "Y"

cylinder_modifier_boolean = cylinder_obj.modifiers.new(name="Boolean", type="BOOLEAN")
cylinder_modifier_boolean.object = text_obj

text_obj.hide_viewport = True
text_obj.hide_render = True

cylinder_material = bpy.data.materials.new(name="Material")
cylinder_material.use_nodes = True
nodes = cylinder_material.node_tree.nodes
principled_bsdf = nodes.get("Principled BSDF")
if principled_bsdf is not None:
    principled_bsdf.inputs[0].default_value = (1, 0.7, 0, 1)

cylinder_obj.data.materials.append(cylinder_material)

Emboss Any Text On Curved Surface | Bend Any Text | Part 5 in Text Effects | Blender Eevee & Cycles

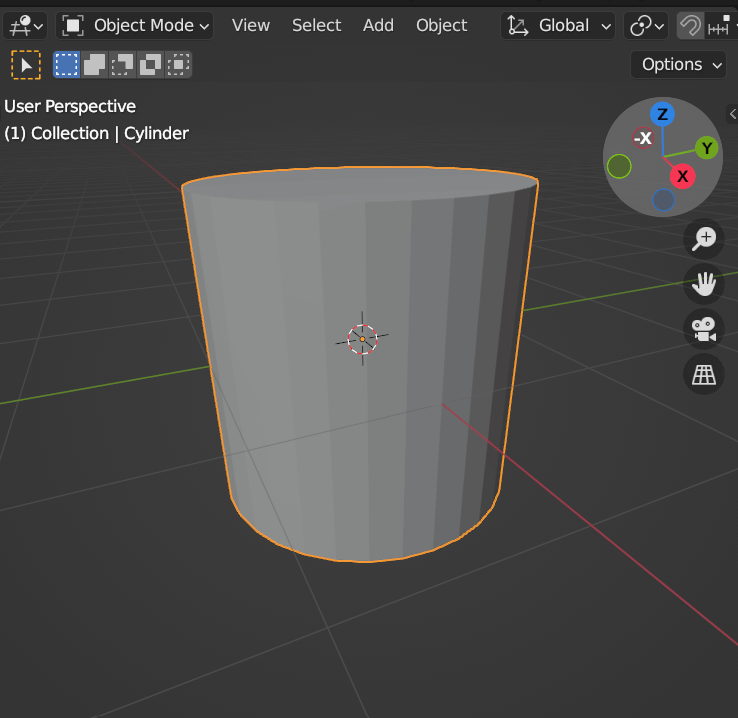

  1. 新建一个圆柱体。

png

1
2
3
4
5
import bpy
import numpy as np

bpy.ops.mesh.primitive_cylinder_add()
cylinder_obj = bpy.context.object

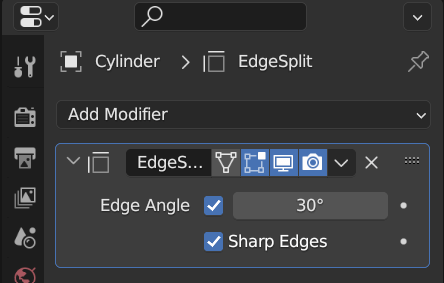

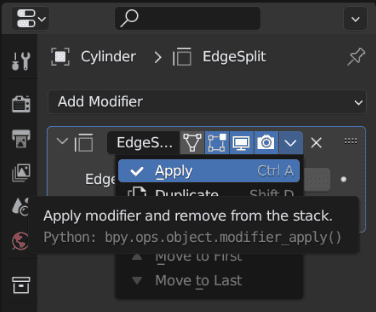

  1. 添加 Edgesplit，并应用，分离边：

png

1
2
cylinder_modifier_edgesplit = cylinder_obj.modifiers.new(name="EdgeSplit", type="EDGE_SPLIT")
bpy.ops.object.modifier_apply(modifier="EdgeSplit")

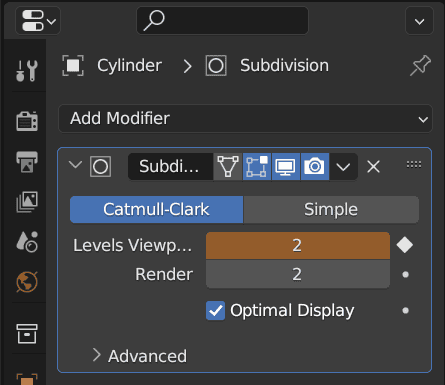

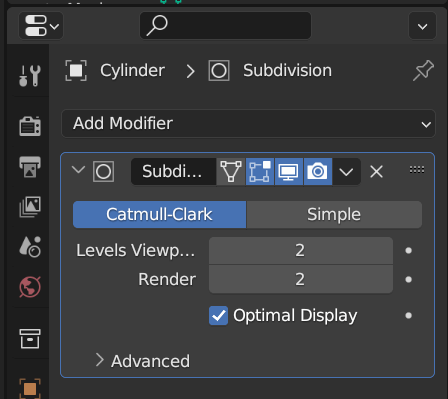

  1. 添加 Subdivision，并应用，使得物体更平滑：

png

1
2
3
cylinder_modifier_subsurf = cylinder_obj.modifiers.new(name="Subdivision", type="SUBSURF")
cylinder_modifier_subsurf.levels = 2
bpy.ops.object.modifier_apply(modifier="Subdivision")

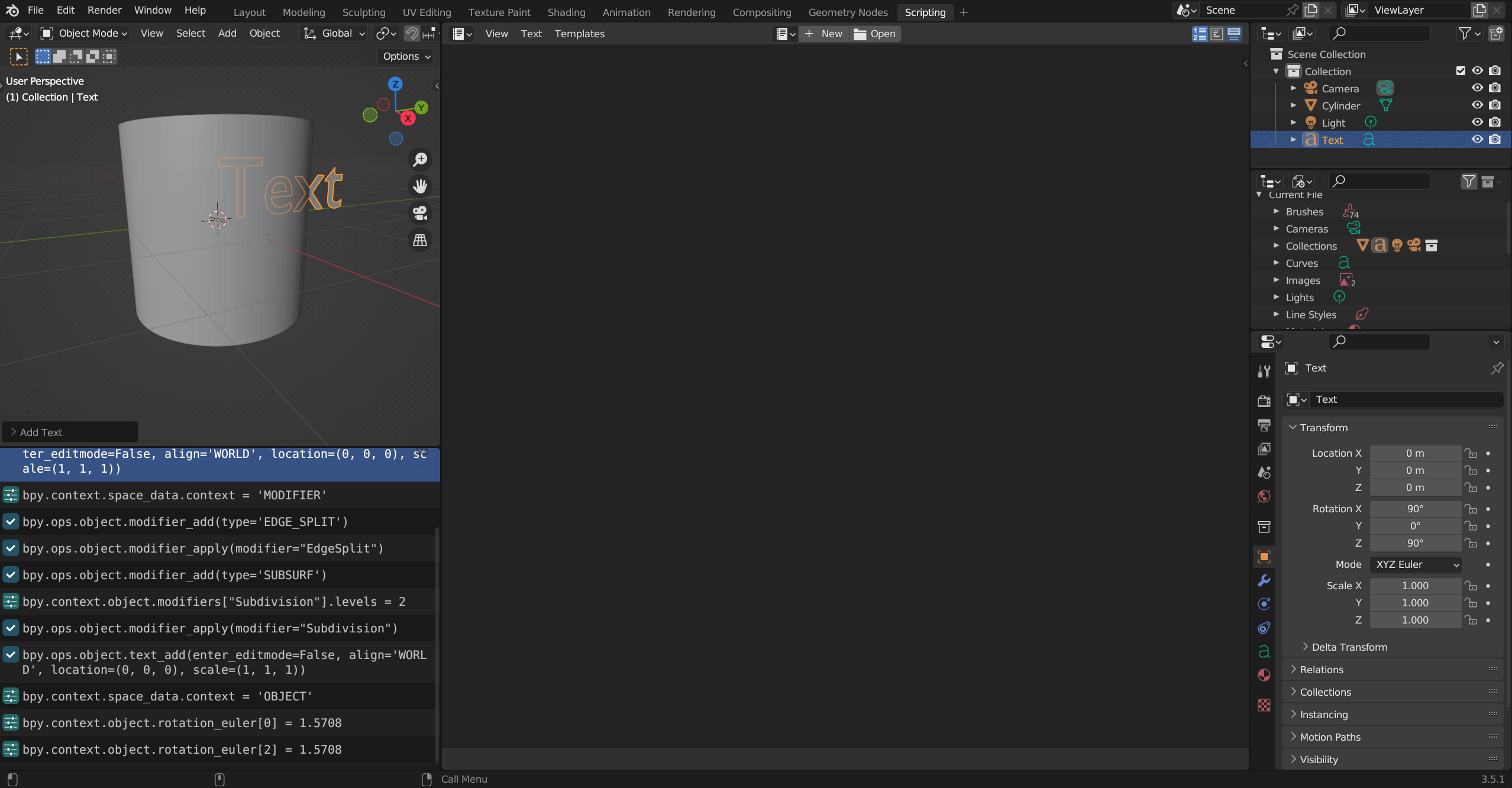

  1. 新建一个 Text，调整其参数：

png

1
2
3
4
5
6
bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.location[0] = 1.1
text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2

设置文字内容：

png

1
text_obj.data.body = "Hello,\nWorld!"

png

1
2
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

png

1

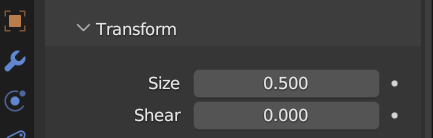

text_obj.data.size = 0.5
  1. 添加一个 Solidify 修改器，挤出 0.15 m：

png

1
2
text_modifier_solidify = text_obj.modifiers.new(name="Solidify", type="SOLIDIFY")
text_modifier_solidify.thickness = 0.15
  1. 将 Text 转成 Mesh：

png

1
bpy.ops.object.convert(target="MESH")
  1. Remesh 处理：

png

1
2
3
4
text_modifier_remesh = text_obj.modifiers.new(name="Remesh", type="REMESH")
text_modifier_remesh.mode = "SHARP"
text_modifier_remesh.octree_depth = 8
text_modifier_remesh.use_remove_disconnected = False

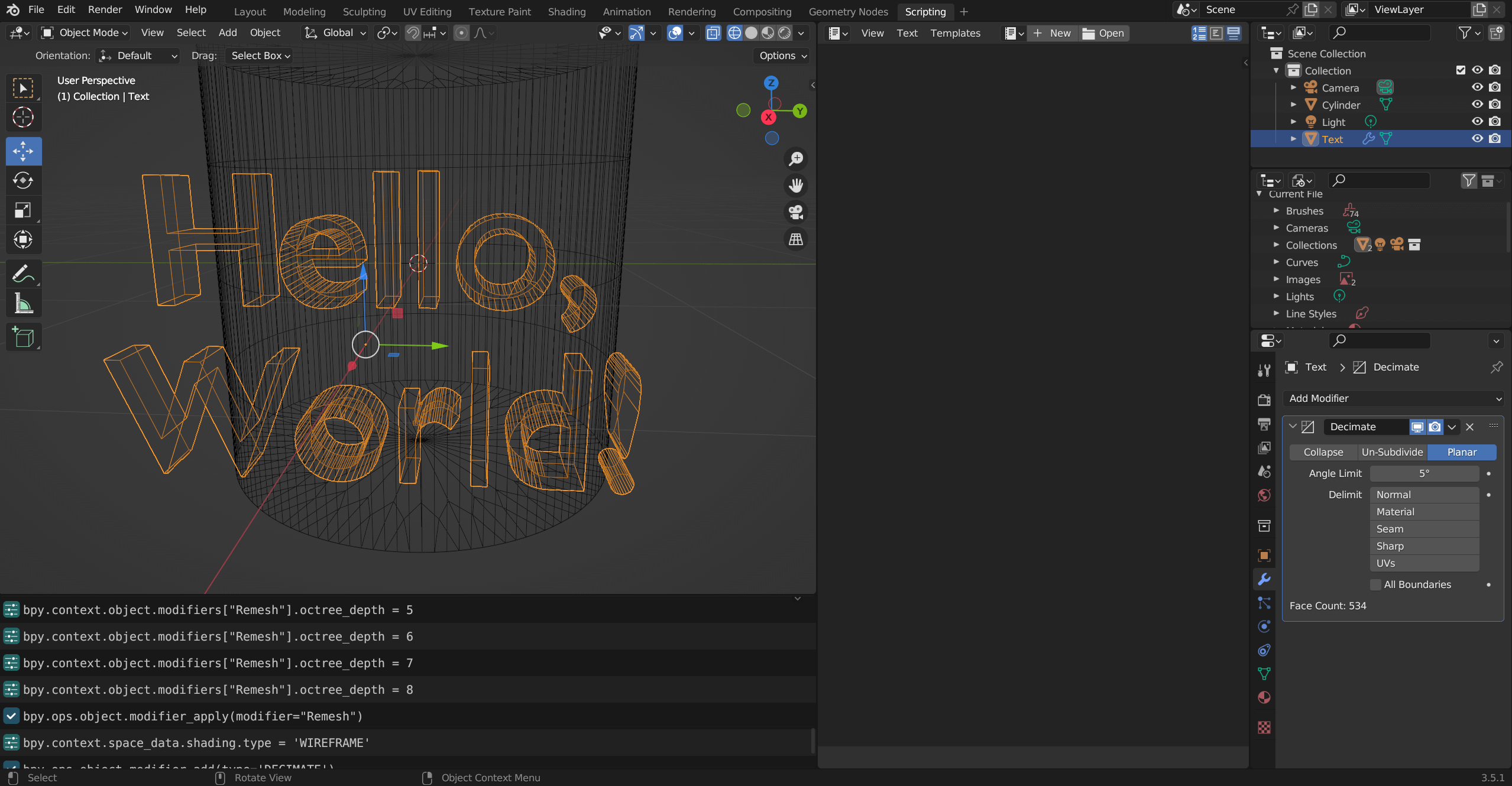

  1. Decimate处理以减少边的数量：

png

1
2
3
text_modifier_decimate = text_obj.modifiers.new(name="Decimate", type="DECIMATE")
text_modifier_decimate.decimate_type = "DISSOLVE"
bpy.ops.object.modifier_apply(modifier="Decimate")

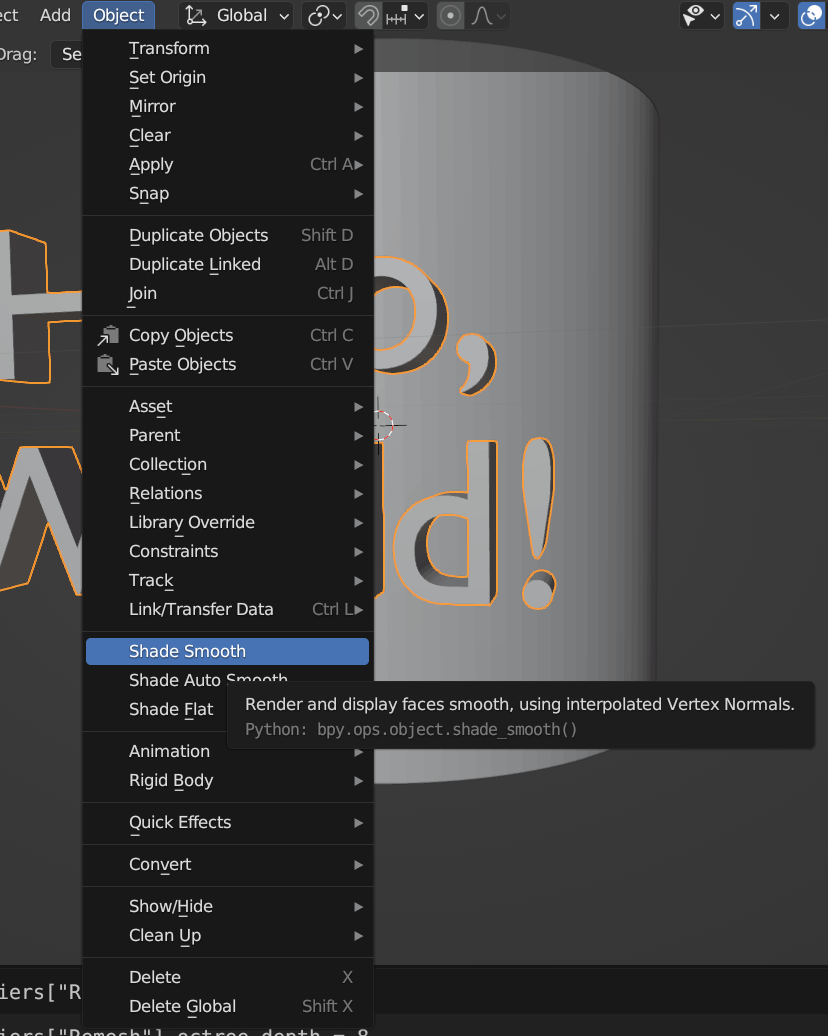

  1. 平滑处理：

png

png

png

1
2
3
4
5
bpy.ops.object.shade_smooth()

text_obj.data.use_auto_smooth = True

cylinder_obj.data.use_auto_smooth = True
  1. 新建一个 Empty，位置和 Text 相同，用于文本弯曲：

png

1
2
3
4
5
bpy.ops.object.empty_add(type="CUBE")
empty_obj = bpy.context.object

empty_obj.location[0:3] = text_obj.location[0:3]
empty_obj.rotation_euler[0] = np.pi / 2
  1. 设置 SimpleDeform，使 Text 弯曲：

png

1
2
3
4
5
text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.origin = empty_obj
text_modifier_simple_deform.angle = - np.pi / 2
text_modifier_simple_deform.deform_axis = "Y"

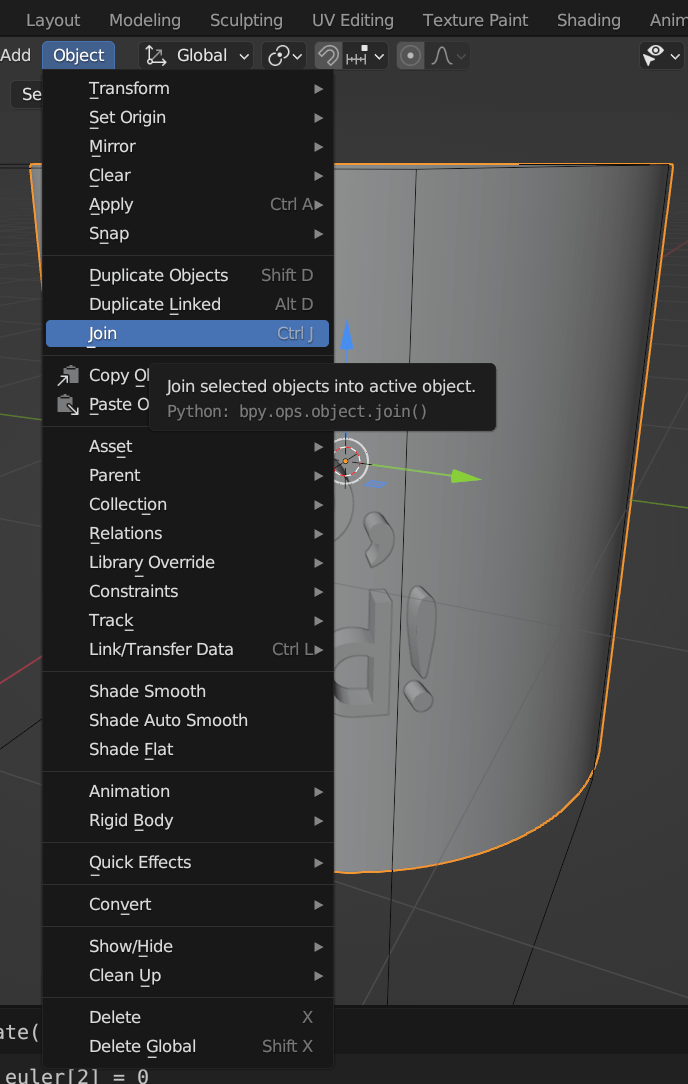

  1. 形成浮雕有一个简单的方法：Object → Join：

png

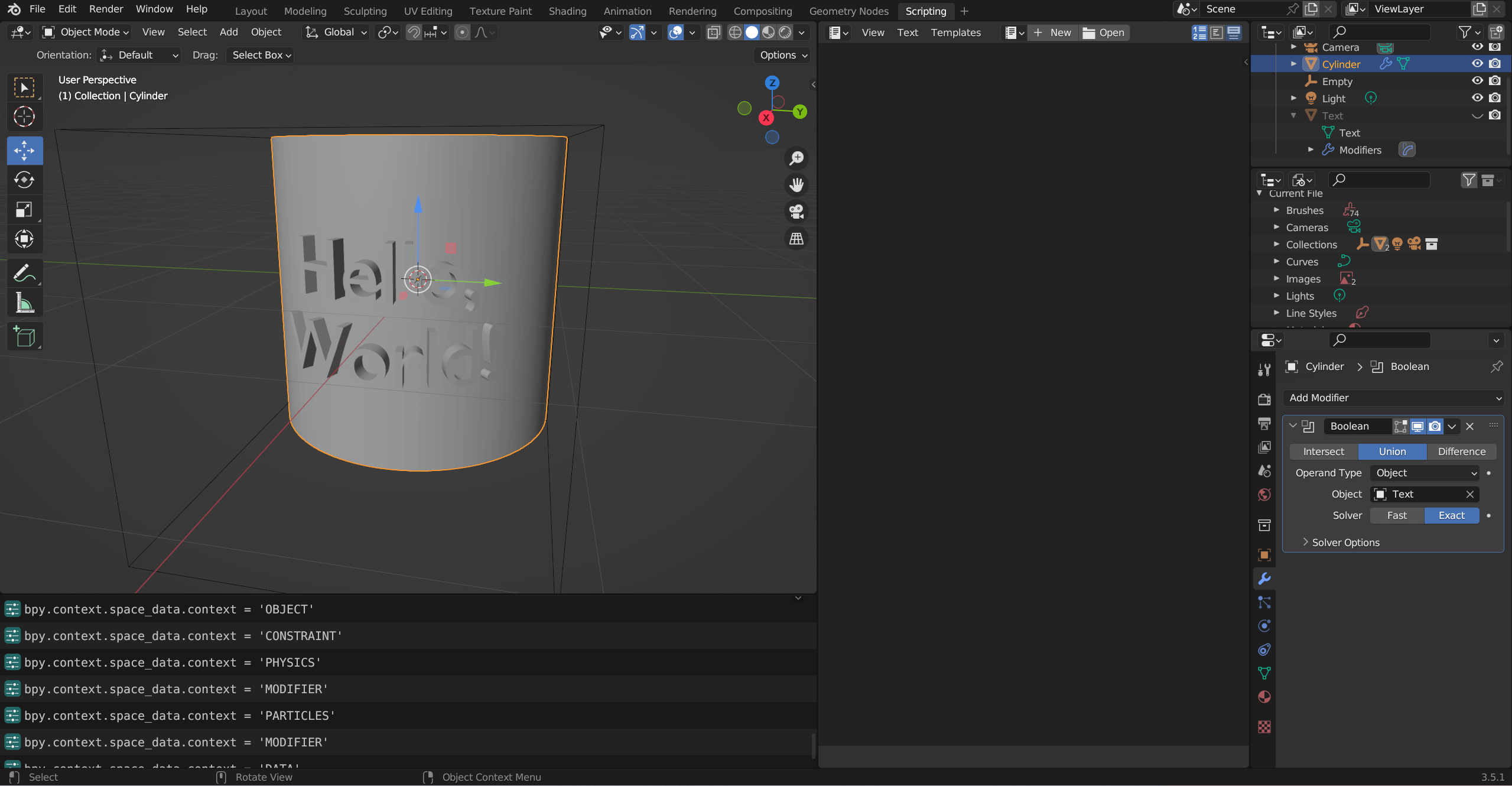

  1. 如果不用 Join，改用 Boolean 运算：

png

1
2
3
cylinder_modifier_boolean = cylinder_obj.modifiers.new(name="Boolean", type="BOOLEAN")
cylinder_modifier_boolean.operation = "UNION"
cylinder_modifier_boolean.object = text_obj

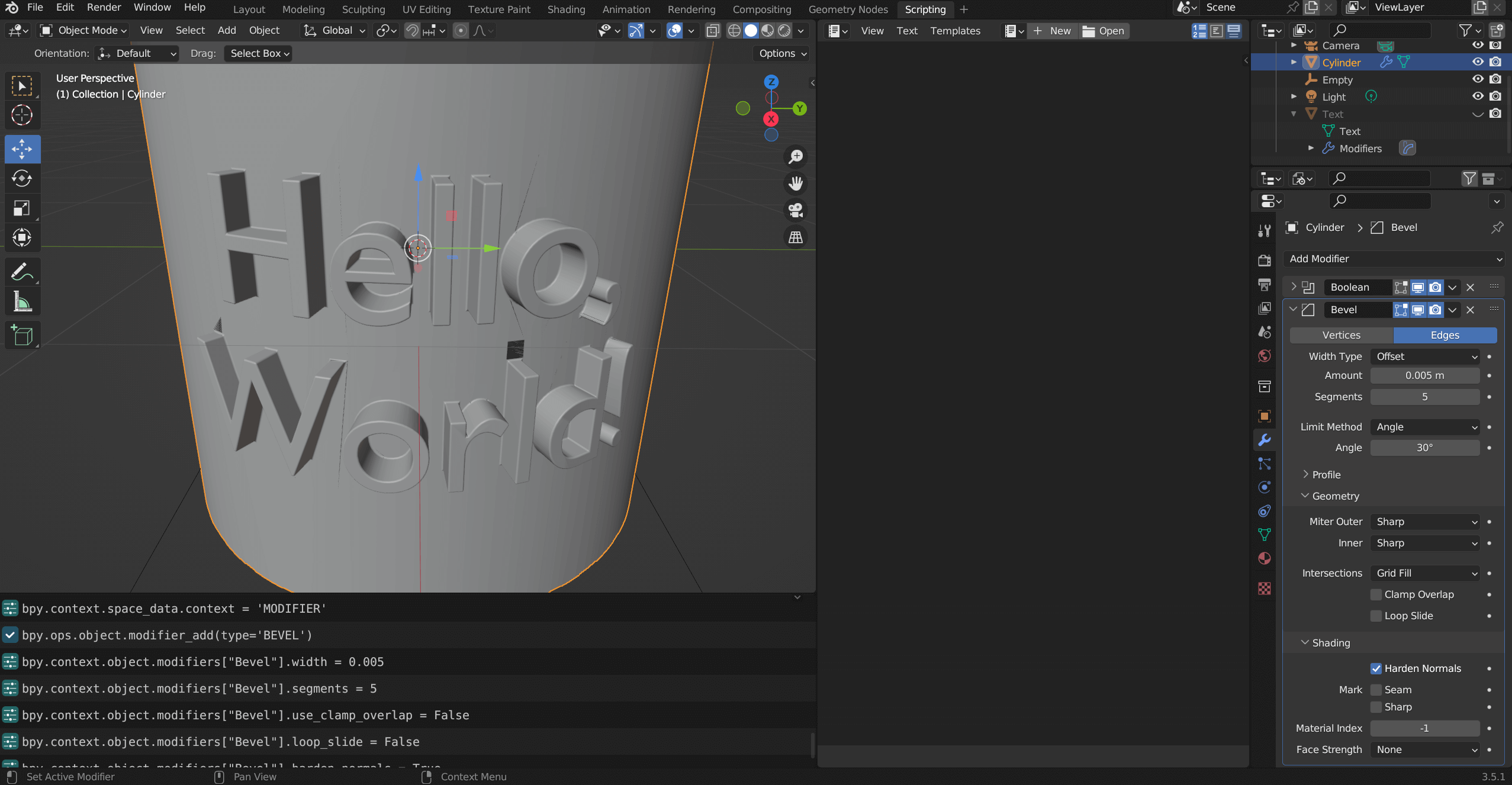

  1. 添加 Bevel 使得斜角效果：

png

1
2
3
4
5
cylinder_modifier_bevel = cylinder_obj.modifiers.new(name="Bevel", type="BEVEL")
cylinder_modifier_bevel.width = 0.005
cylinder_modifier_bevel.segments = 5
cylinder_modifier_bevel.use_clamp_overlap = False
cylinder_modifier_bevel.harden_normals = True
1
2
text_obj.hide_viewport = True
text_obj.hide_render = True

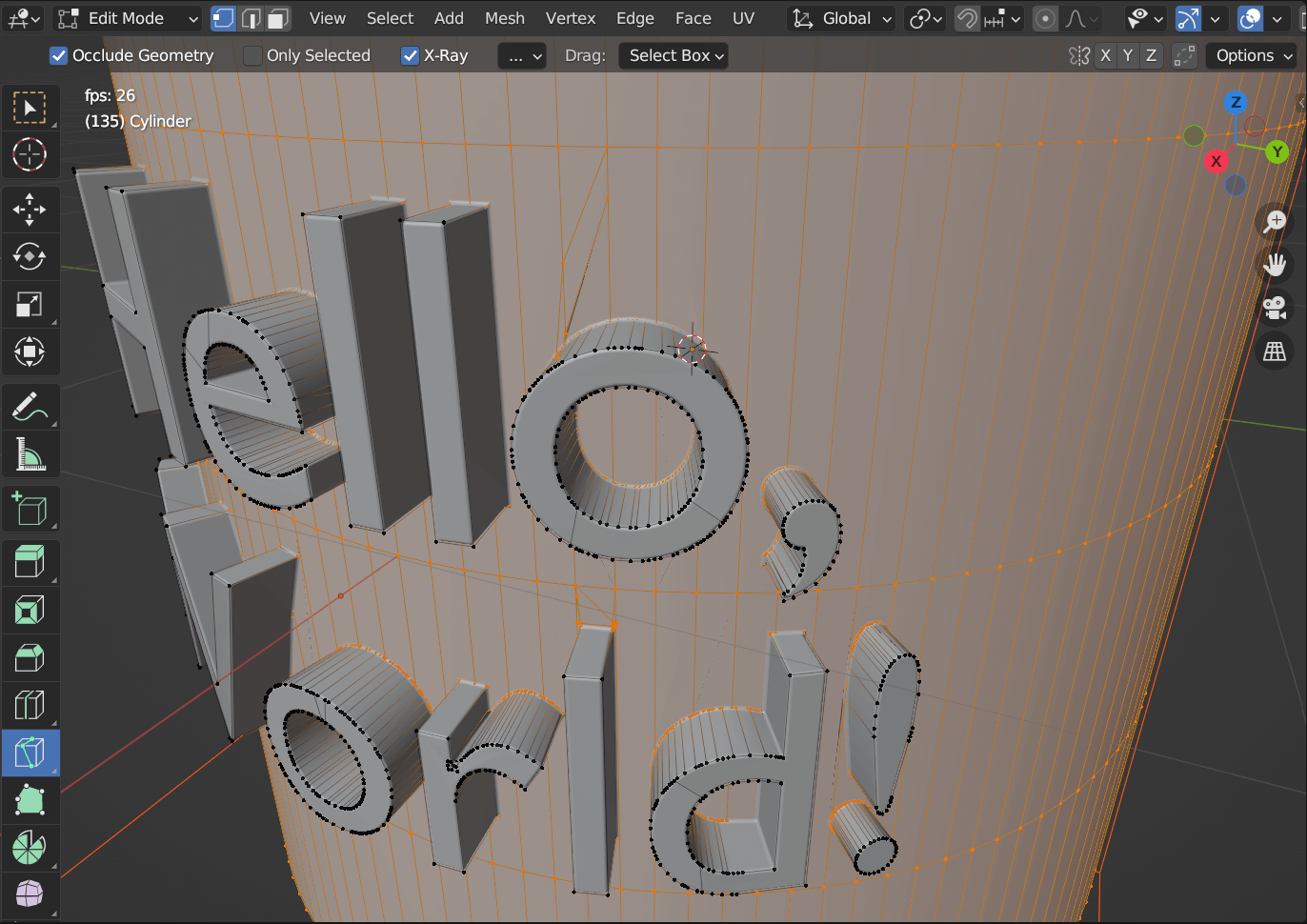

  1. 如果有破，只能自己拿工具填边了：

png

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
import bpy
import numpy as np

bpy.ops.mesh.primitive_cylinder_add()
cylinder_obj = bpy.context.object

cylinder_modifier_edgesplit = cylinder_obj.modifiers.new(name="EdgeSplit", type="EDGE_SPLIT")
bpy.ops.object.modifier_apply(modifier="EdgeSplit")

cylinder_modifier_subsurf = cylinder_obj.modifiers.new(name="Subdivision", type="SUBSURF")
cylinder_modifier_subsurf.levels = 2
bpy.ops.object.modifier_apply(modifier="Subdivision")

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.location[0] = 1.1
text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

text_obj.data.body = "Hello,\nWorld!"

text_obj.data.size = 0.5

text_modifier_solidify = text_obj.modifiers.new(name="Solidify", type="SOLIDIFY")
text_modifier_solidify.thickness = 0.15

bpy.ops.object.convert(target="MESH")

text_modifier_remesh = text_obj.modifiers.new(name="Remesh", type="REMESH")
text_modifier_remesh.mode = "SHARP"
text_modifier_remesh.octree_depth = 8
text_modifier_remesh.use_remove_disconnected = False

text_modifier_decimate = text_obj.modifiers.new(name="Decimate", type="DECIMATE")
text_modifier_decimate.decimate_type = "DISSOLVE"
bpy.ops.object.modifier_apply(modifier="Decimate")

bpy.ops.object.shade_smooth()

text_obj.data.use_auto_smooth = True

cylinder_obj.data.use_auto_smooth = True

bpy.ops.object.empty_add(type="CUBE")
empty_obj = bpy.context.object

empty_obj.location[0:3] = text_obj.location[0:3]
empty_obj.rotation_euler[0] = np.pi / 2

text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.origin = empty_obj
text_modifier_simple_deform.angle = - np.pi / 2
text_modifier_simple_deform.deform_axis = "Y"

cylinder_modifier_boolean = cylinder_obj.modifiers.new(name="Boolean", type="BOOLEAN")
cylinder_modifier_boolean.operation = "UNION"
cylinder_modifier_boolean.object = text_obj

cylinder_modifier_bevel = cylinder_obj.modifiers.new(name="Bevel", type="BEVEL")
cylinder_modifier_bevel.width = 0.005
cylinder_modifier_bevel.segments = 5
cylinder_modifier_bevel.use_clamp_overlap = False
cylinder_modifier_bevel.harden_normals = True

text_obj.hide_viewport = True
text_obj.hide_render = True

Neon Light or Neon Sign In Blender | Easy & Realistic Method For Blender Eevee (All Versions)

  1. 新建一个 Text 对象，调整其参数：

png

png

1
2
3
4
5
6
7
8
9
10
11
12
import bpy
import numpy as np
import os

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"
text_obj.data.space_line = 1.2

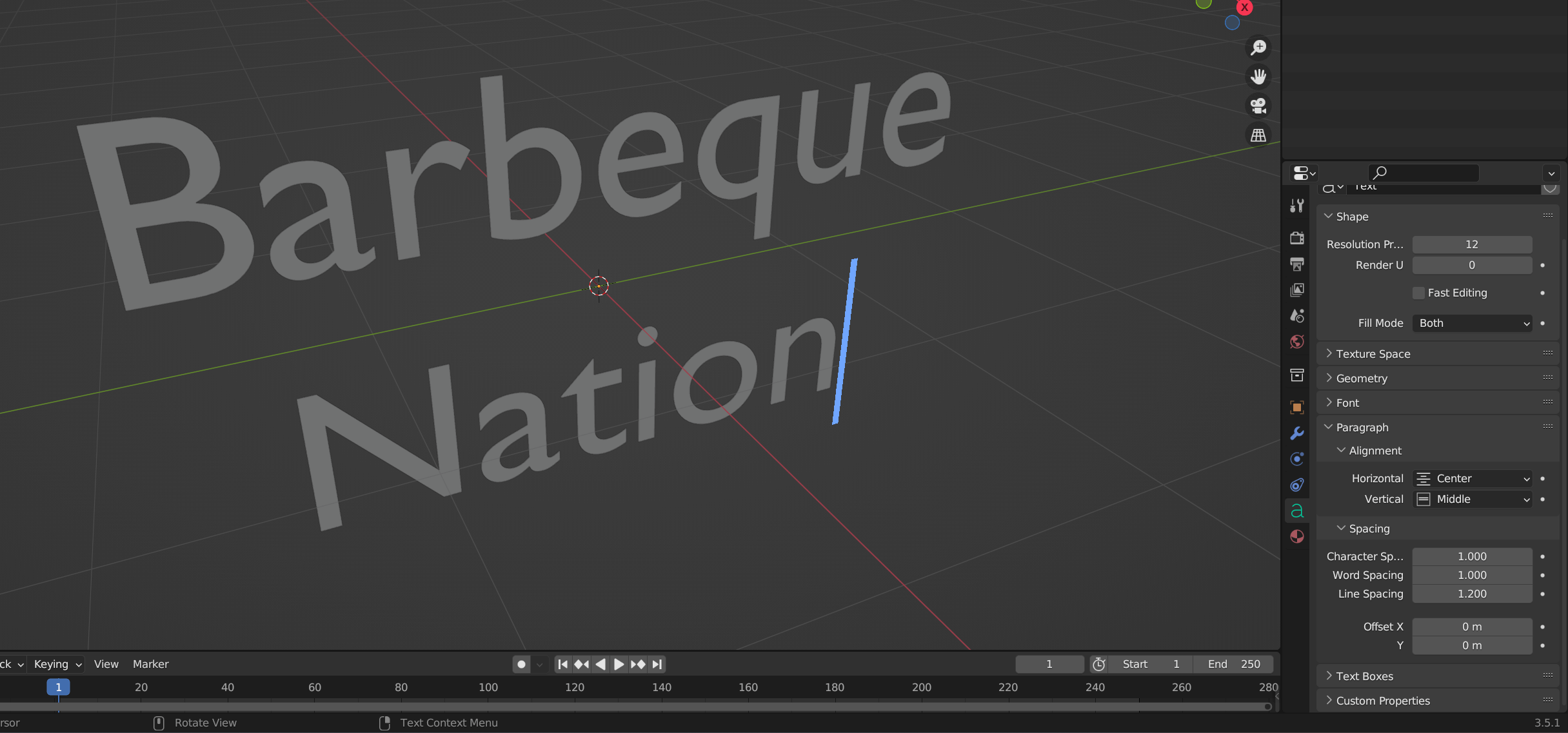

  1. 修改文字：

png

1
text_obj.data.body = "BARBEQUE\nNATION"

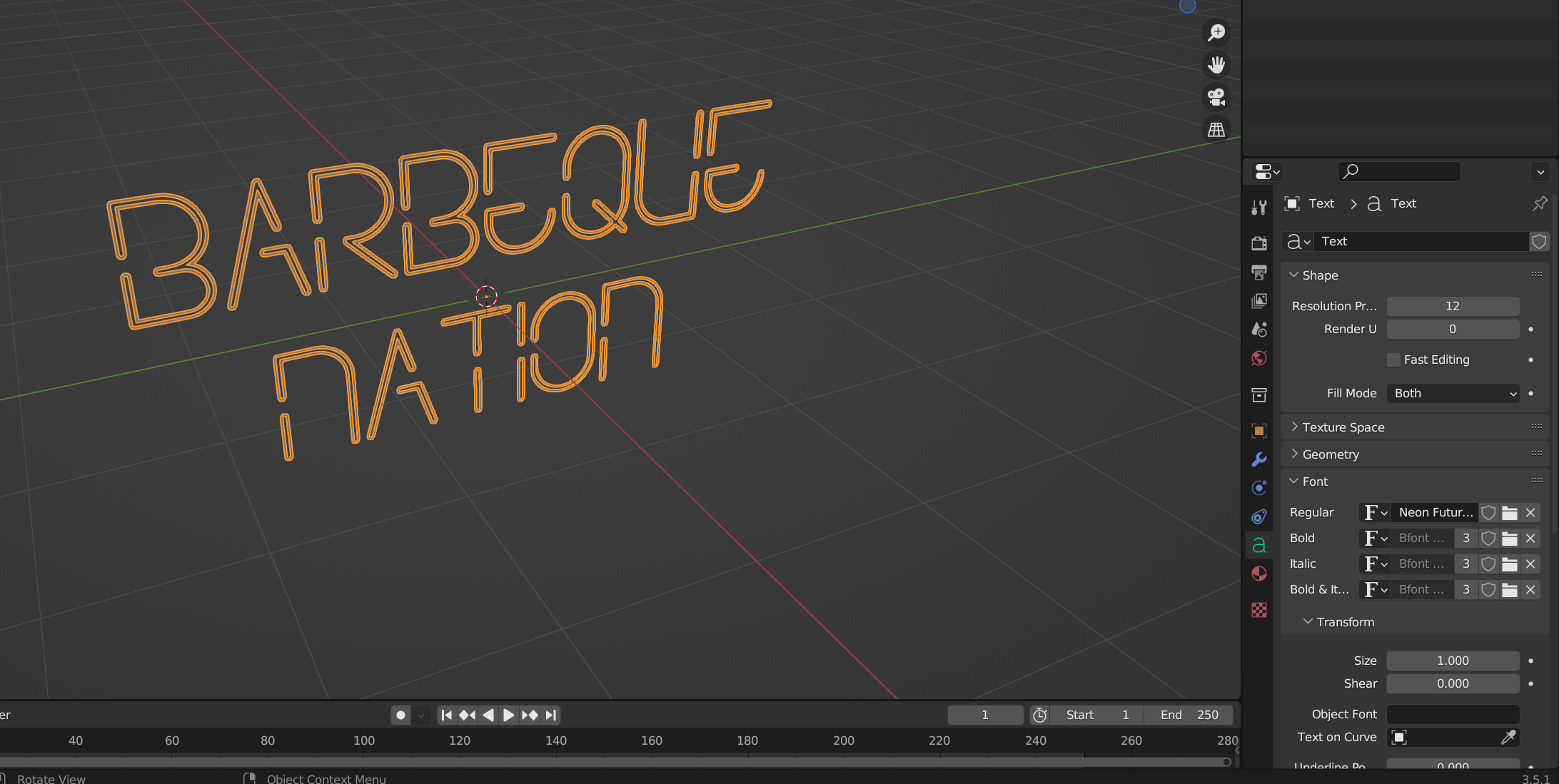

  1. 从 Neon Future Font | dafont.com 找一个适合霓虹灯的字体，应用之：

png

1
2
3
font_path = os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                      , './fonts/Neon_Future.ttf'))
text_obj.data.font = bpy.data.fonts.load(font_path)
  1. 设置 extrude：

png

1
text_obj.data.extrude = 0.02

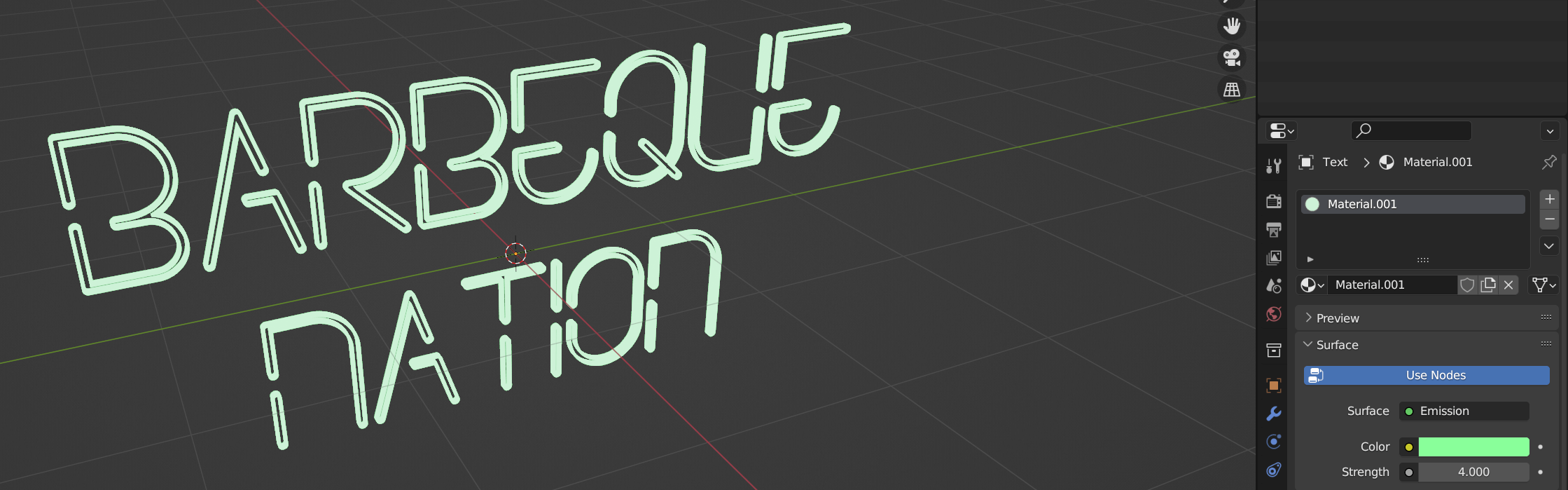

  1. 添加一个 emission 的材质，设置参数：

png

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
text_material = bpy.data.materials.new(name="Emission")
text_material.use_nodes = True
nodes = text_material.node_tree.nodes

for node in nodes:
    nodes.remove(node)

emission_node = nodes.new(type='ShaderNodeEmission')
emission_node.inputs[0].default_value = (0.25, 1, 0.325, 1)
emission_node.inputs[1].default_value = 4

output_node = nodes.new(type='ShaderNodeOutputMaterial')
links = text_material.node_tree.links
links.new(emission_node.outputs[0], output_node.inputs[0])

text_obj.data.materials.append(text_material)

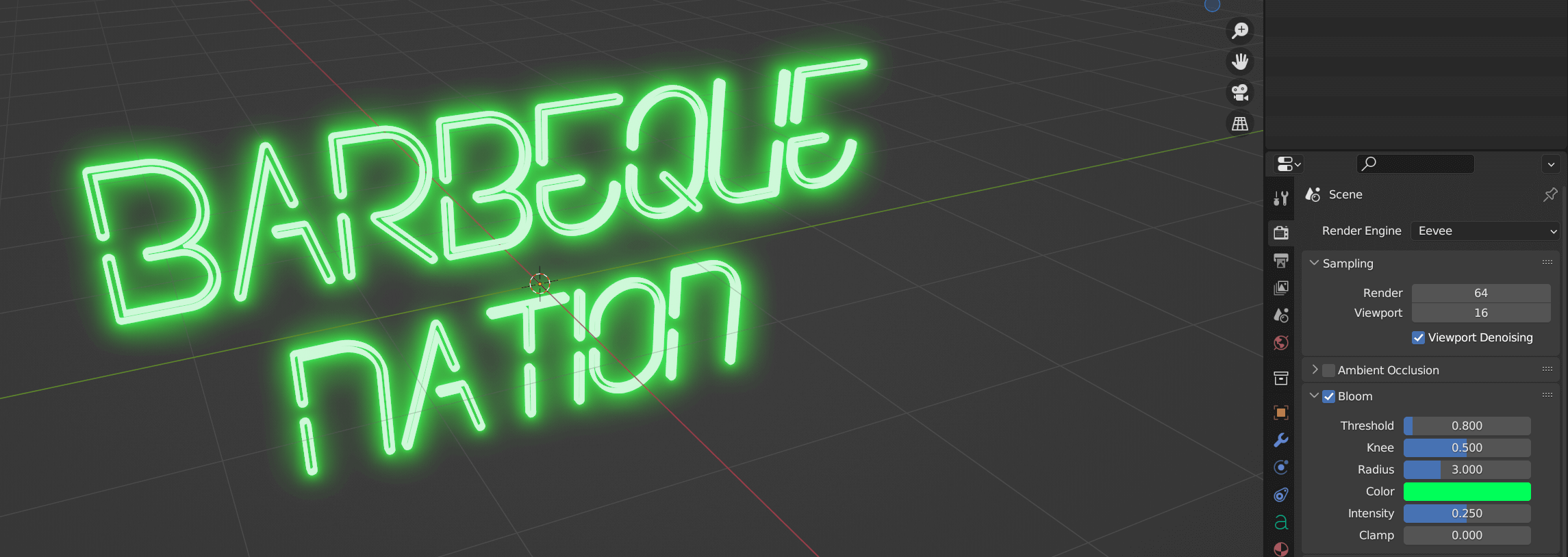

  1. 设置 scene 里的 Bloom：

png

1
2
3
4
bpy.context.scene.eevee.use_bloom = True
bpy.context.scene.eevee.bloom_radius = 3
bpy.context.scene.eevee.bloom_color = (0.25, 1, 0.325)
bpy.context.scene.eevee.bloom_intensity = 0.25

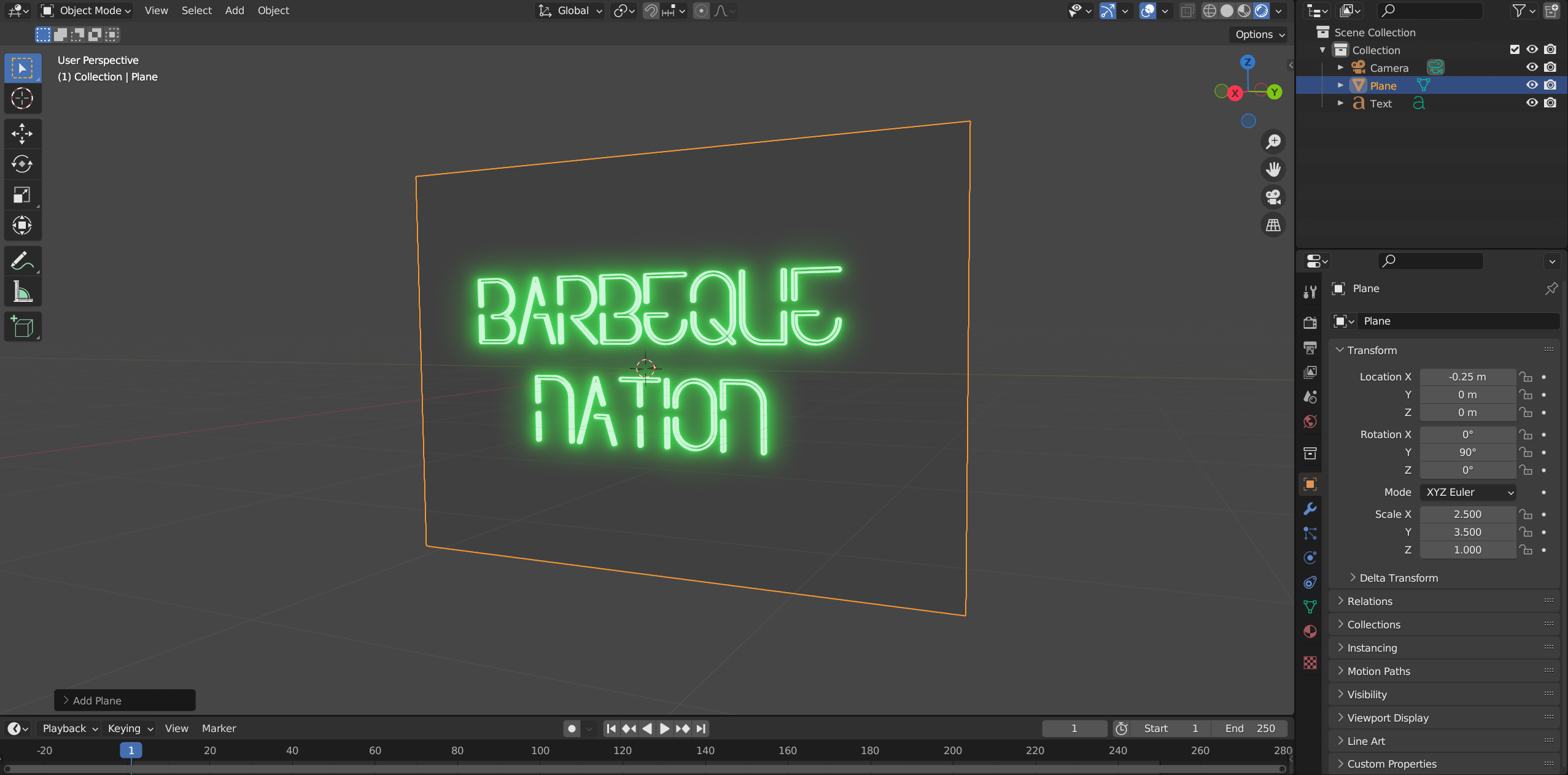

  1. 新建一个 plane，用于接受霓虹灯的光线：

png

1
2
3
4
5
6
bpy.ops.mesh.primitive_plane_add()
plane_obj = bpy.context.object
plane_obj.rotation_euler[1] = np.pi / 2
plane_obj.scale[0] = 2.5
plane_obj.scale[1] = 3.5
plane_obj.location[0] = -0.25

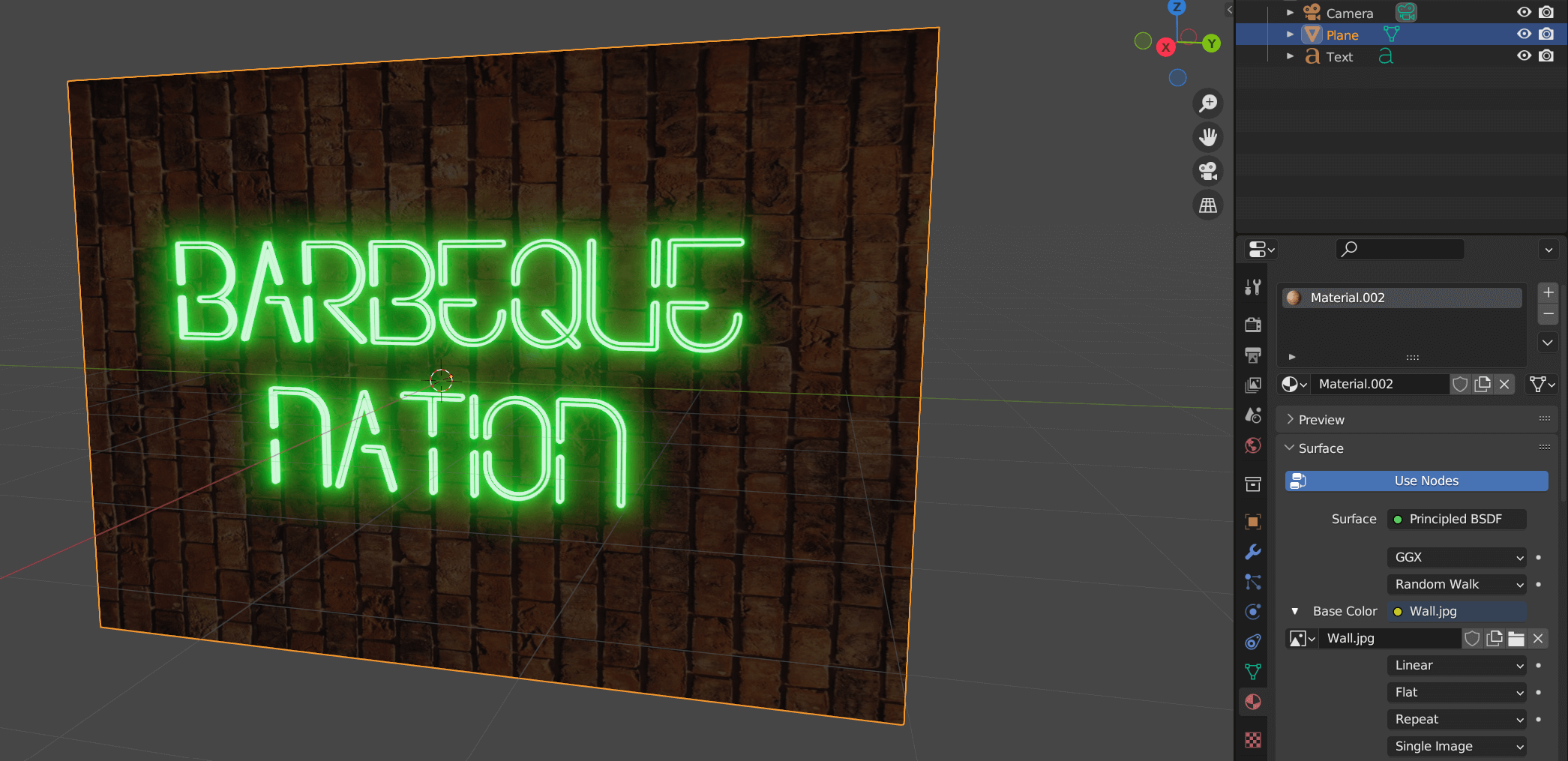

  1. 从网上找一张贴图，给这个 plane 一个贴图的纹理：

png

1
2
3
4
5
6
7
plane_material = bpy.data.materials.new(name="Wall")
plane_material.use_nodes = True
nodes = plane_material.node_tree.nodes

image_texture_node = nodes.new(type='ShaderNodeTexImage')
image_texture_node.image = bpy.data.images.load(os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                      , './texture/Wall.jpg')))

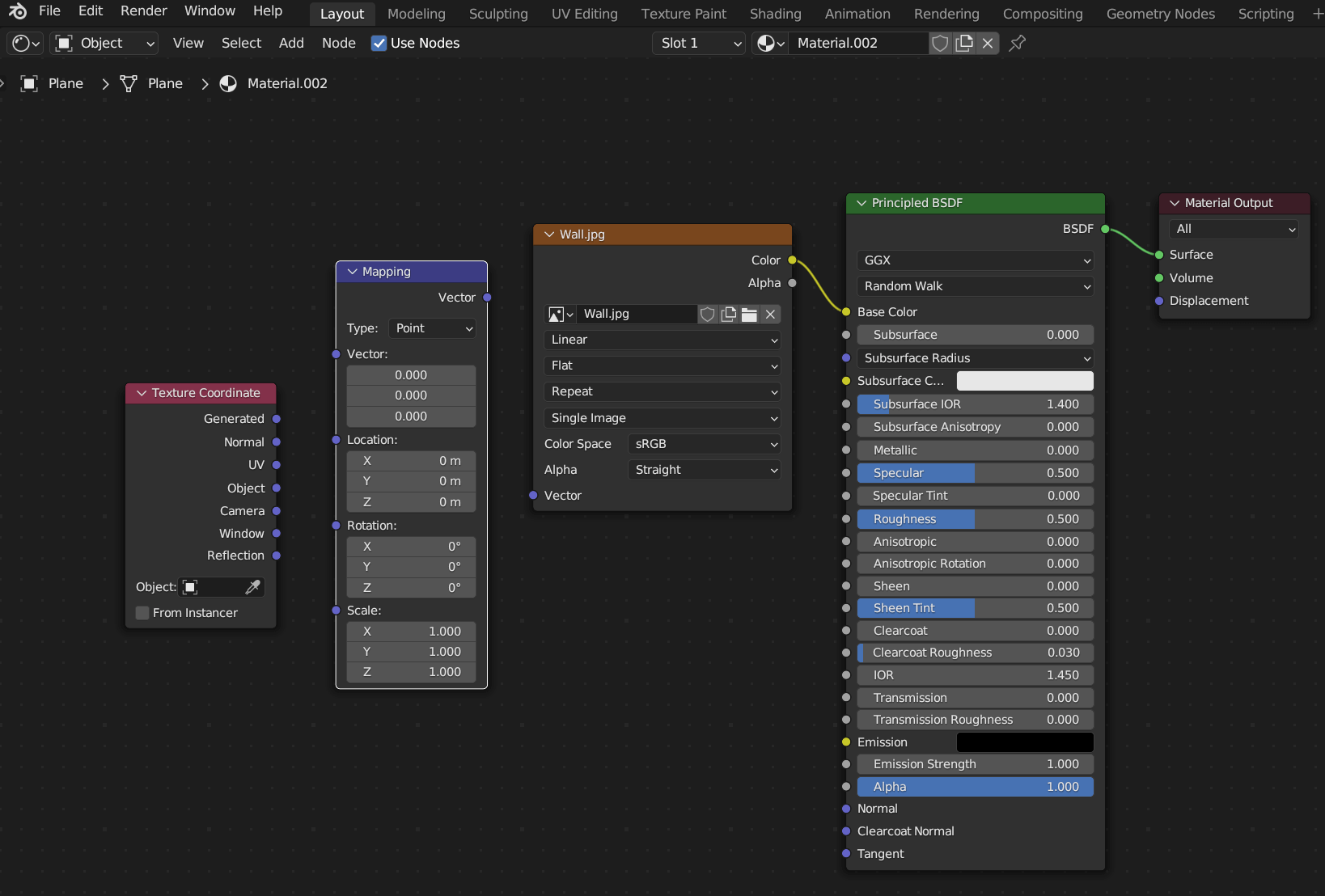

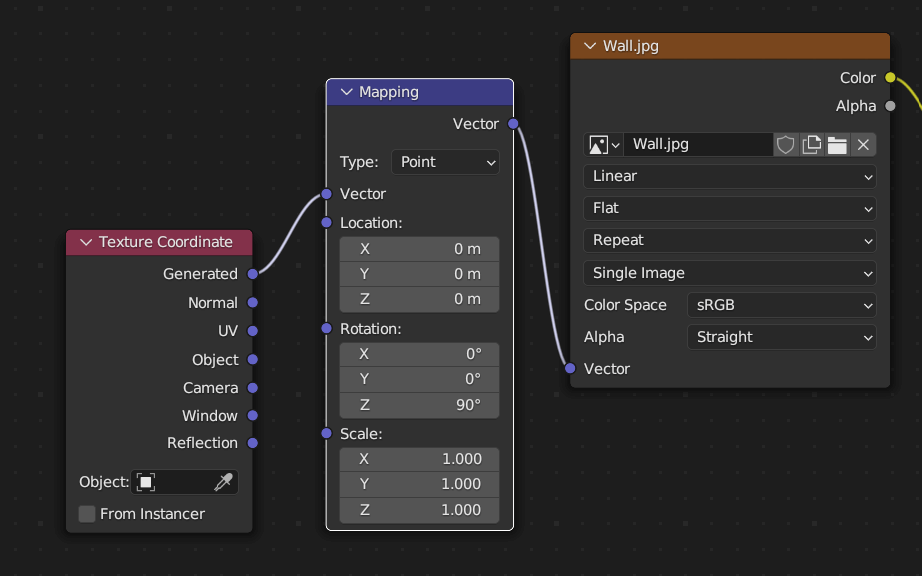

  1. 调整其 shader nodes，翻转贴图：

png

png

1
2
3
4
5
6
7
8
9
10
11
mapping_node = nodes.new(type='ShaderNodeMapping')
mapping_node.inputs[2].default_value[2] = np.pi / 2

texcoord_node = nodes.new(type="ShaderNodeTexCoord")

links = plane_material.node_tree.links
links.new(texcoord_node.outputs[0], mapping_node.inputs[0])
links.new(mapping_node.outputs[0], image_texture_node.inputs[0])
links.new(image_texture_node.outputs[0], nodes["Principled BSDF"].inputs[0])

plane_obj.data.materials.append(plane_material)

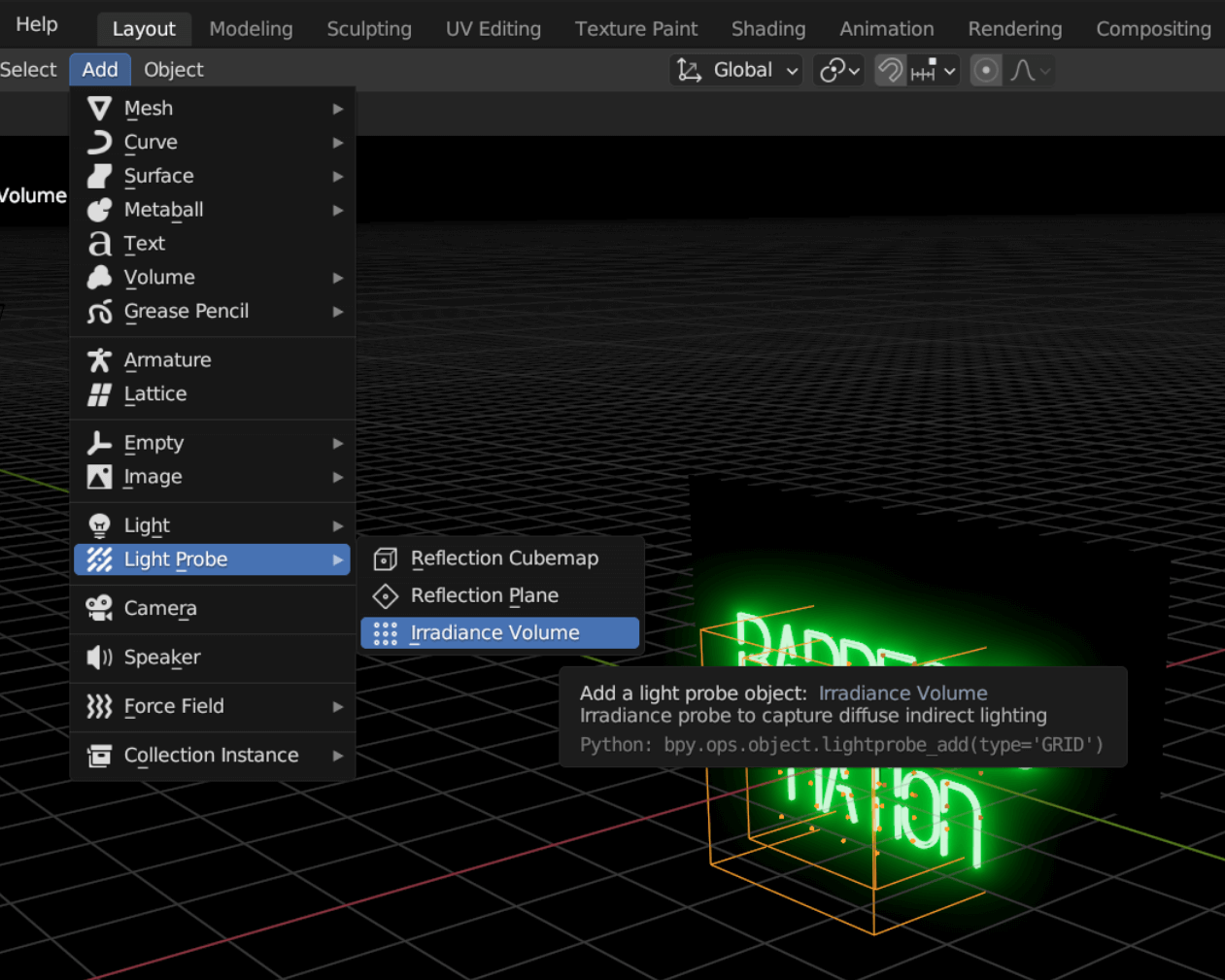

  1. 添加环境光探针，大小包围平面和文字：

png

1
bpy.ops.object.lightprobe_add(type="GRID")

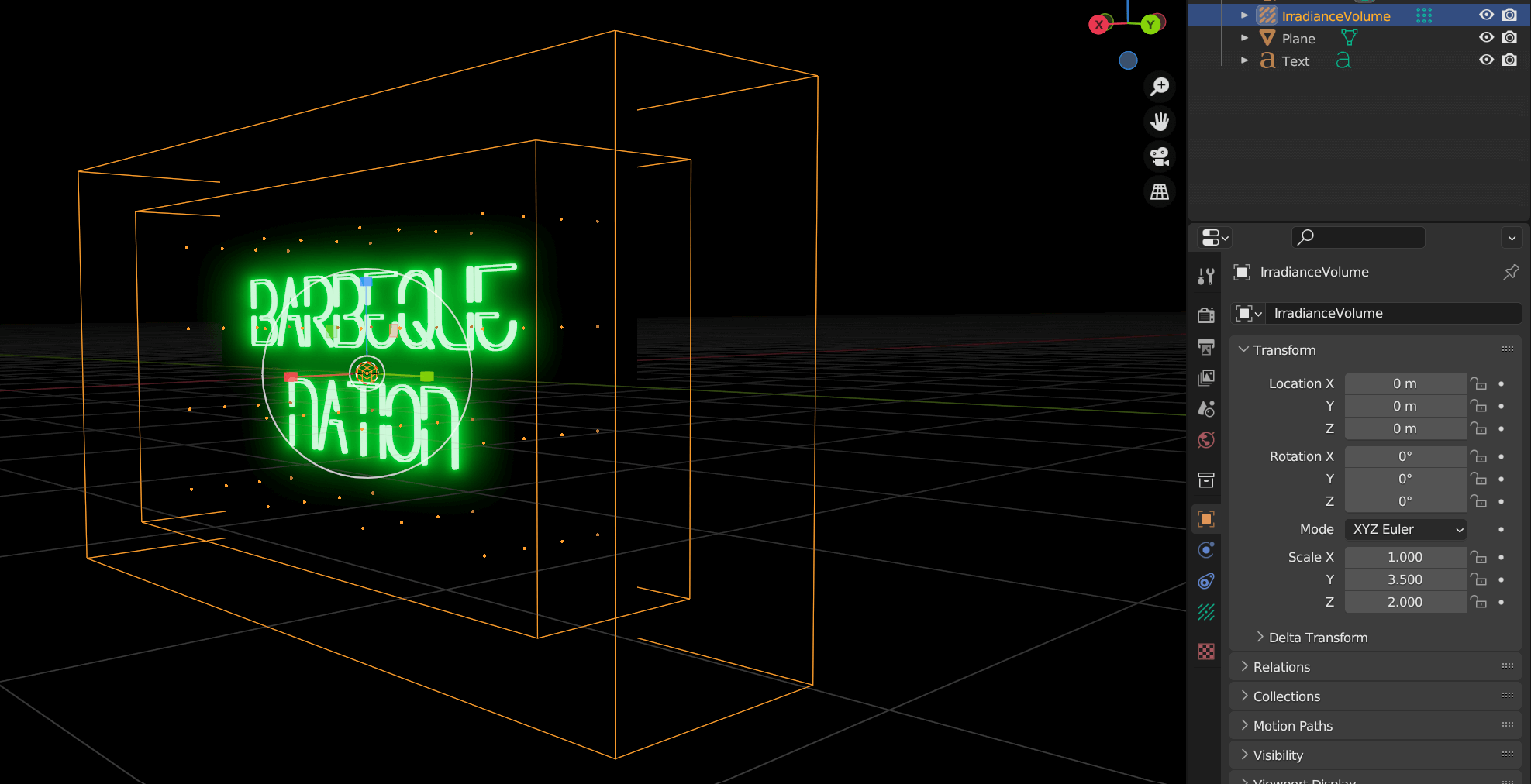

  1. 将 Light Probe 的大小包围屏幕和文字：

png

1
2
lightprobe_obj = bpy.context.object
lightprobe_obj.scale[0:3] = [1, 3.5, 2]

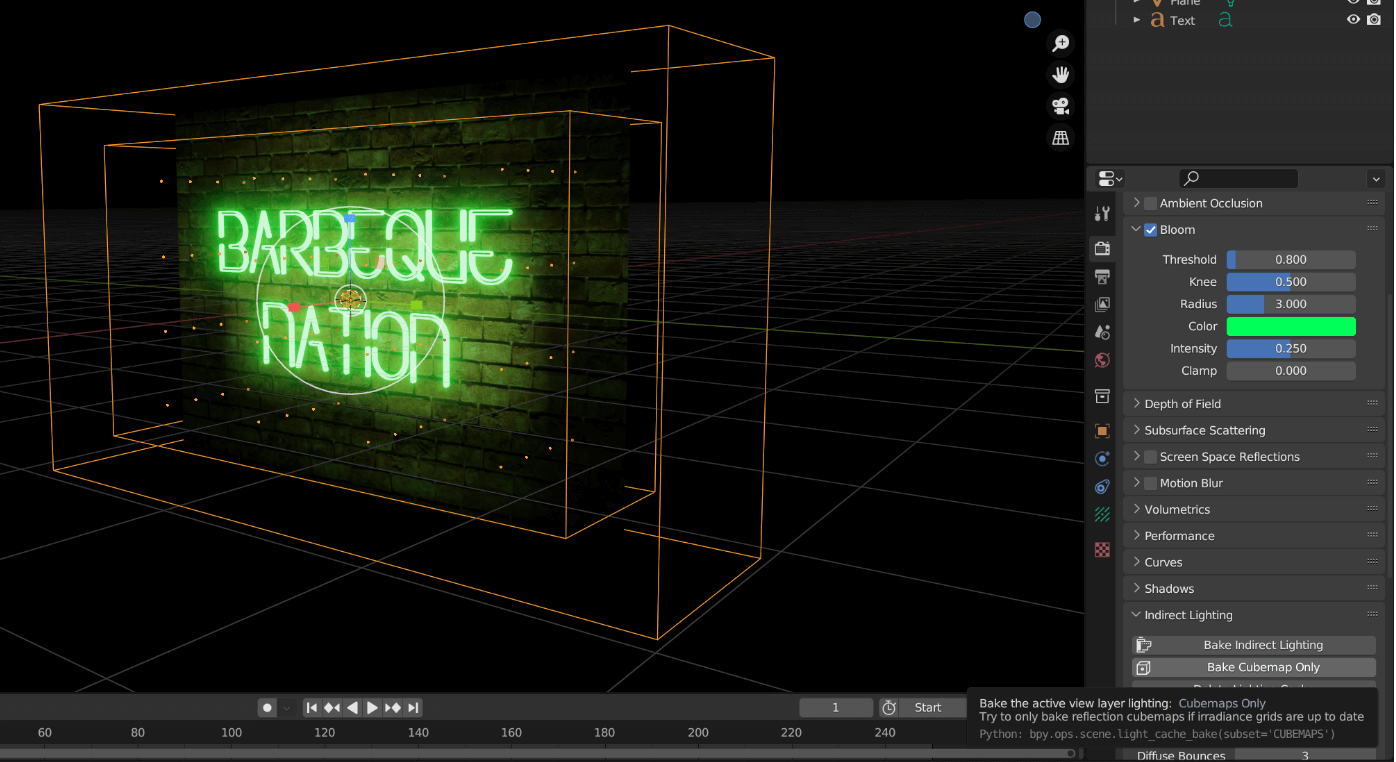

  1. Bake Cubemap Only：

png

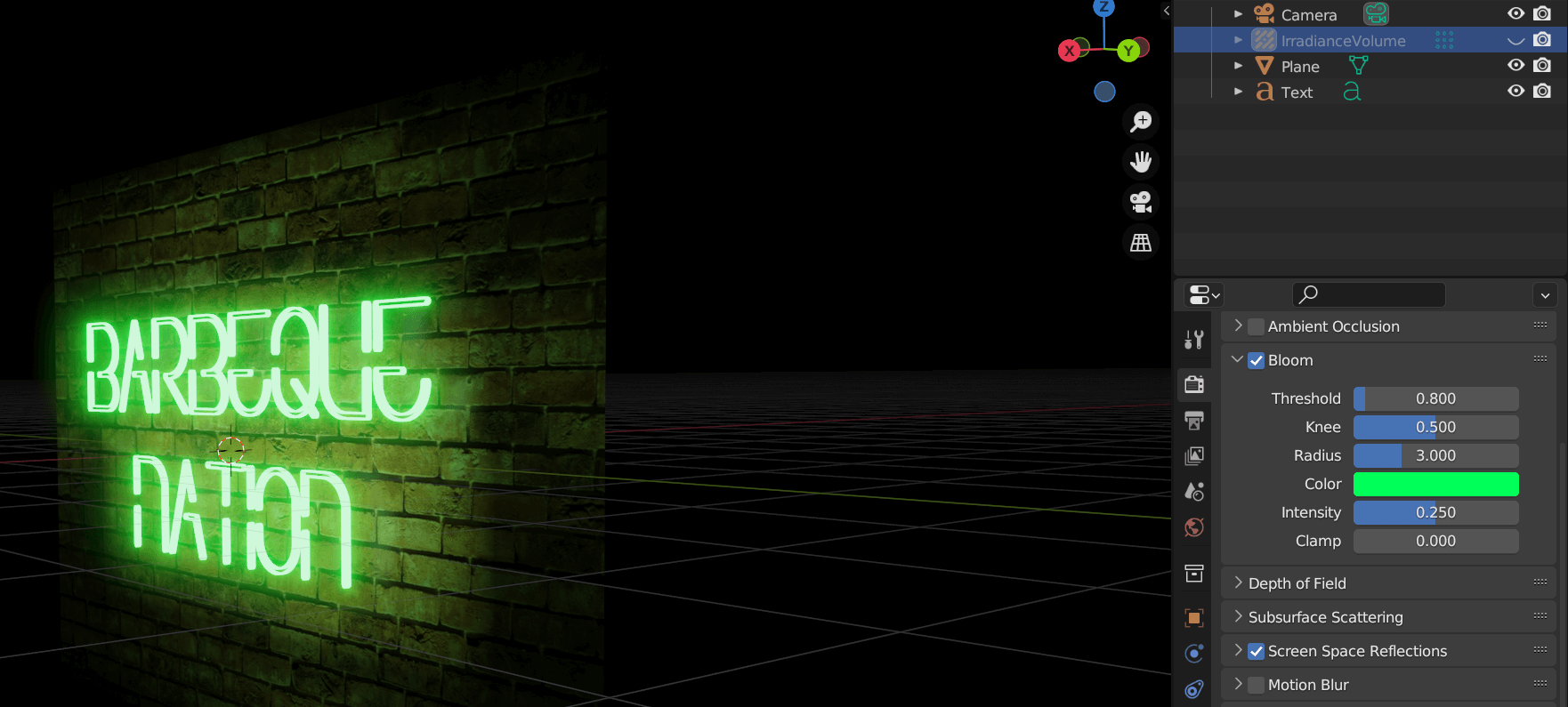

  1. 调低背景亮度，Screen Space Reflections：

png

1
2
bpy.data.worlds["World"].node_tree.nodes["Background"].inputs[1].default_value = 0
bpy.context.scene.eevee.use_ssr = True

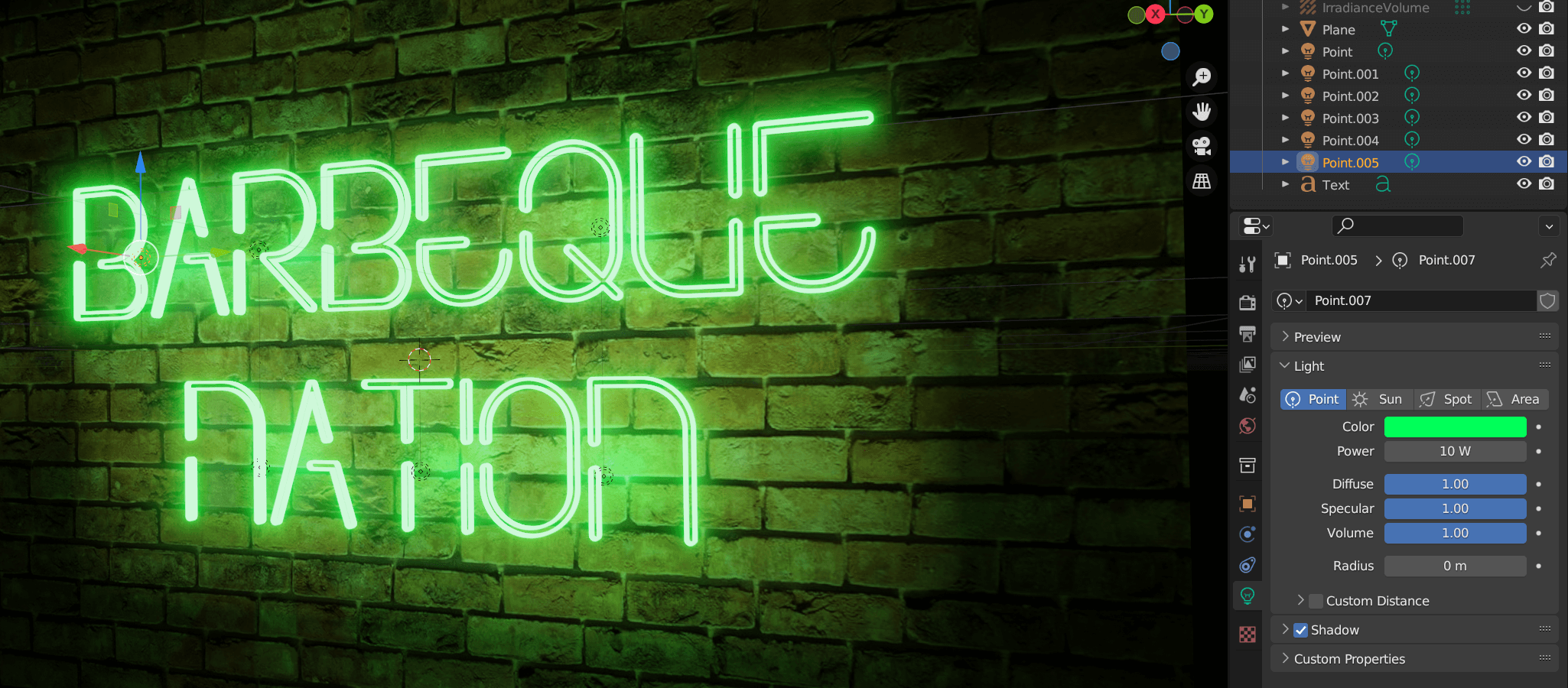

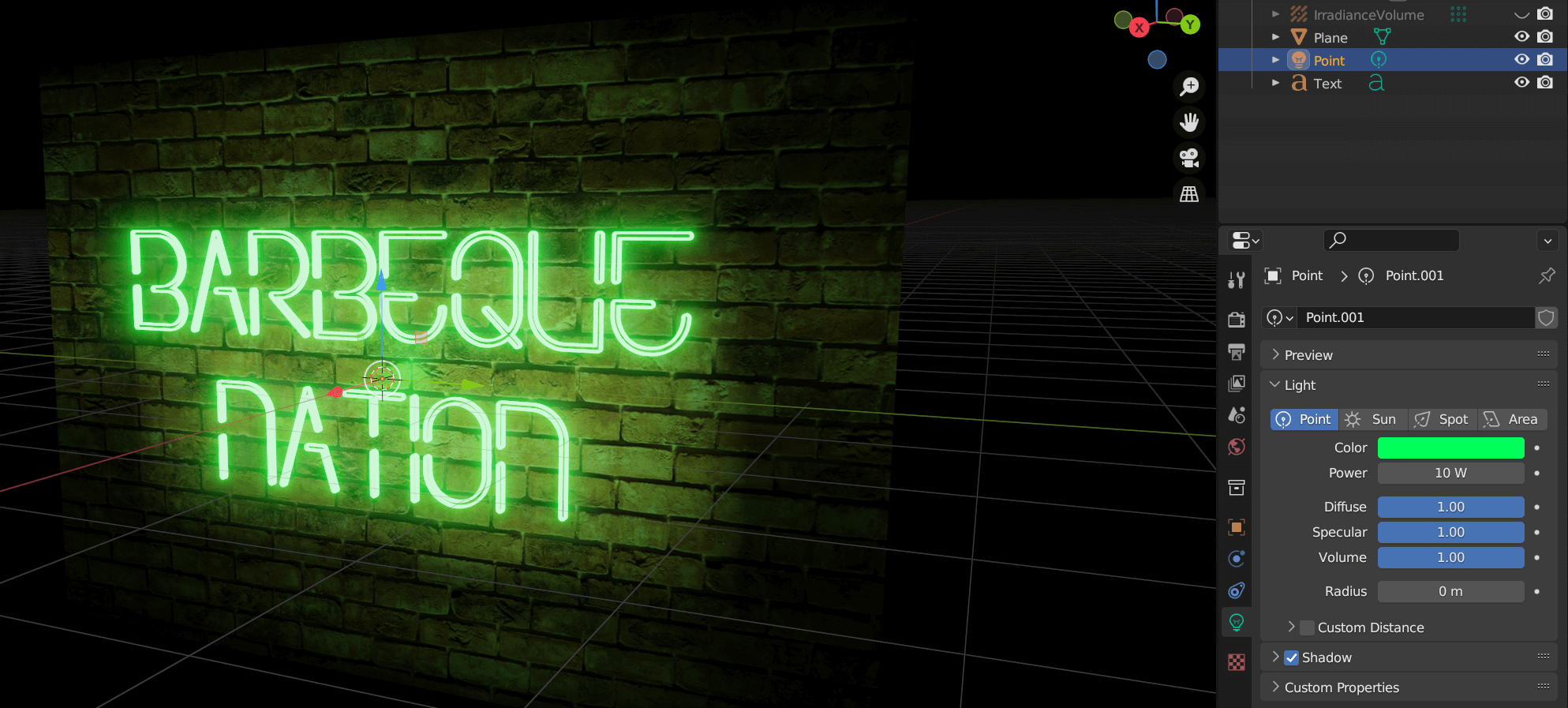

  1. 添加点光源，补充亮度：

png

png

1
2
3
4
5
6
7
8
9
10
11
light_obj_list = []
for i in range(8):
    bpy.ops.object.light_add(type="POINT")
    light_obj_list.append(bpy.context.object)
    light_obj_list[-1].data.color = (0.25, 1, 0.325)
    if i < 5:
        light_obj_list[-1].location[1] = -2 + i
        light_obj_list[-1].location[2] = 0.5
    else:
        light_obj_list[-1].location[1] = -6 + i
        light_obj_list[-1].location[2] = -0.5

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
import bpy
import numpy as np
import os

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.rotation_euler[0] = np.pi / 2
text_obj.rotation_euler[2] = np.pi / 2
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"
text_obj.data.space_line = 1.2

text_obj.data.extrude = 0.02

text_obj.data.body = "BARBEQUE\nNATION"
font_path = os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                      , './fonts/Neon_Future.ttf'))
text_obj.data.font = bpy.data.fonts.load(font_path)

text_material = bpy.data.materials.new(name="Emission")
text_material.use_nodes = True
nodes = text_material.node_tree.nodes

for node in nodes:
    nodes.remove(node)

emission_node = nodes.new(type='ShaderNodeEmission')
emission_node.inputs[0].default_value = (0.25, 1, 0.325, 1)
emission_node.inputs[1].default_value = 4

output_node = nodes.new(type='ShaderNodeOutputMaterial')
links = text_material.node_tree.links
links.new(emission_node.outputs[0], output_node.inputs[0])

text_obj.data.materials.append(text_material)

bpy.context.scene.eevee.use_bloom = True
bpy.context.scene.eevee.bloom_radius = 3
bpy.context.scene.eevee.bloom_color = (0.25, 1, 0.325)
bpy.context.scene.eevee.bloom_intensity = 0.25

bpy.ops.mesh.primitive_plane_add()
plane_obj = bpy.context.object
plane_obj.rotation_euler[1] = np.pi / 2
plane_obj.scale[0] = 2.5
plane_obj.scale[1] = 3.5
plane_obj.location[0] = -0.25

plane_material = bpy.data.materials.new(name="Wall")
plane_material.use_nodes = True
nodes = plane_material.node_tree.nodes

image_texture_node = nodes.new(type='ShaderNodeTexImage')
image_texture_node.image = bpy.data.images.load(os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                      , './texture/Wall.jpg')))

mapping_node = nodes.new(type='ShaderNodeMapping')
mapping_node.inputs[2].default_value[2] = np.pi / 2

texcoord_node = nodes.new(type="ShaderNodeTexCoord")

links = plane_material.node_tree.links
links.new(texcoord_node.outputs[0], mapping_node.inputs[0])
links.new(mapping_node.outputs[0], image_texture_node.inputs[0])
links.new(image_texture_node.outputs[0], nodes["Principled BSDF"].inputs[0])

plane_obj.data.materials.append(plane_material)

bpy.ops.object.lightprobe_add(type="GRID")
lightprobe_obj = bpy.context.object
lightprobe_obj.scale[0:3] = [1, 3.5, 2]

bpy.data.worlds["World"].node_tree.nodes["Background"].inputs[1].default_value = 0
bpy.context.scene.eevee.use_ssr = True

light_obj_list = []
for i in range(8):
    bpy.ops.object.light_add(type="POINT")
    light_obj_list.append(bpy.context.object)
    light_obj_list[-1].data.color = (0.25, 1, 0.325)
    if i < 5:
        light_obj_list[-1].location[1] = -2 + i
        light_obj_list[-1].location[2] = 0.5
    else:
        light_obj_list[-1].location[1] = -6 + i
        light_obj_list[-1].location[2] = -0.5
Icon
Icon
Icon
Icon
上一篇：Blender-Text Effects In Blender (7-12)
下一篇：Diary-平淡的第 15 周和疯狂的第 16 周
