Add Flickering Effect | Flickering Neon Sign | Simple & Easy Method | Blender Eevee (All Versions)

  1. 打开教程 6 的渲染界面，选中 Camera 对象：

png

  1. 设置关键帧：

png

  1. 100 帧后设置关键帧，可以通过移动缩放旋转来改变物体位置，改变的会变成黄色。右键会出现插入关键帧，点击，该物体位置信息就会插入到该关键帧中。

png

  1. 设置输出文件夹：

png

  1. 渲染图像：

png

  1. 此时就输出了 100 帧图像：

png

  1. Blender 还具有视频编辑功能！

png

[3.x] Create Better & Clean 3D Text Using Geometry Nodes In Blender | Easy Step-by-Step Tutorial

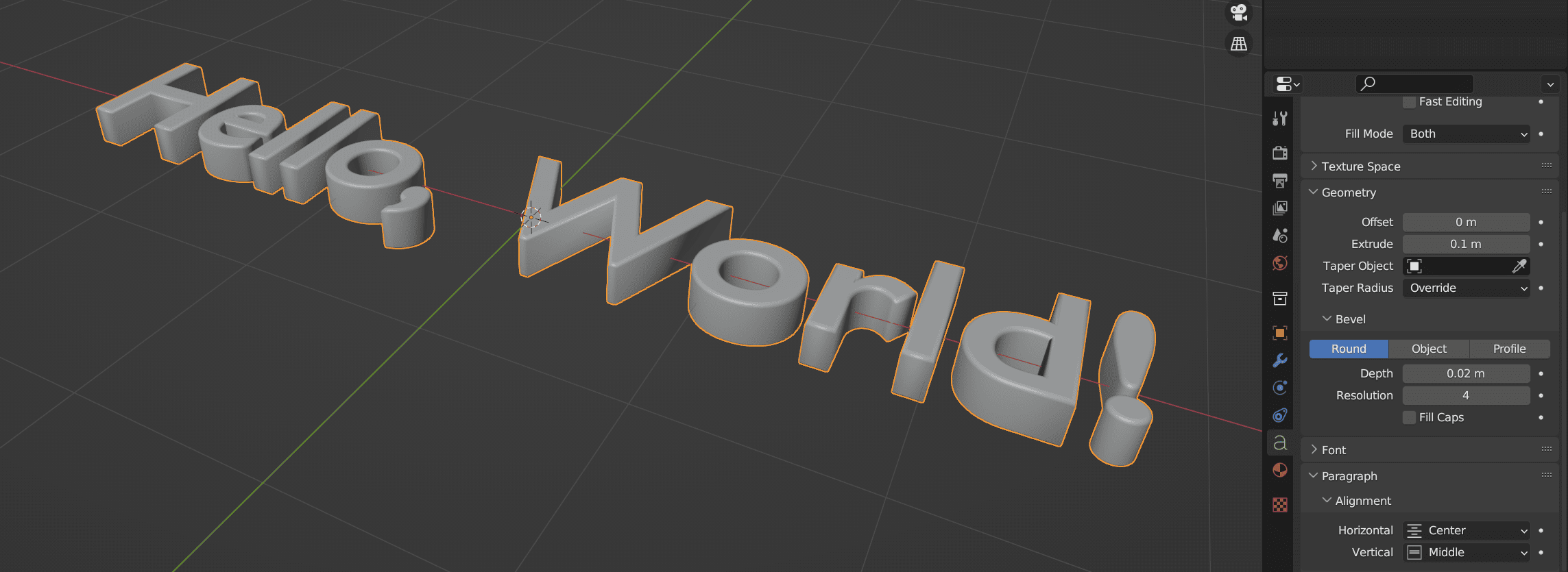

  1. 给新工程自带的 Cude 对象不断调整其 Geometry，直到这样：

png

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
import bpy
import os

# 获取当前选中的网格对象
bpy.ops.mesh.primitive_cube_add()
text_obj = bpy.context.object

# 创建 Geometry Nodes 网络
text_modifier = text_obj.modifiers.new(type='NODES', name="Geometry Nodes")
bpy.ops.node.new_geometry_node_group_assign()
node_tree = text_modifier.node_group

# 删除 Group Input 节点
node_tree.nodes.remove(node_tree.nodes.get("Group Input"))

# 创建 String to Curves 节点
string_to_curves_node = node_tree.nodes.new(type='GeometryNodeStringToCurves')
string_to_curves_node.location = (-400, 50)

string_to_curves_node.align_x = "CENTER"
string_to_curves_node.align_y = "MIDDLE"
string_to_curves_node.inputs[0].default_value = "Hello,\nWorld!"
string_to_curves_node.inputs[1].default_value = 2.2

string_to_curves_node.font = bpy.data.fonts.load(os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                      , './fonts/Neon_Future.ttf')))

# 创建 Resample Curve 节点
resample_curve_node = node_tree.nodes.new(type='GeometryNodeResampleCurve')
resample_curve_node.location = (-150, 50)

resample_curve_node.mode = "EVALUATED"

# 创建 Fill Curve 节点
fill_curve_node = node_tree.nodes.new(type='GeometryNodeFillCurve')
fill_curve_node.location = (50, 50)

# 创建 Extrude Mesh 节点
extrude_mesh_node = node_tree.nodes.new(type='GeometryNodeExtrudeMesh')
extrude_mesh_node.location = (250, 150)

extrude_mesh_node.inputs[3].default_value = 0.4
extrude_mesh_node.inputs[4].default_value = False

# 创建 Flip Faces 节点
flip_faces_node = node_tree.nodes.new(type='GeometryNodeFlipFaces')
flip_faces_node.location = (250, -100)

# 创建 Join Geometry 节点
join_geometry_node = node_tree.nodes.new(type='GeometryNodeJoinGeometry')
join_geometry_node.location = (450, 50)

# 创建 Realize Instances 节点
realize_instances_node = node_tree.nodes.new(type='GeometryNodeRealizeInstances')
realize_instances_node.location = (650, 50)

# 创建 Merge by Distance 节点
merge_by_distance_node = node_tree.nodes.new(type='GeometryNodeMergeByDistance')
merge_by_distance_node.location = (850, 50)

# 获取 output node 节点
output_node = node_tree.nodes.get("Group Output")
output_node.location = (1050, 50)

# 连接节点
node_tree.links.new(string_to_curves_node.outputs[0], resample_curve_node.inputs[0])
node_tree.links.new(resample_curve_node.outputs[0], fill_curve_node.inputs[0])
node_tree.links.new(fill_curve_node.outputs[0], extrude_mesh_node.inputs[0])
node_tree.links.new(fill_curve_node.outputs[0], flip_faces_node.inputs[0])
node_tree.links.new(extrude_mesh_node.outputs[0], join_geometry_node.inputs[0])
node_tree.links.new(flip_faces_node.outputs[0], join_geometry_node.inputs[0])
node_tree.links.new(join_geometry_node.outputs[0], realize_instances_node.inputs[0])
node_tree.links.new(realize_instances_node.outputs[0], merge_by_distance_node.inputs[0])
node_tree.links.new(merge_by_distance_node.outputs[0], output_node.inputs[0])
  1. 再添加 Bevel：

png

1
2
3
4
5
text_modifier_bevel = text_obj.modifiers.new(name="Bevel", type="BEVEL")
text_modifier_bevel.width = 0.05
text_modifier_bevel.segments = 5
text_modifier_bevel.use_clamp_overlap = False
text_modifier_bevel.harden_normals = True
  1. 再添加 Simple Deform：

png

1
2
3
4
text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.angle = - np.pi / 4
text_modifier_simple_deform.deform_axis = "Z"

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
import bpy
import os
import numpy as np

# 获取当前选中的网格对象
bpy.ops.mesh.primitive_cube_add()
text_obj = bpy.context.object

# 创建 Geometry Nodes 网络
text_modifier_geometrynodes = text_obj.modifiers.new(type='NODES', name="Geometry Nodes")
bpy.ops.node.new_geometry_node_group_assign()
node_tree = text_modifier_geometrynodes.node_group

# delete Group Input
node_tree.nodes.remove(node_tree.nodes.get("Group Input"))

# 创建 String to Curves 节点
string_to_curves_node = node_tree.nodes.new(type='GeometryNodeStringToCurves')
string_to_curves_node.location = (-400, 50)

string_to_curves_node.align_x = "CENTER"
string_to_curves_node.align_y = "MIDDLE"
string_to_curves_node.inputs[0].default_value = "Hello,\nWorld!"
string_to_curves_node.inputs[1].default_value = 2.2

string_to_curves_node.font = bpy.data.fonts.load(os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                      , './fonts/Neon_Future.ttf')))

# 创建 Resample Curve 节点
resample_curve_node = node_tree.nodes.new(type='GeometryNodeResampleCurve')
resample_curve_node.location = (-150, 50)

resample_curve_node.mode = "EVALUATED"

# 创建 Fill Curve 节点
fill_curve_node = node_tree.nodes.new(type='GeometryNodeFillCurve')
fill_curve_node.location = (50, 50)

# 创建 Extrude Mesh 节点
extrude_mesh_node = node_tree.nodes.new(type='GeometryNodeExtrudeMesh')
extrude_mesh_node.location = (250, 150)

extrude_mesh_node.inputs[3].default_value = 0.4
extrude_mesh_node.inputs[4].default_value = False

# 创建 Flip Faces 节点
flip_faces_node = node_tree.nodes.new(type='GeometryNodeFlipFaces')
flip_faces_node.location = (250, -100)

# 创建 Join Geometry 节点
join_geometry_node = node_tree.nodes.new(type='GeometryNodeJoinGeometry')
join_geometry_node.location = (450, 50)

# 创建 Realize Instances 节点
realize_instances_node = node_tree.nodes.new(type='GeometryNodeRealizeInstances')
realize_instances_node.location = (650, 50)

# 创建 Merge by Distance 节点
merge_by_distance_node = node_tree.nodes.new(type='GeometryNodeMergeByDistance')
merge_by_distance_node.location = (850, 50)

# get output node
output_node = node_tree.nodes.get("Group Output")
output_node.location = (1050, 50)

# 连接节点
node_tree.links.new(string_to_curves_node.outputs[0], resample_curve_node.inputs[0])
node_tree.links.new(resample_curve_node.outputs[0], fill_curve_node.inputs[0])
node_tree.links.new(fill_curve_node.outputs[0], extrude_mesh_node.inputs[0])
node_tree.links.new(fill_curve_node.outputs[0], flip_faces_node.inputs[0])
node_tree.links.new(extrude_mesh_node.outputs[0], join_geometry_node.inputs[0])
node_tree.links.new(flip_faces_node.outputs[0], join_geometry_node.inputs[0])
node_tree.links.new(join_geometry_node.outputs[0], realize_instances_node.inputs[0])
node_tree.links.new(realize_instances_node.outputs[0], merge_by_distance_node.inputs[0])
node_tree.links.new(merge_by_distance_node.outputs[0], output_node.inputs[0])

text_modifier_bevel = text_obj.modifiers.new(name="Bevel", type="BEVEL")
text_modifier_bevel.width = 0.05
text_modifier_bevel.segments = 5
text_modifier_bevel.use_clamp_overlap = False
text_modifier_bevel.harden_normals = True

text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.angle = - np.pi / 4
text_modifier_simple_deform.deform_axis = "Z"

[3.x] Create Multi-line Text Using Geometry Nodes In Blender | Easy Step-by-Step Tutorial

调整之前的 Geometry Node，使其可以多行显示文字：

png

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
import bpy
import os
import numpy as np

# 获取当前选中的网格对象
bpy.ops.mesh.primitive_cube_add()
text_obj = bpy.context.object

# 创建 Geometry Nodes 网络
text_modifier_geometrynodes = text_obj.modifiers.new(type='NODES', name="Geometry Nodes")
bpy.ops.node.new_geometry_node_group_assign()
node_tree = text_modifier_geometrynodes.node_group

# delete Group Input
node_tree.nodes.remove(node_tree.nodes.get("Group Input"))

# 创建 Special Characters 节点
special_characters_node = node_tree.nodes.new(type='FunctionNodeInputSpecialCharacters')
special_characters_node.location = (-800, 200)

# 创建 String to Curves 节点
string_to_curves_nodes = []
for i in range(2):
    string_to_curves_nodes.append(node_tree.nodes.new(type='GeometryNodeStringToCurves'))
    string_to_curves_nodes[-1].location = (-400, 350 - 400 * i)
    string_to_curves_nodes[-1].align_x = "CENTER"
    string_to_curves_nodes[-1].align_y = "MIDDLE"
    string_to_curves_nodes[-1].inputs[1].default_value = 2.2
string_to_curves_nodes[0].font = bpy.data.fonts.load(os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                  , './fonts/Neon_Future.ttf')))
string_to_curves_nodes[1].font = bpy.data.fonts.load(os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                  , './fonts/Ourland.otf')))

# 创建 Resample Curve 节点
resample_curve_node = node_tree.nodes.new(type='GeometryNodeResampleCurve')
resample_curve_node.location = (250, 50)

resample_curve_node.mode = "EVALUATED"

# 创建 Fill Curve 节点
fill_curve_node = node_tree.nodes.new(type='GeometryNodeFillCurve')
fill_curve_node.location = (450, 50)

# 创建 Extrude Mesh 节点
extrude_mesh_node = node_tree.nodes.new(type='GeometryNodeExtrudeMesh')
extrude_mesh_node.location = (650, 150)

extrude_mesh_node.inputs[3].default_value = 0.4
extrude_mesh_node.inputs[4].default_value = False

# 创建 Flip Faces 节点
flip_faces_node = node_tree.nodes.new(type='GeometryNodeFlipFaces')
flip_faces_node.location = (650, -100)

# 创建 Join Geometry 节点
join_geometry_nodes = []
for i in range(2):
    join_geometry_nodes.append(node_tree.nodes.new(type='GeometryNodeJoinGeometry'))
join_geometry_nodes[0].location = (50, 50)
join_geometry_nodes[1].location = (850, 50)

# 创建 Realize Instances 节点
realize_instances_node = node_tree.nodes.new(type='GeometryNodeRealizeInstances')
realize_instances_node.location = (1050, 50)

# 创建 Merge by Distance 节点
merge_by_distance_node = node_tree.nodes.new(type='GeometryNodeMergeByDistance')
merge_by_distance_node.location = (1250, 50)

# get output node
output_node = node_tree.nodes.get("Group Output")
output_node.location = (1450, 50)

# 创建 String 节点
string_nodes = []
for i in range(3):
    string_nodes.append(node_tree.nodes.new(type='FunctionNodeInputString'))
    string_nodes[-1].location = (-800, -150 * i + 50)
string_nodes[0].string = 'Taco'
string_nodes[1].string = 'Tuesday!'
string_nodes[2].string = 'gigigigigi~'

# 创建 Join Strings 节点
join_strings_node = node_tree.nodes.new(type='GeometryNodeStringJoin')
join_strings_node.location = (-600, 75)

# 创建 Set Position 节点
set_position_nodes = []
for i in range(2):
    set_position_nodes.append(node_tree.nodes.new(type='GeometryNodeSetPosition'))
    set_position_nodes[-1].location = (-150, -250 * i + 200)
set_position_nodes[0].inputs[3].default_value[1] = 2
set_position_nodes[1].inputs[3].default_value[1] = -1

# 连接节点
node_tree.links.new(special_characters_node.outputs[0], join_strings_node.inputs[0])
node_tree.links.new(string_nodes[1].outputs[0], join_strings_node.inputs[1])
node_tree.links.new(string_nodes[0].outputs[0], join_strings_node.inputs[1])
node_tree.links.new(string_nodes[2].outputs[0], string_to_curves_nodes[1].inputs[0])
node_tree.links.new(join_strings_node.outputs[0], string_to_curves_nodes[0].inputs[0])
node_tree.links.new(string_to_curves_nodes[0].outputs[0], set_position_nodes[0].inputs[0])
node_tree.links.new(string_to_curves_nodes[1].outputs[0], set_position_nodes[1].inputs[0])
node_tree.links.new(set_position_nodes[0].outputs[0], join_geometry_nodes[0].inputs[0])
node_tree.links.new(set_position_nodes[1].outputs[0], join_geometry_nodes[0].inputs[0])
node_tree.links.new(join_geometry_nodes[0].outputs[0], resample_curve_node.inputs[0])
node_tree.links.new(resample_curve_node.outputs[0], fill_curve_node.inputs[0])
node_tree.links.new(fill_curve_node.outputs[0], extrude_mesh_node.inputs[0])
node_tree.links.new(fill_curve_node.outputs[0], flip_faces_node.inputs[0])
node_tree.links.new(extrude_mesh_node.outputs[0], join_geometry_nodes[1].inputs[0])
node_tree.links.new(flip_faces_node.outputs[0], join_geometry_nodes[1].inputs[0])
node_tree.links.new(join_geometry_nodes[1].outputs[0], realize_instances_node.inputs[0])
node_tree.links.new(realize_instances_node.outputs[0], merge_by_distance_node.inputs[0])
node_tree.links.new(merge_by_distance_node.outputs[0], output_node.inputs[0])

# 创建 Bevel modifier

text_modifier_bevel = text_obj.modifiers.new(name="Bevel", type="BEVEL")
text_modifier_bevel.width = 0.05
text_modifier_bevel.segments = 5
text_modifier_bevel.use_clamp_overlap = False
text_modifier_bevel.harden_normals = True

# 创建 SimpleDeform modifier，使文本弯曲

text_modifier_simple_deform = text_obj.modifiers.new(name="SimpleDeform", type="SIMPLE_DEFORM")
text_modifier_simple_deform.deform_method = "BEND"
text_modifier_simple_deform.angle = - np.pi / 4
text_modifier_simple_deform.deform_axis = "Z"

Create Wavy or Curvy Text In Blender | Easy Tutorial On Wave Modifier | Dancing Text | Waving Text

  1. 新建一个 Text 对象，调整其文字， Bevel，Alignment：

png

1
2
3
4
5
6
7
8
9
10
import bpy

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.data.body = "Hello, World!"
text_obj.data.extrude = 0.1
text_obj.data.bevel_depth = 0.02
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"
  1. 给它一个 Wave 修改器，调整其参数，就会获得一个波浪动画效果：

png

1
2
3
4
5
6
text_modifier = text_obj.modifiers.new(name="Wave", type="WAVE")
text_modifier.height = 0.75
text_modifier.width = 5
text_modifier.narrowness = 1
text_modifier.start_position_x = 6
text_modifier.speed = 0.2

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
import bpy
import numpy as np

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.data.body = "Hello, World!"
text_obj.data.extrude = 0.1
text_obj.data.bevel_depth = 0.02
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

text_modifier = text_obj.modifiers.new(name="Wave", type="WAVE")
text_modifier.height = 0.75
text_modifier.width = 5
text_modifier.narrowness = 1
text_modifier.start_position_x = 6
text_modifier.speed = 0.2
  1. 如果要将它立起来，先转成 Mesh：

png

1
text_obj.rotation_euler[0] = np.pi / 2
  1. 删除多余的边：Mesh → Merge → By distance：

png

1
2
3
bpy.ops.object.editmode_toggle()
bpy.ops.mesh.select_all(action="SELECT")
bpy.ops.mesh.remove_doubles(threshold=0.01)
  1. 调整其 Rotation，Object → Apply → All Transforms：

png

1
2
3
bpy.ops.object.editmode_toggle()
text_obj.rotation_euler[0] = np.pi / 2
bpy.ops.object.transform_apply()
  1. 添加 Wave：

png

1
2
3
bpy.ops.object.editmode_toggle()
text_obj.rotation_euler[0] = np.pi / 2
bpy.ops.object.transform_apply()

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
import bpy
import numpy as np

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.data.body = "Hello, World!"
text_obj.data.extrude = 0.1
text_obj.data.bevel_depth = 0.02
text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

bpy.ops.object.convert(target="MESH")

bpy.ops.object.editmode_toggle()
bpy.ops.mesh.select_all(action="SELECT")
bpy.ops.mesh.remove_doubles(threshold=0.01)

bpy.ops.object.editmode_toggle()
text_obj.rotation_euler[0] = np.pi / 2
bpy.ops.object.transform_apply()

text_modifier = text_obj.modifiers.new(name="Wave", type="WAVE")
text_modifier.height = 0.75
text_modifier.width = 5
text_modifier.narrowness = 1
text_modifier.start_position_x = 6
text_modifier.speed = 0.2

Easy Method to Engrave Your Text or Logo | How To Carve Any Text | 3D Text Effects In Blender

  1. 新建一个 Text 对象，设置其内容，Alignment，Location：

png

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import bpy
import os

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

text_obj.data.body = "Hello,\nWorld!"

text_obj.location[2] = 0.15

text_obj.data.extrude = 0.3
  1. 转换为 MESH：

png

1
bpy.ops.object.convert(target="MESH")
  1. 按住 X 右键，删除 Limit Dissolve：

png

1
2
bpy.ops.object.editmode_toggle()
bpy.ops.mesh.dissolve_limited()

4.Mesh → Merge → By Distance：

png

png

1
2
3
bpy.ops.mesh.select_all(action="SELECT")
bpy.ops.mesh.remove_doubles(threshold=0.01)
bpy.ops.object.editmode_toggle()
  1. 按住 E 网上拖，获得 Extrude：

png

1
2
bpy.ops.mesh.extrude_region_move(TRANSFORM_OT_translate={"value":(0, 0, 0.3)})
bpy.ops.object.editmode_toggle()
  1. 新建一个 Cube，设置其 Scale：

png

1
2
3
4
bpy.ops.mesh.primitive_cube_add()
cube_obj = bpy.context.object

cube_obj.scale[0:3] = [2.5, 1.2, 0.25]
  1. 设置 Boolean：

png

1
2
3
4
5
cube_modifier_boolean = cube_obj.modifiers.new(name="Boolean", type="BOOLEAN")
cube_modifier_boolean.object = text_obj
bpy.ops.object.modifier_apply(modifier="Boolean")

bpy.ops.object.transform_apply()
  1. 设置材质，应用 Boolean：

png

1
2
3
4
5
6
7
8
cube_material = bpy.data.materials.new(name="Material")
cube_material.use_nodes = True
nodes = cube_material.node_tree.nodes
principled_bsdf = nodes.get("Principled BSDF")
if principled_bsdf is not None:
    principled_bsdf.inputs[0].default_value = (0, 0, 0, 1)

cube_obj.data.materials.append(cube_material)
  1. 应用 Scale：

png

1
bpy.ops.object.transform_apply()
  1. 设置 Bevel 及其相关参数：

png

1
2
3
4
5
6
7
8
cube_modifier_bevel = cube_obj.modifiers.new(name="Bevel", type="BEVEL")
cube_modifier_bevel.width = 0.01
cube_modifier_bevel.segments = 1
cube_modifier_bevel.use_clamp_overlap = False
cube_modifier_bevel.harden_normals = True

text_obj.hide_viewport = True
text_obj.hide_render = True
  1. 导出 .glb 格式，可被 3D Viewer 读取。

png

1
2
bpy.ops.export_scene.gltf(filepath=os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                      , './outputs/1')))

完整代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
import bpy
import os

bpy.ops.object.text_add()
text_obj = bpy.context.object

text_obj.data.align_x = "CENTER"
text_obj.data.align_y = "CENTER"

text_obj.data.body = "Hello,\nWorld!"

text_obj.location[2] = 0.15

# text_obj.data.extrude = 0.3

bpy.ops.object.convert(target="MESH")

bpy.ops.object.editmode_toggle()
bpy.ops.mesh.dissolve_limited()

bpy.ops.mesh.select_all(action="SELECT")
bpy.ops.mesh.remove_doubles(threshold=0.01)
bpy.ops.mesh.extrude_region_move(TRANSFORM_OT_translate={"value":(0, 0, 0.3)})
bpy.ops.object.editmode_toggle()

bpy.ops.mesh.primitive_cube_add()
cube_obj = bpy.context.object

cube_obj.scale[0:3] = [2.5, 1.2, 0.25]

cube_material = bpy.data.materials.new(name="Material")
cube_material.use_nodes = True
nodes = cube_material.node_tree.nodes
principled_bsdf = nodes.get("Principled BSDF")
if principled_bsdf is not None:
    principled_bsdf.inputs[0].default_value = (0, 0, 0, 1)

cube_obj.data.materials.append(cube_material)

cube_modifier_boolean = cube_obj.modifiers.new(name="Boolean", type="BOOLEAN")
cube_modifier_boolean.object = text_obj
bpy.ops.object.modifier_apply(modifier="Boolean")

bpy.ops.object.transform_apply()

cube_modifier_bevel = cube_obj.modifiers.new(name="Bevel", type="BEVEL")
cube_modifier_bevel.width = 0.01
cube_modifier_bevel.segments = 1
cube_modifier_bevel.use_clamp_overlap = False
cube_modifier_bevel.harden_normals = True

text_obj.hide_viewport = True
text_obj.hide_render = True

bpy.ops.export_scene.gltf(filepath=os.path.abspath(os.path.join(os.path.abspath(os.path.dirname(bpy.data.filepath))
                                                                      , './outputs/1')))

Easy Method to Emboss Your Text or Logo | How To Create Raised Letters | 3D Text Effects In Blender

emmmm 差不多就是把上一个的 Boolean 中的 DIfference 改为 UNION。如果有破，要自己修复：

png

Icon
Icon
Icon
Icon
上一篇：Blender-Datasets-auto-generator-based-on-Blender
下一篇：Blender-Text Effects In Blender (1-6)
