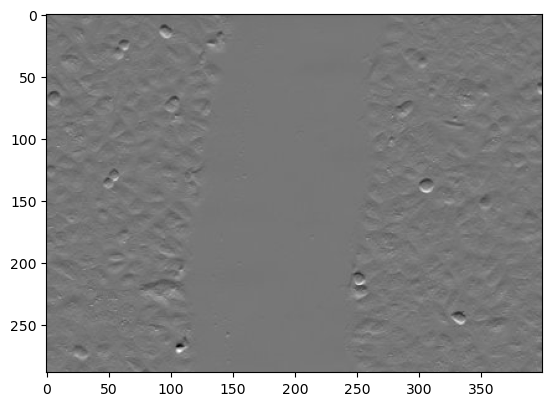

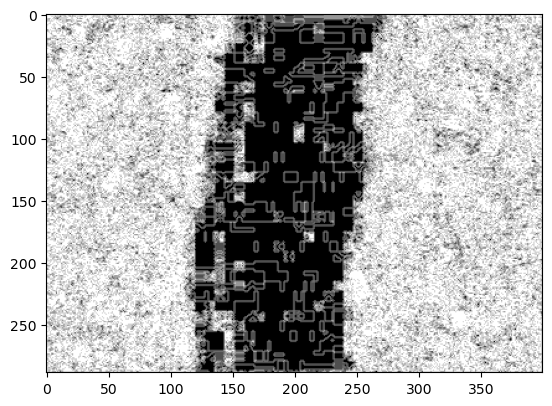

plt.imshow(entropy_img, cmap='gray')

<matplotlib.image.AxesImage at 0x1810981b2e0>

但在如下图像中，熵过滤器的效果并不好

import matplotlib.pyplot as plt
import cv2
from skimage.filters.rank import entropy
from skimage.morphology import disk

img = cv2.imread('images/Yeast_Cells.png', 0)
entropy_img = entropy(img, disk(1))

fig = plt.figure(figsize=(10, 10))

ax1 = fig.add_subplot(121)
ax1.imshow(img, cmap='gray')
ax1.title.set_text('img')

ax2 = fig.add_subplot(122)
ax2.imshow(entropy_img, cmap='gray')
ax2.title.set_text('entropy_img')

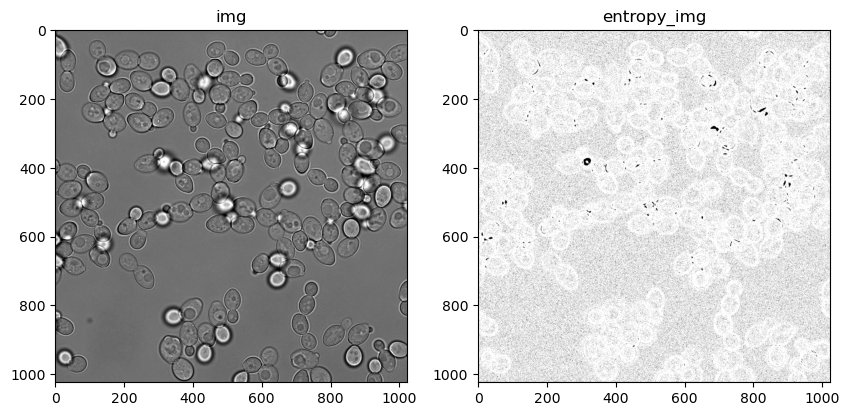

plt.show()

使用 Sobel 过滤器

import matplotlib.pyplot as plt
import cv2
from skimage.filters.rank import entropy
from skimage.morphology import disk

img = cv2.imread('images/Yeast_Cells.png', 0)
entropy_img = entropy(img, disk(1))

from scipy import ndimage as nd

gaussian_img = nd.gaussian_filter(img, sigma=3)

from skimage.filters import sobel

sobel_img = sobel(img)

fig = plt.figure(figsize=(10, 10))

ax1 = fig.add_subplot(131)
ax1.imshow(img, cmap='gray')
ax1.title.set_text('img')

ax2 = fig.add_subplot(132)
ax2.imshow(gaussian_img, cmap='gray')
ax2.title.set_text('gaussian_img')

ax3 = fig.add_subplot(133)
ax3.imshow(sobel_img, cmap='gray')
ax3.title.set_text('sobel_img')

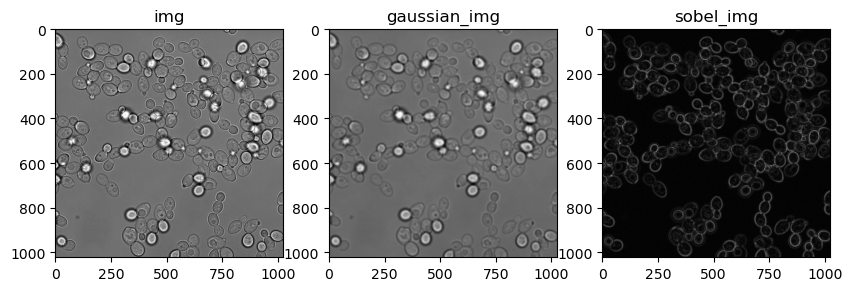

plt.show()

使用 Pandas 统计数据用于机器学习

import matplotlib.pyplot as plt
import cv2
from skimage.filters.rank import entropy
from skimage.morphology import disk
from scipy import ndimage as nd
from skimage.filters import sobel
import pandas as pd

img = cv2.imread('images/Yeast_Cells.png', 0)
img2 = img.reshape(-1)

df = pd.DataFrame()
df['Original Pixel Values'] = img2

entropy_img = entropy(img, disk(1))
entropy1 = entropy_img.reshape(-1)
df['Entropy'] = entropy1

gaussian_img = nd.gaussian_filter(img, sigma=3)
gaussian1 = gaussian_img.reshape(-1)
df['Gaussian'] = gaussian1

sobel_img = sobel(img)
sobel1 = sobel_img.reshape(-1)
df['Sobel'] = sobel1

df

	Original Pixel Values	Entropy	Gaussian	Sobel
0	123	1.584963	116	0.027311
1	122	1.500000	113	0.025565
2	116	2.000000	109	0.032590
3	114	2.000000	103	0.063612
4	99	2.000000	97	0.098479
...	...	...	...	...
1048571	111	2.000000	107	0.022570
1048572	118	2.000000	107	0.007466
1048573	106	2.000000	108	0.021702
1048574	109	1.500000	108	0.012783
1048575	112	1.584963	108	0.005280

1048576 rows × 4 columns

58 - What are Gabor filters

g(x,y;\lambda,\theta,\psi,\sigma,\gamma)=\exp \left(-\frac{x'^2+\gamma^2y'^2}{2\sigma^2}\right)\cdot\exp\left[i\left(2\pi\frac{x'}{\lambda}+\psi\right)\right]

根据欧拉公式：

$e^{ix}=\cos x + i \sin x$

实数部分：

g(x,y;\lambda,\theta,\psi,\sigma,\gamma)=\exp \left(-\frac{x'^2+\gamma^2y'^2}{2\sigma^2}\right)\cdot\cos\left(2\pi\frac{x'}{\lambda}+\psi\right)

虚数部分：

g(x,y;\lambda,\theta,\psi,\sigma,\gamma)=\exp \left(-\frac{x'^2+\gamma^2y'^2}{2\sigma^2}\right)\cdot\sin\left(2\pi\frac{x'}{\lambda}+\psi\right)

其中 $x'=x\cos\theta + y\sin \theta$ , $y'=-x\sin\theta + y\cos \theta$

$\lambda$ represents the wavelength of the sinusoidal factor.
- $\lambda$ 表示正弦因子的波长。
$\theta$ represents the orientation of the normal to the parallel stripes of a Gabor function.
- $\theta$ 表示Gabor函数平行条纹的法线方向。
$\psi$ is the phase offset.
- $\psi$ 为相位偏移量。
$\sigma$ is the sigma/standard deviation of the Gaussian envelope.
- $\sigma$ 为高斯包络线的标准差/标准差。
$\gamma$ is the spatial aspect ratio, and specifies the ellipticity of the support of the Gabor function.
- $\gamma$ 为空间纵横比，表示Gabor函数支持度的椭圆度。越接近 1，越像圆；越接近 0，越像椭圆。

1	`# kernel = cv2.getGaborKernel((ksize, ksize), sigma, theta, lamda, gamma, phi, ktype=cv2.CV_32F)`

import numpy as np
import cv2
import matplotlib.pyplot as plt

ksize = 5
sigma = 3
theta = 1 * np.pi / 4
lamda = 1 * np.pi / 4
gamma = 0.5
phi = 0

kernel = cv2.getGaborKernel((ksize, ksize), sigma, theta, lamda, gamma, phi, ktype=cv2.CV_32F)

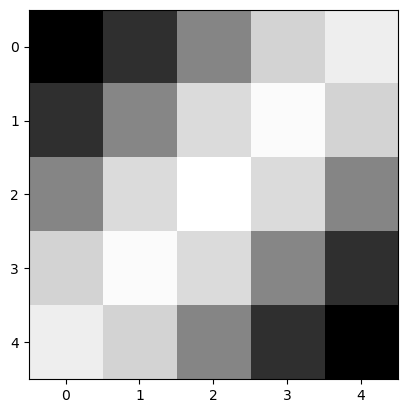

plt.imshow(kernel, cmap='gray')

<matplotlib.image.AxesImage at 0x2021c8e8d90>

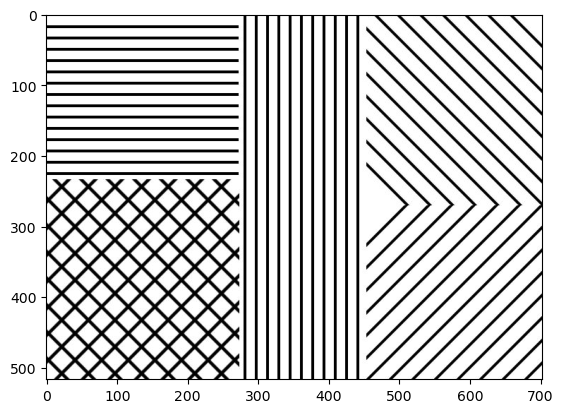

1 2	`img = cv2.imread('images/synthetic.jpg', 0) plt.imshow(img, cmap='gray')`

<matplotlib.image.AxesImage at 0x2021c966fd0>

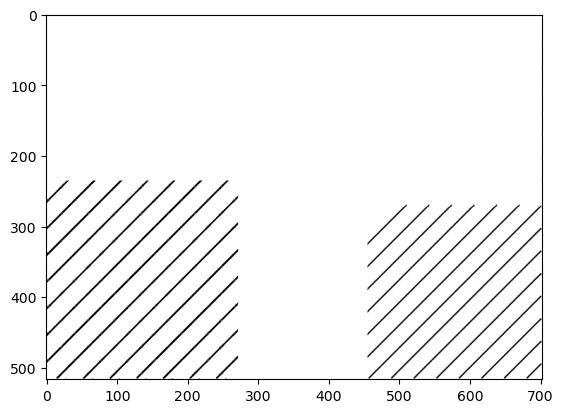

1 2	`fimg = cv2.filter2D(img, cv2.CV_8UC3, kernel) plt.imshow(fimg, cmap='gray')`

<matplotlib.image.AxesImage at 0x2021c9bec40>

通过修改 $\theta$ 的值来使 Gabor 过滤器识别右下斜线。

import numpy as np
import cv2
import matplotlib.pyplot as plt

ksize = 5
sigma = 3
theta = 3 * np.pi / 4
lamda = 1 * np.pi / 4
gamma = 0.5
phi = 0

kernel = cv2.getGaborKernel((ksize, ksize), sigma, theta, lamda, gamma, phi, ktype=cv2.CV_32F)
fimg = cv2.filter2D(img, cv2.CV_8UC3, kernel)

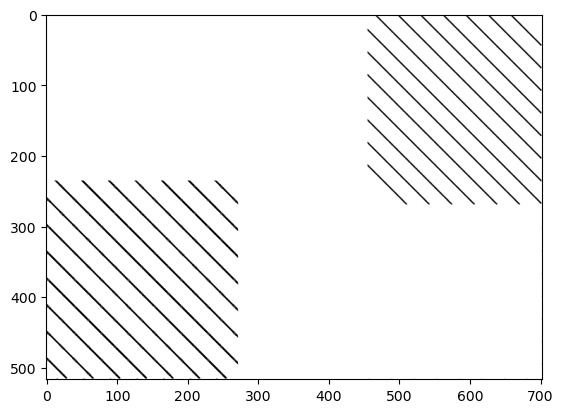

plt.imshow(fimg, cmap='gray')

<matplotlib.image.AxesImage at 0x2021c697b20>
